American Standard Selectronic 6062.013 User manual

Installation Instructions
Installation Instructions
(In Toronto Area only: 1-905-3061093)
Certified to comply with ASME A112.19.2M
© 2011 AS America, Inc.
NOTE TO INSTALLER: Please give this manual to the customer after installation.
Exposed Flushometer
for 3/4"Top Spud Urinals
CLOG RESISTANT
• Self-cleaning piston valve prevents clogging and reduces maintenance.
ONE SENSOR FITS ALL
• Only 1 sensor for entire Selectronic™ line of faucets, urinals, and ush valves.
• Range can be adjusted manually or with optional remote control.
M965218 REV 1.8
6062.013
6062.025
6062.051
6062.101
6061.013
6061.025
6061.051
6061.101
MODEL NUMBERS
To learn more about American Standard Faucets visit our website at: www.americanstandard-us.com
or U.S. customer's e-mail us at: [email protected]
For Parts, Service, Warranty or other Assistance,
please call 1-800-442-1902 (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-3061093)
SELECTRONIC®
HARD-WIRED AC POWERED PROXIMITY
URINAL FLUSH VALVE
0.125 0.25 0.5 & 1.0 GPF

All American Standard Products Are Water Tested At Our Factory.
Some Residual Water May Remain In The Valve During Shipping.
Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years.To ensure that your
installation proceeds smoothly--please read these instructions carefully before you begin.

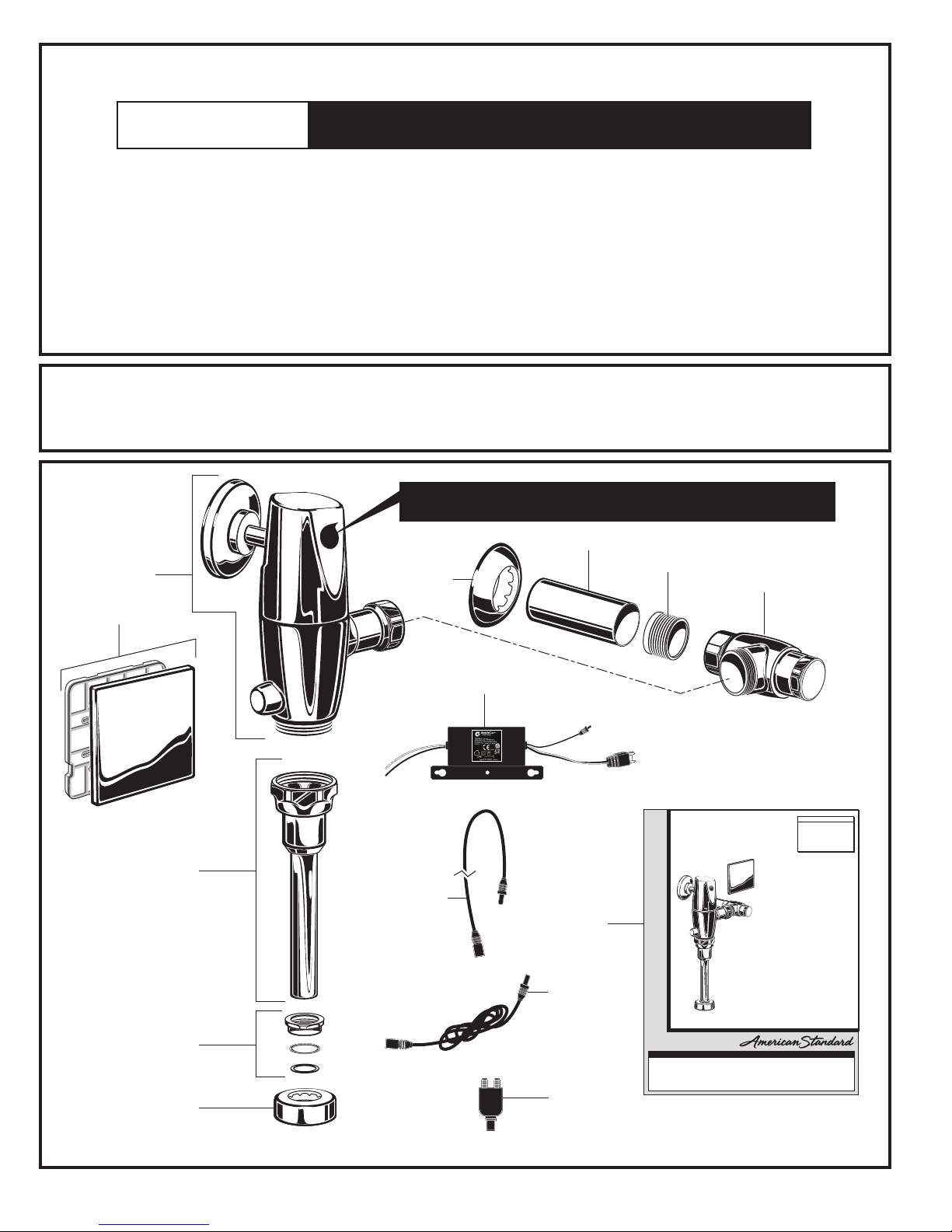

UNPACKING
1
15
6
78
9
10
11
DO NOT REMOVE PROTECTIVE FILM FROM SENSOR
EYE UNTIL INSTALLATION IS COMPLETE.
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
CARE INSTRUCTIONS:
M965218 REV 1.8
2
3
4
Supply Stop
Installation Instructions
Front Panel
Power Supply
10' Extension Cable for Multi-AC (6061.013, .025, .051, .101)
Cable Extension, 27"
Y Connector (6061.013, .025, .051, .101)
1. Flush Valve Assembly
2. Down Tube and Vacuum Breaker
3. Spud Coupling Nut and Washers
4. Spud Flange
5. Sweat Solder Adapter
6. Cover Tube
7. Wall Escutcheon
8.
9.
10.
11.
12.
13.
14.
12
14
13
Installation Instructions
In st al la ti on I ns tructions
(In Toronto Area only: 1-905-3061093)
Certified to comply with ASME A112.19.2M
© 2011 AS America, Inc.
NOTE TO INSTALLER: Please give this manual to the customer after installation.
Exposed Flushometer
for 3/4"Top Sp u d U ri n a ls
CLOG RESISTANT
• Self-cleaning piston valve prevents clogging and reduces maintenance.
ONE SENSOR FITS ALL
• Only 1 sensor for entire Selectronic™ line of faucets, urinals, and ush valves.
• Range can be adjusted manually or with optional remote control.
M965218 REV 1.8
6062.013
6062.025
6062.051
6062.101
6061.013
6061.025
6061.051
6061.101
MODEL NUMBERS
To learn more about American Standard Faucets visit our website at: www.americanstandard-us.com
or U.S. customer's e-mail us at: [email protected]
For Parts, Service,Warranty or other Assistance,
please call 1-800-442-1902 (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-3061093)
SELECTRONIC®
HARD-WIRED AC POWERED PROXIMITY
URINAL FLUSH VALVE
0.125 0.25 0.5 & 1.0 GPF
1. Remove the Flush Valve items from the carton. The illustration below shows all items after they
have been removed from the carton. Some items may be packaged partially assembled to other items.

2
RECOMMENDED TOOLS; Fig. 2 Fig. 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Teflon Tape
Flat Blade Screwdriver
Adjustable Wrench
Tape Measure
Hacksaw
Tubing Cutter
File
For Sweat Connection; Solder and Torch
2.5mm Hex Wrench
1.5mm Hex Wrench
123
4
5
6
7 9 10
8
PRIOR TO INSTALLATION
Note: Prior to installing the Selectronic™Flush Valve
the following items must be installed.
1. Urinal
2. Drain line
3. Water supply line
• Flush all water lines prior to operation (See Step 6). Dirt
and debris can cause flush valve to run continuously.
• With the exception of Supply Stop Inlet, DO NOT
use pipe sealant or plumbing grease on any
valve component or coupling!
• Protect the chrome or special finish on the Flushometer.
DO NOT USE toothed tools on finished surfaces to install
or service these valves. Also see “Care and Cleaning”
section of this manual.
• This product contains mechanical and/or electrical
components that are subject to normal wear. These
components should be checked on a regular basis and
replaced as needed to maintain the valve’s performance.
Fig. 1
Roughing-in Dimensions GENERAL DESCRIPTION:
Right or Left Hand Installation
10'
Exposed Flushometer
for 3/4" Top Spud Fixtures
SELECTRONIC™
PROXIMITY TOILET
FLUSH VALVE
See (Section 7) for converting Flush
Valve to Left Hand Installation.
409mm
(16-1/8")
293mm
(11-1/2")
-C-L-
-C-L-
116mm
(4-5/8") 86mm
(3-3/8)
72mm
(2-7/8")
DETECTION ZONE
400mm-800mm
(15-3/4" TO 31-1/2")
SUPPLY
DN 20mm
(3/4" I.P.S.)
15˚
FINISHED WALL
FINISHED TILE WALL
NOTE: INSTALL PLASTER
RING SO THAT SCREW
HOLES ARE ON THE LEFT
AND RIGHT SIDE OF BOX.
FINISHED PLASTER WALL
FINISHED WALL
OPENING
51mm (2") HOLE
FOR CONDUIT
SEE DETAIL “A”
DETAIL “A”
MANUAL
OVERRIDE
BUTTON
*CRITICAL
LEVEL
*Note: The Critical Line (-C-L-) on Vacuum
Breaker must typically be 6"(152mm) above
fixture. Consult Codes for details.
45˚
180˚
305mm
(12" MAX.)
M965218 REV 1.8
FOR 3/4" TOP
SPUD FIXTURES
152mm
(6") MIN.
57mm - 76mm
(2-1/4") - (3")
115mm - 134mm
(4-1/2") - (5-1/4")
Exclusive, self cleaning piston-type
flush valve with proximity operation
and manual override. Operates on
AC power. Recommended operating
pressure 20psi (flowing) to 80 psi
(static). Can install left or
right-handed. Detection Zone can
also be adjusted manually, or with
optional remote control.
IMPORTANT:
• All plumbing and electrical wiring must be installed in
accordance with applicable codes, regulations and
standards.
• The use of water hammer arrestors is strongly
recommended for commercial applications. All piping
behind the walls should be properly secured and
fastened.
• Water supply lines must be sized to provide an
adequate volume of water for each fixture.
4"(102 mm) SQ. BOX DEVICE COVER (PLASTER RING)
3/4"(19 MM) HIGH Hubbel-RACO #779 OR EQUAL
(BY CONTRACTOR).
OPTIONAL: w/Appleton #4SDI or EQUAL OUTLET BOX.
4"(102mm) SQ. X 2-1/8"(54mm) DEEP ELECTRICAL BOX
Hubbel-RACO #8231 OR EQUAL (BY CONTRACTOR).
OR
4"(102mm) SQ. X 2-1/2"(64mm) DEEP OUTLET BOX
APPLETON #4SDI OR EQUAL (BY CONTRACTOR).

3

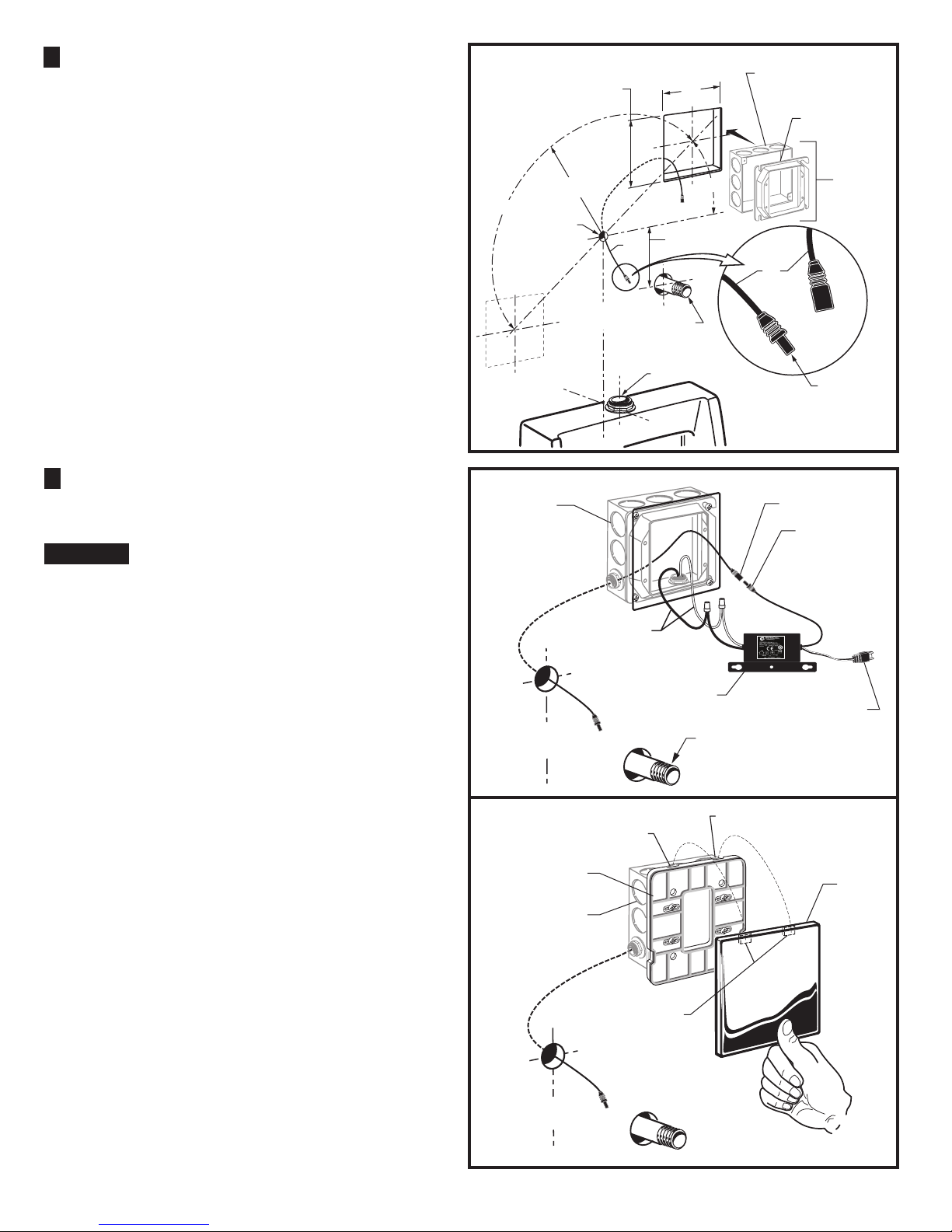

INSTALL ELECTRICAL BOX
ASSEMBLY; Fig. 3
1. Drill a 2" diameter hole in the finished wall for the
conduit tube from the flush valve at the dimension
shown. Fig.3.
2. Cut a 127x127mm (5"x 5") opening in finished wall for
2-GANG ELECTRICAL BOX (1) (not supplied) at the
dimensions shown.
3. Feed SENSOR CABLE (2) through wall opening and
out 2" diameter hole.
Important: Make sure the smaller end of the SENSOR
CABLE (2) goes through the 2" diameter hole.
4. Install 2-GANG ELECTRICAL BOX (1).
Note: The 2-GANG ELECTRICAL BOX (1) can be
installed in any location along the 180˚ arc.
1
INSTALL POWER SUPPLY AND
MAKE ELECTRICAL CONNECTIONS;
Fig. 4
CAUTION Turn power supply OFF before
making connections
1. Mount POWER SUPPLY (1) into 2-GANG ELECTRICAL
BOX (2). Connect White and Black power connections to
POWER SUPPLY (1).
2. Una la 27" EXTENSIÓN DE CABLE (3) AL CABLE DE
SUMINISTRO DE ENERGÍA (1a).Fig. 4a.
3. After POWER SUPPLY (1) is installed and wire
connections are completed install the FRONT PANEL
FRAME (4) to the 2-GANG ELECTRICAL BOX (2). Fig. 4b.
4. Install the two Tabs on the back side of the FRONT
PANEL (5) into the two Slots located on the top edge of
the FRONT PANEL FRAME (4). Push on bottom until it
snaps into place. Fig. 4b.
2
SUPPLY
DN 20mm
(3/4" I.P.S.)
SUPPLY
DN 20mm
(3/4" I.P.S.)
M965218 REV 1.8
Fig.3 (TOP SPUD FIXTURE ILLUSTRATED)
1
127mm
(5")
80mm
(3-3/8")
(51mm) 2" DIA.
HOLE FOR
CONDUIT
127mm
(5")
305mm
(12" MAX.)
180˚
45˚
C/L OF
FIXTURE
SMALL END
2
2
Detail A.
3/4" TOP SPUD
BLACK & WHITE
POWER
CONNECTIONS
3
1a
Fig.4
Fig.4a
Fig.4b
1
TAB S
SLOT
SLOT
CONNECTOR NOT USED
IN THIS INSTALLATION
C/L OF
FIXTURE
2
C/L OF
FIXTURE
45
2
Hubbel-RACO 8231 4"
ELECTRICAL BOX
OR EQUIVALENT BY
CONTRACTOR
Hubbel-RACO 779

M965218 REV 1.8
4
Fig.4c
BLACK & WHITE
POWER
CONNECTIONS
Hubbel-RACO 8231 4" ELECTRICAL BOX
OR EQUIVALENT BY CONTRACTOR
5
6
5
6
5
6
2
1
44 4
37 7 7
Unit #2 Unit #3

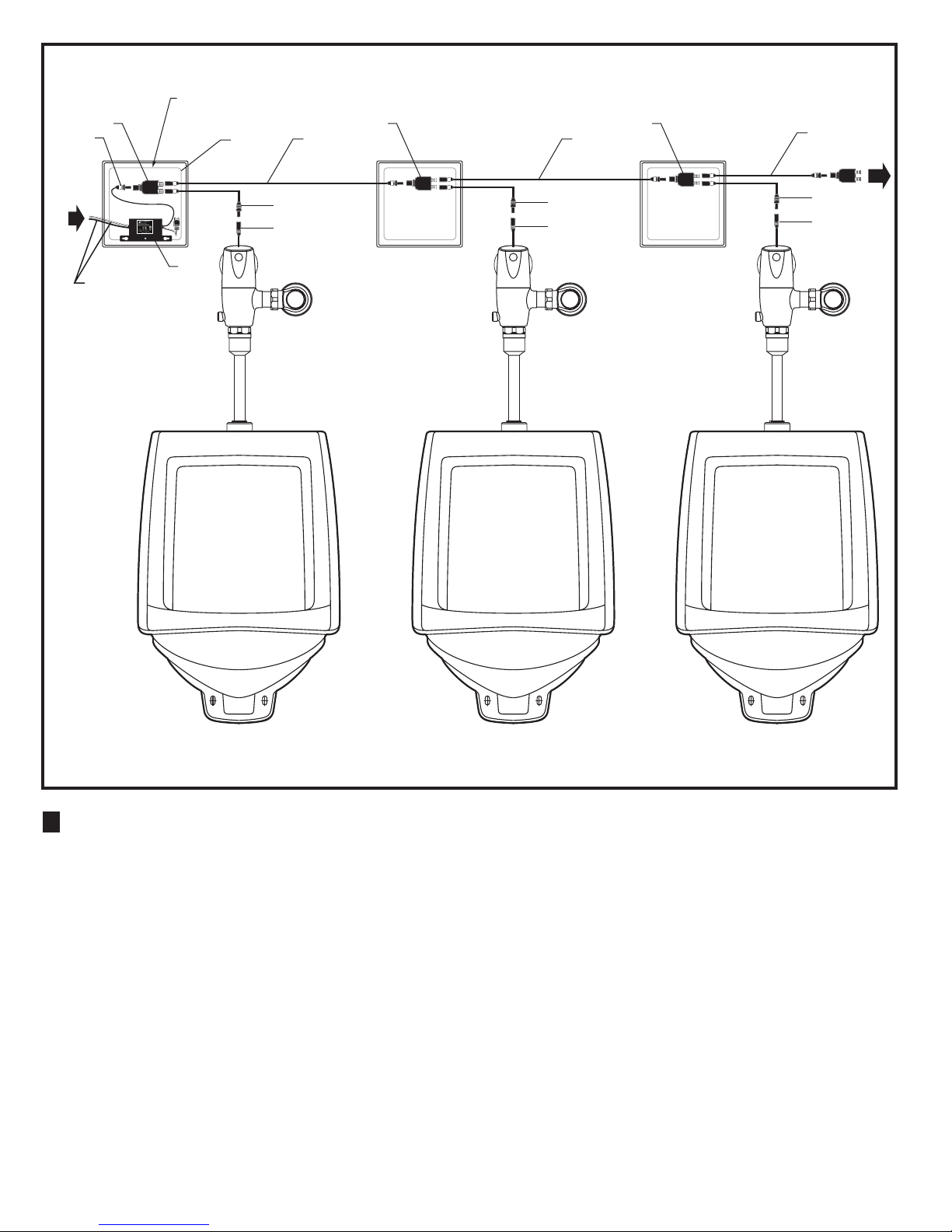

FOR AC-VERSION (MULTI HOOK-UP); Fig. 4c
1. Contractor to supply ELECTRICAL BOX (1). Mount POWER SUPPLY (2) into ELECTRICAL BOX (1). Connect White
and Black power connections to POWER SUPPLY.
2. Connect the POWER CABLE (3) from the power supply to the SPLITTER (4).
3. Connect the 27" CABLE EXTENSION (5) to the SPLITTER (4) and to the SENSOR CABLE (6) from the flush valve.
4. Connect the 10' MULTI EXTENSION POWER CABLE (7) to the SPLITTER (4) and to the end of the next SPLITTER and so on.
5. Repeat steps 3 and 4 as necessary for additional Multi-AC units required.
3
Unit #1

1
1
4
2
3
Fig. 6
1. Measure from finished wall to first thread of Adapter
or threaded supply pipe (dimension “X”). Cut
COVER TUBE (1) to length (X). Apply Teflon Tape to
the threaded end of the Adapter or supply pipe. Fig. 6a.
2. Push the COVER TUBE (1) into the WALL ESCUTCHEON
(2). Slide both onto the SUPPLY PIPE (3). Fig. 6b.
3. Push the COVER TUBE (1) in to expose the threads of
the supply pipe. Fig. 4c. With a wrench thread the
SUPPLY STOP (4) onto the SUPPLY PIPE (3). Align and
tighten. Fig. 6c.
4. Pull COVER TUBE (1) against SUPPLY STOP (4) and
push WALL ESCUTCHEON (2) against finished wall.
5
INSTALL COVER TUBE, WALL
ESCUTCHEON and SUPPLY STOP;
Fig. 6
5
TEFLON TAPE
FINISHED WALL

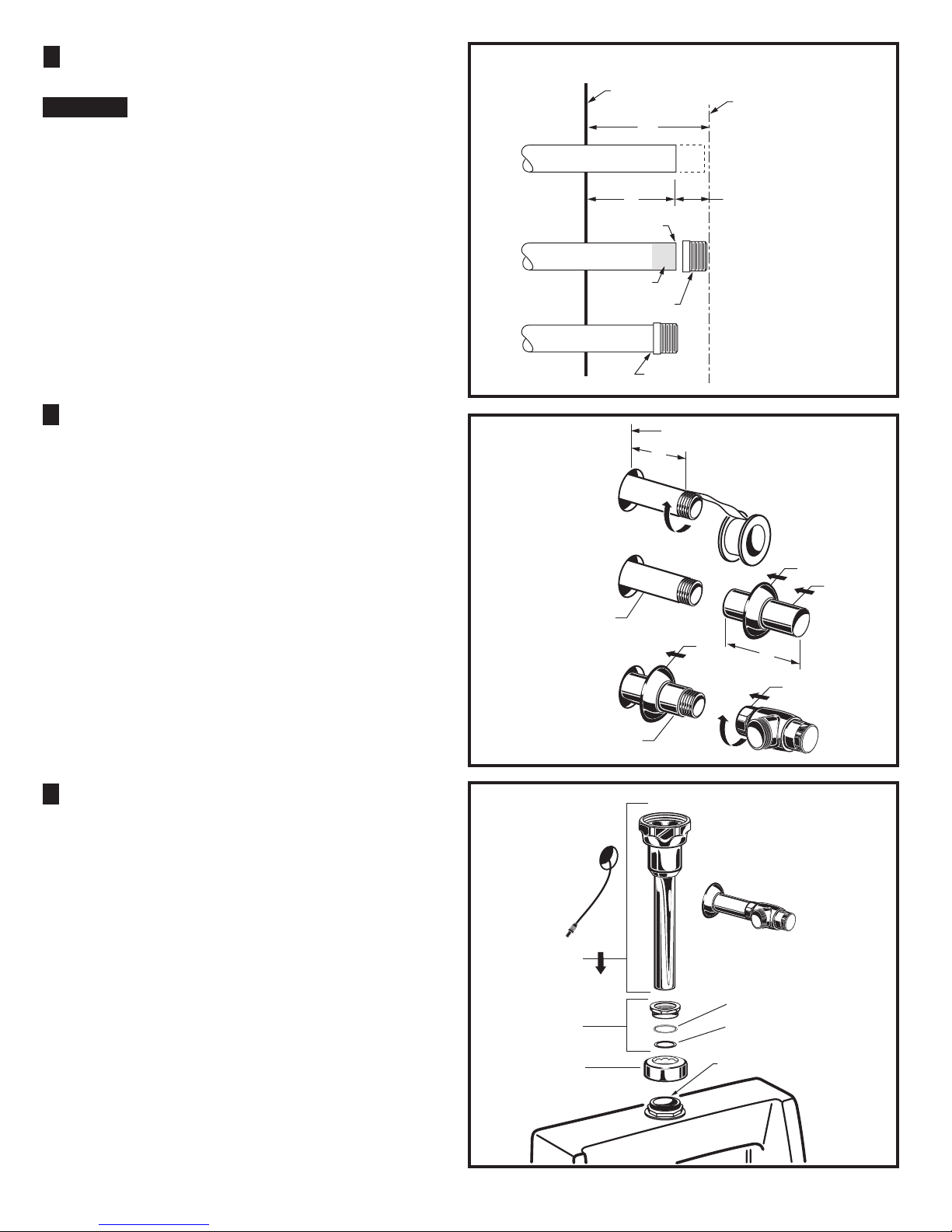

INSTALL THE SWEAT SOLDER
ADAPTER; Fig. 5
CAUTION Turn water supplies off
before beginning
Note: Install Optional Sweat Solder Adapter
(Supplied) for copper pipe supply line. Fig. 5.
1. Measure the distance (A) from the finished wall to the
center of the inlet spud on the fixture.
2. Cut the supply pipe 1-1/4" (A-B=C) shorter then the
measurement taken in Step 1. File any rough edges off
the end of the supply pipe.
3. Clean the end of the supply pipe. Push the threaded
Adapter on until it is seated against the internal stop.
Sweat the Adapter to the pipe.
4
CENTER LINE OF
FIXTURE SPUD
FINISHED WALL
FILE EDGES
SOLDER
ADAPTER
Fig.5
ADAPTER
32mm
(1-1/4")
A
(A-B)= B
C
X
X
CLEAN
1. Place the SPUD FLANGE (1) over the spud on
the Fixture.
2. Thread SPUD COUPLING NUT (2) onto Spud.
Make sure SEAL WASHER (3) and FRICTION
WASHER (4) are installed. Do not tighten fully.
3. Insert the DOWN TUBE (5) into the SPUD
COUPLING NUT (2) and push it down.
Note: If cutting Down Tube (5) to size, note that
Critical Line (C/L) on Vacuum Breaker must
typically be 6"(152mm) above fixture. Consult Code
for details.
INSTALL DOWN TUBE AND
VACUUM BREAKER; Fig. 7
6
Fig. 6a
Fig. 6b
Fig. 6c
2
M965218 REV 1.8
1
2
3
4
5
Fig. 7
3/4" TOP SPUD

6
1
CLOCKWISE CLOSES
CONTROL STOP
COUNTER-CLOCKWISE
OPENS CONTROL STOP
REMOVE COVER
Fig. 8

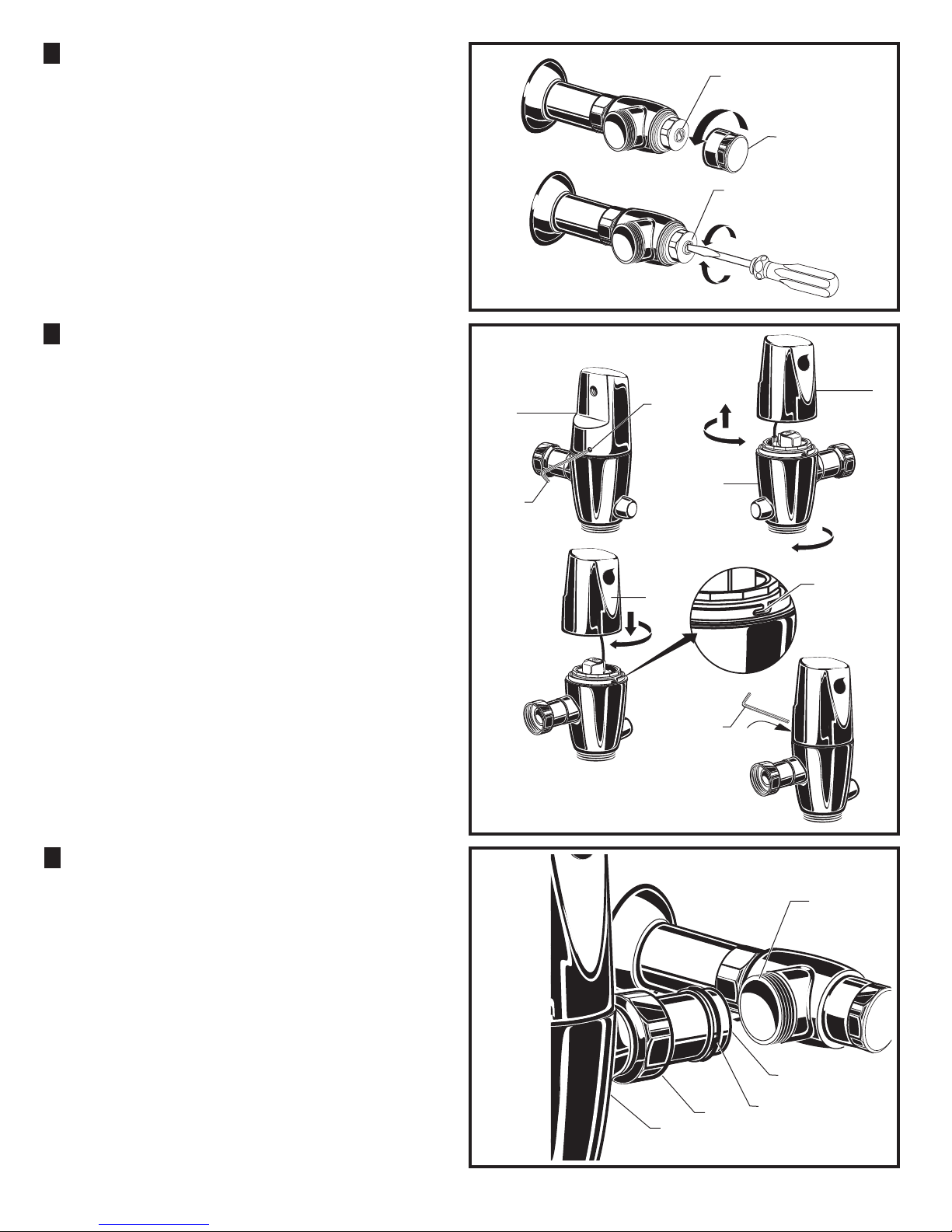

1. Remove COVER (1) from SUPPLY STOP (2).
2. With a flat blade screwdriver open SUPPLY STOP (2).
3. Turn on water supply to flush line of any debris or
sediment.
4. Close SUPPLY STOP (2) and replace COVER (1).
FLUSH OUT SUPPLY LINES; Fig. 8
7
4
Fig. 9a
Fig. 9c
Fig. 9d
Fig. 9
3
The UNIT is shipped with the inlet flange on the right
side. If needed, the orientation can be reversed by
following the steps below.
1. Loosen SET SCREW (1) with 2.5mm Hex Wrench (4)
in back of top half of FLUSH VALVE (2). Fig. 9a.
2. Rotate COVER (2) to the right and pull off. Fig. 9b.
3. Rotate bottom half of FLUSH VALVE (3) 180˚. Fig. 9b.
4. Replace COVER (2) and rotate until key engages than
tighten SET SCREW (1). Fig. 9c, 9d.
8 LEFT OR RIGHT HAND
INSTALLATION; Fig. 9
8
4
2
2
KEY
2
2
1
3
Fig. 9b
180˚
Fig. 10a
3
25
1
1. Insert the side INLET FLANGE (1) on the FLUSH
VALVE (2) into the SUPPLY STOP (3). Lubricate the
INLET FLANGE O-RING (4) with water if necessary.
Lightly tighten COUPLING NUT (5). Fig. 10a.
Important: Do not use lubricants (other than water)
or any type of thread sealing paste or tape.
2. Align the FLUSH VALVE (2) (Fig. 10b) directly above
the DOWN TUBE (7) and VACUUM BREAKER
COUPLING NUT (6). Make sure that GASKET (10)
is installed.
Note: There is a +13mm, -6mm (+1/2, -1/4) tolerance
for the 121mm (4-3/4) dimension. Fig. 10b.
INSTALL FLUSH VALVE; Fig. 10a
9
4
2
1
M965218 REV 1.8

1
Fig. 10b
7
Fig. 12
2
CLOCKWISE CLOSES
CONTROL STOP
IMPORTANT: To avo id overfl o w ing, the S U P P LY STO P ( 3 )
must never be opened to the point where the flow from
the valve exceeds the flow capacity of the fixture. The
fixture must be able to handle a continuous flow in case
of a flush valve failure.
1. After installation is complete, peel off the PROTECTIVE
FILM (1) from the sensor. Standing to one side, block the
sensor with your hand for 10 seconds.
Remove your hand and listen for audible “click” from
within the valve.
2. Remove COVER (2) from SUPPLY STOP (3).Turn on
water supply 1/4 turn to 1/2 turn(CCW) and test for leaks.
Note: Unit may flush for approximately 5 to 10 sec. when
water is first turned on. If flow persists, turn water off and
repeat step #1 above.
3. Actuate the FLUSH VALVE:
A) Cover sensor with hand for 10 seconds.
NOTE: Stand outside of sensor detection aera.
B) Remove hand from in front of the sensor; unit will
flush in approximately 3 seconds.
4. Adjust SUPPLY STOP (3) after each flush until the stated
flush volume is achieved, no splashing occurs and the
fixture is properly cleansed.
5. When adjustment is complete, replace COVER (2)
and tighten to ensure vandal-resistance.
ADJUST SUPPLY STOP; Fig. 12
Fig. 11
Fig. 11a
Fig. 11b
INSTALL CONDUIT, ESCUTCHEON
AND SENSOR CABLE; Fig. 11
1. Remove COVER ASSEMBLY (1). See step seven to
remove the COVER ASSEMBLY (1). Fig. 9a.
2. Thread CONDUIT (2) into COVER ASSEMBLY (1) and
secure by tightening LOCK NUT (3). Fig. 11a.
3. Slide ESCUTCHEON (4) onto CONDUIT (2). Fig. 11b.
4. Feed the 27" CABLE EXTENSION (5) thru CONDUIT (2)
and connect the CABLE END (5a) to the SENSOR
CABLE (7) in the COVER ASSEMBLY (1). Fig. 11b.
Tuck SENSOR CABLE (5) into COVER ASSEMBLY (1).
5. Insert CONDUIT (2) into hole in wall while replacing
COVER ASSEMBLY (1). Rotate until key engages then
tighten SET SCREW (1). Fig. 9c, 9d.
Note: If space between wall and valve are too tight, the
CONDUIT (2) will have to be removed and replaced
after the COVER ASSEMBLY (1) is installed.
6. Slide ESCUTCHEON (4) tight against finished wall and
secure by tightening SET SCREW (7). Fig. 11b.
3
1. Pull the DOWN TUBE (7) up to meet the threaded
FLUSH VALVE CONNECTION (8) and hand tighten
the VACUUM BREAKER COUPLING NUT (6). Align
all components of the flush valve assembly. Fig. 10b.
2. Lightly tighten the COUPLING NUT (5) connection first,
then the VACUUM BREAKER COUPLING NUT (6) and
finally the SPUD COUPLING NUT (9). Once alligned
correctly, use a wrench to tighten couplings to make
water tight connections. Fig. 10b.
INSTALL FLUSH VALVE; Fig. 10b
3
2
1
1
4
5
5a
6
7
2
COUNTER-CLOCKWISE
OPENS CONTROL STOP
12
REMOVE COVER
M965218 REV 1.8
7
9
6
2
5
8
121mm,+13mm, -6mm
(4-3/4)(+1/2, -1/4)
10
11

8

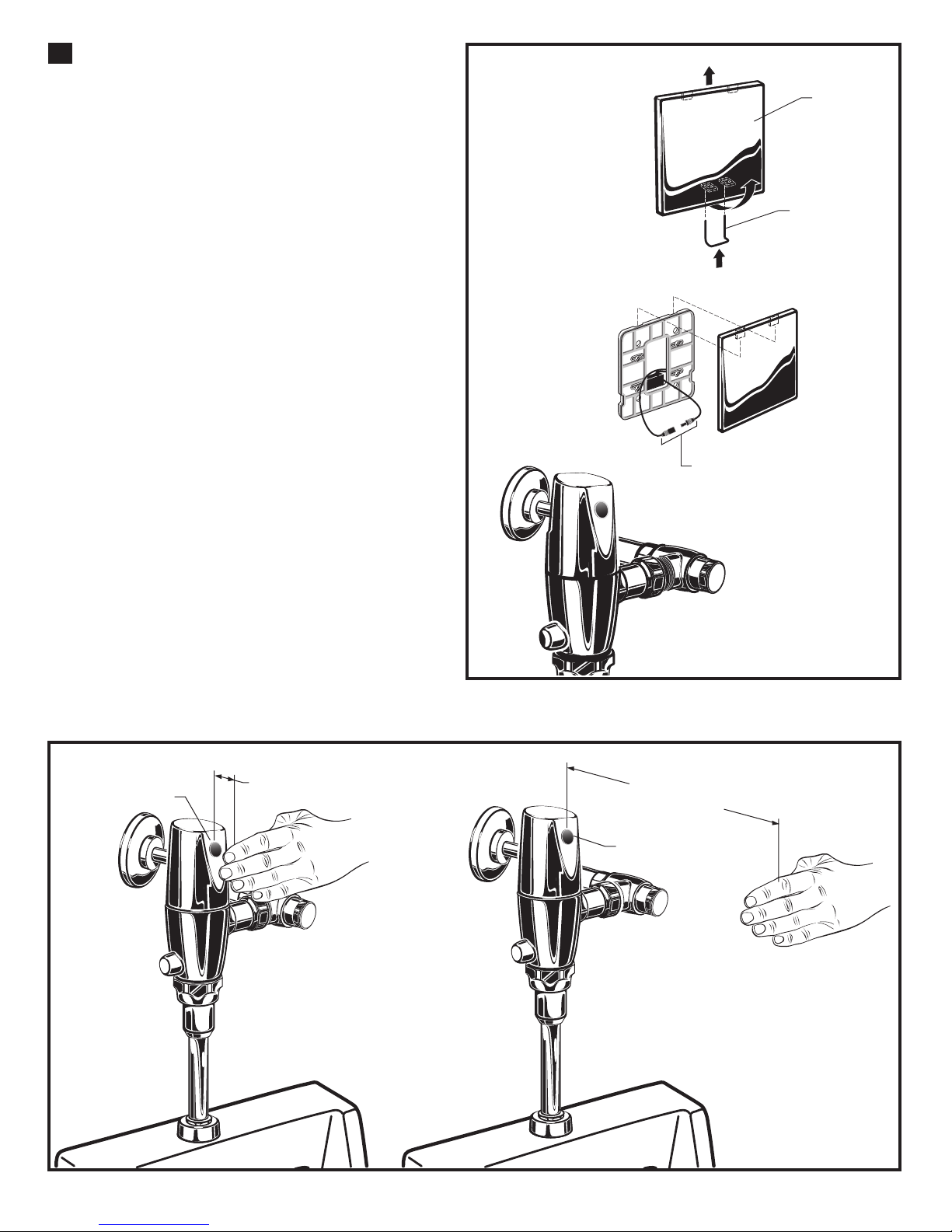

Note: The detection distance is preset and is ideal for
most installations. Should an adjustment be required
follow the steps below.
1. To remove the FRONT PANEL (1), insert WIRE KEY (2)
(supplied) into the two holes located at the bottom of the
FRONT PANEL (1). Push the WIRE KEY (2) up until it
releases the bottom clips. Pull the bottom edge away
and lift the FRONT PANEL (1) off. Fig. 13a.
2. Pull out the POWER SUPPLY CONNECTOR (3).
Disconnect and then reconnect the the POWER
SUPPLY CONNECTOR (3). Fig. 13b.
Note: Yo u w i l l h ave 5 s e c o n d s a ft e r c o n n e c t i n g b o t h
connectors to enter the program code.
3. While the SENSOR CONTROL LED (6) is blinking
slowly, place your hand 1 to 2 in. (30-50mm.) in front of
the sensor. Fig. 14a.
4. When the LED (6) stops blinking and stays "ON", move
your hand to the desired position from sensor (detection
zone, 1-1/2" to 31", 38 to 787mm ) and hold in place until
the LED (6) begins to blink again. Fig. 14b.
Note: Detection Zone is 1-1/2" to 31", 38 to 787mm from
sensor.
5. Once the SENSOR CONTROL LED (6) begins to blink
again, remove your hand from the detection zone. When
the flashing stops, the detection distance is set.
6. Actuate the FLUSH VALVE:
A) Cover sensor with hand for 10 seconds. NOTE:
Stand outside of sensor detection aera.
B) Remove hand from in front of the sensor; unit will
flush in approximately 3 seconds.
HOWTO SET DETECTION RANGE
(If Required) ; Fig. 13 & 14
Fig. 13
Fig. 13a
Fig. 13b
13
1
2
3
M965218 REV 1.8
6
6
Fig. 14
Fig. 14a Fig. 14b
DETECTION ZONE
38mm TO 787mm
(1-1/2" TO 31")
1" - 2" (30mm - 50mm)
BLINKING LED
BLINKING LED

9M965218 REV 1.8
IS STOP VALVE OPEN?
TRY MANUAL VALVE BUTTON;
WILL THE UNIT FLUSH? NO REPLACE PISTON KIT
NO REPLACE SENSOR NO
YES YES YES
OPEN VALVE UNIT WILL ONLY FLUSH MANUALLY
RETRY AUTOMATIC FLUSH.
DOES THE UNIT FLUSH?
RETRY AUTOMATIC FLUSH.
TEST SENSOR. DISCONNECT
SENSOR CABLE FROM
COVER AND RE-CONNECT. SENSOR
SHOULD FLASH FOR 5 SECONDS.
DOES IT FLASH?
TEST SENSOR. DISCONNECT
SENSOR CABLE FROM COVER
AND RE-CONNECT. SENSOR
SHOULD FLASH FOR 5 SECONDS.
DOES IT FLASH?
CLOSE STOP VALVE,
REPLACE SOLENOID KIT.
RE-ASSEMBLE & INSTALL UNIT.
OPEN STOP VALVE.
NO NO
YES
DOES THE SENSOR FLASH
FOR THE FIRST 5 SECONDS?
NO REPLACE SOLENOID KIT
RETRY AUTOMATIC FLUSH;
WAS IT SUCCESSFUL?
1. COVER SENSOR FOR 10 SECONDS 2. UNCOVER SENSOR FOR 10 SECONDS.
MANUAL VALVE OBSTRUCTED. CLOSE STOP VALVE AND SERVICE
RETRY AUTO FLUSH
UNIT IS CONTINUOUSLY FLUSHING
PUSH MANUAL FLUSH
BUTTON; DOES IT RETURN?
NO
YES YES
NO
1. COVER SENSOR FOR 10 SECONDS 2. UNCOVER SENSOR FOR 10 SECONDS. DOES THE UNIT STOP FLUSHING? YES
1. CLOSE STOP VALVE, 2. REPLACE SOLENOID KIT. 3. RE-ASSEMBLE AND INSTALL UNIT. 4. OPEN STOP VALVE.
REPLACE SENSOR
NO
TROUBLESHOOTING FLOW CHARTS
UNIT DOES NOT FLUSH AT ALL
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
1 [phone]
Weekdays 8:00 a.m. to 6:00 p.m. EST
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
Product names listed herein are trademarks of AS America, Inc.
IN MEXICO 01-800-839-12-00
