American Standard Raviv 7421300 User manual

BECAUSE JUST ADD WATER IS
PRETTY MUCH THE INSTRUCTIONS
FOR A WONDERFUL LIFE.
Thank you for buying an American Standard faucet.
We’re so grateful you did, and you will be too. Because faucets don’t just bring
us water—they’re called upon to clean up brownie pans, luxuriated under by
sleepy not-morning-people, and spit on by teeth-brushing kids. How do we
know? Just like you, we’ve lived with that same beautiful chaos called life for
almost 150 years. We believe that while every home should appreciate in
value, we never forget the sentimental value that grows from enjoying life in
the heart of home—your kitchen and bath. That’s why we love your stories
and ideas; they help us innovate with products that make your life easier.
Or, visit americanstandard-us.com/kitchens/commercial-
kitchen-faucets-category
to watch video, view/download installation manuals
or learn more about your product.
Have a question or need help on install?
For questions or help on installation call us at 855-815-0004.
M985123 SKU# 742130X EN (1/21)

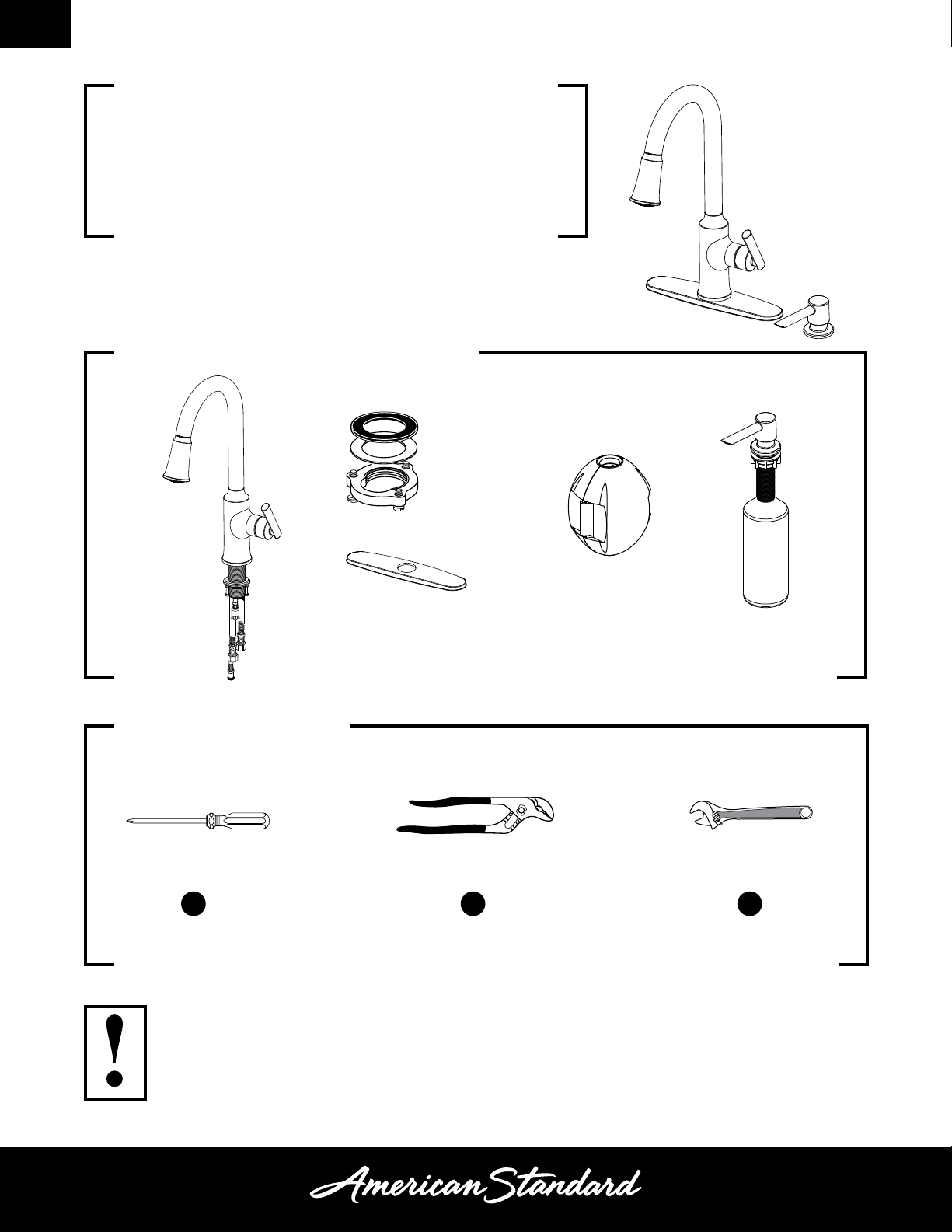

INSIDE THE BOX
RECOMMENDED TOOLS
Phillips
Screwdriver
Installation steps will indicate which tools should be used with asscociated letter
Channel
Locks
Adjustable
Wrench
Soap Dispenser
Mounting Kit
Faucet
and Supply
Lines
A B C
BEFORE INSTALLING YOUR FAUCET
Turn off hot and cold water supplies before beginning.
Image shown may vary from product purchased.
OWNERS MANUAL
Raviv™Pulldown Kitchen Faucet
7421300/7421301
Weight
Deck Plate
(only available for
SKU #7421300)

INSTALLATION INSTRUCTIONS

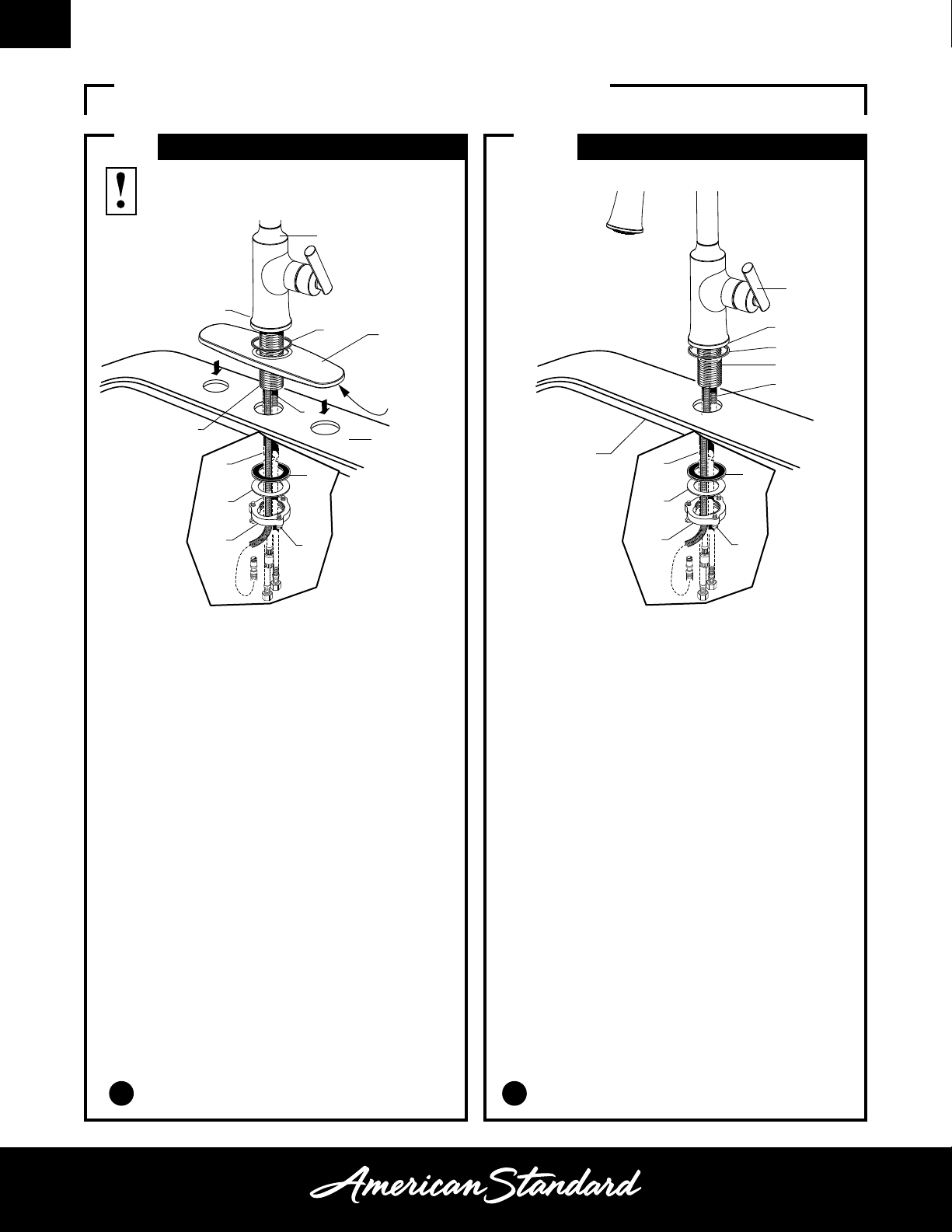

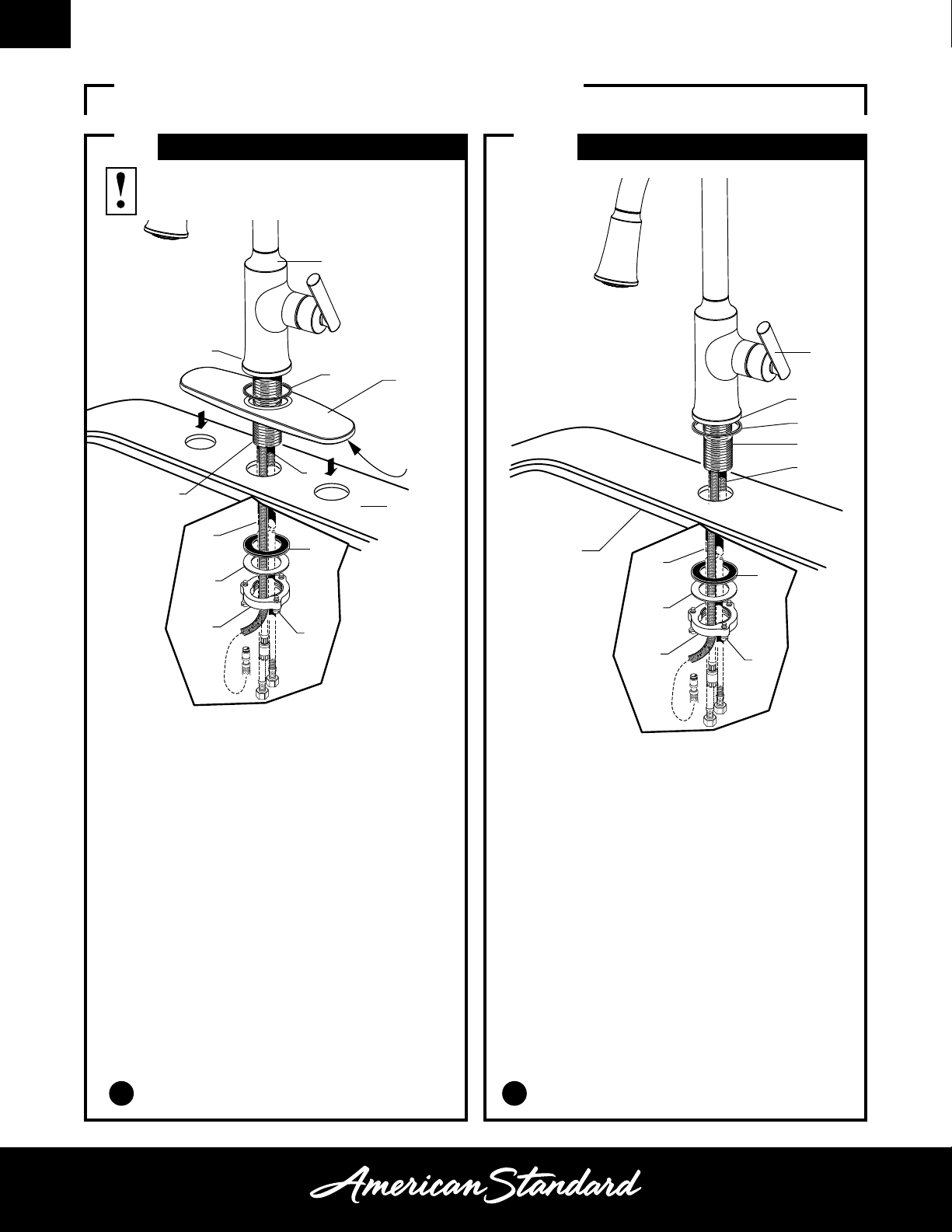

1 1A
• Apply a bead of putty to bottom edge of
ESCUTCHEON with PUTTY PLATE (1).
Make certain the SEAL (9) is properly seated in
recess of faucet body. Insert SUPPLY HOSES (2),
SPRAY HOSE (7) and SHANK (3) through hole of
ESCUTCHEON with PUTTY PLATE (1) and
mounting surface. Follow mounting instructions
below to secure faucet to mounting surface.
• Insert HOSES (2) through RUBBER WASHER (4),
BRASS WASHER (5), and threaded LOCKNUT (6).
• Assemble RUBBER WASHER (4), BRASS
WASHER (5), and threaded LOCKNUT (6) onto
SHANK (3) from underside of sink or mounting
surface. Hand tighten LOCKNUT (6).
• Use a screwdriver to tighten SCREWS (8) on
LOCKNUT (6). Work your way around LOCKNUT
(6), tightening the screws slightly each time until
all are snug to ensure even pressure.
INSTALL WITH ESCUTCHEON INSTALL WITHOUT ESCUTCHEON
A A
Turn off hot and cold water
supplies before beginning.
SINK OR
MOUNTING
SURFACE
7
PUTTY
2
3
4
5
8
6
7
FAUCET BASE
1
9
4
5
8
7
6
9
10
3
2
SINK OR
MOUNTING
SURFACE
7
• Discard ESCUTCHEON with PUTTY PLATE (1)
Make certain the SEAL (9) is properly seated in
recess of RING BASE (10). Insert supply
HOSES (2), SPRAY HOSE (7) and SHANK (3)
through mounting hole and seat RING BASE (10)
onto sink or mounting surface. Do not use putty.
• Insert HOSES (2) through RUBBER WASHER (4),
BRASS WASHER (5), and threaded LOCKNUT (6).
• Assemble RUBBER WASHER (4), BRASS
WASHER (5), and threaded LOCKNUT (6) onto
SHANK (3) from underside of sink or mounting
surface. Hand tighten LOCKNUT (6).
• Use a screwdriver to tighten SCREWS (8) on
LOCKNUT (6). Work your way around LOCKNUT
(6), tightening the screws slightly each time until
all are snug to ensure even pressure.

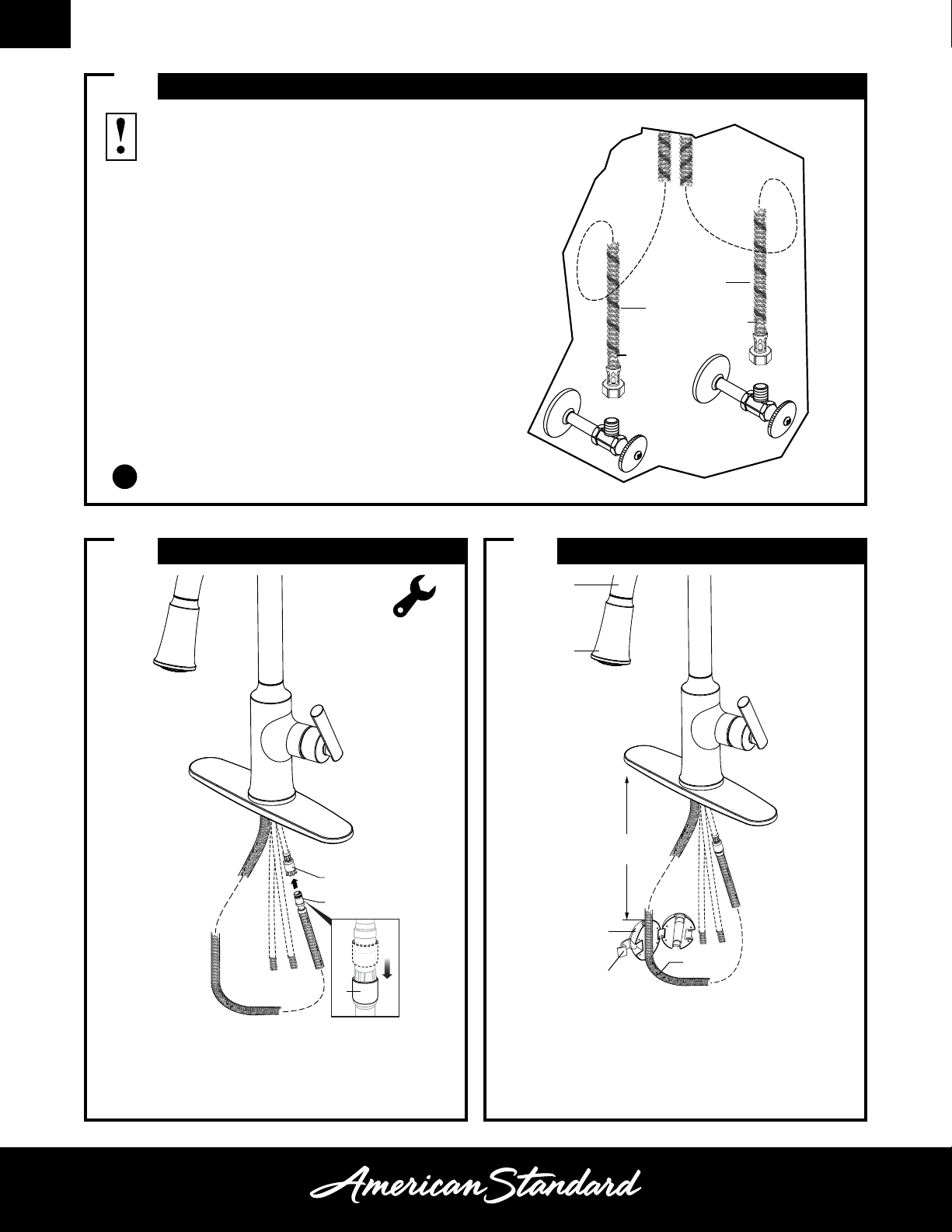

• Connect FLEXIBLE SUPPLY HOSES (1, 2) directly to
wall supplies. Connection on fitting supplies are 3/8"
compression. Connect the supply hose with the red
label to the Hot wall supply. Connect the supply hose
with the blue label to the Cold wall supply.
Use an adjustable wrench to tighten connections.
Do not over tighten.
*Faucet supplies are 38"long from faucet base.
• Note: If additional supply length is required,
installer must purchase additional parts
separately.
• Important: If SUPPLY HOSES (1, 2) are too long,
loop as illustrated to avoid kinking.
1
2
COLD
HOT
Red
Blue

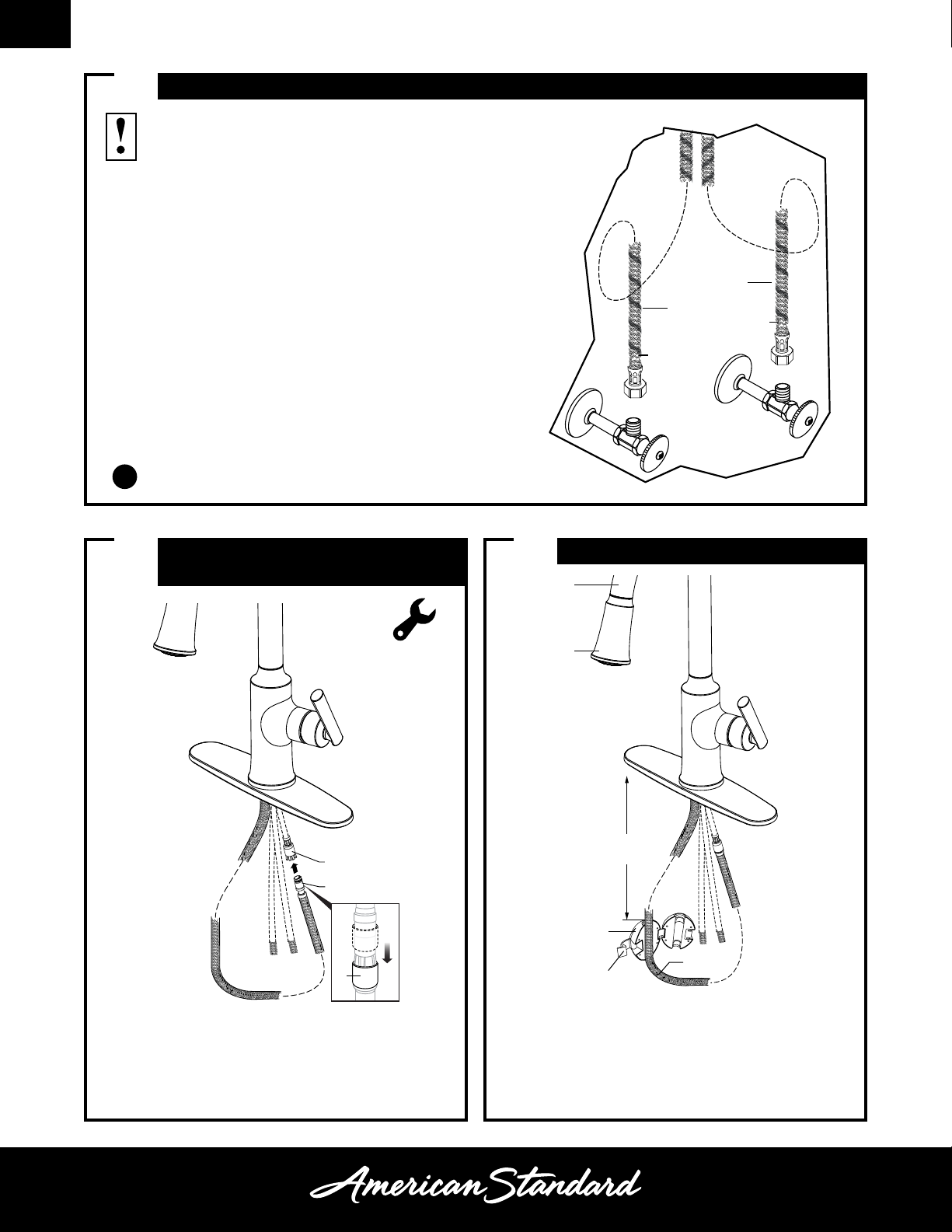

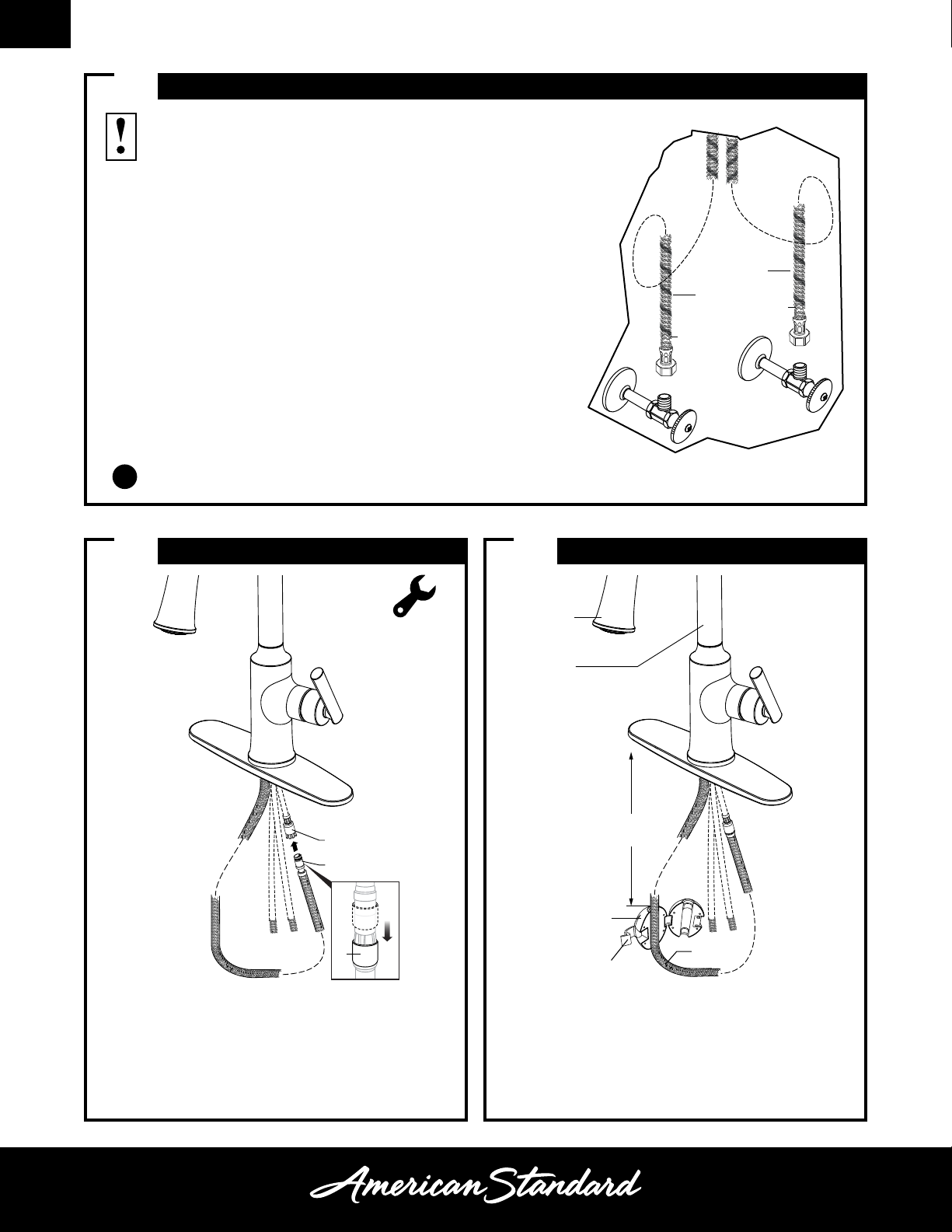

2MAKE WATER SUPPLY CONNECTIONS
C
3 4
CONNECT SPRAY HOSE INSTALL WEIGHT
1
2
3
8
7
6
24"
(610mm)
4
5
• Push the SPRAY HOSE END (2) into the HOSE
CONNECTOR (1) slide down LOCKING COLLAR
(3) until it snaps into place to secure connection.
• With SPRAY HEAD (4) seated in SPOUT (5),
install WEIGHT (7) onto HOSE (6) 24 inches from
the underside of the sink deck and secure with
LATCH (8).
NOTE: there is a label on the hose indicating
weight placement.
Turn off hot and cold water
supplies before beginning.
SPEED CONNECT

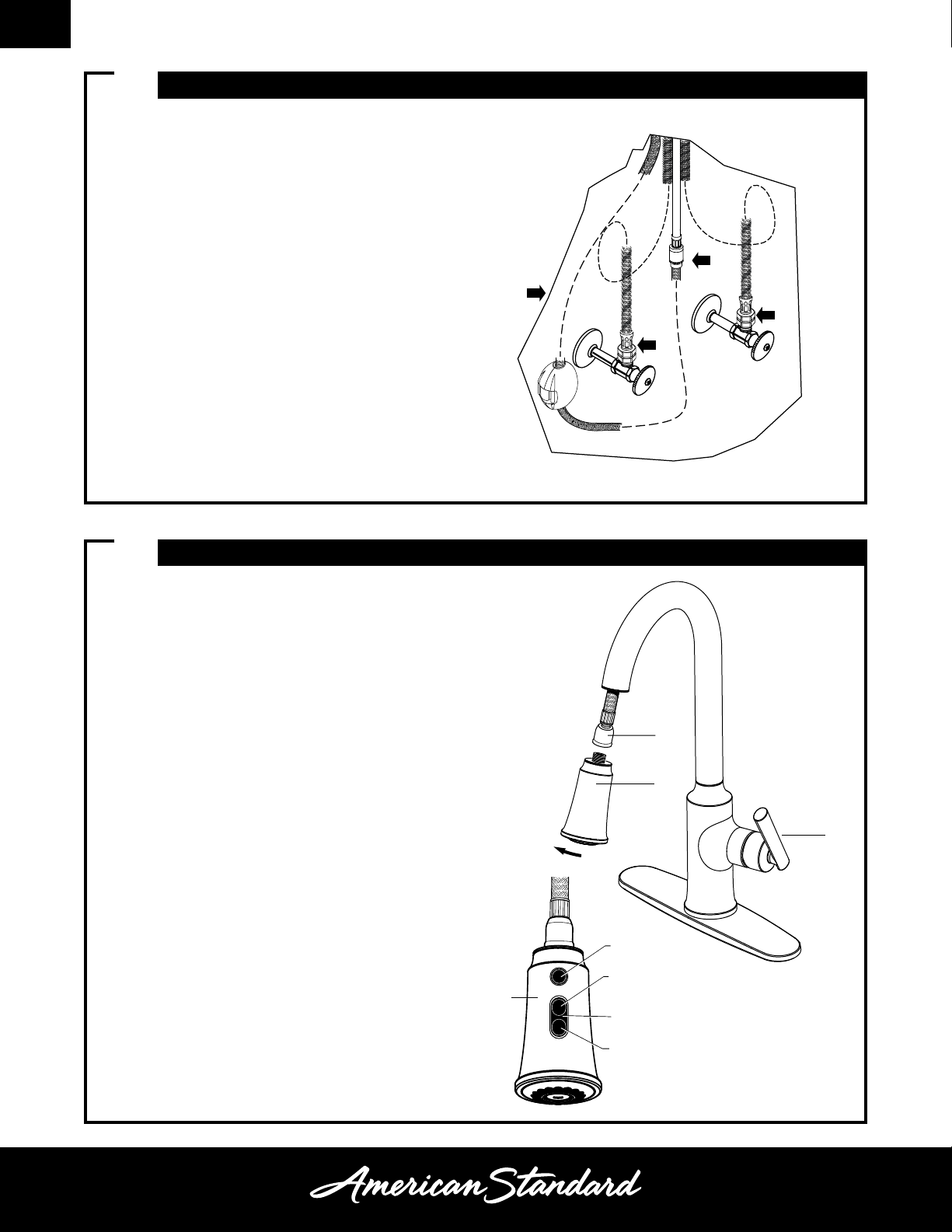

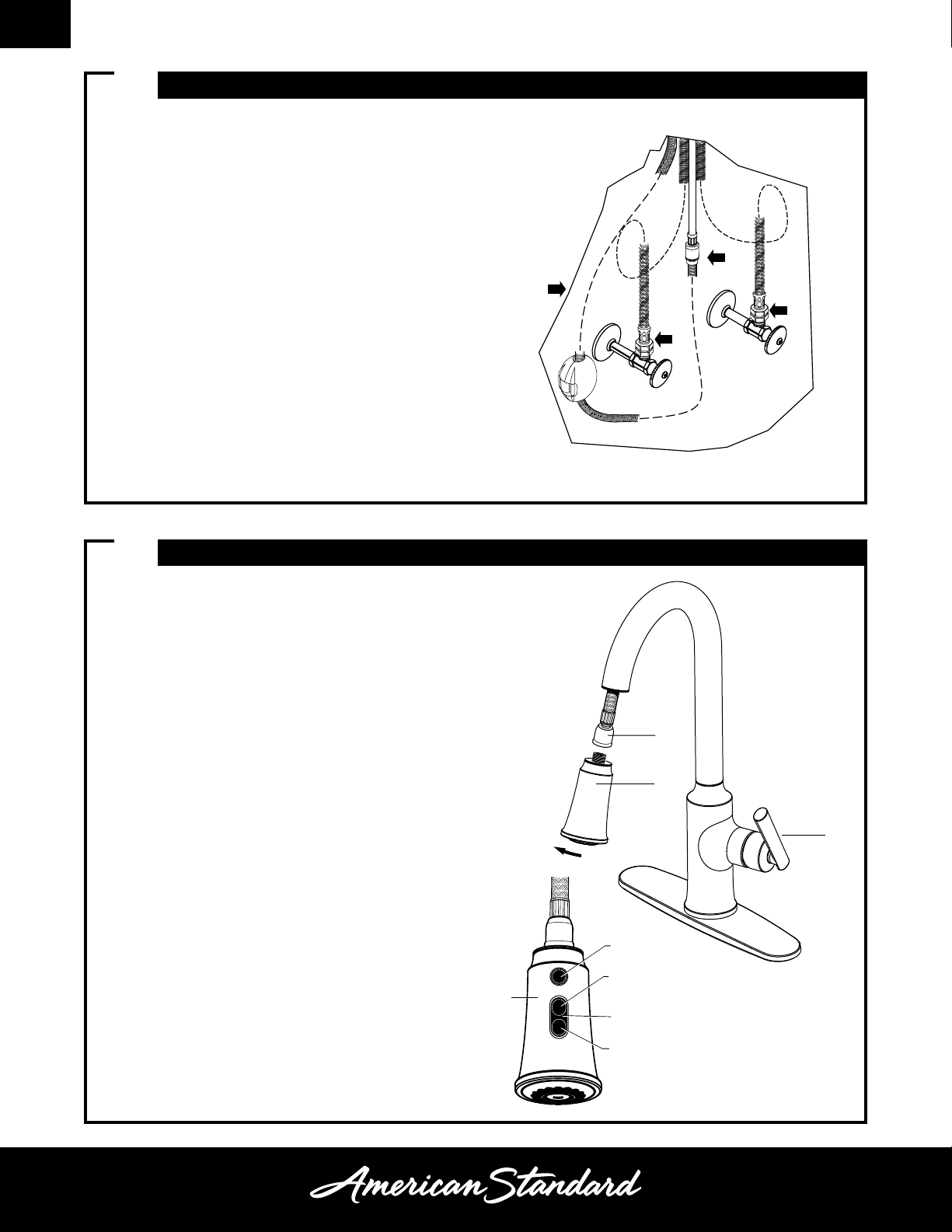

5CHECK CONNECTIONS FOR LEAKS
• Move HANDLE into “off” position.
• Turn on water supplies and check
connections for leaks.
• Operate HANDLE up and down, left
and right to flush lines thoroughly.
• Operate SPRAY HEAD and check
connections for leaks. CHECK
CONNECTIONS
FOR LEAKS
6TEST INSTALLED FAUCET
REMOVE
3
2
1
3
STREAM
(AERATOR)
SPRAY
5
4
• Move HANDLE (1) into “off” position.
• Turn on water supplies.
• With HANDLE (1) in “off” position, unthread SPRAY
(3) from HOSE (2).
• Operate handle back to front, in COLD and HOT
positions, to flush water lines thoroughly.
• Thread SPRAY HEAD (3) onto HOSE (2).
SPRAY OPERATION
• With faucet on press TOGGLE BUTTON (4)
on SPRAY (3) to switch from stream to spray.
• Press and hold PAUSE BUTTON (5) to temporarily
stop flow from SPRAY (3). Release PAUSE
BUTTON (5) to resume flow from SPRAY (3).

9CARE INSTRUCTIONS
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL
CLOTH. DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH
CLEANERS, OR A CLOTH WITH A COARSE SURFACE.

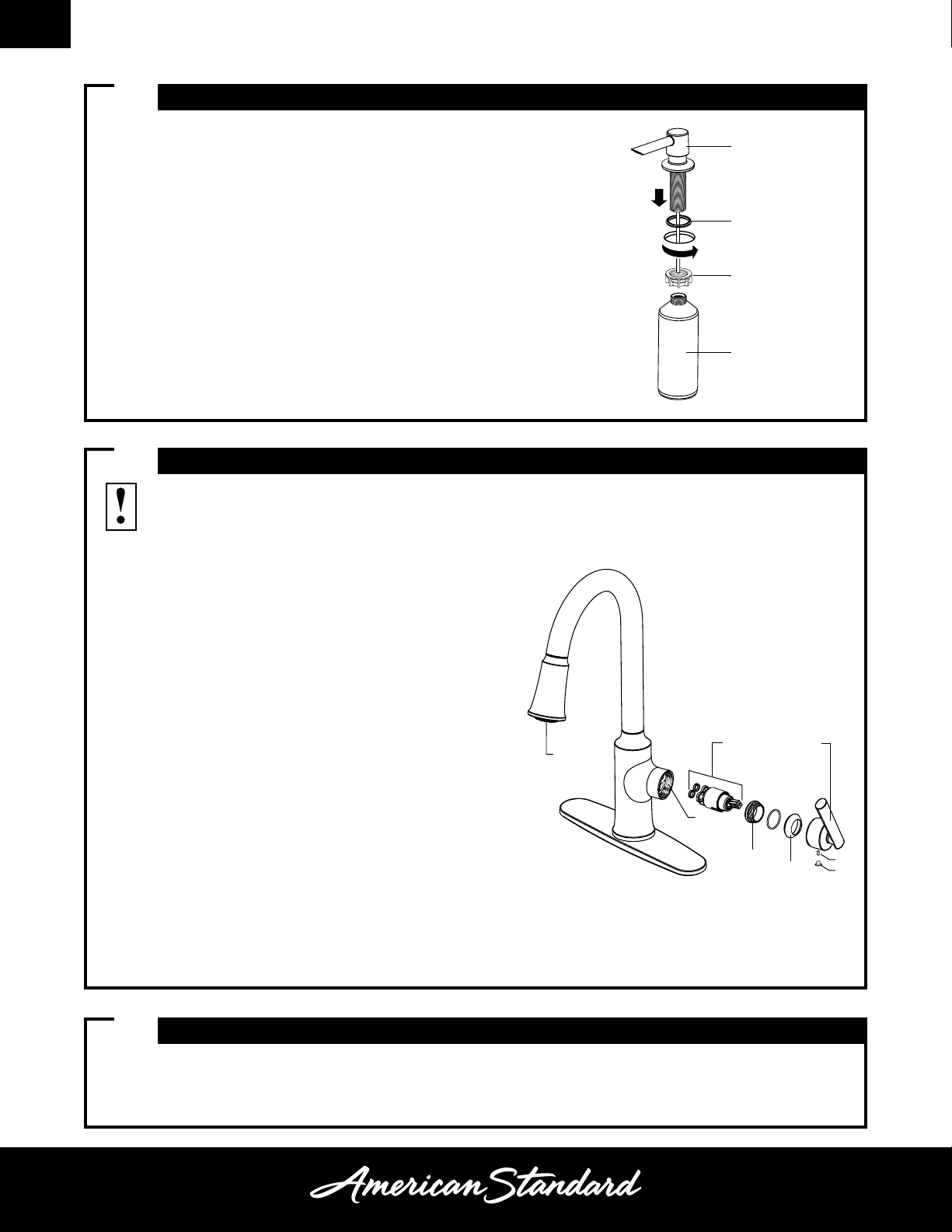

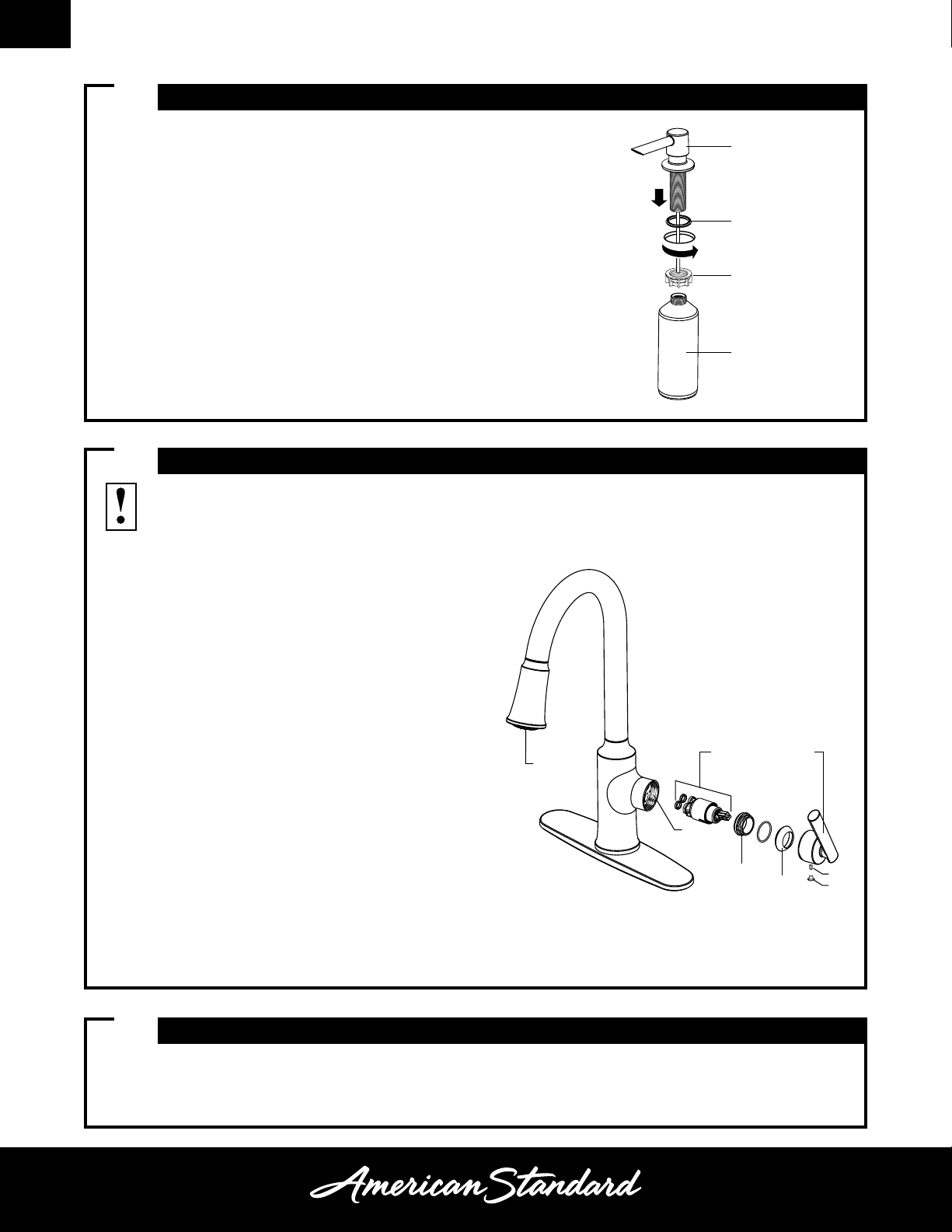

7INSTALL SOAP DISPENSER
1
2
3
4
• Insert SOAP DISPENSER SHANK (1) through O-RING (2)
and the deck.
• Thread MOUNTING NUT (3) on to SOAP DISPENSER
SHANK (1) to secure it to the deck.
• Fill SOAP BOTTLE (4) and thread it on to SOAP
DISPENSER SHANK (1).
8SERVICE
1
2
4
3
5
6
7
8
If faucet drips, operate HANDLE several times from “off” to
“on.” Do not apply excessive force.
Clogged CARTRIDGE outlets or inlets may cause
reduced flow.
• Remove INDEX BUTTON (1), loosen HANDLE SCREW (2)
and remove HANDLE (3).
• Remove the HANDLE CAP (4). Unthread the PLASTIC
NUT (5).
• Lift CARTRIDGE (6) off MANIFOLD (7).
• Clean MANIFOLD (7) and CARTRIDGE (6) ports.
• Place CARTRIDGE (6) onto MANIFOLD (7) and tighten
MOUNTING SCREWS (5) alternately.
• Replace ESCUTCHEON CAP (4), HANDLE (3), tighten
HANDLE SCREW (2) and install INDEX BUTTON (1).
Clogged AERATOR may cause reduced flow:
• Unthread the AERATOR (8) with a coin or flat head
screwdriver and clean it of any debris.
• Allow water to run through the faucet with no aerator to
flush the hoses.
• Reinstall AERATOR (8).
Turn off hot and cold water
supplies before beginning.

WARRANTY
FAUCET LIMITED LIFETIME FUNCTION AND FINISH WARRANTY
FOR RESIDENTIAL INSTALLATIONS: AS America, Inc. (“American Standard®”) warrants this product to
be free from defects in materials or workmanship for as long as the original consumer purchaser owns this
product. Proof of purchase (original sales receipt) from the original consumer purchaser must be made
available to American Standard for all warranty claims. This warranty is non-transferable. It does not apply in
the event of product damage due to the use of other than genuine American Standard replacement parts,
installation error, abuse, misuse or improper care and maintenance (whether performed by a plumber,
contractor, service provider or member of the purchaser’s household). The warranty excludes damage
due to aggressive air or water conditions, or harsh or abrasive cleaners and/or materials.
FOR COMMERCIAL INSTALLATIONS: For all industrial, commercial and business usage the warranty
period is five years, from date of purchase and except for duration, all other aforementioned warranty terms
apply. For both Residential and Commercial warranties, batteries are not included in the warranty.
FOR ELECTRONIC FAUCETS, VALVES AND CONTROLS: American Standard warrants its electronic faucets,
valves and controls to be free from manufacturing defects in material and workmanship under normal use
for five (5) years from the date of purchase by or for the original consumer owner. American Standard will
provide free of charge, at it’s sole option, replacement part(s) or product (or if no longer available, a
comparable product) to replace those which have proven defective in materials or workmanship.
This warranty does not cover labor charges incurred and/or damage sustained in installation, repair or
replacement, nor incidental or consequential damages. This warranty is effective for all faucets sold after
March 1, 2018.
THIS WARRANTY IS EXCLUSIVELY IN LIEU OF ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
This warranty gives the original consumer purchaser of an American Standard faucet specific legal rights
which may vary from state to state or from province to province. In some states or provinces the exclusion or
limitation of incidental or consequential damages is not allowed, so those exclusions may not apply to you.
UNITED STATES
American Standard Brands
1 Centennial Ave
Piscataway, New Jersey 08854
Attention: Director of Customer Care
For residents of the United States,
warrantyinformation may also be obtained
by calling the following toll free number:
[phone]
www.americanstandard.com
PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION PROCESS AND SAVE THIS WARRANTY INFORMATION
IMPORTANT: Registration of the faucet must be completed for this warranty to become effective. Your registration will make it easier
to contact you in the event of a product recall.*
INSTRUCTIONS: Register your faucet at www.americanstandard.com. Please save your proof of purchase (sale receipt).
If you need assistance or do not have access to our website, please contact American Standard Customer Care at: [phone].
An American Standard representative will assist in completing the warranty registration.
*In California, your warranty rights remain intact even if you do not complete the registration process.
THIS WARRANTY IS NOT TRANSFERABLE FROM ORIGINAL CONSUMER PURCHASER.
CANADA
LIXIL Canada, Inc.
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: [phone]
www.americanstandard.ca
MEXICO
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
www.americanstandard.com.mx

M985123 SKU# 742130X EN (1/21)
TELL US WHAT YOU THINK!
Please leave us a product review or story
at americanstandard.com/reviews
Register your warranty and sign up for an idea-filled
newsletter at americanstandard.com/warranty.
Find installation videos at
youtube.com/americanstandard.
Happy I purchased this faucet
08/22/2019 00:04:41 CDT American Standard Kitchen Faucets Xavier SelectFlo Pull-Down Kitchen Faucet
I enjoy the SelectFlo pull-down kitchen faucet with three
spray patterns. It’s a great fit, finish and overall quality has
been excellent.
SHARE YOUR NEW PRODUCT!
Tag us @american_standard on Instagram
and show us how your new product looks.
WANT MORE INFO?
For questions or help call us at 855-815-0004,
or visit americanstandard.com

PARCE QU’AJOUTER SEULEMENT
DE L’EAU EST PRATIQUEMENT
LE SEUL REMÈDE POUR UNE VIE
EXTRAORDINAIRE.
Merci d’avoir acheté un robinet American Standard.
Nous sommes si contents que vous l’ayez fait, vous le serez également. Parce
que les robinets ne servent pas uniquement à nous fournir de l’eau, ils servent à
nettoyer les moules à brownies, ils sont adorés par les lève-tard et ils reçoivent
les éclaboussures des enfants qui se lavent les dents. Comment le savons-nous?
Tout comme vous, nous vivons dans ce même désordre qu’est la vie depuis
presque 150 ans. Comme toute maison doit être précieuse, nous n’oublions
jamais la valeur sentimentale qui croît en profitant de la vie au cœur de la
maison, votre cuisine et votre salle de bains. Voilà pourquoi nous aimons vos
histoires et idées qui nous permettent d’innover dans des produits qui facilitent
la vie.
Visitez également le site americanstandard-us.com/kitchens/
commercial-kitchen-faucets-category pour regarder la vidéo,
consulter ou télécharger les manuels d’installation ou en
apprendre davantage sur votre produit.
Vous avez une question ou avez besoin d’aide pour
l’installation?
Pour toute question ou tout besoin d’aide pour l’installation,
appelez-nous au 855-815-0004.
M985123 SKU# 742130X FR (1/21)

CONTENU DE LA BOÎTE
Tournevis
Phillips
Pince
multiprise
Clé ajustable
Distributeur de savon
Trousse de
montage
Robinet et
conduites
d’alimentation
A B C
AVANT D’INSTALLER VOTRE ROBINET
Fermer l’alimentation en eau chaude et froide avant de commencer.
L’illustration peut être différente du produit acheté.
MANUEL DE L’UTILISATEUR
Robinet de cuisine amovible vers le
bas RavivMC
7421300/7421301
Poids
Plaque de tablier
(Offert seulement
pour l’UGS 7421300)
OUTILS RECOMMANDÉS
Les outils à utiliser seront indiqués par la lettre correspondante à chacune des étapes de l’installation.
