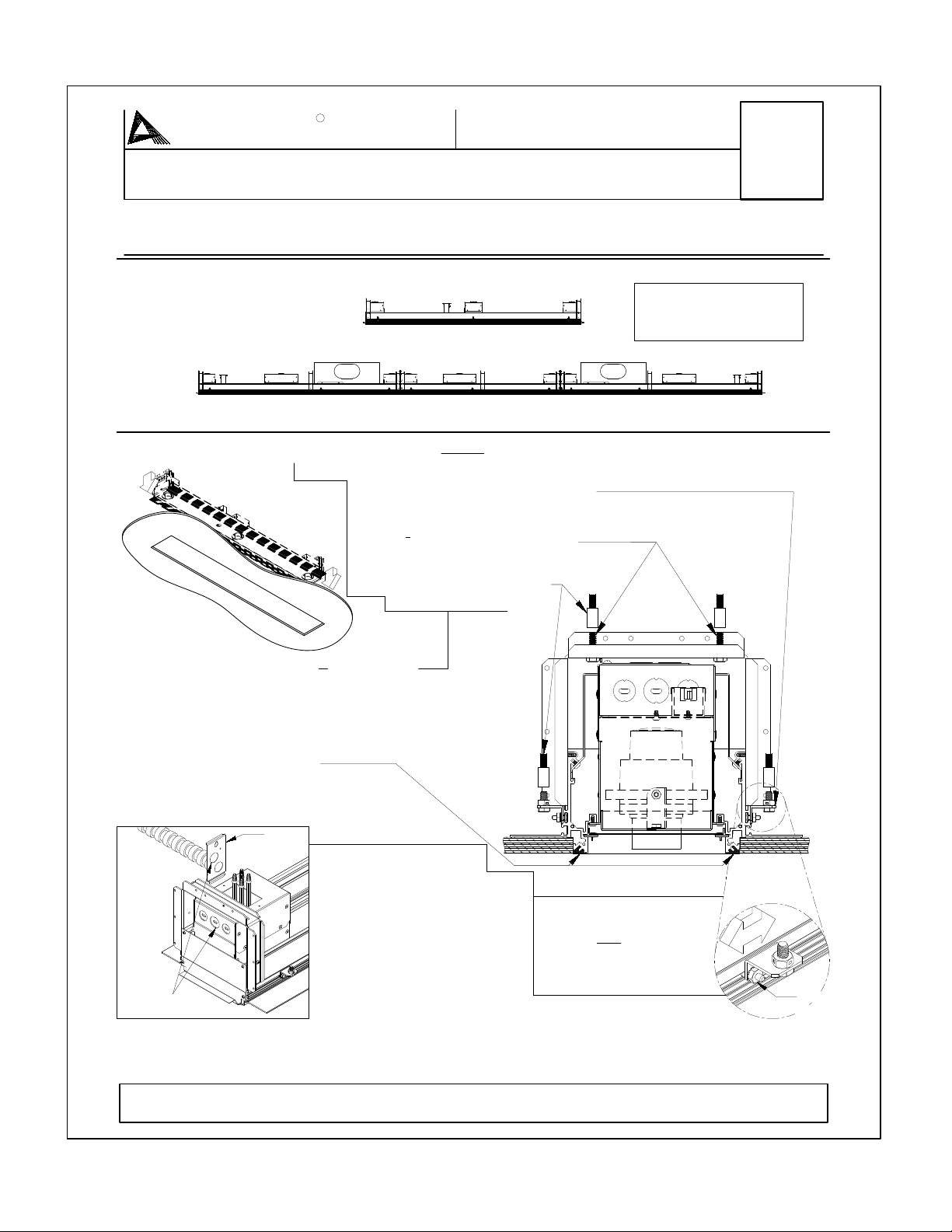

Amerlux MESA User manual

Individual Installalation -
SUPPORT METHOD
(SUPPLIED BY OTHERS)
Suspension Points
Example of continuous row:
Hanging the Fixture Via Threaded Rods.* (Optional)
1. Arrange adjustable suspension points to
desired location (Optional: See
below)
2. Insert 1
4
-20 (M6x1 for International)
bolts and secure with nut.
(supplied by others)
3. Secure to structure via coupling
(supplied by others)
1. Hang the Fixture via threaded
rods. (Optional)
2. Once the fixture is
secure, feed power source
(See Below.)
4. Spackle in fixture (By Others)
3. Install Ceiling (By Others)
Fixture MUST be mounted before ceiling is installed.
Example of IND (individual) fixture:
(Power can be fed into ANY light module in run)
Feeding Power
Choose
Feed Location
1: Remove Access Plate and
choose Feed Location
2: Remove Wire Nuts (If Applicable)
3: Splice in Feed to Fixture
(according to code)
4: Reattach Access Plate
Wires: Black - C1 Hot
White - C1 Neutral
Green: Ground
(2-Circuit Option)
Red - C2 Hot
White/Red - C2 Neutral
(0-10v Dim Option)
Red - Dim+ (Purple)
White/Red - Dim- (Gray)
Access
Plate
Adjusting Suspension Points
(Optional)
1: Loosen Keps Nuts
(Do NOT remove)
2: Slide Mount to desired
Location
3: Tighten Keps Nuts
Keps
Nuts
BoR
(Beginning of Row)
MoR
(Middle of Row)
EoR
(End of Row)
See submittal layout for
IND & row component
fixture lengths.
Amerlux, LLC. - 178 Bauer Drive, Oakland NJ 07436 - T: 973-882-5010 - F: 973-882-2605
www.amerlux.com
LIGHTING SOLUTIONS
AMERLUX ADAPT. ABILITY.
R
TM INSTALLATION INSTRUCTIONS
SHEET #:
WARNING - RISK OF FIRE AND ELECTRICAL SHOCK. FIXTURE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN
ONLY. FIXTURE IS INTENDED FOR INSTALLATION IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE, LOCAL
AND FEDERAL SPEFCIFICATIONS. DISCONNECT POWER AT ELECTRICAL PANEL BEFORE SERVICING.
RETAIN THESE INSTRUCTIONS FOR MAINTENANCE REFERENCE.
SPEC. SHEET
REFERENCE:
689-0353 Sheet 1 of 5
MESA
Gyp Board Ceiling
MESA

2. Assembling Continuous Rows-
1: Splice 12" BX (Supplied by Amerlux) into
beginning fixture via K.O. on access plate
2: Remove access plate from mating fixture.
3: Remove wire nute from mating fixture.
4: Splice in BX to mating fixture according to
code.
5: Secure access plate to mating fixture.
Alignment Spline
Alignment Pin
1: Slide housings together. Slide alignment splines and Pins into cavities in extrusion. Slots on braces should align.
2: Secure fixtures together with 10-24 Hex Head Screws & 10-24 Keps Nuts (By Amerlux)
3: Tighten Screws on Alignment Spline
10-24 Hex Screw
2.Feeding Continuous Rows-
2
1
3
4
5
3.Installing Perforated Panels
1: Tip/Tilt appropriate Perforated Panel into
fixture with clips open (As Seen Here)
2: Swivel tabs into slot in extrusion to lock.
(As Seen Here)
LIGHTING SOLUTIONS
AMERLUX ADAPT. ABILITY.
R
TM INSTALLATION INSTRUCTIONS
SHEET #:
Amerlux, LLC. - 178 Bauer Drive, Oakland NJ 07436 - T: 973-882-5010 - F: 973-882-2605
www.amerlux.com
689-0353 Sheet 2 of 5

Relamping Instructions-
Ballast Maintanence-
1: Remove Perforated Panel by
disengaging clips (see previous page).
*To reassemble follow these steps in reverse.
2: Remove (2) screws holding
Faceplate/Gimbal Assembly.
3: Remove Faceplate/Gimbal Assembly.
4: Disconnect from power via
quick-disconnect.
5: Remove (2) screws holding ballast
plate assembly.
6: Disconnect from power via
quick-disconnect. Ballast Tray
Assembly
Ballast Mounting
Bracket
Thermal
Protector
Quick Connect
to Power Source
Ballast
Quick Connect
to Lamp Socket
1: Release front door assembly via 14
Turn CCW.
2: Remove front door assembly.
3: Relamp.
4: Replace and secure front door
assembly via 14Turn CW.
Install correct lamps.
See relamping label on module for the
correct wattage.
MAKE SURE TO DISCONNECT ALL ELECTRICAL CONNECTIONS BEFORE RELAMPING.
LIGHTING SOLUTIONS
AMERLUX ADAPT. ABILITY.
R
TM INSTALLATION INSTRUCTIONS
SHEET #:
Amerlux, LLC. - 178 Bauer Drive, Oakland NJ 07436 - T: 973-882-5010 - F: 973-882-2605
www.amerlux.com
689-0353 Sheet 3 of 5

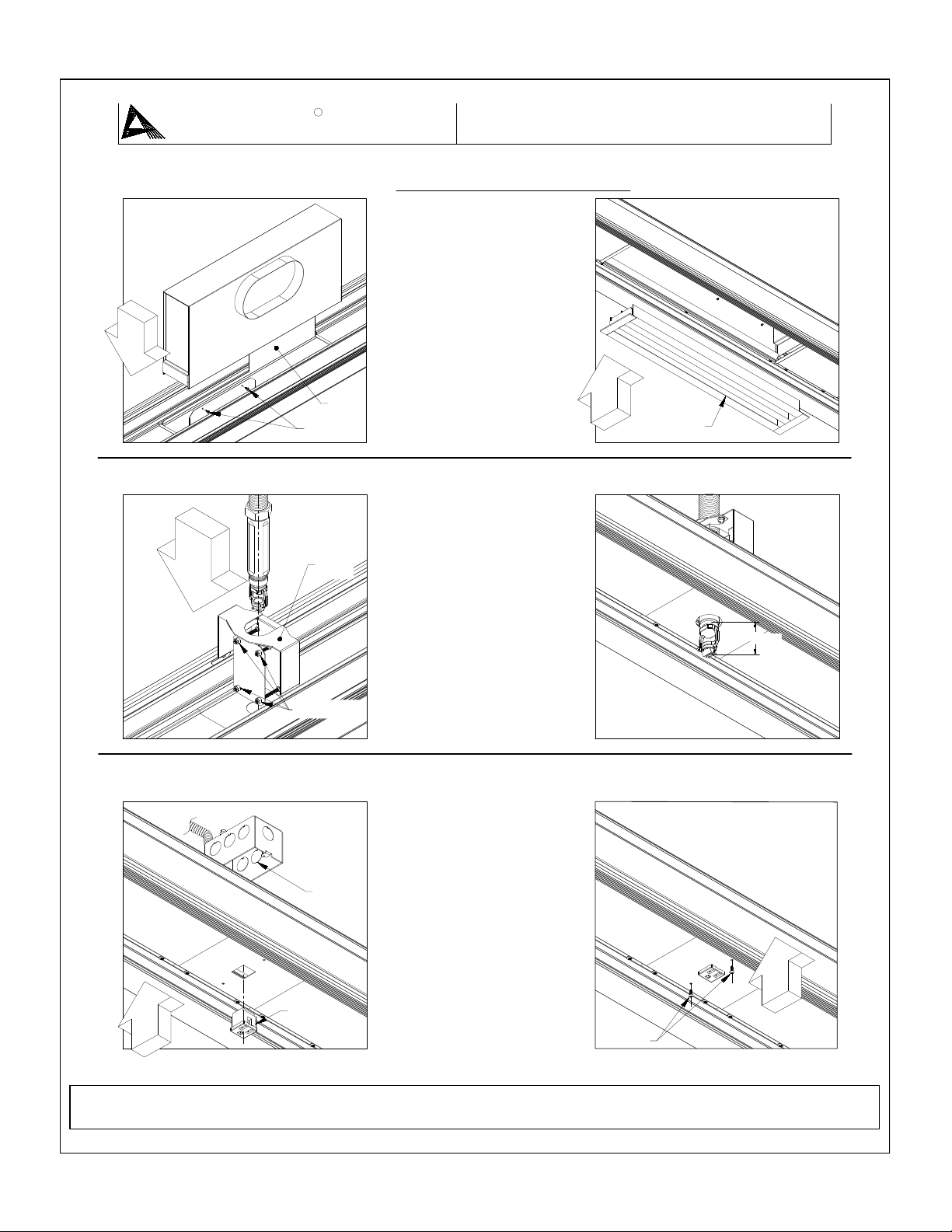

Installing HVAC Components- (Fixture must be installed)
1: Lower Titus Boot (supplied by Amerlux)
into HVAC Mounting Bracket.
2: Secure Boot to Bracket with (4) #8
Self-Drilling (Zip) screws.
3: From underneath, lift Titus Diffuser
(supplied by Amerlux) up to HVAC
Mounting Bracket.
4: Secure Diffuser via Titus Mounting
Hardware (Supplied by Amerlux.)
#8 Zip
Screws
HVAC
Mounting
Bracket
HVAC Diffuser
Installing Sprinkler Components-
1: Lower Aquaflex Sprinkler
(supplied by Others) into Sprinkler
Mounting Bracket.
2: Adjust sprinkler head to appropriate
height.
3: Secure sprinkler head by tightening
screws & Nuts (Supplied by Amerlux) until
sprinkler unit is locked in place.
Locking Screw/Nut
Assembly
Sprinkler
Mounting
Bracket
Desired Height
Installing Duplex Components-
1: Insert receptacle
(supplied by Others: McMaster Carr #
7168K1) into duplex faceplate.
2: Pre-tail a Single Gang Box (By others).
3: Wire gang box into receptacle
according to code.
4: Secure Gang Box to faceplate via #6
screws (by others)
Pre-Tailed
Gang Box
Receptacle
#6 Screws
LIGHTING SOLUTIONS
AMERLUX ADAPT. ABILITY.
R
TM INSTALLATION INSTRUCTIONS
SHEET #:
Amerlux, LLC. - 178 Bauer Drive, Oakland NJ 07436 - T: 973-882-5010 - F: 973-882-2605
www.amerlux.com
689-0353 Sheet 4 of 5

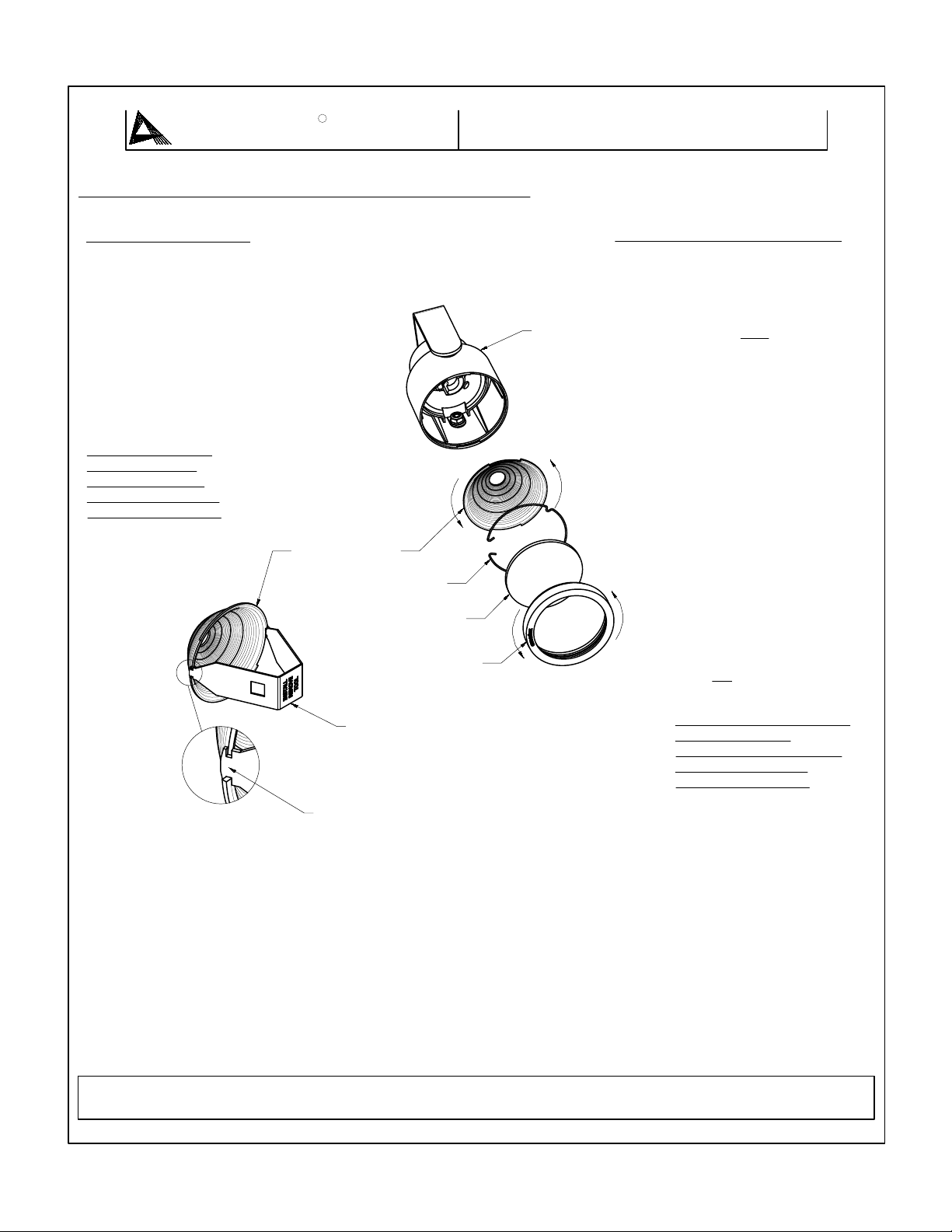

Changing lens and reflector (metal halide only):
