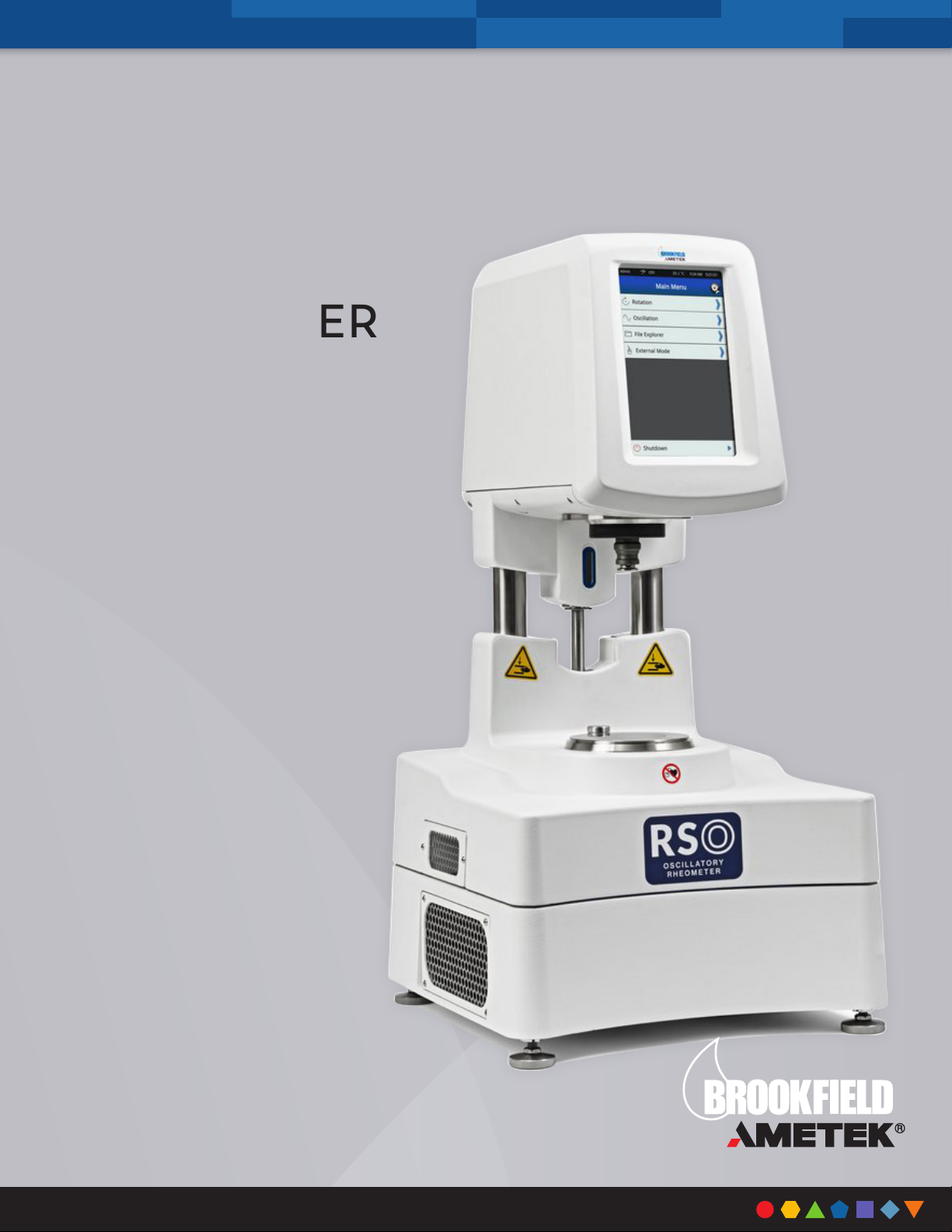

Ametek BROOKFIELD RSO User manual

M19-230-REV.B
RSO™
RHEOMETER
Operating
Instructions

Page 2
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
THIS PAGE INTENTIONALLY LEFT BLANK

Page 3
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1. 1 Obligation to Instruct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1. 2 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1. 3 Safety and Hazard Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1. 4 General Handling and Operational Safety. . . . . . . . . . . . . . . . . . . . . . . 8
1. 5 Dangers in Handling the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1. 6 Ergonomics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1. 7 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1. 7. 1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1. 7. 2. Damages in Transit . . . . . . . . . . . . . . . . . . . . . . . 10
1. 7. 3. Scope of Delivery . . . . . . . . . . . . . . . . . . . . . . . . 10
1. 8 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1. 8. 1. Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1. 8. 2. Utilities and Connections . . . . . . . . . . . . . . . . . . . . 12
1. 9 Rheometer Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1. 9. 1. Space Requirement . . . . . . . . . . . . . . . . . . . . . . . 13
1. 9. 2. Ambient Conditions . . . . . . . . . . . . . . . . . . . . . . 14
1. 9. 3. AC Power Connection. . . . . . . . . . . . . . . . . . . . . . 15
1. 9. 4. Remove Foam Shipping Block . . . . . . . . . . . . . . . . . . 15
1. 9. 5. Level the Instrument . . . . . . . . . . . . . . . . . . . . . . 16
1. 9. 6. Air Supply & Filter System Connection. . . . . . . . . . . . . . . 17
1. 9. 7. Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1. 9. 8. Drive System . . . . . . . . . . . . . . . . . . . . . . . . . 18
1. 9. 9. Quick Coupling. . . . . . . . . . . . . . . . . . . . . . . . . 19
1. 10 Spindles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1. 11 Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1. 12 Rheo3000™ Software (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2. Installation and Test Set-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2. 1 Air & AC Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2. 1. 1. Power Button . . . . . . . . . . . . . . . . . . . . . . . . . 23
2. 1. 2. Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2. 2 Select Device Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2. 3 Power Down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
TABLE OF CONTENTS

Page 4
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
3. Spindles and Sample Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3. 1 Preparing Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3. 1. 1. Using CPS Mode . . . . . . . . . . . . . . . . . . . . . . . . 27
3. 1. 2. Using CC Mode . . . . . . . . . . . . . . . . . . . . . . . . 27
3. 2 FTKY3 and Temperature Control Device . . . . . . . . . . . . . . . . . . . . . . . 28
4. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4. 1 User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4. 1. 1. Main Menu: . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4. 1. 2. Status Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4. 2 Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4. 2. 1. Menu structure . . . . . . . . . . . . . . . . . . . . . . . . 32
4. 3 Log In, Log Out, Lock Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4. 3. 1. Log In . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4. 3. 2. Log Out . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4. 3. 3. Lock Out . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4. 4 CC and CPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4. 4. 1. Difference . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4. 4. 2. RSOConfiguration . . . . . . . . . . . . . . . . . . . . . . . 34
4. 4. 3. Temperature control . . . . . . . . . . . . . . . . . . . . . . 34
4. 5 Rotational Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4. 5. 1. General . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4. 5. 2. Viscosity . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4. 5. 3. Yield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4. 5. 4. Creep Recovery . . . . . . . . . . . . . . . . . . . . . . . . 42
4. 5. 5. Thixotropy . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4. 5. 6. Math Models . . . . . . . . . . . . . . . . . . . . . . . . . 49
4. 6 Oscillation Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
4. 6. 1. General . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
4. 6. 2. Amplitude Sweep . . . . . . . . . . . . . . . . . . . . . . . 54
4. 6. 3. Frequency Sweep . . . . . . . . . . . . . . . . . . . . . . . 57
4. 6. 4. Time-Dependent Behavior . . . . . . . . . . . . . . . . . . . 59
4. 6. 5. Temperature-Dependent Behavior . . . . . . . . . . . . . . . . 62
4. 7 File Explorer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4. 7. 1. Internal Memory . . . . . . . . . . . . . . . . . . . . . . . . 67
4. 7. 2. External Memory. . . . . . . . . . . . . . . . . . . . . . . . 68
4. 7. 3. Search Files . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Page 5
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
4. 8 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
4. 8. 1. General Settings . . . . . . . . . . . . . . . . . . . . . . . . 69
4. 8. 2. Device Setup . . . . . . . . . . . . . . . . . . . . . . . . . 73
4. 8. 3. Administrator Functions . . . . . . . . . . . . . . . . . . . . 84
4. 9 External Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
5. Transport and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
5. 1 Lifting and Carrying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
5. 2 Ambient Conditions for Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
6. Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
6. 1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
6. 2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
6. 3 Software Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
7. Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
7. 1 Error Cases. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
7. 2 Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
8. Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
8. 1 Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
8. 2 Power Cord Color Code:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
8. 3 International Protection Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
8. 4 RSORheometer Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
9. Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Appendix A: Gap Settings Procedure for the RSORheometer 94
Appendix B: Calibration Check 95
Appendix C: Symbols for Test Parameters and Units of Measurement 96
Appendix D: Online Help and Additional Resources 97
Appendix E: Warranty and Repair 98
O I

Page 6
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
RSO™ Operator Instructions
1. INTRODUCTION
The Brookfield RSO Rheometer is a rotational and oscillatory controlled-stress rheometer used
in quality control, product development, and research. The measuring drive developed for this
instrument utilizes a high precision dynamic drive system with an optical encoder for absolute position
measurement of spindle deflection.
There are four basic methods of measurement available with the RSO Rheometer:
• Rotational measurement under controlled shear rate (CSR)
• Rotational measurement under controlled shear stress (CSS)
• Oscillatory measurement under controlled shear stress (CSS)
• Oscillatory measurement under controlled deformation/strain (CD)
The RSO Rheometer has all the functionality of a standard Brookfield rotational viscometer,
performing rotational tests with pre-set speed or shear rate. The RSO Rheometer is even more
versatile because it can also perform tests with a pre-set torque or shear stress and measure the
resulting shear deformation of the test substance via angular deflection of the measuring element.
The RSO controlled stress capabilities can be used for experiments such as:
(1) Measurement of the “static” yield stress – eliminating the multi-shear rate test that requires
math model extrapolation; and
(2) Creep and Recovery of numerous materials.
Additionally, the RSORheometer is equipped with a powerful motor with a usable torque range of
0.005 to 100 milliNewton-meters, mN-m or mNm. As a result, the RSORheometer is appropriate for
rheological measurements over a wide range of sample viscosities. Furthermore, the oscillatory mode
measures viscoelastic material responses that cannot be measured in rotational tests. One advantage
of small-amplitude oscillatory rheometry or “SAOS” is that the small strains or deformations can
probe weak structures without destroying them (e.g., testing weak gels, etc.)
The Brookfield RSORheometer incorporates the following features:
• Air-bearing, drag cup motor, capable of both rotational and oscillatory measurements.
• Digital control of rotational speed, shear rate, torque, or shear stress.
• Pre-designed rotational measurement programs for analysis of viscosity flow curves, creep
and recovery behavior, yield stress, and thixotropic properties.
• Pre-designed oscillatory test methods: amplitude sweep, frequency sweep, time-dependent
or temperature-dependent behavior.

Page 7
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
• Automatic adjustment of control parameters during measurement.
• Direct indication of measured and calculated values of speed, shear rate, torque, shear
stress, shear strain, viscosity, temperature, and time.
• Graphical display of measured results in real-time.
• The internal storage of data, including test parameters, measured values, and calculated
values.
• User interface via a touchscreen display.
• Quick-connect coupling system for easy spindle attachment.
• Barcode reader for automatic spindle recognition.
• USB port for connection to a computer or a USB flash drive.
• Operation in standalone mode via touchscreen display or with a computer system running
Rheo3000 application software.
• Dual Configuration Modes to allow for Cone, Plate, and Coaxial Cylinder Spindles and
Accessories. *
*Measuring Systems (hereinafter referred to as “Spindles”) and Accessories are not part of the standard
delivery of the RSORheometer and must be ordered according to the user’s measuring requirements.
The following additional services are available to support the use of the RSORheometer:
• Start-up Assistance
• Instrument Training
• Rheo3000 Software Training
• IQ/OQ/PQ (Installation, Operation, and Performance Qualification)
1. 1 Obligation to Instruct
The RSORheometer should only be operated by qualified personnel.
Please read the operating instructions before using the instrument.
1. 2 Safety Information
Read the operating manual carefully, follow all instructions provided, and observe all safety
notes to ensure the proper and safe use of this measuring instrument. If you have any questions,
please contact AMETEK Brookfield Technical Support or an authorized dealer.

Page 8
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
This instruction manual uses the following safety notes and symbol categories:
Warning ... a situation which may result in injuries to people or damage to property, environment,
software, data, or test results if ignored. The warning must be strictly observed.
Mandatory ... an important precaution.
Info ... important or useful comments and information.
1. 3 Safety and Hazard Information
This instrument is not intended for use in an explosive or otherwise potentially hazardous
environment.
If RSO Rheometer is used in a manner not specied by the manufacturer, the protection measures
integrated into the instrument may be impaired.
In case of emergency, turn o󰀨 the instrument and then disconnect the electrical cord from the wall
outlet.
1. 4 General Handling and Operational Safety
When moving the RSO short distances (i.e., during Setup), first protect the instrument by
inserting the black foam rubber stopper between the rheometer head and base. Ensure that
the sample plate is at a safe temperature. During transportation, hold the instrument only
by its base. Never hold the instrument by the head to carry it. Never lift the instrument by
the spindle or its coupling. Protect the instrument against heavy bumps, vibrations, or shocks
that might impair the rotation of the coupling. Use a rolling cart for transportation whenever
possible.
The RSO Rheometer weighs approximately 70lbs.(32kg) and requires two people to
safely lift.
Make sure that the instrument is in a clean, dry working environment (dust-free, moderate
temperature, low humidity, etc.), see section IV.2.2 Ambient Conditions.

Page 9
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.

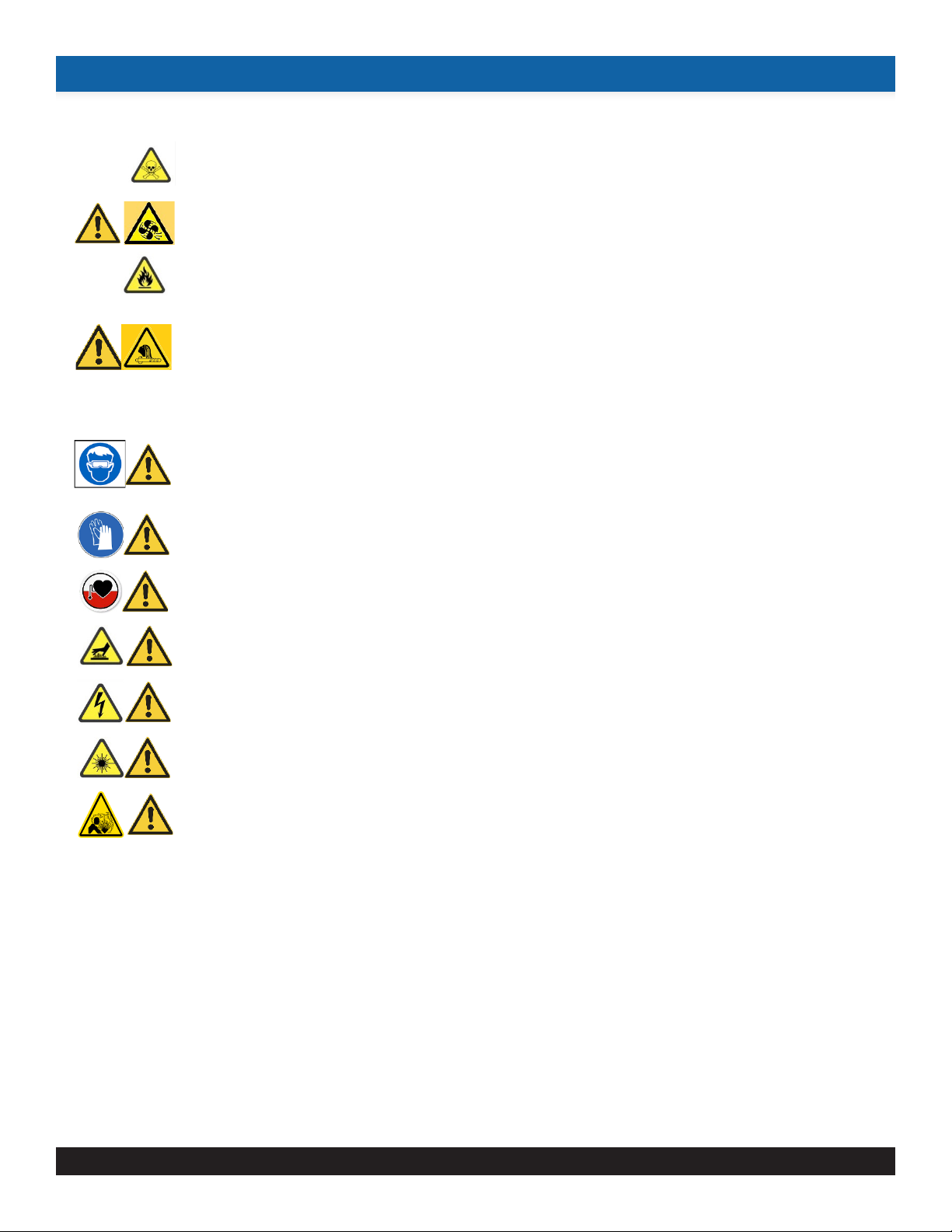

1. 5 Dangers in Handling the Machine
Be aware of substances placed under test that may release poisonous, toxic, or ammable
gases at the temperatures which they are subjected to during the testing.
If dangerous vapors can be released by heating the material, appropriate ventilation is
required.
If ammable substances are tested, the temperature must be 25 °K below the ashpoint
of the material. In general, the ashpoint of the test sample material must not be below
+205°C (+401°F).
DO NOT touch rotating spindles. Damage to the spindle and/or RSO may occur.
Safeguard any loose-tting clothing (sleeves). Remove any jewelry, rings, watches, etc.
Protect long hair. Tie hair back or work with a cap or hairnet.
Cone and Plate Spindles can eject bits of the sample from the plate during high-speed
tests.
The user should wear eye protection and protective clothing during testing.
Wear gloves to protect against skin contact with potentially irritating or harmful substances.
High Magnetic Fields. Pacemakers or other similar implanted devices may be a󰀨ected.
Burn Hazard. Allow Sample Plate, Water Jacket, and Hoses to cool before touching or
removing them.
Electrical Hazard. Unplug damaged power from the wall outlet cord before removing from
RSO.
Laser Bar Code scanner in use. Avoid Direct Eye Exposure.
Compressed Air in use.
Class A instrument
Repair service should only be performed by AMETEK Brookfield’s trained service team, see
Appendix F: Warranty and Repair.
1. 6 Ergonomics
Ensure your planned work area is at a comfortable height with a proper stool or seat.
Allocate enough space to allow for a PC and external temperature control device to be within
easy reach.

Page 10
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
1. 7 Unpacking
The RSO Rheometer weighs approximately 70lbs.(32kg) and requires two people to
safely lift.
When transporting the device to the place of use, regulations must be observed. See section
VIITransport and Storage.
1. 7. 1. Unpacking
– Cut thestraps from around the box and pallet.
– Remove the top cover.
– Openthe internalbox top and remove thefilter system andaccessories.
– Remove thetopof the boxand theoutside sleeve.
– Remove the top foam piecefrom the head of the instrument.
– With two people, carefully remove the RSO from the bottom foam tray. Lift
bythe base of the instrumentandplace it onasturdybench.
– Remove shipping strap, plastic bag, and protective foam discfrom the instrument.
SAVE ALL PACKING MATERIALS, INCLUDING FOAM INSERTS.
1. 7. 2. Damages in Transit
Check the instrument for transport damage after unpacking. If any transport damage is
detected when unpacking the instrument, please inform the carrier and contact AMETEK
Brookfield or your local authorized dealer. The cause for shipping damage should be resolved
before any use of the instrument.
Do not attempt to operate the instrument or any accessories that show any evidence of damage.
1. 7. 3. Scope of Delivery
Please check to be sure that you have received all components, and that there is no damage.
If you are missing any parts, please notify AMETEK Brookfield or your local agent immediately.
Any shipping damage must be reported to the carrier.
When unpacking the RSORheometer, the shipment container will include:

Page 11
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
Standard RSO Components Quantity
RSO Rheometer varies 1
AC Power Cord varies 1
PC-USB Cable (A-B) - 1
Certication of Test - 1
Rheo3000 Software (30-Day Trial) - 1
Operating Instructions M01-908-A0518 1
Optional accessories ordered with the RSO Rheometer, such as spindles and temperature
control elements are packaged and shipped in separate shipment containers.
1. 8 Features

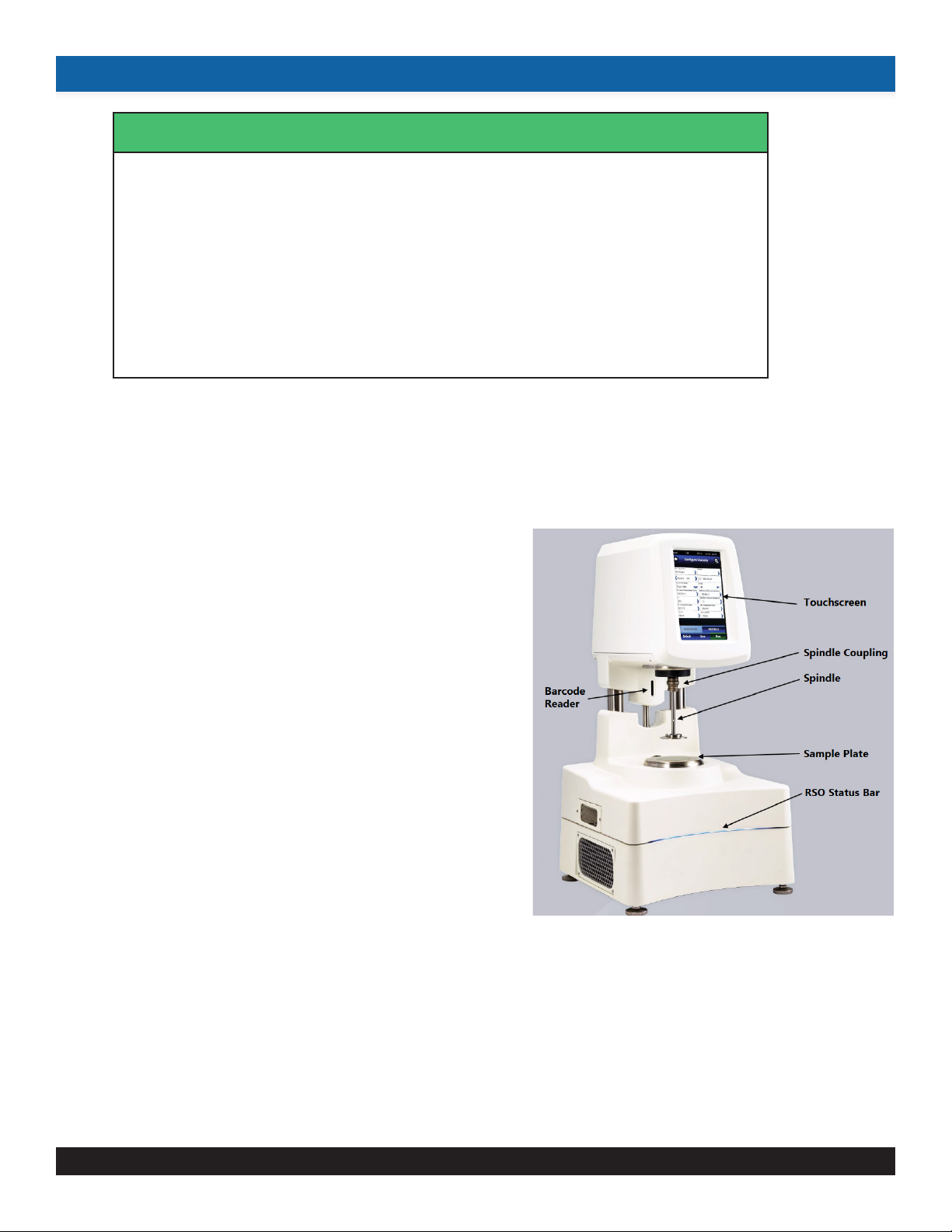

Primary RSO Rheometer Features
• Touchscreen
• Spindle Coupling
• Spindle (Cone or Plate)
• Barcode Reader
• Sample Plate (Peltier)
• RSO Status Bar
• Bubble Level Tool (not shown in the picture)
Additional Accessories (not shown in the picture)
that are available for the RSORheometer include:
• Coaxial Cylinder Spindles
• External Temperature Sensor Pt100 (PN: PT-E)
• Water jacket for temperature control with
Coaxial Cylinder Spindles (PN: FTKY3)
• Solvent Trap for use with highly volatile test
materials (PN: RSTRAP)
• Rheo3000 Software

Page 12
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
1. 8. 1. Touchscreen
All user inputs in standalone mode are done via the touchscreen. The touchscreen doubles as
both an input and an output device.
The touchscreen is resistive, meaning that it responds to light pressure. Tap lightly with a finger
or stylus to select the desired option on the touchscreen. Tap and drag your finger to scroll.
Multi-touch options are not available due to the resistive touchscreen.
Replace the protective film on the display when damage or heavy wear is evident.
1. 8. 2. Utilities and Connections
Utilities
Input Voltage: Universal Power Supply (90 - 275 VAC)
Input Frequency: 50/60 Hz
Power Consumption: 400 VA
Power Cord Color Code:
United States Outside United States
Hot (live) Black Brown
Neutral White Blue
Ground (earth) Green Green/Yellow

Page 13
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.

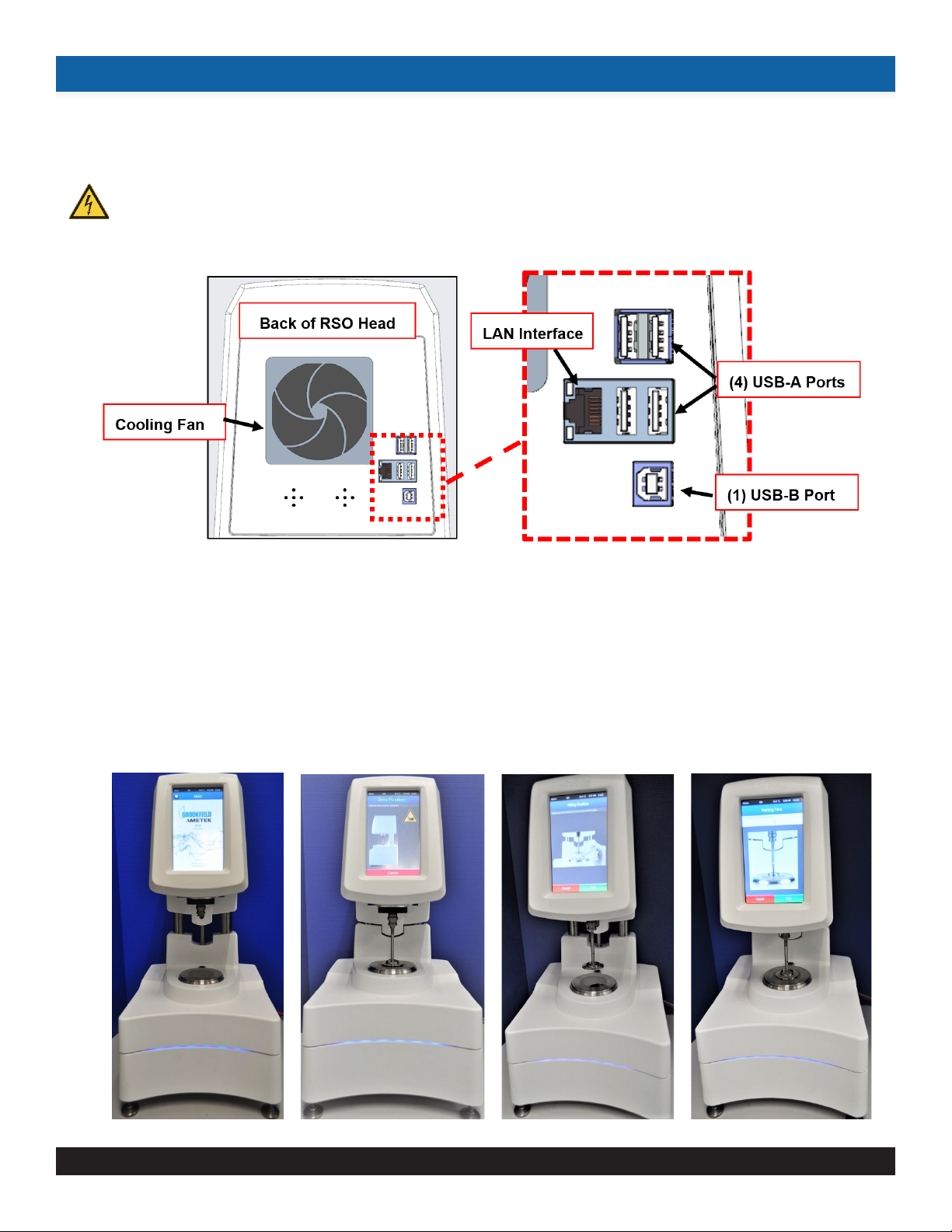

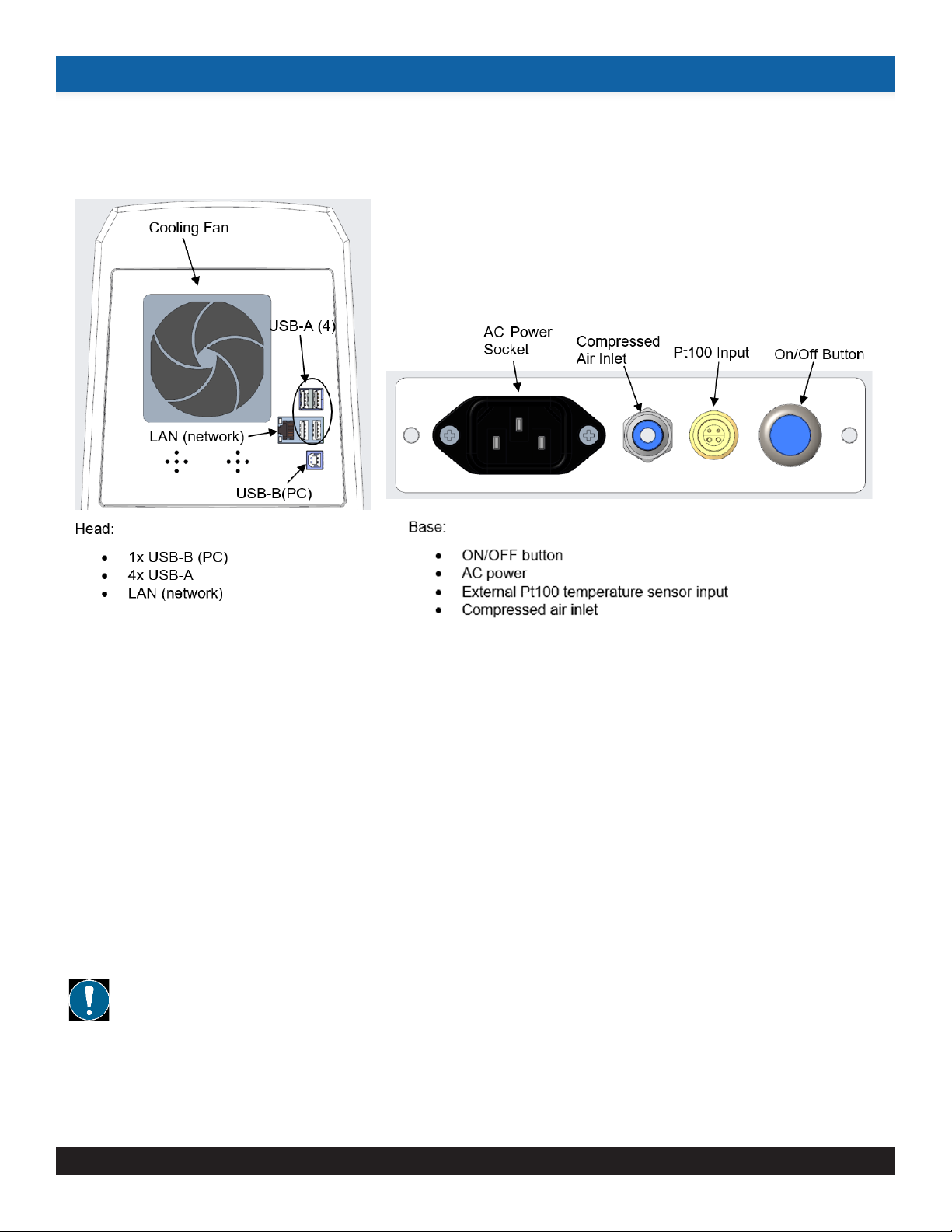

Connections for the electrical components of the RSORheometer are located on the back of
the instrument, as shown in below.
Connect or disconnect all cables from the RSORheometer only while the instrument is turned
off. See section IV.2.7Interfaces.
1. 9 Rheometer Setup
The following section provides setup information for the RSORheometer. When transporting
the device to the place of use, regulations must be observed. See section VIITransport and
Storage.
1. 9. 1. Space Requirement
Find a comfortable, convenient work area for the setup of the RSORheometer.
The instrument should be placed upright on a stable, flame-resistant, level table.
There should be a free space of at least half a meter to the right, left, and rear of the device to
ensure cooling.
A grounded AC plug outlet is needed to operate the RSORheometer.

Page 14
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
Ensure that there is enough room to place some spindles, measuring substances, and peripheral
devices.
1. 9. 2. Ambient Conditions
The RSORheometer’s operating environment should be indoors and away from
any extreme or heavily fluctuating ambient conditions.
If dangerous vapors can be released by heating the test sample, proper ventilation, such as an
overhead lab hood, is strongly recommended.
The RSO Rheometer should be placed in an area where it will not be exposed to
• excessive dirt or dust,
• direct sunlight,
• objects that emit strong heat (e.g. radiators),
• objects with strong electromagnetic fields,
• liquids or corrosive chemicals.
For optimal performance, be sure that the following ambient conditions are maintained:
• Temperature between +10°C and +40°C (+50°F and 104°F)
• Relative air humidity between 20% and 80%

Page 15
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
1. 9. 3. AC Power Connection
The supplied AC Power Cord is used to power the RSORheometer.
Always connect the power cord to a properly grounded socket. To avoid electric shock or damage
to system components, always use a properly grounded plug to connect the power cord.
Be sure to observe the following instructions:
• Always inspect the Power Cord for defects/damage before plugging it into an outlet.
• Never use a damaged Power Cord. If necessary, contact AMETEK Brookfield or the au-
thorized dealer from whom you purchased the instrument for a replacement Power Cord.
• The Power Cord should always lay flat and uncovered.
• Position cables and Power Cord in a way to ensure that no one will stumble over them.
• The Power Cord and the cables must never be in contact with liquids.
Connecting the AC Power Cord:
• Insert the female end of the Power Cord into the AC Power In socket on the back of the RSO Rheometer.
• Plug the Power Cord into a grounded AC outlet.
The AC input voltage and frequency must be within the appropriate range.
See section X.1Power Supply
1. 9. 4. Remove Foam Shipping Block
To remove the Foam Shipping Block, turn on the device. See section IV.3Power Up. It is not
necessary to have compressed air available. As soon as the RSORheometer starts to lift its
head, the foam block can be removed. See figures.

Page 16
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
Save the foam block for future shipping purposes.
Turn the RSO off.
1. 9. 5. Level the Instrument

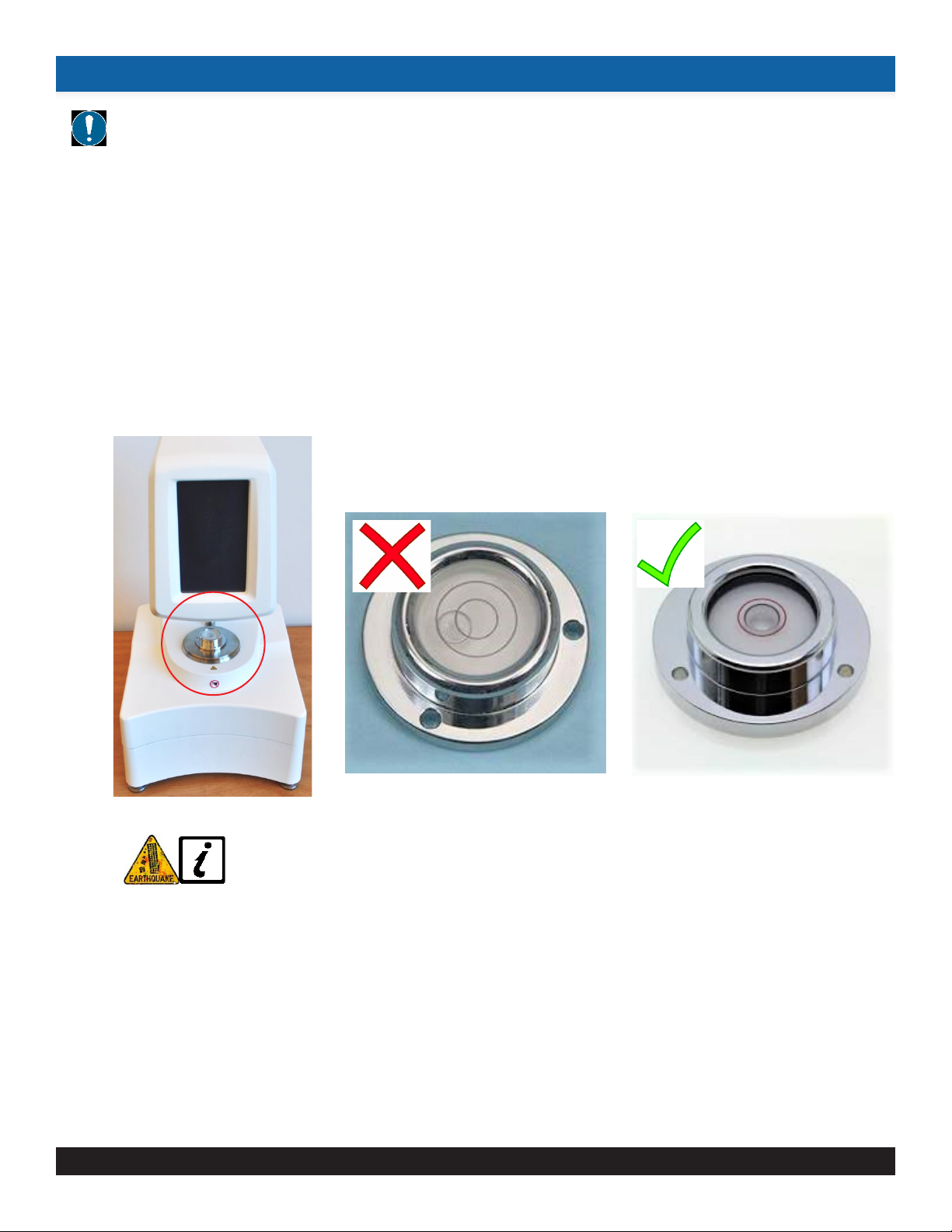

Place the supplied Bubble Level in the center of the RSO Sample Plate, being careful not to
scratch the plate.
Adjust the RSO Rheometer feet until the bubble is inside the center ring of the Level.
After earthquakes, other ambient influences, or anytime that the RSO is moved, it is
recommended to check the bubble level.

Page 17
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
1. 9. 6. Air Supply & Filter System Connection
A 5-8 Bar (72.5-116psi) Compressed Air Source is required to operate the Air Bearing Motor of
the RSO Rheometer.
The supplied filter/dryer system is required for operation! Not using this system will result in
damage to your Air Bearing Motor!
1) Setting up the filter system and air supply:
a. Fill the Air Filtration Dryer Chamber with the supplied desiccant.
b. Connect an air supply to the Air Filtration inlet.
c. Connect supplied plastic tubing to RSO air input.
d. Turn on air supply and the set regulator to 5.5 bar / 80 psi.
All pipes, hoses, and fittings must have a rating of the maximum pressure of the compressor.
Compressed air pipelines should be identified (psi) as to maximum working pressure.
Air supply shutoff valves should be located (as near as possible) at the point-of-operation.
Hoses should not be strung across floors or aisles where they are liable to cause personnel to trip
and fall. When possible, air supply hoses should be suspended overhead, or otherwise located to
allow efficient access and protection against damage.
Hose ends must be secured to prevent whipping if an accidental cut or break occurs.
Air lines should be inspected frequently for defects, and any defective equipment repaired or
replaced immediately.
AC power
socket
Compressed
Air Inlet
PT100
Input
ON/OFF
Button

Page 18
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
1. 9. 7. Interfaces
Connect or disconnect any cables from the RSORheometer only while the instrument is turned
off (LAN and USB interfaces excluded).
1. 9. 8. Drive System
The movement of the head is controlled by a linear drive system that will assist in the loading
of spindles and will also automatically set the required gap in CPS (Cone/Plate System) mode.
There are several predefined positions which the vertical drive system approaches during
normal operation:
-CPS home position - CPS zero gap position -CPS filling position -CPS gap position

Page 19
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
-CC (Coaxial Cylinder) position - Parking position (when shutting down in CPS Mode)
1. 9. 9. Quick Coupling
Open the coupling on the instrument and gently insert the spindle. Close the coupling. The
spindle should be locked firmly in place. Once the coupling is closed, the barcode should be read
automatically by the instrument’s built-in barcode scanner. The spindles should be handled
with care. Ensure no material is on the coupling or barcoded shaft of the spindle.
To remove the spindle, open the coupling. In CPS mode the instrument head will lift away from
the spindle automatically. In CC Mode, the spindle will gently sink into the sample cup. In either
mode, if the spindle becomes stuck in the coupling, gently pull down on the spindle to detach.

Page 20
M19-230-REV.B © 2020 AMETEK Brookfield Inc. All rights reserved.
1. 10 Spindles
The RSO offers 3 types of spindles: Cone geometry for Cone-Plate measurements, Plate geometry
for Plate-Plate measurements, and Coaxial Cylinders when used is CC mode. Each spindle can be
supplied in stainless steel or titanium.
The spindles have a unique barcode that the instrument will recognize. The first time you attach the
spindle you will be asked to enter the details from the spindle certificate for all cone spindles. Plate
spindles and Coaxial Cylinder spindles details will already be set in the instrument firmware.
The Moment of Inertia will have to be calibrated the first time you attach any new spindle to the RSO
Rheometer.
