AMF ELECTRONICS DM323 HD User manual

DM323 HD
Twin HD encoder - DVBT modulator
USB record and play
USER MANUAL VERSION 1.0

USER MANUAL
DM323HD
PAGE 2
Contents
1 - Safety considerations.............................................................................3
2 - Description of the different elements........................................................4
3 - Informations on the LCD screen ..............................................................5
4 - Software settings : ................................................................................5
4.1 - Quick menu : .....................................................................................5
4.2 - Advanced menu..................................................................................6
5 - Programming using a PC ........................................................................9
6 - Making play and recording lists using TMHDIface ..................................... 10
6.1 - Direct play and record. ...................................................................... 10
6.2 - Adjusting time and date .................................................................... 10
6.3 - Making a playlist. ............................................................................. 10
6.4 - Making a recordlist. .......................................................................... 11
6.5 - Creating your .ts files........................................................................ 11
7 - Technical specifications ........................................................................ 11
Congratulations on your purchase of the D323HD !
This ‘state of the art’ product, is a dual HD encoder. Two HDMI sources (A and B)
can be encoded and modulated simultaneously into one DVBT channel.
Furthermore an USB port is available which allows you to play a .ts file instead of us-
ing input A. The .ts file and input B are then available on the same DVBT channel.
Sequential files (eg. file001, file002, file003 etc.) make it possible to play several
files after each other in a loop.
The record function allows you to record your source connected to input A in a .ts file
on a USB stick or drive.
Using TMHDIface to operate the DM323HD a wide scala of digital signage functions
becomes available. Using a battery powered time and date function, different files can
be played according to a schedual you can define by hour, day and week etc.
At the same time, different recordings can be programmed using TMHDIface.
AMF ELECTRONICS©2018

USER MANUAL
PAGE 3
DM323HD
1 - Safety considerations
1.1 CONNECTING TO THE MAINS SUPPLY
This product has to be connected to the mains supply. If there is the slightest doubt concerning the
type of connection available on the installation, please contact your supplier of electricity. Before car-
rying out maintenance operation or modification of the installation, the modulator has to be discon-
nected. Remark : only use the supplied power adaptor.
1.2 OVERVOLTAGE
An overvoltage on the mains supply,can cause shortcircuits or fire. Never overload the power lines.
1.3 LIQUIDS
This module should be protected from splashes. Please assure yourself that no containers containing
liquids are placed on this module. Also be aware of other persons splashing liquids on the module.
1.4 CLEANING
Disconnect the module before cleaning. Use only a humid cloth without solvant.
1.5 VENTILATION
In order to assure an adequate air circulation and to prevent overheating, the ventilation holes should
not be obstructed. The module may not be installed in a hermetically sealed environment. Other elec-
tronic products or heat producing items may not be placed upon or near the module.
1.6 ACCESSORIES
The use of accessories not manufactured by the manufacturer can cause damage to the module.
1.7 INSTALLATION OF THE MODULE
The module must be installed in a place well protected from direct sunlight. All measures have to be
taken to avoid installation in humid or sunny place.Do not install near heating elements or other devic-
es producing heat. Assure yourself that the module is placed at least 10 cm from other equipment with
is susceptible to electromagnetic radiation. Do not install the module on instable items. A fall can cause
physical or material damage.
AMF ELECTRONICS©2018

USER MANUAL
PAGE 4

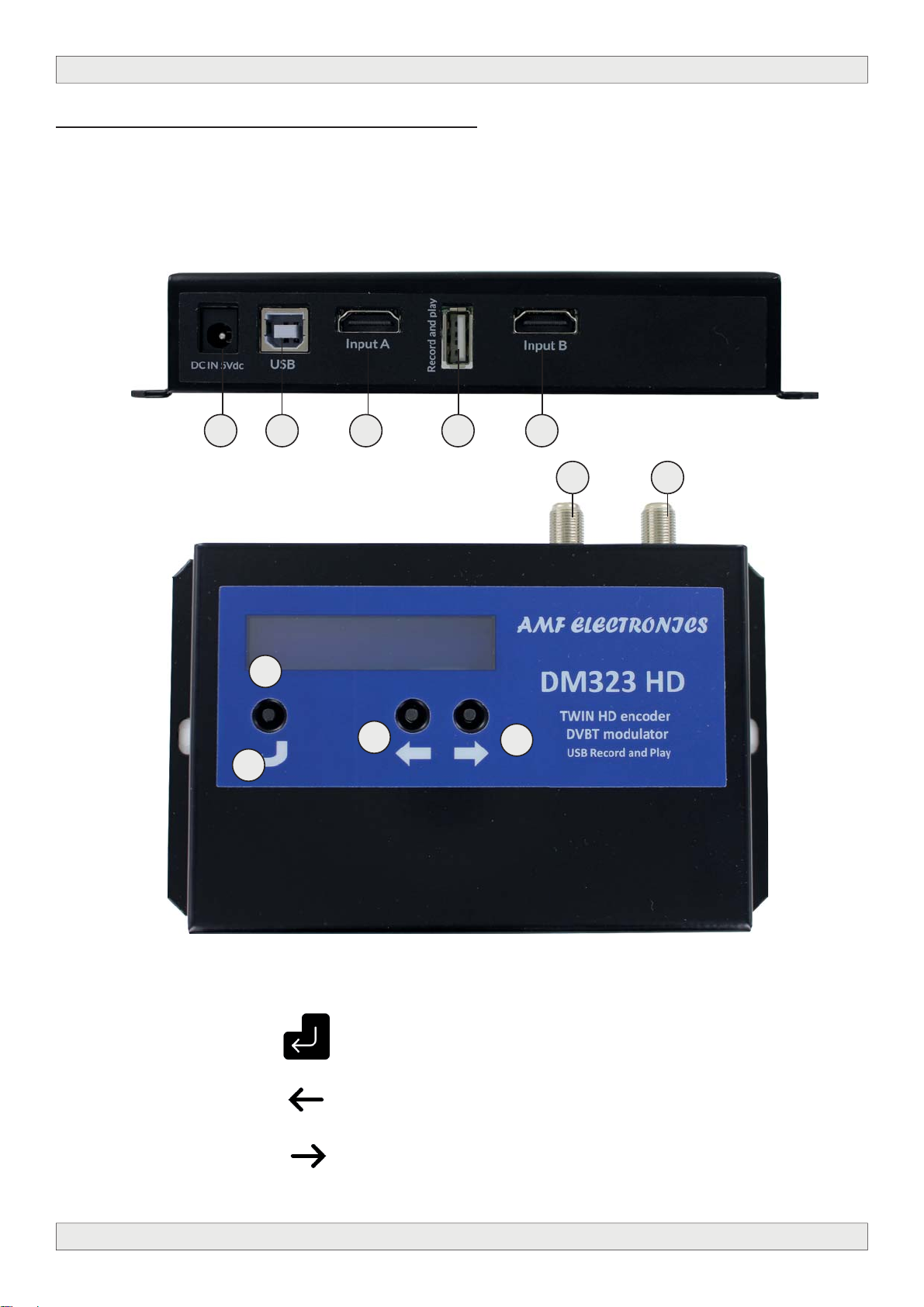

2 - Description of the different elements
A1 Display
T1 ENTER button
T2 LEFT button
T3 RIGHT button
DM323HD
C1 Power supply input (5V/2A)
C2 USB input (PC programming)
C3 RF input
C4 RF output
C5 HDMI input A
C6 USB input record and play
C7 HDMI input B
T1
T2 T3
A1
C4 C3
C1 C2 C5 C6 C7
AMF ELECTRONICS©2018

USER MANUAL
PAGE 5
DM323HD
4 - Software settings :
The DM323HD has a quick menu to allow for quick basic settings. For advanced settings an advanced
menu is available.

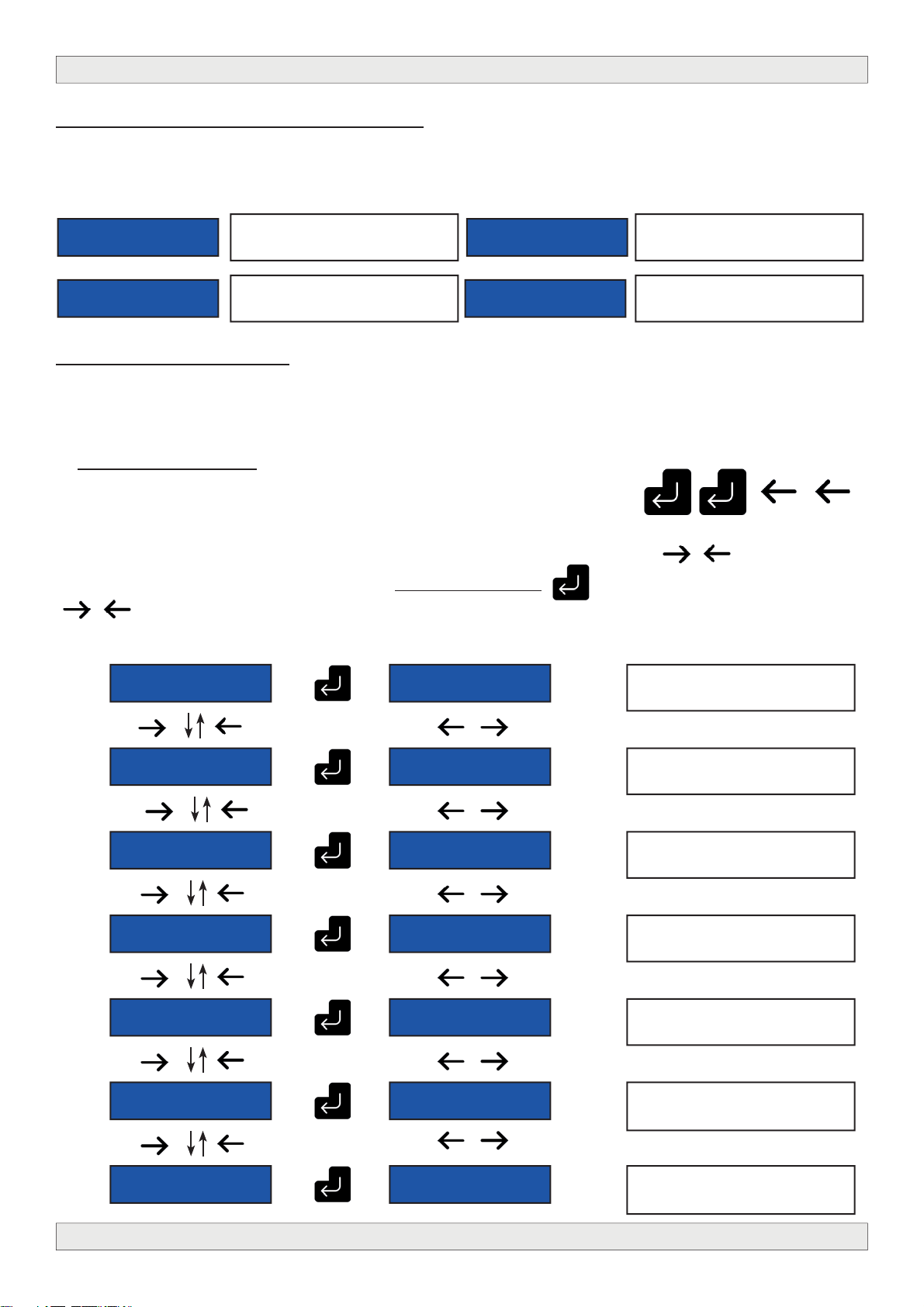

4.1 - Quick menu :
To enter the quick menu please push following sequence of buttons
When entered succesfully, the quick menu comes accessible, use the buttons to
move between the different menu options, PRESS AND HOLD to select that option and use
to change the value for that option. Changes are automatically saved.
Change the output channel.
Change the output level.
Change the country
Change the TS ID.
Change the language.
Go back to factory settings
Leave this menu.
CHANNEL
ATTENUATION
COUNTRY
TS ID.
LANGUAGE
DEFAULT CONFIG.
EXIT
21 (474 MHz)
5 dB
[FRANCE]
100
[ENGLISH]
[YES]
[YES]
3 - Informations on the LCD screen
In normal operation the LCD screen of the D323HD shows some information on the status of the mod-
ulator. The status of input A and input B is alternated with the actual date and time set in the modula-
tor. Possible informations can be :
A: --- B: ---
A: 720P B: 1080P
A:PLAY B: 1080P
A: REC B: 1080P
Nothing connected to input A and
input B
Input A playing .ts file
Input B encoding, resolution 1080P
Input A encoding, resolution 720P
Input B encoding, resolution 1080P
Input A recording
Input B encoding, resolution 1080P
AMF ELECTRONICS©2018
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2

USER MANUAL
PAGE 6
DM323HD

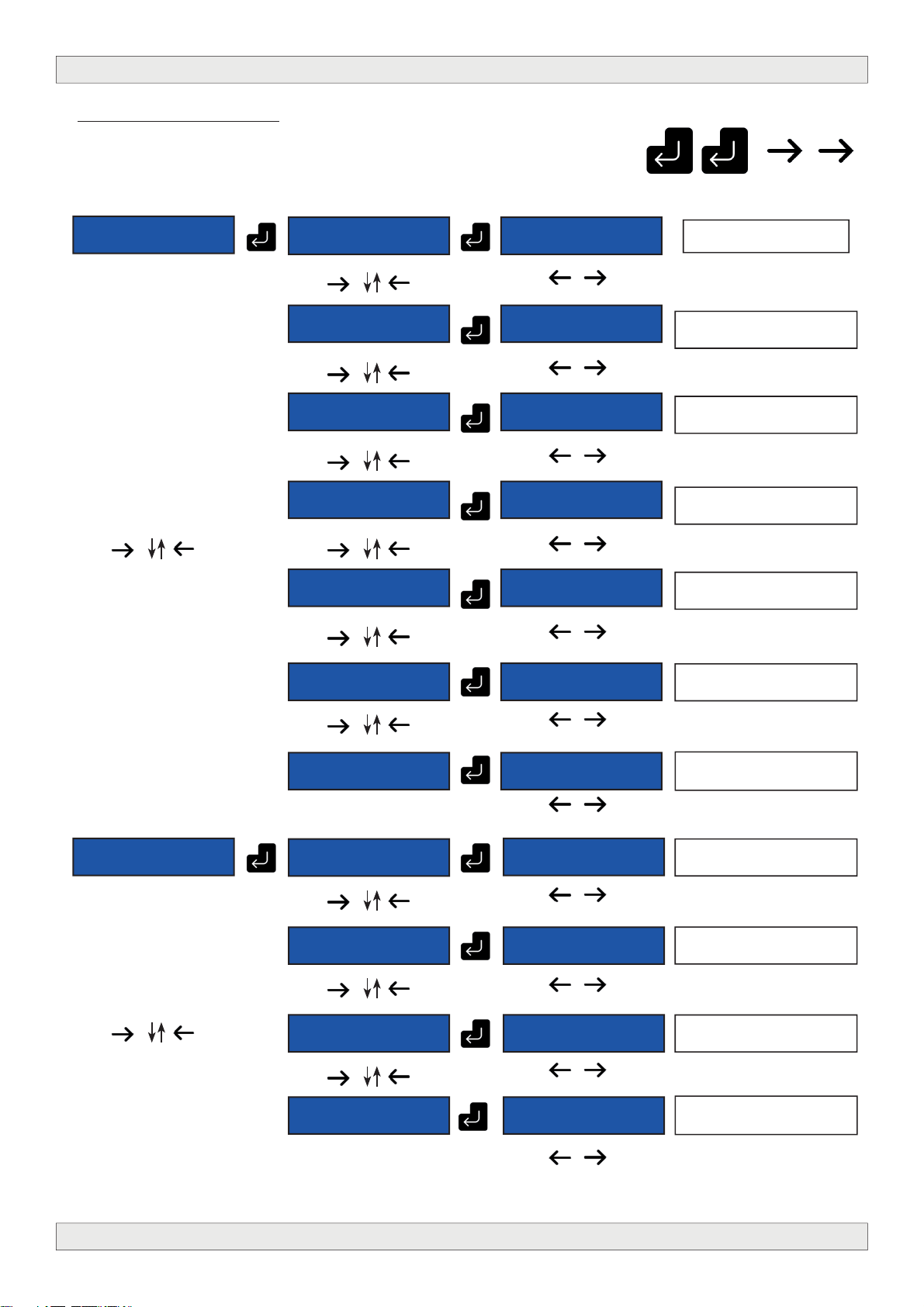

4.2 - Advanced menu
To enter the advanced menu please push following sequence of buttons
Set the output frequency
Select the bandwidth.
6,7 or 8 MHz
Select the constellation
QPSK, QAM16 or QAM64.
Select the F.E.C.
1/2, 3/4, 5/6 or 7/8
Select the guard interval
1/2, 1/4, 1/8,1/16 or 1/32
Select the mode 2K or 8K
Set the NIT version
Set then Network ID.
Set the original network ID for
your country
Leave this menu.
Set the LCN system,
EACEM, ITC, Nordig or Austral.
DVB SETTINGS FREQUENCY
BANDWIDTH
CONSTELLATION
F.E.C.
GUARD INTERVAL
MODE
EXIT
TS SETTINGS NIT RELEASE 30
NET ID. 10000
ORIG. NET ID. 8442
LCN ID. [EACEM]
474000 kHz
[8 MHz]
[QAM64]
[7/8]
[1/32]
[2K]
[YES]
AMF ELECTRONICS©2018
DM323 HD 2.2 DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2

USER MANUAL
PAGE 7
DM323HD

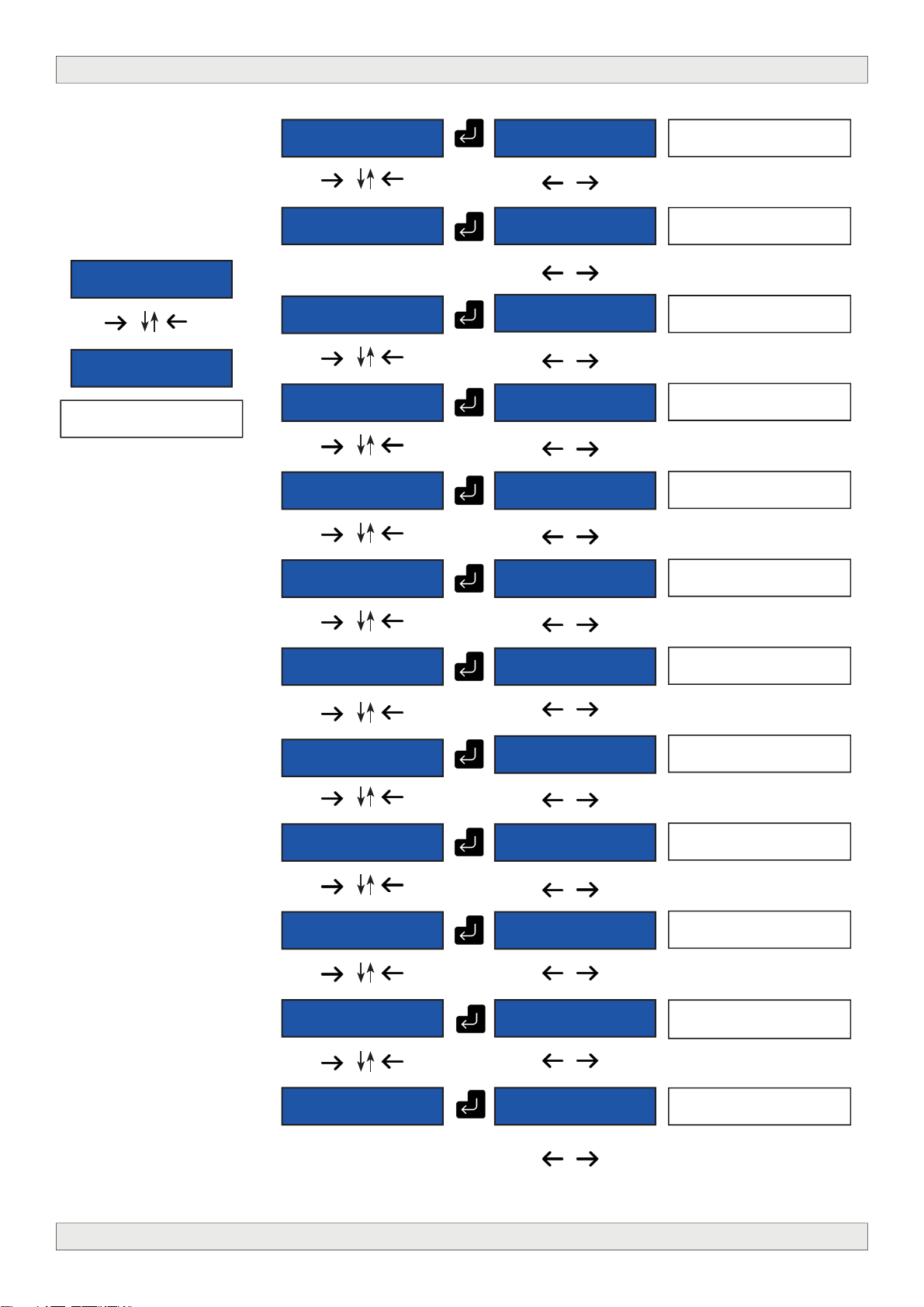

Set the network name
Leave this menu
Set the program ID for input A
or input B
Set the program name for input
A or input B
Set the LCN number for input A
or input B
Set the video rate for input A
or input B
Set the audio rate for input A
or input B
Set the audio compression for
input A or input B
Set the PMT PID for input A or
input B
Set the video PID for input A or
input B
Set the audio PID for input A or
input B
NETWORK NAME
6789.[A]BCDEF
EXIT [YES]
INPUT A
INPUT B
Identical menu for INPUT A or
INPUT B
PROGRAM ID. 1
SERVICE NAME
6789.[A]BCDEF
Channel A
L.C.N. 801
VIDEO RATE 9000
AUDIO RATE [192 Kb/s]
AUD. COMPRESSION [MPEG1-L2]
PMT PID
VIDEO PID
AUDIO PID
EXIT [YES] Leave this menu
100
101
102
AMF ELECTRONICS©2018
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2
AMF

USER MANUAL
PAGE 8
DM323HD
Set the file you want to play
from the USB stick
Enter the filename where you
want to record to.
Select yes or no to stop the
current action
Leave this menu
TM2HD 2.2
DVB SETTINGS
USB PLAY
RECORD
STOP
x
Finish with the enter character
to start recording
EXIT [YES]
[YES]
In order to operate the USB menu, please connect at first an USB Stick 3.0 and then power up the
DM323HD.
With the USB stick connected you can play files. Please note that only files with the extension .ts can
be played through this device. If you play a file, the source connected to input A will be interrupted and
in the output you will find your .ts file.
As mentioned in the introduction, if you select a file this will played continuously. At the end of the file,
the DM323HD will play again the same file.
If you want to play a selection of files, then name your files sequentially. For instance, file001,
file002, file 003. (all with .ts extension). Then, if you select a file from this list, the file will start to
play. At the end the TM2HD will look for the same file name with a higher number (for instance if you
start with file002, it will look at the end of this file for file003 etc. and play the following file). When no
higher number is found it will start again with file001..
efgh[i]jkl
TM2HD001.ts
AMF ELECTRONICS©2018
DM323 HD 2.2 DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2
DM323 HD 2.2 DM323 HD 2.2

USER MANUAL
PAGE 9
DM323HD
Now, all parameters discussed in Chapter 4 of this user manual can be modified by TMHDIface.

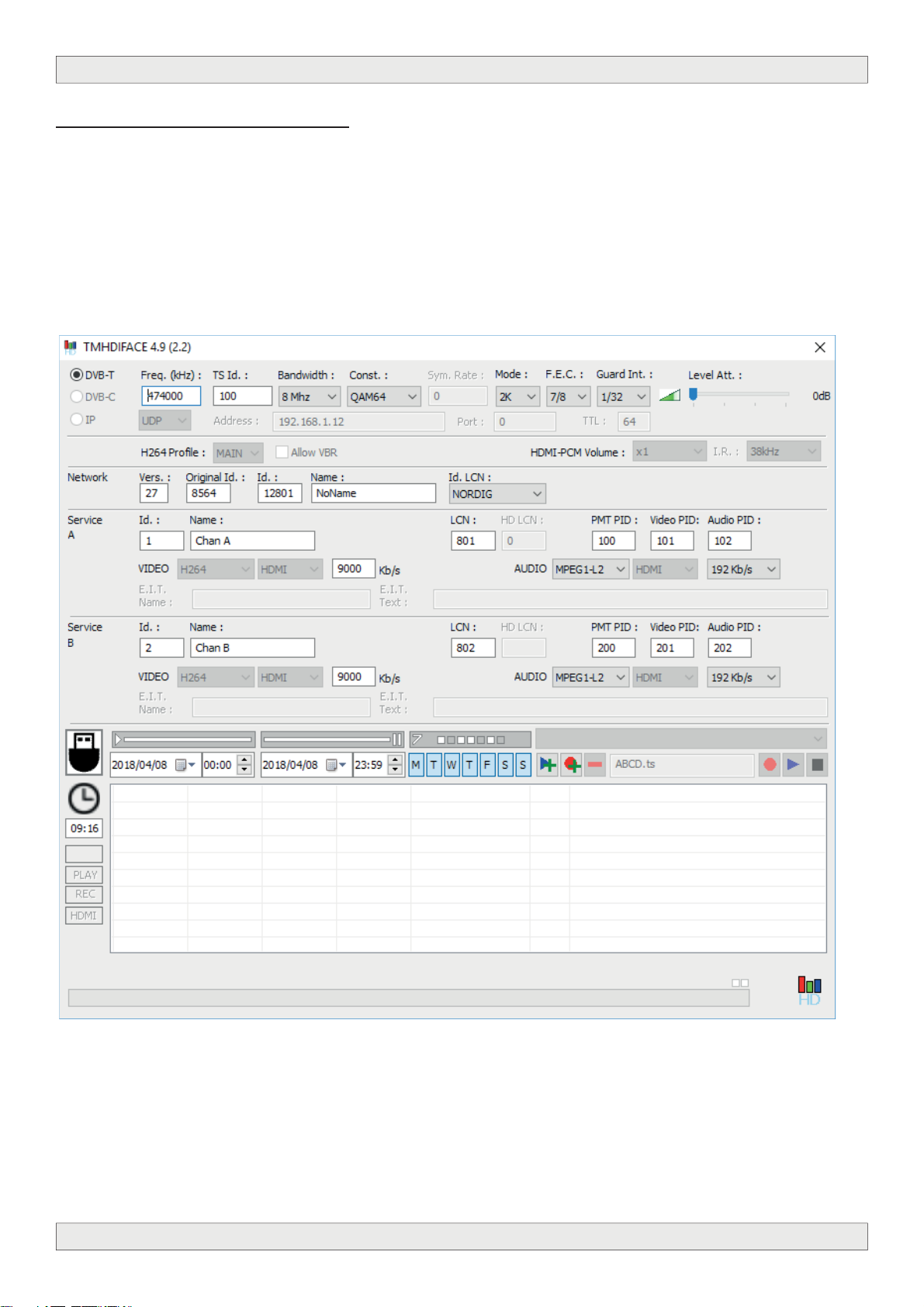

5 - Programming using a PC
The settings of the DM323HD can also be changed using a PC.
First, please install the software TMHDIFace on your PC. You can download this software from our
internet site
After installation of this software, connect the DM323HD using a USB cable (not included) to your com-
puter. Then launch the program TMHDIface.
On the display of the DM323HD the message <USB> appears, indicating that the programming is now
performed through your PC. The following window appears on your screen.
AMF ELECTRONICS©2018

USER MANUAL
PAGE 10
DM323HD

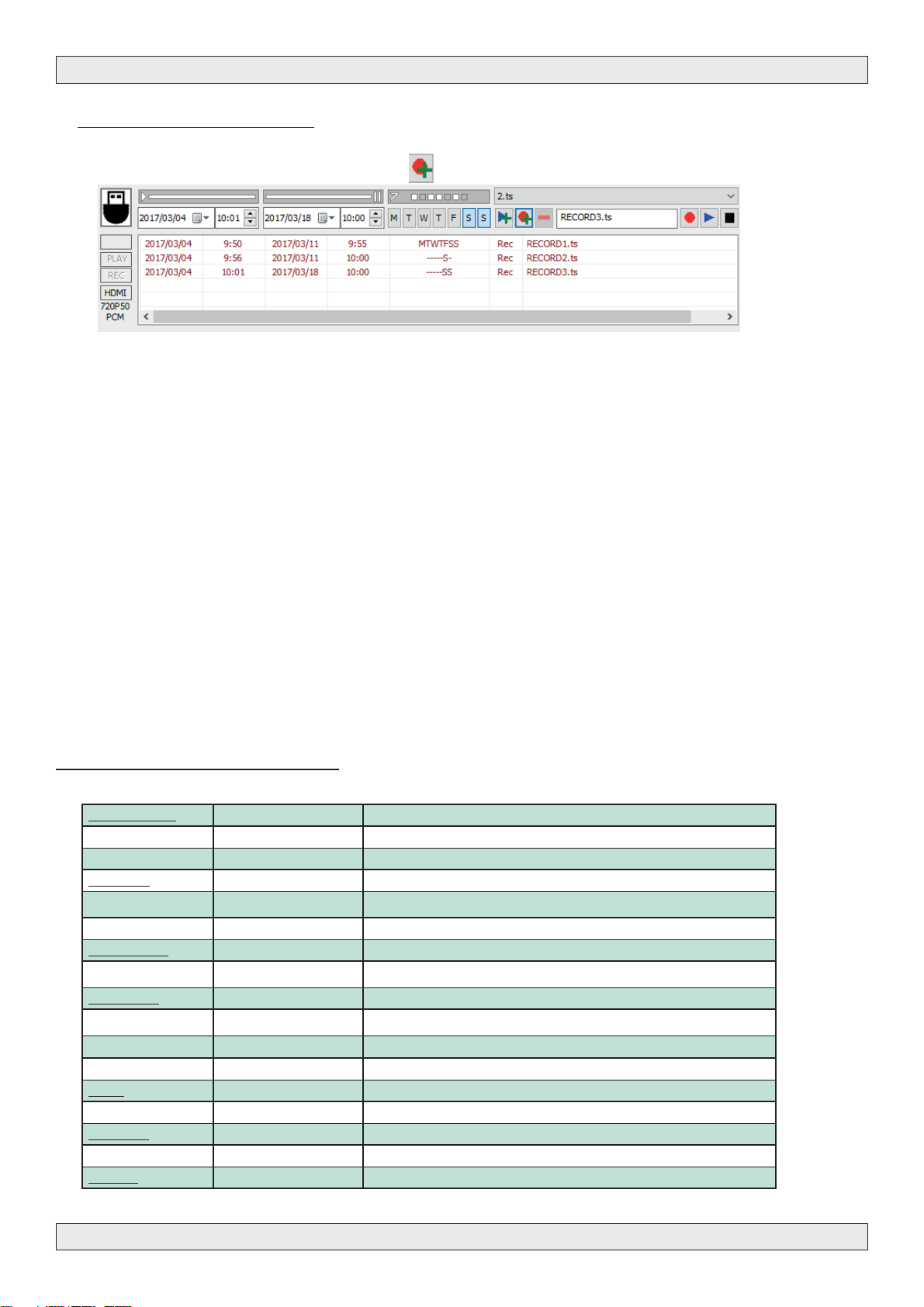

6 - Making play and recording lists using TMHDIface
Due to the ability of recording and playing using a USB 3.0 key, together with the presence of a clock,
the DM323HD is an ideal product to use in DIGITAL SIGNAGE APPLICATIONS. Indeed different .ts
files present on the USB key can be played over your DVB-T network according to a predefined time
table , specifiying over a given period the start time and end time and also the days of the week.
TMHDIface allows easy setup of these timetables.
6.1 - Direct play and record.
Select a file in the dropdown list of files available on the USB key and press
Create a “file.ts” in TMHDIface and press to record the HDMI source.
Press to end playing or recording.
e
a
6.3 - Making a playlist.
a/ Select a .ts file from the files present on the USB key
b/ Select the start date/time and the end date/time :
c/ Select the days of the week when to play this.ts
d/ Press the add to playlist button.
e/ For removing an item from the playlist, select that line and press the button
6.2 - Adjusting time and date
Before starting to use play and recordlist, please check that the time and date in the DM323HD is set
appropriate. In order to adjust time and date, please click on the time in TMHDIFace.
A new window will popup where you can
adjust the date and time in the modulator.
AMF ELECTRONICS©2018

7 - Technical specifications
Video inputs (x2) Input HDMI
Resolu on modes 480p -576p -720p - 1080i - 1080P
Compression H.264 – bitrate 5-15 Mb/s
Audio input Input HDMI
Sample Rate HDMI (32kHz / 44.1 kHz / 48 kHz)
Compression AAC-LC / MPEG1-L2– bitrate 128-320 Kb/s
DVB Processing Table inser on PAT, PMT, SDT, NIT
Confi gura on Channel/network name, SID, LCN, TSID, ONID, NID, versions, audio, video PIDs…
DVB-T output Output frequency / level 170-230 MHz + 470-862 MHz / > 85 dBμV
Constella on - FEC QPSK/16QAM/64QAM - 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/4, 1/8, 1/16, 1/32
Mode - MER 2K/8K - 33 dB
Power DC 2.1 mm connector +5V
Consump on 10 Wa s
Dimensions LxWxH 150x130x35mm
Weight 0.9 kg
EAN code DM323HD 5420037690022
USER MANUAL
PAGE 11
DM323HD
6.4 - Making a recordlist.
Similarly a recordlist can be created as described above. Instead, you have to first name the .ts file
and then press the add to recordlist button
AMF ELECTRONICS©2018

USER MANUAL
PAGE 12
DM323HD
We reserve the right to make changes to our products without prior notice.
AMF ELECTRONICS©2018
