Amica ADH 82 LCW User manual

DRYER
Please carefully read these Operating Instructions before using the appliance!
OPERATING INSTRUCTIONS
IO-WMS-0021
(05.2016/1)
ADH 82 LCW

2
In accordance with European Directive 2012/19/EC and Polish legislation regarding
used electrical and electronic goods, this appliance is marked with the symbol of the
crossed-out waste container.
This marking indicates that the appliance must not be disposed of together with other
household waste after it has been used.
The user is obliged to hand it over to waste collection centre collecting used electrical
and electronic goods. The collectors, including local collection points, shops and local
authority departments provide recycling schemes. Proper handling of used electrical and
electronic goods helps avoid environmental and health hazards resulting from the presence of danger-
ous components and the inappropriate storage and processing of such goods.
CONTENTS
Basic Information........................................................................................................................3
Safety instructions...................................................................................................................4
Installing the dryer.......................................................................................................8
Understanding the symbols on clothes labels...............................................................11
Display and control panel........................................................................................12
Using the appliance................................................................................................15
Table of programmes.........................................................................................16
Troubleshooting..............................................................................................................17
Maintenance and Cleaning.......................................................................................19
Specification..............................................................................................................20
Service and Warranty..................................................................................................20
Product fiche..........................................................................................................21

3
BASIC INFORMATION
Dear customer,
From today, DRYING will be easier than ever before. Your Amica DRYER is exceptionally
easy to use and extremely efcient. After reading these Operating Instructions, operating the
appliance will be easy.
Before being packaged and leaving the manufacturer, the appliance was thoroughly checked
with regard to safety and functionality. After these tests some moisture or water may remain
in the appliance.
Before using the appliance, please carefully read these Operating Instructions
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep these Operating Instructions and store them in a safe place so that
they can be consulted at any time.
Follow these instructions carefully in order to avoid possible accidents.
Important!
This dryer is intended for household use only for drying textiles and clothing.
Level the appliance before connecting it to a wall socket.
The manufacturer reserves the right to introduce changes, which do not affect operation of
the appliance.
Use
l Carefully read the instructions below before using the appliance.
l Never use the appliance outdoors or anywhere the temperature may fall below freezing.
l The appliance should not be operated by children or anyone who has not read the
instructions.
Important! Temperatures below 0°C can damage the appliance!
In the event of the appliance being stored or transported in sub-zero temperatures, it should
be left to acclimatise in a temperature above 0°C for 8 hours before being used.
Manufacturer’s Declaration
The manufacturer hereby declares that this product meets the requirements of the follow-
ing European directives:
l Low Voltage Directive 2014/35/EU,
l Electromagnetic Compatibility (EMC) Directive 2014/30/EU,
and has been marked with the symbol and issued with a declaration of compliance
made available to market regulators.

4
NOTES ON SAFETY
l This product is an electrical appliance that is used
exclusively for indoor drying fabrics washed in water. Use
of safe power supply during the operation!
l The power source must be grounded. The ground-
ing cable must be buried underground and must not be
connected to the utilities network, such as water pipe or
gas pipe. Grounding and neutral wire and must be distin-
guished and may not be connected together.
l The power cord must comply with IEC standards
and withstand current greater than 10A. If these require-
ments are not met, you should immediately adapt your
domestic electrical system to ensure the safety of your
household.
l The appliance can dry up to 8 kg of washed laundry.
l Do not dry chemically cleaned clothes in the dryer
l Do not dry dirty laundry.
l Laundry contaminated with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, stain
removers, turpentine, wax and wax removers must be
washed in warm water with detergent before drying in the
dryer.
l Do not attempt to dry the foam rubber (latex foam),
bathing caps, waterproof textiles, rubber-lined clothing or
pillows tted with rubber pads in your tumble dryer.
l Fabric softeners or similar products should be as
specied in the relevant directions for use.

5
NOTES ON SAFETY
l Laundry is not heated in the last part of the drying
cycle. It is the cooling cycle to make sure the laundry is
not damaged and has the right temperature.
l Filters should be cleaned each you use the appli-
ance.
l Always keep the appliance clean.
l The room where the appliance is used must have
adequate ventilation. Do not install the appliance in the
same room where you use other appliances that produce
exhaust fumes and other combustion gases.
l CAUTION: Do not turn off the dryer before the dry-
ing cycle ends unless the laundry will be quickly removed
and hung out in order to dissipate heat.
l Air from the appliance must not be discharged to a
chimney used for discharging ue gas from combustion
appliances that burn gas or other fuels.
l The appliance must be installed in such a way as to
ensure unlimited access to it and the dryer door may be
fully opened.
l Keep pets away from the machine.
l Laundry contaminated with oil may ignite sponta-
neously, especially in the heat generated in a tumble dry-
er. Heating oil causes oxidation reaction. The oxidation
produces additional heat. If the heat cannot dissipate,
the laundry can become hot enough that ignition occurs.
Stacking fabrics soiled with oil can prevent heat dissipa-
tion and create a re hazard.

6
NOTES ON SAFETY
l If you cannot avoid tumble drying fabrics soiled with
vegetable oil, cooking oil or dirty hair care products, you
must rst wash dirty laundry in hot water with detergent. In
this way you can reduce, but not eliminate the risk.
l Do not overturn the appliance during normal use
and maintenance.
l Before drying, make sure there are no foreign ob-
jects such as coins, lighters, matches, etc. in clothing
pockets.
l This appliance can be used by children aged 8
years and older or persons with physical, mental or sen-
sory handicaps, or those who are inexperienced or unfa-
miliar with the appliance, provided they are supervised or
have been instructed how to safely use the appliance and
are familiar with the associated risks. Ensure that children
do not play with the appliance. Children should not be
allowed to clean or maintain the appliance.
Children less than 3 years of age shall be kept away unless
continuously supervised.
l If the power cord is damaged it must be replaced
to prevent danger. The power cord can be replaced by a
service centre authorized by the manufacturer or by other
suitably qualied person.
l This appliance is intended solely for indoor use.
l Make sure aby dryer ventilation openings are not
blocked by the carpet.

7
NOTES ON SAFETY
l If the appliance excessively heats up, immediately
remove the plug from the wall outlet.
l Do not pull the power cord when removing the plug
from the wall outlet.
l Do not insert or remove the plug from the wall outlet
with wet hands.
l Do not damage the cord or plug.
l Do not install or disassemble the dryer before you
carefully read the operating instructions.
l Do not place the dryer on top of the washing machine
without a special kit (You must purchase the stacking kit to
install the dryer on top of the washing machine. To avoid the
danger hair the dryer must by installed the manufacturer's
service technician or other suitably qualied person).
l Do not lean on the open dryer door.
l Do not place objects such as candles or electric stove
on the dryer.
l Do not exceed the maximum appliance load.
l Do not use the dryer without the lter base and its
cover.
l Do not dry wet laundry that has not been spun.
l Do not expose the dryer to direct sunlight. The appli-
ance is designed for household use only.
l Do not install dryer in rooms with high humidity.
l Unplug the appliance from the wall outlet before any
cleaning and maintenance. Do not clean the appliance with
water jet.
l Do not dry laundry contaminated with flammable
substances, such as oil or alcohol. This could result in an
explosion.

8
INSTALL THE DRYER

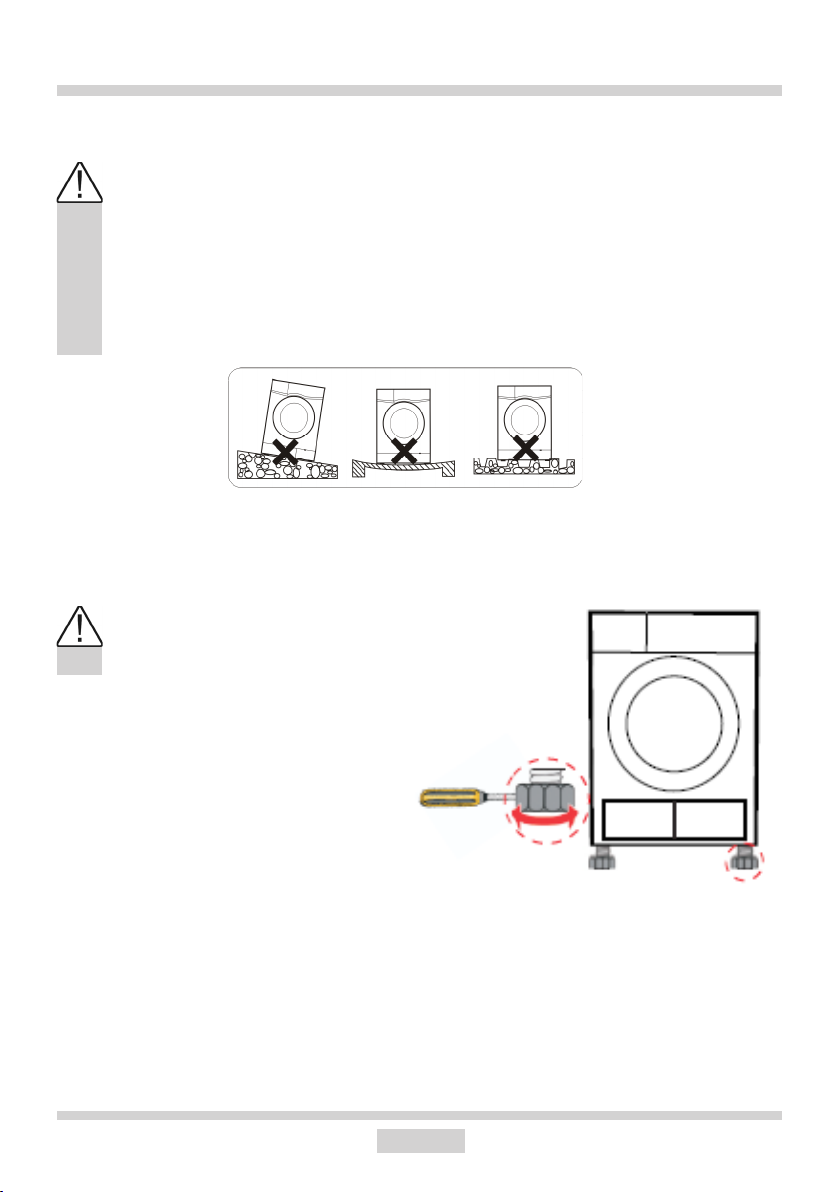

I. Position and level the appliance
l Place the appliance on a solid, even surface.
l Level the machine by adjusting the legs (1)
After positioning and levelling the appliance,
check that it is stable by pressing down each
corner and ensuring it does not move!
l For convenience, it is recommended to place the appliance near
a washing machine.
l Do not place the appliance on a carpet!
l The dryer must be installed in a clean place, where dirt does not
accumulate. There must by free air circulation around the appliance.
Do not block the front air inlet or air intake grilles at the back of the appliance.
l The oor surface should not be either concave or sloping!
l Pay attention to the shape of the oor surface, and make sure the
entire appliance weight rests on its legs (not its body)!

9

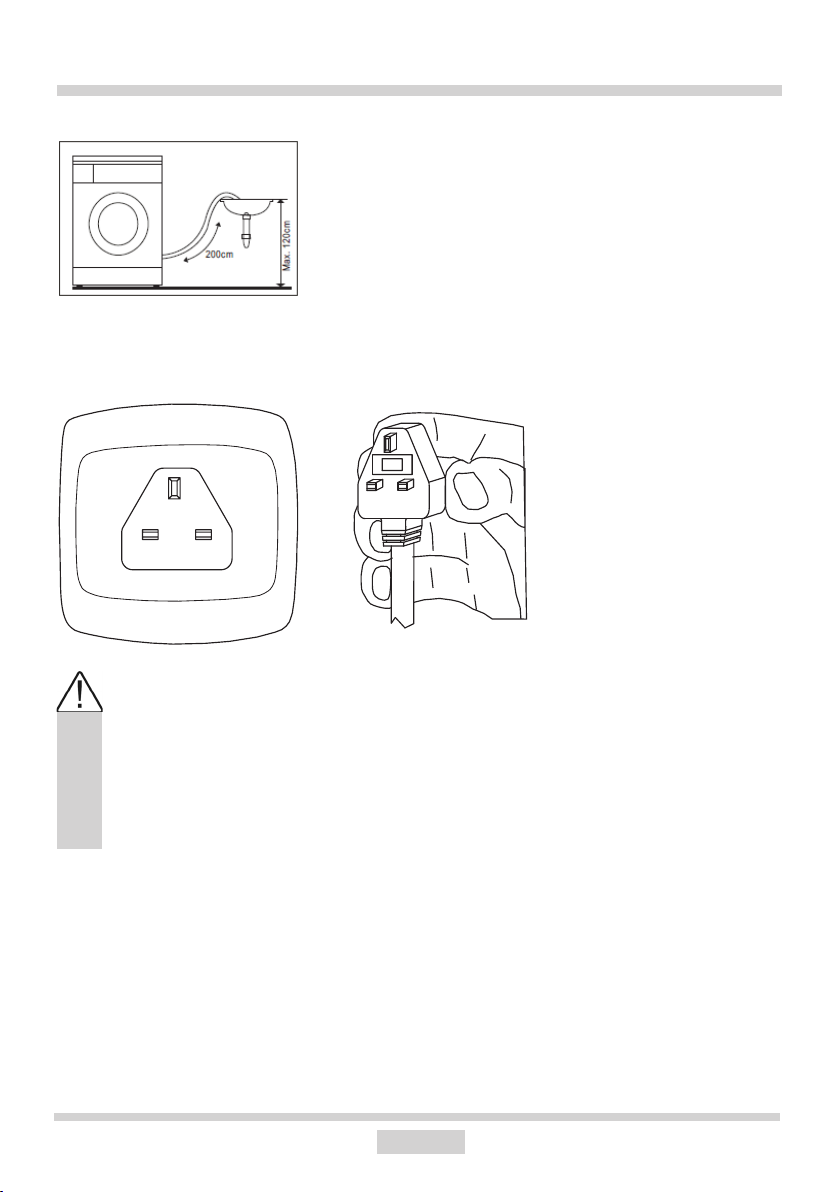

Normally condensed water drains into the container
in the upper left corner of the dryer. Optionally, you
can use the drain hose in the accessory bag and con-
nect it to the dryer. Connect the hose as shown here.
II. Water drain (option)
l The appliance's mains connection (electrical wall socket) should be in a visi-
ble and accessible place!
l Only plug the appliance into a properly installed socket with an earth pin!
l Do not connect the appliance through any extension cord or an adapter!
l In the event of the power cord being damaged, it must be replaced by an
authorised technician.
l The electrical system to which the appliance is to be connected must be pro-
tected with a 10 A fuse.
INSTALL THE DRYER
III. Connect to power supply

10
INSTALL THE DRYER
IV. Tips
1. Spin the laundry in the washing machine before tumble drying. The high spin speed can
reduce the drying time and save energy.
2. To make sure the drying effects are uniform, sort the laundry by fabric type and drying
program.
3. Before the drying close the locks, hooks and buttons, etc.
4. Do not over-dry clothes, as they can easily crease or shrink.
5. Do not dry articles such as raincoats, bike covers or similar exible materials containing
rubber parts.
6. The door can only be opened when the programme completes. This prevents the user
from being scalded by hot steam or overheated air.
7. To avoid extended drying cycles and increased energy consumption, clean the appli-
ance lters after each use. Remember to empty the container with water discharged during
drying.
8. Use only the dedicated programme to dry woollen garments.

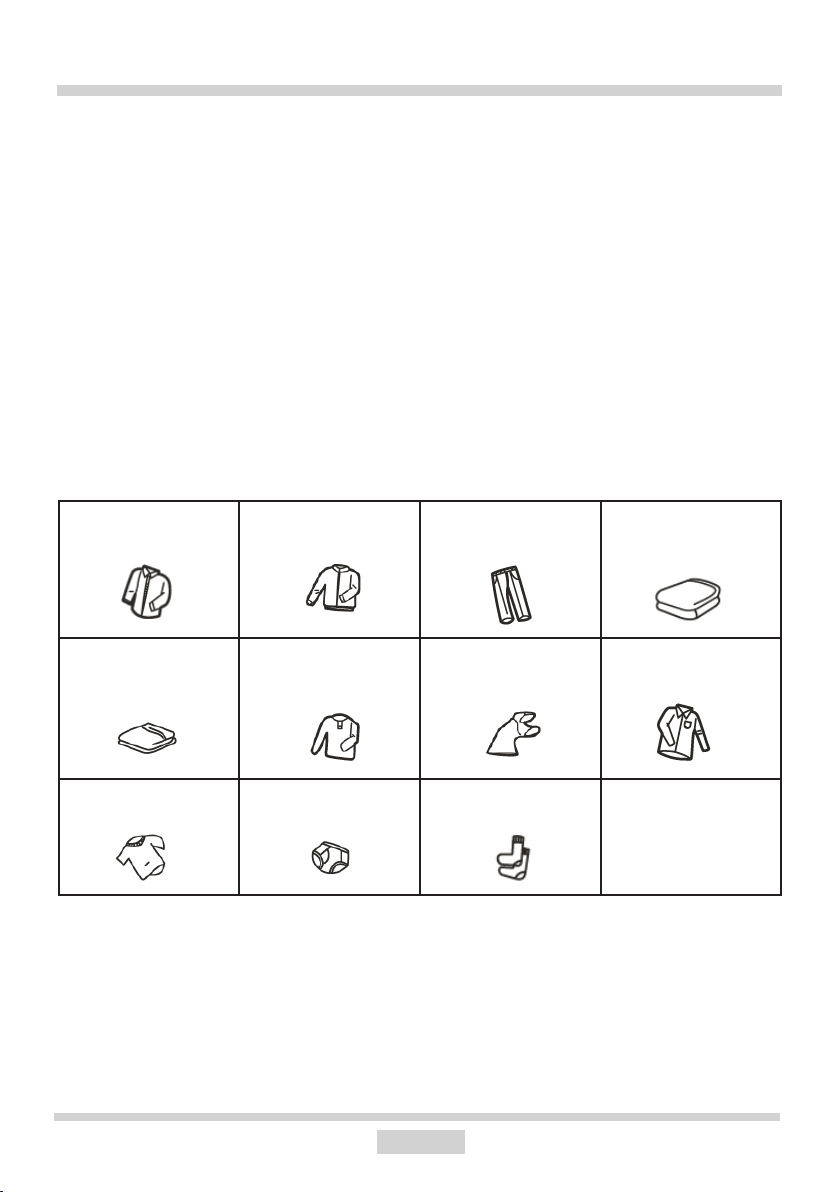

9. Recommended load depending on the kind of laundry to be dried.
Coats
(approx. 800 g)
Jackets
(about 800g cotton)
Jeans
(approx. 800 g)
Quilts
(about 900g cotton)
Sheets
(about 600g cotton)
Working clothes (up-
per and lower)
(about 1120g cotton)
Pyjamas
(approx. 200g)
Shirts
(about 300g cotton)
T-shirts
(about 180g cotton)
Briefs, panties
(about 70g cotton)
Socks
(about 30g ber mix)

11

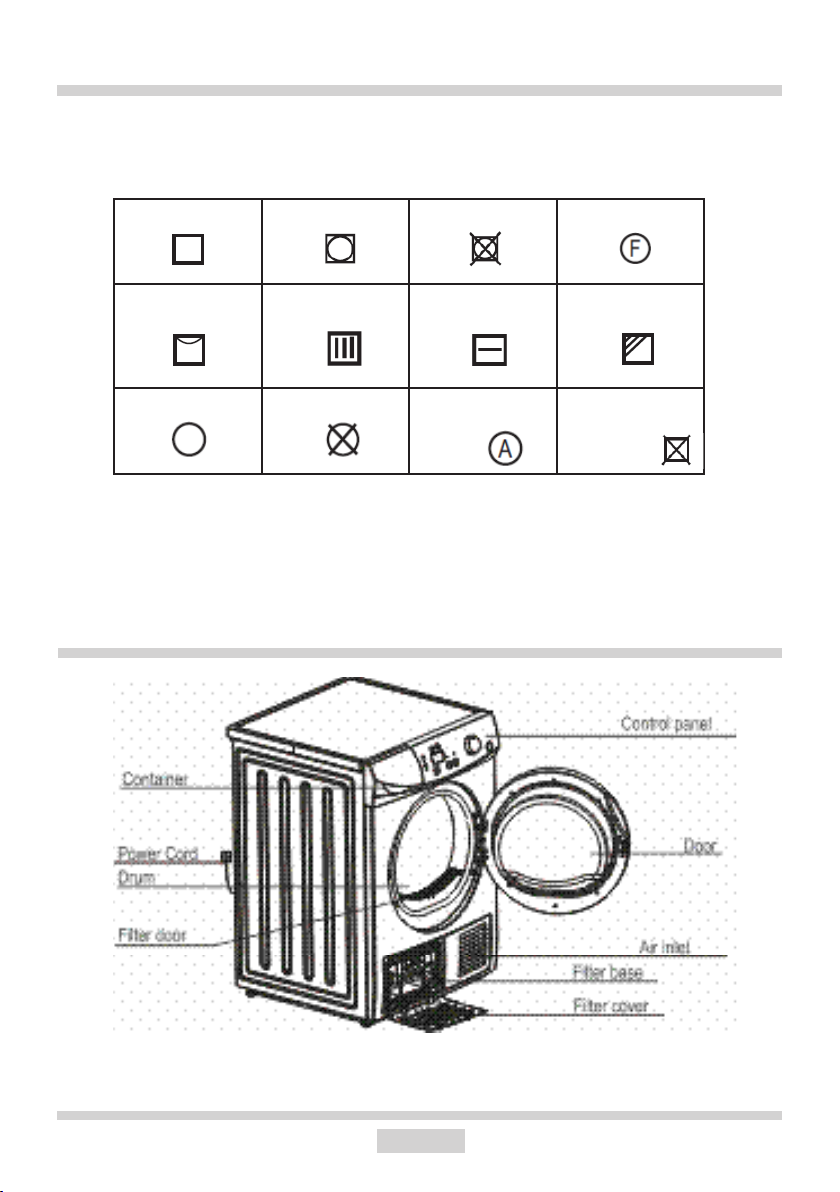

UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS
Before drying pay attention to the symbols on the apparel label.
Failure to follow the symbol instructions may damage or destroy clothes to be dried.
The symbols are explained in the following table:
Dryer description
Dry Tumble dry Do not tumble dry Do not dry
Line dry/hang to
dry
Drip dry Dry at Dry in the shade
Dry clean Do not dry clean Dry clean normal
cycle with any
solvent
Dry clean normal
cycle petroleum
solvent only

12
DISPLAY AND CONTROL PANEL
1
2
■
■
73 456
■■
■■■
56
+
■
1. Programme selector dial
2. Display
3. Indicators of progress of the program
4. Start/Pause button
5. Anti-Crease button
6. Signal button
7. On/Off button
8. Delay button
9. Time button
5 + 6. Child Lock
8
■
9
■

13
DISPLAY AND CONTROL PANEL
1. Programme selector dial
Choose the appropriate drying programme as required, depending on the type and
amount of laundry loaded, which ensures better results and more effective drying. Once
the drying programme is started, turning the programme selector knob to another posi-
tion is possible, however it does not change the previously selected programme.
2. Display
The display shows the remaining time / delay time / error message, soiled lter
indicator (caution), water tank full indicator (caution), Child Lock indicator.
lOnly light ( DELAY / REMAIN ) relevant to the phase that is currently being carried
out will remain display during the drying process.
lWhen the drying procedure begins, REMAIN will display the remaining time, that is,
the drying procedure will nished in [x:xx] time.
lThe display “- ”means programme in “standby” status, you can press any buttons
or open the door to awaken programme.
3. Indicators of progress of the program
The four LED lights indicate the status of the drying programme.
4. START/PAUSE button
Press Start/Pause to start or pause a programme.
When this button is pressed, this machine is switched between start and pause.
5. Anti-Crease button
Once the programme has ended, the Anti-crease function operates for 10 minutes
(default) or 120 minutes (when selected). This function will give more care to protect
sensitive textiles from being creased.
6. Signal button
Set up the buzzer on or off. In general condition, the buzzer is off. Please touch it if
needed. When the buzzer on:
(1) The dryer will give the leading sound if press the extra function buttons and knob.
(2) When the drying programme is done,the buzzer will also remind the user.
7. On/Off button
On/Off button has the on and off function. When this button is pressed, this machine is
switched between on and off.

14
DISPLAY AND CONTROL PANEL
8. Delay button
This function is used drying process to delay. It’s possible to get 1-24 hour by prssing this
key continuously.
9. Time button
This function is used to adjusted the time of drying. 10-120 minutes by pressing this key
continuously.
5 + 6. Child Lock
This function prevents children from changing settings or interrupting appliance
operation. Pres and hold Signal and Anti-Crease button for 3 seconds to activate the
Child Lock during a drying cycle. When child lock function is set, the display will show
[ ] icon and only [On/Off] button can be used. To disable Child Lock, press and hold
Signal and Anti-Crease buttons for 3 seconds.
Important! If the Child Lock function is activated, the display will show the [ ] symbol.
Important! When you turn off or unplug the dryer or the drying cycle ends,
the Child Lock function will deactivate.

15
USING THE APPLIANCE
II. Set Delay Start
The delayed start function may be used when, for example, taking advantage of dis-
counted electricity tariffs.
Procedure:
1. Close the appliance door.
2. Set the programme selector knob to the desired programme (see the table further on).
3. Select additional functions or drying cycle parameters as required.
4. Press the Delay Start button.
5. Select time ranging from 1 to 24 hours. The display will show the setting from 1H to
24H.
6. Press the [Start/ Pause] button. The appliance will be set in delay mode. Drying cycle
will commence immediately after the delay time has elapsed.
Note: If you set delay start, the display will show the time remaining to start the drying
program.
III. End of drying cycle
1. Once the programme has completed, the drum stops rotating and the display shows
“0:00”. The last programme phase indicator will ash. If you do not remove clothes from
the dryer with a specied time, the appliance will start the [Anti-Crease] programme.
Press [On/Off] and remove the plug from the wall outlet.
2. If the appliance suddenly stops during the drying programme and displays an error
message, follow the information in the "Troubleshooting" section.
IV. Cancel or modify programme
Press the On/Off button to interrupt the programme. Then press on/off button again to
turn on the appliance and select the desired drying programme.
I. Select Programme
1. Press [On / Off]. When the LED display lights up turn the programme selection dial
and select the desired programme
2. Select the additional option [Delay], [Time], [Signal] or [Anti-Crease] — if the pro-
gramme allows you to select additional options.
3. Press the [Start/ Pause] button.

16
TABLE OF PROGRAMMES
Note: The above programme is only recommended for use, the user can according to personal habits to choose
the right programme. Thick or multi-layered fabrics,e.g. bedlinen, jeans, jackets etc, are not easy to dry. You’d better
choose Cotton Extra programme.
Programme name Weight
(Max)
kg
Additional functions available Recommendations Time
[H:min]
Energy con-
sumption
[KWh]
Delay Time Anti-Crease
Cotton
Extra 8 1-24H x ۷For cottons and coloureds made of cotton or linen. 03:10 2.1
Standard 1-24H x ۷02:58 1.9
Iron 1-24H x ۷02:10 1.5
Synthetics
Extra 3.5 1-24H x ۷To dry thick or multi-layered synthetic fabrics. Drying
level: extra dry.
01:10 0.7
Standard x ۷To dry thin synthetic fabrics which are not ironed, such as
easy care shirts, table linen, baby clothes, socks. Drying level:
cupboard dry.
01:00 0.6
Iron x ۷To dry thin synthetic fabrics which are also to be ironed,
such as knitwear, shirts.
Drying level: applicable to iron.
00:40 0.5
Special
Silk 1.0 1-24H x ۷To dry silk using warm air and gentle movement 00:45 0.35
Leisure 8.0 1-24H x ۷For leisure clothing,such as jeans,sweatshirts,etc,of
different material thicknesses(e.g.at
the neck,cuffs and seams).
03:20 2.2
Refresh 1.0 1-24H x x For refreshing or gently cleaning textiles with commer-
cially available dry cleaning products.
00:20 0.15
Wool 1-24H x x For a uffy and fresh wool clothing(Can not be used for
drying of wool clothing), After the procedure,
Please take out the clothing at once, let it dry in the air.
00:08 0.11
Mix 3,5 1-24H x ۷If you can not determine what the clothing’s material is,
please choose Mix.
01:30 1.2
Time
Time - 1-24H ۷ ۷ The dryer shall continue running from 10 to 120 minutes. 00:10 -

17
TROUBLESHOOTING
Problem Probable cause/Solution
No information on the display - Make sure the plug is properly inserted into the wall outlet.
- Check the main power supply.
The dryer does not start - Check if the Start / Pause button is pressed.
- Make sure the door is properly closed.
The door opens spontaneously - Push the door in until it clicks shut.
- Make sure the dryer is not overloaded.
The laundry is not sufciently dry
or drying time is too long
- Clean the top and bottom lter.
- Select the appropriate programme.
- Do not block the air intake.
Note:
If you can not correct the problem yourself, ask for assistance:
1. Press [On / Off].
2. Unplug the appliance and call service.

18
TROUBLESHOOTING
Appliance error codes
Display indica-
tion
Reason Solution
is ashing
Water container is
full
Empty the container
Water pump failure
or water level sensor
error
If the problem persists, contact the SERVICE.
E32
Humidity sensor
failure
E33
Temperature sensor
failure
The tumble drier indicates error codes to help locate minor operating faults and identify their
cause. The ERROR CODES help locate and determine the cause.
Detected errors are indicated as shown in the following table:
When an error occurs, the appliance beeps
(if active).

19
MAINTENANCE AND CLEANING
I. Empty the water container
1. Pull out the water container with your both hands;
2. Pour the condensed water into the sink;
3. Replace the water container.
WARNING:
1. Empty the water after each use. If the container becomes full during the drying
cycle, programme will be stopped and [ ] icon will ash. After emptying the
container, you can restart the dryer by pressing [Start / Pause].
2. Do not drink the condensation water.
3. Do not use the dryer without water container in place.
II. Clean the top lter
1. Open the door.
2. Remove the top lter
3. Remove bres and yarn collected on the lter mesh.
4. Replace the top lter
III. Clean the bottom lter
1. Open the lter cover.
2. Unscrew the two locking levers.
3. Pull out the lter body
4. Completely clean the lter mesh.
5. Replace the lter body!
6. Tighten both locking levers.
7. Close the lter cover.
CAUTION!
1. Fluff, threads, bres collected on the lter block the air ow and thus extend the drying time and
increase the energy consumption;
2. Remove the plug from wall outlet before cleaning!
3. Do not operate the dryer without the lter!
4. Clean the lter after each use to prevent the accumulation of uff, threads, bres inside the drum.
IV. Clean the heat exchanger
About every two months or when necessary, use a sponge or a soft brush to remove uff, threads and
bres from the heat exchanger.
Wear gloves when cleaning.
Note: Fluff, threads and bres can be removed easily when sprayed with water

20
Testing for label information in accordance with EN 61121 using the standard cotton drying programmes:
- at full load
- at partial load
l weighted average electricity consumption is 236 kWh/year
SPECIFICATION
-Type ADH 82 LCW
-Rated voltage 220-240V / ~ 50Hz.
-Rated power 650 W
- Refrigerant R134a
- Ambient temperature + 5°C ~+ 35°C
- Maximum Load max 8 kg
- Dimensions Height x Depth x Width 845/595/622 [mm]
- Weight 52 kg
Meets the requirements of EU legislation, EN- 61121 standard
Contains uorinated greenhouse gases covered by the Kyoto Protocol
Hermetically sealed
Note:
1. Rated load is a maximum load. Always make sure that the weight of laundry in the dryer never
exceeds the rated load.
2. Do not install the tumble dryer in a room where there is a risk of freezing temperature. The dryer
may not work properly at temperature close to freezing.
3. Risk of damage if the condensed water freezes in the pump, hose or condensed water container.
