Amigopod
Implementing Accounting-Based
Authorization

2|May 2011 Amigopod |Technical Note
Copyright
© 2011 Aruba Networks, Inc. Aruba Networks trademarks include Airwave, Aruba Networks®, Aruba Wireless
Networks®, the registered Aruba the Mobile Edge Company logo, Aruba Mobility Management System®,
Mobile Edge Architecture®, People Move. Networks Must Follow®, RFProtect®, Green Island®. All rights
reserved. All other trademarks are the property of their respective owners.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties, including software code
subject to the GNU General Public License (GPL), GNU Lesser General Public License (LGPL), or other Open
Source Licenses. The Open Source code used can be found at this site:
http://www.arubanetworks.com/open_source
Legal Notice
The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to
terminate other vendors’ VPN client devices constitutes complete acceptance of liability by that individual or
corporation for this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might
be taken against it with respect to infringement of copyright on behalf of those vendors.
Warranty
This hardware product is protected by the standard Aruba warranty of one year parts/labor. For more
information, refer to the ARUBACARE SERVICE AND SUPPORT TERMS AND CONDITIONS.
Altering this device (such as painting it) voids the warranty.
www.arubanetworks.com
1344 Crossman Avenue
Sunnyvale, California 94089
Phone: [phone]
Fax [phone]

Amigopod |Technical Note Implementing Accounting-Based Authorization| 3
Table of Contents
1Introduction ............................................................................................................................ 4
Audience ................................................................................................................................................. 4
Document Overview .............................................................................................................................. 4
Disclaimer............................................................................................................................................... 5
2About Accounting-Based Authorization................................................................................ 6
Authentication, Authorization and Accounting.................................................................................. 6
Accounting-Based Authorization ......................................................................................................... 7
Authorization during Access-Request ....................................................................................................... 7
Authorization during Accounting-Request ............................................................................................... 8
NAS Requirements ............................................................................................................................... 10
3Configuring Accounting-Based Authorization .................................................................... 11
Check Plugin Versions......................................................................................................................... 11
Create RADIUS User Role................................................................................................................... 11
Create RADIUS NAS Client................................................................................................................. 12
Create Terms of Use page................................................................................................................... 12
Set Terms of Use URL ......................................................................................................................... 13
Create Landing page ............................................................................................................................ 13
Create Login page ................................................................................................................................ 16
Additional Configuration Guidelines ................................................................................................. 18
4Verifying Accounting-Based Authorization......................................................................... 19
Check NAS captive portal settings..................................................................................................... 19
Check terms of use page ..................................................................................................................... 19
Check login page .................................................................................................................................. 19
Check landing page.............................................................................................................................. 20
Check traffic limit ................................................................................................................................ 20
5Modifying Accounting-Based Authorization ....................................................................... 21
Adjusting the traffic limit .................................................................................................................... 21
Count only uploaded or downloaded traffic..................................................................................... 21
Accounting terminology ........................................................................................................................... 21
Counting only downloaded traffic........................................................................................................... 21

4| Implementing Accounting-Based Authorization Amigopod |Technical Note
1Introduction
This technical note explains how to use accounting-based authorization to build a
complete portal for a network service that offers free usage to guests, where guests are
restricted to a certain daily quota of traffic.
The completed portal includes:
•A login page where guests can log in with their username and password.
•A terms of use page describing the conditions under which the guest service is
provided.
•A landing page showing the guest’s current traffic counters and remaining quota.
•A user role configured with the appropriate authorization rules based on accounting
traffic.
Audience
This document is intended for network administrators and system integrators deploying an
Amigopod-based visitor management solution.
Basic familiarity with the Amigopod Visitor Management Appliance is assumed. For in-
depth information about the features and functions of the Amigopod appliance, refer to the
Amigopod Deployment Guide.
Document Overview
The first section of the document explains the concept of accounting-based authorization,
and how this solution works with the Amigopod Visitor Management Appliance.

Amigopod |Technical Note Implementing Accounting-Based Authorization |5
The next section contains a detailed configuration guide for creating the portal. Step-by-
step instructions are provided for creating each page, and for performing all necessary
configuration tasks.
Disclaimer
The topics of network design, security architectures and visitor access are complex
subjects, and no single document can hope to cover all of the possible combinations of
network equipment, network design, deployment requirements, and device configurations,
nor can all the possible security implications for a particular recommendation be covered.
Therefore, while you read this document, it is best to consider it as a guide to developing
your own understanding of the network design topics covered, and as a basis for further
investigation.

6| Implementing Accounting-Based Authorization Amigopod |Technical Note
2About Accounting-Based Authorization
This section provides background information explaining the concepts of authorization
and accounting, and how these can interact to provide a restricted network service to
guests.
Authentication, Authorization and Accounting
The Amigopod Visitor Management Appliance is built on the industry standard AAA
framework, which consists of authentication, authorization and accounting components.
Diagram 1 shows how the different components of this framework are employed in a guest
access scenario.
Diagram 1: Sequence diagram for network access using AAA
Guest NAS Amigopod VMA
Associates [1]
Redirects
Browse to Landing page [2]
Submit form [3]
Login Message page [4] Web login
Automated NAS login
Internet browsing
Complete login form
Unregistered role
Guest role [7]
States: Unauthorized Authenticating Authorized
Access-Request [5]
Access-Accept [6]
Authentication
Authorization
Accounting-Request [8]
Accounting-Response
Accounting
Session timeout [9]
Accounting-Request [10]
Accounting-Response
Accounting

Amigopod |Technical Note Implementing Accounting-Based Authorization |7
In the standard AAA framework, network access is provided to a user according to the
following process:
•The user connects to the network by associating with a local access point [1].
•A landing page is displayed to the user [2] which allows them to log into the NAS [3],
[4] using the login name and password of their guest account.
•The NAS authenticates the user with the RADIUS protocol [5].
•The Amigopod Visitor Management Appliance determines whether the user is
authorized, and if so returns vendor-specific attributes [6] that are used to configure
the NAS based on the user’s role [7].
•If the user’s access is granted, the NAS permits the guest to access the network, based
on the settings provided by the Amigopod Visitor Management Appliance.
•The NAS reports details about the user’s session to the Amigopod Visitor Management
Appliance using RADIUS accounting messages [8].
•After the user’s session times out [9], the NAS will return the user to an unauthorized
state and finalize the details of the user’s session with an accounting update [10].
Accounting-Based Authorization
Authorization decisions can be made based on the accounting records available to the
RADIUS server.
By using this process, traffic limits can be applied for guests within a particular time
period.
The example portal developed in this technical note applies a 200 MB combined limit for
guest traffic (upload and download), measured in any 24 hour period starting from
midnight. Many other rules are possible using the flexible approach to authorization
conditions.
There are two scenarios in which authorization is required:
Authorization during Access-Request
As shown in Diagram 1, when a guest connects to the network and logs in a RADIUS
Access-Request is performed.
More detail on the initial authorization is shown in Diagram 2.

8| Implementing Accounting-Based Authorization Amigopod |Technical Note
Diagram 2: Sequence diagram for traffic limited authorization
If the guest has not previously logged in today, or if the guest’s total traffic consumption
for today is less than the configured limit, then the guest is authorized [1] and an Access-
Accept response is sent [2].
To limit the guest’s traffic, if the guest’s total traffic from previous sessions today exceeds
the configured limit (200 MB) then this is determined during the authorization process [3]
and an Access-Reject response will be sent [4].
Because the Amigopod Visitor Management Appliance uses role-based access control for
visitor accounts, the authorization rules above should be defined as part of the role that
the visitor accounts are using; in this example, the role is the “Traffic Limited Guest role”.
Authorization during Accounting-Request
Because of the authorization rules applied at login time, if the guest is able to successfully
log in then it is known at that time that the guest’s current traffic usage is below the
allowed quota.
Once a guest is authorized, then, how are they prevented from consuming more than their
allowed traffic quota?
Guest NAS Amigopod VMA
Submit form
Login Message page Web login
Automated NAS login
Complete login form
Traffic Limited Guest
l
States: Unauthorized Authenticating Authorized
Access-Request
Access-Accept [2]
Authentication
Authorization
[1]
Traffic less than limit
Submit form
Login Message page Web login
Automated NAS login
Complete login form
Traffic Limited Guest
l
Access-Request
Access-Reject [4]
Authentication
Authorization
[3]
Traffic over limit
Returned to login form

Amigopod |Technical Note Implementing Accounting-Based Authorization |9
There are two ways to achieve this, depending on the type of NAS equipment in use:
•Vendor-specific attributes — Certain NAS vendors provide the capability to limit the
amount of traffic in a particular session. For example:
The ChilliSpot-Max-Total-Octets attribute may be used with a coova-chilli NAC
device.
The Colubris-AVPair attribute may be used with a HP/Colubris controller; set a
suitable value for this attribute such as max-total-octets=200000000.
This scenario is not described further in this document, although it is possible to
implement this approach with the programmable attributes in the Amigopod’s
RADIUS User Roles.
•Interim accounting with dynamic authorization — In the general case, if the NAS does
not provide the ability to disconnect the session automatically, the session must be
monitored by the RADIUS server using RADIUS Interim Accounting updates sent by
the NAS.
Once the traffic limit has been reached, the session must be terminated as it is no
longer authorized. To do this, the dynamic authorization extensions to RADIUS
defined in RFC 3576 are used. The remainder of this technical note describes how to
implement this scenario.
Refer to Diagram 3 to understand how dynamic authorization is used to disconnect a guest
session once the traffic limit has been reached.
Diagram 3: Sequence diagram for interim accounting authorization
During the course of the session, the NAS sends interim accounting updates, including the
current traffic counters for the session, to the RADIUS server using an Accounting-Request
Guest NAS Amigopod VMA
Internet browsing
States: Unauthorized Authenticating Authorized
Accounting-Request [1]
Accounting-Response Accounting [2]
Accounting-Request
Accounting-Response Accounting [3]
Disconnect-Request [4]
Disconnect-Ack
Traffic limit exceeded
Returned to login form [5]

10| Implementing Accounting-Based Authorization Amigopod |Technical Note
message [1].The session information is updated on the RADIUS server [2], and can be
seen using the Active Sessions view.
If the guest reaches the allowed traffic limit, then on the next accounting update [3] the
authorization will be rechecked. Because the session is no longer authorized to continue,
the Amigopod Visitor Management Appliance will initiate an RFC 3576 Disconnect-Request
[4] to the NAS, which will disconnect the visitor’s session and respond with an
acknowledgment.
Further attempts by the guest to access the network will trigger the NAS captive portal
functionality to redirect the guest to the login form [5].
As shown in Diagram 2, the guest is now over the traffic limit and will be denied access to
the network (Access-Reject) with each subsequent login attempt. This will continue until
the authorization rules permit the guest to login again.
NAS Requirements
Full support for an accounting-based authorization model requires NAS equipment that
supports at least one of the two approaches described below:
1. Support for limiting individual sessions by traffic counters.
2. Support for both RADIUS Interim Accounting (RFC 2869) and the Dynamic
Authorization Extensions to RADIUS (RFC 3576) – specifically, support for the
Disconnect-Request packet.
Without NAS support for either point 1 or point 2 above, accounting-based authorization
cannot be implemented properly in the guest portal.

Amigopod |Technical Note Implementing Accounting-Based Authorization |11
3Configuring Accounting-Based
Authorization
Check Plugin Versions
Accounting-based authorization requires the Amigopod RADIUS Services plugin, version
2.1.30 or later.
To verify you have the correct plugin versions installed, navigate to Administrator>
Plugin Manager>Manage Plugins and check the version number in the list.
Use the Update Plugins link to download and install updated plugins.
Create RADIUS User Role
Navigate to RADIUS> User Roles and then click the Create a new role link.
1. Enter a suitable role name, such as Traffic Limited Guest, and a description for the
role.
2. Add an attribute to the role. Select the Tmp-String-1 attribute, type a description of
the attribute in the Value field (“Authorization – 200 MB traffic limit”), and select
Enter condition expression… from the Condition drop-down list. Use the
following expression:
return GetUserTraffic('00:00', 'now') > 200e6 &&
AccessReject();
This expression limits users to a 200 MB traffic limit, measured from midnight on a
daily basis, and including both uploaded and downloaded traffic towards this quota.
All user sessions with the same username are counted as part of the traffic limit.
Slight variations on this expression can be used to adjust the actual traffic limit, and
whether the upload and/or download statistics are counted. For details, search for the
term GetUserTraffic in the Amigopod Deployment Guide.
3. Add another attribute. Select the Reply-Message attribute, and enter the following
expression for the value:
<?= $role["name"]
This value expression returns the role name in the Reply-Message attribute; if
desired, you can enter a different value to be returned.
4. Create any other attributes as required for your network access equipment.
5. Click Save Changes to create the new role.

12| Implementing Accounting-Based Authorization Amigopod |Technical Note

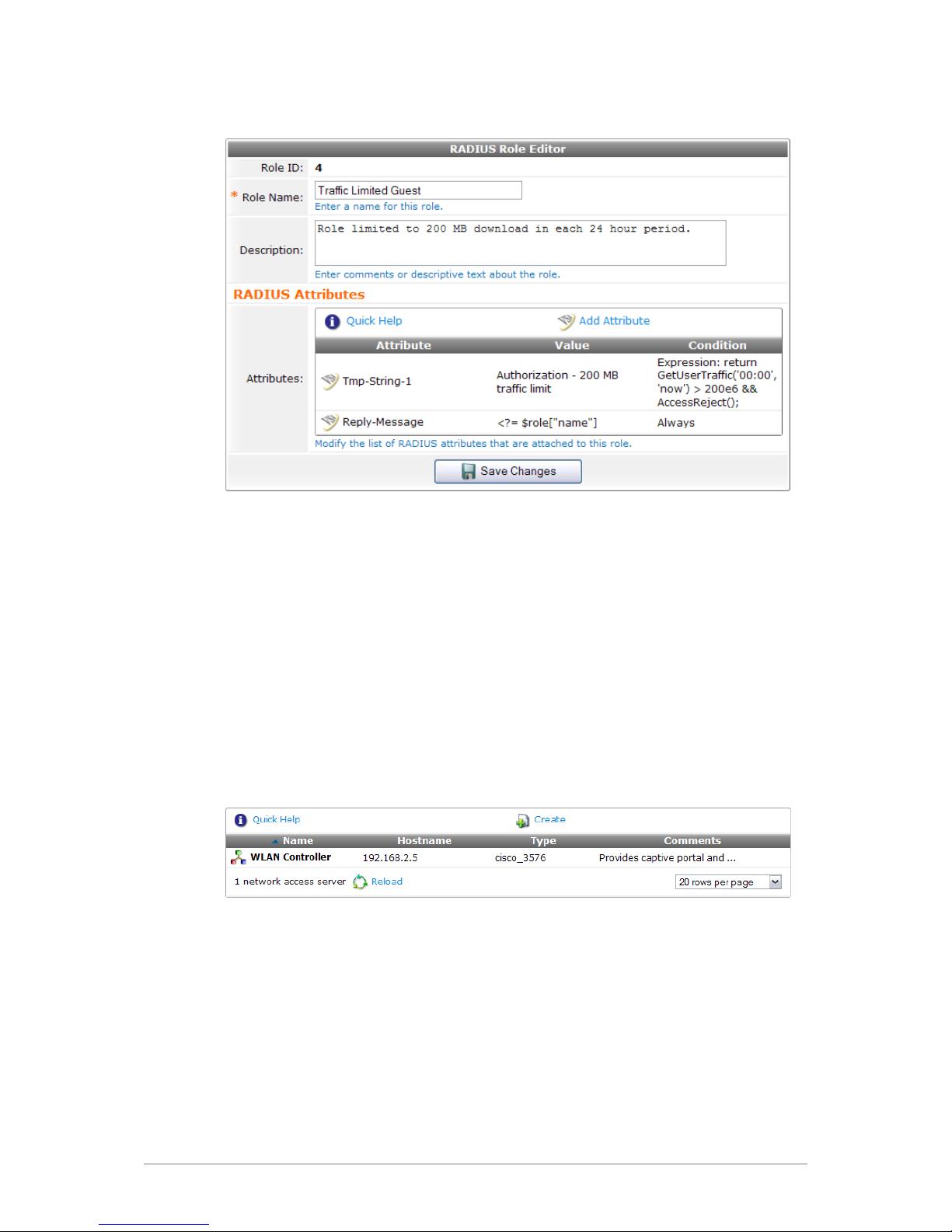

Your newly created role should appear as shown in the screenshot below:
Create RADIUS NAS Client
Navigate to RADIUS>NAS List and then click the Create tab.
Enter suitable values for the name and IP address fields, and select a NAS Type that is
marked as RFC 3576 capable.
NOTE If the network access server does not provide RFC 3576 support, the Amigopod RADIUS
server will not be able to disconnect sessions that are currently in progress. Ensure that
your NAS equipment has this capability, and that it is enabled for use with the Amigopod
Visitor Management Appliance.
Complete the form by providing a shared secret, and enter an optional description. Click
Create NAS Device.
Your NAS list should appear as shown in the screenshot below:
Create Terms of Use page
Navigate to RADIUS>Web Logins and then click the Create a new web login page link.
1. Enter a suitable name for the page, such as Terms of Use, provide a page name
terms_of_use (this will appear in the URL for the page), and optionally supply a
description.
2. Select the Cisco Systems vendor settings. Note that this page will not actually be
used to perform a web login, so the vendor settings are redundant, however they must
be entered to create the page.

Amigopod |Technical Note Implementing Accounting-Based Authorization |13
3. Select the [x] Provide a custom login form checkbox.
4. Under the Login Page heading, select an appropriate skin to control the look and feel
of the page.
5. Enter a page title, such as Terms of Use, in the Title field.
6. Provide the HTML for the terms of use in the Header HTML text area.
NOTE Refer to the “Basic HTML syntax” section of the Amigopod Deployment Guide for
information about the syntax of HTML. Most document text can be easily converted to
basic HTML with the addition of paragraph tags (<p>) and basic formatting is also easily
applied.
7. Delete the contents of the Footer HTML and Login Message fields, as these are not
required.
8. Click Save Changes to create the terms and conditions page.
Set Terms of Use URL
After creating a page that describes the terms of use, you may link it into the application
by setting the Guest Manager configuration appropriately.
1. Navigate to Customization>Guest Manager Settings.
2. In the Terms Of Use URL field, enter the value terms_of_use.php.
3. If you have used a page name other than terms_of_use for the Terms of Use page,
update this value accordingly – remember to add the suffix “.php”.
4. Click Save Configuration to have your changes take effect.
Create Landing page
Navigate to RADIUS > Web Logins and then click the Create a new web login page
link.
1. Enter a suitable name for the page, such as Landing Page, provide a page name such
as traffic_stats (this will appear in the URL for the page), and optionally supply a
description.
2. Select the Cisco Systems vendor settings. Note that this page will not actually be
used to perform a web login, so the vendor settings are redundant, however they must
be entered to create the page.
3. Select the [x] Provide a custom login form checkbox.
4. Under the Login Page heading, select an appropriate skin to control the look and feel
of the page.
5. Enter a page title, such as Welcome, in the Title field.
6. Enter the following template code in the Header HTML text area. This code is used to
look up the guest’s current session information and calculate their remaining traffic
quota.

14| Implementing Accounting-Based Authorization Amigopod |Technical Note
{* NOTE: The allowed traffic limit is defined below: *}
{assign var=traffic_limit value=200e6}
{* Do not edit below this line *}
{nwa_radius_query _method=GetIpAddressCurrentSession
_assign=current_session}
{if $current_session.username}
{nwa_radius_query _method=GetUserTraffic
username=$current_session.username from_time="00:00"
to_time="now" _assign=traffic_used}
{else}
{assign var=traffic_used value=0}
{/if}
{assign var=traffic_remaining value=`$traffic_limit-
$traffic_used`}
If you are using a traffic limit other than 200 MB, you should adjust the value in
{assign var=traffic_limit value=200e6}. Here, 200e6 is a value
indicating 200,000,000 bytes. For example, to set up a 500 MB quota, you could use the
value 500e6 instead.
7. Enter the following template code in the Footer HTML text area. This code is used to
display information about the guest’s current usage, a message about the service, and
a link to the guest’s home page.
{* This is the actual message displayed *}
{if $current_session.username}
<p>
Hello <b>{$current_session.username}</b>, you are now
logged into the WiFi network.
</p>
{else}
<p>
You are now logged into the WiFi network.
</p>
{/if}
{*
<h3>
Your Usage
</h3>
*}
<table {$table_class_content}>
<tr><th class="nwaTop">Your Usage</th></tr>
<tr><td class="nwaBody">
{nwa_icontext icon="images/icon-info22.png" valign="middle"
novspace="1"}
Your daily traffic quota is
<b>{$traffic_limit|NwaByteFormatBase10:0}</b>.
{/nwa_icontext}
</td></tr><tr><td class="nwaBody">

Amigopod |Technical Note Implementing Accounting-Based Authorization |15
{nwa_icontext icon="images/icon-clock22.png" valign="middle"
novspace="1"}
So far today, you have used
<span class="nwaImportant">
{$traffic_used|NwaByteFormatBase10:0}</span>.
{/nwa_icontext}
</td></tr><tr><td class="nwaBody">
{nwa_icontext icon="images/icon-report-bytes-out22.png"
valign="middle" novspace="1"}
Your remaining quota is
<span class="nwaImportant">
{$traffic_remaining|NwaByteFormatBase10:0}</span>.
{/nwa_icontext}
</td></tr></table>
<h3>
About This Service
</h3>
<p>
To ensure the highest quality of service for all
of our visitors, the use of this WiFi service is
subject to a <b>quota</b>.
</p>
<p>
This means that you can only download a limited
amount of information before you will be
disconnected.
</p>
<p>
Traffic quotas are reset at <b>midnight</b>
every day.
</p>
<p>
To ensure you do not go over your quota, follow
these tips:
</p>
<ul>
<li>Do not use file-sharing or peer-to-peer services like
BitTorrent</li>
<li>Avoid downloading large files</li>
<li>Limit your use of video sharing sites like YouTube</li>
</ul>
<h3>
Terms of Use
</h3>
<p>
By logging in to the network, you agree to the
<a href="terms_of_use.php" target="_blank">terms of use</a>.
</p>
{* link to home page *}

16| Implementing Accounting-Based Authorization Amigopod |Technical Note
<style type="text/css"><!--{literal}
.apHomePageClass { behavior:url(#default#homepage) }
{/literal}--></style>
<span id="apGoHome" class="apHomePageClass"></span>
<script type="text/javascript">{literal}
function goHome() {
var isSafari3 = window.devicePixelRatio;
if (typeof(window.home) == 'function' || isSafari3) {
window.home();
} else if (document.all) {
var homePage = document.getElementById('apGoHome');
try {
homePage.navigateHomePage();
} catch (e) {
window.location.href = "about:home";
}
}
return false;
}
{/literal}</script>
<p>
<a href="#Home" onclick="return goHome();" style="font-
size:22px; line-height:30px;">Go to my home page &raquo;</a>
</p>
8. Delete the contents of the Login Message field, as it is not required.
9. Click Save Changes to create the landing page.
Create Login page
Navigate to RADIUS>Web Logins and then click the Create a new web login page link.
1. Enter a suitable name for the page, such as Guest Login, provide a page name such as
login (this will appear in the URL for the page), and optionally supply a description.
2. Select appropriate vendor settings for the login page. Depending on the vendor you
have selected, you may need to provide additional information such as the vendor IP
address.
3. Select the [x] Perform a local authentication check checkbox. This is to ensure
that local users are verified before attempting a login. However, if you will use an
external authentication server (such as Microsoft Active Directory or an LDAP server)
to authenticate guests, you should leave this checkbox unselected.
4. Select the [x] Require a Terms and Conditions confirmation checkbox. This is to
ensure that guests acknowledge their acceptance of the terms of use.
5. In the Default URL field, enter the following value:
http://{$smarty.server.HTTP_HOST}/traffic_stats.php
This expression evaluates to a URL consisting of the current hostname and the
traffic_stats page, which was created previously. If you are using HTTPS for guest

Amigopod |Technical Note Implementing Accounting-Based Authorization |17
traffic (as recommended by the Amigopod Security Manager), then update the Default
URL accordingly:
https://{$smarty.server.HTTP_HOST}/traffic_stats.php
If you have used a page name other than traffic_stats for the landing page, then
update the Default URL accordingly.
6. Select the [x] Force default destination for all clients checkbox. This is to ensure
that guests are always redirected to the landing page to view their current traffic
statistics after logging in.
7. Under the Login Page heading, select an appropriate skin to control the look and feel
of the page.
8. Enter a page title, such as Login, in the Title field.
9. To display an error message if a login attempt is unsuccessful (due to a failed
authorization), some logic may be added to the Header HTML text area.
<p>
Please login to the network using your Amigopod
username and password.
</p>
{if $err_flag}
{nwa_icontext type=error}
Login attempt failed. Your username or password may be
invalid, or you may have exceeded your daily download limit.
{/nwa_icontext}
{/if}
The above example is suitable for Cisco wireless equipment, which will supply an
err_flag parameter on redirect to the login page indicating if the RADIUS
authentication attempt failed. Equipment from other vendors may use a different field
name; the parameter can often be determined by carefully examining the redirection
URL generated by the NAS equipment. Contact Amigopod support if you require
additional assistance.
10. The other text displayed on the login page may be customized using the Header
HTML and Footer HTML text areas.
For example, to display information about the terms of use, you might use the
following Footer HTML:
<h3>Terms of Use</h3>
<p>
By logging in to the network, you agree to the
<a href="terms_of_use.php" target="_blank">
Terms of Use</a>.
</p>
11. The text of the login message page may be customized using the Login Message text
area.
12. Set a suitable login delay such as 2seconds.
13. Click Save Changes to create the terms and conditions page.

18| Implementing Accounting-Based Authorization Amigopod |Technical Note
Additional Configuration Guidelines
To complete the deployment, ensure that each of the following points has been taken into
consideration:
•The NAS captive portal should redirect guests to the login page, which will be located
at a URL such as: http://amigopod/login.php.
•If you are using HTTPS for guest traffic (as recommended by the Amigopod Security
Manager), then update the URL accordingly, e.g. https://amigopod/login.php.
•If you have used a page name other than login for the login page, then update the URL
accordingly, e.g. https://amigopod/acme_login.php.
•The NAS should be configured to authenticate guests with the Amigopod RADIUS
server.
•The NAS should be configured to send session accounting traffic to the Amigopod
RADIUS server.
•The NAS should be configured to accept dynamic authorization (RFC 3576) requests
from the Amigopod RADIUS server.
•Use the same shared secret for authentication, accounting and dynamic authorization;
on the Amigopod RADIUS server, the shared secret configured for the NAS is used for
all three functions.
•Interim accounting on the NAS should be enabled where possible; the Acct-
Interim-Interval RADIUS attribute may be required to enable interim accounting
and set the interval, or the interim accounting interval may be configured separately
on the NAS. Consult the NAS vendor’s documentation for additional details.
Refer to the Amigopod integration guide corresponding to your vendor’s equipment for
additional information about configuring other basic networking aspects of the
deployment.
Also note that this technical note does not cover guest account provisioning. For details
on sponsored account creation, guest self-registration or guest purchased access, refer to
the appropriate section in the Amigopod Deployment Guide.

Amigopod |Technical Note Implementing Accounting-Based Authorization |19
4Verifying Accounting-Based Authorization
Check NAS captive portal settings
Connect to the guest network, and open a web browser.
Ensure that the NAS captive portal takes effect, and redirects your web browser to the
login page.
Troubleshooting tips: If these steps are unsuccessful, check your NAS equipment
configuration (wired or wireless).
•Is the client able to reach the NAS controller?
•Is the client able to reach the Amigopod Visitor Management Appliance?
•Has the correct external login page URL been provided?
Check terms of use page
Click the “terms of use” link on the login page.
Verify that the terms of use are displayed in a separate browser window.
Troubleshooting tips: If the terms of use page is not displayed, or displays incorrectly,
check the following items:
•Has the correct link to the terms of use page been configured under Customization>
Guest Manager settings, and in the login and/or landing page Header/Footer HTML
text areas?
•Does the Terms of Use web login page have valid HTML syntax for the text to be
displayed?
Check login page
Attempt to log into the network using an invalid username or password. Verify that the
login page displays an error message stating “Invalid username or password”.
Attempt to log into the network without selecting the “I accept the terms of use”
checkbox. Verify that the login page displays an error message stating “In order to log in,
you must accept the terms and conditions”.
Log in to the network using a valid username and password. Verify that the login message
is displayed briefly, followed by the landing page.
Troubleshooting tips: If the login is not successful check the following items:
•Have you provided the correct vendor settings for the login page?
•Is the NAS equipment actually receiving the login attempt from the client and
performing a RADIUS login attempt? This can be checked by looking for a RADIUS
authentication attempt from the NAS, at RADIUS > Server Control or under
Administrator > System Logs.

20| Implementing Accounting-Based Authorization Amigopod |Technical Note
•Is the correct shared secret configured on both the NAS and the Amigopod RADIUS
Server?
•Is the guest account authorized? Check that the account is enabled, has the correct
role, and that the authorization is not failing. Authorization failures are indicated with
a log message in Administrator>System Logs.
Check landing page
At the landing page, verify that your username is displayed, along with your current usage
information and the remaining quota.
Verify that clicking the Go to my home page link redirects you to your home page. This
indicates that the login has been successful and you are now authorized to use the
network.
Using the Amigopod WebUI, navigate to Guests>Active Sessions and verify that there is
a session listed for your username.
Perform some Internet browsing while you wait for the interim accounting interval to
elapse (RFC 2869 recommends a minimum interval of 600 seconds, or 10 minutes, however
it may be configured to a smaller value to gain tighter control over traffic limits and
provide a more up-to-date view of session statistics on the landing page). Verify that the
interim accounting update is reflected in both the Active Sessions list, and on the guest’s
landing page.
Log out of the network, and then log back in. Verify that the traffic statistics displayed
include the previous session’s traffic.
Check traffic limit
While connected to the guest network, generate enough traffic to exceed the traffic limit.
Verify that the session is disconnected via an RFC 3576 Disconnect-Request. An
authorization failure message should be logged in the application log (check in
Administrator>System Logs), as well as a message related to the session disconnection.
Troubleshooting tips: If the session is not disconnected, check the following items:
•Is the correct authorization condition configured in the RADIUS user role?
•Is the NAS device receiving an RFC 3576 request?
•Is the correct shared secret configured on both the NAS and the Amigopod RADIUS
Server?
