Amitime BM150A-NW User manual

Before operating the unit,
please read the manual carefully.
Keep this manual well for future reference.
INSTALLATION AND
USER'S MANUAL
BM FAN COIL UNIT

Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru

Catalogue
4
4
1
1
1. Introduction
1.1 General Information
1.3 Features
1 4
1.2 Precautions
. Operation Temperature Range
9
6
5
5
2.1 Transportation and handling
2.2 Handling instructions
2.3
2.5 Location
2.8.1
Dimension

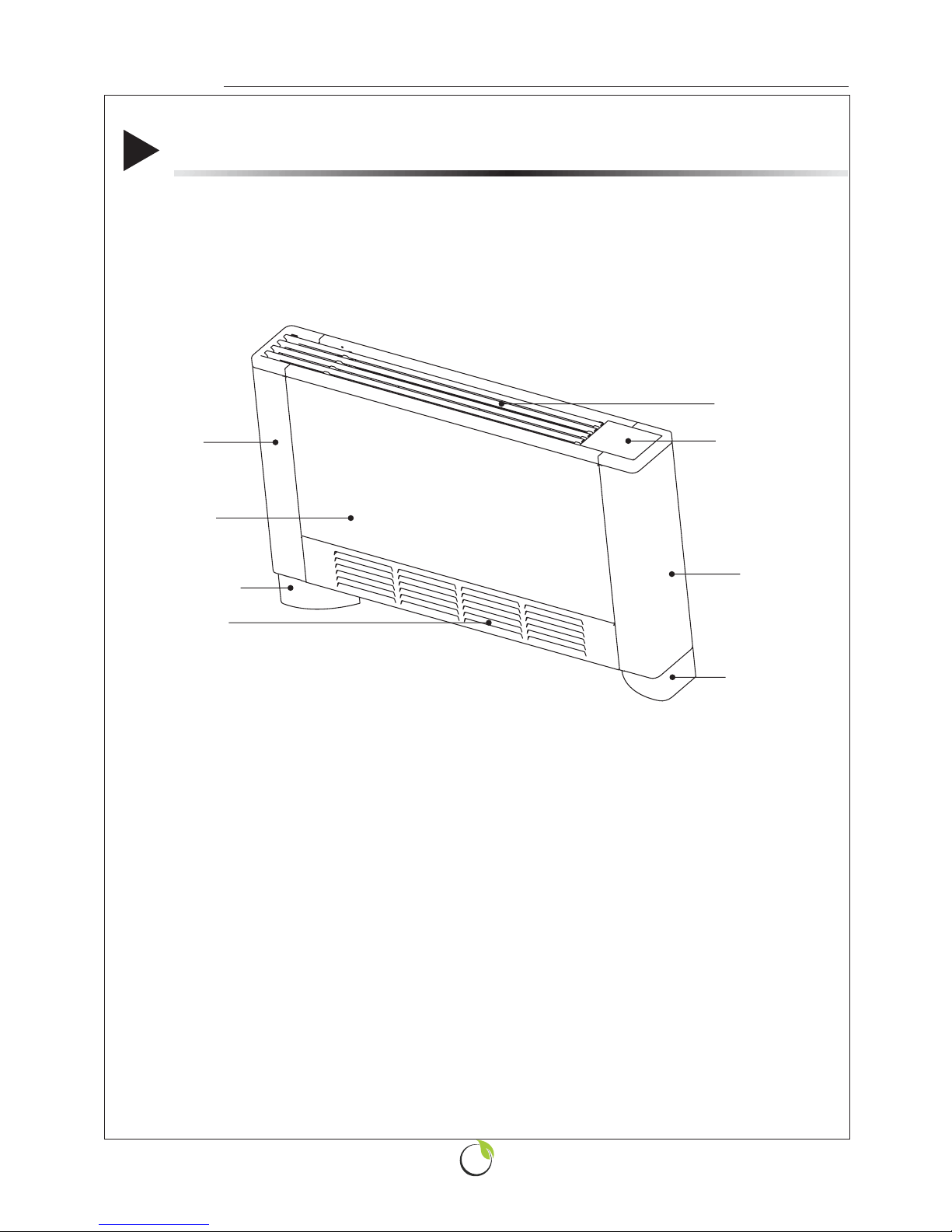

2.4 Part name
2.6 Attention for installation
2.6.1 Necessary tool for installation
2.7 Accessories
2.7.1 One accessory box in right side
2.7.2 The other accessory box in the left side
2.7.3 Check the accessory
2.8 Different installation
Wall mounting
2.8.2 Floor standing
2.8.3 Horizontal mounting(optional)
2.8.4 Water connection
2.8.5 Filter
2.8.6 Insulation
2.8.7 Setting up the condensate drainage system
11
11
11
10
11
12
13
14
14
16
16
18
20
2. Installation
21
20
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru

22
21
21
2.9.1
2.9.2
2.9.3
2.9 Test run
Air purging
Per Start-up
Unit Start-up 22
23
24
28
29
30
30
31
31
3.1 Wired controlled
3.2 Operation instructions
3.4 Remote controller
3.3 Protection
3. Operation Instructions
4.1 Precautions
4.4 Drainage
4.2 Cleaning the air filter
4.3 Check and clean the air inside water system occasionally
4.5 Service to electric parts
4.6 Service to fan blade and fan motor
4. Precautions
31
32
33
35
5.1 Exploded view
5.2 Wiring diagram
5.3 Technical Data
5. Appendix
36
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru

01
1.2 Precautions
Children should be supervised to
ensure that they do not play with the
appliance.
Use a dedicated socket for this unit,
otherwise malfunction may occur.
Caution
Warning
Prohibition
Keep the unit away from the combustible
or corrosive environment.
1. Introduction
1.1 General Information
Be sure to read this manual before use.
Gas
Oil
Thank you for choosing our product. Please read this manual
carefully before use and follow the instructions to operate the unit in order
to prevent damages on the device or injuries to staff.
Specifications are subject to change with product improvements without prior notice.
Please refer to the sticker on the unit for upgraded specifiactions.
User
manual
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru

02
The power supply to the unit unit
must be grounded.
The installation, dismantlement and
maintenance of the unit must be performed
by qualified personnel. It is forbidden to
do any changes to the structure of the unit.
Otherwise injury of person or unit damage
might happen.
Make sure no water or other liquid drips
into the electric box of the unit Otherwise
the unit might be damaged.
When the power cord gets loose or is
damaged,always get a qualified person
to fix it.
Do not insert any foreign objects into the
all outlet grill when the fan motor is
running. Otherwise injury of person or
unit damage might happen.
Do not clog air inlet or outlet by paper or
any other foreign objects, to keep the
unit well ventilated.
1. Introduction
grovnd line
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru

03
Make sure the power supply to the heat
pump unit is off before any operations
are done on the unit.
If there is a burning smell or in thunder
stop the unit and cut the power, weather.
It is mandatory to use a suitable circuit
breaker for the heat pump and make
sure the power supply to the heater
corresponds to the specifications.
Otherwise the unit might be damaged.
1. Introduction
Children should be supervised to
ensure that they do not play with the
appliance.
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru

04
1. Introduction

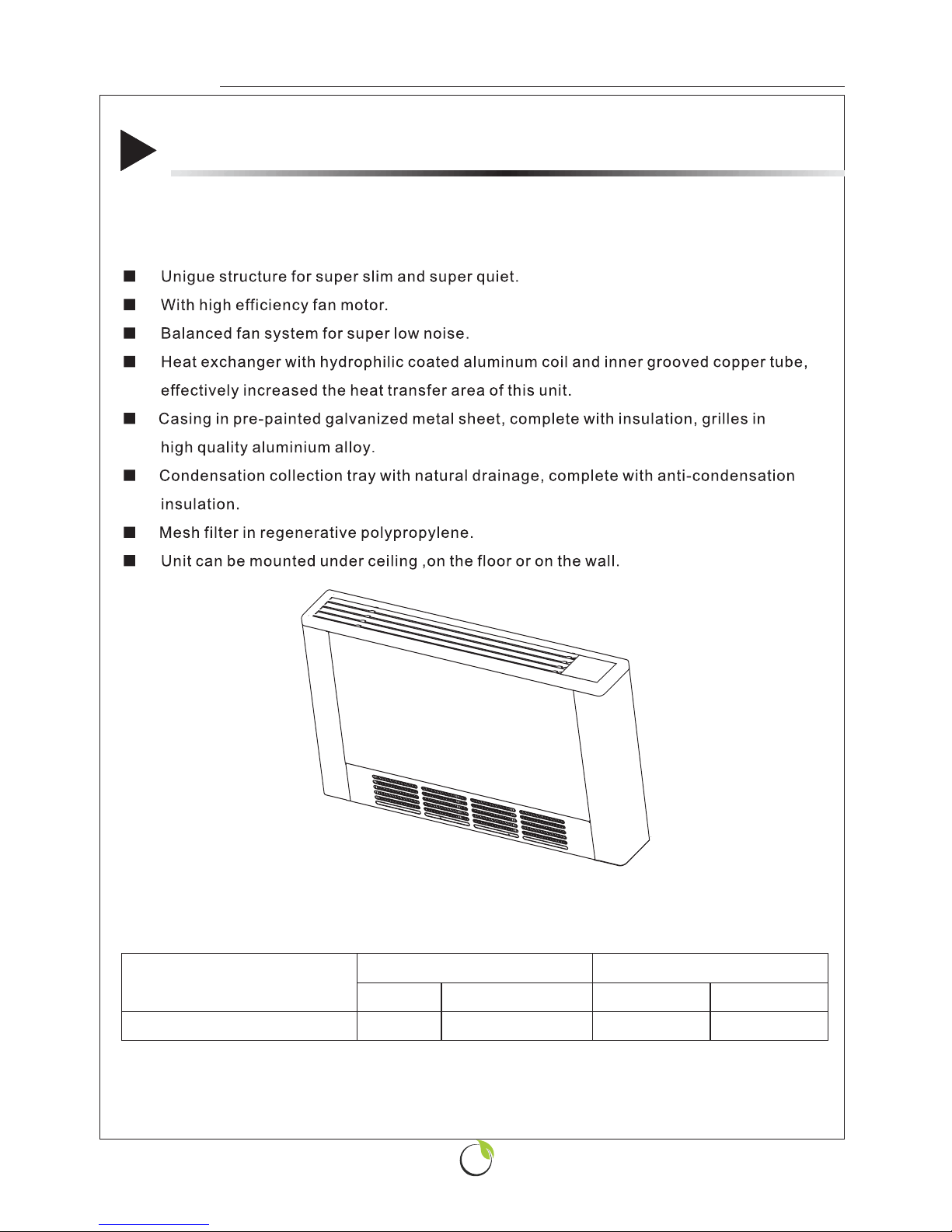

1.3 Features
1 4 . Operation Temperature Range
Water inlet temperature
Max
80℃
Operation mode
Heating/Cooling
Room temperature
Min
Max
Min
5℃
32℃-60%U.R./R.H.
4℃
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru

05
Danger！
！

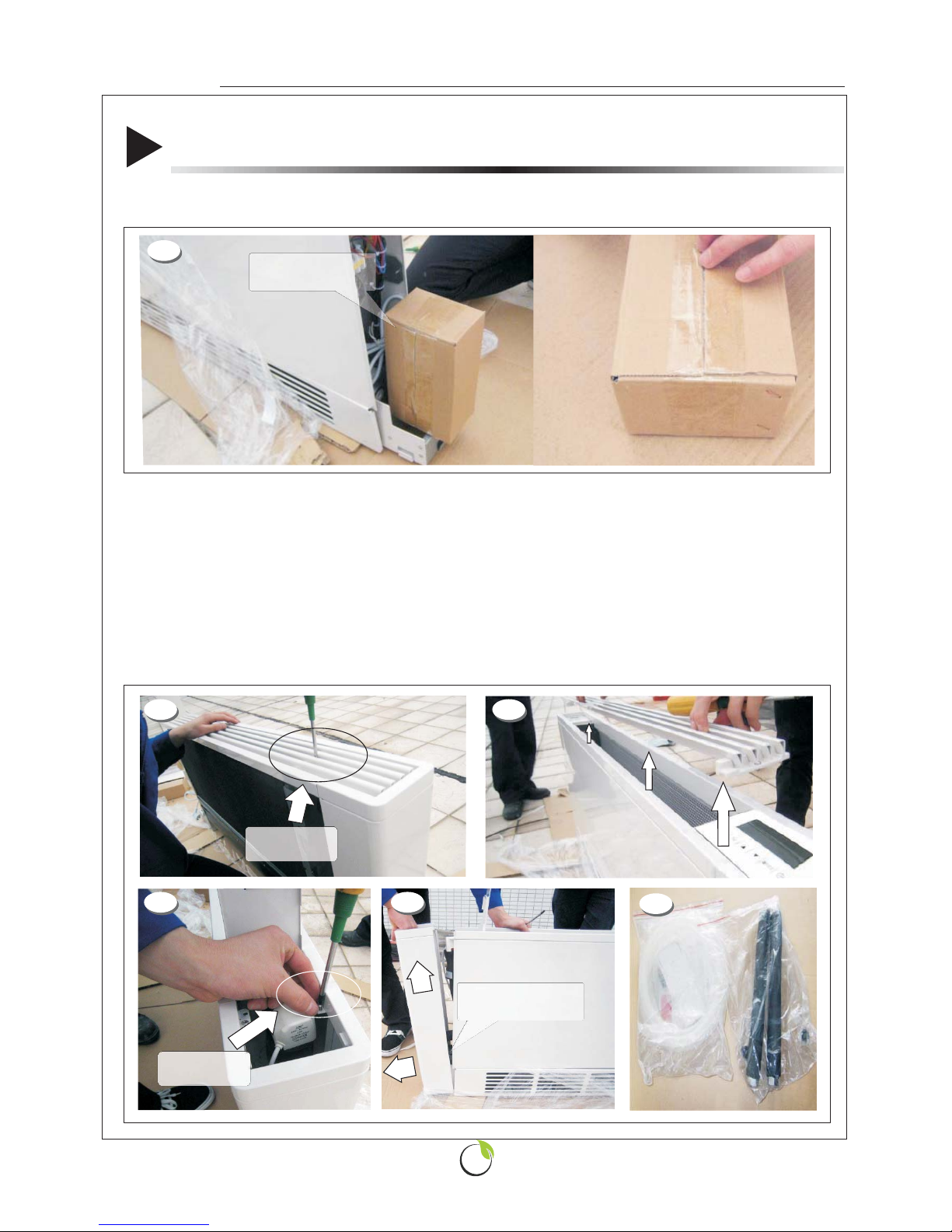

To remove the packaging, follow these instructions:
2.2 Handling instructions
！
Danger！
■ Storage conditons
Always check the stickers on the package for the direction of te storage and the
number that can be stacked.
Do not open or tamper
the packaging before installation.
The units should only be moved and
lifted by specialised personnel
trained in these operations.
Check on arrival that the unit has
not been damaged during transport and
that it is complete with all its parts.
1.Check for visible damage
2.Open the packaging.
3.Check that the packet containing the manual is inside.
4.Dispose of the packaging material in accordance with current legislation, at the
appropriate waste reception or recycling site.
user's
Movement of the unit should be performed with care, in order to avoid damage to the
external structure and to the internal mechanical and electrical components.
Also make sure that there are on obstacles or people along the route, to avoid the
danger of collisions or crushing and to prevent the lifting or handling device from
turning over.
All the operations listed below must be carried out accordance with current health
and safety regulations, both as regards the equipment used and as regards the
procedure followed. Before commencing moving operations, check that the lifting
apparatus has ths required capacity for the unit in question.
2.1 Transportation and handling
. Installation2
Поставка имонтаж тепловых насосов, компания "Реалсолар"
г. Санкт-Петербург, Октябрьская наб. д,104 к.1 офис 404. т. [phone], [phone]
[email protected] | www.realsolar.ru

06
The fan coil unit without motorized water valve
1094
1294
894
694
G1/2"
16
22
28
32
BM150*-NW
BM350*-NW
BM450*-NW
BM550*-NW
G1/2"
G1/2"
G1/2"

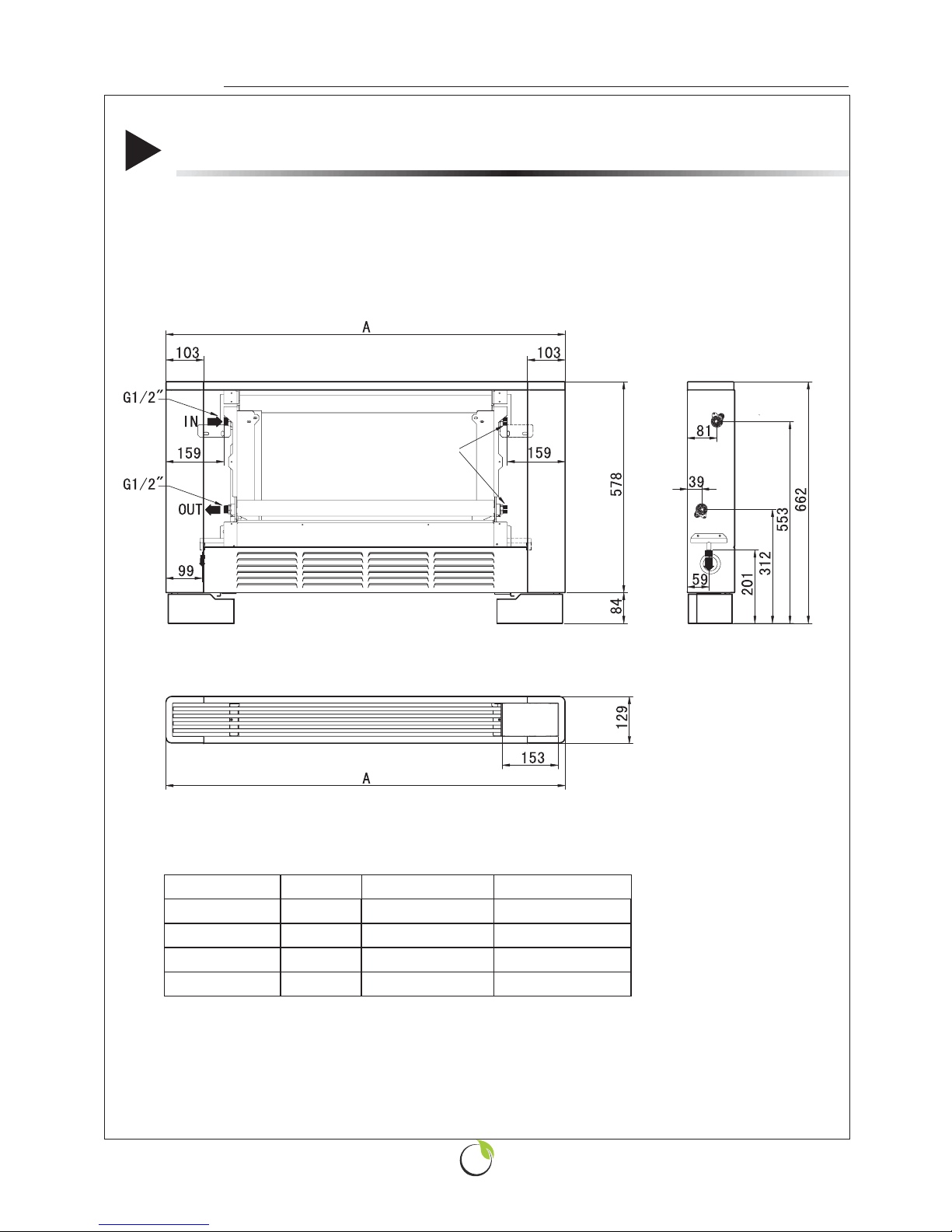

2.3 Dimension
A（m m）Connector size Net weight（Kg）
Model no.
. Installation2
Connect water
pipe on the right side
