XP95 Interfaces Product Guide
MAN 3040

1
MAN3040-1
APOLLO INTERFACES GUIDE
1 Modular Interfaces
Fire protection systems can be engineered simply and effectively without the need for custom designed
equipment. A variety of interfaces for intelligent systems are available to suit individual applications.
Standard interfaces are designed to be surface mounted to walls and consist of three parts: a backbox with
knockouts for cable entry, a PCB assembly and a protective front cover. With the exception of the Mains
Switching Input / Output Unit, the standard interfaces are fitted with a bi-directional short-circuit isolator thus
unaffected by a single short-circuit on either loop input or output.
Dimensions: 150mm x 90mm x 48mm
All Apollo standard interfaces comply with the Construction Products Directive.
Miniature interfaces (with flying leads) use very compact enclosures for installation into other equipment.
They are fitted with flying leads and need no installation screws or brackets.
Dimensions: 76mm x 47mm x 14mm
Mini Switch Monitor is an interface in an entirely new housing, ideal for space limited applications. The unit
can be fitted directly onto a standard 35mm DIN-Rail or mounted within an enclosure e.g. manual call point.
It is designed to monitor the state of one or more singlepole, volt-free contacts connected on a single pair of
cables and to report the status to Apollo compatible analogue control equipment.
The Mini Switch Monitor complies with the Construction Products Directive.
DIN-Rail interfaces feature enclosures that clip onto a standard 35mm DIN rail (DIN 46277) or are screwed
to the base of a larger enclosure. They enable fire systems designers to achieve the functions required and
create multi-purpose interfaces for individual sites.
Dimensions: 110mm x 107mm x 20mm
All Apollo DIN-Rail interfaces, mounted within a suitable enclosure, comply with the Construction Products
Directive.

2
MAN3040-1
APOLLO INTERFACES GUIDE

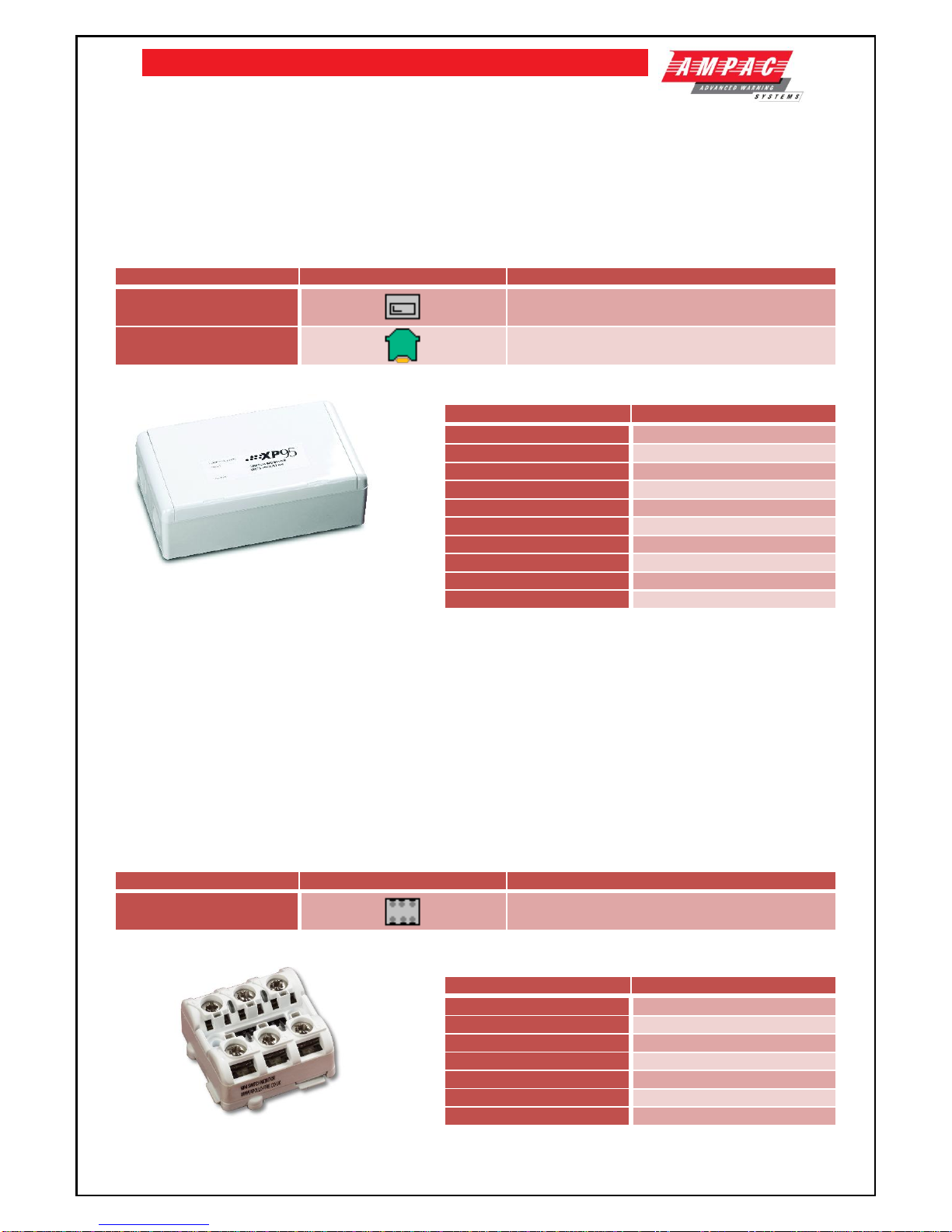

2 Switch Monitor
The Switch Monitor with Isolator is designed to monitor the state of one or more single pole, volt free
contacts connected on a single pair of cables and to report the status to the fire detection control equipment.
Four input states –normal, fault, pre-alarm and alarm
Two visible LEDs
Loop powered
Built-in short circuit isolator
Item No
Package
Description
55000-843AMP
XP95 Switch Monitor with Isolator
55000-822APO
XP95 DIN Rail Switch Monitor
2.1 Mini Switch Monitor
The Mini Switch Monitors perform the same function as the Switch Monitor. Housed within a miniature
enclosure, it is ideal for space limited applications. The housing allows the unit to be fitted onto standard
DIN-Rail with a twist-click motion. The Mini Switch Monitor is isolated as standard and can be configured as
an Interrupt or non- Interrupt device. The device produces four input states: normal, fault, pre-alarm and
alarm. Three separate LEDs give clear status indication.
Designed for use where space is limited
Three status LEDs
Built in Isolator
Interrupt/non-interrupt
Pre-alarm status
Item No
Package
Description
55000-760AMP
XP95 Mini Switch Monitor with Isolator
Technical Data
55000-843AMP
Voltage
17-28V dc
Quiescent current
1.25mA at 28v dc
Max switch on surge
3.5mA (200ms)
Switch closed LED on
3.5mA
Monitored input voltage
9-11vdc
Operating temperature
-20°C to +70°C (no icing)
Relative humidity
0 to 95% (non condensing)
IP Rating
IP54
Size
150W x 90H x 48D mm
Weight
240 grams
Technical Data
55000-760AMP
Voltage
17-28V dc
Quiescent current
200µA at 24v dc
LED Operated alarm
3.4mA + Quiescent
Remote and LED alarm
6.2mA + Quiescent
Relative humidity
0 to 95% (non condensing)
Size
39W x 39H x 20D mm
Weight
30 grams

3
MAN3040-1
APOLLO INTERFACES GUIDE
3 Switch Monitor Plus
This product has the same functionality as the standard Switch Monitor. In addition it has a selectable delay
making it suitable for monitoring flow switches. The Switch Monitor Plus also has an opto-coupled output for
resetting a remote detector.
Output for resetting a remote detector
Four input states –normal, fault, pre-alarm and alarm
Two visible LEDs
Selectable alarm delay for monitoring flow switches –30 seconds
Built in short circuit isolator
Item No
Package
Description
55000-841AMP
XP95 Switch Monitor Plus with Isolator
55000-821APO
XP95 DIN Rail Switch Monitor Plus
4 Zone Monitor
The Zone Monitor powers and controls the operation of a zone of conventional detectors. This device has an
input voltage derived from the analogue loop, provision is made for the inclusion of a standard or active end-
of-line device.
Item No
Package
Description
55000-845AMP
XP95 Zone Monitor Unit with Isolator
55000-812APO
XP95 DIN Rail Zone Monitor with Isolator
Technical Data
55000-821AMP
Voltage
17-28V dc
Quiescent current
730µA at 28v dc
Max switch on surge
2.5mA (65ms)
Switch closed LED on
3.4mA
Monitored input voltage
9-11vdc
Operating temperature
-20°C to +70°C (no icing)
Relative humidity
0 to 95% (non condensing)
IP Rating
IP20
Size
107W x 110H x 20D mm
Weight
95 grams
Technical Data
55000-845AMP
Voltage
17-28V dc
Quiescent current
4mA + detector load
Max switch on surge
3.5mA (150ms)
Alarm current
11mA
End of line
5.1KΩ
Operating temperature
-20°C to +70°C (no icing)
Relative humidity
0 to 95% (non condensing)
IP Rating
IP54
Size
150W x 90H x 48D mm
Weight
240 grams

4
MAN3040-1
APOLLO INTERFACES GUIDE
5 Sounder Controller
This unit is designed to control a zone of conventional sounders powered by an external DC supply. The
sounders will be switched to sound continuously or be pulsed, 1s on 1s off. The Sounder Controllers at
different addresses may be controlled individually or in selectable groups and have a facility for
synchronising the outputs, when being pulsed.
Item No
Package
Description
55000-852AMP
XP95 Sounder Control Unit with Isolator
55000-182APO
XP95 DIN Rail Sounder Control Unit rated 5A
6 Input/Output Unit
This unit provides a loop-powered relay, a monitored input and an unmonitored opto-coupled input. It can
report fault, switch open and switch closed levels.
Loop Powered
Double Pole Volt Free Change Over Contact capable of switching 1A at 30V dc
Built in short circuit isolator
Item No
Package
Description
55000-847AMP
XP95 Input/Output Unit with Isolator
55000-803APO
XP95 DIN Rail Input/Output Unit
Technical Data
55000-852AMP
Voltage
17-28V dc
Quiescent current
1.95mA at 24V dc
Loop current max
5.5mA
External supply
9-32V dc 1.25A
Sounder circuit load
1A at 30V dc
Operating temperature
-20°C to +70°C (no icing)
Relative humidity
0 to 95% (non condensing)
IP Rating
IP54
Size
150W x 90H x 48D mm
Weight
240 grams
Technical Data
55000-847AMP
Voltage
17-28V dc
Quiescent current
1.2mA at 24V dc
Loop current max
3.5mA
Relay unit
1A at 30V dc
Opto input
35V dc max
Monitored input voltage
9-11V dc
Operating temperature
-20°C to +70°C (no icing)
Relative humidity
0 to 95% (non condensing)
IP Rating
IP54
Size
150W x 90H x 48D mm
Weight
240 grams

5
MAN3040-1
APOLLO INTERFACES GUIDE
7 Output Unit
The Output Unit is a simplified version of the Input/Output Unit without the circuitry for monitoring inputs.
Item No
Package
Description
55000-849AMP
XP95 Output Unit with Isolator
55000-804APO
XP95 DIN Rail Output Unit
8 Mains Switching Input/Output Unit
The Mains Switching Input/Output Unit provides a voltage-free, single pole change-over relay output and a
monitored switch input. This unit is designed to switch equipment operating at 230V AC, thus obviating the
need for an intermediate relay and a power supply. The unit is loop powered.
Supervises one or more normally open switches connected to a single pair of cables
Capable of switching 250V ac up to 5A max
Item No
Package
Description
55000-875AMP
XP95 Mains Switching Input/Output Unit
55000-797APO
XP95 DIN Rail Mains Input/Output Unit
9 Three Channel Input/Output Unit
The Three Channel Input/Output Unit provides three voltage-free, single pole, change-over relay outputs and
three monitored switch inputs. Note this product is supplied in a special enclosure.
Item No
Package
Description
55000-588AMP
XP95 Mains Switching Input/Output Unit
NOTE: For further information, please contact your local CSO Office.
Technical Data
55000-875AMP
Voltage
17-28V dc
Quiescent current
3.5mA at 24V dc
Rated load
5A at 240V ac, 2A at 48V dc
Switching capacity max
1.25Kva
Monitored input voltage
9-11V dc
Operating temperature
-20°C to +70°C (no icing)
Relative humidity
0 to 95% (non condensing)
IP Rating
IP54
Size
150W x 90H x 48D mm
Weight
240 grams
Technical Data
55000-588AMP
Voltage
17-28V dc
Quiescent current
3mA at 24V dc
Max current
7.5mA at 24V dc
Relay contact
1A at 30V dc
Operating temperature
-20°C to +70°C (no icing)
Relative humidity
0 to 95% (non condensing)
IP Rating
IP54
Size
250W x 175H x 75D mm
Weight
621 grams
