Amped Wireless REB175P User manual

REB175P
ProSeries
High Power AC1750 Wi-Fi Range Extender / Bridge
User’s Guide

REB175P
USER’S GUIDE
1
CONTENTS
INTRODUCTION .................................................. 3
GETTING STARTED .............................................. 4
Package Contents .................................................. 4
LED Indicators ....................................................... 5
Side Panel Description ........................................... 6
MOUNTING INSTRUCTIONS................................... 7
OPERATIONAL MODES (BASIC SETUP) ................ 8
NETWORK BRIDGE OVERVIEW .............................. 9
RANGE EXTENDER MODE OVERVIEW.................. 17
FIREWALL RANGE EXTENDER MODE (WWAN)
OVERVIEW ........................................................... 26
WDS-BRIDGE MODE OVERVIEW.......................... 35
DASHBOARD..................................................... 44
Dashboard: System Status................................... 44
Dashboard: Operational Modes: ......................... 45
Dashboard: Basic Setup ....................................... 46
Dashboard: Connected Devices........................... 47
Dashboard: WDS Settings ....................................48
WI-FI SETTINGS..................................................49
2.4GHz Wi-F Settings: Status................................49
2.4GHz Wi-F Settings: Basic Settings....................50
2.4GHz Wi-F Settings: Security.............................52
2.4GHz Wi-F Settings: Output Power...................55
2.4GHz Wi-F Settings: Site Survey........................57
2.4GHz Wi-F Settings: WDS..................................58
2.4GHz Wi-F Settings: Access Schedule ...............60
2.4GHz Wi-F Settings: Advanced Settings............60
5.0GHz Wi-F Settings: Status................................63
5.0GHz Wi-F Settings: Basic Settings....................64
5.0GHz Wi-F Settings: Security.............................66
5.0GHz Wi-F Settings: Site Survey........................70
5.0GHz Wi-F Settings: WDS..................................71
5.0GHz Wi-F Settings: Access Schedule ...............73
5.0GHz Wi-F Settings: Advanced Settings............74

REB175P
USER’S GUIDE
2
WPS Settings........................................................ 76
MAC Address Filtering ......................................... 77
RADIUS Server ..................................................... 79
Internal RADIUS Server........................................ 81
RADIUS Accounts ................................................. 83
WMM / QoS......................................................... 84
NETWORK SETTINGS......................................... 85
Local Network ..................................................... 85
VLAN .................................................................... 88
Domain Redirect .................................................. 89
Interenet Network (WAN) ................................... 90
ADVANCED SETTINGS ....................................... 94
Port Forwarding................................................... 94
Port Filtering ........................................................ 95
DMZ (Demilitarized Zone).................................... 96
Denial of Service .................................................. 97
IDS (Intrusion Detection System) .........................98
ADMINISTRATION .............................................99
System Status.......................................................99
Device Statistics .................................................100
System Clock ......................................................102
Advanced Settings..............................................103
System Logs........................................................105
Alarm and LED Settings......................................106
Upgrade Firmware .............................................107
Save / Reload Settings........................................109
Password Settings ..............................................111
TECHNICAL SPECIFICATIONS ............................112
DEFAULT SETTINGS..........................................113
TROUBLESHOOTING & SUPPORT INFO ............114

REB175P
USER’S GUIDE
3
INTRODUCTION
Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the
highest quality products through innovation and advanced technology. We pride ourselves on delivering
products that outperform the competition and go beyond your expectations.

REB175P
USER’S GUIDE
4
GETTING STARTED
Package Contents
Check to make sure you have all the contents within your package:
ProSeries High Power AC1750 Wi-Fi Range Extender / Bridge
3 x Detachable High Gain 3dBi Antennas
Magnetic Mounting Kit & Mounting Template
Setup Guide
CD: User’s Guide
Ethernet Cable
Power Adapter

REB175P
USER’S GUIDE
5

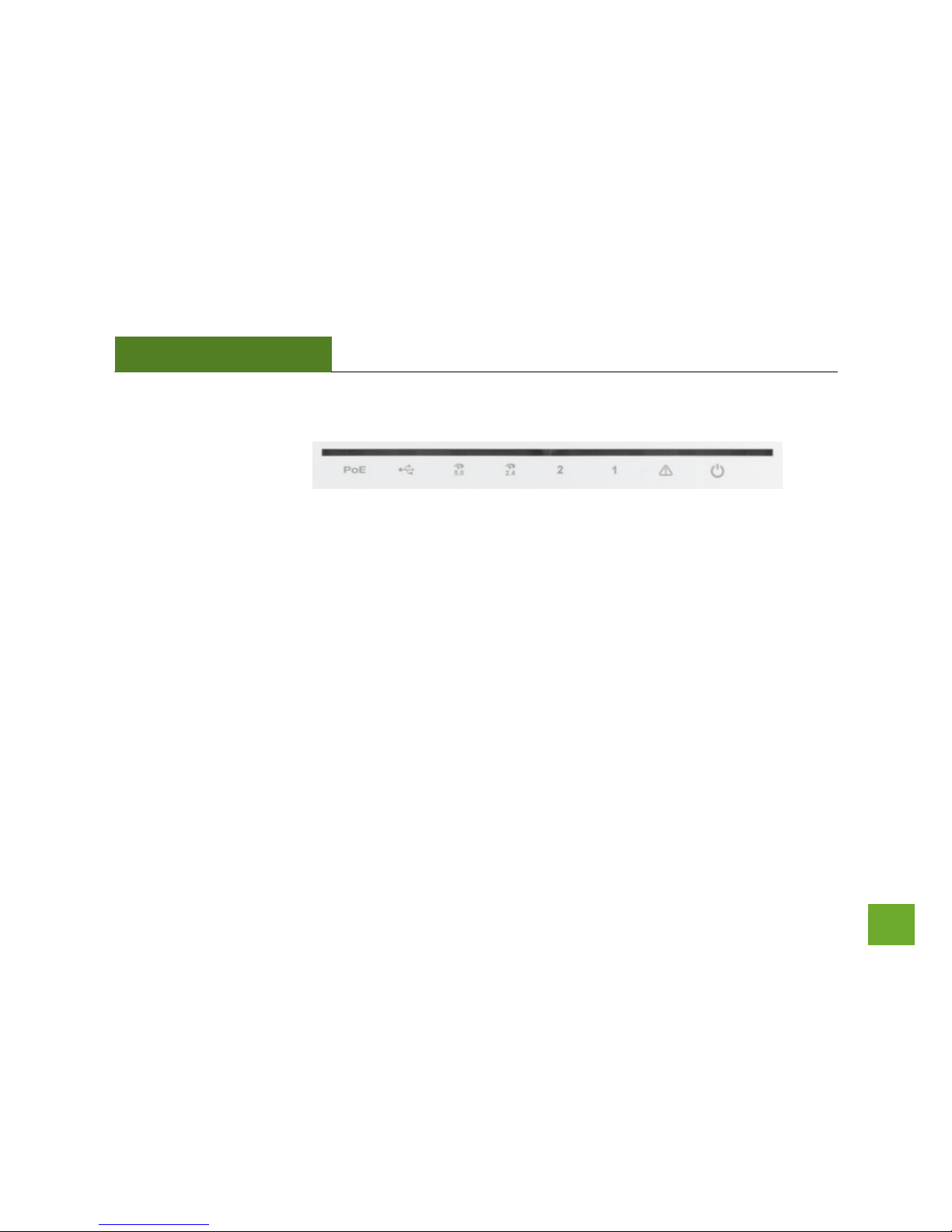

LED Indicators
From left to right:
PoE: Indicates when there is an active PoE connection on the LAN1 wired port. LED will remain on.
USB: Indicates when there is a USB device is attached to the USB port.
5.0GHz Wi-Fi:Blinks rapidly when Wi-Fi data traffic is transmitted or received over the wireless network.
2.4GHz Wi-Fi:Blinks rapidly when Wi-Fi data traffic is transmitted or received over the wireless network.
Wired Port 2: Indicates when a networking device is connected to wired port (LAN2) on the Range Extender /
Bridge. The LED will blink rapidly when wired data traffic is transmitted or received.
Wired Port 1: Indicates when a networking device or modem is connected to wired port (LAN1) on the Range
Extender / Bridge. The LED will blink rapidly when wired data traffic is transmitted or received.
Status: Blinks when the Range Extender / Bridge is booting up or resetting.
Power (PWR): Indicates when the Range Extender / Bridge is powered on. The LED will remain on.

REB175P
USER’S GUIDE
6
Side Panel Description
PWR: Power adapter port. 12V 4A.
LAN1 (PoE): Gigabit RJ-45 port with Power over Ethernet input. Connect wired devices or to a PoE switch to
use the Range Extender / Bridge without the power adapter.
LAN2: Gigabit RJ-45 local network port for expanding your network.
USB:Attach USB devices to save or load settings, upgrade firmware, save system logs or load boot files.
Eject: To safely eject an attached USB device.
Console: Connect to a management console for diagnostics. (i.e. HyperTerminal)
WPS: Enables Wi-Fi Protected Setup’s push button configuration.
On/Off: Device power on/off switch.

REB175P
USER’S GUIDE
7
MOUNTING INSTRUCTIONS

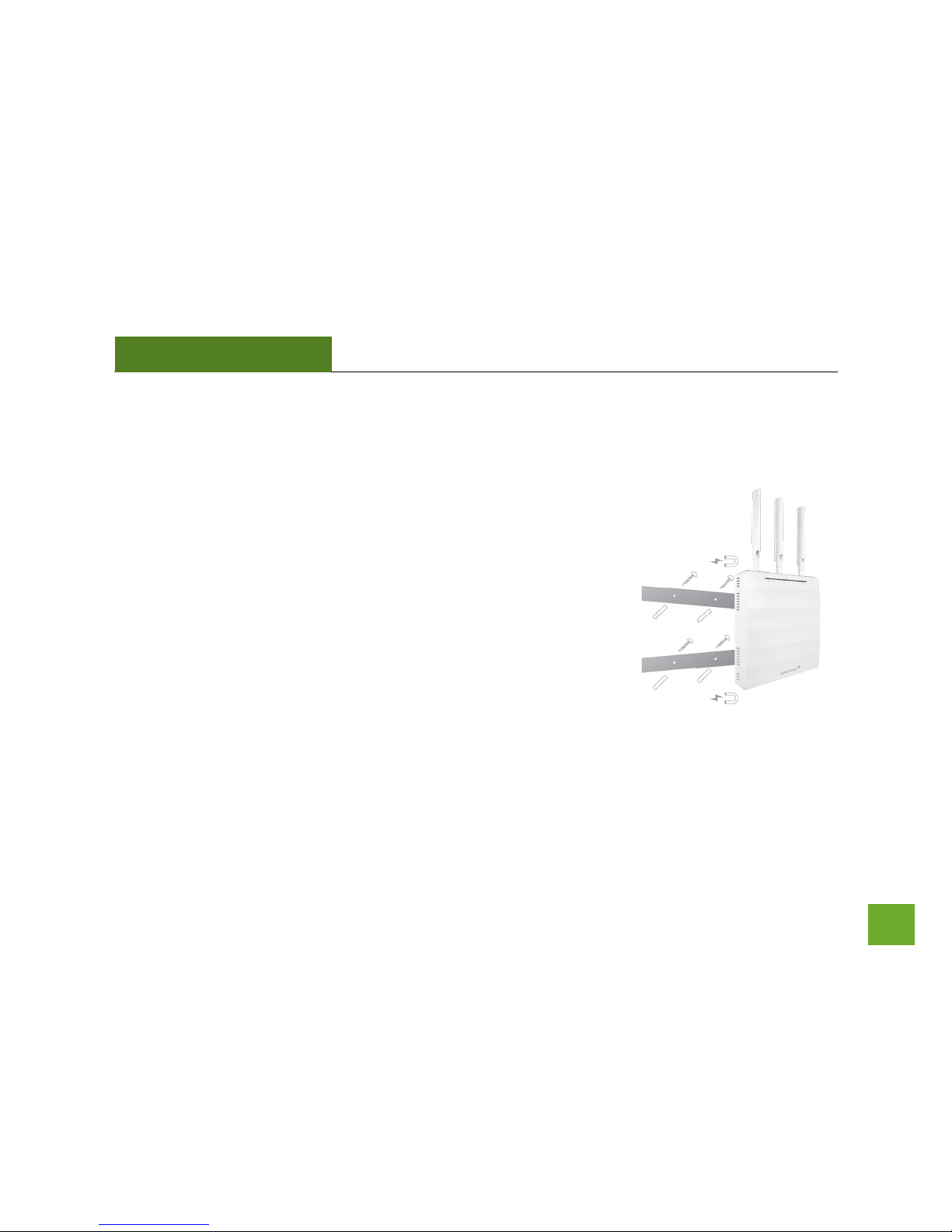

Magnetic Mounting
The mounting kit included with the Range Extender / Bridge provides a
convenient method to mount the Range Extender / Bridge on a wall or
ceiling. Once you have chosen the location for where you want to install
the Range Extender / Bridge, locate the Mounting Template. Use it to
mark the screw hole locations onto your wall.
Once the screw holes have been marked, locate the Magnetic Mounting
Kit and use the included screws to fasten the two magnetic plates to the
wall.
Once the plates are fastened, attach the Range Extender / Bridge to the
wall plates and check that the magnets are firmly holding the Range
Extender / Bridge to the wall.
Wall Mounting
In addition to the Magnetic Mounting Kit, the Range Extender / Bridge can
also be mounted using the standard wall mounting clips on the bottom of the device.

REB175P
USER’S GUIDE
8
OPERATIONAL MODES (BASIC SETUP)
The Range Extender / Bridge features four different operational modes that can be configured via the web
menu:
-Network Bridge
-Range Extender
-Firewall Range Extender
-WDS-Bridge

REB175P
USER’S GUIDE
9
NETWORK BRIDGE OVERVIEW
A Network Bridge creates a connection between two separate networks wirelessly. The Network Bridge
connects to a Wi-Fi network (either 2.4 or 5.0GHz network) of the existing network and provides wired
connections to expand the network further. All devices connected to the Client Bridge are on the same subnet
and local network as the existing network. Note: The Network Bridge does not create another Wi-Fi network to
connect to, it only provides wired connections to expand a network.

REB175P
USER’S GUIDE
10
NETWORK BRIDGE MODE BASIC SETUP

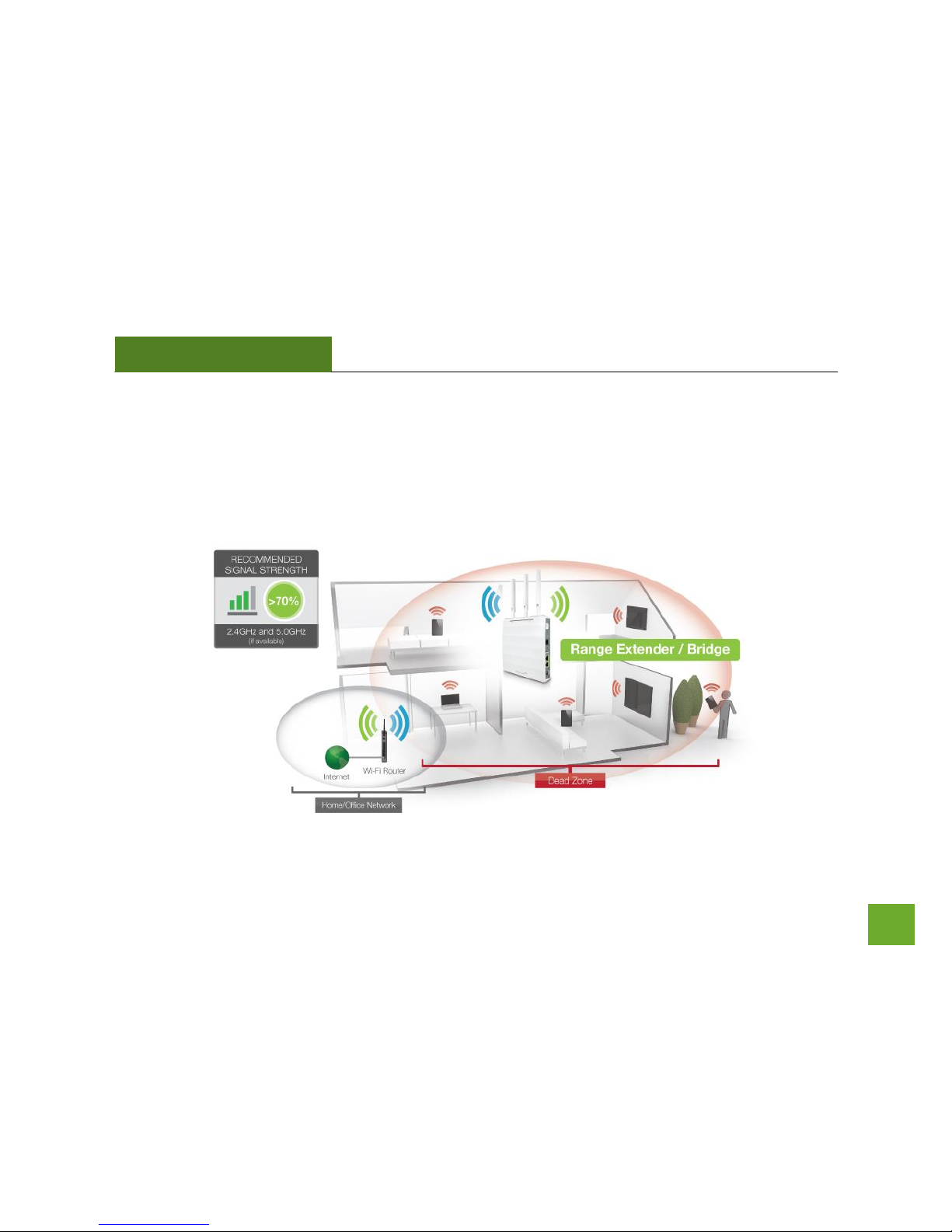

Find an optimal setup location for your Network Bridge
Place the Network Bridge in a location where it can receive a strong signal from the Source Network. The
better the connection the faster the bridged network speeds will be.

REB175P
USER’S GUIDE
11

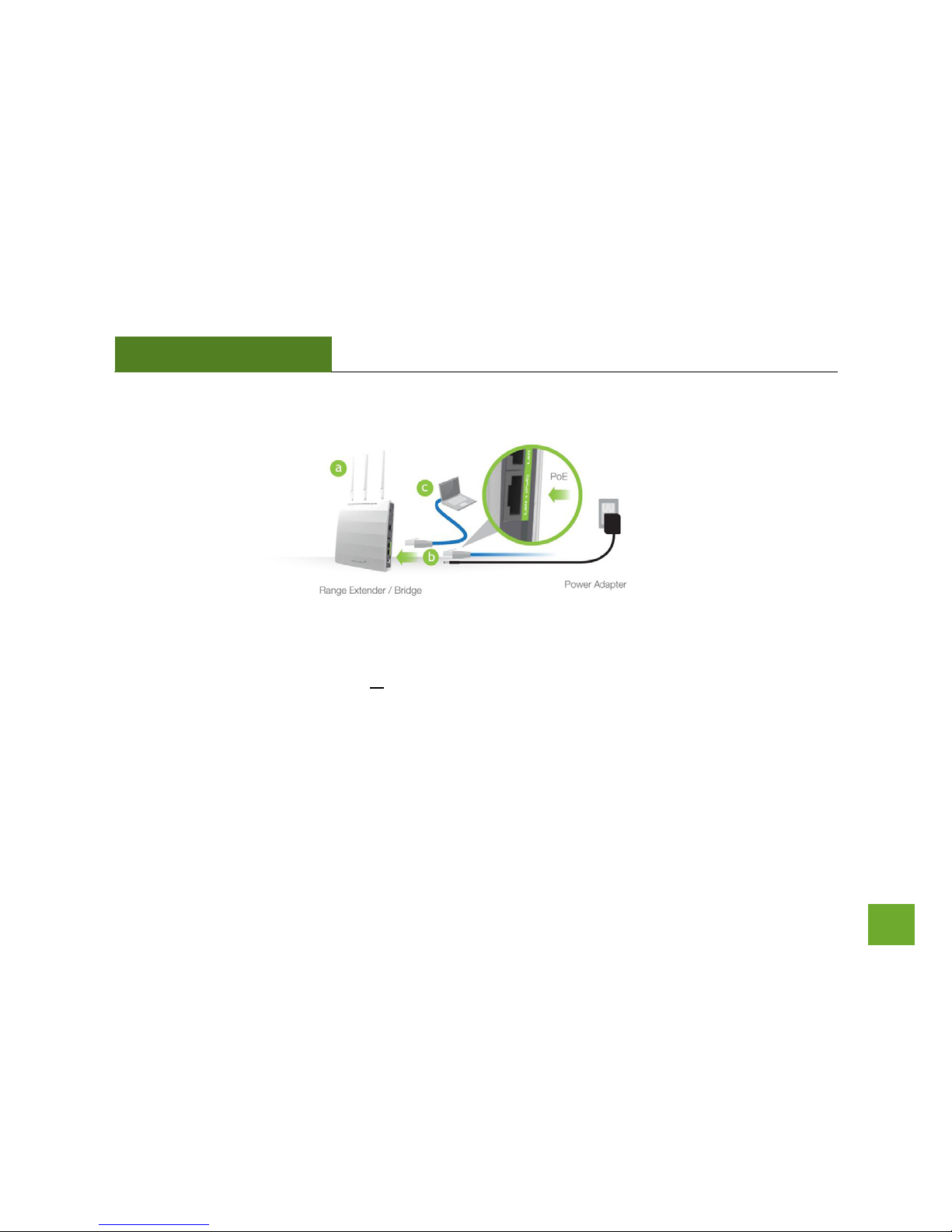

Attach Antennas, Power On & Connect to your Computer
a) Attach the included antennas to the antenna ports on the Network Bridge.
b) Power on the Network Bridge by attaching either the power adapter to the Bridge and plugging in the
other end into a power outlet or attaching a PoE Ethernet cable to the LAN1 port on the side panel
and the other end to an active PoE switch.
c) Connect to the Network Bridge with your computer by attaching an Ethernet cable to the LAN2 port
on the side panel.

REB175P
USER’S GUIDE
12
Open your Web Browser
a) Open your web browser.
b) Type http://setup.ampedwireless.com
into the web address bar.
If the web menu fails to open, type in the following IP
address into your web address bar:
http://192.168.80.240
Note: If you have problems accessing the Web Menu… Disable third-party firewalls such as Norton, Zone Alarm or Windows
Defender. Check to see that your computer is not connected to other wireless networks.
c) When prompted, enter the login and password:

REB175P
USER’S GUIDE
13
Select the Operational Mode
a) After the web menu appears, select
Dashboard from the navigation menu on the
top of the page.
b) Select Operational Mode from the left hand
navigation.
c) Using the dropdown menu, select Network
Bridge Mode for the Operational Mode and
click Apply.
d) When the web menu has reloaded, select
Basic Setup.

REB175P
USER’S GUIDE
14
Basic Setup Wizard
Confirm that Bridge Mode is the mode that you wish to configure
and Click Next to begin.
Scan for a Source Network to Connect to and Bridge
Click Scan to find available networks. Select the Source Network
that you wish to connect to and bridge.
Note: It is recommended that you select a Source Network with a
signal strength greater than 70% for the most reliable connection.
Poor signal connections may cause slow speeds or dropped
connections.
Click Next to continue.
Note: If you do not see your desired Source Network, click Scan
again, or move the Network Bridge to another location and Scan
again as the Bridge may be out of range.

REB175P
USER’S GUIDE
15

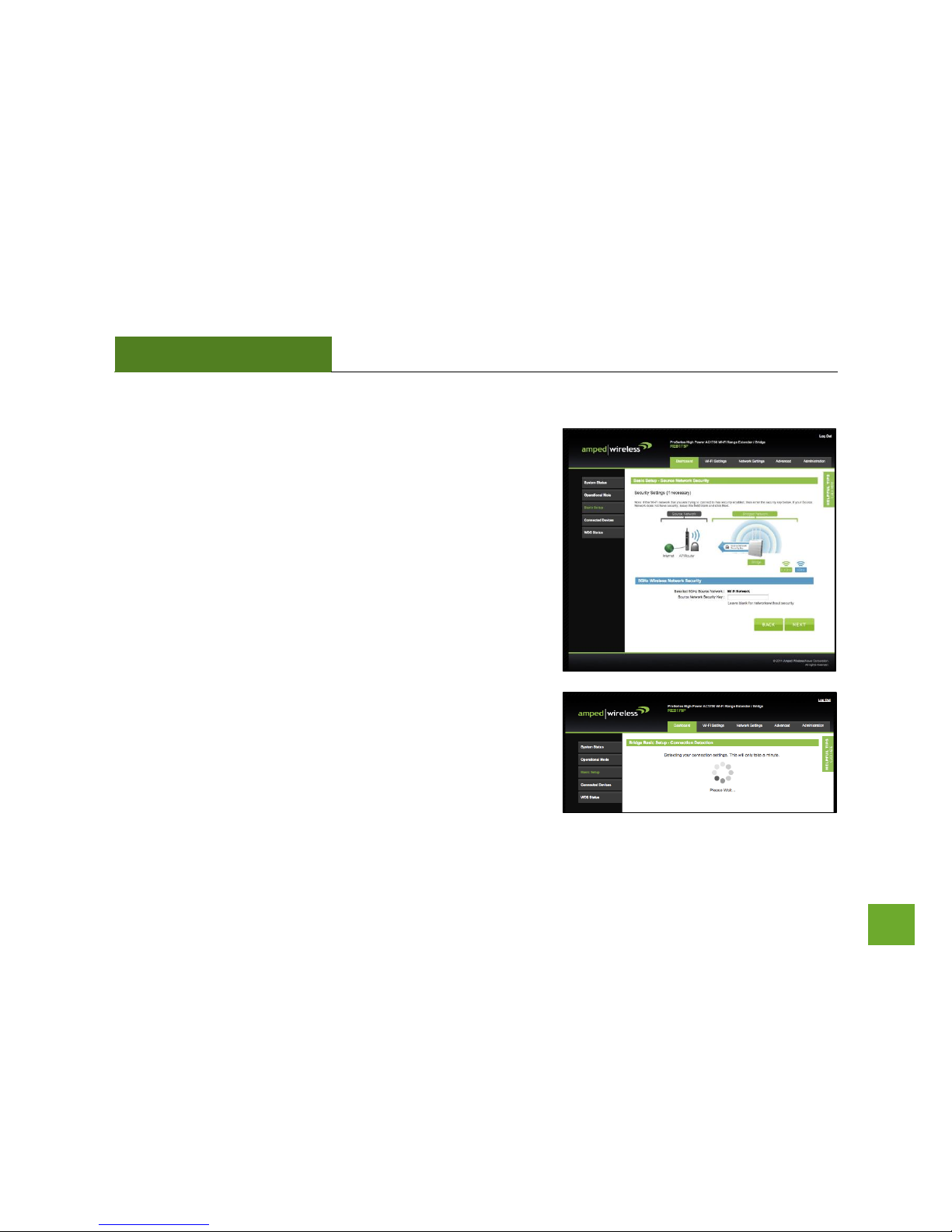

Source Network Security Settings (if necessary)
If the Source Network chosen has security enabled, you will need
to enter the security key here. If the Source Network does not
have security enabled, leave the security field blank.
Click Next to apply the settings.
DO NOT LEAVE OR REFRESH THIS PAGE
Allow the configuration to complete and the Basic Setup Wizard
will automatically redirect you to the next step
If there are problems with your configuration, the Basic Setup
Wizard will inform you of the issues with your configuration. If
there are no problems, you will see the Setup Summary page.

REB175P
USER’S GUIDE
16

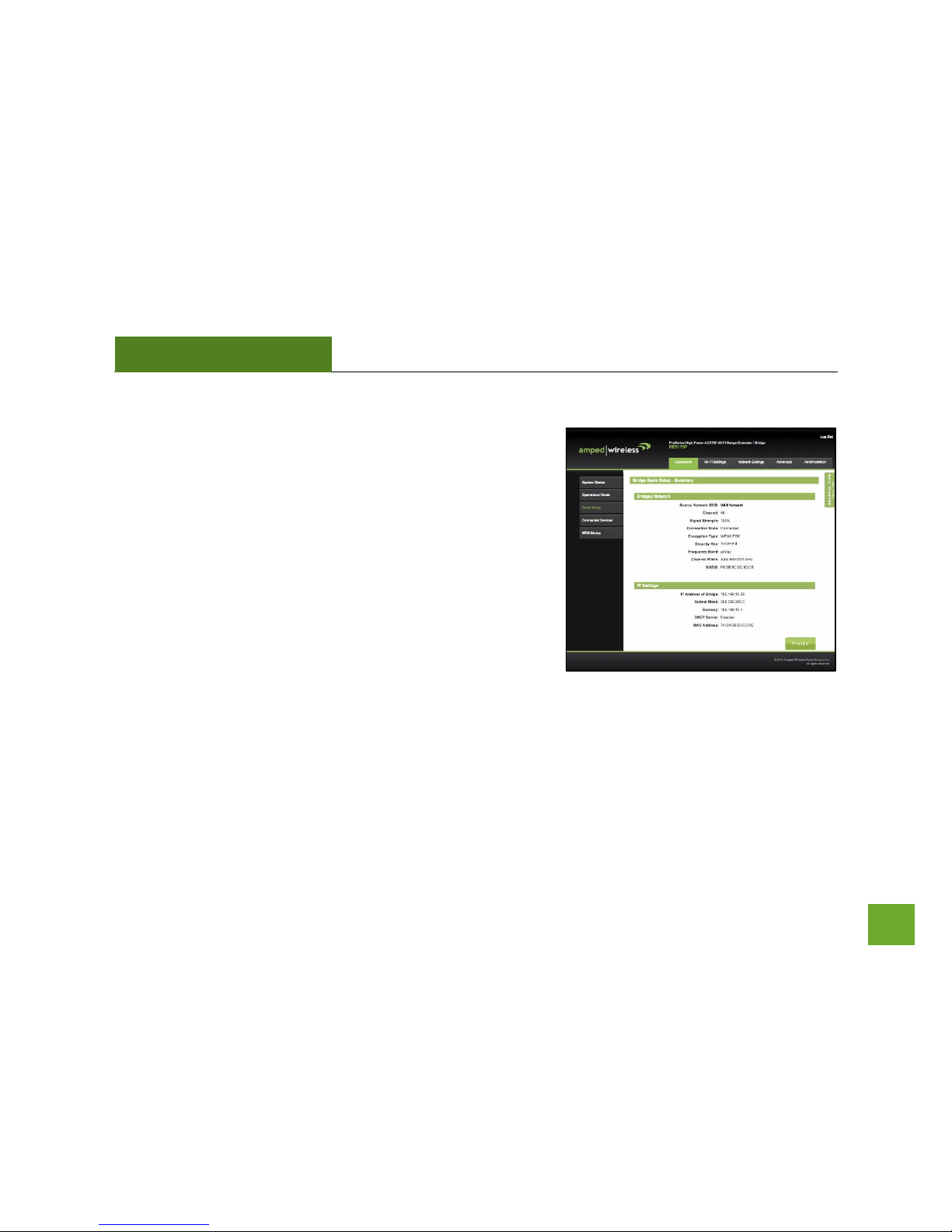

Setup Summary
Once the Network Bridge has rebooted, it will load the Setup
Summary page and provide you with the details of your setup. It is
recommended that you print this page for your records.
Open a new web browser window and check that you have access
to the Internet.
Additional settings can be configured using the navigation menu
on the top of the Web Menu.

REB175P
USER’S GUIDE
17

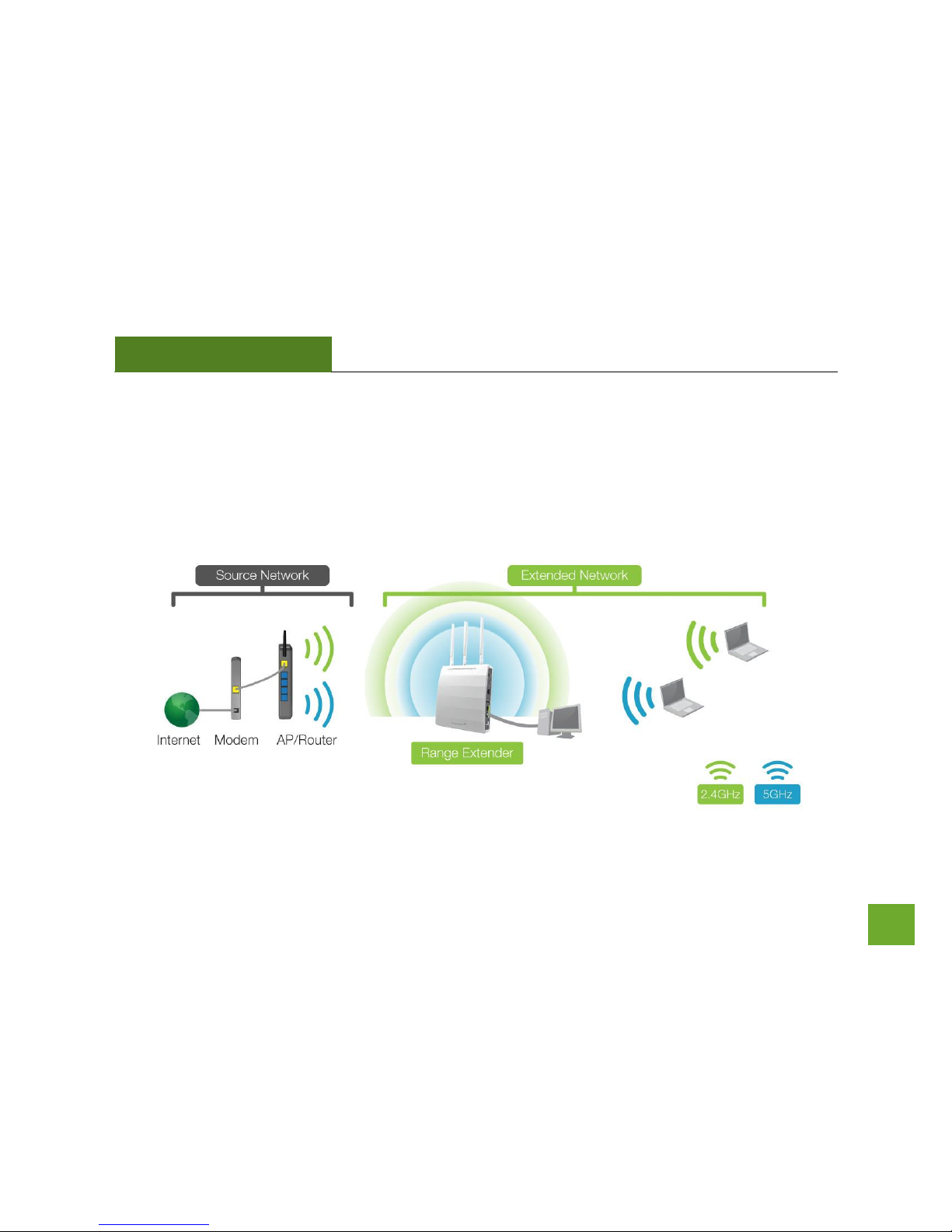

RANGE EXTENDER MODE OVERVIEW
Range Extender mode expands the range of any standard Wi-Fi router by repeating the signal (2.4GHz and
5.0GHz) and redistributing it in a new, extended location. In addition, to creating a new extended Wi-Fi
network for devices to connect to, the Range Extender also provides additional wired connections for bridging
additional network devices to the existing network. All devices connected to the Range Extender are on the
same subnet and local network as the existing network.

REB175P
USER’S GUIDE
18
RANGE EXTENDER MODE BASIC SETUP
Find an optimal setup location for your Range Extender
Place the Range Extender in a location between your Source Network’s wireless access point/router and your
wireless dead zone. It’s recommended that you place the Range Extender in a location where it can receive a
strong signal from the Source Network’s wireless access point/router.

REB175P
USER’S GUIDE
19
Attach Antennas, Power On & Connect to your Computer
a) Attach the included antennas to the antenna ports on the Range Extender.
b) Power on the Range Extender by attaching either the power adapter to the Range Extender and
plugging in the other end into a power outlet or attaching a PoE Ethernet cable to the LAN1 port on
the side panel and the other end to an active PoE switch.
c) Connect to the Range Extender with your computer by attaching an Ethernet cable to the LAN2 port
on the side panel.
