Amperes CD1002 User manual

Thank you for choosing another quality product om Amperes Electronics.
VER 1 / 2022
Amperes CD1002 is a compact integrated media player with dual outputs., which means the unit is able to stream dual audio
output simultaneously. It comprises of two USB inputs, DVD / CD audio player, Bluetooth and FM tuner.
It is suitable for professional PA installations with rack space savings with its 1 hu height.
Please read through the manual to capture how CD1002 may serve your needs diligently and efficiently. We are confident that
you are getting a product of excellence.
CD1002
Integrated Dual Channel
CD / DVD / USB / BT / FM Player
View catalogue and for latest
updates
amperes
POWER
CD 1002
INTEGRATED MEDIA PLAYER
USB 1
USB 2
DVD
FM
MODE
MP3 / FM
1 2
3 4 5 5+
RPT
O
I
CD / DVD

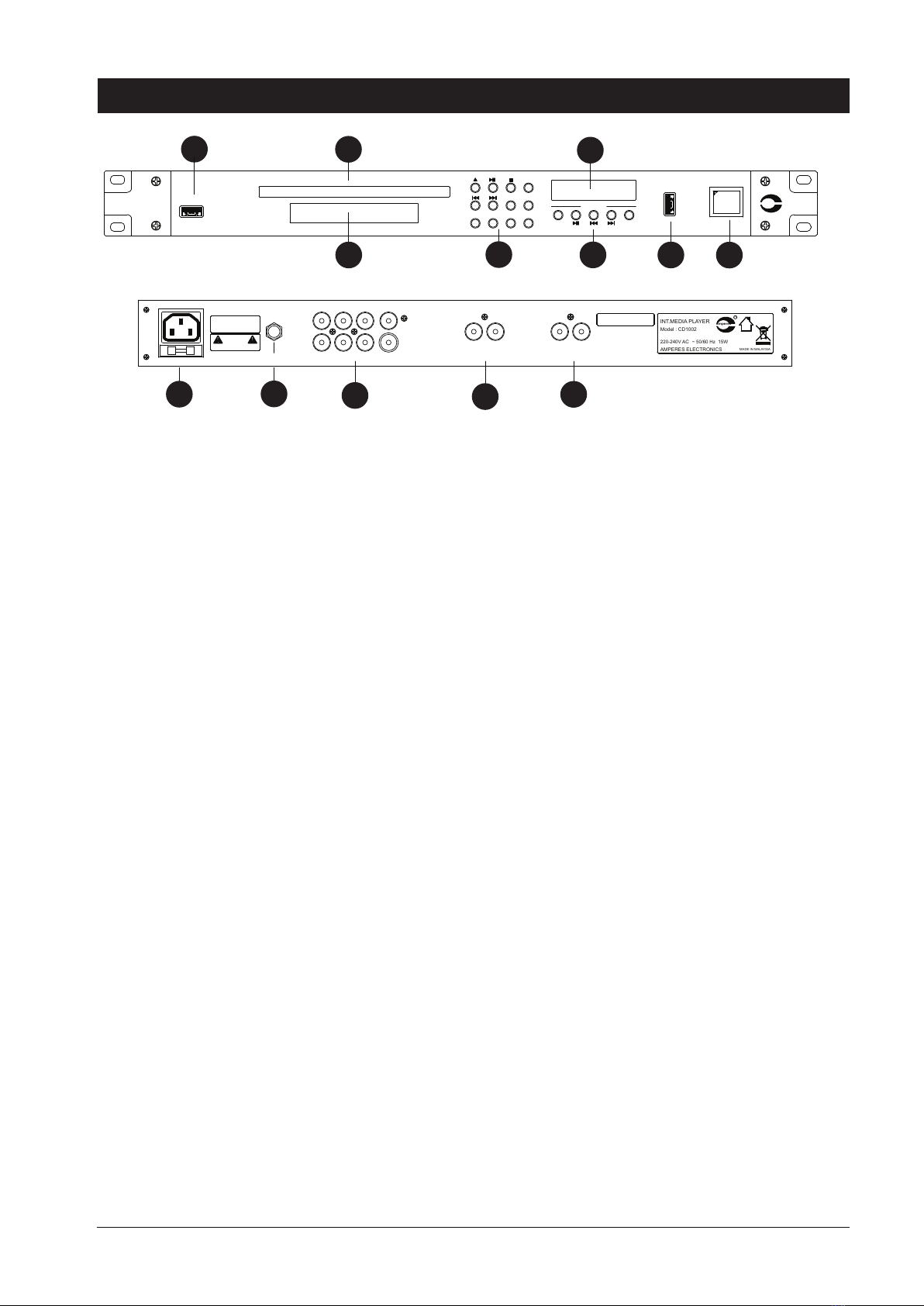

Parts Identification
Front View
1. USB INPUT 1
2. CD COMPARTMENT
3. CD AND USB 1 FUNCTIONS DISPLAY
PAGE 2 CD1002 Integrated Dual Channel Media Player
4. FUNCTION KEYS FOR USB 1 AND CD/DVD
Rear View
1
3
2
USB port 1 for audio out channel 1 ( Ouput at part no.12 )
Front loading CD compartment, accepts CD and DVD disc formats.
LCD display for CD player functions
Buttons to control USB and CD/DVD players such as ejects, pause, play, fast forward and reverse and file joggle.
5. LCD DISPLAY FOR FM / BT / USB 2
LCD Display for FM tuner, Bluetooth and USB 2 audio sources
4
5
678
910 11 12 13
6. FUNCTION KEY FOR FM / BT / USB 2
Buttons to control media selection for DVD, FM, Bluetooth and USB 2
7. USB INPUT 2
USB port 2 for audio output channel 2 ( Output at part no 13. )
amperes
POWER
CD 1002
INTEGRATED MEDIA PLAYER
USB 1
USB 2
DVD
FM
MODE
MP3 / FM
1 2
3 4 5 5+
RPT
O
I
CD / DVD
amperes electronics
another quality product from
AMPERES ELECTRONICS
amperes
R
Model : CD1002
MADE IN MALAYSIA
INT.MEDIA PLAYER
220-240V AC ~ 50/60 Hz 15W
L R L R
OUTPUT FOR
DVD / USB / FM / BLUETOOTH
OUTPUT FOR
FM / USB 2 / BLUETOOTH
RIGHT
Y Pb / Cb Pr / Cr VIDEO
LEFT COAXIAL S VIDEO
FM ANTENNA
220-240V AC ~ 50/60 Hz
FUSE : 0.5A
WARNING !
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION
8. POWER SWITCH
AC power switch for the unit
9. FUSED AC INLET
Fused AC inlet for 200 - 240V AC ; 50 / 60 Hz power source. Use correct fuse of 1A.
10. FM ANTENNA CONNECTOR
Plug in dipole cable antenna provided to this jack
11. AUDIO / VIDEO OUTPUT FOR DVD
Outputs for DVD player with audio, composite video and components.
12. RCA CHANNEL 1 OUTPUT
Stereo outputs for DVD and USB 1,2 , FM and Bluetooth
13. RCA CHANNEL 2 OUTPUT
Stereo outputs for USB 2, FM and Bluetooth.

Remote Controller
PAGE 3 CD1002 Integrated Dual Channel Media Player
POWER SOURCE P / N OPEN
1 2 3 4
5 6 7 8
9 0 10 + GOTO
SETUP RETURN
MENU OSD
PLAY PAUSE/STEP STOP MUTE
- SKIP + - SCAN +
RANDOM SLOW
ZOOM LANGUAGE A-B REPEAT
DVD/FM - TUNING + MODE
MUTE REP/MEM - VOL +
- VOL +
USB 2 / BT / FM
AUDIO SOURCE PLAYER
OK
TV PAL / NTSC select button
Disc compartment Open / Close
DVD / CD or USB 1 source
selector
Power ( Standby ) button
( for DVD only)
File number selector
The remote controller shall operate effectively within 3 m from the receiver with a window of approxiamtely 60 degree.
Pause
Cursor direction keys with OK
as Enter button at OSD
Goto key to direct select song track
Unused
On Screen Display
DVD / USB 1 mute
Scan forward / backward
Slow motion
Repeat track
USB2 / BT / FM selection mode
USB2 / BT / FM volume controller
USB2 / BT / FM skip forward / backward
Menu
Play / Pause
Skip forward / backward
Volume Up and Down
Video zoom
DVD or (USB2 / BT / FM) select)
USB2 / BT / FM Mute / Repeat
USB2 / BT / FM Play / Pause

General Schematic
PAGE 4 CD1002 Integrated Dual Channel Media Player
L R
amperes
POWER
CD 1002
INTEGRATED MEDIA PLAYER
USB 1
USB 2
DVD
FM
MODE
MP3 / FM
1 2
3 4 5 5+
RPT
O
I
CD / DVD
MX 2322 amperes
CLIP
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10
GAIN HIGH
CH11 CH12 A B
POWER
MAIN
A-TONE-B
0dB
-3dB
-6dB
-12dB
-16dB
SIG
A
B
0dB
+3.5dB-6dB
0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB
0dB 0dB
0dB
+15dB-15dB
0dB
0dB0dB
LEVELA B
PRIORITY
CLIPGAIN CLIPGAIN CLIPGAIN CLIPGAIN CLIPGAIN CLIPGAIN CLIPGAIN CLIPGAIN CLIPGAIN
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
BO
I
SIG SIG SIG SIG SIG SIG SIG SIG SIG SIG SIG CH1 . CH11. CH12
10kHz
+15dB-15dB
+15dB-15dB +15dB-15dB
+15dB-15dB
+15dB-15dB
MID
1kHz
LOW
100Hz
+3.5dB-6dB +3.5dB-6dB +3.5dB-6dB +3.5dB-6dB +3.5dB-6dB +3.5dB-6dB +3.5dB-6dB +3.5dB-6dB +3.5dB-6dB
OUT
PRE AMPLIFIER MIXER
QD 2100
PUBLIC ADDRESS POWER AMPLIFIER
amperes
POWER
O
I
CLIP
-10dB
-20dB
SIG
FAULT
POWER
STANDBY
TEMP
CLASS-D SERIES
QD 2100
PUBLIC ADDRESS POWER AMPLIFIER
amperes
POWER
O
I
CLIP
-10dB
-20dB
SIG
FAULT
POWER
STANDBY
TEMP
CLASS-D SERIES
L
R
L
R
CH9CH10
LINE
( PM1010 / PM1030 )
REMOTE MIC
- +
DC 24V
CH-B
+OUT
GND
-OUT
CH-A
+OUT
GND
-OUT
OUTPUT
+OUT
GND
+OUT
GND
+IN
GND
+IN
GND
CH-B
REC OUT
CH-A CH12
PRIORITY
CH11
4) GND
3) NC
2) COM
1) NO
8) +AUDIO
7) GND
6) -AUDIO
5) +24V
500mA
RJ45PIN CONFIGURATION:
AC220-240V 50/60Hz
FUSE: 500mA
Dipole antenna
RCA
Jacks
CD1002
MX2322 Pre-amp mixer
Amplifier ( BGM 1 )
Amplifier ( BGM 2 )
Out 1Out 2
Out 1
Out 2
Rear of MX2322
Speakers
Speakers
The above schematic shows CD1002 is used to provide 2 sources of BGM to mixer. However, the user shall have
the option to :
- Play single source with either one of the player being selected ( with only output A connected )
- Play dual source with both outputs connected ( A and B )
L R L R
OUTPUT FOR
DVD / USB / FM / BLUETOOTH
OUTPUT FOR
FM / USB 2 / BLUETOOTH
RIGHT
Y Pb / Cb Pr / Cr VIDEO
LEFT COAXIAL S VIDEO
FM ANTENNA
220-240V AC ~ 50/60 Hz
FUSE : 1 A
WARNING !
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION
A
B
Combined output for
DVD, USB 1, 2, FM and
Bluetooth
Output for FM, USB 2
and Bluetooth
Output for DVD
Player

Operating the Unit ( Output A )
PAGE 5CD1002 Integrated Dual Channel Media Player
USB 2
DVD
FM
MODE
MP3 / FM
1 2
3 4 5 5+
RPT
FM
DVD
USB
Output A provides audio from either of the followings :
- CD / DVD
- FM
- USB 1
- USB 2
- Bluetooth
To play CD / DVD
- Press “DVD/FM” button and DVD indicator shall be shown on the display
- Open CD compartment by pressing “Open / Close” button ( )
- Press “ Play” button to play CD ( )
CD playback can be skipped, fast forward, pause, stop or go to desired file number directly from the front panel
Playback Control buttons or using remote controller.
Information on CD playback is shown at CD Functions Display.
Playback controls
Function controls
Function LCD
To play FM Radio / Saving FM stations
- Press “DVD/FM” button and FM indicator shall be shown on the display
- Auto save the radio channels by pressing momentarily and saving process shall begin automatically.
- Select desired FM station by pressing “Forward” or “Backward” button
- Channel being played is shown by “P 01” ...
CD1002 can saved up to 20 stations. To auto save the channels.
To play USB 1 songs
- Plug USB drive to USB1 slot, and remove any CD in the compartment
- Press “DVD/FM” button with “DVD” indicator shown in the LCD panel
- To play the USB song, press “Play/Pause” button and other controls at Playback Control keys
To play Bluetooth songs from mobile device
- In FM mode, Press “Mode” button to choose Bluetooth function, and at this mode the “Blue” word shall blink if
not connected to any device.
- Open your mobile device to search for bluetooth connection name
- Select and pair your device with CD1002, the word “Blue” shall stop blinking
- CD1002 is then ready to receive audio from your mobile devices.
To control output volume
Output volume can be adjusted at the function controls button as well as from remote controller.
To play USB 2 songs
- Plug USB drive to USB2 slot
- Press “DVD/FM” button with “FM” indicator shown in the LCD panel ( now in FM mode )
- Press “Mode” button to select USB mode and USB indicator shall be shown
- Use the buttons at Function Controls to manupulate songs
You can toggle between USB 1 and 2 when both USBs are playing by pressing “DVD/FM” button in FM mode

Operating the Unit ( Output B )
PAGE 6 CD1002 Integrated Dual Channel Media Player
USB 2
DVD
FM
MODE
MP3 / FM
1 2
3 4 5 5+
RPT
FM
DVD
Output B provides audio from either of the followings :
- FM
- USB 2
- Bluetooth
Playback controls
Function controls
Function LCD
To operate audio output B, the steps are similar with Output A. Only USB 2 is connected for the channel.
Follow the steps as per page 5 to select the desired audio source.
Although Channel A and B can provide audio output simultaneously, do take note that :
- Output A and B can share the same source at the same time ( Except CD )
- While Output A is playing DVD, Output B can only play either USB2, FM or Bluetooth
DVD Component Outputs
The 3rd output from CD1002 is the Stereo audio with video outputs together with its video component signals. These
outputs provides continuous playback regardless of selection at function controls.
To control DVD or CD playback, use the ‘Playback” controls or use remote controller provided.
RIGHT
Y Pb / Cb Pr / Cr VIDEO
LEFT COAXIAL S VIDEO
FM ANTENNA
220-240V AC ~ 50/60 Hz
FUSE : 1 A
WARNING !
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION
DVD Output Jacks

Summary of Features
PAGE 7CD1002 Integrated Dual Channel Media Player
Technical Specifications
Operating voltage
Power consumption
Channels
Playback media
USB playback format
USB memory supported
FM radio reception
FM memory presets
Output
Frequency response ( CD )
S/N ratio
Distortion
Working temperature
Humidity
Dimensions ( WxHxD ) mm
Net weight ( kg )
- Compact 1 hu rack mounted integrated media player with dual USB, CD/DVD, Bluetooth and FM Tuner
- Dual output with simultaneous playback at both output channels
- Supports various formats : CD / DVD, MP3
- With remote controls
- With DVD composite video and component outputs
- Dipole FM antenna for better radio reception
- 20 preset memory for FM radio
- Suitable for retails, boutiques, gymns and other centralised PA installations
220 - 240V AC
15W ( 240V AC )
2
CD / DVD / FM / USB, Bluetooth
MP3
32 GB
87.5 - 108 MHz ( 50kHz step )
20
RCA Stereo line out ( 0 dBV, 0.775V )
20 - 20 kHz
> 80 dB
< 0.5% : 1 kHz
0 - 45 deg C
85 %
482 x 44 x 365
2.70

Warranty Conditions
Disclaimer
AMPERES ELECTRONICS SDN BHD
MADE IN MALAYSIA
Published : MAY 2022
ISO 9001: 2015
Design & Manufacture of Public Address Equipment and Systems
Certicate No. 16895 / A / 0001 / UK / En
Information contained in this manual is subject to change without prior notice and does not represent a commitment on the
part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any loss or damages whatsoever arising
from the use of information or any error contained in this manual.
It is recommended that all services and repairs on this product be carried out by AMPERES ELECTRONICS SDN BHD or
its authorized service agents.
AMPERES series must only be used for the purpose they were intended by the manufacturer and in conjunction with this
operating manual.
AMPERES ELECTRONICS SDN BHD cannot accept any liability whatsoever for any loss or damages caused by service,
maintenance or repair by unauthorized personnel, or by use other than that intended by the manufacturer.
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service
Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3,
Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized dealers. This warranty is
not valid if repairs are performed by unauthorized personnel or service centres.
This warranty covers only repairs and replacement of defective parts ; cost and risks of transportation as well as removal
and installation of the product from the main system are for the account of the purchaser. This warranty shall not extend to
the replacement of the unit.
This warranty does not cover damages caused by misuse, neglect, accident of the product as well as using the product with
power supply voltage other than what is shown on the product, or any other power supply source / adaptor not
recommended by the manufacturer.
This warranty does not cover damages caused by fire, earthquakes, floods, lightning and every other cause not directly
related to the unit.
This warranty does not include any indemnity in favor of the purchaser or the dealer for the period of usage of the unit. The
warranty also does not cover any damages which may inflict to people and things when using the product.
This warranty certificate is valid only for the described product, and is not valid if modifications are made on this certificate or
on the identification label applied on the product.
This warranty covers all the material and manufacturing defects and is valid for a period of 36 months from the date of
purchase or for a specified period in countries where it is stated by a national law. In this case, the extension is valid only in
the country where the product is purchased.
Amperes Electronics Sdn Bhd is not obliged to modify previously manufactured products under warranty if the design
changes or improvements are made.
