Ampronix Horizon SF User manual

Table of Contents
EN - English ..............................................................................................................................................................21
Documentation and Notice......................................................................................................................................21
Overview..................................................................................................................................................................21
Specifications ...........................................................................................................................................................21
Product Information ............................................................................................................................................24
Warnings and Limitations of Use.........................................................................................................................25

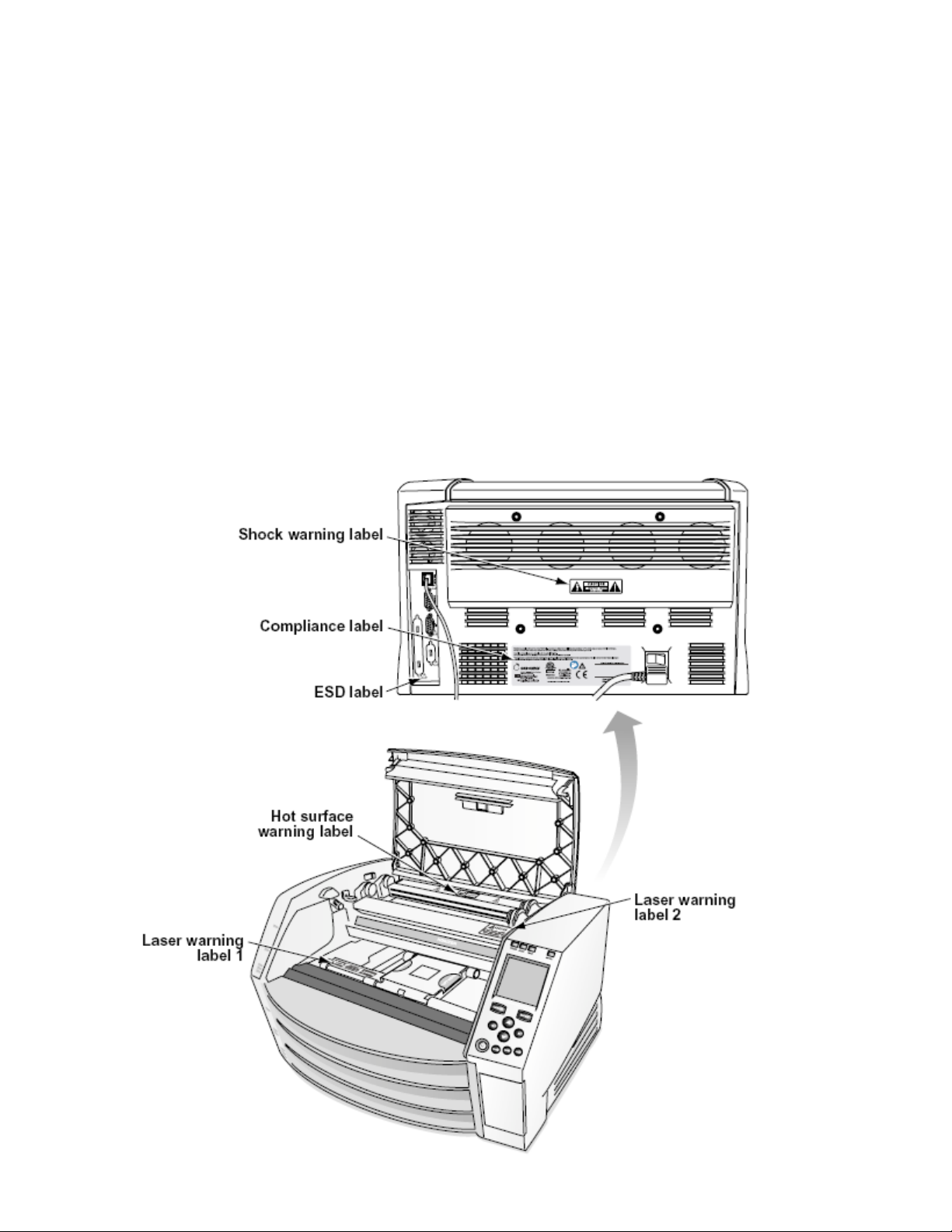

Location of Safety and Compliance Labels ......................................................................................................25
Voltage Warning ..............................................................................................................................................26
Laser Warning ..................................................................................................................................................26
Temperature Warning .....................................................................................................................................27
Compliance ......................................................................................................................................................27
Serial Number, Configuration, Date Code, and Modification Codes...............................................................27
ESD Caution......................................................................................................................................................28
Potential for Radio Frequency Interference on Imager Operation..................................................................28
Potential for Radio and Television Interference..............................................................................................28

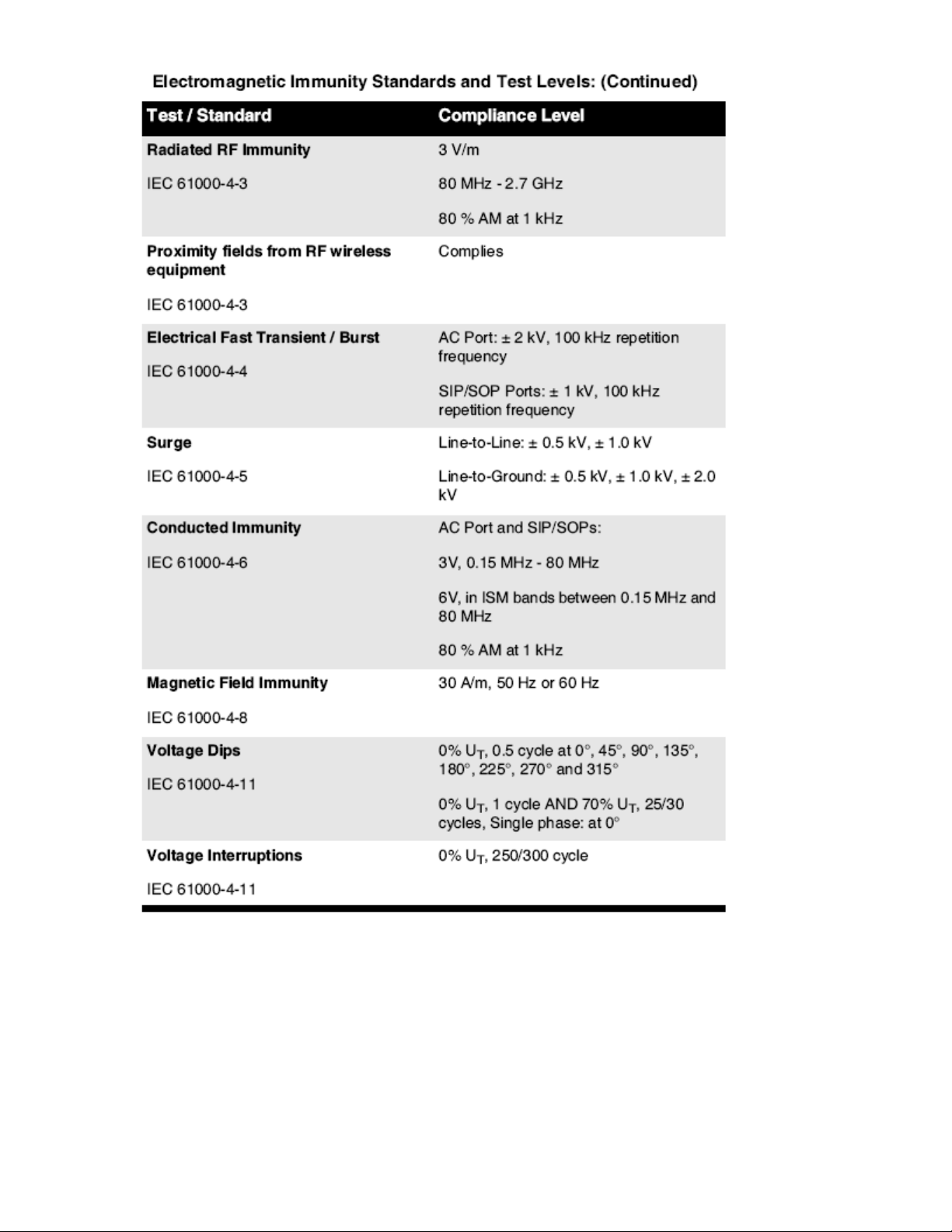

Guidance Regarding Electromagnetic Emissions and Immunity .....................................................................29
Safety Precautions ...........................................................................................................................................31
Location Precautions........................................................................................................................................32
Cleaning Precautions........................................................................................................................................33
Media ...............................................................................................................................................................33
Codonics Paper/White Film Media..................................................................................................................33
File Transfer via FTP and LPR ...........................................................................................................................34
Color Management ..........................................................................................................................................34
Image Scaling ...................................................................................................................................................34
Hardware Variations ........................................................................................................................................34
Disposal Requirements ....................................................................................................................................34
European Disposal Requirements....................................................................................................................34
Indications for Use...........................................................................................................................................35
User Manual Warnings and Cautions ..............................................................................................................35
FR - Français.............................................................................................................................................................38
Documentation et Avis ............................................................................................................................................38
Aperçu......................................................................................................................................................................38
Caractéristiques .......................................................................................................................................................38
Produit Informations............................................................................................................................................42
Mises en garde et Limites de Utilisation..............................................................................................................42
Lieu de Sécurité et Conformité Étiquettes.......................................................................................................42
Tension Avertissement ....................................................................................................................................43
Laser Avertissement.........................................................................................................................................44

Notandi Handbók Viðvaranir og Varúð..........................................................................................................303
IT - Italiano .............................................................................................................................................................307
Documentazione e Avviso......................................................................................................................................307
Panoramica ............................................................................................................................................................307
Specifiche...............................................................................................................................................................307
Prodotto Informazione ......................................................................................................................................311
Avvertenze e Limitazioni di Uso.........................................................................................................................311
Posizione di Sicurezza e Conformità Etichette...............................................................................................311
Voltaggio avvertimento .................................................................................................................................312
Laser avvertimento ........................................................................................................................................313
Temperatura avvertimento............................................................................................................................314
Conformità.....................................................................................................................................................314
Seriale Numero, Configurazione, Data Codice, e Modifica Codici.................................................................314
ESD Attenzione...............................................................................................................................................315
Potenziale per Radio Frequenza Interferenza su Imager Operazione...........................................................315
Potenziale per Radio e Televisione Interferenza ...........................................................................................315
Guida Per quanto riguarda Elettromagnetico Emissioni e Immunità............................................................316
Sicurezza Precauzioni.....................................................................................................................................318
Posizione Precauzioni.....................................................................................................................................319
Pulizia Precauzioni .........................................................................................................................................320
Media .............................................................................................................................................................320
Codonics Carta / Bianco Film Media..............................................................................................................321
File Trasferimento attraverso FTP e LPR........................................................................................................321
Colore Gestione .............................................................................................................................................321
Immagine Ridimensionamento......................................................................................................................321
Hardware Variazioni.......................................................................................................................................321
Disposizione Requisiti ....................................................................................................................................322
europeo Disposizione Requisiti......................................................................................................................322
Indicazioni per Uso.........................................................................................................................................322
Utente Manuale Avvertenze e Precauzioni ...................................................................................................323
LT - lietuvių kalba...................................................................................................................................................326
Dokumentacija ir Pastebėti....................................................................................................................................326
Apžvalga.................................................................................................................................................................326
Specifikacijos..........................................................................................................................................................326
Produktas Informacija........................................................................................................................................330
Įspėjimai ir Apribojimai apie Naudokite.............................................................................................................330
Vieta apie Saugumas ir Laikymasis Etiketės...................................................................................................330
Įtampa Įspėjimas............................................................................................................................................331
Lazeris Įspėjimas ............................................................................................................................................332
Temperatūra Įspėjimas ..................................................................................................................................333

Laikymasis ......................................................................................................................................................333
Serijinis Skaičius, Konfigūracija, Data Kodas, ir Modifikacija Kodai ...............................................................333
ESD Atsargiai ..................................................................................................................................................334
Potencialus dėl Radijas Dažnis Kišimasis ant Vaizduoklis Operacija..............................................................334
Potencialus dėl Radijas ir Televizija Kišimasis................................................................................................334
Nurodymai Apie Elektromagnetinis Emisijos ir Imunitetas ...........................................................................335
Saugumas Atsargumo priemonės ..................................................................................................................337
Vieta Atsargumo priemonės ..........................................................................................................................338
Valymas Atsargumo priemonės.....................................................................................................................339
Žiniasklaida.....................................................................................................................................................339
Codonics Popierius / baltas Filmas Žiniasklaida.............................................................................................340
Failas Perkėlimas per FTP ir LPR.....................................................................................................................340
Spalva Valdymas ............................................................................................................................................340
Vaizdas Mastelio keitimas..............................................................................................................................340
Aparatinė įranga Variacijos............................................................................................................................340
Šalinimas Reikalavimai...................................................................................................................................341
Europietiškas Šalinimas Reikalavimai.............................................................................................................341
Indikacijos dėl Naudokite...............................................................................................................................341
Vartotojas Rankinis Įspėjimai ir Įspėjimai ......................................................................................................342
LV - latviešu valoda ................................................................................................................................................345
Dokumentācija un Paziņojums...............................................................................................................................345
Pārskats..................................................................................................................................................................345
Specifikācijas..........................................................................................................................................................345
Produkts Informācija..........................................................................................................................................349
Brīdinājumi un Ierobežojumi gada Izmantot .....................................................................................................349
Atrašanās vieta gada Drošība un Atbilstība Etiķetes......................................................................................349
spriegums Brīdinājums...................................................................................................................................350
Lāzers Brīdinājums .........................................................................................................................................351
Temperatūra Brīdinājums..............................................................................................................................352
Atbilstība........................................................................................................................................................352
Seriāls Skaits, Konfigurācija, Datums Kods, un Pārveidošana Kodi................................................................352
ESD Uzmanību................................................................................................................................................353
Potenciāls priekš Radio Biežums Iejaukšanās ieslēgts Attēla veidotājs Darbība...........................................353
Potenciāls priekš Radio un Televīzija Iejaukšanās..........................................................................................353
Norādījumi Attiecībā uz Elektromagnētisks Emisijas un Imunitāte...............................................................354
Drošība Piesardzības pasākumi......................................................................................................................356
Atrašanās vieta Piesardzības pasākumi .........................................................................................................357
Tīrīšana Piesardzības pasākumi......................................................................................................................358
Mediji .............................................................................................................................................................358
Codonics Papīrs / balts Filma Mediji..............................................................................................................359

Horizon® SF
Multi-media Imager
EN - English
Documentation and Notice
Codonics Products are Class I products intended for use by Healthcare Professionals.
Products packaging and labeling, including Graphic User Interface (GUI) for operation are offered in
English and meet MDR, Annex I, Chapter III, 23.4, taking account the training and the knowledge of the
potential user.
*Web information, Key Specifications, Intended Use, User manual Appendix, Quick Start Guide & Setup
IFU are available in simple translation Member State Languages; primary IFU are available in English.
Overview
The Horizon SF combines small format diagnostic film, color paper and grayscale paper
printing to provide the world’s most versatile medical imager. Horizon’s multiple media options
help to immediately cut your costs, build referring physician loyalty and attract new business.
Featuring color paper to show off your latest imaging techniques, low-cost, room light viewable
grayscale paper and a compact, counter-top design, Horizon obsoletes film-only imagers.
High speed image processing, networking and spooling are all standard.
Specifications
Print Technology: Dye-diffusion and direct thermal (dry, daylight safe operation)
Spatial Resolution: 320 DPI (12.6 pixels/mm)
Throughput: Up to 100 films per hour
Time To Operate: 5 minutes (ready to print from “off”)
Grayscale Contrast Resolution: 12 bits (4096)
Color Resolution: 16.7 million colors
256 levels each of cyan, magenta, and yellow
Media Inputs: Three supply cassettes, 50 -100 sheets each, one color ribbon
Media Outputs: Three receive trays, 50-sheet capacity each
Media Sizes: 8” x 10” (blue and clear) DirectVista® Film
A, A4 DirectVista Grayscale Paper
A, A4 ChromaVista® Color Paper
Dmax: >3.0 with DirectVista Film
Archival: >20 years with DirectVista Film, under ANSI extended-term storage conditions
Supply Cassettes: All media is pre-packaged in factory sealed, disposable cassettes
Interfaces: Standard: 10/100 Base-T Ethernet (RJ-45), Serial Diagnostic Port, Serial Console
Network Protocols: Standard: FTP, LPR
Optional: DICOM (up to 24 simultaneous connections),Windows network printing
Image Formats: Standard: TIFF, GIF, PCX, BMP, PGM, PNG, PPM, XWD, JPEG, SGI (RGB),
Sun Raster, Targa
Optional: DICOM, PostScript™ compatibility
Image Quality: Automatic calibration using built-in densitometer

Image Control: Gamma, Contrast, Saturation, Medical Color Matching (MCM™), Polarity,
Rotation, Scaling, Antialiasing
Sheet Control: Density Adjustment (Dmax), Look-Up Tables (LUT), Image Warnings,
Captions, Sheet Coverage, Border Color, Border Fill, Crop Anchor
Sheet Formatting: 1:1-1:81; Variable Multi-Formatting (VMF™), Fixed Multi-Formatting (FMF™)
Control Panel: Large, backlit LCD display, Status lights include Online, Alert, Fault, Active
Power and Menu navigation buttons
Processor: Intel
Memory: 256MB RAM
Hard Disk: 40GB (18GB available for spooling)
Removable Disk: 100MB ZIP™ Disk for software upgrades
Smart Card: 32 KB for storing configuration data
Power: Universal Input: 100-120/230V~ 50/60 Hz, 600W printing, 150W idle
Heat Emission: Maximum 600W, 2,050 BTUs /hr. printing, 150W, 512 BTUs /hr. idle
Weight: 66 lbs. (30 kg.)
Engine Dimensions: 14.5” (37 cm) H, 20.5” (52 cm) W, 24” (61 cm) L
Environment: Operating Temperature: 15-30C
Storage: -22.2 - 50.6C
Operating Humidity: 10-70% R.H. (non-condensing)
Regulatory: Full medical device compliance including Class 2 FDA and Class 1 MDD CE,
GMP/QSR, ISO13485:2003, 60601-1 Safety, and EMC/EMI (55011(B) & 60601-1-2)
for Healthcare Facilities
Conventions Used in the User Manual
Bulleted Lists
Bullets are used to display a list of nonprocedural items. For example:
The control panel contains:
•A display panel
•Keys
•Indicators
Numbered Steps
The icon indicates the beginning of a procedure. The steps in a procedure are numbered. For
example:
1. Press the MENU key.
The Main Menu displays on the control panel. The selector arrow ( ) automatically points to
the first menu option.
2. To scroll through the menu options, press the up and down keys.
The selector arrow ( ) moves up and down through the list. The bottom portion of the control
panel display shows a message associated with the currently selected menu option.
Control Panel Navigation

Menu paths are used in some procedures instead of documenting every step needed to navigate to
a specific menu option. For example:
From the Main Menu, select the following options:
Default Media
Grayscale
DV Film Blue
Control Panel Keys
Control panel keys are shown in small black ovals to resemble the actual keys, for example, “Press
the ENTER key.”
Control Panel Menu Options
Control panel menu options are shown in bold type, for example, “Select the Gamma menu option.”
Notes and Tips
Notes contain additional information related to a topic or procedure. For example:
NOTE: If your network is managed by a network administrator or an information technology (IT)
department, it would be considered a complex network. You should have the responsible person
perform any network-related administrative tasks.
Tips provide additional insights about a topic or procedure (such as, why you may want to do
something or a faster way to perform an operation). For example:
TIP: Specifying print settings in a multi-user environment
If the Horizon imager is accessed by multiple users, it is typically better for individual users to enter
print values through the DICOM application interface rather than change the default settings
through the control panel.
Cautions and Warnings
Cautions alert you to actions or situations that could cause harm to equipment or data. For example:
CAUTION Any changes you make to the imager default settings will also affect prints made by other
users. Use caution when changing default settings.
Warnings alert you to actions or situations that could result in personal injury. For example:
WARNING With the imager cover open, touch only those internal components that are colored
green.
Text Files and Displayed Text
Monospaced type is used for the contents of an ASCII file or machine text displayed in a terminal
command window.
User Data

Bold monospaced type is used to indicate specific characters or words that you enter at a host
workstation when performing advanced imager operations. If the type is also italicized , it indicates
variable text. For example:
1. From your workstation, open a UNIX or MS-DOS command window.
2. Enter the command telnet hostname or telnet IP Address (using either the Horizon imager
hostname or IP Address).
3. At the login prompt, enter the command status.
Important Information and Filenames
Bold type is used for emphasis, command names, and paths or filenames. For example:
•The Horizon imager default settings can be changed both at the control panel and using text
files.
•The hostname and IP Address must be added to the /etc/hosts file.
New Terms
Italic type is used when a term is introduced and defined. For example:
•The Horizon imager has a complete set of default settings that contain preconfigured values for
every aspect of a printed sheet.
Purpose and Scope
Refer to this user manual for procedures on how to perform the most common imager
operations, including:
•Setting up the imager
•Loading media
•Sending print jobs from DICOM Print Service Classcompliant applications running on imaging
devices or image viewing workstation
•Sending print jobs from workstations via PostScript
•Sending print jobs using FTP and LPR
•Changing the imager’s default image and sheet settings
•Adjusting the appearance of printed images for user preference
•Performing preventive maintenance
•Performing film calibration
•Troubleshooting common problems
NOTE: Some features and functions described here may not apply to older versions of the software.
This User’s Manual is intended to be as simple and straightforward as possible for the everyday
user. If you need more detailed or more technical information on a feature or topic, or wish to
perform more advanced operations, refer to the Horizon Imager Technical Manual
(Catalog no. HORIZON MNLT). The Technical Manual serves as a companion document to this
manual
Product Information
For technical assistance with the Horizon, call Codonics Technical Support at the following number:
Phone: [phone]
Toll Free: 800.444.1198 (USA only)

Technical Support is available anytime. Technical Support is also available online via email and the
Codonics web site:
Email: [email protected]
Web Site: www.codonics.com
General product information can also be requested by sending email to:
Email: [email protected]
Please include your postal mailing address and telephone number in the email message. Basic
product information is returned via email unless otherwise requested.
Warnings and Limitations of Use
Location of Safety and Compliance Labels
The following figure shows the locations of the imager’s safety and compliance labels.

Voltage Warning
The exclamation point within an equilateral triangle and person reading a manual symbol are
intended to alert the user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying this device.
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
REMOVAL OF LABELS, COVERS, OR ENCASEMENT FASTENERS VOIDS THE WARRANTY.
THIS APPARATUS MUST BE ELECTRICALLY GROUNDED.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS IMAGER TO RAIN OR MOISTURE.
EQUIPMENT IS NOT TO BE USED AS A COMPONENT OF A LIFE SUPPORT SYSTEM. Life support
devices or systems are devices or systems that support or sustain life, and whose failure to perform
can be reasonably expected to result in a significant injury or death to a person. A critical
component is any component of a life support device or system whose failure to perform can be
reasonably expected to cause the failure of the life support device or system, or to affect its safety
or effectiveness.
WARNING Grounding reliability can be achieved only when the Horizon is connected to a receptacle
marked “Hospital Only” (that is, “Hospital Grade”).
WARNING The power cord connected to the Horizon is the main disconnect for the system.
WARNING To disconnect overall power to the Horizon prior to servicing it, power of the system
(refer to “Powering Off the Imager”.
WARNING Do not modify this equipment without authorization of the manufacturer
WARNING External equipment intended for connection to signal input, signal output, or other
connectors, shall comply with relevant IEC standard (e.g., IEC 60950 for IT equipment and the IEC
60601 series for medical equipment). In addition, all such combinations - systems - shall comply
with the IEC 60601-1 standard for Medical Electrical Equipment Systems. Equipment not complying
to IEC 60601 shall be kept outside the patient environment, as defined in the standard. Any person
who connects external equipment to signal input, signal output, or other connectors has formed a
system and is therefore responsible for the system to comply with the requirements of IEC 60601-1-
1. If in doubt, contact a qualified technician or Codonics Technical Support for approved
configurations.
WARNING Do not touch a patient while also accessing the internal components that are under the
top cover or receive trays.
Laser Warning
The Horizon imager uses a laser to read barcode information on the media cassettes. The laser
module is a 650 –670nm device of 1.26 mW or less. As such it has been found to comply with the
21 CFR 1040.10 and 1040.11 and IEC 60825 laser standards as a low power Class 1 device.
For safety reasons, the laser is turned on only for a short time when a cassette is inserted. Still, one
should use caution and never stare at the laser beam, should avoid exposure to the laser, and

should never override any of the interlocks and safety mechanisms. These measures are taken for
your protection.
WARNING Use of controls or adjustments to the performance of procedures other than those
specified in this manual may result in hazardous radiation exposure.
The laser apertures are marked with a single label, shown below. There are three apertures that
correspond to the three cassette locations, one for each, on the same side of the Horizon imager as
this label.
Safety interlocks are marked by the following label. They are located on the same side of the
Horizon imager as this label.
Temperature Warning
Because the Horizon imager is a thermal print device, the surface of the thermal print head heat sink
gets hot. Avoid directly touching any components not colored green when accessing the interior of
the imager if the imager has been printing. (During some preventative maintenance tasks, you will
be touching internal components with cleaning pads or swabs.)
The temperature warning label is shown below.
Compliance
Codonics is in compliance with various regulations.
The Compliance label, which is affixed at the back of the imager, is shown below.
Serial Number, Configuration, Date Code, and Modification Codes
