AMS TRIMB User manual

D
E
S
I
G
N
E
D
B
Y
A
M
S
•
A
S
S
E
M
B
L
E
D
B
Y
A
M
S
•
FRANCE
www.ams-diffusion.comwww.ams-diffusion.com
TRIMB
AN AMS CAMERA X1 *
YOUR TERMINAL
CFX 750 (FM 750)OR FMX
(FM1000)*
DEDICATED CABLE
TRIMB X1
USE
1 dedicated cable can be connected 1 AMS camera.
You can connect 2 AMS cameras using 2 dedicated cables TRIMB on your terminal CFX 750 (FM 750)
You can connect up to 4 AMS cameras using 4 dedicated cables TRIMB Dedicated cable on your terminal FMX
(FM1000) .
You can connect 1 AMS camera using only 1 dedicated cable TRIMB2 on your terminal TMX-2050 (XCN-2050).
Dedicated cable
VICAM-AMS-TRIMB
Camera
VICAM-AMS-CAM-PAL*
Extension cable from 2 to 20 m
VICAM-AMS-CR2 À 20
Dedicated cable
VICAM-AMS-TRIMB
Camera
VICAM-AMS-CAM-PAL*
Extension cable from 2 to 20 m
VICAM-AMS-CR2 À 20
*CAUTION :
Camera and terminal not included.
All the AMS cameras are compatible with this dedicated cable.
PRODUCTS NEEDED
Your terminal
CFX 750 (FM 750)*
Your terminal
FMX (FM1000)*
USER’S MANUALUSER’S MANUAL
Your terminal
TMX-2050 (XCN-2050)*

www.ams-diffusion.comwww.ams-diffusion.com
7. Select the Camera tab (A or B),
that you want displayed. Refer to your
manufacturer’s handbook to change your
video settings.
3. Connect the camera cable with the
dedicated cable TRIMB .
4. Install the camera and connect the
extension cable CR (from 2 to 20 metres),
feed the camera cable to the driving cab.
6. A tab «Camera A», appears at the
top left of your monitor. A tab «Camera B»,
also appear if you connect a second AMS
camera.
TRIMB
5. Your terminal CFX 750 (FM750)
automatically detects the connection of
a camera.
CFX 750 (FM 750)
2. Connect connector TRIMB at
the back of your monitor CFX 750
(FM750) .
1. Locate the 2 connectors on the back of
your CFX 750 (FM750) monitor.
If no connectors are available,
use the repeater your original
loom from your other hardware
(e.g. power section / steering
control, etc).
USER’S MANUALUSER’S MANUAL
INSTALLATION INSTRUCTIONS
CONNECTIONS
BEAM
Legend :
TRIMB
AN AMS CAMERA
CONNECTOR
EXTENSION CABLE

If no connectors are available,
use the repeater your original
loom from your other hardware
(e.g. power section / steering
control, etc).
www.ams-diffusion.comwww.ams-diffusion.com
TRIMB
3. Connect the camera cable with the
dedicated cable TRIMB .
4. Install the camera and connect the
extension cable CR (from 2 to 20 metres),
feed the camera cable to the driving cab.
8. A new Camera tab appears in the
Congurations menu. Select the Camera
tab and press Settings.
9. Select the camera number you want to
display. To enable the video function, select
Enabled: Yes in the camera settings menu.
Refer to your manufacturer’s handbook to
change your video settings.
EXTENSION CABLE
TRIMB
CONNECTOR

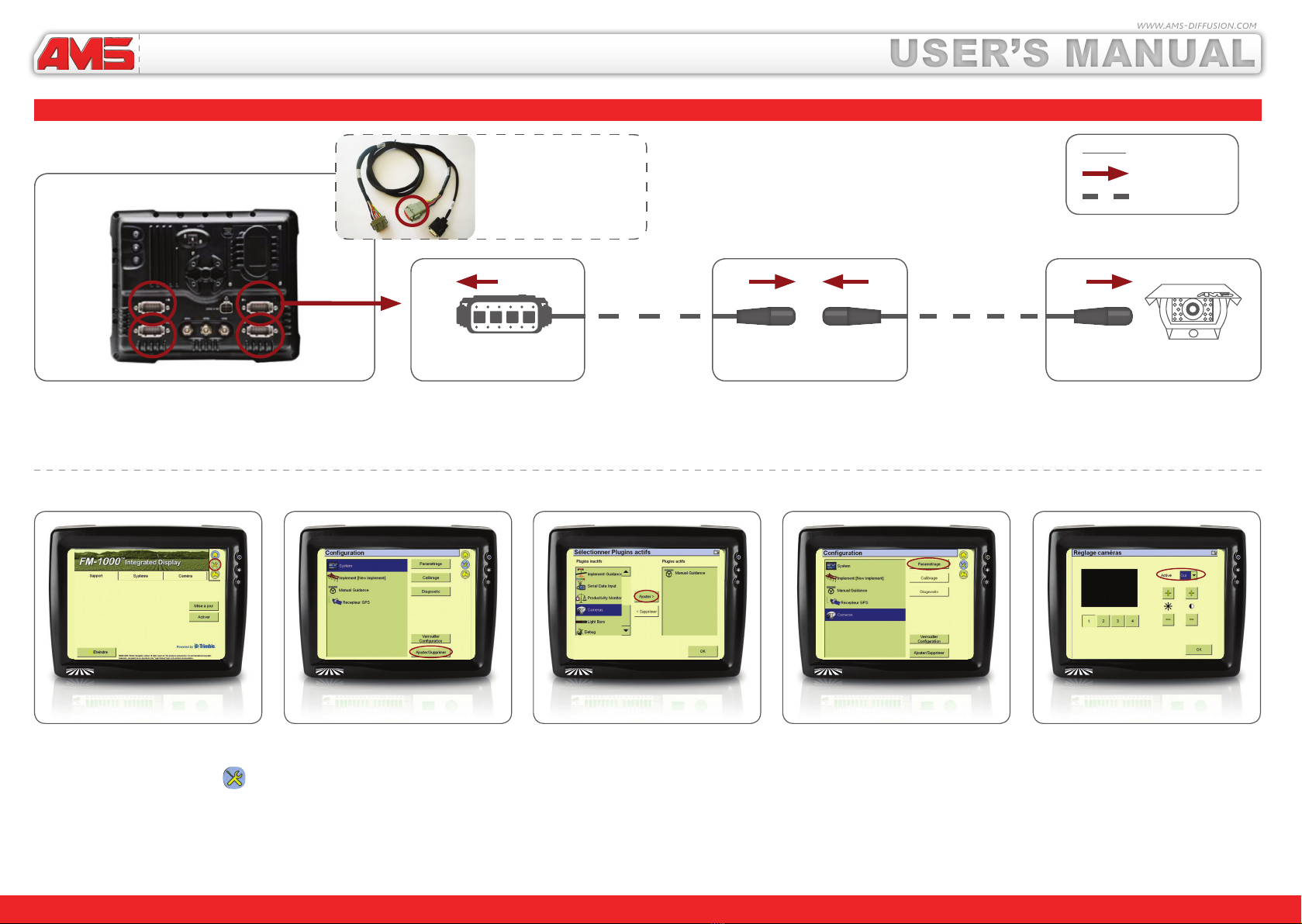

2. Connect connector TRIMB at the
back of your monitor FMX (FM1000) .
6. To enable the video function: In
Settings, select System and then press
Add/Delete.
7. Select Cameras, press Add, and then
conrm with the OK button.
5. Press the Congurations button .
FMX
(FM1000)
1. Locate the 4 connectors on the back of
your FMX(FM1000) monitor.
USER’S MANUALUSER’S MANUAL
INSTALLATION INSTRUCTIONS
CONNECTIONS
BEAM
Legend :
AN AMS CAMERA

www.ams-diffusion.comwww.ams-diffusion.com
USER’S MANUALUSER’S MANUAL
TRIMB
TRIMB
TMX-2050
(XCN-2050)
INSTALLATION INSTRUCTIONS
A
TM-200
1. Connect the TM-200 unit on the back of
your TMX-2050 (XCN-2050) monitor.
2. Connect the TRIMB2 connector to the port A of the TM-200 unit. 3. Connect the camera cable with
the dedicated cableTRIMB2.
4.Install the camera and connect the extension
cable CR (from 2 to 20 metres), feed the camera
cable to the cab or via the extension if necessary
(coupling).
EXTENSION CABLE
AN AMS CAMERA
CONNECTOR
CONNECTIONS
BEAM
Legend :
5. Refer to your manufacturer’s
handbook to change your video
settings.
TRIMB2
EXTENSION
CABLE
TM-200 TM-200
EXTENSION
CABLE
TRIMB
ZTN100905
EXTENSION
CABLE TRIMB
TRIMB EXTENSION
CABLE
To connect an additional camera directly to the ethernet port on
the TM-200, please order the TRIMB2.
If you are using the ZTN100905 cable,
you can add an additional camera with
a dedicated TRIMB cable.
CAUTION :

RECOMMENDATIONS
> The cameras must be connected when the monitor is OFF. When you start your CFX 750 (FM
750) or FMX (FM1000) monitor, it will scan the video inputs and enable them on detection of an
AMS camera.
FMX (FM1000)
> If the image appears in negative (colours inverted or degraded), increase the brightness (you can
refer to your manufacturer’s handbook) until you see a sharp-coloured image. The signal accepted
by the screen will switch from the NTSC system to PAL.
TMX-2050 XCN-2050)
> If you want to connect another camera, order the TRIMB dedicated cable to connect on Port A of
your TM-200 unit. If your TMX-2050 (XCN-2050) terminal has no video input management, contact
TRIMBLE to update the system. You need at least version V4.2.1. of the software.
WARRANTY
The product is guaranteed for two years as from the date of sale to the end user, remembering
that the sale must take place within 24 months after delivery to the concession.
AFTER SALES SERVICE
Reserved for professionals:
> Download the service form from our site www.ams-diusion.com/aftersale/
When returning, please include the following documents for managing repairs and the warranty:
> The return-authorisation form duly completed
> A copy of the invoice with the date of sale to the end user
> The reason for the claim, or a description of the malfunction.
> For more information, contact our technical department
Tel : [phone] or @:contact@ams-diusion.com
If you are the end user:
Please go to your dealer.
RECOMMENDATIONS
> The cameras must be connected when the monitor is OFF. When you start your CFX 750 (FM
750) or FMX (FM1000) monitor, it will scan the video inputs and enable them on detection of an
AMS camera.
FMX (FM1000)
> If the image appears in negative (colours inverted or degraded), increase the brightness (you can
refer to your manufacturer’s handbook) until you see a sharp-coloured image. The signal accepted
by the screen will switch from the NTSC system to PAL.
TMX-2050 XCN-2050)
> If you want to connect another camera, order the TRIMB dedicated cable to connect on Port A of
your TM-200 unit. If your TMX-2050 (XCN-2050) terminal has no video input management, contact
TRIMBLE to update the system. You need at least version V4.2.1. of the software.
WARRANTY
The product is guaranteed for two years as from the date of sale to the end user, remembering
that the sale must take place within 24 months after delivery to the concession.
AFTER SALES SERVICE
Reserved for professionals:
> Download the service form from our site www.ams-diusion.com/aftersale/
When returning, please include the following documents for managing repairs and the warranty:
> The return-authorisation form duly completed
> A copy of the invoice with the date of sale to the end user
> The reason for the claim, or a description of the malfunction.
> For more information, contact our technical department
Tel : [phone] or @:contact@ams-diusion.com
If you are the end user:
Please go to your dealer.
