FLUSH GENIE
SIDEMOUNT for Urinals and Toilets
Installation and Operation Manual
The FLUSH GENIE is a fully programmable automatic flush control device for urinals and toilets. The smart design allows the
device to be switched between sensor activated mode and timer controlled mode.
When in SENSOR activated mode, the unit sends out an infrared beam that senses a user on a urinal or toilet. Once the user
walks away from the fixture the unit triggers the fixture to flush automatically. The unit includes an electronic push button to allow
for a manual courtesy flush option.
When in TIMER controlled mode, the unit converts most urinals into water efficient fixtures by controlling the amount of daily
flushes. The flush intervals can be programmed to flush once every 30 minutes, 1, 2, or 3 hours. The unit will go to SLEEP if a
user is NOT detected within 135 minutes since the last use to prevent flush activation while the facility is closed. A mechanical
manual flush override using the provided MANUAL FLUSH KEY will allow the custodial staff (not the user) to flush the unit
manually at any time (NOTE: electronic push button is deactivated in TIMER mode).
®

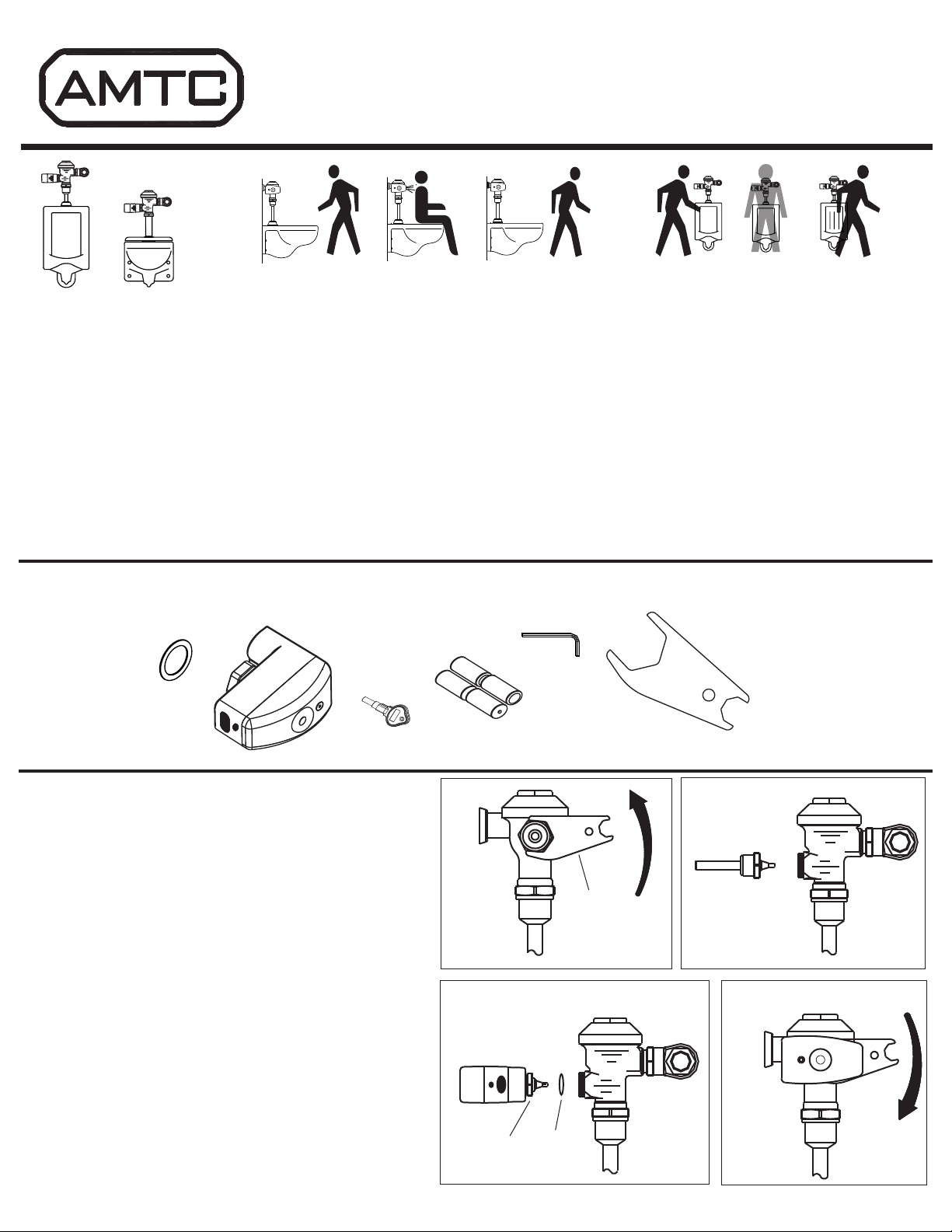

Components
Installation
Pre-Installation Note:
Although not necessary, it is recommended to shut off
water supply at stop.
Using the supplied collar wrench, loosen handle
from flush valve.
Remove handle from flush valve.
Note: A small amount of water may drip out while
removing handle so be prepared to collect
it with a rag or towel.
Place collar gasket into collar nut and attach the
®
Flush Genie unit where the handle was removed.
Tighten collar nut using the supplied collar wrench.
Note: Save removed handle in case you need to reuse
®
for service of Flush Genie unit.
Collar Nut Collar
Gasket
Collar
Wrench
Page 1
HSM-801FG
Series
User Approaches
Senses User
Flushes When
User Leaves
User Approaches
Senses User
User Leaves
Collar
Gasket
Unit Four (4) “C” Cell
Alkaline Batteries
(Factory Installed)
Battery
Compartment
Wrench
Collar
Wrench
+
+
+
+
Manual
Flush Key
<
=
c
d
e
f
c d
e f
!
!

Activation
NOTE: Four (4) “C” Cell batteries are factory installed
inside the unit. The unit is shipped from factory
with battery tray unplugged and must be plugged
in to activate after desired flush mode is set.
+
+
+
+
Battery
Connector
Battery
Tray
A - Remove side cover using supplied battery compartment wrench.
B - Plug in battery connector. Unit will flush once.
C - Reinstall side cover using battery compartment
wrench.
Adjusting Modes of Operation
123
ON
Timer Mode Adjustment Guide
Switch 1: Sensor Flush Mode
Switch 2: 24 Hour Ghost Flush
ON - Flushes once every 24 hours after last user
OFF
Switch 3: Flush Delay
ON - No delay
OFF - 3 seconds delay before activating a flush
= Switch
The unit includes two (2) different modes of operation. Timer Mode and Sensor Mode. Remove side cover using
battery compartment wrench and refer to the “Mode Adjustment Guide” for switch settings (see diagrams below).
In TIMER Mode, the unit converts most urinals into water efficient fixtures by controlling the amount of daily
flushes. The flush intervals can be programmed to flush once every 30 minutes, 1, 2, or 3 hours. The unit will go to SLEEP if a
user is NOT detected within 135 minutes since the last use to prevent flush activation while the facility is closed. A mechanical
manual flush override using the provided MANUAL FLUSH KEY will allow the custodial staff (not the user) to flush the unit
manually at any time (NOTE: electronic push button is deactivated in TIMER mode).
In SENSOR Mode, the unit sends out an infrared beam that senses a user on a urinal or toilet. Once the user
walks away from the fixture the unit triggers the fixture to flush automatically. The unit includes an electronic push button to allow
for a manual courtesy flush option.
123
ON
= Switch
= 30 Minutes
123
ON
= Switch
= 1 Hours
123
ON
= Switch
= 2 Hours
123
ON
= Switch
= 3 Hours
Sensor Mode Adjustment Guide
ON
Page 2
>
?
1
ON
= Switch
1
ON
Timer Mode
Sensor Mode

Mode Operation and Features
TIMER MODE (FOR URINAL USE ONLY)
1. Select switch sequence for preferred time interval.
2. Plug in battery connector (unit will flush once). Interval program will begin counting.
3. Unit is now activated.
4. Re-install battery cover.
5. The electronic push button on the front of the unit is deactivated in TIMER MODE.
6. The unit will only flush at the set time interval.
7. If a user is not detected within 135 minutes (2 Hours, 15 Minutes) of last use, the unit will go to “SLEEP”.
8. When the unit goes to “SLEEP” it will flush once and discontinue counting the flush interval. The unit will
stay dormant until the next user is sensed. Once a user is sensed the unit will “WAKE UP”.
9. Once the unit “WAKES UP” it will flush once, reset the time interval, and resume counting.
The “SLEEP” feature is designed so that the unit does not flush after business hours and/or weekends if
facility is closed and to allow for maximum water conservation.
The unit includes a mechanical manual flush override.
To activate the mechanical manual flush override, simply insert the
Manual Flush Key (included) into the slot located on the side of the
unit and press until flush is activated.
SUGGESTION:
The Manual Flush Key can be used to initiate a manual flush at any
time. The key should be kept in a safe place or be attached to key
chain of custodial staff for easy access.
NOTE: Activating mechanical manual flush override does not affect the
time interval setting.
SENSOR MODE (FOR URINAL OR TOILET USE)
1. Move Switch #1 into the ON position to activate SENSOR MODE.
2. Choose options using Switches #2 and #3.
3. Plug in battery connector (unit will flush once).
4. Unit is now activated.
5. Re-install battery cover.
6. Unit will flush after every use.
7. The electronic push button on the front of the unit can be used as a manual courtesy flush option.
Adjusting Sensor Distance (Must be done in SENSOR MODE)
Electronic
Push Button
Red LED
C
A - Press and hold electronic push button until you see
a blinking red LED in sensor window (unit will flush once).
Release electronic push button, wait one second, then
press and release electronic push button once again.
Unit will go into setup mode.
B - While in setup mode, stand at desired distance
(red LED will continuously blink as long as you are
within the allowed sensor range).
C - Remain at desired distance until red LED becomes solid
(unit will flush once).
Sensor distance is now locked at the new setting.
Page 3
@
A

Battery Replacement
A - Remove side cover using supplied battery compartment wrench.
B - Unplug battery connector and slide out battery tray.
C - Remove old batteries from tray and load new batteries
(note position of batteries in tray).
D - Reinstall battery tray into unit and plug in battery connector.
E - Reinstall side cover using battery compartment wrench.
+
+
+
+
Troubleshooting Guide
Page 4
Battery
Connector
Battery
Tray
When batteries are low you will see a constant blinking red LED
when user is not present.
To replace batteries:
Visual Indicator Guide
PROBLEM
CAUSE
SOLUTION
Fixture falsely activates. Sensor distance may be set too far and
registering the opposite wall or door as a
user.
Adjust sensor distance (see STEP 6
“Adjusting Sensor Distance”).
Constant blinking red LED when user NOT
present.
Batteries need replacing. Replace batteries (see STEP 8 “Battery
Replacement”).
Not enough water to fixture or too much
water to fixture.
Diaphragm damaged.
Valve control stop improperly adjusted.
Replace diaphragm.
Adjust valve control stop.
Valve will not operate. Sensor range may be set too close.
Batteries are drained.
Water supply is turned off.
Relief valve (diaphragm plunger) is damaged.
Adjust sensor.
Replace batteries.
Turn water on.
Replace relief valve (diaphragm plunger).
If the unit does not begin to function, call
customer service at 1-800-874-7822.
Valve does not shut off. Dirt or debris preventing diaphragm from
functioning properly.
Remove dirt or debris on diaphragm.
Replace Diaphragm.
Valve does not flush even after sensor has
been adjusted.
Batteries are drained. Replace batteries.
If the unit does not begin to function, call
customer service at 1-800-874-7822.
B
C
Electronic
Push Button
Red LED
C
Red LED
Constant blinking red LED indicates user being
detected. Constant blinking red LED when user
not present indicates batteries are low and need replacing.
Electronic Push Button
Allows manual activation of flush when needed in
SENSOR MODE ONLY.
Mechanical Manual Flush Override
Allows the custodial staff (not the user) to flush
the unit manually at any time with Manual Flush Key.
Manual
Flush Key
for Mechanical
Override

WARRANTY
AMTC WARRANTS ITS PRODUCTS TO BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP
FOR A PERIOD OF FIVE (5) YEARS FROM DATE OF PURCHASE, WHEN PROPERLY INSTALLED
AND UNDER NORMAL USE AND SERVICE. THESE PROVISIONS DO NOT INCLUDE THE BATTERIES
SHIPPED WITH THE PRODUCTS. A DEFECTIVE PRODUCT MAY BE RETURNED TO AMTC OR ITS
AUTHORIZED REPRESENTATIVES WITHIN FIVE (5) YEARS FROM DATE OF PURCHASE WITH THE
PROPER INVOICE OF PURCHASE. AMTC AT ITS DISCRETION WILL REPLACE OR REPAIR
DEFECTIVE PRODUCT AT NO CHARGE. CLAIMS FOR LABOR, TRANSPORTATION, AND ANY OTHER
INCIDENTAL COSTS WILL NOT BE ALLOWED. AMTC WILL NOT BE RESPONSIBLE FOR ANY
CONSIDERABLE DAMAGES OF ANY KIND WHATSOEVER.
FOR TECHNICAL SUPPORT PLEASE CALL TOLL FREE 1-800-874-7822 OR VISIT OUR WEBSITE
AT WWW.AMTCORPORATION.COM
MAKE SURE TO VISIT OUR WEBSITE PERIODICALLY FOR INFORMATION ON NEW PRODUCTS
AND TO DOWNLOAD ANY IMPORTANT PRODUCT DOCUMENTS THAT YOU MAY NEED IN
THE FUTURE.
