AMV ELECTRONICA SK3000 Series User manual

Contents
1. Important Safety Instructions……………………………………………… 1
1-1 General Safety Precautions…………………………………………… 1
1-2 Precautions When Working With Batteries………………………….. 1
2. Features………………………………………………………………………... 2
2-1 Application………………………………………………………………. 2
2-2 Electrical Performance………………………………………………… 3
2-3 Mechanical Drawings………………………………………………….. 4
3. Introduction…………………………………………………………………… 5
3-1 Front Panel Operations………………………………………………... 5~9
3-2 Rear Panel Operations………………………………………………… 10~11
3-3 Protections Features…………………………………………………… 11
3-4 Installation………………………………………………………………. 12
3-5 Making DC Wiring Connections ……………………………………... 13~15
3-6 AC
Safety Grounding………………………………………………….. 16~17
3-7 Inverter Operation……………………………………………………… 17
4. Troubleshooting guide……………………………………………………… 18
5. Maintenance…………………………………………………………………… 19
6. Warranty……………………………………………………………………….. 19
7. Appendices…………………………………………………………………….

1
1. Important Safety Instructions
WARNING!
Before using the Inverter, read and save the safety
instructions.
1-1. General Safety Precautions
1-1-1. Do not expose the Inverter to rain, snow, spray, bilge or dust.
To reduce risk of hazard, do not cover or obstruct the ventilation
openings. Do not install the Inverter in a zero-clearance compartment.
Overheating may result.
1-1-2. To avoid a risk of fire and electronic shock. Make sure that existing
wiring is ingood electrical condition; and that wire size is not
undersized.
Do not operate the Inverter with damaged or substandard Wiring.
1-1-3. This equipment contains components which can produce arcs or
sparks. To prevent fire or explosion do not install in compartments
containing batteries or Flammable materials or in locations which
require ignition protected equipment. This includes any space
containing gasoline-powered machinery, fuel tanks, or joints, fittings,
or other connection between components of the fuel system.
1-2. Precautions When Working with Batteries
1-2-1. If battery acid contacts skin or clothing, wash immediately with soap
and water. If acid enters eye, immediately flood eye with running
cold water for at least 20 minutes and get medical attention
immediately.
1-2-2. Never smoke or allow a spark or flame in vicinity of battery or engine.
1-2-3. Do not drop a metal tool on the battery. The resulting spark or
short-circuit on the battery of other electrical part may cause an
explosion.
1-2-4. Remove personal metal items such as rings, bracelets, necklaces,
and watches when working with a lead-acid battery,
A lead-acid battery produces a short-circuit current high enough to
weld a ring or the like to metal, causing a severe burn.
1

2. Features
Pure sine wave output (THD < 3%)
Output frequency：50 / 60Hz switch selectable
Input & output fully isolation design
Low power “ Power Saving Mode “ to conserve energy
High efficiency 88~94%
Capable of driving highly reactive & capacitive loads at start moment.
Tri-Color indicators display input voltage & output load level
Loading controlled cooling fan
Advanced microprocessor
Protection：Input low voltage Overload Short circuit
Low battery alarm Input over voltage Over temperature
2-1. Application
2-1-1. Power tools – circular saws, drills, grinders, sanders, buffers, weed
and hedge trimmers, air compressors.
2-1-2. Office equipment – computers, printers, monitors, facsimile machines,
scanner.
2-1-3. Household items – vacuum cleaners, fans, fluorescent and
incandescent lights, shavers, sewing machines.
2-1-4. Kitchen appliances – microwave ovens, refrigerators and freezers,
coffee makers, blenders, ice markers, toasters.
2-1-5. Industrial equipment – metal halide lamp, high – pressure sodium lamp.
2-1-6. Home entertainment electronics – television, VCRs, video games,
stereos, musical instruments, satellite equipment.
2

2-2. Electrical Performance
Specification Model No.
Item SK3000-
112 SK3000- 124 SK3000- 148 SK3000- 212 SK3000- 224 SK3000- 248
Continuous Output Power 3000W
Maximum Output Power (3Min.) 3450W
Surge Rating 6000W
Input voltage 12V 24V 48V 12V 24V 48V
Output Voltage 100 / 110 / 120V +/- 3% 220 / 230 / 240V +/- 3%
Frequency
(Switch Selectable) 50 / 60Hz +/- 0.05%
Output Waveform Pure Sine Wave ( THD < 3% )
Efficiency (full load) 88.0% 91.0% 92.0% 90.0% 93.0% 94.0%
No Load Current Draw 2.8A 1.5A 0.7A 2.8A 1.5A 0.7A
Stand-By Current Draw 0.55A 0.35A 0.19A 0.55A 0.35A 0.19A
Input Voltage Regulation 10.5-15
VDC
21.0-30
VDC
42-60
VDC
10.5-15
VDC
21.0-30
VDC
42-60
VDC
Input Level Indicator
Load Level Indicator Red / Orange / Green LED
Failure Indicator Red LED
Protection Overload, Short Circuit, Reverse Polarity (Fuse),
Over / Under Input Voltage, Over Temperature.
Remote Control Unit CR-6 / CR-8 Optional
Safety UL458 EN60950
EMC FCC Class A
EN55022: 1997
EN55024: 1997
EN61000-3-2: 1998
EN61000-3-3: 1995
e-Mark
Operating Temperature Range 0 - 40 ℃
Storage Temperature Range -30℃to 70℃
Cooling Loading controlled cooling fan
Dimensions 452(L)*208(W)*166(H)mm / 17.80(L)*8.18(W)*6.53(H) Inch
Weight 9.8 kg / 22 Lbs.
Note: The specifications are subject to change without notice.
3

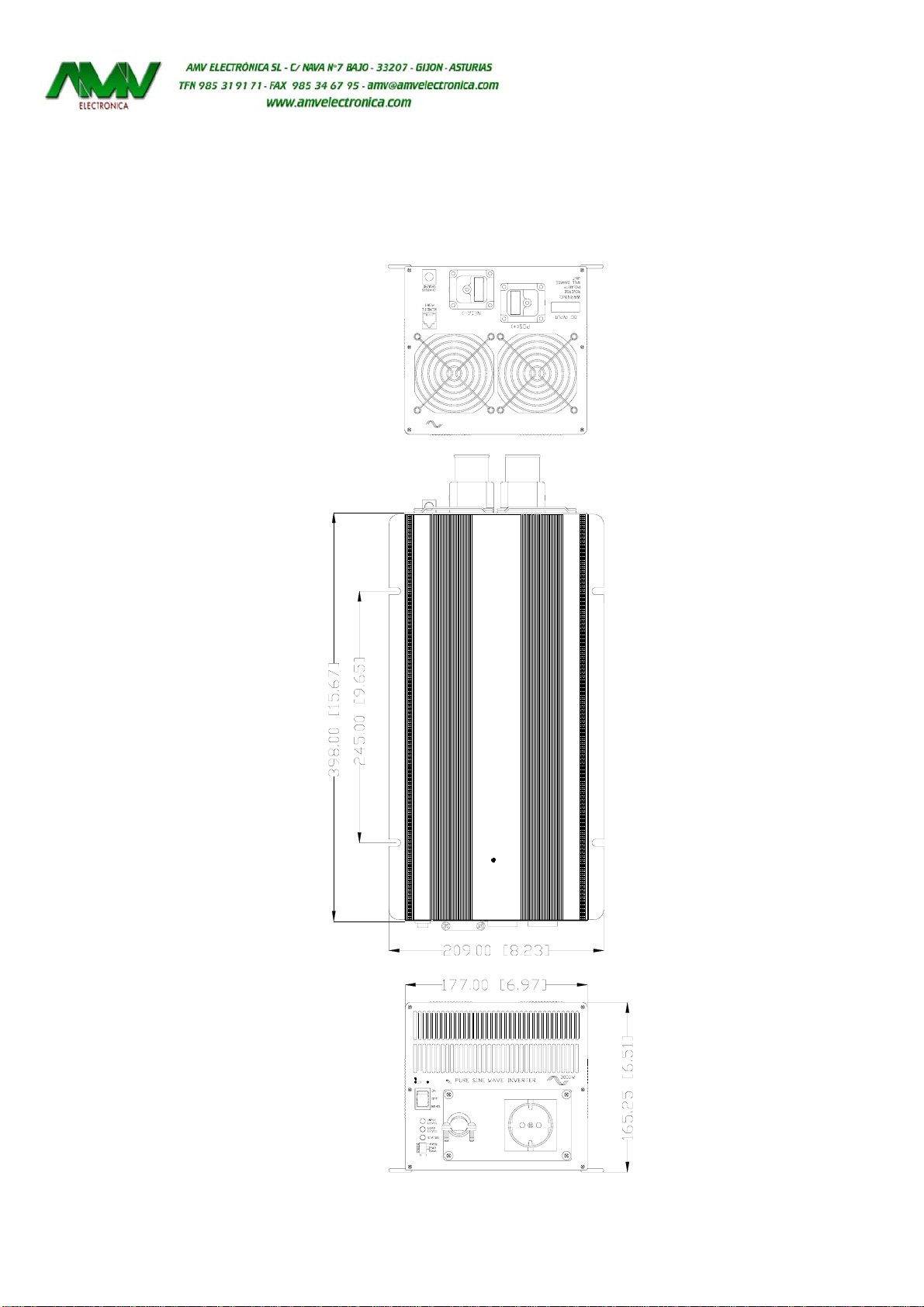

2-3. Mechanical Drawings
I
0
Pure Sine Wave Power Inverter
3000W
4

3. Introduction
This power inverter series is a the member of the most advanced line of mobile
AC power systems available.
To get the most out of the power inverter, it must be installed and used properly.
Please read the instructions inthis manual before installation and operation this
model.
3-1. Front Panel Operations：
3-1-1. Front view：
0
I
I
0
5

3-1-2. ON / OFF/ REMOTE (Main) switch：
a. Before installing the inverter, make sure the main switch must
be “OFF”.
b. Before using the remote unit, make sure the main switch must
be “ REMOTE”.
3-1-3. Input Level：Display Input Voltages
LED Status DC 12V DC 24V DC 48V
RED Blink (slow) 10.5~10.9 21.0~21.8 42.0~43.6
RED 10.9~11.3 21.8~22.6 43.6~45.2
ORANGE 11.3~12.0 22.6~24.0 45.2~48.0
GREEN 12.0~14.0 24.0~28.0 48.0~56.0
ORANGE Blink 14.0~14.7 28.0~29.4 56.0~58.8
OVER RED BLINK 14.7q29.4q58.8q
3-1-4. Load Level：Display AC Loads (Watts)
LED Status Load Condition
DARK 0 ~ 150W
GREEN 150W ~ 990W
ORANGE 990W ~ 2250W
RED 2250W ~ 2880W
RED BLINK Over 2880W
6

3. Introduction
This power inverter series is a the member of the most advanced line of mobile
AC power systems available.
To get the most out of the power inverter, it must be installed and used properly.
Please read the instructions inthis manual before installation and operation this
model.
3-1. Front Panel Operations：
3-1-1. Front view：
0
I
I
0
5

3-1-7. Power Saving is enable and adjusted through dip switches S1, S2 and S3
on the front of the inverter
Example: With the watt setting at 40W, a 40W or greater load will
“wake up” the inverter and the load will operate normally. Any load
less than 40W will not operate and the inverter will remain in power
save made.
Power saving S1 S2 S3
DISABLE OFF OFF OFF
40W ON OFF OFF
80W OFF ON OFF
100W ON ON OFF
120W OFF OFF ON
160W ON OFF ON
180W OFF ON ON
220W ON ON ON
8

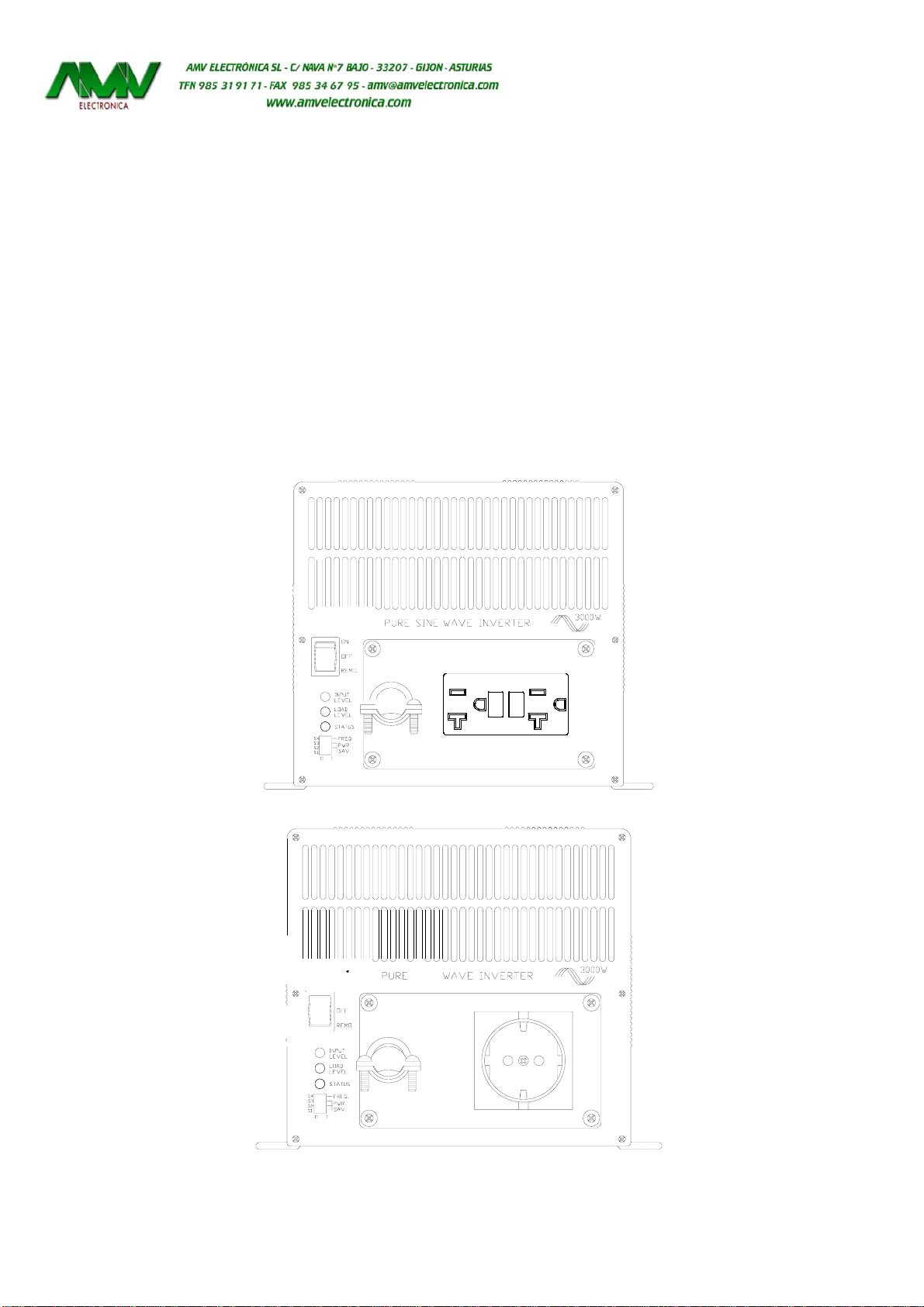

3-1-8. AC outlets (available):
Australia / New Zealand
IEC-2
Universal
United Kingldom
North America (GFCI) NEMA 5-20R
Continental European
WARNING!
Never connect the inverter’s output to the AC
distribution grid, such as your household AC wall
outlet. It will damage the inverter.
9

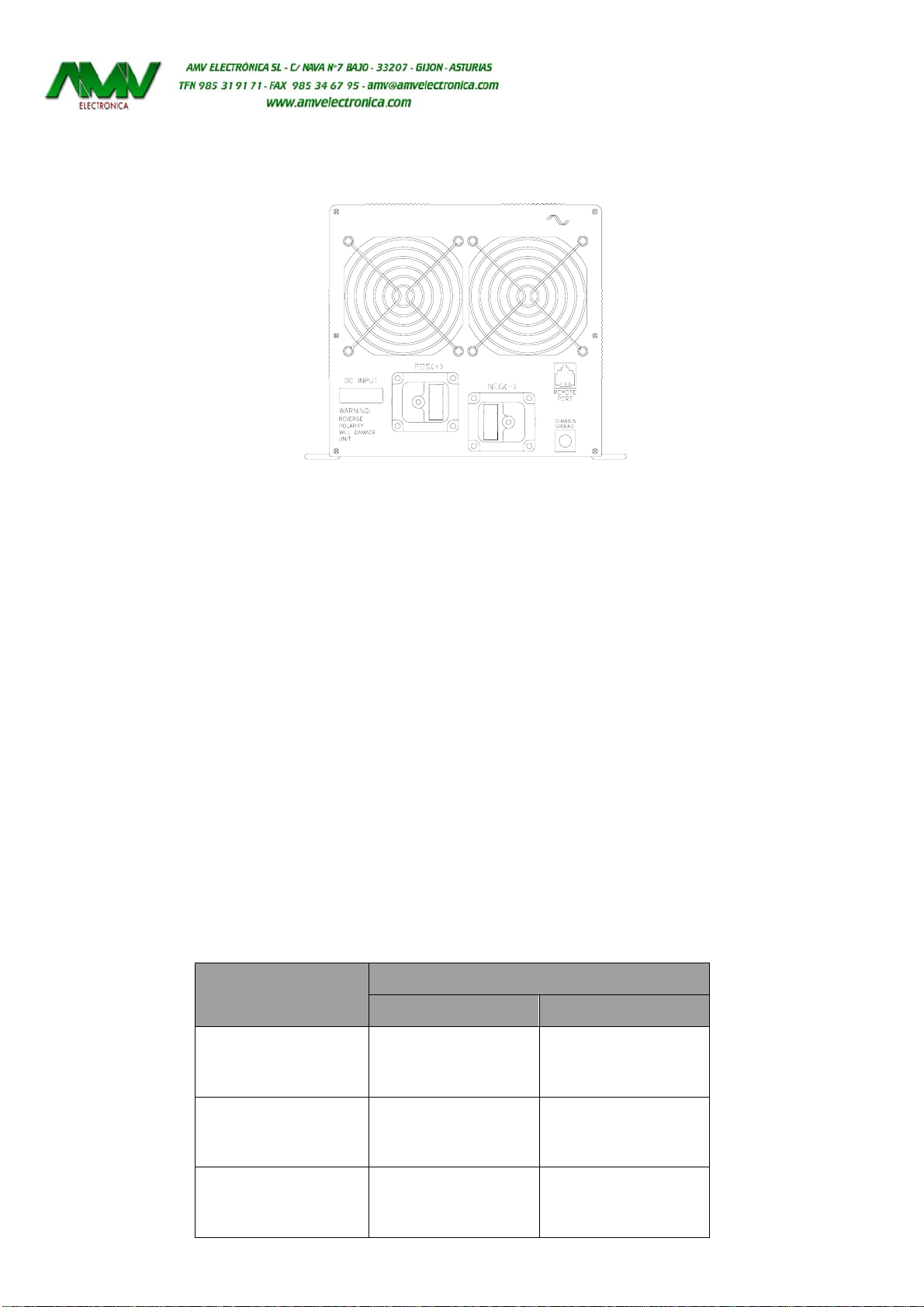

3-2. Rear Panel Operations：
3000W
3-2-1. Remote Port:
The SK3000 Series Inverter can be compatible with any of remote
controllers, CR-6, CR-7 or CR-8.
Before using the remote unit, make sure the main switch must be
“ REMOTE”.
3-2-2. Fan Ventilation:
Do not obstruct, allow at least 1 inch for proper air flow.
3-2-3. DC Input Terminals：
Connect to 12V / 24V / 48V battery or the other power sources.
【＋】is positive,【－】is negative. Reverse polarity connection
will blow internal fuse and may damage inverter permanently.
DC Input Voltage
Model Minimum Maximum
SK3000-112
SK3000-212 10.5 15.0
SK3000-124
SK3000-224 21.0 30.0
SK3000-148
SK3000-248 42.0 60.0
10

3-2-4. Chassis Ground: using # 8 AWG wire to connect vehicle chassis.
WARNING!
Operation of the inverter without a proper ground
connection may result in an electrical safety hazard.
3-3. Protections Features:
DC Input (VDC) Over Temperature Protection
Over Voltage Under
Voltage INTERIOR HEAT SINK
Model
Shut-
down Restart
Under
Voltage
Alarm Shut-
down Restart Shut- down Restart Shut- down Restart
SK3000-112
SK3000-212 15.3 14.2 11.0 10.5 12.5
SK3000-124
SK3000-224 30.6 28.4 22.0 21.0 25.0
SK3000-148
SK3000-248 61.2 56.8 44.0 42.0 50.0
70℃45℃90℃60℃
11

3-4. Installation：
Where to install. The power inverter should be installed in a location that
Meets the following requirements：
3-4-1. Dry – Do not allow water to drip or splash on the inverter.
3-4-2. Cool – Ambient air temperature should be between 0℃and 40℃, the
cooler the better.
3-4-3. Safe – Do not install in a battery compartment or other areas where
flammable fumes may exist, such as fuel storage areas or engine
compartments.
3-4-4. Ventilated – Allow at least one inch of clearance around the inverter
for air flow. Ensure the ventilation openings on the rear and front
of the unit are not obstructed.
3-4-5. Dust – Do not install the Inverter in a dusty environments
where are dust, wood particles or other filings/shavings are present.
These dust can be pulled into the unit when the cooling fan is
operating.
3-4-6. Close to batteries – Avoid excessive cable lengths but do not install
the Inverter in the same compartment as batteries.
Use the recommended wire lengths and sizes (see section 3-4).
Also do not mount the Inverter where it will be exposed to the
gases produced by the battery.
These gases are very corrosive and prolonged exposure also will
damage the Inverter.
WARNING!
Shock Hazard. Before proceeding further, carefully
check that the Inverter is NOT connected to any
batteries, and that all wiring is disconnected from any
electrical sources. Do not connect the output terminals
of the Inverter to an incoming AC source.
12

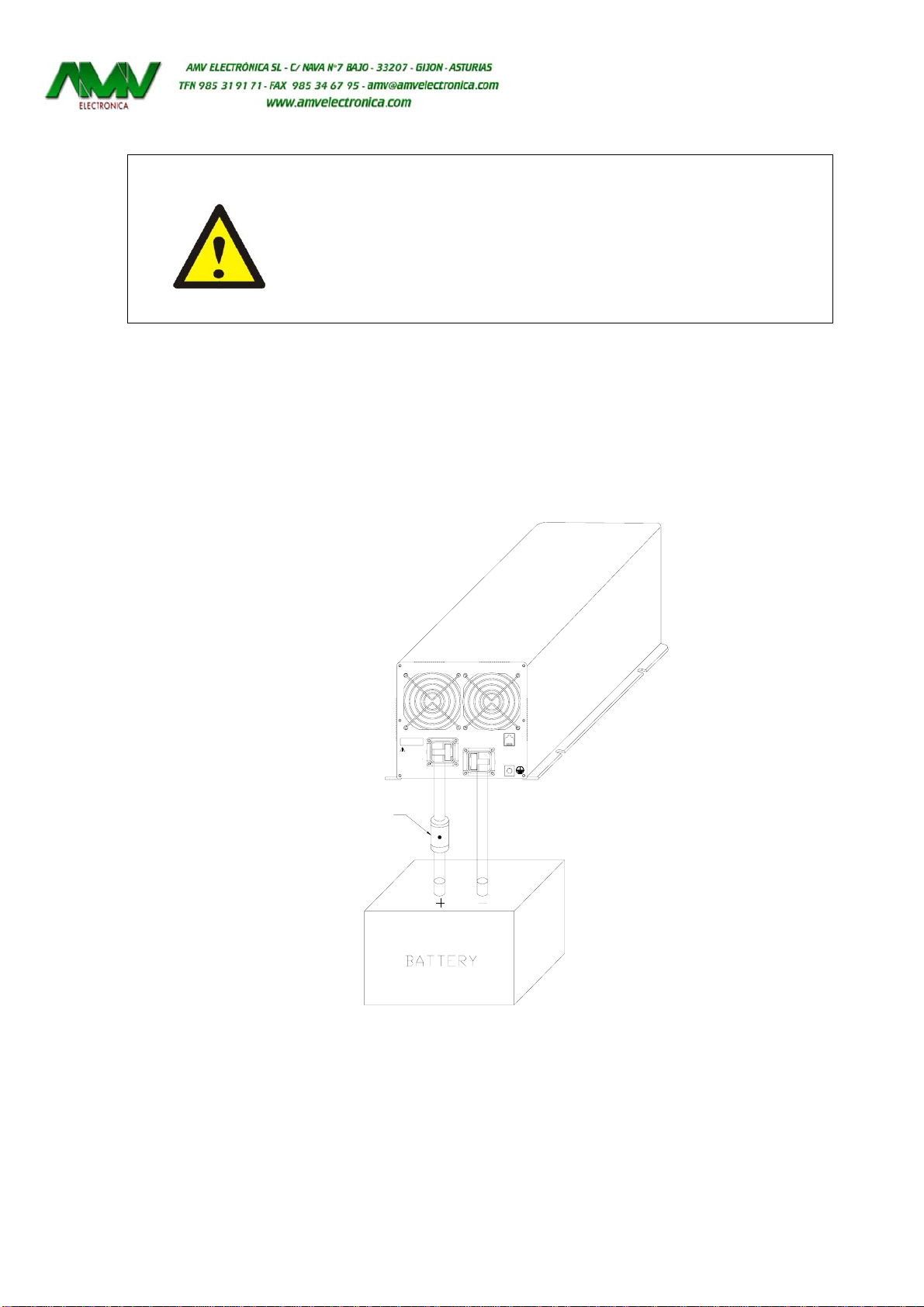

3-5. Making DC Wiring Connections：
Follow this procedure to connect the battery cables to the DC input terminals
of the Inverter. Your cables should be as short as possible (Ideally,
less than 6 feet / 1.8 meters ) enough to handle the required current in
accordance with the electrical codes or regulations application. Cables are
not an adequate gauge (too narrow) or too long will decrease the inverter
performances such as poor surge capability and low input voltage warnings
frequently and shutdowns. UVP warning presents due to DC voltage drop
across the cables from the inverter to the batteries.
The longer or narrower the cables, the greater the voltage drop.
Increasing your DC cable size will help improve the situation.
Following cable recommendations for the best performance of inverter.
(Apply both 120V and 230V versions )
Model No Wire AWG Inline Fuse
SK3000-112 # 4/0 400A
SK3000-212 # 4/0 400A
SK3000-124 # 2/0 200A
SK3000-224 # 2/0 200A
SK3000-148 # 1/0 100A
SK3000-248 # 1/0 100A
WARNING!
Make sure all the DC connections are tight (torque
to 9 – 10 ft-lbs, 11.7 – 13 Nm). Loose connections
could result overheat in a potential hazard.
13

WARNING!
The installation of a fuse must be on positive cable.
Failure to place a fuse on “+” cables running between
the inverter and battery may cause damage to the
inverter and will void warranty.
Also, use only high quality copper wire and keep cable length short, a
maximum of 3 - 6 feet.
DC INPUT
WARNING:
REVERSE POLARITY
WILL DAMAGE UNIT
SHOCK HAZARD.
DO NOT OPEN. NO
USER SERVICEABLE
PARTS INSIDE.
POS(+)
NEG(-) REMOTE
PORT
CHASSIS
GROUND
INLINE FUSE
SK3000
14

PVC WIRE
SPRING WASHER
3-5-1. Unpack and inspect the power inverter to check its performance,
switch to OFF position.
3-5-2. Connect the cables to the power input terminals on the rear panel of
the inverter. The red terminal is positive (+) and black terminal is
negative (-). Insert the cables into the terminals and tighten screw to
clamp the wires securely.
CAUTION !
Reverse polarity connection will blow a fuse in inverter
and may permanently damage the inverter.
Damage caused by reverse polarity connection is not
covered by warranty.
15

3-6. AC Safety Grounding：
The AC output ground wire should go to the grounding point for your loads
( for example, a distribution panel ground bus ).
3-6-1. Neutral Grounding (GFCI’S)：
3-6-1-1. 120V models：The neutral conductor of the AC output circuit
of the Inverter is automatically connected to the safety
ground during inverter operation. In accordance with the
National Electrical Code requirements that separately derived
AC sources (such as inverter and generators) have their
neutral conductors tied to ground in the same way that the
neutral conductor from the utility is tied to ground at the AC
breaker panel. For models configured with a transfer relay,
while AC utility power is presenting and the Inverter is in
bypass mode, this connection (neutral of the Inverter’s AC
output to input safety ground) is not present so that the utility
neutral is only connected to ground at your breaker panel,
as required.
3-6-1-2. 230V models：There is no connection made inverter interior
between either the line or neutral conductor to the safety
ground.
WARNING!
Risk of electronic shock. Use only Pass and Seymour, type
2091-W or 2094-W, ground – fault circuit-interrupter
receptacles. Others may fail in operating the inverter when
connecting to the inverter’s equipment.
16

Ground Fault Circuit Interrupters (GFCI)：
Installations in Recreational Vehicles (for North American approvals) will
require GFCI protection of all branch circuit connected to the AC output of
the hardwire terminal equipped Inverter. In addition, electrical codes
require GFCI protection of certain receptacles in residential installations.
While the pure sine wave output of the Inverter is equivalent to the
waveform provided by utilities, compliance with UL standards requires us to
test and recommend specific GFCI.
AMV has tested the following GFCI – protected 20A receptacles and found
that they functioned properly when connected to the output of the Inverter.
3-7. Inverter Operation：
To operate the power inverter, turn the main switch ON. The power inverter
is now ready to deliver AC power to your loads. If there is several loads use,
turn them on separately after the inverter has been “ON” in order to prevent
the OVP present caused by the surge power.
3-7-1. Set the power switch to the “ON” position and the buzzer will send
out “Beep” sounds at the moment the inverter will do self-diagnosis,
then the LED’s indicators will also appear various colors.
Finally the buzzer will sound another “Beep” and the Input Level and
Status LED indicators will turn to “Green” color, the inverter starts
working successfully.
3-7-2. Set the power switch to the OFF position, the inverter stops and all
the lights that are On, go Off.
3-7-3. Set power inverter switch to the ON position and turn the test load
On. The inverter should supply power to the load. If you plan to
accurately measure the true output r.m.s. voltage of inverter, a meter
such ad FLUKE 45 BECKMAN 4410 or TRIPLETT 4200 must be
used.
17

4. Troubleshooting guide：
WARNING!
Do not open or disassemble the Inverter.
Attempting to service the unit yourself may result in a
risk of electrical shock or fire.
Problems and Symptoms Possible Cause Solutions
“No AC Power Output”
STATUS illuminates the red LED
a. Blinking fast Over input voltage.
( OVP ) Check input voltage. Reduce input voltage.
b. Blinking slow. Low input voltage.
( UVP ) Recharge battery. Check connections
and cable.
c. Blinking Intermittently. Thermal shutdown.
( OTP )
Improve ventilation.
Make sure ventilation
openings in inverter
are not obstructed.
Reduce ambient
temperature.
d. Solid ON. Short circuit or Wiring
error.
Overload.(OLP)
Check AC wiring for
short circuit.
Reduce load.
18
