AMW 65 User manual

INSTALLATION MANUAL
The dehumidifier
has been designed and produced
to give many years of faultless operation,
but like every mechanical system
a correct installation and
regular maintenance are vital.
We reserve the right to change our products
without prior notice.
We can never be held responsible
for any errors and/or omissions in this manual.

Contents
COMPOSITION 5
HOUSING 5
IDENTIFICATION LABEL 5
COOLING CIRCUIT 5
FANS 6
FILTERS 6
SWITCHBOARD CABINET 6
WEIGHTS 6
OPTIONS 7
ACCESSORIES 8
DIMENSIONS 9
Horizontal execution 9
Vertical execution “V” 10
TRANSPORT AND UNPACKING 11
GENERAL 11
TRANSPORT 11
UNPACKING 11
REMOVING THE PALLET 11
TRANSPORT SCREWS 11
INSTALLATION DIRECTIONS 12
GENERAL 12
WORKING AREA 12
CONDENSATION DRAIN 12
WALL MOUNTING 13
INSTALLATION EXAMPLE 14
CONNECTIONS 15
HOT WATER BATTERY 15
General 15
Hydraulic Connections 15
Control 15
ELECTRICAL HEATING 16
General 16
Supply 16
Control 16
Protection thermostat 16

ELECTRICAL DEFROST 16
General 16
Supply 16
SWIMMING POOL CONDENSER 17
General 17
Hydraulic Connection 17
Control 17
OUTDOOR CONDENSER 18
General 18
Composition 18
Technical dates 18
Control 18
Cooling pipes 18
OUTDOOR EXECUTION 19
Framework 19
Panels 19
Execution 19
Dimensions 20
ELECTRICAL DATA AND SUPPLIES 22
POWER SUPPLY 22
General 22
Supply 22
Automatic system 22
CONTROLS 22
SWITCHBOARD CABINET 23
General 23
Connection terminals 23
Components 23
Connection diagram 23
PRINTING CIRCUIT BOARD 23
START UP, SAFETY REGULATIONS AND MAINTENANCE 24
START UP 24
General 24
Read out 24
Error codes 24
Reset 24
SAFETY REGULATIONS 25
Frost 25
Protection volume 25
Air flow 25
Intake and outlet 25
MAINTENANCE 25
Filters 25
Housing 25

FAILURES 26
UNIT DOES NOT WORK 26
UNIT RUNS CONTINUOUSLY 26
UNIT WORKS BUT DOES NOT DEHUMIDIFY OR INADEQUATE 27
OTHER FAILURES 27

AMW 12_00 5
C
CO OM MP PO OS SI IT TI IO ON N
H
HO OU US SI IN NG G
Zinc plates painted in epoxy RAL 7011.
Internal plates in epoxy painted zinc plates and galvanized plates.
The panels are secured with self-tapping screws and sanitary washers.
The maintenance panel – behind which the air filter is installed – should always remain accessible.
Sound-absorbing and flame extinguishing 20 mm thick insulation (NEN-EN 13501-1:2002).
I
ID DE EN NT TI IF FI IC CA AT TI IO ON N L LA AB BE EL L
Each unit bears a self-adhesive identification label on the back.
This label mentions besides the type of unit, its serial number and technical data.
N
NE EV VE ER R R RE EM MO OV VE E T TH HE E I ID DE EN NT TI IF FI IC
CA AT TI IO ON N L LA AB BE EL L: : T TH HE E G GU UA AR RA AN NT TE EE E W WI IL LL L E EX XP PI IR RE E. .
C
CO OO OL LI IN NG G C CI IR RC CU UI IT T
Hermetically sealed compressor with R407C, vibration-free fitted and cooled with suction gas
Evaporator and condenser battery with copper pipes (3/8”) with pressed-on aluminium plates, coated with
epoxy varnish
ABS condensation tank
Expansion valve with distribution head for several injections
Combi-dryer: combination of filter, dryer, sight-glass and liquid reservoir
High and low pressure thermostats
Electronic control with shut-off at LP, HP, TC and TF *
* LP = low pressure HP = high pressure TC = thermal contact compressor TF = thermal contact fan
The cooling circuit is pre-filled with Forane 407C, which is a CFC-free coolant which does not damage the ozone
layer and does not influence the breeches shaft effect.
The diagram below shows the composition of one cooling circuit and optional swimming pool condenser, indicating
the different components.
(1) Compressor
(2) Evaporator
(3) Condenser
(4) Expansion valve
(5) Combi dryer
(6) Sight-glass
(7) HP pressure gauge
(8) LP pressure gauge
(K) Swimming pool condenser
C
CO OO OL LI IN NG G C CI IR RC CU UI IT TS S W WI
IT TH H O OU UT TS SI ID DE E C CO ON ND DE EN NS SE ER RS S A AR RE E S SE EA AL LE ED D
A
AN ND D A AR RE E F FI IL LL LE ED D W WI IT TH H N NI IT TR RO OG GE EN N I IN N T TH HE E F FA AC CT TO OR RY Y. .
A
AF FT TE ER R A AS SS SE EM MB BL LY Y T TH HE EY Y S SH HO OU UL LD D B BE E F FI IL LL LE ED D W WI IT TH H F FO OR RA AN NE E R R4 40 07 7C C. .
C
CA AU UT TI IO ON N: : T TH HE EY Y A AR RE E P PR RE ES SS SU UR RI IZ ZE ED D. .

6 AMW 12_00
F
FA AN NS S
One or two (on one deck mounted) directly driven fan(s) with a galvanized housing and wheel, with blades bent
forward.
Type of unit
Fan
Number
Air flow rate
Current
65
D4E 146-AA 07-36
1
650 m³/h
0,44 A
92M-100
D4E 146-AA 07-36
2
940 m³/h
2 x 0,44 A
140-142M
DPA 6-6-14 1/3 SB
1
1400 m³/h
1,9 A
F
FI IL LT TE ER RS S
One curved dust filter in the suction-side.
The filter is accessible by unscrewing the backside.
Composition
Synthetic fibres stiffed with supporting wire gauze, in a galvanized frame.
Class EU2
Gravimetric efficiency > 65 < 80 %
Filter dimensions per type
S
SW WI IT TC CH HB BO OA AR RD D C CA AB BI IN NE ET T
The switchboard cabinet is built inside the unit, when removing the housing on the left side panel (view from the
back).
Completely pre-wired according CE standards.
W
WE EI IG GH HT TS S
Weights are net weights of basic units.
Weight of options – combined or not – are not added.
Type of unit
Filter dimensions
Order code
65-92M-100
295 x 695
AP 99 40 30
140-142M
305 x 895
AP 99 40 31
Type toestel
Gewicht in kg
65
104
92M-100
109
140-142M
134

AMW 12_00 7
O
OP PT TI IO ON NS S
WALL MOUNTING
L-Console for vibration-free mounting of the unit against the wall.
HOT WATER BATTERY
BUILT-IN THREE-WAY VALVE
ELECTRICAL HEATING
ELECTRICAL DEFROST
SWIMMING POOL CONDENSER
OUTDOOR CONDENSER
OUTDOOR EXECUTION
REPLACEMENT FILTER
Air filter to replace soiled or worn filter
EXTENSION PIECES WALL DUCTS
Available in two executions:
Depth 250 upto 500 mm
Depth 500 upto 1000 mm

8 AMW 12_00
A
AC CC CE ES SS SO OR RI IE ES S

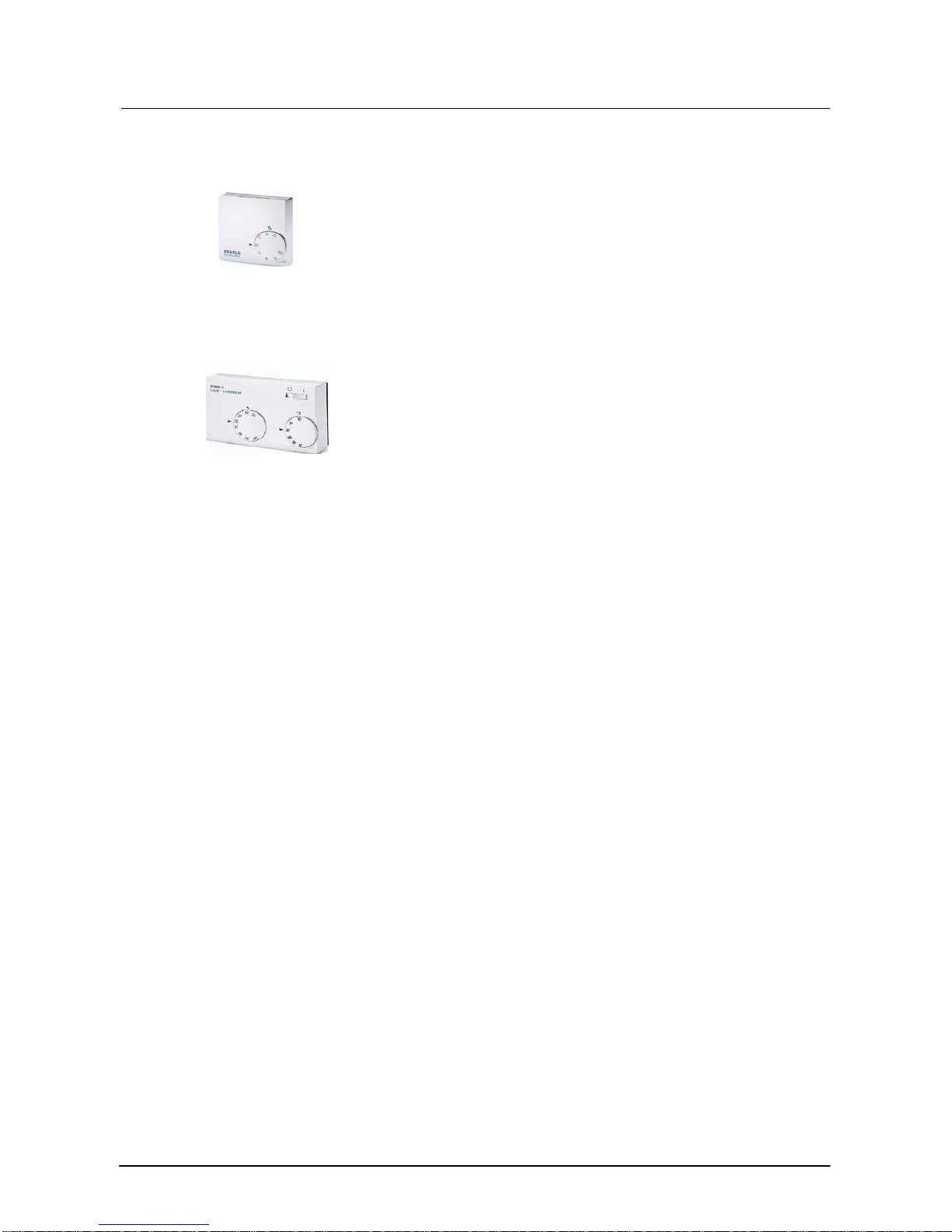

HYGROSTAT
Wall mounted model: control of the dehumidifier
HYGROSTAT CONNECTION TO SEVERAL UNITS
To be used when several AMT units are installed in the same room.
HYGROTHERMOSTAT
Wall mounted model: control of dehumidifiers with heating
HYGROTHERMOSTAT CONNECTION TO SEVERAL UNITS
To be used when several AMT units with heating are installed in the same room
MINIMUM BUILT-IN THERMOSTAT
Built-in thermostat for minimum temperature limitation
MAXIMUM BUILT-IN THERMOSTAT
Built-in thermostat with gold contacts for maximum temperature limitation or control of the swimming pool
condenser.
We recommend to submit the fan to continuous running (continuous measuring) = bridge 7 and 8.
CLOCK THERMOSTAT
Thermostat with week clock for night lowering in combination with hygrostat.
Can only be applied when the swimming pool is covered.
CONDENSATION PUMP
If the air dryer is placed lower than the outlet.
Synthetic collector tank fitted with float and pump (2 l/min, 3 m lift)

AMW 12_00 9
D
DI IM ME EN NS SI IO ON NS S
HORIZONTAL EXECUTION
Type of unit
L (mm)
D (mm)
H (mm)
c
d
X
B
C
Y
65-92M-100
1325
341
651
135
705
VAR
∅½”
∅½”
∅22
140-142M
1530
341
651
135
905
VAR
∅½”
∅½”
∅22
X= WALL DUCTS = VAR(iable): adaptable
(standard 100 mm extendable to maximum 170 mm)
OPTION EXTENSION PIECES WALL DUCTS
B
= L.P.H.W.
C
= coaxial condensor
Y
= condensation drain
E
= electrical connections
d
c
X
B
L
H
51
160
160
245
108
87
110
40
48
40
40
40
70
59
25
F
F
F
F
F
B
D
D
D
B = Ø 23,5 mm
D = Ø 21,5 mm
F = Ø 28,3 mm
Y
B
C
E

10 AMW 12_00
VERTICAL EXECUTION “V”
Type of unit
L (mm)
D (mm)
H (mm)
c
d
X
B
C
Y
65-92M-100 “V”
996
341
1021
135
705
VAR
∅½”
∅½”
∅22
140-142M “V”
1196
341
1071
135
905
VAR
∅½”
∅½”
∅22
X= WALL DUCTS = VAR(iable): adaptable
(standard 100mm extendable to maximum 170mm)
OPTION EXTENSION PIECES WALL DUCTS
B
= L.P.H.W.
C
= coaxial condensor
Y
= condensation drain
E
= electrical connections
d
c
X
B
L
H
51
160
160
245
105
87
110
40
48
40
40
40
70
59
25
F
F
F
F
F
B
D
D
D
B = Ø 23,5 mm
D = Ø 21,5 mm
F = Ø 28,3 mm
B
Y
E
C

AMW 12_00 11
T
TR RA AN NS SP PO OR RT T A AN ND D U UN NP PA AC CK KI IN NG G
G
GE EN NE ER RA AL L
The units are separately packed in cardboard boxes, on one pallet tied with tape.
To prevent damage to the unit, it is recommended that the unit is transported to its final destination IN its packing.
When the unit is stored temporarily, it must be stored in a dry place until transport to its final destination
T
TR RA AN NS SP PO OR RT T
Smaller units can usually be moved by manpower and/or using a trolley.
To move larger units, a forklift should be used.
The units are always supplied on a pallet: please leave this in place until the final destination.
To prevent damage, note the following:
When using a forklift, ensure that the forks are long enough to reach to the end of the pallet.
When using a forklift the unit should only be lifted with the pallet or reinforcement under the unit.
Pushing with the forklift is permitted only if a rigid plank or reinforcement is applied over the complete length of
the unit.
The units should always be transported the right way up. Although under some circumstances they have to be
transported flat, e.g. to clear a narrow passage, they should never be placed flat for transport in trucks or for long
term storage (> 12 hours).
If the units must be moved in another way, other precautions must be taken to prevent damage to the housing.
I
IG GN NO OR RI IN NG G T TH HE ES SE E G GU UI ID DE EL LI IN NE ES S C CA AN N C CA AU US SE E D DA AM MA AG GE E
U
UN NP PA AC CK KI IN NG G
When cutting the packaging always avoid damage to the unit.
Plastic, cardboard and wood should be removed separately for later recycling.
ON RECEIPT OF THE UNIT ensure that no transport damage has occurred.
The carrier must be informed of any damage immediately in writing
A
AL LW WA AY YS S D DE ET TE ER RM MI IN NE E W WH HE ER RE E T TH HE E U UN NI IT T I IS S T TO O B BE E I IN NS ST TA AL LL LE ED D.
.
E
EN NS SU UR RE E T TH HA AT T T TH HE E U UN NI IT T W WI IL LL L L LA AT TE ER R B BE E E EA AS SI IL LY Y A AC CC CE ES SS SI IB BL LE E F FO OR R M MA AI IN NT TE EN NA AN NC CE E
(
(S SE EE E W WO OR RK KI IN NG G S SP PA AC CE E) ). .
R
RE EM MO OV VI IN NG G T TH HE E P PA AL LL LE ET T
When the equipment has reached its final destination, it can be removed from the pallet.
No specific instructions can be given here, as this action depends on the size of the unit and the room.
T
TR RA AN NS SP PO OR RT T S SC CR RE EW WS S
T
TH HE E R RE ED D M MA AR RK KE ED D T TR RA AN NS SP PO OR RT T S
SC CR RE EW WS S O OF F T TH HE E C CO OM MP PR RE ES SS SO OR R
H
HA AV VE E T TO O B BE E R RE EM MO OV VE ED D O ON N I IN NS ST TA AL LL LA AT TI IO ON N. .

12 AMW 12_00
I
IN NS ST TA AL LL LA AT TI IO ON N D DI IR RE EC CT TI IO ON NS S
G
GE EN NE ER RA AL L
Supporting material must be sufficiently strong
To prevent resonance, make best use of sound insulating material – see wall mounting kit.
Fitting or attaching the unit to wooden floors or walls is not recommended. This requires special precautions
(anti-rumble materials).
The units must always be levelled.
The units may only be installed one way up in a way that the compressor is always upright.
The suction of the unit should be at least 2,5 m from the water surface (protection volume – directions ARAI).
I
IG GN NO OR RI IN NG G T TH HE ES SE E G GU UI ID DE EL LI IN NE ES S C CA AN N C CA AU US SE E D DA AM MA AG GE E
W
WO OR RK KI IN NG G A AR RE EA A
On installation of the unit, ensure there is sufficient space to allow practical and safe maintenance to the unit: back
side of the unit. However, electrical and hydraulic connections have to be done through the side of the unit.
C

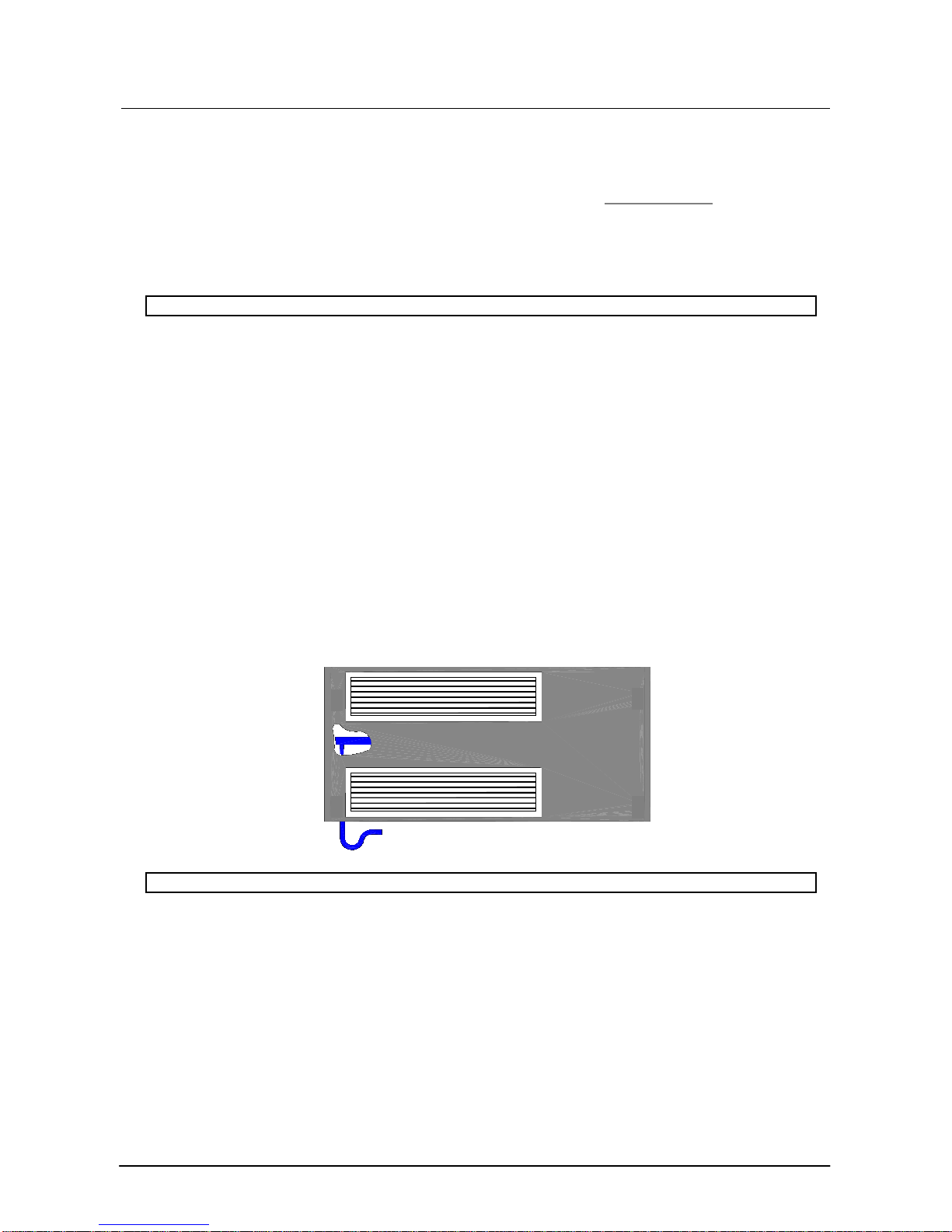

CO ON ND DE EN NS SA AT TI IO ON N D DR RA AI IN N
The condensation drain is connected via the bottom of the unit.
The condensation outlet is a 22 mm Ø flexible hose which must be connected to a PVC outlet pipe ∅32 mm, ideally
fitted with an odour trap (siphon).
To prevent water splashing into the unit and any undesirable odours, the connection must be made airtight to
prevent the intake of air via the outlet.
If the unit is placed below the drain level, the condensation pump may be used with a collector tank and float to
evacuate the water: flow 2 l/min and 3 m conveying height.
A
AT TT TE EN NT TI IO ON N: : T TH HE E C CO
ON ND DE EN NS SA AT TI IO ON N D DR RA AI IN N M MU US ST T B BE E P PO OS SI IT TI IO ON NE ED D F FR RO OS ST T- -F FR RE EE E. .

AMW 12_00 13
51
160
160
245
O
S
W
WA AL LL L M MO OU UN NT TI IN NG G
Always ensure that the wall duct is insulated with vibration-damping material so no vibrations are transferred
between the unit and the wall.
S
SU UC CT TI IO ON N G GR RI ID D M MI IN NI IM MU UM M 0 0, ,5 5 M M A AN ND D M MA AX XI IM MU UM M 1 1 M M F FR RO OM M T
TH HE E F FL LO OO OR R. .
Position of grate fins to be set as follows:
Outlet grate (upper grate): fins to be aligned upwards
Suction grate (lower grate): fins to be aligned downward
It is always recommend installing the unit vibration-free
with the optional L-console.
L-CONSOLE 
Including vibration isolation material.
C
CE EI IL LI IN NG G M MO OU UN NT TI IN NG G A AN ND D I IN NS ST TA AL LL LA AT TI IO ON N O OF F T TH HE E F
FL LO OO OR R I IS S N N O O T T P P O O S S S S I I B B L L E E
90°
33
10
30
475
50
30

14 AMW 12_00
I
IN NS ST TA AL LL LA AT TI IO ON N E EX XA AM MP PL LE E

AMW 12_00 15
C
CO ON NN NE EC CT TI IO ON NS S
H
HO OT T W WA AT TE ER R B BA AT TT TE ER RY Y
GENERAL
Type of unit
65
²92M-100
140-142M
Nominal output *
kW
7
9
13
Nominal flow
l/h
277
356
517
Pressure loss
kPa
1,68
2,64
5,94
* At 80°C WT° and 20°C AT°
Used to keep the ambient area to temperature or bring this to temperature depending on capacity.
The hot-water battery (LPHW) is fitted on the pulse side of the unit.
The connection of the LPHW is on the right of the unit.
The LPHW must be connected to the CH boiler by a registered installer. The unit is not fitted with a circulating
pump. This must be fitted by the CH fitter and adapted to the capacity of the LPHW. The incorporated control can
be used to control the circulating pump and/or the CH boiler.
The unit can also optionally be equipped with a three-way valve 
HYDRAULIC CONNECTIONS
Fitted with ½” nipple connection to the LPHW.
The optional three-way valve is ½” external.
On the LPHW, the IN and OUT are marked LPHW IN and LPHW OUT
CONTROL
ELECTRICAL CONNECTIONS/ SEE DIAGRAM
The LPHW is controlled independently of the CH via the built-in 24V = control. When the dehumidifier functions, the
fan also moves air over the LPHW.
The thermostat (TH) or hygrothermostat (HYTH) orders the unit control to provide heat. The fan and circulation
pump are controlled by the PCB. A non-return valve should be fitted in the hydraulic circuit.
In order to prevent hot water flowing through when the swimming pool area is on temperature, one can apply a
built-in three-way valve.
ADVANTAGE: on heat demand, the three-way valve opens and water flows directly through the LPHW,
immediately providing heat.
W
WH HE EN N R RE EO OR RD DE ER RE ED D P PL LE EA AS SE E G GI IV VE E T TY YP PE E O OF F U UN NI IT T A AN ND D C CA AP PA AC CI IT TY Y O OF F L LP PH
HW W. .

16 AMW 12_00
E
EL LE EC CT TR RI IC CA AL L H HE EA AT TI IN NG G
GENERAL
Type of unit
65
92M-100
140-142M
Output
kW
3
3 - 6
6
Used to keep the ambient area to temperature or bring this to temperature, depending on capacity of the heating
resistors.
Composed of reinforced resistors of 1, 1,5 or 2 kW RUS321 with ribs of galvanised steel.
Including one-stage control with run-on delay on the fan, and excess temperature protection.
SUPPLY
We recommend always providing a separate supply for the electrical heating.
3 kW
3 kW
6 kW
6 kW
Number of stages
1
Voltage
V
230
3 x 400+N
230
3 x 400+N
Nominal
A/ph
13
4,33
26
8,8
To be provided
Automatic fuse
A
2P 20A
4P 20A
2P 40A
4P 20A
CONTROL
ELECTRICAL CONNECTIONS/ SEE DIAGRAM
Via the thermostat or hygrothermostat the unit control is ordered to heat: the fan comes in as well as the one-
stage control
PROTECTION THERMOSTAT
The resistors are always fitted with a safety thermostat which disconnects the resistors when the air temperature
exceeds 85°C.
The resistors can only be reconnected when the temperature has dropped and the unit has been reset.
The resetting must be done manually.
E
EL LE EC CT TR RI IC CA AL L D DE EF FR RO OS ST T
GENERAL
When the ambient temperature falls below 10°C (minimum working range), an electrical defrost cycle (option DE)
can be used with extra defrost resistors. Minimum working range will be 3°C.
SUPPLY
We recommend always providing a separate supply for the electrical defrost.
1,5 kW
Voltage
V
230
Nominal
A
9
To be provided
Automatic fuse
2P 20A
