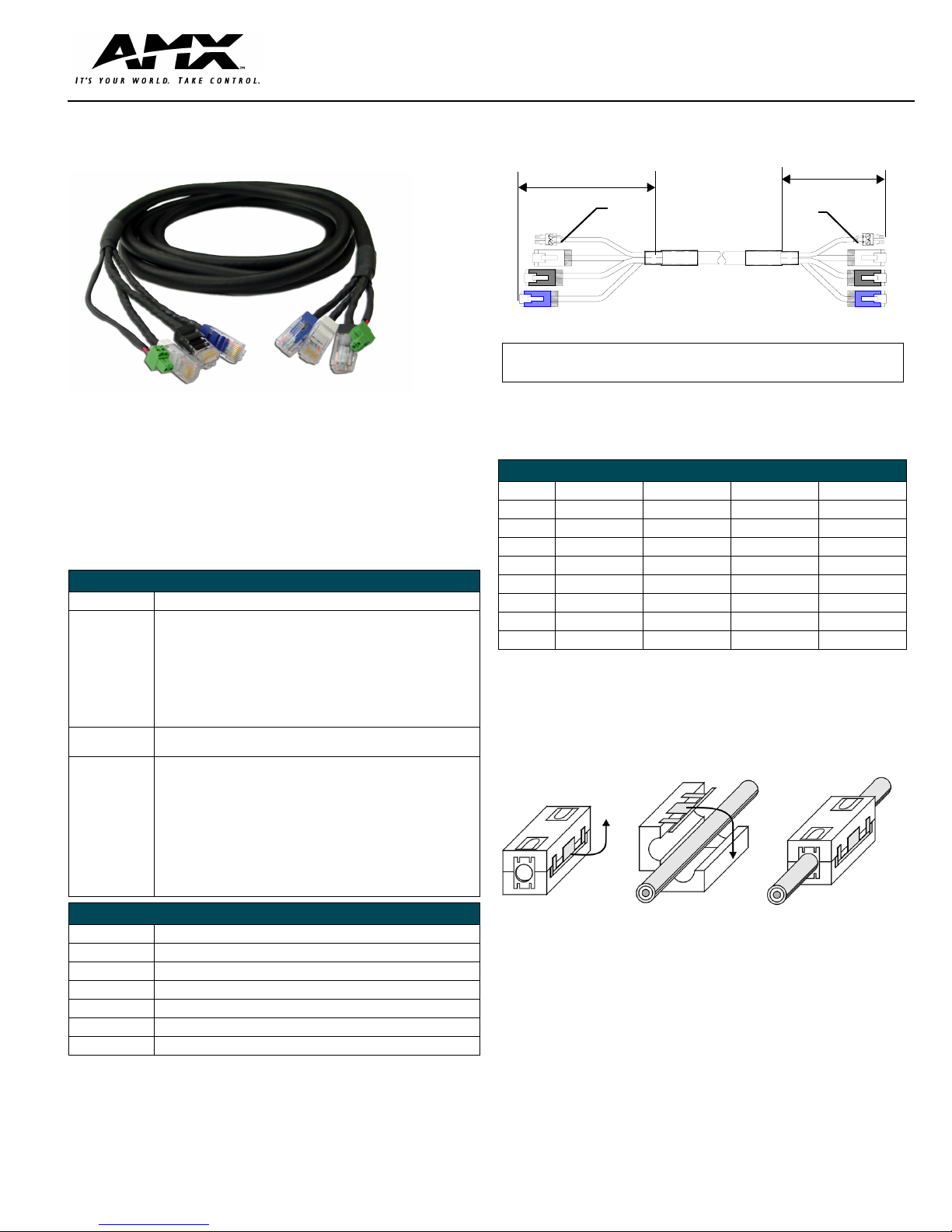

AMX Modero NXD-1200VG User manual

Quick Start Guide
NXA-MTC/RGB Combo Table Top Cable for VG-Series Panels
For more detailed installation and configuration instructions, refer to the
VG-Series Modero Touch Panels instruction manual available on-line at
www.amx.com.
Overview of the Table Top Cable
The VG-Series of Modero Touch Panels (fitted with either an RGB Kit or
upgraded with an optional NXA-RGBKIT (FG2255-11)) are shipped with a
10' (3.048 m) NXA-MTC/RGB Modero cable (CA2250-70) that supports
RGB, Ethernet, Audio/Video, and Power connections. This cable (FIG. 1)
comes terminated with three RJ45 connectors (Ethernet/AV/RGB) and a
single 2-pin 3.5 mm mini-Phoenix connector (for power).
Specifications
Wiring and Connection Information
FIG. 2 shows a top view of the finished cable.
The following table provides the wiring information for each of the four (4)
available connectors on each side of the NXA-MTC/RGB Tabletop Cable.
Installing the CAT5 Suppression Ferrite
Before connecting the RJ-45 cables to the Modero Touch Panel, install the
necessary number of CAT5 Suppression Ferrites (FIG. 3) to the RJ-45
Audio/Video cable. These ferrites come as part of the Installation Kits
mentioned in the adjacent Specification table.
No tools are required for this installation.
Note: All 1200V-Series and VG-Series panels require the installation of an
appropriate number of CAT5 Suppression Ferrites when they use an RJ-45
cable to feed an A/V signal from the NXA-AVB/RGB Breakout Box.
1. The CAT5 Suppression Ferrite is housed within a plastic enclosure
(shown in FIG. 3) with a latch release on one side. Pull to release the
latch and open the enclosure.
2. Grasp the Black RJ-45 Audio/Video cable being connected to the
panel. This end of the cable is longer than the other which connects to
the breakout box (6 inches vs 3 inches). Refer to FIG. 4 for more
detailed information.
FIG. 1 10 Foot NXA-MTC/RGB Combo Table Top Cable
NXA-MTC/RGB Specifications
Dimensions: • Length: 10 feet (3.048 m)
Connectors: • Ethernet RJ-45 connector (White) routes Ethernet signals between the
touch panel and the AVB/RGB Breakout Box.
• Audio/Video RJ-45 connector (Black) routes differential audio/video signals
between the touch panel and the box.
• RGB RJ-45 connector (Blue) routes RGB/Component video signals and
touch control information to the RJ-45 RGB connector on the NXA-RGB
card (internally installed in the panel). This connector routes VGA and
Component video signals between the panel and the AVB/RGB Breakout
Box.
• 2-pin 3.5 mm mini-Phoenix power connector to route power from the
external breakout box to the target panel.
Included
Accessories:
• One NXA-MTC/RGB Combo Table Top Cable (CA2250-70)
• One black tie wrap (used to join the Ethernet and Power cables)
Optional
Accessories:
Note: All 1200V and VG-Series panels routing an Audio/Video signal from a
breakout box must use the appropriate number of CAT5 Suppression Ferrites
which are included as part of installation kits accompanying your particular
Modero panel.
Each of the following Installation Kits come with the appropriate number of
CAT5 Suppression Ferrites.
These ferrites must be installed onto the A/V RJ-45 cable.
• Installation Kit for 12" and 17" NXD panels (KA2251-01)
• Installation Kit for 15" NXD panels (KA2251-02)
• Installation Kit for 12" NXT panels (KA2251-03)
• Installation Kit for 15" and 17" NXT panels (KA2251-04)
Associated Touch Panels (where used)
FG2251-61RGB NXD-1200VG RGB KIT, 12" MODERO WALLMOUNT RGB KIT
FG2250-61RGB NXT-1200VG RGBKIT, 12" MODERO TABLETOP RGB KIT
FG2253-61RGB NXD-1500VG RGB KIT, 15" MODERO WALLMOUNT RGB KIT
FG2252-61RGB NXT-1500VG RGB KIT, 15" MODERO TABLETOP RGB KIT
FG2256-61RGB NXD-1700VG RGB KIT, 17" MODERO WALLMOUNT RGB KIT
FG2257-61RGB NXT-1700VG RGB KIT, 17" MODERO TABLETOP RGB KIT
FG2255-11 NXA-RGBKIT, RGB UPGRADE KIT FOR EXISTING VG PANELS
FIG. 2 Finished NXA-MTC/RGB Table Top Cable - showing standard terminations
Wire Table
Wire Connector 1 Connector 2 Connector 3 Connector 4
1 White/Orange White/Orange Red White/Orange
2 Orange/White Orange/White Black Orange/White
3 White/Green White/Green - White/Green
4 Blue/White Blue/White - Blue/White
5 White/Blue White/Blue - White/Blue
6 Green/White Green/White - Green/White
7 White/Brown White/Brown - White/Brown
8 Brown/White Brown/White - Brown/White
FIG. 3 Installing the CAT5 Suppression Ferrites on the Black A/V RJ-45 cable
Red Red
1
3
2
6 inches 3 inches
To Touch Panel To Breakout Box
4
1
3
2
4
Connector 3 - used for Power
Connector
4 - used for RGB (Blue)
Connector
1 - used for Audio/Video (Black)
Connector
2 - used for Ethernet (White)
Release the latch to
open the plastic
enclosure.
Insert the CAT5
cable and close
the enclosure.
Push down on the
enclosure until it
snaps closed.

AMX Corporation reserves the right to alter specifications without notice at any time.
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
036-004-2826 3/05 ©2005
AMX Corporation. All rights reserved. The AMX logo is a trademark of AMX Corporation. AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax [phone] • technical support 800.932.6993 • www.amx.com
93-2250-70 REV: C
3. Insert the panel-end of the Black RJ-45 Audio/Video cable into the
groove along the inside of the enclosure.
Note: The CAT5 Suppression Ferrites MUST be installed onto the
cable connected to the Modero’s Audio/Video RJ-45 connector (just
behind the connector).
4. Snap the enclosure shut with the cable inside, and you’re done.
5. Repeat this process again only when installing an additional CAT5
Suppression Ferrite (model specific).
FIG. 4 Ferrite connector location on Audio/Video RJ-45 cable
