ANADOLU ISUZU CITIPORT E6 2019 User manual

1
USER MANUAL
Revision No : 01

2

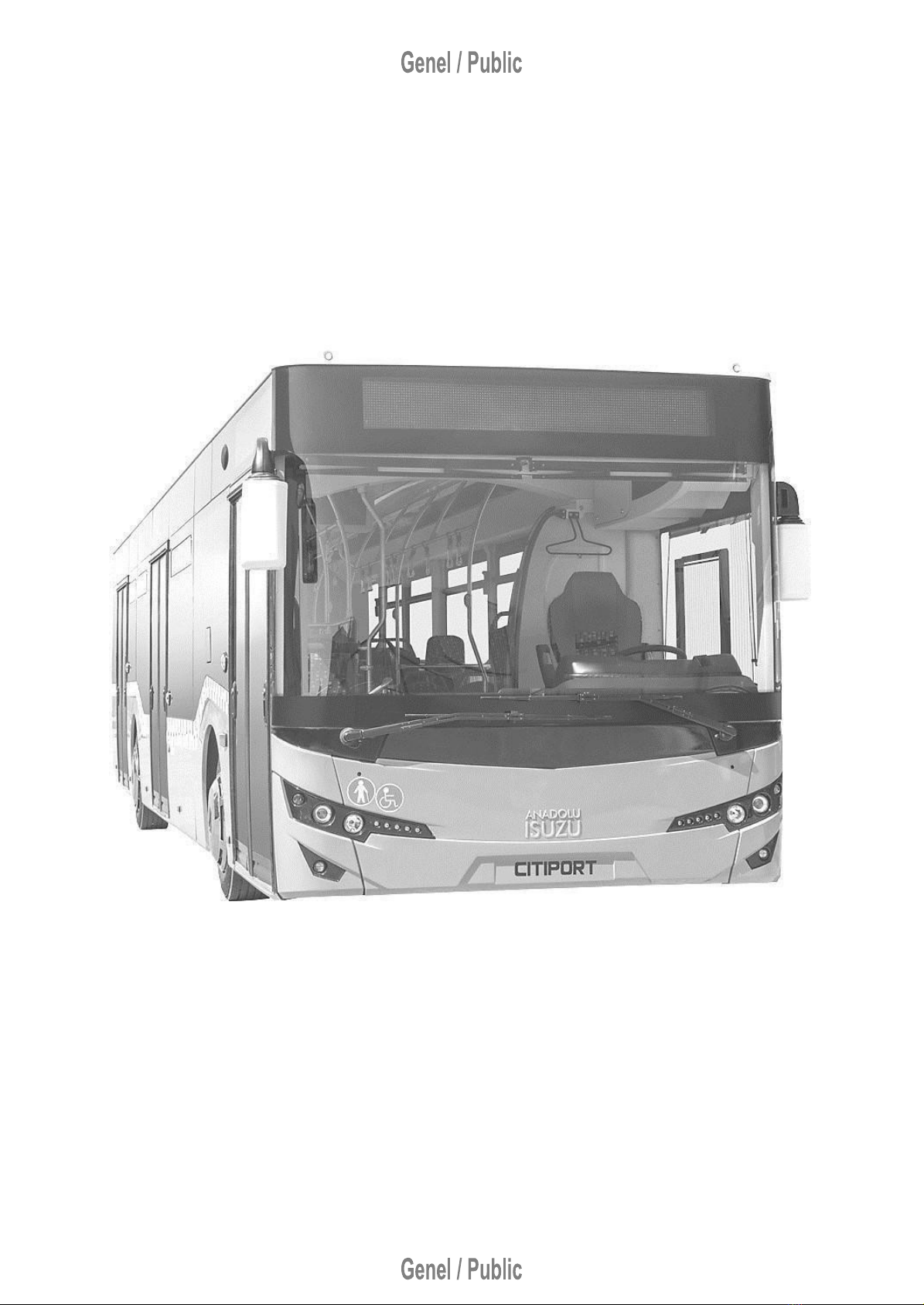

It is a symbolic photograph of Citiport vehicle.

3
FOREWORD
This user manual is prepared to give general information about the efficient
and most economical use of E6 Citiport vehicle. We strongly recommend you to
read the information carefully and to abide by all warnings. We would like to
inform you that our company will not be responsible for any financial, spiritual
problems and losses that you may suffer unless you follow the instructions.
You may apply toauthorized dealers and authorized services when you need
more detailed information about your vehicle.
Keep the user’s manual in the vehicle continuously.
There may be modifications in the shape, equipment and technical
specifications as a result of our continuous efforts to improve our vehicles. The
information, pictures and technical specifications here are based on the last
product information available at the publication of the user’s manual and Anadolu
Isuzu A.S. reserves the right tochange without any prior notification.
Thank you for choosing this product.
We wish you a nice drive.
Anadolu Isuzu Automotive Industry and Trade Inc.
Headquarters : Fatih Sultan Mehmet Mah. Balkan Cad. No : 58 Buyaka E Blok
Tepeüstü 34771 Ümraniye / İSTANBUL
Factory : Şekerpınar Mah. Otomotiv Cad. No : 2 41435 Çayırova / KOCAELİ
Telephone
e – mail
: 0850 200 1900
: [e-mail]

4
TABLE OF CONTENTS
PAGE
1. INTRODUCTION 1
Chassis Number 3
Identification Plate 3
Engine Number 5
Vehicle Warranty 5
Options 5
Recommendations / Warnings 6
2. GENERAL INFORMATION 8
Starting The Engine 9
Stopping The Engine 9
Opening and Closing The Doors 10
Emergency Exits 11
Steering Wheel Adjustment 11
3. CONTROLS AND INDICATORS 12
Driver Control Panel 13
Front Control Panel 14
Side Control Panel 21
Gauge and Warning Lights Panel 23
4. VEHICLE EQUIPMENT 28
Driver Seat
29
Passenger Seats
30
Side Window With Resistance
31
Water Heater/Cooler for Driver (Optional)
31
DVD Player
31
Digital Tachograph
31
Roller Blinds
32
Diagnostic Socket
32
Passenger Information Panel
32
Mirrors
32
Digital Route Indicator Panel
33
LCD Display
33
Half Pop-up Window
33
Trapdoor
34
Handles
34
Stop Button
34
Pack Area
35
Wheel Chair Fixing Area
35
Disabled Passengers Ramp
35
External Camera System
36
Internal Camera System
36
DVR
36
Rear View System
36
Parking Sensors
37
External Alert and Lighting Lamps
37

5
PAGE
Pedals 40
Transmission 40
Fuel Tank and Cap 42
Accumulators 42
Tire Inflator Kit 42
Heating and Cooling System 43
Preheater (Optional) 49
SCR System and Diesel Exhaust Emission Fluid Tank 52
Diesel Exhaust Emission Fluid Heating System 56
Electronic Brake System 56
Engine Room Fire Detection System 57
Engine Room Fire Extinguishing System (Optional) 57
Automatic Greasing System (Optional) 58
5. SERVICE AND MAINTENANCE 60
Cleaning Vehicle 61
Towing Vehicle 61
Engine Maintenance 62
Engine Lubrication System 68
Automatic Engine Oil Refill System (Optional) 68
Engine Cooling System 69
Engine Cooling, Cabin Heater and Air Condition Systems
Line Filling and Air Relief 69
Oil Filter Replacement 70
Fuel Filter Replacement 71
Fuel Water Separator 71
Control of Brake Discs and Pads 72
Transmission Maintenance 72
Differential Oil Change 73
Air Condition Compressor Belt 74
Steering Wheel Hydraulic Tank 75
Glass Fountain Water Tank 76
Air Filter 77
Air Dryer 77
Draining Water in Air Tanks 78
Replacing Wipers 78
Fuses/Relays 79
Replacement of Bulbs 79
Use of The Jack and Tire Replacement 82
The Periodic Maintenance 83
6. TECHNICAL INFORMATION 86
7. THE LIST OF FOREIGN DISTRIBUTORS 91

6
1.INTRODUCTION

7

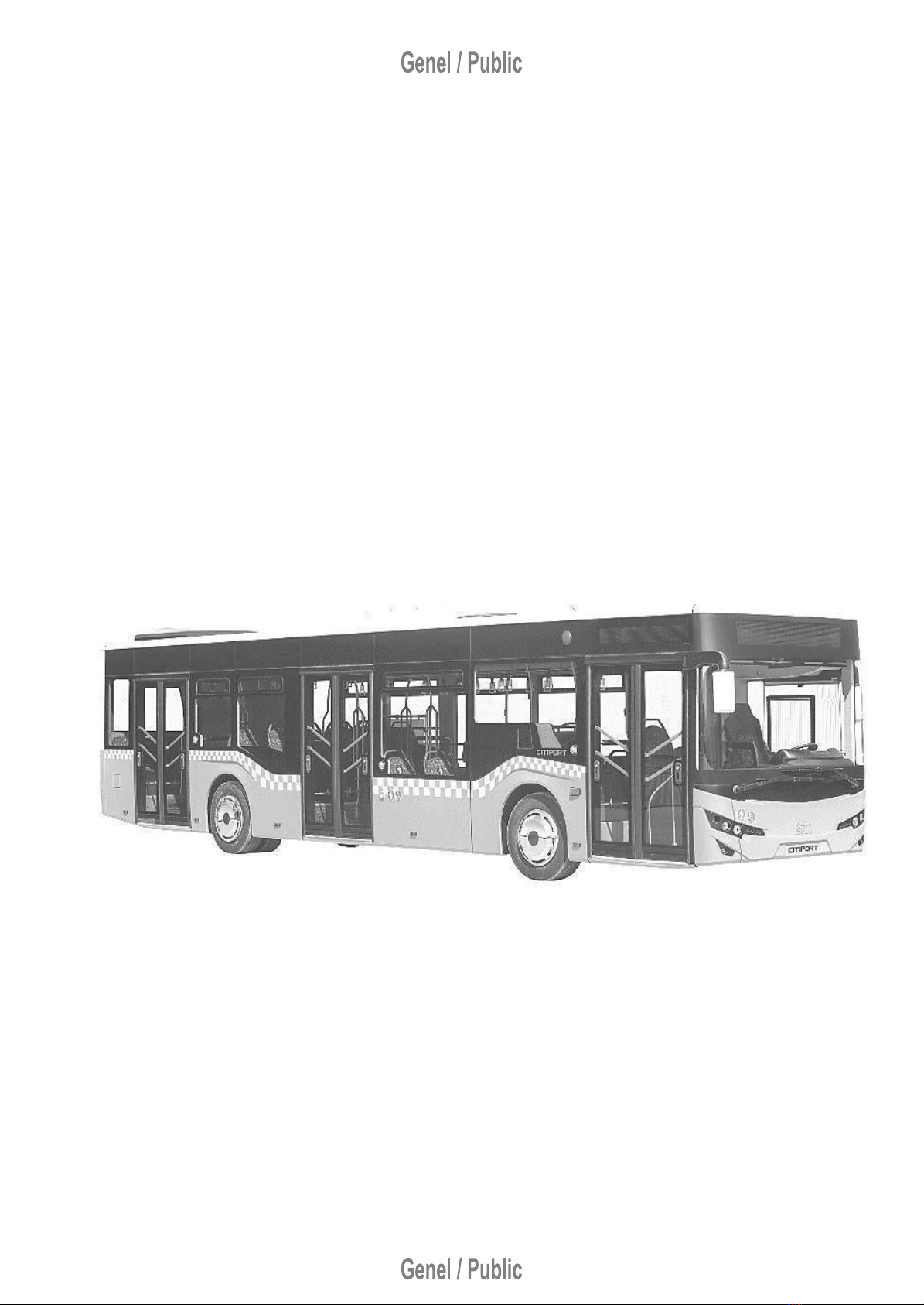

It is a symbolic photograph of Citiport vehicle.

8
CHASSIS NUMBER
IDENTIFICATION PLATE
The chassis number of the vehicle is available on the
internal cover of tin plate of the front-wheel slot.
The identification plate is in the front door entry, under the right front seat. Type
approval number, VIN number, the sum of the maximum axle load, maximum front axle
load and the maximum rear axle load datum are located on the identification plate.
VIN number includes the vehicle’s chassis number info along with vehicle model,
maximum loaded weight, engine type, driving system, wheel base, and production
place codes.

9
A detailed description of the composition of the VIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
N N A M 0 B H L B 0 2 0 0 0 0 0 1
(SAMPLE)
1 - 3 INTERNATIONAL WMI NO: NNA:
(AIOS) ANADOLU ISUZU OTOMOTIV SANAYI VE TICARET ANONIM
SIRKETI
4
MODEL LINE
M:
BUS GROUP
5
GVW OR CAP ACITY RATING
N:
14 PASSENGER SEATS
H:
17 PASSENGER SEATS
8
18 PASSENGER SEATS
F
19 PASSENGER SEATS
G
20 PASSENGER SEATS
L
21 PASSENGER SEATS
B
22 PASSENGER SEATS
C:
23 PASSENGER SEATS
4:
24 PASSENGER SEATS
E:
25 PASSENGER SEATS
M:
26 PASSENGER SEATS
D:
27 PASSENGER SEATS
R:
28 PASSENGER SEATS
P:
29 PASSENGER SEATS
T:
30 PASSENGER SEATS
K:
31 PASSENGER SEATS
S:
32 PASSENGER SEATS
U
33 PASSENGER SEATS
V
34 PASSENGER SEATS
5
35 PASSENGER SEATS
6
36 PASSENGER SEATS
7
37 PASSENGER SEATS
Z:
38 PASSENGER SEATS
9
39 PASSENGER SEATS
A:
43 PASSENGER SEATS
0
INDEPENDENT FROM SEAT NUMBER
6 MODE EXTE NSION
S:
STANDARD TYPE
A
DELUXE TYPE WITH AIR SUSPENSION
Z
DELUXE TYPE WITH AIR SUSPENSION (EURO EXPORT)
L:
DELUXE TYPE WITH MECHANICAL SPRINGS
B:
PUBLIC TRANSPORT TYPE
H:
STANDARD TYPE WITH ACTUATED DOORS
E:
PUBLIC TRANSPORT (ALGERIAN EXPORT TYPE)
2
INTERURBAN TYPE
7
ENGINE MODEL
D:
CUMMINS ISB6.7E5 300B
E
CUMMINS ISB6.7E6 280B
G:
CUMMINS ISLG 6B 300
C:
CUMMINS ISLG 6C 300
F:
CUMMINS ISB6.7E6C280B
H:
CUMMINS ISB6.7E6C300B
8 DRIVING SYSTEM
L:
R:
LEFT HAND DRIVE
RIGHT HAND DRIVE
9
WHEEL BASE
B:
5850mm
10-
11
MANUFACTURING PLANT
01:
02:
AIOS KARTAL PLANT
AIOS GEBZE PLANT
12-
17
PRODUCTION SEQUENCE NO

10

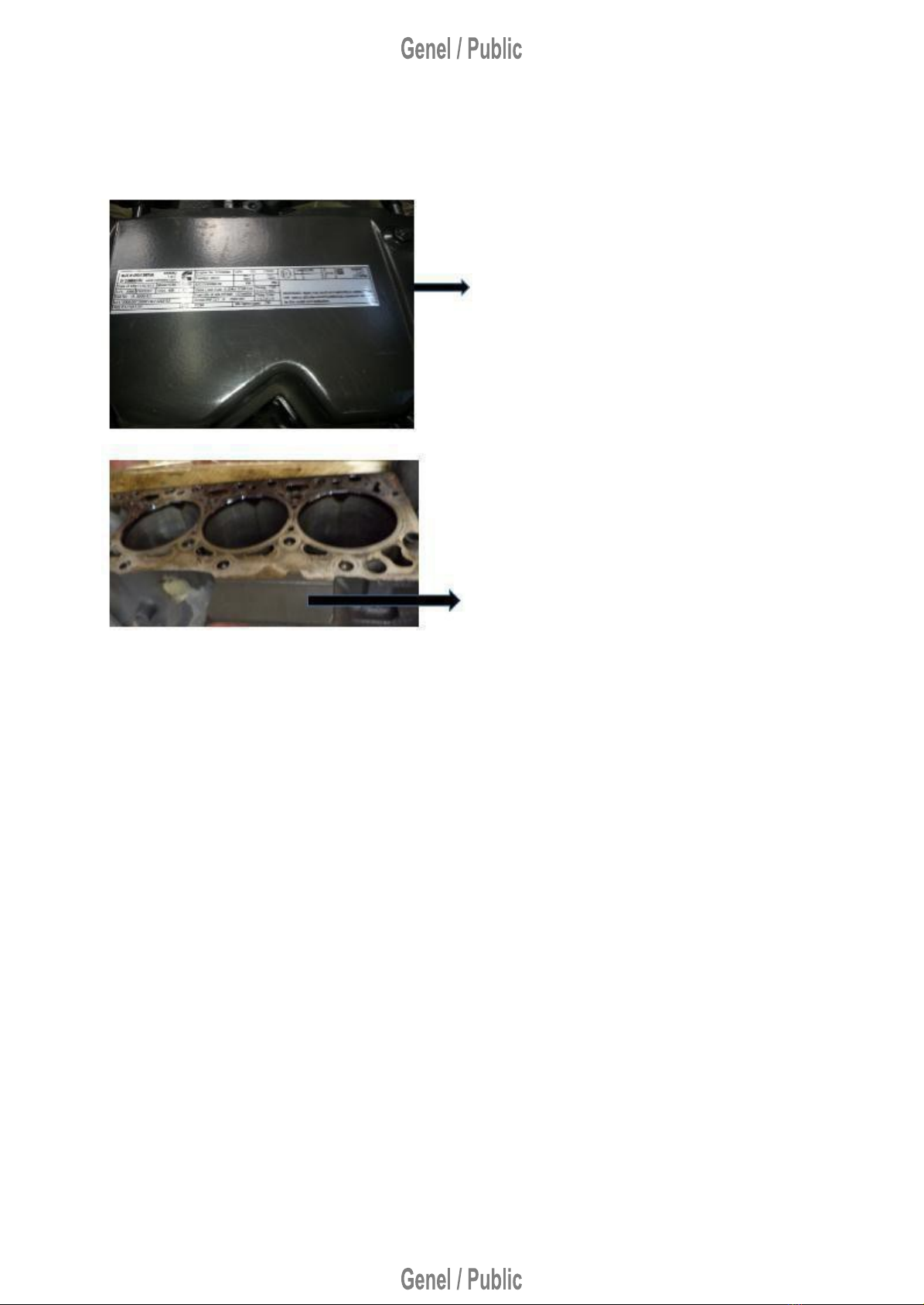

ENGINE NUMBER
Engine number is indicated in 2 places on the engine.
On the engine identification label on the
cylinder head cover.
On the body of the oil cooler in the engine
block.
VEHICLE WARRANTY
Warranty terms and conditions are specified in the “Warranty Certificate” given with
the vehicle. You can find the detailed information about warranty procedure in
“Warranty Certificate”.
OPTIONS
Apart from the standard features of the vehicle, the following options may be applied to
the vehicle when requested.
• Air conditioner with heater
• Preheater
• Automatic engine oil refill system
• Automatic fire extinguisher system at engine room
• Colored front route indicator panel
• Pre-arrangement for ticket vending
• Fuel tank flapped cap
• Information panel for passengers (at the rear)
• Water Heater/Cooler for Driver

11
RECOMMENDATIONS / WARNINGS
• Use only specified fuel (EN590 suitable sulfur content maximum 10ppm) in your
vehicle.
• Use diesel exhaust emission fluid suited for DIN70070.
• Do not load your vehicle over its passenger capacity and do not change the places of
the seats. Our factory is not responsible for the problems arising as a result of a change
in the load balance of the vehicle.
• Examine exhaust pipe from time to time. If you see a damage (for example, a damaged
connecting member caused by abrasion or a hole or a crack, corrosion and leaks in
pipes ports), take it to the nearest authorized service for control and maintenance.
• Control the wheel pressures frequently and be sure that they are always at the right
value.
• In order to control tire degradations, get pre-layout settings to be controlled in every
20000 km.
• Control the main and dipped beam settings, do not drive with defective headlights.
• Control brake, parking and plate lamps frequently, do not drive with defective or mud
covered brake, parking and plate lamps.
• Take care of the maintenance of your vehicle to be done in authorized services in time
and regularly in order to provide maximum performance in your vehicle.
• When the fluids such as waste oil, brake fluid and antifreeze you use in your vehicle
and scrap batteries are thrown away indiscriminately, this gives great damage to the
environment. Take care of eliminating such hazardous wastes in accordance with
environmental regulations.
• Empty cans, bottles or other articles rolling on the floor, is extremely dangerous, be
sure that especially the floor around the driver’s seat is clean and tidy.
• Be sure that there are no combustible materials under or around the vehicle before
starting it. The existence of such materials may cause fire.
• Be sure that you had trimmed the seat, steering wheel and the mirrors suitable for your
correct driving position before the drive.
• Always wear your seat belt.
• Take care of front and side windows to be clean, keep the blinds not hindering your
visibility and driving.
• Do not raise the speed of the engine before it was heated enough.
• Drive your vehicle carefully by complying with traffic rules and the road condition.
• If you realize an abnormality in a wheel during the drive, stop immediately in a safe
place.
• If you go on your way with a deflated tire, this may cause the breaking of the bolts
and the remove of the wheel by applying too much force to the wheel studs.
• Drive at a constant speed to the utmost. It is the waste of fuel to heat the engine
overmuch and to make the engine high-speed.

12
• Do not go on driving when a warning light turns on. Do not forget that you have to get
the corrective action by applying the instructions of counters, warning lights and
indicator lights.
• When the vehicle malfunctions during the drive, turn on the hazard warning flashers
and take the vehicle to a safe place not to block traffic. In order to inform the other
vehicles that you were there, insert the triangle reflectors. Provide other passengers
to get off the vehicle and wait in a safe place. Notify the nearest authorized service.
• Under bad weather conditions, visual angle reduces and slippery road surfaces
increase the stopping distances. Drive slower than in good weather conditions.
Additionally do not rotate the steering wheel suddenly and do not apply the brakes.
Use tire chains and winter tires in snow-covered or icy roads.

13
2. GENERAL INFORMATION

14
STARTING THE ENGINE
Bring main switch to “ON” and the transmission to “N” position. By bringing the ignition
switch to “M” position, turn it and press the starter button (“D” position).
Do not run the starter more than 30 seconds and do not press the
accelerator pedal while operating. Wait two minutes between every attempt
to run.
If the engine oil warning light does not turn off in 15 seconds, stop the engine
in order to prevent the harm of it. Apply to the authorized service.
After starting the engine, run at idle for 3-5 minutes, increase the engine
speed slowly. Do not run the engine over maximum speed, this may cause
serious damages to the engine.
Starting The Engine In Cold Weathers
Bring main switch to “ON” and the transmission to “N” position. By bringing the ignition
switch to “M” position, when the glow light turns off, turn the ignition switch (“D” position)
and press the starter button.
If the vehicle would stay in parking for a long time (more than 1days), bring the
main switch to off position.
STOPPING THE ENGINE
Stop the engine by bringing the ignition switch to “St” position.
Do not close the main switch before 70 seconds when the ignition switch
is on and after it is off.

15

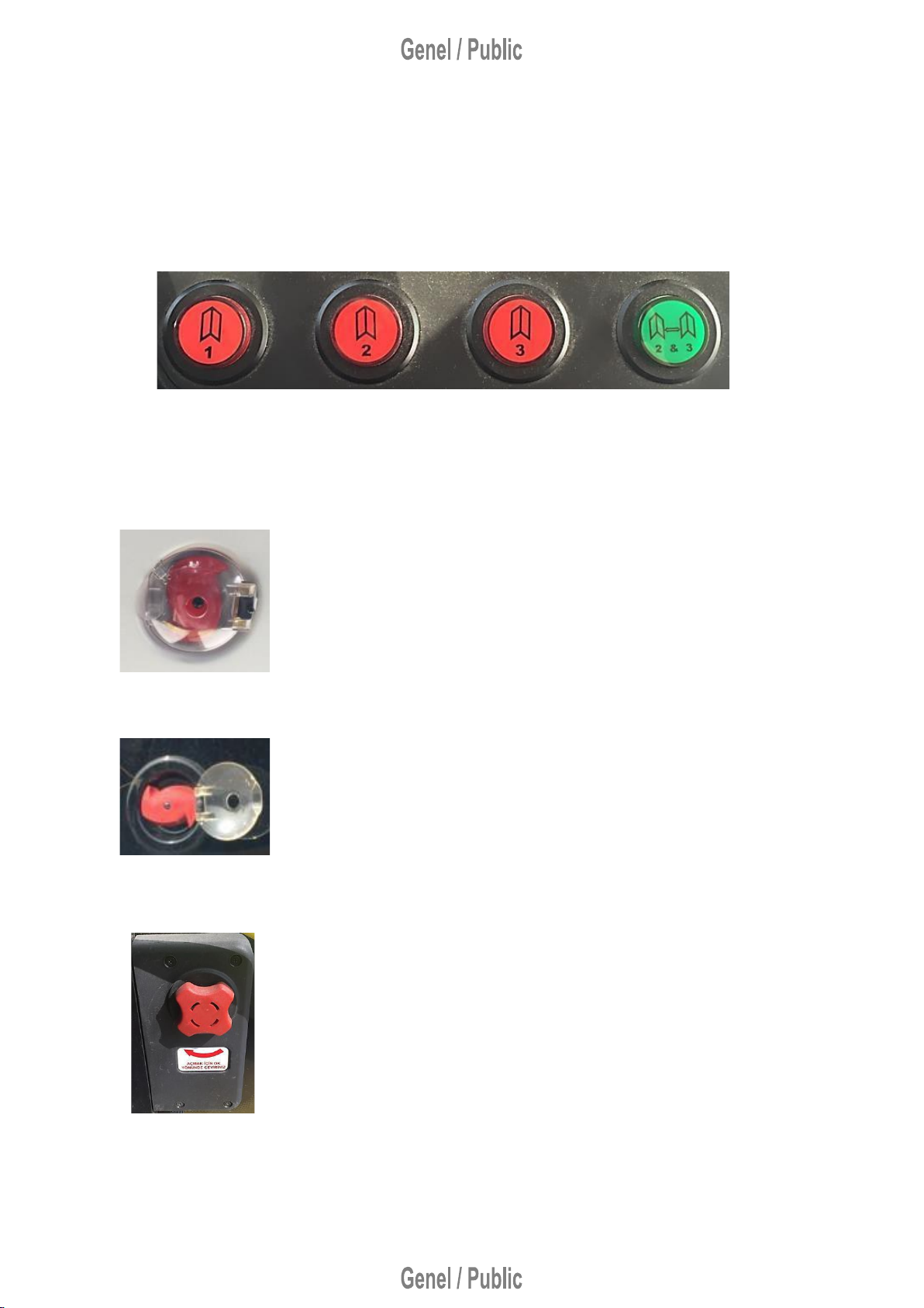

OPENING AND CLOSING THE DOORS
The front door of the vehicle is opened/closed from the outside with the remote control.
There are door open/close switches in front control panel in order the doors to be
opened/closed from the inside.
Opening Doors in Emergencies
There are air drain taps above the doors for emergencies.
Evacuate the air by turning the tap clockwise when necessary
and open the doors by pulling them inward.
There are also air drain taps on the sides of the doors for
opening the doors from outside when necessary. Turn the tap
clockwise and open the door by pushing it inward.
There is also a red lock on/off control above the door for
opening the door when the vehicle is locked with a key from
outside, or in the event that there are passengers inside. The
control is turned in the direction of the arrow when necessary
and the air is evacuated by turning the air drain tap above the
door, the door is opened by pulling inward.

16
EMERGENCY EXITS
In emergency cases, emergency exit may be ensured by breaking the windows at the
right and left of the vehicle and on the trapdoor with the help of emergency attractive.
STEERING WHEEL ADJUSTMENT
Steering wheel may be adjusted to up, down, front and
back according to the comfortable drive of the driver.
For this adjustment, steering wheel level adjustment
switch on the front control panel is used. There have
to be enough air pressure in the vehicle during
adjustment.

17
3. CONTROLS AND INDICATORS

18
DRIVER CONTROL PANEL
Driver Control Panel covers;
Front Control Panel
Side Control Panel
Gauge and Warning Lights Panel

19
FRONT CONTROL PANEL
1. Electrical Front Curtain Switch 20. Heater Switch
2. Electrical Front Curtain Switch 21. Switch which determines the operating
3. Front Roof Vent Switch mode of the front door
4. Rear Roof Vent Switch 22. High Driving Switch
5. Ceiling Light Switch 23. Tilting/Normal Level Switch
6. Driver Ceiling Light Switch 24. Optional
7. ASR Cancel Switch 25. Optional
8. Outside Rearview Resistance Switch 26. Disabled Passenger Ramp Switch
9. Driver Side Window Resistance Switch 27. Optional
10. Steering Wheel Level Adjustment Switch 28. Optional
11. Optional 30. Front Door Wing Selecting Switch
12. Hazard Switch 31. Middle Door Open/Close Switch
13. Optional 32. Back Door Open/Close Switch
14. Optional 33. Middle and Back Door Open / Close Switch
15. Optional 36. Optional
16. Headlights/Parking/Front-Rear 37. Automatic Transmission Control Buttons
Fog Lights Control Switch 50. Retarder Control Lever
17. Optional 51. Ignition Switch
18. Optional 52. Signal and Wiper Lever
19. Route Indicator Switch 53. 7“ LCD Display
NOTE : The places of the switches may vary from vehicle to vehicle.

20

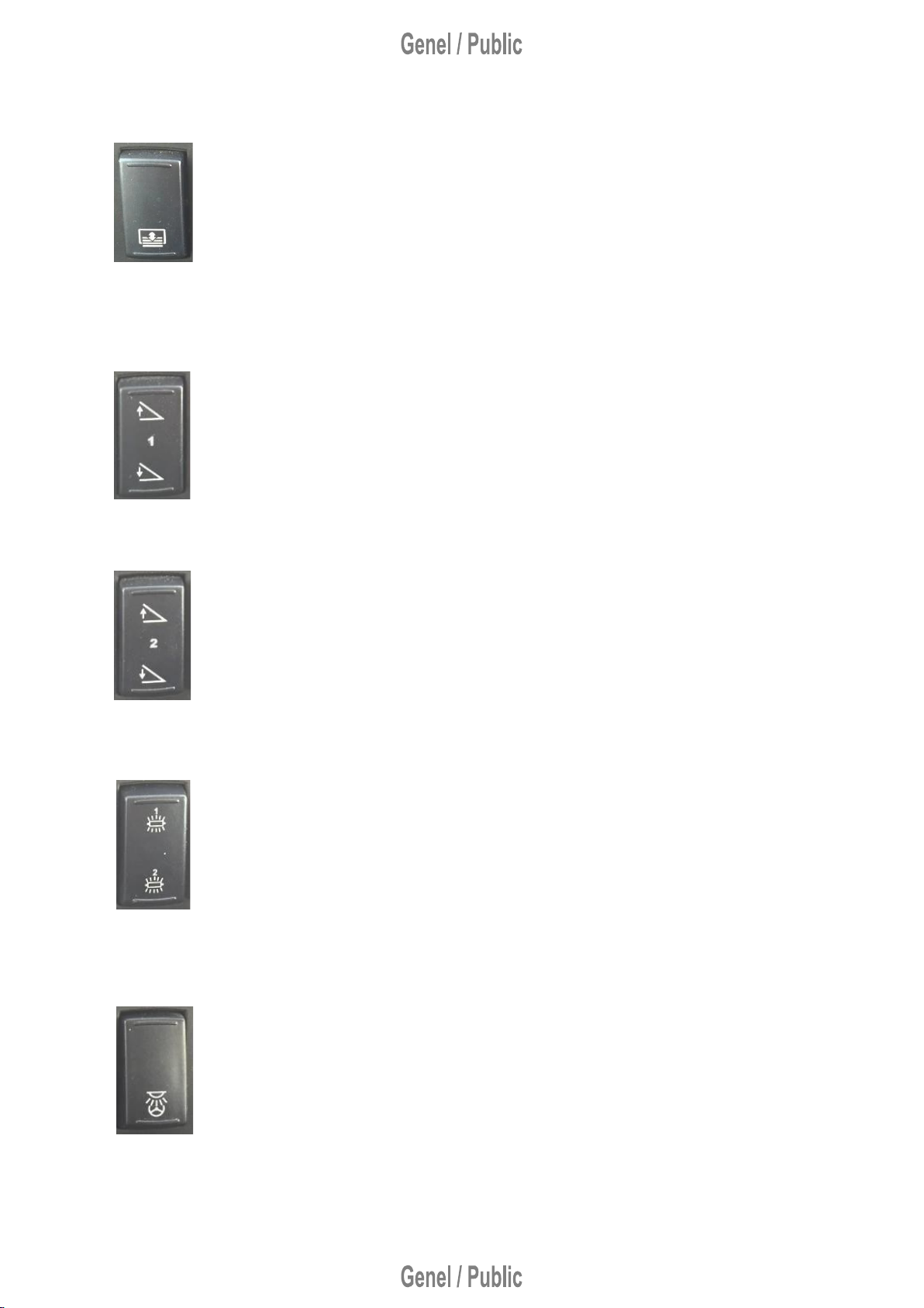

1. -2. Electrical Front Curtain Switch
It is used for opening and closing the curtain in front of the driver. When
it is pressed on the lower end of the switch, curtain goes down. When
the switch is released, the movement of the curtain stops and remains
in the level which it was lowered. When it is pressed on the upper end
of the switch, the curtain moves upstream.
3. Front Roof Vent Switch
When pressed on the upper end of the switch, front roof vent is opened.
It is closed when pressed on the lower end of the switch. The backlights
flash during the up and down movements of the roof vent. The backlight
illuminates when the roof vent is opened. The roof vent is automatically
closed when the heater, air condition or wipers were operating.
4. Rear Roof Vent Switch
When pressed on the upper end of the switch, rear roof vent is opened.
It is closed when pressed on the lower end of the switch. The backlights
flash during the up and down movements of the roof vent. The backlight
illuminates when the roof vent is opened. The roof vent is automatically
closed when the heater, air condition or wipers were operating.
5. Ceiling Light Switch
Function lamp lights up when pressed on the switch. The switch has 3
positions.
• When pressed on the upper end, partial lighting is obtained.
• It gets closed when it was in the middle position.
• When pressed on the lower end, full lighting is obtained.
6. Driver Ceiling Light Switch
The lights are on when pressed on the lower end of the switch, and off
when pressed on the upper end.
