1.0 Applicable Products
HMC764LP6CE, HMC765LP6CE, HMC783LP6CE, HMC807LP6CE
2.0 Introduction
This Operating Guide covers the specied family of Hittite fractional PLL with integrated VCO. The rst
portion lists the Evaluation Kit contents. The second portion describes how to operate the evaluation
board.
3.0 Evaluation Kit
The Evaluation Kit contains the following contents:
a. (1) Evaluation Board Part #:
126791-HMC764LP6C or 127270-HMC765LP6C or
127272-HMC783LP6C or 127283-HMC807LP6C
b. (1) CD ROM Part # 121325
c. (1) USB Controller Board # 122046
d. (1) USB Cable # 690-00064-00
e. (1) Control Cable # 595-00199-00
The CD ROM should include the followings les as a minimum:
a. FTDI USB Drivers .zip le
b. VB HMC PLL with Integrated VCO Controller Software
c. PLL Design Software
d. Evaluation Board Schematic
e. Evaluation Board Operating Guide
f. PLL with Integrated VCO Data Sheets
g. PLL with Integrated VCO Operating Guide
h. Recommended PLL Register Set Text File
i. README Installation Guide

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 3
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
4.0 Evaluation Board Operation
4.1 Conguration with On-Board Crystal Oscillator
The evaluation board of Hittite fractional PLL with integrated VCO should be set up as shown in the Figure
1. It should be noted that very low noise PLL with Integrated VCOs are sensitive to noisy power supplies.
The evaluation board provides on-board regulators to isolate the +5.5V supply from the PLL analog and
digital +3.3V supplies, the PLL Charge Pump +5V supply and the VCO +5V supply. The VCXO is also
regulated separately to +3.3V from the +5.5V external supply.
The very low noise of the PLL with Integrated VCO requires a high quality test instrument to observe the
phase noise or jitter. For this we recommend a signal analyzer such as the Agilent E5052B or equivalent.
A high performance spectrum analyzer can be used as an alternative to the signal analyzer.
Figure 2 highlights the major components and connectors on the PLL with Integrated VCO evaluation
Board.

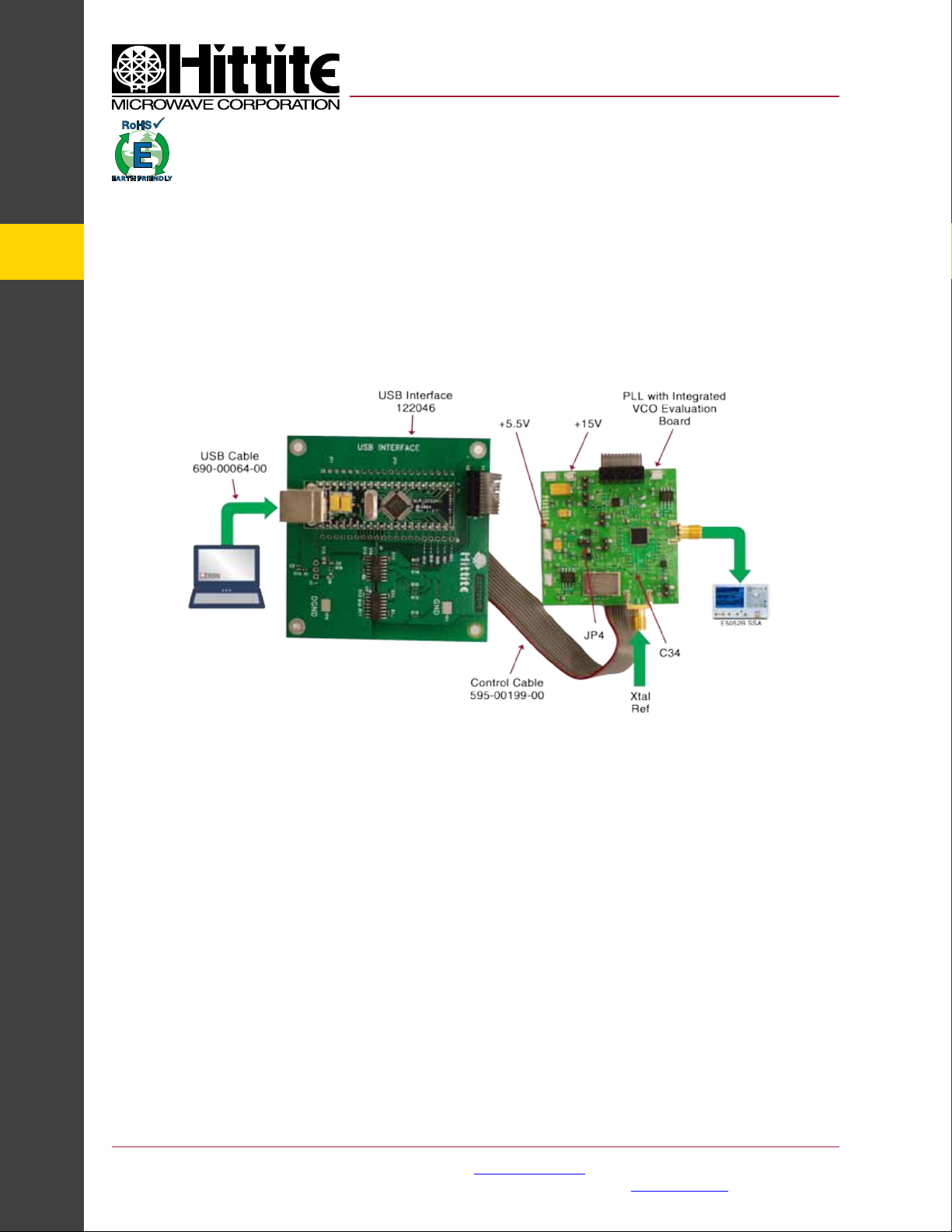

Figure 1. Typical Setup of PLL with Integrated VCO Evaluation Board

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 4
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
Figure 2. PLL with Integrated VCO Evaluation Board Major Components

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 5
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
4.2 Conguration with External Crystal Oscillator
If it is desired to use the evaluation board with an external crystal oscillator, disable the VCXO Regulator
U6 by shorting JP4, and connect the external source to J2 as shown in Figure 3. If the external source
has sufficient drive (see the reference sensitivity plots in datasheets) it is likely not necessary to remove
C34, at the output of the on-board crystal oscillator, otherwise remove C34 from the board. The evaluation
board has been tested with an external 100 MHz sine crystal with C34 in place with no measurable effects,
however an external square wave oscillator may be more sensitive to mismatch caused by C34, hence if
in doubt, remove C34.
Figure 3. Typical Setup of the PLL with Integrated VCO Evaluation Board with External Crystal Oscillator

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 6
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
4.3 Conguration with the Different Type of Loop Filters
Depending on the user requirements, different type of loop lters can be congured on the evaluation
Board. A general schematic of loop lters is shown in Figure 4. It can be congured into most lter types,
such as Passive, PassiveDC, ActiveA, ActiveC, etc. It should be noted that the default loop lter on the
evaluation board is PassiveDC, and R23 is set to zero ohm, while R27, R28, C65 and L1 are open as
they are optional. These components can be congured for a higher order lter to improve the spur
performance; however, this can lead to loop instability if not be carefully designed.

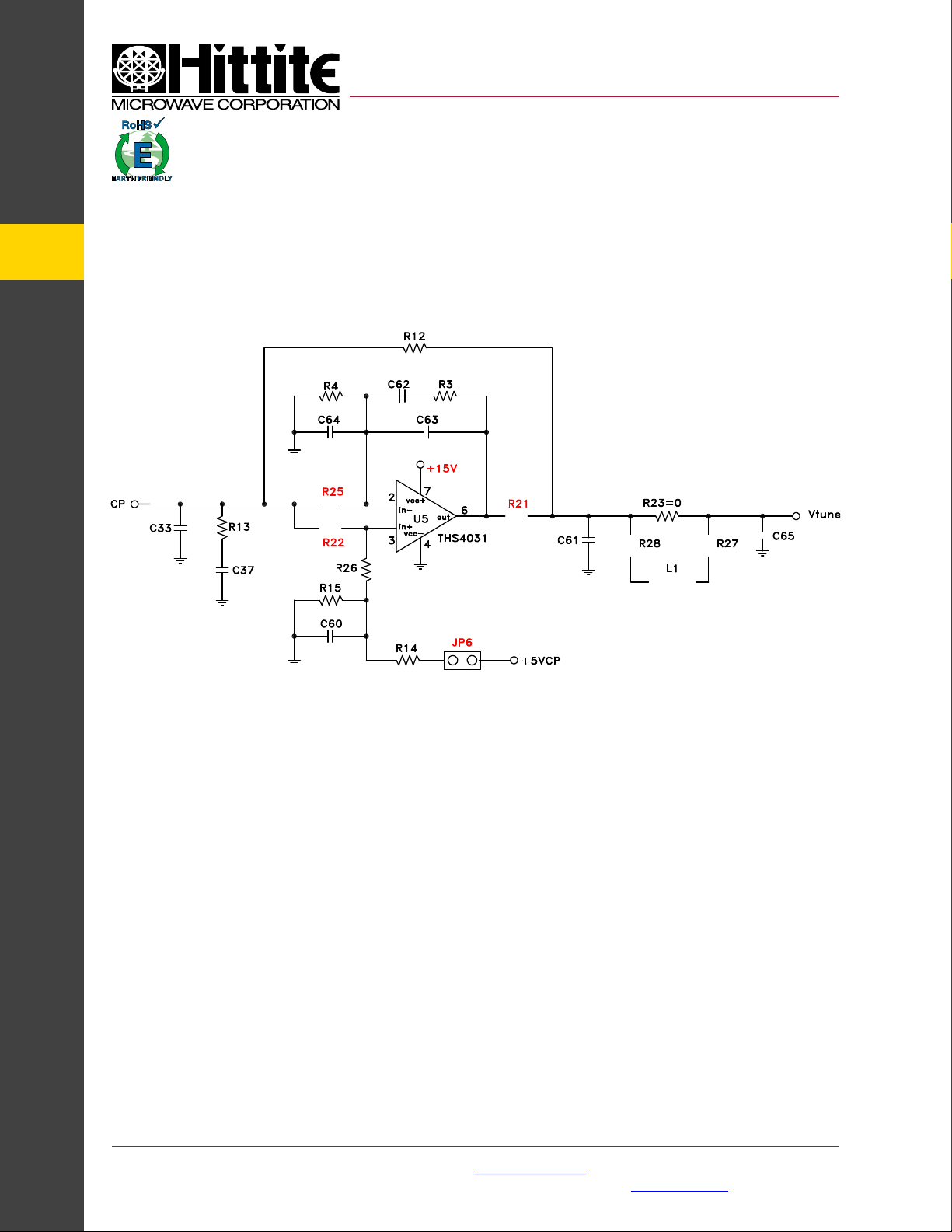

Figure 4. General Schematic of Loop Filter
Based on the general schematic above, the different type of loop lters can be congured as follows. It
should be noted that the Op-amp is powered by a separate power supply, marked +15V.

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 7
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
4.3.1 Passive Loop Filter
The Passive loop lter consists of C33, R13, C37, R12 and C61. It can be congured by removing R21,
R22, R25, and leaving JP6 and +15V open.
It should be noted that the maximum VCO tuning voltage of the passive loop lter is limited by the charge
pump power supply, for example, +5V.
Figure 5. Passive Loop Filter

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 8
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
4.3.2 PassiveDC Loop Filter (default)
The PassiveDC loop lter consists of C33, R13, C37, R3, R4, C64, R21, C61 and Op-amp U5. It can be
congured by removing R12, R25, R26, C63, shorting R22, C62, leaving JP6 open, and powering +15V
on.
It should be noted that when a single positive supply is applied to the Op-amp, the minimum VCO tuning
voltage of the PassiveDC loop lter is limited by the common mode input voltage characteristic and
the gain of the Op-amp. In order to avoid any problem in trying to utilize the VCO tuning voltage lower
than 2V, a small negative supply voltage, for example –1V, should be applied to the negative supply Pin
4 of the Op-amp. Since Pin 4 is grounded on the evaluation board, it is difficult to change but can be
implemented in the customer board design.
Figure 6. PassiveDC Loop Filter

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 9
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
4.3.3 ActiveA Loop Filter
The ActiveA loop lter consists of C62, R3, C63, R21, C61, R14, R15, C60 and Op-amp U5. It can be
congured by removing C33, C37, C64, R4, R12, R13, R22, shorting R25, R26, JP6, and powering +15V
on.
Figure 7. ActiveA Loop Filter

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 10
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
4.3.4 ActiveC Loop Filter
The ActiveC loop lter consists of C33, R25, C62, C63, R3, R21, C61, R14, R15, C60 and Op-amp U5. It
can be congured by removing R4, R12, R13, R22, C37, C64, shorting R26, JP6, and powering +15V on.
It should be noted that the ActiveC loop lter is a very popular choice since it does not have the minimum
or maximum Vtune limits as the Passive or PassiveDC lters do.
Figure 8. ActiveC Loop Filter

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 11
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
5.0 Operating Procedure
Step 1. Read the “README” le for Microwave PLL with Integrated VCO on the CD for instruction.
Step 2. Setup the evaluation board as shown in Figure 1.
Step 3. Turn +5.5V and +15V supplies on.
Step 4. Launch the control program (located initial on the CD).
Step 5. From the drop down list, select the part under test, for example, HMC764LP6CE (See Figure 9).

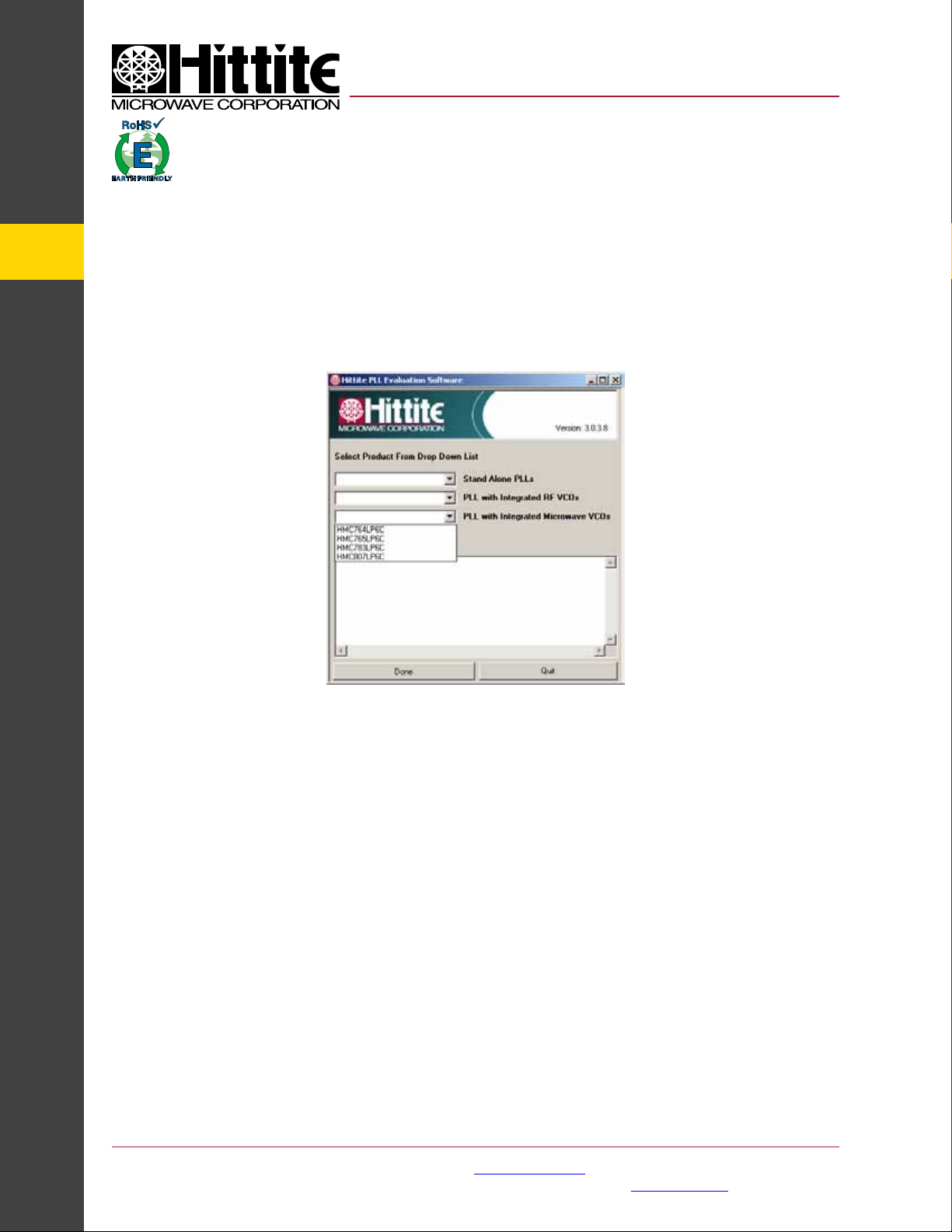

Figure 9. Part Selection Menu

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 12
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
Step 6. Click “Done” button, the main control window pops out as Figure 10 shown.
Step 7. Click “Load Reg File” button to load the register contents of the part (Figure 11).
Figure 10. Main Control Window Load Register File

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 13
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
Frequency
Hop Control
PLL Lock
Range Scan
RF
Frequency
Control
Actual
Frequency Lock Detect
Indicator
Load
Register
File
Register
Contents
Save
Register
File
Prescaler
Control

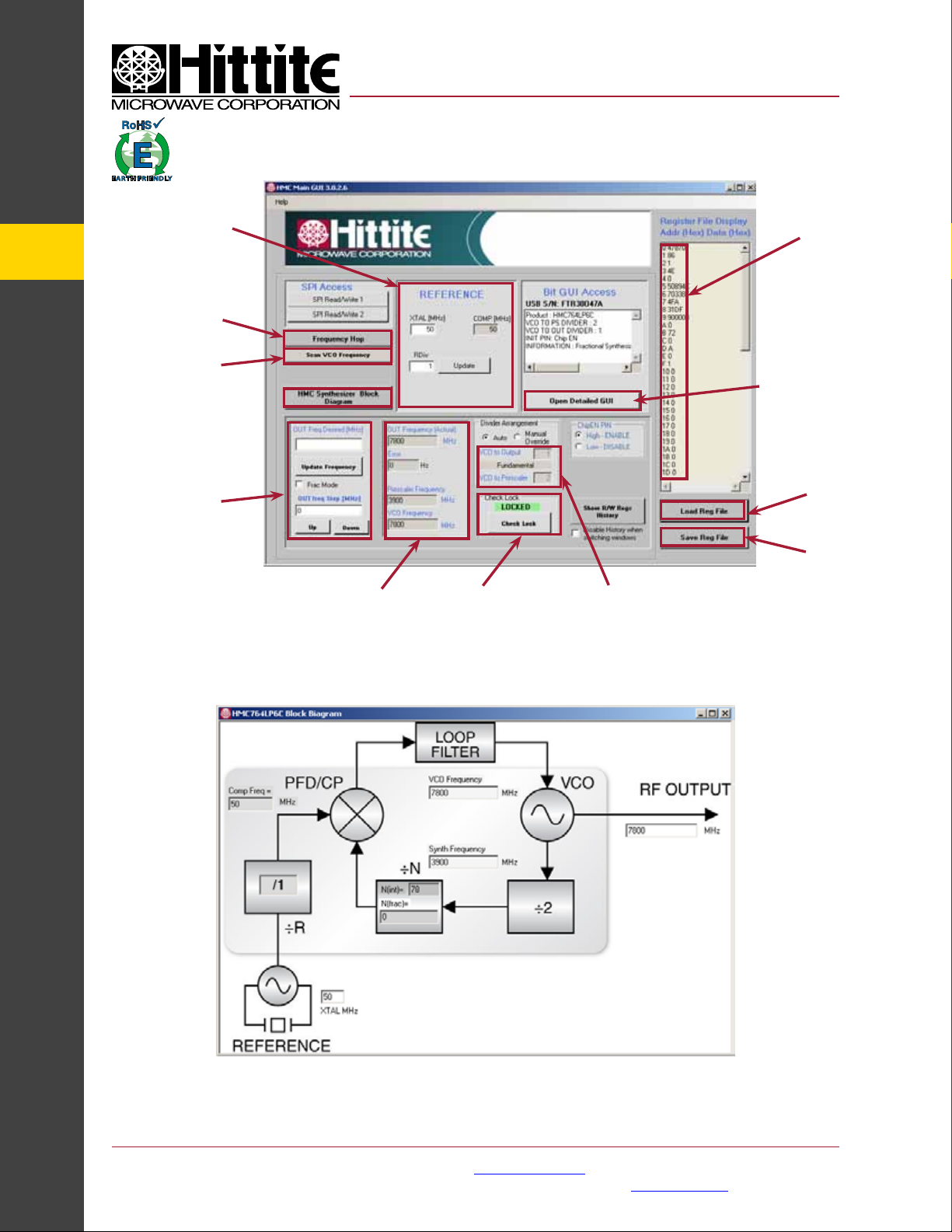

Figure 11. Main Control Window after Loading Register File
Step 8. Click “HMC PLL with Integrated VCO Block Diagram” button, the block diagram pops out as Figure
12 shown (optional to show the conguration but step not required to run the part).
Figure 12. PLL with Integrated VCO Block Diagram
Reference Control
Open Detailed
Register Window

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 14
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
Step 9. Set RF frequency in “RF Frequency Control” block.
For integer mode, type in the frequency desired, click “Update Frequency” button. For fractional
mode, check “Frac Mode” box rst. Then type in the frequency desired, click “Update Frequency”
button. In order to optimize the phase noise and spur performances in fractional mode, user
should click “Open Detailed GUI” button. The new detailed register control window pops out as
shown in Figure 13. In the “Register 09: Charge Pump Currents” section, adjust “Dn Leak” current
to optimize the phase noise and spur performances. Typically, 220 uA of current will give the
optimum performances on phase noise and spurs.
Figure 13. The Detailed Register Control Panel
Step 10. Scan the VCO frequency to nd the PLL with Integrated VCO locked range (“Frac Mode” box
must be checked). Click “Scan VCO Frequency” button in the main control panel (Figure 11). A
new small window pops out as shown in Figure 14. Set “Start Freq”, “Coarse Step” and “ Freq
Max Limit”, click “Start Scan” button (refer to the specied Min/Max frequencies of the individual
product data sheet, set “Start Freq” to Min frequency and set “Freq Max Limit” to 1 GHz above Max
frequency). When the scan is nished, the PLL with Integrated VCO locked range will be shown in
the window. As an example, Figure 15 shows the scan setting and scan result on HMC764LP6CE.
Remember that the frequency lock range is greater than the specied frequency range and the
phase noise or spurs will degrade outside of this specied window.
Adjusting “Dn Leak”
current of charge
pump to optimize
the phase noise and
spur performances

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 15
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
Figure 14. Default “Scan VCO Frequency” Window Figure 15. Scan Setting and Scan Result on
HMC764LP6CE
Step 11. Run frequency hopping (optional).
Click “Frequency Hop” button in the main control panel (Figure 11). A new small window pops out
as shown in Figure 16. Set “Frequency #1”, “Frequency #2” and “Dwell Time” in this window. Then
click “Start” button. The RF signal will switch between “Frequency #1” and “Frequency #2” in the
dened “Dwell Time”. Figure 17 shows a typical example of the “Frequency Hop” setting on the
HMC764LP6CE. This function usually is used to nd the frequency settling time of the PLL with
Integrated VCO.
Figure 16. Default “Frequency Hop” Window Figure 17. Typical Setting Example of Frequency Hop

Order On-line at www.hittite.com
For technical application questions: Phone: [phone] or [e-mail]
PRODUCT & OPERATING GUIDE
A
A - 16
PLLs WITH INTEGRATED VCO - MICROWAVE APPLICATIONS
EVALUATION BOARD OPERATING GUIDE
v01.0910
Notes:
