andrews SUPAflo EVO SF60 EVO Manual

INSTALLATION AND SERVICE MANUAL
SUPAflo EVO
Water Heater
SF60 EVO

3
EN
Contents
General Regulaons........................ 6
Applicaon .................................... 6
Norms and regulaons .................. 6
Informaons for installer and mainte-
nance service ................................ 7
Data Plate ...................................... 8
Operang principle ....................... 8
Construcon.................................... 9
Layout of the boiler ....................... 9
Technical data ................................. 10
Product information E.r.P. ............. 13
Dimensions .................................... 14
Extent of delivery ............................ 15
Standard boiler .............................. 15
Accessories .................................... 15
Installation ...................................... 16
Boiler transport ............................. 16
Disassemble the casing ................. 17
Warnings before installation ......... 19
Boiler installation .......................... 19
Connecting the boiler .................... 20
Air/Flue gas system ....................... 21
Dimensioning single ...................... 23
Electrical connections ................... 24
Wiring diagram ............................. 25
Commissioning................................ 27
Water and hydraulic system .......... 27
Neutralisation systems .................. 28
Gas supply ..................................... 29
Flue and air intake connections .... 29
Condensate connection ................ 29
Prepare boiler for first startup ...... 30
Combustion analysis ..................... 31
Check gas Valve ............................. 32
Check water flow ........................... 32
Check funconality of safety devi-
ces ................................................. 33
Gas tightness check ....................... 34
Boiler shut down ........................... 34
Commissioning protocol ............... 35
Operating instructions .................... 36
Controls ......................................... 36
Display / Programming .................. 37
Overview of main functions .......... 38
Maintenance ................................... 40
Checklist ........................................ 40
Replacing the electrodes ............... 40
Cleaning the condens tray ............. 41
Cleaning and refilling the syphon . . 41
Cleaning the dirt collector ............. 42
Inspecon of combuson cham-
ber ................................................. 42
Water physical and chemical
check ............................................. 43
Gas and water quality ................... 43
Safety devices ................................. 43
Maintenance Protocol .................... 44
Lockouts .......................................... 45
Sensor values .................................. 47
Declaration of Conformity .............. 48
Note ................................................ 49

General Regulaons
4
Applicaon
Norms and regulaons
General Regulaons
This documentaon contains
important informaon, which is a
base for safe and reliable installa-
on, commissioning and operaon
of the boiler. All acvies described
in this document may only be exce-
cuted by authorized companies.
Changes to this document may be
eected without prior noce. We
accept no obligaon to adapt previ-
ously delivered products to incorpo-
rate such changes.
Only original spare parts may be
used when replacing components
on the boiler, otherwise warranty
will be void.
Applicaon
The boiler may be used for heang
and hot water producon purposes
only. The boiler should be connected
to closed systems with a maximum
temperature of 100 °C (high limit
temperature), maximum setpoint
temperature is 90 °C.
Norms and regulaons
When installing and operang the
boiler, all applicable norms (euro-
pean and local) should be fullled:
• Local building regulaons for in-
stalling combuson air and ue
gas systems;
• Regulaon for connecng the boil-
er to the electrical appliance;
• Regulaons for connecng the
boiler to the local gas network;
• Norms and regulaons according
to safety equipment for heang
systems;
• Any addional local laws/regula-
ons with regard to installing and
operang heang systems.
This boiler is CE approved and applies
to the following European standards:
• 1992 / 42 / EEC Boiler eciency
direcve.
• 2009 / 142 / EEC Gas appliance di-
recve.
• 2009/125/EC Direcve of the
European Parliament and of the
Council of 21 October 2009 estab-
lishing a framework for the seng
of ecodesign requirements for en-
ergy-related products
• 811-813-814/2013 EU regulaon
• 2014 / 30 / EU The Electromag-
nec Compability (EMC) Direc-
ve
• 2014 / 35 / EU Low Voltage Direc-
ve
• EN 13203-2: 2015 (Gas-red do-
mesc appliances producing hot
water - Part 2: Assessment of en-
ergy consumpon)
• EN 15036-1: 2006 Heang boilers -
Test regulaons for airborne noise
emissions from heat generators
- Part 1: Airborne noise emissions
from heat generators
• EN-ISO 3743-1: 2010 Acouscs
- Determinaon of sound power
levels and sound energy levels of
noise sources using sound pres-
sure - Engineering methods for
small movable sources in rever-
berant elds - Part 1: Comparison
method for a hard-walled test
room.
• EN 15502-1: 2012 +A1:2015 (Gas-
red heang boilers - Part 1: Gen-
eral requirements and tests)
• EN 15502-2-1: 2012 (Gas-red
central heang boilers - Part 2-1:
Specic standard for type C appli-
ances and type B2, B3 and B5 ap-
pliances of a nominal heat input
not exceeding 1000 kW)
• EN 60335-1 Household and similar
electrical appliances - Safety- Part
1: General requirements
• EN 60335-2-102: 2016 Household
and similar appliances - Safety
- Part 2-102: Parcular require-
ments for gas, oil and solid-fuel
burning appliances having electri-
cal connecons.
• EN 55014-1: 2006 Electromag-
nec compability- Requirements
for household appliances, electric
tools and similar apparatus Part 1:
Emission A1:2009, A2:2011
• EN 55014-2: 2015 Electromag-
nec compability- Requirements
for household appliances, electric
tools and similar apparatus Part 2:
Immunity - Product family stand-
ard.
• EN 61000-3-2: 2014 Electromag-
nec compability (EMC) Part 3-2:
Limits — Limits for harmonic cur-
rent emissions equipment input
current <= 16 A per phase.
• EN 61000-3-3: 2013 Electromag-
nec compability (EMC) Part
3-3: Limits — Limitaon of voltage
changes, voltage uctuaons and
icker in public low-voltage supply
systems, for equipment with rated
current <= 16 A per phase and not
subject to condional connecon.
Addional naonal standards
Germany:
• RAL - UZ 61 / DIN 4702-8
Switzerland:
• SVGW
Austria:
• 15a V-BG

General Regulaons
5
EN
Informaons for installer and maintenance service
Informaon for the User
Inform the user on the mode of op-
eraon of the system.
Specically deliver to the user the
instrucon manuals, informing him
that they must be stored with the
appliance.
Also, remind the user to:
• Periodically check the water
pressure system and instruct him
on how to reintegrate and bleed.
• How to set the temperature and
the adjusters for a correct and
more economical management
of the system.
• To perform, according to legis-
laon, periodic maintenance
system.
• Do not change, in any case, the
sengs for supply of air for com-
buson and gas combuson.
• Pay aenon to the warnings
contained in the user manual.
The use of the appliance for
purposes other than those
specied is strictly forbidden.
The manufacturer cannot be held
responsible for any damage caused
by improper, incorrect and unrea-
sonable use of the appliance or by
the failure to comply with the in-
strucons given in this manual.
Installaon, maintenance and
all other intervenons must be
carried out in full conformity
with the governing legal regulaons
and the instrucons provided by the
manufacturer. Incorrect installaon
can harm persons, animals and pos-
sessions; the manufacturing compa-
ny shall not be held responsible for
any damage caused as a result.
The boiler is delivered with
protecon packaging.
Once you have removed all the
packaging, make sure the appliance
is intact and that no parts are miss-
ing. If this is not the case, please
contact your supplier.
Keep all packaging material
(clips, plasc bags, polystyrene
foam, etc.)
out of reach of children as it may
present a potenal hazard.
Before any maintenance or re-
pair work is performed on the
boiler, make sure you have
disconnected it from the electricity
supply by switching the external bi-
polar switch to the OFF posion.
All repairs, should only be per-
formed using original spare
parts.
= Danger for health
= Danger for equipment
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilies or lack of experience and knowledge
if they have been given supervision or instrucon con-
cerning use of the appliance in a safe way and under-
stand the hazards involved children shall not play with
the appliance. Cleaning and user maintenance shall not
be made by children without supervision.

General Regulaons
6
Data Plate
Operang principle
8
Symbols used on the data plate
Legend :
1 Brand
2Country of origin
3 Boiler model - Serial number
4 Commercial reference
5Certication number
6 Destination country - Gas category
7 Gas setting
8 Installation type
9 Electrical data
10 Factory settings
11 Maximum water pressure
12 Boiler type
13 NOx class / Efciency
14 Input rating nominal heating
15 Power output heating
16 Gases which may be used
17 Ambient operating temperature
18 Max. central heating temperature
26-05-2015
S/N 0000000KE000000000000
00
100% min.
η η
= =
MAX MIN
Q(Hi)
P
P
60/80C
30/50C
gas
mbar
gas
mbar
gas
mbar
0000000KE000000000000
0000000KE000000000000
0000000KE000000000000
6
0000000KE000000000000
5
0000000KE000000000000
4
0000000KE000000000000
3
0000000KE000000000000
2
0000000KE000000000000
1
PCT
0000000 KE 000000000000
26-5-2015 13:07:34
12
345
6
7
8
9
10
11
12
13
14
15
16
17
18
General regulations
Data plate
Symbols used on the data plate
1Brand
2Country of origin
3Boiler model - Serial number
4Commercial reference
5Cercaon number
6Desnaon country
- Gas category
7Gas seng
8Installaon type
9Electrical data
10 Factory sengs
11 Maximum water pressure
12 Boiler type
13 NOx class / Eciency
14 Input rang nominal heang
15 Power output heang
16 Gases which may be used
17 Ambient operang temp.
18 Max. central heang temp.
Operang principle
The SUPAo EVO is a fully modulat-
ing boiler.
The control unit of the boiler adapts
the modulaon rao automacally
to the heat demand requested by
the system. This is done by control-
ling the speed of the fan. As a result,
the mixing system will adapt the gas
rao to the chosen fan speed, in
order to maintain the best possible
combuson gures and therewith
the best eciency.
The ue gases created by the com-
buson are transported downwards
through the heat exchanger and
leave the boiler at the boom into
the chimney connecon.
The return water from the system
enters the boiler in the lower sec-
on, where is the lowest ue gas
temperature in the boiler.
The water is being transported up-
wards through the heat exchanger,
in order to leave the boiler at the
ow connecon. The cross ow
working principle (water up, ue gas
down) ensures the most ecient
combuson results.
The LMS14 control unit can control
the boiler operaon based on:
• Boiler control
(stand alone operaon);
• weather compensated operaon
(with oponal outdoor sensor);
• with 0-10V external inuence
(temperature or capacity) from a
building management system.

Construcon
7
EN
Layout of the boiler
Layout of boiler
The SUPAo EVO boiler consists of
the following main components:
1 Side panel
2 Front panel
3 Adjustable feet
4 Wheel
5 Control panel (below cover)
6 Air intake connecon (under casing)
7 Flue gas connecon
8 Gas connecon
9 Flow water connecon
10 Return water connecon
11 Electrical input entries (HV/LV)
12 Viewing glass
13 Burner/1st heat exchanger assembly
14 2nd/3rd heat exchanger assembly
15 Syphon
16 Ignion and ionisaon electrodes
17 Filling/draining valve
18 Condens tray
19 Fan
20 Gas/air mixing system
21 Gas valve / Gas pressure switch
22 2nd (hot) return water connecon
(for split system use, accessory)
Construcon
4
1
3
8
9
6
5
7
10
2
3
3
4
4
11
12
13
14
15
16
17
17
1920 21
18
22

Technical data
8
Measure
unit
SUPAo EVO
SF61 SF62 SF63
Nominal heat output at 80/60ºC max/min
kW 142,3/31,3 190,4/42,0 237,6/47,0
Nominal heat output at 40/30ºC max/min
kW 151,2/35,4 202,3/47,4 252,3/53,4
Nominal heat input Hi max/min
kW 145,0/32,2 194,0/43,1 242,0/48,4
Eciency at 80/60ºC
%98,2 98,2 98,2
Eciency at 40/30ºC
%104,3 104,3 104,2
Annual eciency (NNG 40/30ºC)
%110,4 110,4 110,4
Max. condensate ow
l/h 9,2 12,4 15,4
Gas consumpon G20 max/min (10,9 kWh/m3)
m3/h 13,3/3,0 17,8/4,0 22,2/4,4
Gas consumpon G25 max/min (8,34 kWh/m3)
m3/h
17,4/3,9 23,3/5,2 29,0/5,8
Gas consumpon G31 max/min (12,8 kWh/kg)
kg/h 11,3/2,5 15,2/3,4 18,9/3,8
Gas pressure G20
mbar
20
Gas pressure G25
mbar 25
Gas pressure G31
mbar
30/50
Maximum gas pressure
mbar 50
Max. temperature ue gas
°C 90
Flue gas temperature at 80/60ºC max/min
°C 75/58 75/58 75/58
Flue gas temperature at 40/30ºC max/min
°C
54/30 54/30 55/30
Flue gas quanty max/min H-gas
m3/h 188/43 251/57 313/64
CO2 level G20/G25 max/min
%
10,2/9,4 ±0,2 (Restricon type 570 delta max/min ≥0,8%)
CO2 level G31 max/min
% 11,9/10,0 ±0,2
NOx 80/60ºC max/min
mg/kWh
38/19 38/19 36/18
CO 80/60ºC max/min
mg/kWh 14/3 14/3 14/5
Max. permissible ue resistance max/min
Pa 200/10 200/10 200/10
Water volume
l 26 31 33
Water pressure max/min
bar 8/1
Max. water temperature (High limit thermostat)
°C 100
Maximum temperature setpoint
°C 90
Nominal water ow at dT=20K
m3/h 6,1 8,1 10,1
Hydraulic resistance at nominal water ow
kPa 11,2 26,8 31,2
Electrical connecon
V 230/400
Frequency
Hz 50
Mains connecon fuse
A 16
IP class IP20
Power consumpon boiler max/min (excl. pump)
W 176/48 267/48 286/53
Power consumpon speed controlled pump (opt)
W
190/9 190/9 310/12
Weight (empty)
Kg 290 332 366
Sound Power Level (LWA)
dB
70,3 70,3 70,3
Ionisaon current average
μA 10,0/4,5
pH value condensate
-
3,2
CE cercaon code
- CE - 0063CQ3970
Water connecons
- R2” R2” R2”
Gas connecon
-
R1.1/2” R1.1/2” R1.1/2”
Flue gas connecon (DN)
mm 150 150 200
Air intake connecon (for room sealed use) (DN)
mm 130 130 130
Condensate connecon
mm
32
Technical data

Technical data
9
EN
Measure
unit
SUPAo EVO
SF64 SF65 SF66 SF67
Nominal heat output at 80/60ºC max/min
kW 285,7/56,5 381,3/75,2 476,7/94,6 540,2/120,0
Nominal heat output at 40/30ºC max/min
kW 303,3/64,2 404,3/85,6 505,2/106,9 572,8/135,1
Nominal heat input Hi max/min
kW 291,0/58,2 388,0/77,6 485,0/97,0 550,0/122,2
Eciency at 80/60ºC
%98,2 98,3 98,3 98,2
Eciency at 40/30ºC
%104,2 104,2 104,2 104,2
Annual eciency (NNG 40/30ºC)
%110,4 110,4 110,4 110,3
Max. condensate ow
l/h
18,5 24,7 30,7 34,8
Gas consumpon G20 max/min (10,9 kWh/m3)
m3/h
26,7/5,3 35,6/7,1 44,5/8,9 50,5/11,2
Gas consumpon G25 max/min (8,34 kWh/m3)
m3/h
34,9/7,0 46,5/9,3 58,2/11,6 65,9/14,7
Gas consumpon G31 max/min (12,8 kWh/kg)
kg/h 22,7/4,5 30,3/6,1 37,9/7,6 43,0/9,5
Gas pressure G20
mbar 20
Gas pressure G25
mbar
25
Gas pressure G31
mbar 30/50
Maximum gas pressure
mbar 50
Max. temperature ue gas
°C 90
Flue gas temperature at 80/60ºC max/min
°C
75/58 75/59 75/59 76/58
Flue gas temperature at 40/30ºC max/min
°C 55/30 56/30 56/30 56/30
Flue gas quanty max/min H-gas
m3/h 377/77 502/102 628/128 712/161
CO2 level G20/G25 max/min
% 10,2/9,4 ±0,2 (Restricon type 570 delta max/min ≥0,8%
CO2 level G31 max/min
% 11,9/10,0 ± 0,2
NOx 80/60ºC max/min
mg/kWh 36/18 34/17 37/18 40/19
CO 80/60ºC max/min
mg/kWh
14/5 14/8 16/5 18/1
Max. permissible ue resistance max/min
Pa 160/10 400/10 300/10 400/10
Water volume
l
60 63 71 77
Water pressure max/min
bar 8/1
Max. water temperature (High limit thermostat)
°C 100
Maximum temperature setpoint
°C 90
Nominal water ow at dT=20K
m3/h 12,2 16,3 20,3 23,1
Hydraulic resistance at nominal water ow
kPa 11,9 32,3 34,3 57,1
Electrical connecon
V 230/400
Frequency
Hz 50
Mains connecon fuse
A 16
IP class
IP20
Power consumpon boiler max/min (excl. pump)
W 230/50 504/54 620/64 676/61
Power consumpon speed controlled pump (opt)
W 310/12 470/25 590/25 800/38
Weight (empty)
Kg 434 496 540 595
Sound Power Level (LWA)
dB 70,3 77,3 77,3 77,3
Ionisaon current average
μA
10,0/4,5
pH value condensate
- 3,2
CE cercaon code
- CE - 0063CQ3970
Water connecons
- DN65PN16
Gas connecon
- R1.1/2” R1.1/2” R2" R2"
Flue gas connecon (DN)
mm 200 250 250 250
Air intake connecon (for room sealed use) (DN)
mm
130 130 150 150
Condensate connecon
mm
32

Technical data
10
Product informaon E.r.P.
Product informaon about the direcve 2009/125/EG and regulaon (EU) 813/2013
SUPAo EVO Icon Unit SF61 SF62 SF63 SF64 SF65
Condensing boiler - - Yes Yes Yes Yes Yes
Low-temperature boiler - - No No No No No
B1 boiler - - No No No No No
Cogeneraon space heater - - No No No No No
Combinaon heater - - No No No No No
ErP Heang
Rated heat boiler Prated kW 140 190 237 286 381
At rated heat output and high-tem-
perature regime P4 kW 142,3 190,4 237,6 285,7 381,3
At 30% of rated heat output and
lowtemperature regime 1) P1 kW 47,5 63,5 79,3 95,3 127,1
Seasonal space heang energy
eciency hs % 93,4 93,5 93,6 93,6 93,6
At rated heat output and high-tem-
perature regime 2) h4 % 88,4 88,4 88,4 88,4 88,5
At 30% of rated heat output and low
temperature regime 1) h1 % 98,3 98,3 98,3 98,3 98,3
Auxiliary electricity consumpon
At full load elmax kW 176 267 286 230 504
At rated heat output and high-tem-
perature regime elmin kW 53 53 53 70 70
At 30% of rated heat output and
lowtemperature regime 1) PSB kW 8 8 8 8 8
Supplementary heater
Standby heat loss Pstby kW 286,4 286,4 286,4 309,6 309,6
Ignion burner power consumpon Pign kW 0 0 0 0 0
Emissions of nitrogen oxides NOXmg/kWh 38 38 36 36 34
1) by return temperature 30°C
2) by ow temperature and return temperature (80-60°C)

Technical data
11
EN
746
1470
1460
L1
L2
374 149
129129
G
W1
W2
S
A
1152
1131
967
W3
723
601
490
178
0
D
466
1457 1467
L1
L2
234,25 131
104104
178
0
D 482
602
723
967
W3
1124
1130
G
W1
W2
S
A
Dimensions
SUPAo EVO -
Models: SF61 - SF62 - SF63
SUPAo EVO -
Models: SF64 - SF65 - SF66 - SF67
SUPAo EVO
model
SF61 SF62 SF63 SF64 SF65 SF66 SF67
L1 [mm] 1349 1499 1649 1348 1496 1646 1769
L2 [mm] 1165 1315 1465 1152 1302 1452 1602
A [mm] 130 150
G1 ½ ” 2 “
D [mm] �150 �150 �200 �200 �250
S [mm] 32
W1 2 “ DN65 PN16

12
Extent of delivery
Standard boiler
A boiler delivery package contains
the following components:
Component Pcs. Package
Boiler fully assembled and tested 1Mounted on pallet and sealed in PE foil
Syphon for condensate connecon 1Inside boiler packaging
Operaon and Installaon manual 1Map aached to back panel of the boiler
Conversion kit for I3P and I3B/P
incl. instrucons
1Inside boiler packaging
Standard boiler
Accessories
Extent of delivery
Accessories
Addional to the boiler, the fol-
lowing accessories can be ordered:
• Speed controlled pump.
• Safety valve, manometer and
deaerator (3 and 6 bar).
• 2x max. water pressure switch
and 1 external high limit ther-
mostat.
• Gas lter incl. connecon kit.
• Max. gas pressure switch.
• External high limit thermostat.
• Gas valve leakage tester.
• 2nd Return connecon for Split
System use.
• Bypass (incl. pump)
• Plate heat exchanger
(dT=10K/15K or dT=20K)
• Low velocity header, suitable
for dT=10K/15K and dT=20K
• Duo header for connecng 2
boilers in cascade.
Extension module AVS75 for heang
zone control or external gas valve
and/or room fan controlFor each
boiler a maximum of 3 AVS75 mo-
dules (2x heang zone, 1x ext. gas
valve / room fan) can be integrated
in the boiler.
• Addional RVS63 heang zone
controller, when controlling
more than 2 zones.
The above accessories are specially
designed for the SUPAo EVO boiler
and therewith easy to install (plug
and play).
By choosing a combinaon of the
kits menoned above, you can cre-
ate your own complete system solu-
on.
Ask your supplier for more detailed
informaon.

Installaon
13
EN
Boiler transport
The SUPAo EVO boiler will be
supplied as a complete unit being
fully assembled and pre-tested.
The maximum width is 466 mm for
models SF61-SF63 EVO and 746 mm
for models SF64-SF67 EVO, which
makes it possible to transport all
models through a normal door in
one piece. The boiler can be trans-
ported by using the wheels or with a
pallet truck, entering only from the
side.

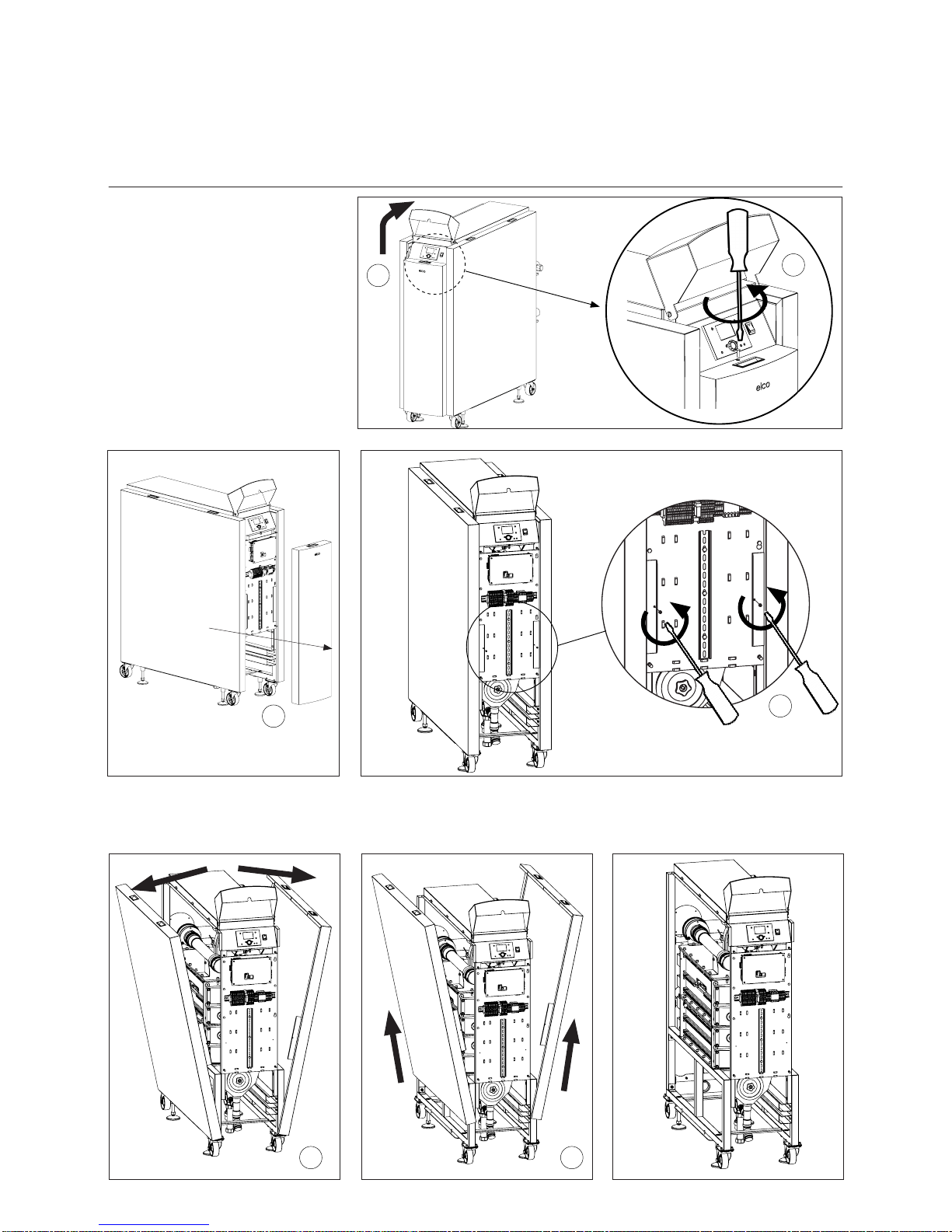

Whenever necessary, the boiler can
be dismantled into smaller parts for
easier transport inside the building.
The table below shows the main dis-
mantled parts with their weight and
dimensions.
When the boiler has to be trans-
ported with a crane, it is necessary
to remove the casing before con-
necng the boiler to the crane. Al-
ways connect the crane to the frame
of the boiler by using straps.
Component
SF61 SF62 SF63 SF64 SF65 SF66 SF67
Burner/1st heat
exchanger assembly
Weight [kg]
Length [mm]
Width [mm]
Height [mm]
90
735
400
321
110
885
400
321
120
1035
400
321
140
735
680
321
160
885
680
321
190
1035
680
321
200
1185
680
321
2nd/3rd heat exchanger as-
sembly
Weight [kg]
Length [mm]
Width [mm]
Height [mm]
100
735
400
244
110
885
400
244
120
1035
400
244
160
735
680
244
170
885
680
244
200
1035
680
244
220
1185
680
244
Condens tray
Length [mm]
Width [mm]
Height [mm]
589
385
225
739
385
225
889
385
225
589
665
225
739
665
225
889
665
225
1039
665
225
Frame
Length [mm]
Width [mm]
Height [mm]
990
624
335
1140
624
335
1350
624
335
1100
724
335
1320
724
335
1470
724
335
1620
724
335
Boiler transport
Installaon
1
2
3
3
3
1. Hoisng belt
2. Wooden retaining beam
3. Hoisng belt posion

Installaon
14
Disassemble the casing
Disassemble the casing before
transporting the boiler. Disas-
sembling the casing is done ac-
cording the following steps.
For re-assembly of the casing
the same steps have to be tak-
en but reversed.
Starting with the top casing.
Make sure the earth cable and
screws are re-assembled
as they ensure a safe operat-
ing condition!
Disassemble the casing
12
34
5 6

Installaon
15
EN
Disassemble the casing
7
8
9

Installaon
16
Warnings before installaon
Boiler installaon
Boiler installaon
The boiler should be posioned in a
frost-proof boiler room. If the boiler
room is on the roof, the boiler itself
may never be the highest point of
the installaon.
When posioning the boiler, please
note the recommended minimum
clearance in the picture. When the
boiler is posioned with less free
space, maintenance acvies will be
more dicult.
To opmize the posion of the boiler
in the room it is possible to exchange
the posion of the electrodes from
the right side of the boiler to the le
side of the boiler.
This also means that the required
space as indicated in the picture will
be mirrored.
Normal: Le 250mm / Right 450mm
Modied: Le 450mm / Right 250mm
Once the boiler is in the correct
posion, the adjustable feet (2)
(with vibraon absorpon damp-
ers) should be adjusted to the right
Installaon, rst ignion, maintenance and boiler repair, must be performed by qualied
persons, according to the naonal installaon provisions and any requirements of the local
authories and public health agencies.
Before installing the appliance
Before connecng the boiler, it is
rst necessary to perform the fol-
lowing operaons:
• Carefully wash the system pip-
ing in order to remove any screw
thread or welding residues, or
any dirt which might prevent the
boiler from operang correctly;
• Make sure that the boiler is set
up for operaon with the type of
gas available (read the informa-
on on the packaging label and
on the boiler data plate);
• Make sure that there are no ob-
stacles inside ue exhaust and
that it does not contain any dis-
charge from other appliances,
unless the ue is meant to serve
more than one boiler (in accord-
ance with current legal require-
ments);
• Where there is already a con-
necon to exisng ue exhausts,
check that these exhausts have
been perfectly cleaned and are
without residues, because any
disconnecon could obstruct the
passage of fumes and create po-
tenally dangerous situaons;
• In areas with parcularly hard
water, limescale may build up on
the components inside the boiler
and reduce its overall eciency;
• In case of installaon near wall
sensive to heat (for example
wood) make sure to protected it
by suitable insulaon;
WARNING!
No ammable items should be le
near the boiler. Make sure the in-
stallaon site and any systems to
which the appliance must be con-
nected are fully compliant with
the current applicable legislaon.
Install the boiler respecng the
minimum distances from any am-
mable materials. If dust and/or ag-
gressive vapours are present in the
room in which it is to be installed,
the appliance must operate in-
dependently of the air inside the
room.
2
800
250450
450
height and the boiler should be hor-
izontal. Ensure that the wheels are
not in contact with the oor!
Water and gas connecons should
be done aer adjusng the feet, as
they aect the exact height of all
connecons.

Installaon
17
EN
Connecng the boiler
Connecng the boiler
This chapter will explain how to
make all connecons to the boiler
with regard to:
• Hydraulic connecons
• Condensate drain connecon
• Gas connecon
• Flue gas connecon
• Air intake connecon
(under casing)
• Electrical connecon
The boiler should always be con-
nected in such a way, that the sys-
tem applies to all relevant standards
and regulaons (European, naonal
and local). It’s the responsibility of
the installer to ensure that all stand-
ards and regulaons are respected.
Hydraulic connecons
The boiler should always be con-
nected in such a way, that water
ow through the boiler can be en-
sured at all mes.
Connect the ow (4) and return
(5) of the boiler tension free to the
system.The (oponal) 2nd return
kit allows the boiler to be used in a
system with two return circuits. The
common return becomes the low
temperature return, the 2nd return
connecon (6) is the high tempera-
ture return.
The (oponal) accessory kit with
safety valve, manometer and deaer-
ator should be mounted on the ow
connecon (4) of the boiler, before
connecng to the system.
The (oponal) pump kit should be
mounted directly to the return con-
necon (5) of the boiler, before con-
necng to the system.
Condensate connecon
The syphon (included in delivery)
should be installed to the connec-
on at the boom of the condens
tray (7).
Lead the pipe through the hole at
the back (8) of the boiler and con-
nect it to the draining system in the
boiler room. The connecon to the
draining system should always be
done with an open connecon, in
order to avoid a ooding of the boil-
er in case of a blocked drain.
Gas connecon
The gas connecon must be made
by an authorized installer in accord-
ance with the applicable naonal
and local standards and regulaons.
Connect the gas line from the sys-
tem tension free to the gas connec-
on (1) of the boiler. A gas isolang
valve should be mounted directly
behind the boiler.
A gas lter can be mounted directly
on the gas connecon of the boiler.
3
1
4
55
2
8
6
7

Installaon
18
Requirements and regulaons
Regulaons for the construcon of
ue gas systems are very dierent
for each country. It should be en-
sured that all naonal regulaons
with regard to ue gas systems are
respected.
Pay aenon to the following rec-
ommendaons when dimensioning
a ue gas system.
Only approved ue gas material may
be used.
The ue gas system must be prop-
erly calculated to ensure a safe func-
oning of the system.
Flue gas system components should
be removable for maintenance pur-
poses.
You have to take in consideraon the
following material requirements.
Materials
Exclusively materials which are heat
resistant and resistant to ue gases
and aggressive condensate, and CE
approved may be used.
In parcular for ue gas system see
the following data.
Air/Flue gas system
Plasc
PP*
Stainless
steel
Temperature
class: T120 T250
Pressure
class P1 P1
Corrosion
class: W1 W1
* Use material with “E” reacon top
re class, as minimum.
FLUE GAS DATA
Boiler
type
Nominal heat
output
Nominal heat
input
Flue
gas
connecon
CO 2
Level
Flue gas tem-
perature
Flue gas
quanty
Max
permissible
ue resistan-
ce
SUPAo
EVO
kW kW mm %°C g/s Pa
max min max min max min max min max min max min
SF61 142.3 31.3 145.0 32.2 150
10.2
± 0.2
9.4
± 0.2
75
± 2
60
± 2
53.7 12.8 200 10
SF62 190.4 42.0 194.0 43.1 150 71.9 17.1 200 10
SF63 237.6 47.0 242.0 48.4 200 89.6 19.2 200 10
SF64 285.7 56.5 291.0 58.2 200 107.8 23.0 160 10
SF65 381.3 79.6 388.0 80.5 250 143.7 30.7 400 10
SF66 476.7 94.6 485.0 97.0 250 179.7 38.4 300 10
SF67 540.2 120.0 550.0 122.2 250 203.7 48.4 484 10

Installaon
19
EN
Air intake connecon
The air intake can be connected in
case of room sealed installaon.
The cover (3) must be disassembled
in order to connect the air intake
piping to the connector inside the
boiler.
The diameter should be calculated
according to the naonal regula-
ons, together with the ue gas
system. The total resistance of both
systems should never overcome the
maximum permissible resistance of
the fan inside the boiler (see also
chapter: Technical data).
Flue gas connecon
Connect the ue gas system to the
ue gas connecon (4) of the boiler,
use ue gas systems with seamless
connecons only. It’s not neces-
sary to make a separate condensate
drain for the ue gas system, as the
condensate will be drained via the
syphon of the boiler. Please note the
following issues:
• The diameter of the ue gas sys-
tem must be chosen by calcula-
on according to the naonal
regulaons.
• Construct the ue gas system as
short as possible (for maximum
length see page20).
• Construct horizonal ways with a
minimum angle of 3°.
Connecng the ue
The ue gas system must not be in
contact with or placed near am-
mable materials, and must not cross
building structures or walls made us-
ing ammable material.
This boiler has an integrated high
limit thermostat funcon for the
ue gases. When the ue gas tem-
perature exceeds 90 °C, the burner is
switched o. With this funcon, an
addional (external) safety device is
not necessary.
When replacing an old boiler, the
venlaon and ue gas exhaust sys-
tem must always be replaced.
The ue gas system should be cre-
ated using a male/female coupling
and a seal. Couplings should always
be arranged so that they go against
the direcon of the condensate ow.
3Legend:
1. Gas Connecon
2. Electrical connecon
3. Air intake connecon
4. Flue gas connecon
1
4
1
4
3
SUPAo EVO -
Models: SF61 - SF62 - SF63
SUPAo EVO -
Models: SF64 - SF65 - SF66 - SF67
2
2

Installaon
20
Combuson air
drawn from the
room
B23 External ue gas exhaust. Air drawn from the room
Combuson
air intake from
cascade
C63
Air and exhaust connecon to separate tested and supplied air /
exhaust pipes.
Basement / oor installaon.
Air and exhaust venng via exterior wall.
Exhaust venng through heat insulated exhaust pipe or moistu-
re-resistant pipe.
Exhaust line (standing air layer) at exterior wall.
The terminals for the supply of combuson air and for the eva-
cuaon of combuson products shall not be installed on opposi-
te walls of the building.
Dimensioning single
Dimensioning
When dimensioning a ue gas sys-
tem, it’s necessary to perform a cal-
culaon check of the ue gas sys-
tem in order to verify if the choosen
system is applicable.
The following table shows two ex-
amples of possible ue gas systems,
including the maximum possible
length of the system.
These examples only give an indica-
on of the possible length, but they
can not be used for ocial ue gas
layout calculaon. Each ue gas sys-
tem must be calculated by an au-
thorized company.
The maximum negave ue gas
pressure, which doesn’t aect the
burner modulaon rao, is 30 Pa.
Higher negave pressure will lead to
limitaon of the burner modulaon
rao.
The maximum horizontal ue gas
way is 20 m. With horizontal ways
longer than 20 m, a faultless burner
start in cold condion can not be
guaranteed.
Calculaon base:
Total connecon length in boiler room ≤ 1.5 m; 2x
87°-bend
Maximum permissible lenght (m) of ue gas system
Boiler Type Ø130 Ø150 Ø200 Ø250 Ø300
SF61 50 50 50
SF62 40 50 50
SF6346 50 50
SF64 22 50 50
SF65 50 50 50
SF66 50 50 50
SF67 50 50 50
Max length reducon • 90°/87° bend: -2,5 meters
• 45°/43° bend: -1,5 meters
Flue gas system
