Anga AQ-5604LAHD User manual

XVR Fast Operation User Manual V3.1
Welcome
Thank you for purchasing our XVR!
This manual is designed to be a reference tool for the installation and operation of
your system. Here you can find information about this series XVR features and
functions, as well as a detailed menu tree. Before installation and operation please
read the following safeguards and warnings carefully!
Important Safeguards and Warnings
Do not place heavy objects on the XVR.
Do not let any solid or liquid fall into or infiltrate the XVR.
Please brush printed circuit boards, connectors, fans, machine box and so on
regularly. Before the dust cleaning please switch off the power supply and unplug it.
Do not disassemble or repair the XVR by yourself. Do not replace the components by
yourself.
Environment
Please place and use the XVR between 0℃and 40℃.Avoid direct sunlight. Stay
away from heat source.
Do not install the XVR in damp environment.
Do not use the XVR in smoky or dusty environment.
Avoid collision or strong fall.
Please insure the XVR level installation in a stable workplace.
Please install in ventilated place. Keep the vent clean. Use within the rating input and
output scope.
XVR refers to the device may be DVR, HVR, NVR, SVR.
1

Overview
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit.
Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.
(1) Read these instructions.
(2) Keep these instructions.
(3) Heed all warnings.
(4) Follow all instructions.
(5) Do not use this apparatus near water.
(6) Clean only with dry cloth.
(7) Do not block any ventilation openings, Install in accordance with the
manufacturer’s instructions.
(8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
(9) Do not defeat the safety purpose of the polarized or grounding- type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. if the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete
utlete.
(10) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
(11) Only use attachments/accessories specified by the manufacturer.
(12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.
(13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
(14) Refer all servicing to qualified service personnel. Servicing is required
2

when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
BEFORE START
This manual provides operational information necessary for using the
product and contains a description about each component part and its
function as well as menu or network settings.
You have to keep in mind the following notices:
We are not liable for any or all losses to the product incurred by your use of
non-standard product or violation of instructions mentioned in this manual.
Prior to opening the case, please consult a qualified technician first.
Whenever this is needed power must be removed from the unit.
Before installing additional HDD or connecting the SATA device to this
product, check if it is compatible with the product.
WARNING
Battery
It is essential that when changing the battery in the unit, the replacement
battery must be of the same type otherwise there may be a possibility of an
explosion. The following are the specifications of the battery you are using
now.
Normal voltage : 3V
Normal capacity : 220mAh
Discharge Current : 0.2mA
Operating temperature : -20°C ~ +85°C (-4°F ~ +185°F)
Caution
Connect the power cord into a grounded outlet.
The Mains plug is used as a disconnect device and shall stay readily
operable at any time.
Batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.
Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of
3

Used Batteries According to the Instructions.
System Shutdown
Turning off the power while the product is in operation, or undertaking
improper actions may cause damage or malfunction to the hard drive or
the product.
To safely cut off power, press the front Power button on the product to
display the confirmation message. Click <OK> and then unplug the power
cable.
You may want to install a UPS system for safe operation in order to prevent
damage caused by an unexpected power stoppage. (Any questions
concerning UPS, consult your UPS retailer.)
Operating Temperature
The guaranteed operating temperature range of this product is 0°C ~ 40°C
(32°F ~ 104°F)
This product may not work properly if you run right after a long period of
storage at a temperature below the guaranteed one.
Prior to using a device that has been stored for a long period in low
temperatures, allow the product to stand at room temperature for a period.
Especially for the built-in HDD in the product, its guaranteed temperature
range is 5°C ~ 55°C (41°F ~ 131°F)
Likewise, the hard drive may not work at a temperature below the
guaranteed one.
Ethernet Port
This equipment is in door use and all the communication wirings are limited
to inside of the building.
Security Precautions
The default password can be exposed to a hacking thread so it is
recommended to change the password after installing the product.
Set password for your wireless network if you use the product with a
wireless router.
Being not protected with password or using the default wireless router
password may expose your video data to potential threat.
Note that the security and other related issues caused by the unchanged
password shall be responsible for the user.
4

FEATURES
The product compresses camera inputs from 4/8/16/24/32 channels with
H.264 video codec, and supports simultaneous recording and playback
of 8/16-channel audio input to/from HDD. These XVR also supports
network connectivity, providing remote monitoring from a remote PC
transferring video and audio data.
Provides a convenient User Interface 4/8/16/24/32 CH Composite Input
Connectors
Supports CIF(S)/2CIF(M)/4CIF(L)/WD1 recording formats
With the network specific codec, network transfer enabled regardless of
the recording conditions
Display of HDD information and status by using HDD SMART
HDD overwrite function
Mass storage HDD backup through high-speed USB 2.0
Simultaneous Record and Playback of 8/16-channel video data
Various Search Modes (Time, Event, Backup, Pos, Motion Detection)
Various Recording Modes (Manual, Event, Scheduled Recording)
Alarm Interface
Remote Monitoring function by Network Viewer, Smart Viewer and Mobile
Viewer
Supports coaxial protocols
Tampering Detection
PACKAGE CONTENTS
Please unwrap the product, and place the product on a flat place or in
the place to be installed.
Please check the following contents are included in addition to the
main unit.
5

num Button Part Names Functions
1 Power Press to perform startup,
shutdown operation.
2 2 USB interface External USB storage device,
mouse, burner, and so on.
3 Jog foreign key Real-time monitoring when left
and right direction keys.
PART NAMES AND FUNCTIONS (FRONT)
Our XVR has multiple series, different series have different front and rear
panel, and even the same family also may be different.
The following uses the F-Series front as an example to illustrate.
6

4 Speed down Video file playback, a variety of
slow speed, and normal
playback.
5 Speed up Video file playback, a variety of
fast speed, and normal
playback.
6 Rewind / pause
Forward playback or playback
pause, press the button
backward playback.
Backward playback, press this
button to pause playback.
7 Play / Pause
Press the button forward
playback.
Pause playback.
Pause resume playback
In real-time monitoring status,
press this key to directly enter
video search menu.
8 Last video Play the video before current
video
9 Next video Play the video next
10 Numeric keys Input Digital Channel
switching
11 Arrow keys
The current activated control
switch, can be moved up or
down
Change the settings, change in
number
12 Indicator Show the system current
status
PART NAMES AND FUNCTIONS (REAR)
The following uses the F-Series rear panel as an example to illustrate.
7

Part Names Functions
1 ATX power interface
2 Fan outlet
3 16 channel loop out
4 VGA video out
5 SDI Video out
6 Ethernet interface
7 1 USB interface
8 16 Alarm in / 16 Alarm out
9 1 Audio out
10 2 BNC video out
11 16 channel video in
12 16 channel Audio in
REMOTE CONTROL
8

Serial
number Name Function
1 Multi-window button Same function as Multi-window button
in the front panel
2 Numeric button Code input/number input/channel
switch
3 <Esc> Same function as<Esc>button in the
front panel
4 Direction button Same function as direction button in
the front panel
5 Record control Control the record
6 Record mode Same function as “Record mode”
7 ADD Input the number of XVR to control it
8 FN Assistant function
Using the Numeric Buttons
Changing the Remote Control ID
———————————————————————————————————————————————————————————————————————---------
1. Press the <ID> button of the remote control and check the ID displayed on
the XVR screen. The factory default ID of the remote control is 00.
2. Enter 2 digits of your selection in order, while pressing the system <ID>
button.
3. When ID input is done, press the system <ID> button again to check the
setting.
9

CONNECTING EXTERAL DEVICES
Connecting the USB
——————————————————————————————————————————————————————————————————————————
(1) by factory default, a USB port is provided for external connection.
(2) you can connect a USB HDD, USB CD/DVD player, USB memory or
mouse to the USB port.
(3) If a USB HDD is connected to the system, recognition and settings are
available in “Main Menu” “Device” “Storage Device”.
(4) the product supports hot plugging function that enables
connecting/disconnecting USB devices while in operating the system.
Connecting External SATA HDD
——————————————————————————————————————————————————————————————————————————
External SATA port is provided on the rear panel.
If connected to the system, the external SATA HDD can be recognized and
configured in “Main Menu” “Device” “Storage Device”.
Connecting the Alarm Input/output
——————————————————————————————————————————————————————————————————————————
The Alarm In/Out port at the back is composed of the following.
10

ALARM IN 1 ~ 8 : Alarm Input Port.
ALARM RESET: On receiving an Alarm Reset signal, the system cancels
the current Alarm Input and resumes sensing.
ALARM OUT 1 ~ 4 : Alarm Output Port.
Connecting the RS-485 Device
———————————————————————————————————————————————————————————————————————
Connect the <TX/RX +, –> device through the back port.
Connecting the Network
———————————————————————————————————————————————————————————————————————
(1) Connecting to Network through Ethernet
11

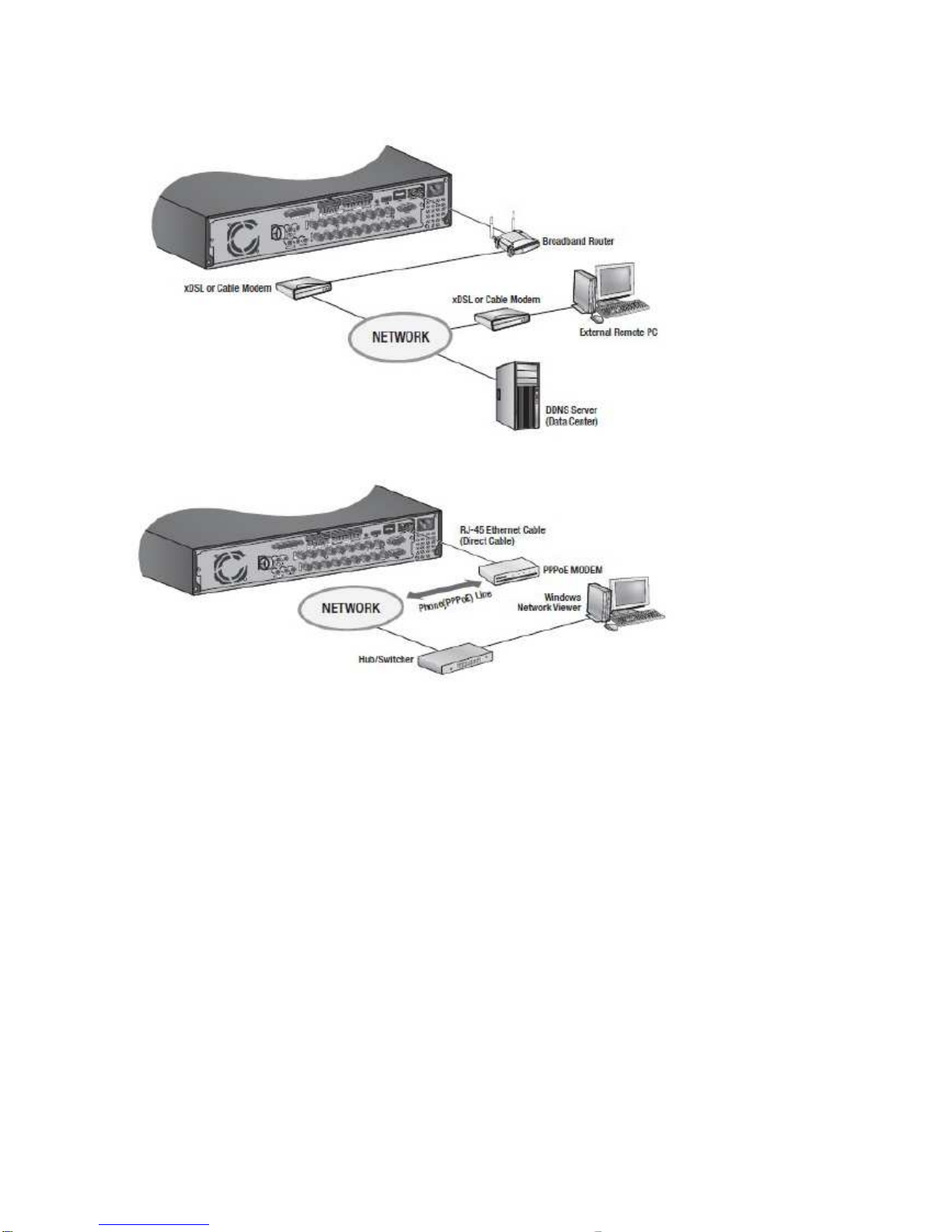

(2) Connecting to the Network using the router
(3) Connecting to Network through PPPoE
12

Contents
1 Production Introduction .................................................................................................................................. 1
1.1 Product Overview ................................................................................................................................ 1
1.2 Main Functions .................................................................................................................................... 1
2 Open-package Check and Cable Connections ................................................................................................ 3
2.1 Open-package Check ........................................................................................................................... 3
2.2 Hard Disk Installation.......................................................................................................................... 4
2.3 Audio and Video Input and Output Connections ................................................................................. 4
2.3.1 Video Input Connections .......................................................................................................... 4
2.3.2 Video Output Connections and Options................................................................................... 5
2.3.3 Audio Signal Input..................................................................................................................... 5
2.3.4 Audio Signal Output.................................................................................................................. 5
2.4 Alarm Input and Output Connections .................................................................................................. 6
2.4.1 Alarm Input Port Specification.................................................................................................. 7
2.4.2 Alarm Output Port Specification ............................................................................................... 7
2.5 Speed Dome Connections.................................................................................................................... 7
3 Basic Operation .............................................................................................................................................. 8
3.1 Turn On................................................................................................................................................ 8
3.2 Turn Off............................................................................................................................................... 8
3.3 System Login ....................................................................................................................................... 9
3.4 Preview ................................................................................................................................................ 9
3.5 Desktop Shortcut Menu ..................................................................................................................... 10
3.5.1 ain enu ............................................................................................................................. 11
3.5.2 Playback .................................................................................................................................. 11
3.5.3 Record ode........................................................................................................................... 15
3.5.4 Alarm Output .......................................................................................................................... 16
3.5.5 PTZ Control.............................................................................................................................. 16
3.5.6 Color Setting ........................................................................................................................... 22
3.5.7 Output Adjust.......................................................................................................................... 23
3.5.8 Logout ..................................................................................................................................... 23
3.5.9 Window Switch ....................................................................................................................... 23
4 Main Menu ................................................................................................................................................... 24
4.1 Main Menu Navigation...................................................................................................................... 24
4.2 Record................................................................................................................................................ 26
4.2.1 Record Config.......................................................................................................................... 26
4.2.2 Snapshot Storage .................................................................................................................... 27
4.2.3 Playback .................................................................................................................................. 29
4.2.4 Backup..................................................................................................................................... 29
4.3 Alarm Function .................................................................................................................................. 30
4.3.1 otion Detect......................................................................................................................... 30
4.3.2 Video Blind.............................................................................................................................. 33
4.3.3 Video Loss............................................................................................................................... 34
4.3.4 Alarm Input ............................................................................................................................. 35
4.3.5 Alarm Output .......................................................................................................................... 35
4.3.6 Abnormal ................................................................................................................................ 35
4.4 System Setup ..................................................................................................................................... 36
4.4.1 General.................................................................................................................................... 36
4.4.2 Encode Setup .......................................................................................................................... 38
4.4.3 Network Setup ........................................................................................................................ 39
4.4.4 Net Service.............................................................................................................................. 40
4.4.5 GUI Display.............................................................................................................................. 46
4.4.6 PTZ Setup ................................................................................................................................ 48
4.4.7 RS232 Setup ............................................................................................................................ 49
I

4.4.8 Tour Setup............................................................................................................................... 49
4.4.9 Digital Channel anager ........................................................................................................ 50
4.5 Advanced ........................................................................................................................................... 55
4.5.1 HDD manage ........................................................................................................................... 55
4.5.2 Account ................................................................................................................................... 56
4.5.3 Online User ............................................................................................................................. 59
4.5.4 TV Adjust................................................................................................................................. 59
4.5.5 Auto aintain ......................................................................................................................... 59
4.5.6 Restore .................................................................................................................................... 60
4.5.7 Upgrade................................................................................................................................... 60
4.5.8 Device Info .............................................................................................................................. 61
4.6 Info..................................................................................................................................................... 61
4.6.1 HDD Info.................................................................................................................................. 61
4.6.2 BPS .......................................................................................................................................... 62
4.6.3 LOG.......................................................................................................................................... 62
4.6.4 Version .................................................................................................................................... 63
4.7 Shut down System ............................................................................................................................. 63
5 CMS Software Operation ............................................................................................................................. 64
5.1 Installation Instruction ....................................................................................................................... 66
5.2 Introduction of Basic Functions......................................................................................................... 67
5.2.1 Preview ................................................................................................................................... 71
5.2.2 Right‐click enu ..................................................................................................................... 72
5.2.3 PTZ Control.............................................................................................................................. 73
5.2.4 Color Setting ........................................................................................................................... 73
5.2.5 System..................................................................................................................................... 74
5.3 Local Config ...................................................................................................................................... 76
5.3.1 Base Config ............................................................................................................................. 76
5.3.2 Alarm Setting .......................................................................................................................... 77
5.3.3 Record Plan ............................................................................................................................. 77
5.3.4 DDNS Config............................................................................................................................ 78
5.3.5 Version Info ............................................................................................................................. 79
5.4 Remote Config................................................................................................................................... 79
5.4.1 Account ................................................................................................................................... 80
5.4.2 Local Log ................................................................................................................................. 81
5.4.3 Record Playback ...................................................................................................................... 83
5.4.4 Download & Backup................................................................................................................ 83
5.4.5 E‐ AP ..................................................................................................................................... 84
6 FAQ and Maintenance .................................................................................................................................. 88
6.1 FAQ ................................................................................................................................................... 88
6.2 Maintenance....................................................................................................................................... 93
II

1 Production Introduction
1.1 Product Overview
The series XVR is designed especially for security and defense field which is
an outstanding digital surveillance product. It introduces embedded LINUX
operating system which is more stable. It introduces standard H.264mp video
compressed format and G.711A audio compressed format which insures the
high quality image, low error coding ratio and single frame playing. It
introduces TCP/IP network technology which achieves the strong network
communication ability and telecommunication ability.
The series XVR can be used individually or online applied as a part of a safety
surveillance network. With the professional network video surveillance
software it achieves the strong network communication ability and
telecommunication ability.
The series XVR can be applied in the bank, telecom, electric power system,
judicial system, transportation, intelligent housing, factory, storehouse, water
conservancy and so on.
1.2 Main Functions
Real-time Surveillance
Analog interface and VGA interface (VGA interface is equipped
selectively).
Surveillance function through monitor or display.
Storage
Non-working hard disk dormancy processing which is convenient to radiate
heat, reduce power and extend the life-span.
Special storage format which insures the data safety.
Compression
Real-time compression by individual hard disk which insures the audio and
video signal stable synchronization.
1

Backup
Through SATA interface and USB interface such as USB equipment,
removable hard disk and so on through net download the files in the hard
disk.
Playback
Individual real-time video recording as well as searching, playback,
network surveillance, recording check, downloading and so on.
Multi-playback mode.
Zoom at arbitrary region.
Net Operating
Through net tele-surveillance in the real time.
Tele-PTZ control.
Tele-recording check and real-time playback.
Alarm Linkage
Multi-route relay alarm output which is convenient for the alarm linkage
and light control at the spot protecting circuits at the alarm input and output
interface which protects the main machine from damage.
Communication Interface
RS485 interface which fulfills the alarm input and PTZ control.
Standard Ethernet network interface which fulfills the telecommuting
function.
Intelligent Operating
Mouse action function.
Fast copy and paste operating for the same setting.
2

2
Open-package
Check
and
Cable
Connections
2.1 Open-package Check
When you receive the XVR, please check first .First; please check whether
there is any visible damage to the package appearance. The protective
materials used for the package of the XVR can protect most accidental
clashes during transportation. Then, please open the box and get rid of the
plastic protective materials. Check whether there is any visible damage to the
XVR appearance. At last, please open the machine crust and check the data
wire in the front panel, power wire, the connection between the fan power and
the main board.
Front Panel and Rear Panel
The key function specification in the front panel and the interface
specification in the real panel are in the specification.
Please check the product type in the front panel whether is accordant with
the product type you order.
The label in the real panel is very important for the after service
Pleas protect it carefully When you contact us for after service
please provided the product type and serial number in the label
3

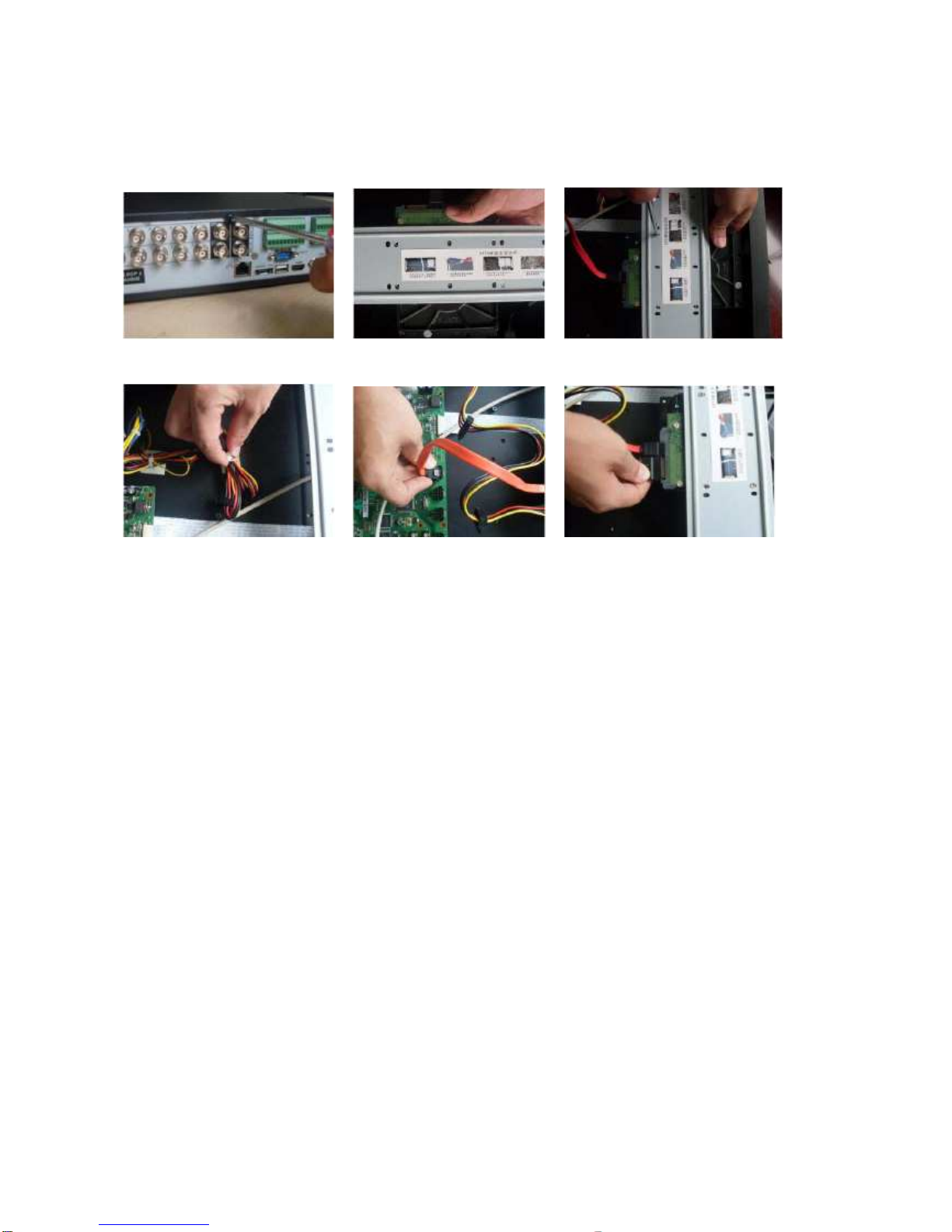

2.2 Hard Disk Installation
For the first use，please install the hard disk.
1disassemble the screw
④fix the screw of hard disk
②disassemble the cover
⑤connect the data wire
③fix the screw of hard disk
⑥connect the power wire
2.3 Audio and Video Input and Output Connections
2.3.1 Video Input Connections
The video input port is BNC connector plug. The demand of input signal is
PAL/NTSC BNC (1.0VP-P, 75Ω)
The video signal must be accorded with the state standard which has the
high signal to noise ratio, low aberration and low interference. The image
must be clear and has natural color in the appropriate brightness.
Insure the vidicon signal stable and credible
The vidicon should be installed in the appropriate location where is away
from backlighting and low illumination or adopts the better backlighting and
low illumination compensation.
The ground and power supply of the vidicon and the XVR should be
shared and stable.
Insure the transmission line stable and credible
The video transmission line should adopt high quality coaxial pair which is
4

chosen by the transmission distance. If the transmission distance is too far,
it should adopt shielded twisted pair, video compensation equipment and
transmit by fiber to insure the signal quality.
The video signal line should be away from the electromagnetic
Interference and other equipment signal lines. The high voltage current
should be avoided especially.
Insure the connection stable and credible
The signal and shield lines should be firm and connected credible which
avoid false and joint welding and oxidation.
2
.3.2 Video Output Connections and Options
The video output is divided into PAL/NTSC BNC (1.0VP-P, 75Ω) and VGA
output (selective configuration)When replace the monitor by the computer
display, there are some issues to notice.
(1) Do not stay in the turn-on state for a long time.
(2) Keep the computer display normal working by demagnetizing regularly.
(3) Stay away from the electromagnetic Interference.
TV is not a credible replacement as a video output. It demands reducing the
use time and control the power supply and the interference introduced by the
nearby equipment strictly. The creep age of low quality TV can lead to the
damage of other equipment.
2.3.3 Audio Signal Input
(1) Audio port is BNC connection.
(2) The input impedance is high so the tone arm must be active.
(3) The audio signal line should be firm and away from the electro magnetic
Interference and connected credible which avoid false and joint welding
and oxidation. The high voltage current should be avoided especially.
2.3.4 Audio Signal Output
Commonly the output parameter of XVR audio signal is greater than 200mv
1KΩ(BNC) which can connect the low impedance earphone and active sound
box or other audio output equipment through power amplifier. If the sound box
and the tone arm cannot be isolated, howling phenomena is often existed.
There are some methods to deal with the above phenomena.
5

(1) Adopt better directional tone arm.
(2) Adjust the sound box volume to be under the threshold that produces the
howling phenomena.
(3) Use fitment materials that absorb the sound to reduce reflection of the
sound.
(4) Adjust the layout of the sound box and the tone arm.
2.4 Alarm Input and Output Connections
(1) Alarm Input
A. Alarm input is grounding alarm input.
B. Alarm input demand is the grounding voltage signal.
C. When the alarm is connected with two XVR or connected with XVR and
other equipment, it should be isolated by relay.
(2) Alarm Output
Alarm output cannot be connected with high-power load(no more than1A)
When forming the output loop it must prevent the big current from relay
damage. Use the contact isolator when there is a high-power load
(3) PTZ Decoder Connections
A. The grounding of the PTZ decoder and XVR must be shared otherwise
the common-mode voltage will lead to the PTZ control failure. The
shielded twisted pair is recommended.
B. Avoid the entrance of high voltage. Make the layout reasonably. Take
precaution from the thunder.
C. In the outlying end connect 120Ωresistance paralleled to reduce the
inflection and insure the signal quality.
D. the 485 AB lines of XVR cannot connected with other 485 output
equipment paralleled.
E. The voltage between the AB lines of the decoder must be less than 5V.
(4) Front e Equipment g Grounding Note
Bad grounding can lead to the burnout of the chip.
(5) Alarm Input Type Unlimited
The XVR alarm output port is constant opening type.
6
