Angels Horn HP-H005 User manual

Turntable Hi-Fi System
Model: HP-H005
Thank you for purchasing this AngelsHorn Turntable Hi-fi System.
Read through this user manual before using the product to ensure its correct use. This
the instruction manual contains important information about safety, usage, and
disposal. Use the product as described and keep this manual for future reference.
This product can be used only in countries where the product is sold. Make sure that
the operating voltage and the plug of AC the adapter of the product are correct for the
country you live in.
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, please contact our official customer service
email: [email protected]
After purchase, we suggest that you save all packaging materials for possible future
storage, moving, or shipping.
This turntable is supplied with a factory-fitted and adjusted cartridge. The following
instructions for adjusting the cartridge are provided in case the cartridge is replaced
by a different model at a later date.
Introduction
Package contents
Turntable body
45 RPM adapter
- Instruction Manual
- Cartridge Alignment Protractor
- Counterweight
- USB-PC Cable
- Turntable Belt
- Anti-skating Weight
- Adaptor with the US-plug-end
Turntable mat Platter
- 1 -

Precautions Before Use Precautions Before Use
Keep these instructions in mindKeep these instructions in mind
1. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near
swimming pools.
2. Do not cover or block any venlaon openings. When placing the device on a shelf,
leave 5 cm (2”) free space around the whole device.
3. Install in accordance with the supplied user manual.
4.*Don’t step on or pinch the power adaptor. Be very careful, particularly near the
plugs and the cable’s exit point. Do not place heavy items on the power adaptor,
which may damage it. Keep the entire device out of children’s reach! When
playing with the power cable, they can seriously injure themselves.
5. Unplug this device during lightning storms or when unused for a long period.
6. Keep the device away from heat sources such as radiators, heaters, stoves,
candles and other heat-generating products or naked flame.
7. Avoid using the device near strong magnetic fields.
8. Electrostatic discharge can disturb the normal usage of this device. If so, simply
reset and restart the device following the instruction manual. During file transmis
sion, please handle with care and operate in a stay free environment.
9. Warning! Never insert an object into the product through the vents or openings.
High voltage flows through the product and inserting an object can cause electric
shock and/or short circuit internal parts. For the same reason, do not spill water or
liquid on the product.
10. Although this device is manufactured with the utmost care and checked several
times before leaving the factory, it is still possible that problems may occur, as
with all electrical appliances. If you notice smoke, an excessive build-up of heat or
any other unexpected phenomena, you should disconnect the plug from the
mains power socket immediately.
11. This device must operate on a power source as specified on the specification
label. If you are not sure of the type of power supply used in your home, consult
your dealer or local power company.
12.*The socket-outlet must be installed near the equipment and must be easily
accessible.
13.*Do not overload ac outlets or extension cords. Overloading can cause fire or
electric shock.
14.*Devices with class 1 construction should be connected to a mains socket outlet
with a protective earthed connection.
15.*Devices with class 2 construction do not require an earthed connection.
16. Keep away from rodents. Rodents enjoy bing on power cords.
17.*Always hold the plug when pulling it out of the mains supply socket. Do not pull
the power cord. This can cause a short circuit.
18. Avoid placing the device on any surfaces that may be subject to vibrations or
shocks.
19. To clean the device, use a so dry cloth. Do not use solvents or petrol-based fluids.
To remove severe stains, you may use a damp cloth with diluted detergent.
20. The supplier is not responsible for damage or lost data caused by malfunction,
misuse, modification of the device or battery replacement.
21. Do not interrupt the connection when the device is forming or transferring files.
Otherwise, data may be corrupted or lost.
22.*To completely disconnect the power input, the mains plug of the apparatus shall
be disconnected from the mains, as the disconnect device is the mains plug of
apparatus.
23. The apparatus can only be used in moderate extremely cold or climates warm
environments should be avoided.
24. The rang label has been marked on the boom or back panel of the apparatus.
25. This device is not intended for use by people (including children) with physical,
sensory or mental disabilities, or a lack of experience and knowledge unless
they’re under supervision or have received instructions about the correct use of
the device by the person who is responsible for their safety.
26. This product is intended for non-professional use only and not for commercial or
industrial use.
27. Make sure the unit is adjusted to a stable position. Damage caused by using this
product in an unstable position or by failure to follow any other warning or
precaution contained within this user manual will not be covered by warranty.
28. Never remove the casing of this apparatus.
- 3 -- 2 -

Precautions Before Use
Caution
Keep these instructions in mind
29. Never place this apparatus on other electrical equipment.
30. Do not use or store this product in a place where it is subject to direct sunlight,
heat, excessive dust or vibration.
31. Do not allow children access to plastic bags.
32. Only use attachments/accessories specified by the manufacturer.
33. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as the power supply cord or the
plug, when the liquid has been spilled or objects have fallen into the apparatus,
when the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
34.*Do not use a damaged power cord or plug or a loose outlet. Doing so may result
in fire or electric shock.
35. Prolonged exposure to loud sounds from personal music players may lead to
temporary or permanent hearing loss.
Usage of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
This unit should not be adjusted or repaired by anyone except qualified service
personnel.
Product Description

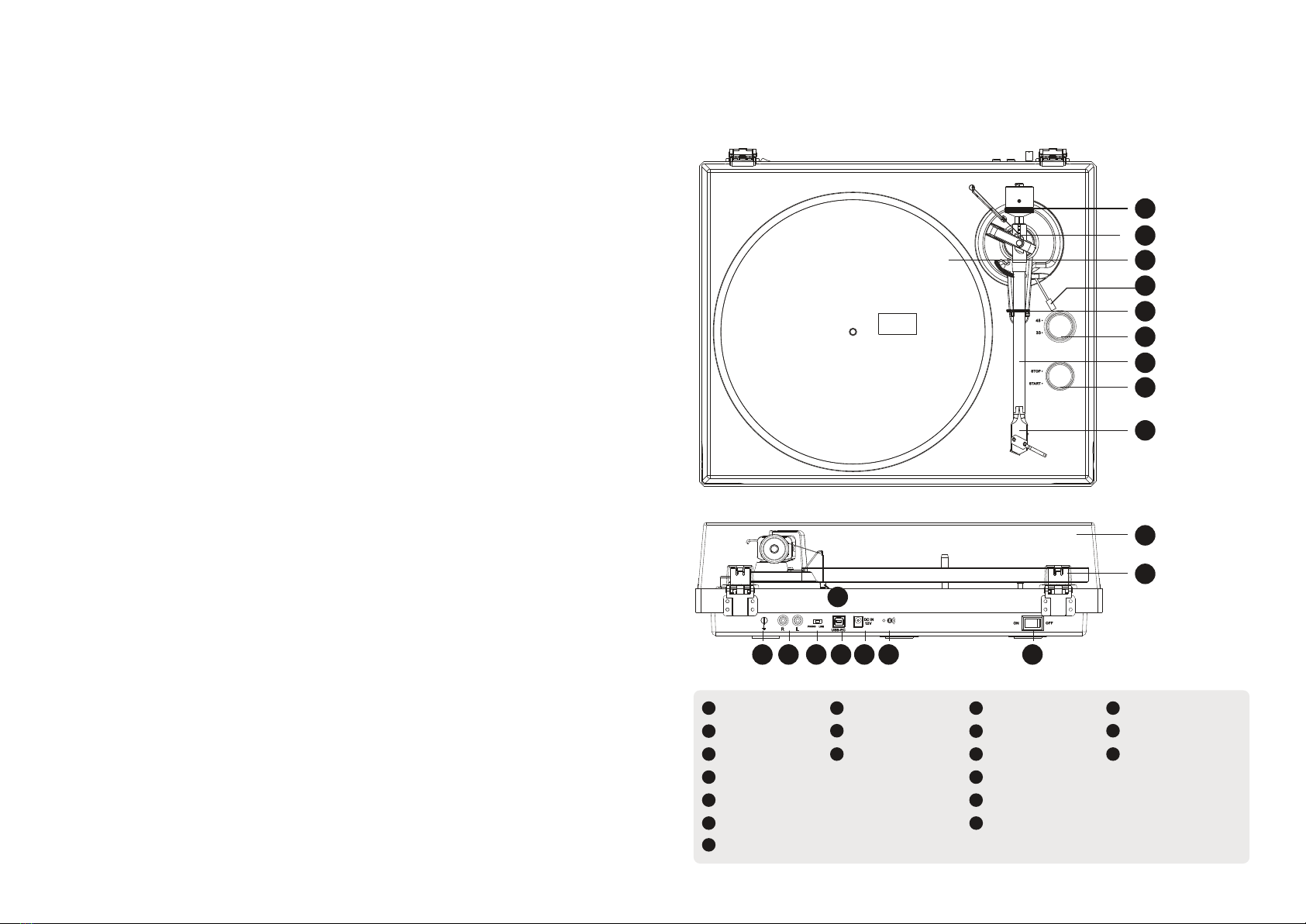

Part names and functions
- 5 -- 4 -
1
1
2
3
4
5
6
7
10
11
12 13 14 16 17 18 19
15
8
9
Counterweight 2Anti-Skating Stub 3Turntable Platter 4Tonearm Lift Lever
5Tonearm Rest 633/45 Selector 7Tonearm 8Start/Stop Knob
9Cartridge 10 Lid 11 Lid Hinge 12 Ground Connector
PHONO & Line Out Jacks 1413 PHONO & Line Out Switch
15 Anti-Skating Weight
17 AC-DC Power Jack
19 Power Rocker Switch
18 Bluetooth Indicator
16 USB-PC Port

Product Description
Technical Specifications
Nominal Speeds
Speed Variance
Wow and Flutter
Signal to Noise
Down force Range
Effective Tonearm Length
Overhang
Power Consumption
Outboard Power Supply
Dimensions (W x H x D)
Weight
Technical Specifications
Frequency response
Recommended load resistance
Channel balance
Amplifier connection
Channel separation
Recommended tracking force
Output voltage
Weight
33 1/3 & 45RPM
±1%
≤0.15%
55dB
3.0-6.0g
8.6” (218.5mm)
0.73in
5W (Max)
12V/500mA AC-DC
420 x 360 x 125mm
5.7kgs
AT-3600L (audio-technica)
20Hz-20kHz
47kohms
<2.5dB
MM - input
>18dB
3.5±0.5g
2.5mV
5g
Installation
1-Installing the Lid
2-Turntable platter and belt setup
Install the Lid carefully over the hinge prongs
- Unpack all parts and remove protective material.
- Do not connect the unit to the mains before checking the mains voltage and before
all other connections have been made.
- Those instructions are related only to products using power cable or AC power
adaptor.
1. Insert the sub-platter into the turntable spindle located in the middle of the
turntable.
2. Loop the drive belt around the sub-platter and motor pulley.
3. Carefully place the main platter onto the sub-platter (Figure 1).
4. Place the slip mat on top of the platter (Figure 2)
- Figure 1 - - Figure 2 -
- 7 -- 6 -

Installation Installation

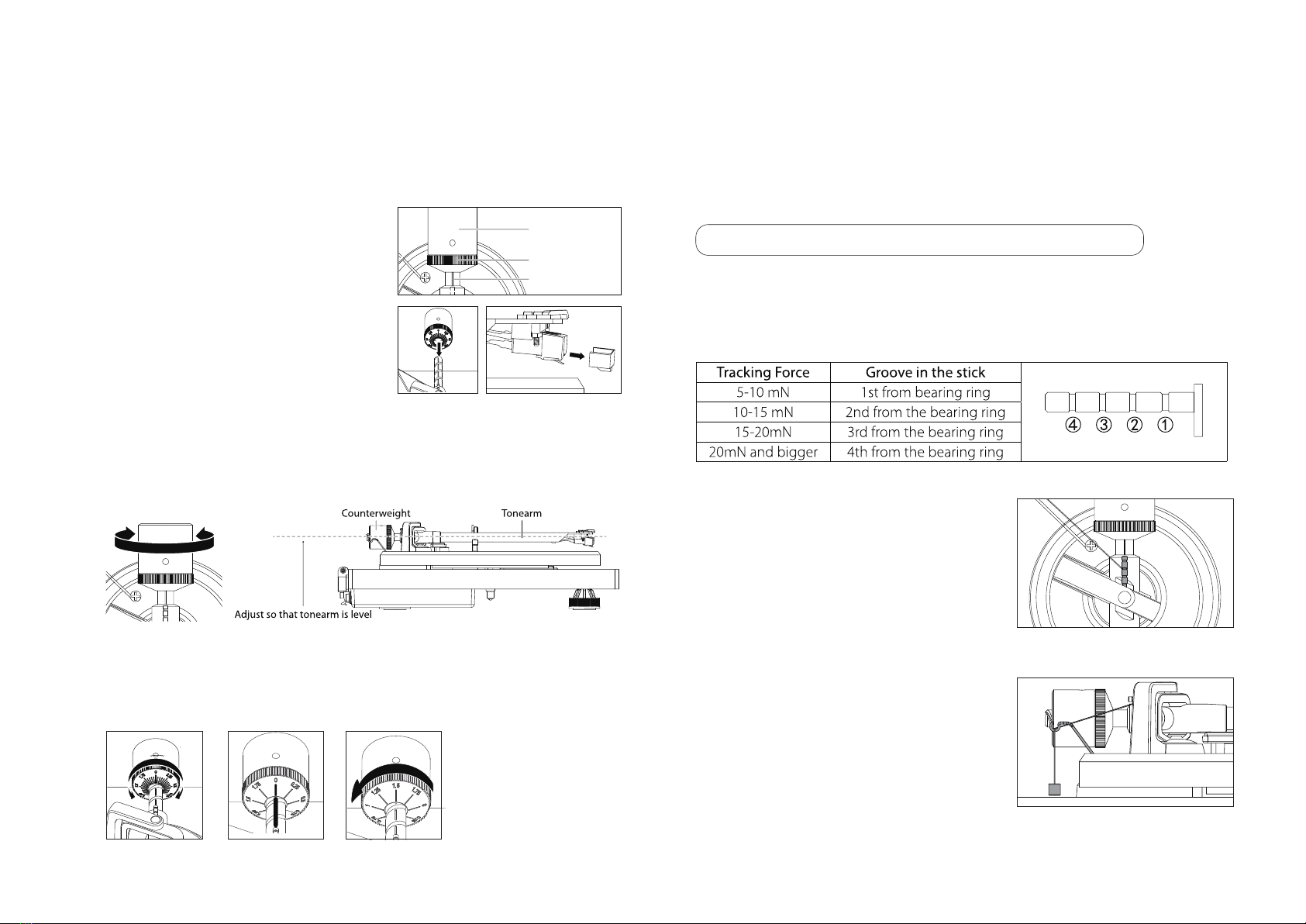

3-Cartridge tracking force adjustment
- Gently push and turn the Counterweight onto
the rear of the tonearm (with the scale facing
toward the front of the turntable).
- Remove the cartridge protection cap.
- Lower the tonearm lift and position the
cartridge in the space between tonearm rest
and platter.
The counterweight supplied is suitable for cartridges weighing between 3.0-6.0g
Carefully rotate the Counterweight until the tonearm balances out. The tonearm
should return to the balanced position if it is moved up or down.
This adjustment must be done carefully.
Once the tonearm is correctly balanced return it to its’ rest. Hold the Counterweight
without moving it, and gently rotate the Down force Scale ring until the zero is in line
with black line on the rear of the tonearm. Check whether the arm still balances out.
Rotate the counterweight counter clockwise (seen from the front) to adjust the
down force according to the cartridge manufacturer’s recommendations.One mark
on the scale represents 0.05g of down force.
3-Cartridge tracking force adjustment
Note: The recommended down force for the factory fitted cartridge is 3.5±0.5g.
Counterweight
Tracking Force Dial
Center Line
4-Anti-skating force adjustment
The anti-skating force must be adjusted corresponding to the tracking force as follows:
1. Slip the loop of the anti-skating weight's
thread over the 3rd groove of the stub to
set the correct anti-skating force for the
factory-fitted cartridge.
2.Feed the thread through the loop of the
wire support.
- 9 -- 8 -

- 11 -- 10 -
Installation
This turntable uses a moving magnetic cartridge. Set the PHONO & Line Out Switch
on PHONO mode.
Connect the phono out cables to the phono input on your amplifier of the pre-ampli-
fier (phono stage). Line inputs such as CD, Tuner, Tape, or Video are not suitable for
phono inputs. Make sure the amplification of the selected input matches the type of
cartridge being used.
The factory-installed cartridge is 47k ohms/MM-input.
Set the PHONO & Line Out Switch on LINE mode. The RCA PHONO & Line Out
Jacks output analog line-level signals and could be connected directly with a par of
active/powered speakers of the appropriate input of your stereo system.
The Red plug connects with the Right channel and the White plug connects with the
Left channel.
5-Connection to the Amplifier
6-Stereo System Connection
NOTE: If your amplifier does not have an input suitable for phono cartridges, you will need
to purchase a separate phono amplifier for moving magnetic cartridges. This separate phono
amplifier will then connect between your turntable and your amplifier.
NOTE: The RCA Jacks are not designed to be connected directly to the passive/unpowered
speakers on LINE mode. If connected to the passive speakers, there is no sound
Installation
Operation
7-Main Power Connection
Turntable Operation
The power adaptor is in the foam packing material. Unpack the power adaptor and
plug the small end into the DC power jack located at the back side of the turntable.
Plug the power adaptor into your power outlet.
1. Connect the included power adapter to the unit and press the power rocker switch
to be “ON” position.
2. Remove the needle cover from the cartridge.
3. Place the slipmat on the platter and place a record on the slipmat. If using 45 RPM
records, but the 45 RPM adapter on the center spindle before placing the record
on the platter.
4. Set the 33/45 RPM Selector according to the type of record.
5. Unlock the arm clip and set the Lift Lever to the up position.
6. Position the tonearm over the desired location (groove) on the record. The platter
will begin spinning.
7. Move the tonearm lift lever to the down position to move the tonearm toward the
record. Alternatively, place the needle over the desired location on the record.
8. Carefully lower the tonearm on the record.
9. When you are finished playing the record, raise the tonearm, return it to rest on
the arm clip.
Protector
Active Speaker
Amplifier

- 13 -- 12 -
Operation
This unit has a Bluetooth transmitter to send audio to a Bluetooth speaker wireless-
ly.
1. Power on your Bluetooth speaker and ensure it is in pairing mode.
2. Power on the unit, the BT will auto search when the unit turn on, the BT indicated
light flashing.
3. When pairing, the light will flash twice per second, then change to be long lighting
when paired;
4. To disconnect pairing, power off the turntable or turn off Bluetooth pairing on
your Bluetooth speaker.
For installing and recording step please reference to the
BRIEF INTRODUCTION OF AUDACITY www.audacityteam.org
Recording the vinyl to your computer:
1. Follow the detail step as above Turntable Operation to play the vinyl.
2. Double click the Audacity and follow the record steps showing on the
BRIEF INTRODUCTION OF AUDACITY.
Bluetooth Operation
Recording the LP into PC through USB jack
It supports Windows95/Window XP/Window 7/Vista or more advanced version, with
the EMS memory more than 128MB and Audacity take space of 5MB.
Audacity and USB Connection
Note: This unit will connect to the closest Bluetooth speaker that is near it. If after 2 minutes
no Bluetooth speaker can be found to pair with the Bluetooth transmitter will become
inactive and the LED will turn off.
You need to check your computer audio
properties, the sound recording should
be selected: SSS USB Audio Device” as
below:
Operation
Instruction for PC Encoding
1. Software instruction
1-1 Connect the USB cable with your turntable and your computer. No extra driver
is required.
1-2 Download the Audacity software from www.audacityteam.org, Follow the
instructions to complete installation.
2. Recording
2-1 Open the software
2-2 Choose “Edit” menu, then
choose “Preferences”;
2-3 Audacity Preferences

- 15 -- 14 -
Operation
Instruction for PC Encoding
Operation
Instruction for PC Encoding
3.Export the Music Files for WAV, MP3, Format.
- Once you have finished recording, you should save your music to the computer.
- Click File menu and move down to Export as WAV format, MP3 format or Ogg
format.
- Click on any format to save the music, and you will be asked for the file name of the
music recording.
1) Download “lame_enc.dll” file, and install it to the software list.
2) Open the “Audacity” software, click Main Menu, Select “edit”, “Parameter”, “File
Formats”, and click the “Searcher”.
If do not see the sound wave on the interface, when recording, please adjust the
line in volume as follows
Specific Steps as follows:
Note: Audacity does not export MP3 files directly; you should download the LAME MP3
encoder. A link to find LAME MP3 can be found at http://audacity.sourceforge.net
2-4 Adjust the output and input volume
2-5 Select the record button ● to record the disc, the left and right tracks will
show on the interface
Output volume Input Volume
2. Recording
2-5-1 Press this button, start recording
2-5-2 Click the button to skip to start
2-5-3 Click the button to skip to end
2-5-4 Click the button to play
2-5-5 Click the button to pause the
record play
2-5-6 Click the button to stop the
recording.

Operation
Instruction for PC Encoding
NOTE: If your amplifier does not have an input suitable for phono cartridges, you will need
to purchase a separate phono amplifier for moving magnetic cartridges. This separate phono
amplifier will then connect between your turntable and your amplifier.
Useful Tips：
The turntable should be positioned on a low-resonance surface such as wood or multiple
layer ply board to avoid structural vibrations disturbing playback.
Maintenance and Cleaning
Cartridge Replacement
Your turntable requires little of no regular maintenance. Remove dust with a slightly
damp antistatic cloth. Never use a dry cloth, this will create static electricity and
attract more dust!
Antistatic cleaning agents are available at specialist stores, but must be applied
sparingly to avoid damage to rubber parts. It is recommended to install the needle
cover before cleaning or maintenance is carried out to avoid damage.
If the turntable is not used over a long period of time, the drive belt should be
removed to prevent unequal stretching.
1. Before replacement, put the stylus protector back on the stylus to prevent damage
to the stylus during the replacement process.
2. Carefully remove the wire leads from the original cartridge.
3. Loosen the two screws on the headshell that are securing the cartridge and then
remove the original cartridge.
4. Mount the new cartridge to the headshell and tighten it lightly. Do not completely
tighten the screws at this moment.
5. Connect the wire leads to the new cartridge’s terminals. The wire lead color codes
are as below:
White Left channel positive (L+) Red Right channel positive (R+)
Black Left channel negative (L–) Black Right channel negative (R-)
- 17 -- 16 -

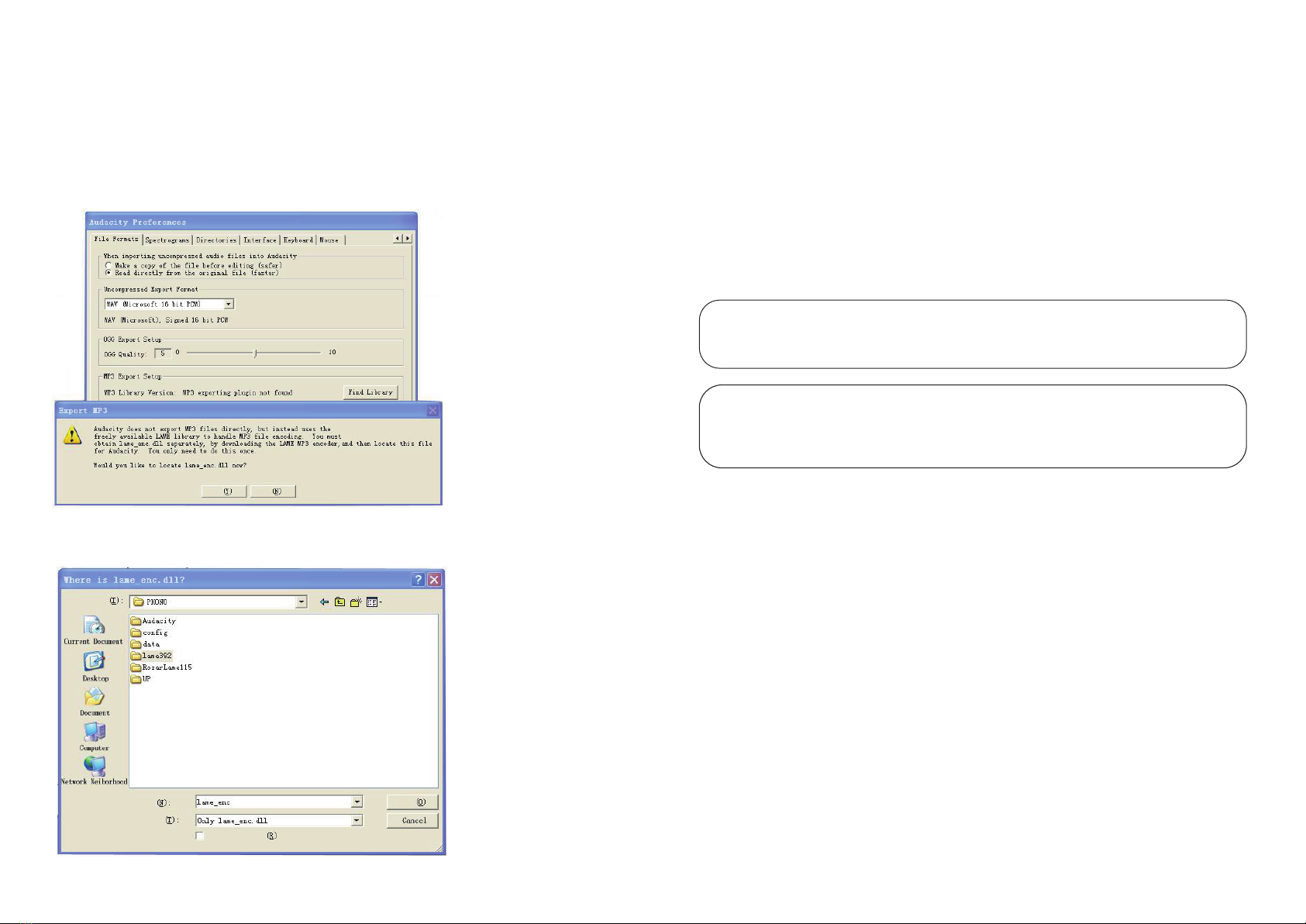

3) After opened, it will come to the following menu, click “YES” to go to “Llame_enc.dll”,
and find the file’s location.
4) After you find the “lame_enc.dl” file, open it and click “Y” to finish the installation.

Troubleshooting
Potential Incorrect Use and Fault Conditions：
If you are unfamiliar or uncomfortable with completing this procedure, we recommend
consulting with a professional to perform the installation.
Cartridge Replacement
6. Adjust the cartridge’s position to make sure it is precisely aligned on the headshell so
that the stylus will be tracking the grooves in parallel perfectly.
To achieve this, place the included paper cartridge alignment protractor over theturnta-
ble spindle, carefully lift the tone arm and place the tip of the stylus on the points marked
130mm and 250mm respectively. Fine tune the cartridge’s position on the headshell until
the cartridge is perfectly in parallel with the reference lines at both points.
7. Tighten the screws completely once the perfect alignment is achieved.
Problem
The platter doesn’t turn
although the unit is
switched on
No signal through one or other
channel or both channels:
Strong hum on phono input:
Distorted of inconsistent sound
from one or both channels:
Solution
These turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory.
Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by
incorrect use or unfortunate circumstances. Therefore the following list of common fault symptoms is included.
- The unit is not connected to the main power supply.
- No power at the outlet.
- Drive belt is not installed or has slipped off.
- The unit automatically switched in standby mode, power OFF and ON again on
the backside.
- Phone input not selected at the amplifier.
- Amplifier not switched on.
- Amplifier or speakers muted.
- No connection to the speakers.
- No connection between turntable and amplifier.
- Wire leads not connected to the cartridge.
- No ground connection from the cartridge, arm, or arm cable to amplifier or
ground loop.
- Turntable too close to speakers.
- Turntable is connected to the wrong input of the amplifier.
- Needle or cantilever damaged.
- Drive belt overstretched or dirty.
- Platter bearing without oil, dirty or damaged.
- Dust on the stylus.
- MM/MC switch on the pre-amplifier set incorrectly.
- 19 -- 18 -

Angels Horn Corporation
44 W JEFRYN BLVD, SUITE V, DEER PARK, NY,11729 U.S.A
Email: [email protected]
Website:www.angelshorn.com
©2019 Angels Horn Corporation
Ver.1 2019.11.04 162501372-02-02
Ver.2 2019.11.04
- 20 -
