Anjue AJ-2402L User manual

Infant Radiant
WARMER
AJ-2402L
Revision 1.2
Please read and keep this instruction carefully
Operating Instruction
Guide

Infant radiant warmer Operating instruction
Contents
1. Introduction ……………………………………………………………………….1
2. Definitions and symbols…………………………………………………………...1
3. Usage and feature………………………………………………………………….2
4. Installation………………………………………………………………………....2
5. Operating principle of the radiant warmer………………………………………...3
6. Main technical parameter………………………………………………………….5
7. Functions instruction……………………………………………………………....5
8. Examination of the functions…………………………………………………..….9
9. Usage of the equipment……………………………………………..…...………...10
10. Notice…………………………………………………………………………….11
11. Warning…………………………………………………………………………..11
12. Cleanout and maintenance…………………………………………….…………12
13. Solution of common failure…………………………………….……….………..13
14. AppendixⅠ: Neonate Phototherapy Unit …………….………………………....14
15.APPENDIXⅡ:LOW-PRESSURE SUCTION APPARATUS……………………..24
16.APPENDIX III Guidance and declaration…………………………………..…….27
17. Encasement list………………………………………………………………..….30
18. After-sale service……………… …………………………………….…………..31
19. Follow-up…………………………………………………...…………………….32

Infant radiant warmer Operating instruction
1
1 Introduction
Infant radiant warmer of model BN-100 adopts anti-explosion carbon steel infrared radiation tube for its
radiation source. Infant radiant warmer of model BN-100 has three operation modes: pre-heat, auto and manual,
the indicator shows under which mode the equipment is running, the testing temperature and setting temp is
shown independently in the screen, The equipment will alarm with sound and light if failure and exceptional
situation (such as power failure, sensor failure, over temp, temp deviation) comes out when using the infant
radiant warmer.
This instruction consists of instruction of usage and techniques, and is suitable for the installation, usage,
cleanout, maintenance and analysis and solution of common failure of infant radiant warmer of model BN-100.
Some parts of the products used may not be the same as the ones in the introduction list and circuit
diagram, which is because our company put improved parts and circuits into use before putting them into
printed introduction, but it isn’t affect use this equipment.
2 Definitions and symbols
2.1. Definitions.
2.1.1. Skin temperature sensor.
A sensing device including the link with the equipment intended to measure the infant’s skin temperature.
2.1.2. Baby skin temp control.
The skin temp sensor that is stuck to the skin of the baby can automatically change the temp to what the user
has set. When the machine operates in this mode, the heat power output changes as the temp of the skin of the baby
changes.
2.1.3. Controlled temp.
Temp set in the temp controller.
2.1.4. Skin temp.
Skin temp shows the temp in the place of the skin temp sensor on the skin of the baby.
2.2. Symbols.
Power switch
on or off
！Attention, consult
accompanying
documents
Protective
earth
(ground)

Infant radiant warmer Operating instruction
2
Type BF
applied part
Dangerous
voltage
3 Usage and feature
3.1. Usage:
It is suitable for newborn babies rescuing, nursing and pediatrics operation.
3.2. Feature:
3.2.1. The heating source uses anti-explosion carbon steel infrared heating tube, so it can raise the temp as soon as
possible.
3.2.2. There are three kinds of control modes of the warmer: pre-heat, auto and manual. It is convenient to be used in
different occasions and environments.
3.2.3. The control parts is intelligent, it can classify failures and alarm with sound and light.
3.2.4. The crib is wide, the obliquity of the bed can be done continuously and is controllable, and the Lucite baffle
can be folded down.
3.2.5. The radiant heat use oblique type , so as to be convenient to shot X rays.
3.2.6. Equipped with angle-adjustable LEDs lamp and X-ray cassette tray.
4 Installation (Be careful! Installation needs at least two people)
4.1. Please check and count each part according to the list in the introduction after opening the box, the controller
body of model BN-100 (the middle part), the radiant source and the main body bracket and the baby bed should be
packed apart.
4.2.Put the spring washer and washer over the foot wheel bolt and install them to the main body bracket, fix it hard
with spanner (Be careful! The brake wheels must be installed in the opposite angle).
4.3. Install baby bed support into main body support and fix it with screw, rotate screw in horizontal, make baby bed
at horizontal level. (It already finished when shipping from factory, this step can pass).
4.4 After take down the rear apron, install the middle part to the base support and fix it with screw.
4.5. Install the connection part of heater and column on the support frame with hexagonal bolts.And insert heater
cable, lamp cable and ground protect cable to the upper side of middle part (control shell). (Be careful! Keep the
middle part vertical and the radiant source horizontal; otherwise the uniformity of the temp in the bed will be
affected).
4.6 Insert heater two pole plug into left side IP6 double pole socket. Lamp (red cable, black cable) plug insert E-rings
located at circuit downside. Ground protect cable connect the grounding screw. (Attention: don’t forget the ground
earth cable.)
4.7 Insert the tray to the middle part (control shell) side and fix it with screw.
4.8 Install the rear apron and infusion hook.
4.9Take down the two support corners of the Lucite baffles diagonal use a screwdriver, make the adjacent two axises
of baffles insert into the support corner. Then install the supports. Successively install the four baffles. Attention: the
Lucite baffle with gap fixed in the front, and with scale in two sides

Infant radiant warmer Operating instruction
3
4.10 Put the X-ray cassette tray and mattress in the middle of the baby bed, rotate and insert Lucite baffles to correct
position around the baby bed.
4.11 Insert the skin sensor to the operation panel.
4.12 Connect the power cord.
1. Wheels 2. Carling of the base 3. Beam of base 4. Lifting motor 5. Motor lining plate 6. Bottom bracket of
oxygen cylinder 7. Oxygen cylinder support 8. Oxygen cylinder 9.Baffle support 10. Lucite baffle 11.M8*20
handle 12 .M4*12 ripple handle 13 Infusion support frame 14. Spotlight 15. Infusion hook 16. Radiant source
17.Column(control shell ) 18. Operation panel 19. Tray 20.Low -pressure suction control panel 21.Phototherapy
unit 22. Mattress 23. Baby bed 24.Bed support 25. Adjust handle for bed tilt 26. Draw 27.Small end up
Fig.4-1 Structure
5 Operating principle of the radiant warmer
5.1.Principle of heat radiation.
When the heater operates, the reflect cover of parabola type radiates evenly the infrared light emitted by the heat
source to the baby mattress or the skin of the baby, so as to play part in the function of heating.
5.2.Principle of circuit (See Fig.5-1)
DC voltage: 5V for one-chip computer and integrated circuit, 9V for relay and buzzer.
6V built in battery: alarm power while the main power is cut off
Heating controller: includes photoelectric coupling integrated circuit, BTA, 700W heat radiation tube.
Alarm: consist of one buzzer.
5.3.Temp control and principal of display (See Fig.5-2).

Infant radiant warmer Operating instruction
4
Fig.5-1 hardware principle Fig.5-2 The procedure block diagram
5.4. Parameter revision method (user don’t revise by yourself without experimental condition).
5.4.1. Temperature revision.
When the warmer in operating under “auto” mode, press “set” button all along till the temp display screen shows
“---”, first character is twinkling, press “increase” button once, the screen shows “1--”. Press “decrease” button once,
second character is twinkling, press “increase” twice; the screen shows “12-”. Press “decrease” button, third character
is twinkling, press “increase” three times, the screen shows “123”, then press “set” button, the system into main menu:
the temp set display screen shows “PA.-”.
Press “increase” button once, temp set display screen shows “PA.1”. Then press “set” button, the screen shows
“0”(“0”: to give up; “1”: to determine), press “increase” button, it shows “1”. Press “set” button, now system go into
“temp revision” submenu.
Temp display screen shows P××( the initial value is P2.0), under this state user can presses the “increase” or
“decrease” button to revise the deviation of the temp displayed by the skin temp and the temp in the standard
thermometer(the revise range:±2℃). Then press “set” button, now the temp display screen shows U××(the initial
value is U1.0), under this state revision of temp value for over-temp alarm can be made(the revise range:±1℃).
After finishing operation above press “set” button twice, the equipment goes back to normal working state.
Be careful:
The skin temp sensor’s head and the standard thermometer must be put under the same temp(36℃-37℃), then
find out the deviation and revise after it is steady.
6 Main technical parameter
6.1. Power supply: ～220V, 50/60 Hz
6.2. Power input: 1100VA
6.3. Normal working condition:
a. Environment temperature: 18℃~30℃;
b. Relative humidity: 30%～75%;
Eepro m
Exp o rt of
the contro llin g
tem p
A /D
S enso r jack
5410AD
Shake
brilliantly
O scillato r
Treatm ent
S h o w the d rive
Fault alarm
Start
Initialize
Set up the state
to initialize
Set up the key ？
Overtim e ？
The w orking
state initializing
Sam ple data
Trouble ？
Control and export
Show
Fault alarm
The key
is dealt w ith
Y
N
Y
N
Y
N

Infant radiant warmer Operating instruction
5
c. Atmospheric pressure: 700~1060hPa;
d. Air velocity: ＜0.3m/s
6.4. Temperature control range: 32℃~38℃
6.5. Precision of temperature control: ≤0.5℃
6.6. Functional alarm:
6.6.1. Over-temp: 39℃
The secondary over temp to shut off power: 40℃（cut off the heating power, alarm with sound and light）
6.6.2. Deviation alarm: When the temp goes steady and the deviation reaches ±1℃(+1℃, the heating power
will be shut off), alarm with sound and light.
6.6.3. Sensor alarm: When the skin temp sensor is in short circuit or open circuit state, shut off the heating power,
alarm with sound and light; the sensor overruns the radiation area and temp deviation reaches to –1℃for about one
minute, the machine will alarm with sound and light automatically and keep certain power to heat up.
6.6.4. Power failure alarm: When the power breaks off, alarm with sound and light.
6.7. Bed temp uniformity: ≤2℃
6.8. Skin temp sensor precision: ≤0.3℃
6.9. Increasing temp time: 45’
6.10. Transportation and storage
a. Environment temp: -40℃~+55℃
b. Relative humidity range: ≤95%
c. Atmospheric pressure range: 500~1060hPa
7 Functions instruction
7.1.Radiator: Provide infrared radiation for baby, can increase or decrease radiation power according to the control
situation, Radiator use oblique type so as to shot X-rays. Be careful when use this function: try to shorten the time of
removing the radiant source as not to influence warming the baby. The carbon steel infrared tube in the radiator needs
to be replaced if used over 50000 hours.
7.2. Tray: for placement of nursing articles, the heaviest strength is 20N.
7.3. Baby bed: to bare the weight of the baby safely, the heaviest strength is 100N, the baby bed can incline
continually in ±7°according to nursing necessity.
7.4 Phototherapy unit: Can phototherapy for neonatal jaundice.
7.5 Spotlight: Equipment with LED source, the light can adjust continues.
7.6 X-ray cassette tray: on which the X-ray film cassette can be put, can operate X rays shot diagnosis when
necessary.
7.7 Foot wheels: be convenient to move the equipment, orientation can be made at any time by using the two brake
wheels.
7.8 Infusion shelf: to hang infusion bottle when treating the baby, the heaviest strength is 20N.
7.9 Lucite baffle: prevent the baby from slipping out of the bed.
7.10 Equipment height change: height can be adjustment continuously (range:20cm)by press up or down key.
7.11. Functions of the panel button:
7.11.1. APGAR timer: press “start／hold” button to start, press it again to stop.
7.11.2. APGAR “reset” button: press “reset” button and the APGAR timer goes back to “0”.
7.11.3. Mode button: tolerate to the state of “preheat” when starting the machine, press “mode” button to enter the
“auto” mode, to press it again to enter the “manual” mode, press it once again to go back to “preheat” mode.
7.11.4. Temp “set” button: to set the temp by pressing this button.
7.11.5. “Increasing and decreasing” button: to set the controlled temp (in auto mode) or to set the heating power (in

Infant radiant warmer Operating instruction
6
manual mode).
7.11.6. “Alarm audio paused” button: when the equipment alarms with sound and light because of temp deviation and
sensor failure, press this button to remove the sound alarm.
7.11.7. Failure alarm “reset” button: press this button to reset the failure alarm and the controlling mode goes back to
“preheat” mode.
7.11 The functions of operation panel
1 APGAR reset button 2 Real time temp display 3 Set temp display
4 Set temp button 5 Alarm audio paused button 6 Lighting switch
7 Sensor Jack 8 Power switch 9 Failure alarm display
10 Alarm reset button 11 Increasing and decreasing button 12 Heating power display
13 Mode indicator 14 Mode button 15 APGAR time display
15 APGAR start or hold button
7.12 alarm system
7.12.1 Summary
For offer a temp well warmer for patient, during the use and maintain this equipment, if have failure will inform
user in time, make them take effect action, reduce or avoid the damage to patient, equipment have 5 alarm state
(chart 7-1) as follows, divide into physiology alarm condition and technology alarm condition:
a) physiology alarm state have : skin temp deviation alarm
b) Technology alarm state have: power failure alarm, sensor alarm, over temp alarm, manual over time alarm.
Chart 7-1
Alarm state
State description
note
Power outage
alarm
When equipment power is switch on, if have power
outage, system will have at least 10 minutes audible
an visual alarm, or still to power is normal.
Built-in battery alarm,
press ”audio paused” can’t
paused sound alarm
Skin temp
In skin temp control mode, skin temp sensor on the
top of baby belly, set temp almost same with baby

Infant radiant warmer Operating instruction
7
deviation alarm
skin temp, after temp stable, if the test temp deviate
more than ±1℃compare with set temp value.
Equipment will alarm with audio and visual,
reminding the user take action. If deviate
+1℃,equipment will cut off heat power automate.
If press “audio paused” can
pause audio pause, it can
self-recovery in 10 minutes;
visual alarm can’t paused.
Sensor alarm
Skin temp sensor appear open circuit or short circuit,
equipment have audible and visual alarm, and cut off
heating power.
Manual mode
In manual mode, audio and visual alarm start at 12
minutes, till this mode end, remind user take
attention.
Over temp alarm
No matter the equipment in the normal state or single
fault state, when skin temp reach 39 ℃, equipment
will have audible and visual alarm ,when reach
40 ℃,will have audible and visual alarm and cut off
heating power.
Alarm state
confirm summary
1.when equipment have blew alarm, and the “power
failure” red indication light bright on the control
plate, other digital display and indication all not
bright, equipment into “power outage” alarm state.
Equipment alarm state delay 1
second, operator at front of
equipment in 1 meter
2. when equipment have “beeps..” sound alarm,
control plate except “sensor red indicator bright,
other alarm indicator all not bright, shows into “skin
sensor failure “ state.
Equipment alarm state delay 1
second, operator at front of
equipment in 1 meter
3 . When equipment have “beeps..” sound alarm,
control plate except “over temperature” red indicator
bright, other alarm indicator all not bright, skin temp
display window shows high real temp value,
equipment into “over temp” state.
Equipment alarm state delay 2
second, operator at front of
equipment in 1 meter
4. when equipment have “beeps” sound alarm,
control plate except “deviation” red indicator bright,
other alarm indicator all not bright, equipment into
“deviation” alarm state. If display temp more than set
temp is positive deviation, otherwise is negative
deviation.
Equipment alarm state delay
1.5 second, operator at front of
equipment in 1 meter
5.When equipment have “beeps..” sound alarm,
control plate except “manual mode” green indicator
bright, other alarm indicator all not bright, skin temp
set display window no temp value, equipment into
“manual mode” state.
Equipment alarm state delay 1
second, audio alarm delay 12
minutes, operator at front of
equipment in 1 meter

Infant radiant warmer Operating instruction
8
7.12.2 The time of check the alarm system normal or not
When reinstallation equipment after disassembly parts for cleanout or maintain every time, user should inspected
alarm system, to see if normal or not, inspection way please reference part 8.
7.12.3 The priority of alarm state.
According to the standard and requirement of “IEC60601-1-8”,alarm system of the equipment except must
have visual alarm, need audio alarm too, to ensure patient safety.
Priority of equipment alarm state and parameters (Chart 7-2)
Chart 7-2
Alarm
state
preferenti
al
Visual alarm
Audio alarm
color
Flash
rate
（Hz）
Duty cycle
Pulse count
of a pulse
crowd(H
z)
Time of a pulse
crowd(s)
Interval of pulse
crowd
Skin temp
deviation
high
red
2HZ
40%
10
3.8
5s
Power
failure
high
red
Bright
steady
100%
--
--
blew
Over
temp
high
red
2HZ
40%
10
3.8
5s
skin temp
sensor
failure
high
red
2 HZ
40%
10
3.8
5s
Manual
mode
low
green
Bright
steady
100%
2
0.6
12min
8 Examination of the functions.
After installing the equipment and reinstalling by disassembling the machine parts as washing or maintaining,
examination of functions must be taken so as to make the warmer work normally.
8.1.Examination of alarm for power failure.
Turn on the power switch before inserting the power plug into the AC power socket, the equipment should alarm
with sound and light as “power failure”; turn off the power switch and the alarm will be removed(Be careful: this
operation can’t last too long so as not to waste the battery).
8.2.Examination of the mode conversion.
After starting the machine, the mode automatically enters “preheat”(“preheat” mode indicator is on), the warmer
will heat according to the preset heating program; press “mode” button and the warmer enters “auto” mode (“auto”
mode indicator is on), the warmer will heat in constant temp according to the set temp; press the “mode” button again,
the warmer enters “manual” mode (“manual” mode indicator is on), the warmer will heat according to the heating
power.
8.3.Examination of the skin temp sensor alarm.
Pull off the skin temp sensor, under any mode, the equipment will alarm with sound and light; insert the skin temp
sensor again, the warmer goes back to normal working state (Be careful: sound alarm will not appear when pulling
off the skin temp sensor after having pressed “alarm audio paused” button).

Infant radiant warmer Operating instruction
9
8.4.Examination of deviation alarm.
Set the temp to 37℃, after the warmer reaches to constant temp, make the skin temp sensor close to the heater
gradually and if the indicating temp reaches 38℃, deviation alarm will appear; make the skin temp sensor head far
away from the radiation area gradually and if the indicating temp reaches 36℃, deviation alarm will appear.
8.5.Examination of over temp alarm.
Set the temp to 37℃, after the warmer reaches to constant temp, move the skin temp sensor close to the heater
gradually, over temp alarm should appear when the indicating temp rises to 39℃(sound alarm can be removed by
pressing alarm audio paused button); when the temp rises to 40℃, the alarm will sounded continually(now the alarm
audio paused button is out of use),cut off the heating power at the same time. Turn off the power and restart the
machine after the temp returns to normal state.
8.6. Examination of the protection of the skin temp sensor.
Set the temp to 36℃, after the warmer reaches to constant temp, remove the skin temp sensor from the radiation
area of the baby’s bed, deviation alarm will appear when the indicating temp is below 35℃, and the heater works in
its full power; If the indicating temp falls continually, after a while, sensor failure alarm will appear and keep the
heater power at around 30%.
8.7 Examination of over temp alarm
Press”mode” key, choice “Manual” mode, Manual mode green alarm indicator light , and start timing at same
time, equipment will have two times audio alarm every 12 minutes. Press other mode, alarm auto relieve.
9 Usage of the equipment
9.1. Preparation before operating.
9.1.1 Clean and disinfect the equipment, examine the functions.
9.1.2 Lock the brake wheels of the warmer tight so as to prevent it from moving while in use.
9.1.3 Insert the skin temp sensor into the skin temp sensor jack.
9.1.4 Insert one end of the power wire into the power input jack behind the warmer, insert the other end into AC 220V,
50/60Hz power socket. (Be careful: the grounding of the power socket must be tight and reliable).
9.2 Operating method
9.2.1 Starting the machine
9.2.1.1 Turn on the power switch of the warmer and the equipment enters “preheat” work state.
9.2.1.2 When use short-time bed temp and baby skin temp to control the heating, user can press “mode” button and
choose “auto” mode ;( Be careful: for short-time bed temp control, the sensor should be placed in the middle of the
mattress without anything sheltering the baby’s skin. For baby skin temp control, the sensor must be stuck on the top
place of the baby’s abdomen).
9.2.1.3 Press “set” button to change the controlling temp: when the temp display screen glistens, press “increase” or
“decrease” button to set the temp, it will turn back automatically to normal state in 5 seconds after setting.
9.2.1.4 Press “mode” button and choose “ manual” mode; to press “increase” or “decrease” button to change manual
controlling power; there will be remind with sound and light in about 10 minutes under the manual operating mode.
9.2.1.5 Press “alarm audio paused” button to remove sound alarm if the equipment shows alarm (except power break
off and second-over temp alarm).
9.2.1.6 When using APGAR Score timer, press “start/hold” button to start, and press it again to stop; press it once
again to continue APGAR. When the APGAR timer counts to 50’’, 4’50’’, 9’50’’, the equipment will give remind
sound less than 15 seconds. Press “reset” button to revert to “0”.
9.2.2 Obliquity of the bed
Turn the hand wheel with the handle at the bed, choose the obliquity of the bed to meet clinic requirements.
9.2.3 X-ray cassette tray

Infant radiant warmer Operating instruction
10
Folded down the side Lucite baffle and then the X-ray cassette tray can be taken out.
9.2.4 Lucite baffle
Lucite baffles shall prevent the infant from falling off the bed. When the machine is working, be sure all the
rotating shaft and block of baffle support are in good condition. If folded one of the baffle support, lift it and then turn
downwards; vice versa.
9.2.5 The transformer of the warmer is equipped with fuse of 1AL in model F, which is used to protect the inner
circuit of the temp controller. If the fuse burns out, the same type must replace it; otherwise it will affect the normal
work of the equipment.
9.2.6 While examine the functions; in time replacement of battery must be made if the power break off alarm is too
low. Open the back baffle of the controller crust and the replacement can be made (Be careful: the connection
between the cathode and the anticathode of the battery).
10 Notice
10.1 Read this Instruction carefully before using this equipment, paramedic who uses this equipment must be trained
and use under the guide of eligible doctor who is familiar with the function and usage of the equipment.
10.2 Only after setting the temp after starting the machine and preheating for 45 minutes, then the warmer can be
used.
10.3 Do not turn on the power switch for long time if the power has not been switched on, or else it will cause power
break off alarm and waste the battery.
10.4 Long time of radiation will cause dehydration of the baby, please transfuse the baby or put some water around
the bed or use waterproof tent to increase the humidity.
10.5 Lock the foot brake tight to prevent it from moving.
10.6 When the machine is working, be sure all the axis of rotation and block of baffle support are in good condition,
and the Lucite baffle is in right place.
10.7 Do not use the equipment while it is working abnormally, maintenance must be made and made by professional.
10.8 This warmer uses fuses in 5AL and 1AL of model F, pull off the power plug before replacing the fuse.
10.9 The controller circuit of the warmer is connected to a relay; the relay will make less electromagnetic radiation.
Well grounding and shielding is recommended while using other assistant equipment.
10.10 Organic solvent, such as alcohol, cannot be used to clean Lucite baffle, and also it cannot be put under the
direct radiation of ultraviolet.
10.11 To avoid making danger to sufferer while in cure; operator cannot leave if the baffle is taken off.
10.12 The Lucite baffle, baby bed and mattress must be cleaned in time after using the warmer.
10.13 Assure the lamp module surface is clean before use.
10.14 Prolonged operation will cause the unit surface hot; so don’t touch it as possible as you can.
10.15 Never block the heat vent of lamp module.
10.16 This equipment service life is 8 years, when service life is over should scrap the equipment, related products
scrap should be in conformity with law.
11 Warning
11.1 This warmer equipped with oxygen equipment; user wants to carry on oxygen therapy, please Do notice:
11.1.1 Oxygen analysis instrument must be equipped when carrying on oxygen therapy by yourself, please operate
according to oxygen analysis instructions or files of the same type.
11.1.2 Fire danger will rise while oxygen therapy is carrying on; at this time any assistant equipment that will cause
spark cannot be put on the warmer.
11.1.3 Inflammable solvent, such as ether and alcohol, cannot be left on the bed when oxygen therapy will be carried

Infant radiant warmer Operating instruction
11
on.
11.2 AC power must adopt single-phase of three wires, and the grounding must be reliable. The warmer should be
placed in clean site and place with small changes in temp and humidity.
11.3 Avoid direct sunshine and keep the bed far away from radiation to prevent the temp of the warmer from rising to
dangerous degree.
11.4 The equipment is in class 1, type BF applied part, so additional electrified equipment connected to the baby must
ground reliably or to be insulated.
11.5 Skin temp sensor must be stuck to the top of the baby’s abdomen correctly, check if there are things on the baby
that can absorb or reflect heat, skin temp sensor cannot be used as rectum thermometer.
11.6 When the warmer works in auto controlled mode, the skin temp sensor must be put in the controlled temp area;
the skin temp sensor must be stuck to the top of the baby’s abdomen tight, and prevent it from falling off, when it
works in baby controlled mode (Be careful: the skin temp sensor should not be put out of the bed to avoid after effect
caused by uncontrollable temp.)
11.7 The skin temp sensor must be inserted or pulled out correctly by handling the plug; ways by pulling the wire is
strictly prohibited.
11.8 The temp of the heater is very high when the warmer is in work; touch the heater or radiator cover after 45
minutes turning off the machine to avoid scald.
11.9 The temp of the warmer is very high when it is working, so it is not suitable to use inflammable anaesthesia gas
or other inflammable object to avoid bringing out of danger.
11.10 Although there is a temp controller monitoring and controlling the temp of the baby independently while the
warmer is in work, operator cannot leave, avoiding leaving the baby at Free State without anybody’s caring if failure
comes out.
11.11 When take phototherapy treatment, should use eye protector and perineum protector for the infant. Since
phototherapy can increase the temperature of platform; also should pay attention to the temp of platform.
11.12 Turn off the machine immediately if certain function of the warmer loses or fails, call professionals to maintain
it.
12 Cleanout and maintenance
12.1 Cleanout
After caring or rescuing a baby, the warmer must be cleaned、sterilized、disinfected(at least once a week) fully.
The parts and groupware will reach the anticipative effect after been cleaned disassembly, it is good to clean them by
soap, and some disinfectant solvent is ok too; clean them by aseptic water and dry them soon, then install.
12.1.1 Disassemble the parts.
12.1.1.1 Disassemble the baffles: unload the two baffle supports diagonally of infant bed, the four baffles
around can be taken off.
12.1.1.2 Take out the mattress and take off the cover.
12.1.1.3 Draw the X-ray cassette tray from the side.
12.1.2 Cleanout of the parts
Use registered cleanser; the bed should be empty when do cleaning, and clean after wiping off all solids and
pollutions from the disassembled parts.
12.1.2.1 Cleanout of the skin temp sensor
Clean the surface with disinfectant solvent (Be careful: Do not put the skin temp sensor into the solvent). Clean
it with clean cloth or let it dry by vaporizing.
12.1.2.2 Cleanout of baffle and X-ray cassette tray: disinfect and clean with disinfectant solvent in proper quantum,
wipe the inside out and out after cleanout (including the concave place). Be careful: Do not clean the baffle with

Infant radiant warmer Operating instruction
12
organic solvent, such as alcohol; do not put it under direct radiation of ultraviolet.
12.1.2.3 Cleanout of mattress and cover: brush with cleanser, rinse with clean water and then air to dry.
12.1.2.4 Cleanout the disassembled and cleaned main body: cleanout all of the surfaces and corners of the equipment
out and out with disinfectant cleanser, and then dry them with clean cloth.
12.1.3 Assemble.
After the main body and the parts are cleaned and dry, install in the order opposite to the way of disassembling
them. Do not use lube、alcohol or other objects to lubricate the surface when install. Check whether the baffle is fixed
tight and don’t leave any inflammable objects after installation.
12.2 Maintenance (Operated by professional, the power plug must be pulled off).
12.2.1 Replacement of battery
If the equipment hasn’t been used over six months, start the machine to make it charge
automatically at least 6 hours, insuring the sufficiency of power to alarm for power failure.
The battery could be changed by authorized person only!
In the process of examining the alarm of power failure, if the alarm can not sound, or the sound is too small,
charge the battery up or change a new one in time in case that the battery liquid flow out and damage the parts of the
equipment. If the battery liquid flowed out, must wash it cleanly with the cleanser, so as not to corrode the equipment.
While changing the battery, pull out the plug of supply power firstly, and unload the screws of the operation panel.
Demount the rechargeable battery which lies in the PCB board with electric iron and solder a new one(model:
D80H5A2H) onto the circuit board. Collect them together and dispose them to avoid environment polluting. Don’t
abandon the changed batteries at will.
12.2.2 Replacement of the power fuse
Pull off the power cord, open the fuse socket of the power socket in the back of the warmer, replace it with the
same type of fuse(F 5AL, 5×20). The fuse of the transformer is also in the back of the equipment, replace it with the
same type of fuse(F 1AL, 5×20) and then the replacement is done.
12.2.3 Replacement of the LEDs of lighting
Take off the shield window which lays outside of the LEDs lamp, and then the replacement of the lamp can be done.
!

Infant radiant warmer Operating instruction
13
13 Solution of common failure
Phenomenon
Cause analysis
Solution
Sensor alarm
The skin temp sensor has not been
inserted.
The plug of the skin temp sensor
falls off or bad tangency.
Skin temp sensor failure.
Insert the skin temp
sensor.
Check the plug and the
connection.
Replace the skin temp
sensor.
Over temp alarm
Skin temp sensor has not been laid
well.
BTA failure.
Lay the skin temp
sensor well.
Replace the BTA.
Deviation alarm
The skin temp sensor has not been
put in the center of the bed or there are
some coverings above.
Great change of the environment
temp.
Heat source beside the machine.
Lay the skin temp
sensor well.
Stabilize the
environment temp.
Keep the machine
away from the heat source.
Power break off alarm
The power plug has not been
inserted well.
No power support.
The fuse has burnt out.
Check if the power
plug has inserted.
Turn off the power.
Replace the fuse with
the same type.
Panel button failure
Panel button failure.
Replace the panel..
Temp doesn’t rise up.
a. Controller failure.
b. Power wire of the heater tube
falls off.
c. Failure of the heater tube.
Check the controller.
Fix the power wire
tight.
Replace the heat tube.

Infant radiant warmer Operating instruction
14
14. APPENDIXⅠ
Neonate Phototherapy Unit
BL-60D
1. Summary
Jaundice is a common phenomenon in neonatal period; it is observed that over 90% newborn babies have
jaundice in different degree. It can be a physiological phenomenon ( called physiological jaundice) in neonatal period,
it also can be an important symptom of many diseases in neonatal period （called pathological jaundice ）. This
pathological jaundice can cause bilirubin brain illness (called kernicterus), it can cause brain damage of newborn
baby, and results in early death and serious sequela, so we must take immediate and efficient measures to treat
neonatal pathological jaundice.
The effect of phototherapy treatment for neonatal high bilirubin blood illness has been approved by clinic, its
principle is that bilirubin can absorb rays to have actinic isomerization, it makes the indirect bilirubin oxidize into one
water-soluble product under the bluish green light (light-oxidation bilirubin ).It fades yellow according to liver and
gallbladder discharging out of body. The medical field recognizes that using phototherapy to treat neonatal
pathological jaundice is a simple and effective method. Neonatal phototherapy unit are also called “infant
phototherapy device” or “blue light lamp”. It is necessary medical equipment of neonatal medical department.
2. Use
This product is used for light treatment to reduce concentration of bilirubin in the body of infants.
3. Symbols and marks
ON for phototherapy unit
OFF for phototherapy unit
！
Attention, Consult
accompanying documents
Protective earth(ground)
Rated power: AC 110V to 240V, 50 or 60Hz
power input: 40VA
Fuse
Type: F 1AL 250V
Eye Protection for the PATIENT

Infant radiant warmer Operating instruction
15
4. Features
4.1 With its small bulk and light weight, the product has a high efficiency of radiation.
4.2.With electron adaptor, power have high adaptive capacity
4.3 LCD display the total time of therapy.
4.4 With low,middle,high three level to adjust phototherapy radiant.
4.5 Auto save 20000 hours accumulated use time.
5. Main technical parameter:
Power supply
AC110V～240V 60/50HZ
Input power
40VA
Radiant wave length
420nm～490nm
LED lamp quantity
17
Uniformity
>0.4
Time accuracy
1min/12hours
Accumulate time range
0～20000hours
Count down time range
30min～48hours
Distance between the
phototherapy equipment and the
effective surface area :50cm
Distance between the phototherapy
equipment and the effective surface
area :36cm
Ebi max (maximum total
irradiance for bilirubin)
1620μW/cm2
2800μW/cm2
Ebi avg (The average total
irradiance for bilirubin)
1420μW/cm2
2000μW/cm2
Working condition of
circumstance
Temperature range
+18℃～+30℃
Humidity range
10%～85%RH
Atmospheric pressure
700hPa～1060hPa
Transport and storage
condition
Temperature range
-10℃～+55℃
Humidity range
≤95%
Atmospheric pressure
500hPa～1060hPa

Infant radiant warmer Operating instruction
16
6. Installation
Instruction: This type phototherapy unit is specially designed to be installed on the infant radiant warmer. So
before installing this phototherapy unit, please install the infant radiant warmer first, then install this phototherapy
unit.
The installing procedure of this phototherapy unit is as follows:
6.1 Pull out the power supply plug of infant radiant warmer to make the device power off.
6.2 Face to the unit. Rotate the lamphouse of infant warmer unit 900with clockwise.
6.3 Open packing of phototherapy unit, insert phototherapy fixed seat into the slideway of side of warmer. Then
adjust phototherapy unit to suitable height（advice 450-500mm）. Tighten M8*20 screw thread handle.
6.4 When use,adjust rotating arm to the clinic needed position. Reset it after use.
6.5 Make sure the radiant warmer main body connect well (including grounding connect well), insert output end
of special phototherapy connect cable into power socket of rear of warmer.
Lamphouse of infant warmer
M8*20 screw thread handle
phototherapy fixed seat
slideway
Arm can be adjusted
phototherapy
unit can be
adjusted
Adjust the height
by tightening
or loosening this
screw

Infant radiant warmer Operating instruction
17

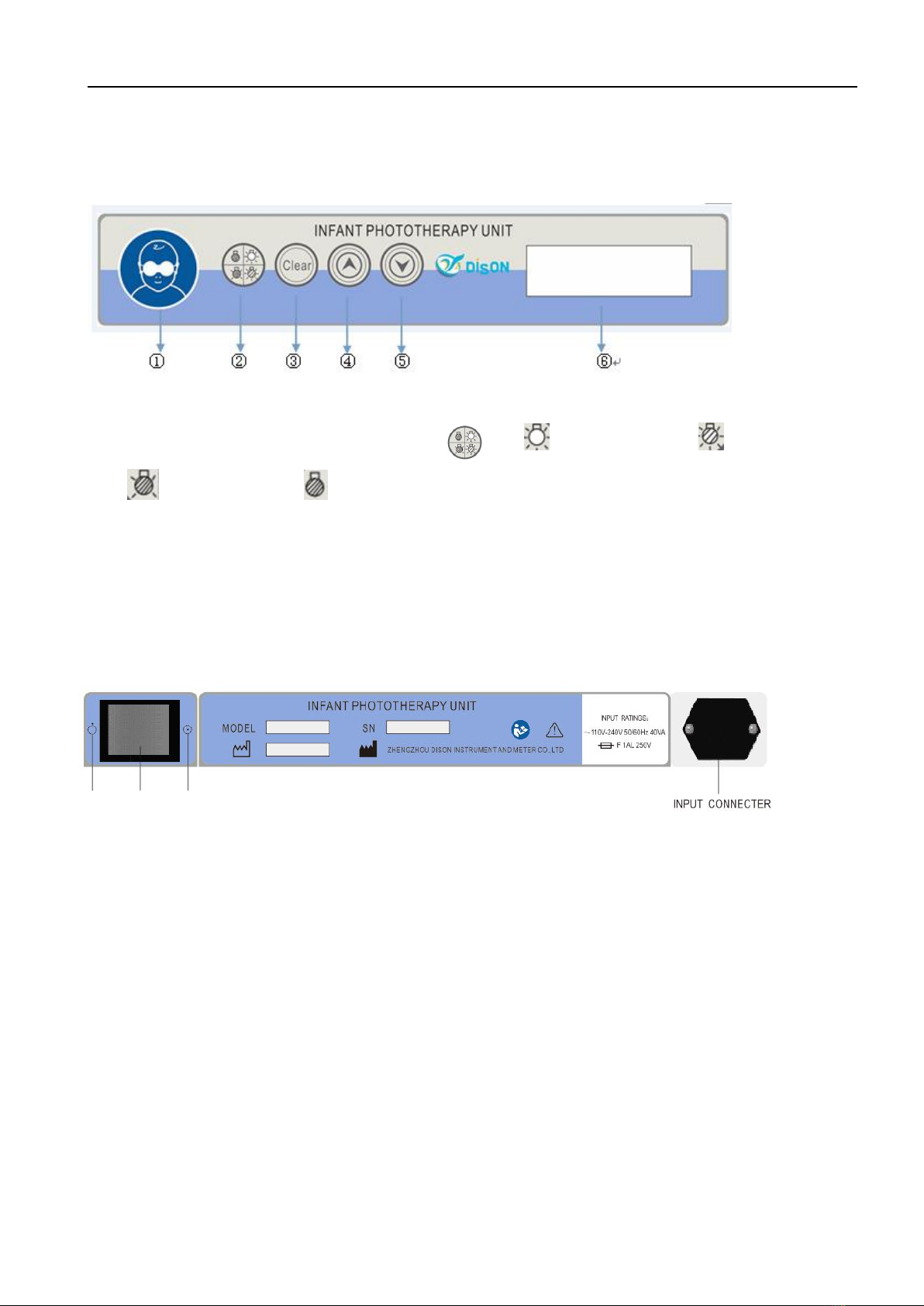

7. Introduction for functions panel
Front panel
1.protect label
2.Irradiance key .Adjust the irradiance level by press key. sign means high level sign means middle
level sign means low level sign means pause
3. Clear key: Clear time of this phototherapy.
4.Increasing key. a) check total cumulative time b) increasing value when set count-down time.
5.Decreasing key. a）press it few seconds, enter setting count down time. b) decreasing value when set count down
time.
6.LCD display screen
Back panel
8. Instruction for use
1. Before treating one patient, phototherapy unit should rinse thoroughly and disinfect, avoiding affect the
phototherapy effect.especially the lens surface.
2. Put one end of power cable into bear of input connecter.the other end insert auxiliary mains socket-outlet of a
infant warmer.
3. After use blinder and perineum cover for patient, move patient to suitable position
4. Switch on phototherapy source and turn on the lamp(default is high level irradiance), timer and treatment is
starting.
5. The relationship of distance between phototherapy equipment and effective surface,effective surface,irradiance
level and irradiance. Fig8-1
OFF Switch ON

Infant radiant warmer Operating instruction
18
Fig8-1
Distance between the
phototherapy equipment
and the effective surface
area :36cm,effective
surface area:50cm*30cm
level
High
middle
low
Ebi max (maximum
total irradiance for
bilirubin)
2800μW/cm2
2000μW/cm2
800μW/cm2
Ebi avg (The average
total irradiance for
bilirubin)
2000μW/cm2
1400μW/cm2
620μW/cm2
Distance between the
phototherapy equipment
and the effective surface
area :50cm,effective
surface area:60cm*30cm
level
High
middle
low
Ebi max (maximum
total irradiance for
bilirubin)
1620μW/cm2
1200μW/cm2
480μW/cm2
Ebi avg (The average
total irradiance for
bilirubin)
1420μW/cm2
1000μW/cm2
400μW/cm2
Attention: usually, distance between the phototherapy equipment and the effective surface area is about 50cm,and the centre of effective
surface area is coincide with baby mattress centre, Ebi max(maximum total irradiance for bilirubin) is the maximumm value of the
effective surface; Ebi avg is the average value of total irradiance for bilirubin between Ebi max and Ebi min.
Warning: when using phototherapy equipment,should choice the suitable level according to the direct
of doctor and the needed of patient. Review the therapy effect after 4 hours, to decide whether change the
irradiance level or not.
This unit have high,middle,low three level.can adjust the irradiance by press key,and it will display on the
screen.the order is :high – middle – low – pause.
As the fig 8-2. means high level; means middle level, means low level. All irradiance
sign not lighten means phototherapy now is paused.
Fig.8-2
Attention : when switch off phototherapy unit or cut off power,the unit can remember the level of
irradiance.
Irradiance level
