Anker SOLIX F3800 User manual

Anker SOLIX F3800 Portable Power Station USER GUIDE (A1790)
What's in the Box
AC Charging CableAnker SOLIX F3800 Portable
Power Station
MC4 Solar Charging
Connector
Important
Information
What's in the Box
Overview
Product Overview
LCD Screen Guide
Recharging Your Power Station
AC Recharging (1800W Max)
Solar Panel Recharging (2400W Max)
Car Recharging (120W)
Powering On / O
Powering Your Devices
AC Charging
USB Charging
Car Socket Charging
Uninterruptible Power Supply (UPS)
Connect With an Expansion Battery
Connect with Anker SOLIX Home Power Panel
Anker App for Smart Control
Light
Carry Your Power Station
FAQ
Specifications

Overview
Product Overview
1
18
913
17
15
10
2
4
3
20
711
8
14
19
6
5
12
16
On/O Button Display Button
USB Ports IoT Button
Car Socket Car Socket Button
NEMA 14-50 AC Output Port NEMA L14-30R AC Output Port
NEMA 5-20R AC Output Ports (Left three ports have UPS
function)
10
Overcharge Protection (AC Output)
11
Home Panel Power Port
12
AC Input Port
13
Overcharge Protection (AC Input)
14
Dual Solar Input and Car Input
15
Expansion Battery Port
16
Wheels
17
Wheel Brake
18
Retractable Handle (Press the button on the retractable
handle and pull to extend)
19
Bottom Handle
20
AC Outlet Button
LCD Screen Guide
4
5
1
16
15 2 3
6789
10
11
12
13
14
Remaining Battery for Power Station and Expansion Battery
Overload Warning
This icon appears when a port is overloaded. The port will turn o to avoid any damage. Please remove the device causing overload.
Current Output Power
Current Input Power
Whole-Home Power Mode
USB-A Output Port
USB-C Output Port
Car Charging
IoT
Press the IoT button for 2 seconds and connect your devices through the app when this icon appears on the screen.

10
AC Charge and Voltage Frequency
11
Electrical Vehicle Charging
12
Number of Expansion Battery Connected
When the expansion battery is connected successfully, this icon appears on the screen.
13
Estimated Time to Fully Recharge
14
Estimated Time for Battery to Deplete
15
Low-Temperature Alert
When this icon shows, stop using the power station until the icon disappears.
16
High-Temperature Alert
When this icon shows, stop using the power station and let it cool down until the icon disappears.
Recharging Your Power Station
When your portable power station only has 1% battery remaining, the "Remaining Battery" indicator will flicker to
remind you to recharge.
AC Recharging (1800W Max)
Recharge your power station by connecting to a wall outlet with the AC charging cable.
Solar Panel Recharging (2400W Max)
Recharge your power station with a maximum solar input of 2400W.
1
2
4
3
5
*If the solar panel is far from the power station, you can purchase the Anker SOLIX Solar Panel MC4 Charging Cable as an extension cable
from Anker's ocial website, and connect it to the part indicated by the dotted line in the diagram.
Car Recharging (120W)
Recharge your power station by connecting to a car's output port with the car charging cable (not included).

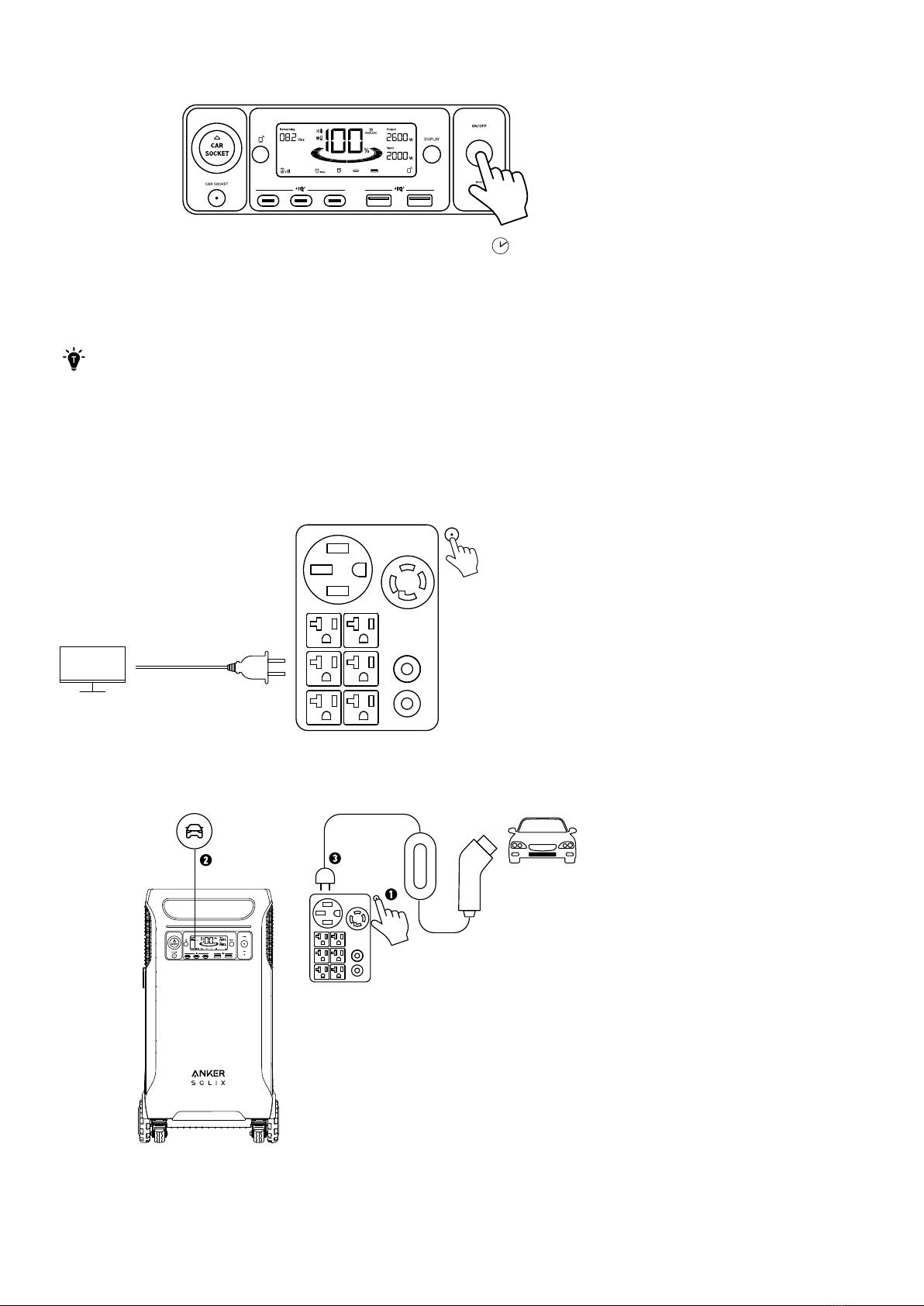

Powering On / O
2s
Press the ON/OFF button for 2 seconds to turn your power station on or o.
When the "Remaining Battery" indicator shows on the LCD screen, your power station is ready to charge devices.
• When powered on, press the DISPLAY button to turn the screen on or o.
• The auto-o time can be set in the Anker app.
• The power station will power o automatically if the output buttons are turned o and no power loads are detected
for 12 hours. The standby duration can be set in the Anker app.
Powering Your Devices
AC Charging
Press the AC outlet button and connect your device to the AC output ports.
On / O
Double-click the AC outlet button, wait until the car icon appears on the screen, then connect your EV charge to the L14-30R
or 14-50 AC output port.
x2

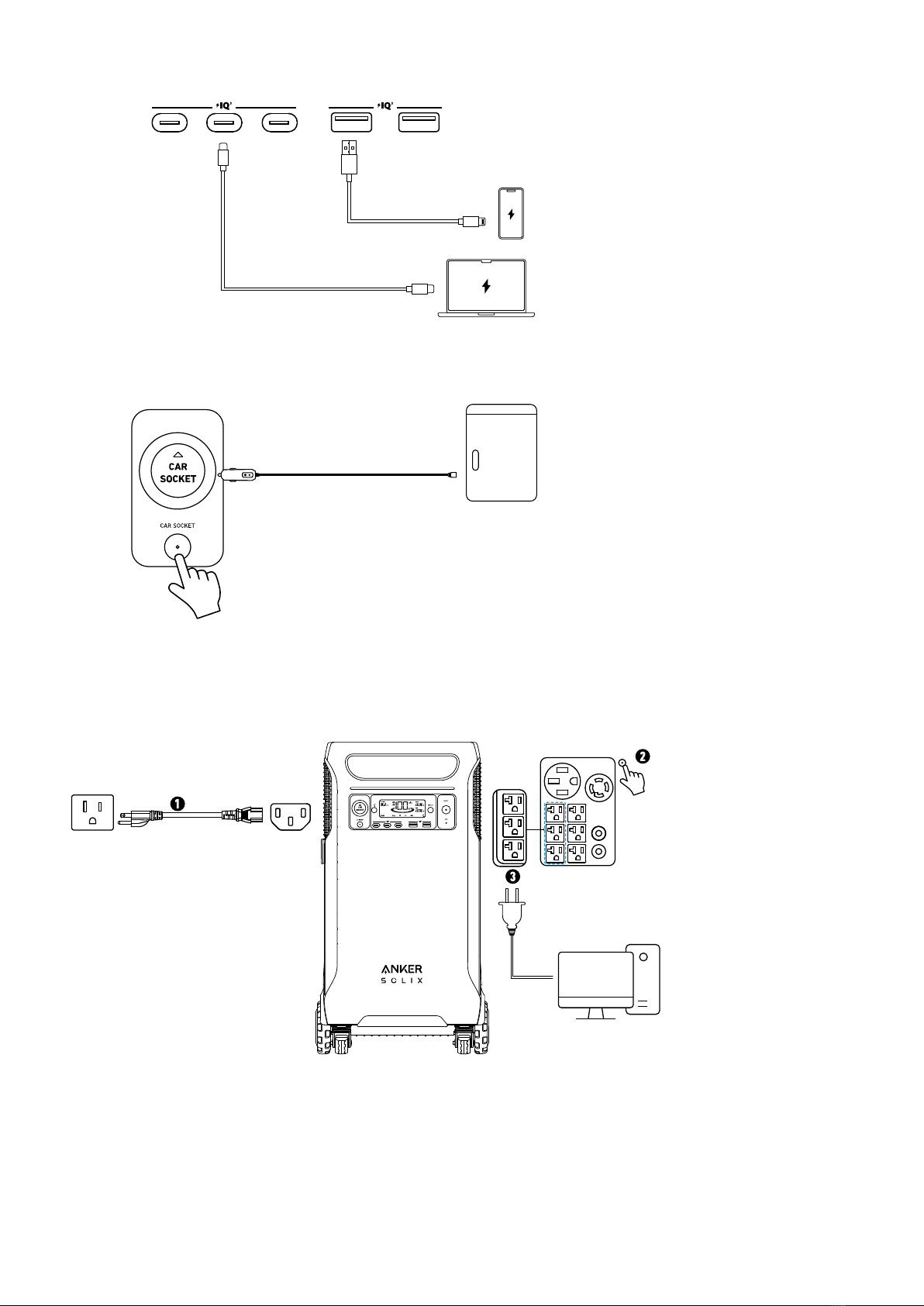

USB Charging
Connect your devices to the USB ports.
Car Socket Charging
Turn on the car socket and connect your devices to start charging.
On / O
Uninterruptible Power Supply (UPS)
To use the UPS feature, connect your power station to a wall outlet with the AC charging cable, then press the AC outlet button and connect
your devices via the UPS AC output ports.
On

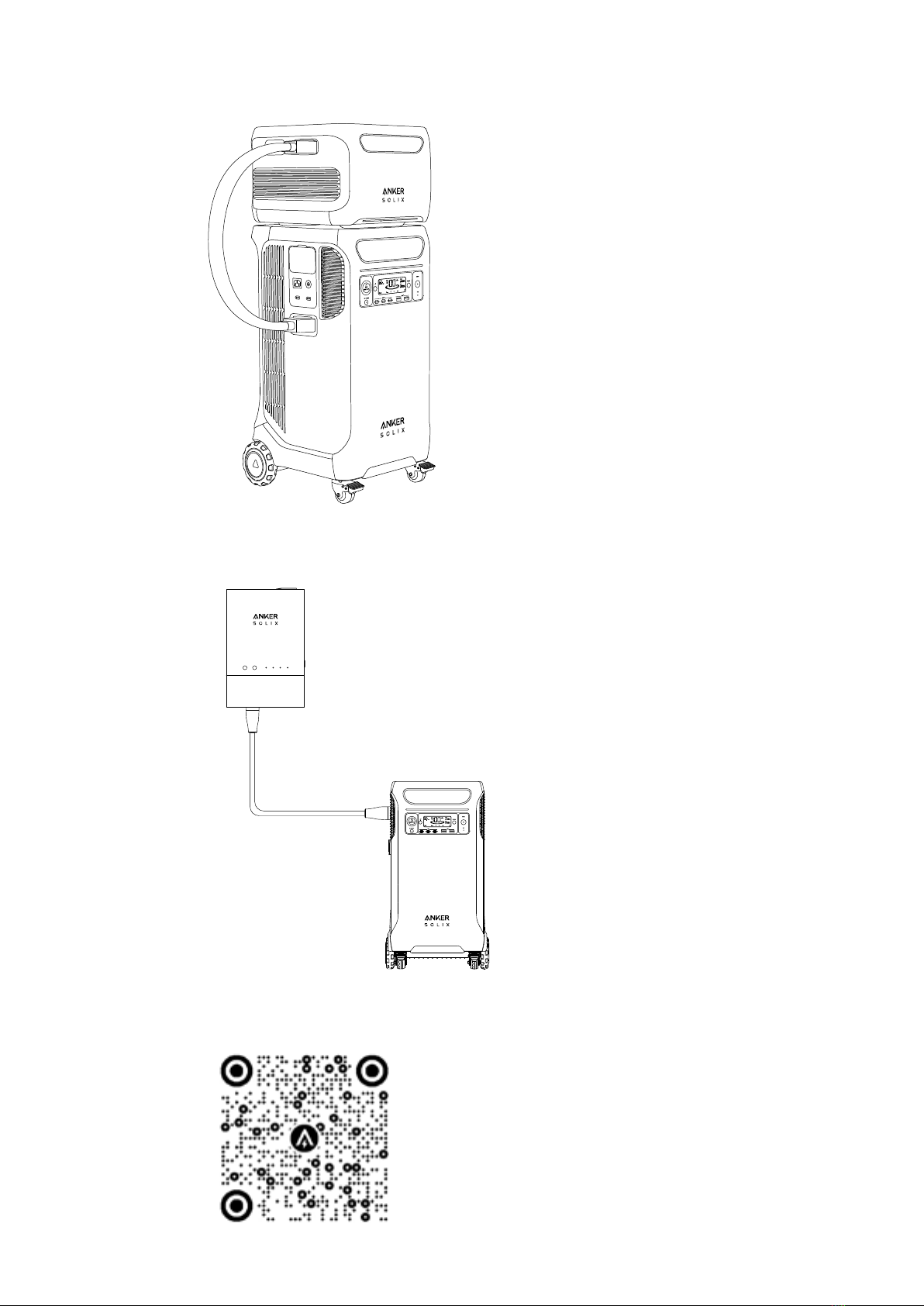

Connect With an Expansion Battery
Your power station can be connected with expansion batteries to increase the capacity up to 26880Wh. Please refer to the user manual of
Anker SOLIX BP3800 Expansion Battery for detailed instructions.
Connect with Anker SOLIX Home Power Panel
Your power station can be connected with Anker SOLIX Home Power Panel to power your entire house. Please refer to the user manual of
Anker SOLIX Home Power Panel for detailed instructions.
Anker App for Smart Control
You can remotely control your power station using the Anker app.
1. Download the Anker app from the App Store (iOS devices) or Google Play (Android devices), or by scanning the QR code.

2. Connect the device to a network before using the app for the first time. After connecting successfully, you can connect your device o-grid.
3. Firmware update: You will be informed once a new firmware version is detected when you connect the power station to the app. During the update, ensure
the power station is being charged and connected to Wi-Fi.
Light
Turn ON/OFF the light on Anker App.

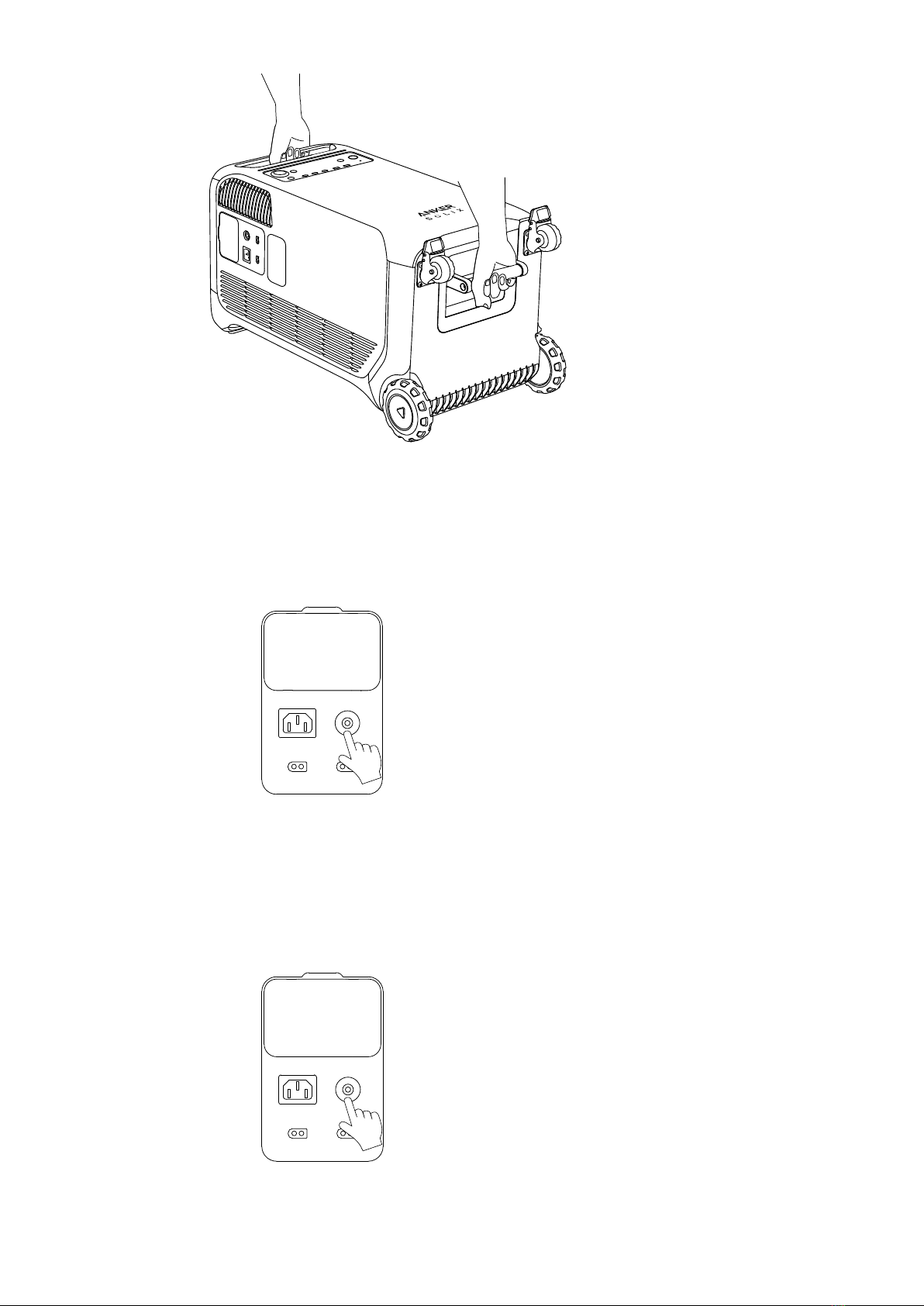

Carry Your Power Station
1. Lay the power station flat.
2. Open the bottom folding handle.

3. Grab the bottom and top handles to lift the power station.
FAQ
Q1: What is the maximum power output of the AC output ports?
The AC output ports can deliver a maximum of 6000W to connected devices. Each group of NEMA 5-20R AC Output Ports can deliver 2400W (120V/20A) of
power.
Q2: What should I do when the AC output port fails?
If AC output does not work, check to see if the overcharge protection switch is switched on. If it is on, press down to reset and then continue working.
Q3: What should I do when using a solar charger to charge my power station?
The solar input supports an 11-60V solar charger with an XT-60 connector. If you use an 11-32V solar charger, the current supports 10A max. When you
use a 32-60V solar charger, the current supports 25A max.
Q4: Can the USB-C ports charge the power station (input only), or are they output only?
The USB-C ports support output only.
Q5: What should I do when AC recharging fails?
If AC recharging does not work, check if the overload protection switch is turned on. If it is on, press down to reset and then continue recharging.

Q6: How do I reset my power station?
If your power station is not working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If the power station still doesn't
work, please contact [e-mail].
Q7: Why is the power station not working after it hasn't been used for a long time?
If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge. This often
leads to poor conductivity and a reduced battery lifespan that causes the battery not to work.
Q8: How should I store and maintain the power station?
When storing your power station, please make sure that you:
1) Turn o the main power button.
2) Store the power station in a dry and cool environment.
3) Check the remaining battery capacity each week. If the battery level is below 30%, fully charge the power station. Do not forget to charge it to 100% once
every 3 months.
Specifications
Battery Type LiFePO4 Cell
Cell Part Number 32140FS-15000mAh
Cell Number 80
Cell Capacity 51.2Vdc 75Ah/3840Wh
AC Input 120V~ 15A (3 hours Max), 12A (continue), 60Hz L+N+PE
AC Input Power (Charging) 1800W Max
AC Input Power (Bypass Mode) 1440W Max
Solar Panel Input 11-32V 10A;
32V-60V 25A (1200W Max Each)
Car Charger Output 12V 10A
Home Panel Power Port 3800W Max (AC Input), 6000W Max (AC Output), 120V/240V,
L1+L2+N+PE
AC Output Power (Total) 6000W Max
AC Output 1 120V~ 20A Max, 60Hz, 2400W Max
AC Output 2 120V~ 20A Max, 60Hz, 2400W Max
AC Output (NEMA 14-50 / L14-30) 120V/240V~ 25A Max, 60Hz, 6000W Max
USB-A Output 5V 2.4A (12W Max Per Port)
USB-C Output 5V 3A / 9V 3A / 15V 3A / 20V 3A / 20V 5A
(100W Max Per Port)
UPS 20ms
Discharging Temperature
-4°F-104°F / -20°C-40°C
Charging Temperature
32°F-104°F / 0°C-40°C
Size
27.6×15.3×15.6 in / 70.2×38.8×39.5 cm
Net Weight
60 kg / 132.2 lbs
