Anker PowerConf S500 User manual

Anker PowerConf S500
USER MANUAL

English 01
Čeština 07
Dansk 14
Deutsch 21
Español 27
Suomi 34
Français 41
Italiano 48
Nederlands 55
Norsk 62
Język polski 69
Portugues do Brasil 75
Pусский 83
Slovenský Jazyk 90
Türkçe 96
日本語102
한국어109
简体中文115
繁體中文121
 127
  133

01 EN
At a Glance
4
6 7 85
2 31
9
1
Volume down button
6Play button
2Mute button 7
Link button
3Phone call button 8Bluetooth button
4Volume up button 9USB-C charging port
5Power button

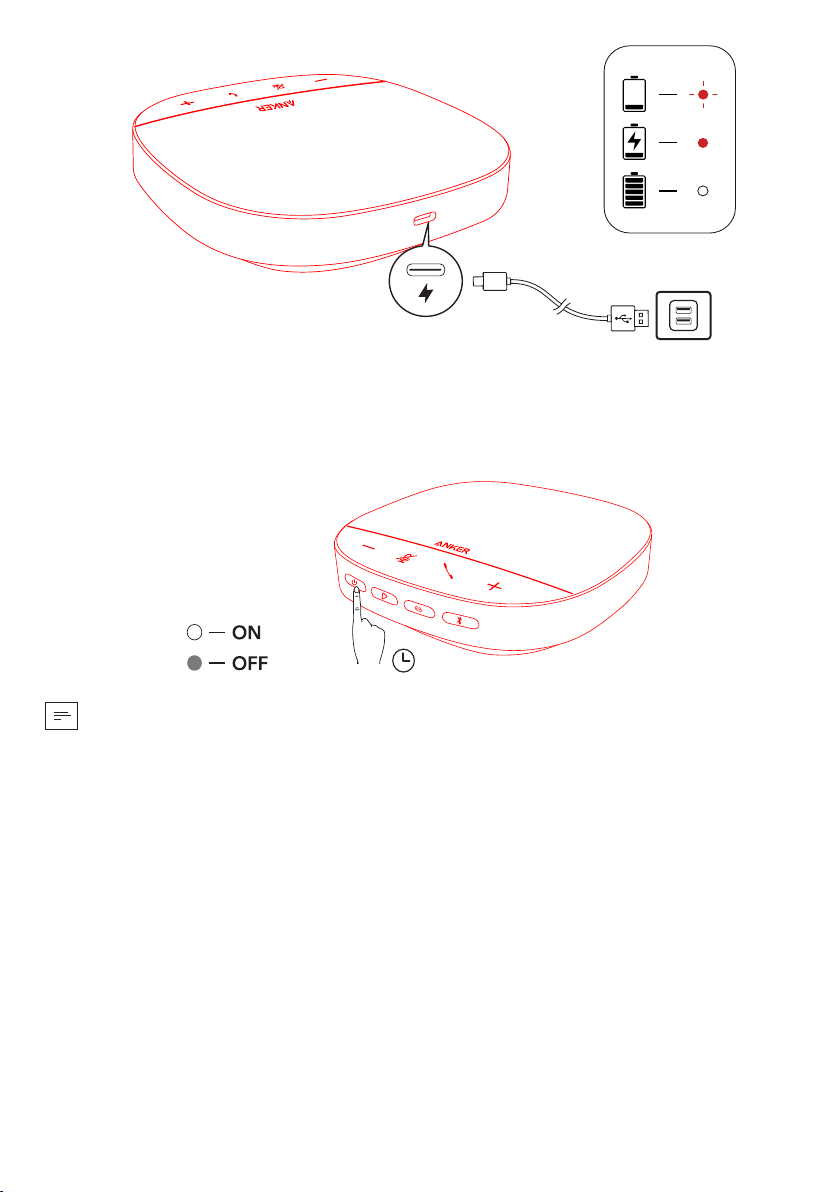

Charging
• Fully dry off the USB-C charging port before charging.
•Fully charge the speakerphone before the rst use to extend the lifespan.
•Use a certied USB-C charging cable and charger to prevent any damage.

EN 02
Powering On/Off
Press and hold the power button for 3 seconds to power on or off.
3s
• The PowerConf speakerphone will automatically power on once connected to
your PC by using the USB-C cable.
• The PowerConf speakerphone will automatically power off after 30 minutes if no
device is connected.
• To check the battery level, press the power button again when powered on.
Connecting
There are 3 ways that you can connect the PowerConf speakerphone to your
devices.
Option A: Connect to PC (Bluetooth USB adapter)
1. Plug the provided Bluetooth USB adapter into a USB port on your PC, PowerConf
S500 is ready to use when powered on.
Anker PowerConf
Model:A3305
Anker Soundsync A3303
Model:A3303
1 2
2. You might need to manually set PowerConf S500 as the audio device for your PC
system or conference software.
• macOS
System Preferences > Sound > Sound Effects / Output / Input
• Windows
Right-click on the sound icon > Open Sound settings > Choose your output device / Choose your
input device

03 EN
• Software (Zoom, Skype or more)
Settings > Audio > Speaker / Microphone
Option B: Connect to PC (USB-C cable)
Connect PowerConf S500 to a PC using the provided USB-C cable, it will be
powered on and ready to use.
Option C: Connect to smartphone or tablet (Bluetooth)
1. When powered on, PowerConf S500 will automatically enter Bluetooth pairing
mode. Alternatively, press the Bluetooth button to enter Bluetooth pairing mode.
2. Select “Anker PowerConf S500” on your smartphone’s Bluetooth list to connect.
Anker PowerConf
S500
Pairing Connected
x1
Press Enter Bluetooth pairing mode
Flashing blue Pairing
Steady blue Connected
• Each time you power on owerConf S500, it will automatically connect with the last
successfully connected device if available. If not, press the Bluetooth button to
enter Bluetooth pairing mode.
• This speakerphone can pair up with 2 mobile devices via Bluetooth at a time.
To pair with another Bluetooth device, press the Bluetooth button to re-enter
Bluetooth pairing mode.
• To break the Bluetooth connection from one device, press the Bluetooth button
again on the device that’s currently active.

EN 04
Using Your PowerConf
Press and hold for 3 seconds Power on or off
Press (when powered on) Check the battery level
Press Enter Bluetooth pairing mode or disconnect
Bluetooth
Press Answer/End a call
Press and hold for 2 seconds Reject a call
Press or press and hold Volume up/down
Press Mute or restore the microphone
Press Play/Pause/Resume music
Press twice Skip to next track
Press and hold for 2 seconds Activate Siri or other voice assistant software
Press Link with another PowerConf S500
LED Light Bar
Lights up then turns off Powered on
Lights up green (Battery level >10%)
Check the battery level
Lights up red then ashes (Battery level <10%)
Flashes blue Incoming call
Lights up cyan (Standard mode)
Sound direction detected
Lights up yellow (AI noise cancelling mode)
Lights up purple (Broadcasting mode)
Lights up blue then turns off Adjust volume
Turns red Muted
Lights up purple Enter linking mode

05 EN
Anker Work App
Download the Anker Work app to enhance your experience.
• Check product information
• Read user manual
• Check the battery level
• Check the latest software updates
• Adjust volume
• Set auto-power off
• Manage devices
• Turn LED light bar off
• Set voice pickup modes
Anker Work
ANKER WORK
There are 3 voice pickup modes you can choose from in the Anker Work app.
• Standard mode: Pick up all sounds from the near end.
• AI Noise Cancelling mode: Intelligently detect and block specic background
noise such as keyboards or air-conditioners to emphasise the human voice.
• Broadcasting mode: Restore and deliver original sounds by turning the speaker
off. You will not hear the far end anymore when in this mode. (You are strongly
suggested to use this mode via USB connection).
Linking Mode
Linking mode is available only when you connect one PowerConf S500 with your PC
using the USB-C cable. It is not available when connected via Bluetooth.
1. Connect one PowerConf S500 with your PC using the provided USB-C cable.
2. Power on another PowerConf S500, then press the link button on both PowerConf
S500 speakerphones simultaneously to enter linking mode.

EN 06
Connecting Connected
2s
Press Enter linking mode
Flashing blue Connecting
Steady blue Connected
• To exit linking mode, press and hold the link button for 2 seconds simultaneously
on both PowerConf S500 speakerphones.
Specifications
Specications are subject to change without notice.
Input 5V 2A
Rated output power 10W
Battery capacity 6700 mAh
Charging time 4 hours
Talktime 16 hours
Driver size 1 x 1.75” (full range)
Frequency response 20 Hz - 20 kHz
Voice pickup range 5 m / 16 ft
Microphone 4 stereo microphones
Bluetooth version 5.0
Bluetooth range 10 m / 33 ft

07 CS
Přehled
4
6 7 85
2 31
9
1
Tlačítko snížení hlasitosti
6Tlačítko přehrání
2Tlačítko ztlumení 7
Tlačítko spojení
3Tlačítko telefonního hovoru 8Tlačítko Bluetooth
4Tlačítko zvýšení hlasitosti 9Nabíjecí port USB-C
5Tlačítko napájení

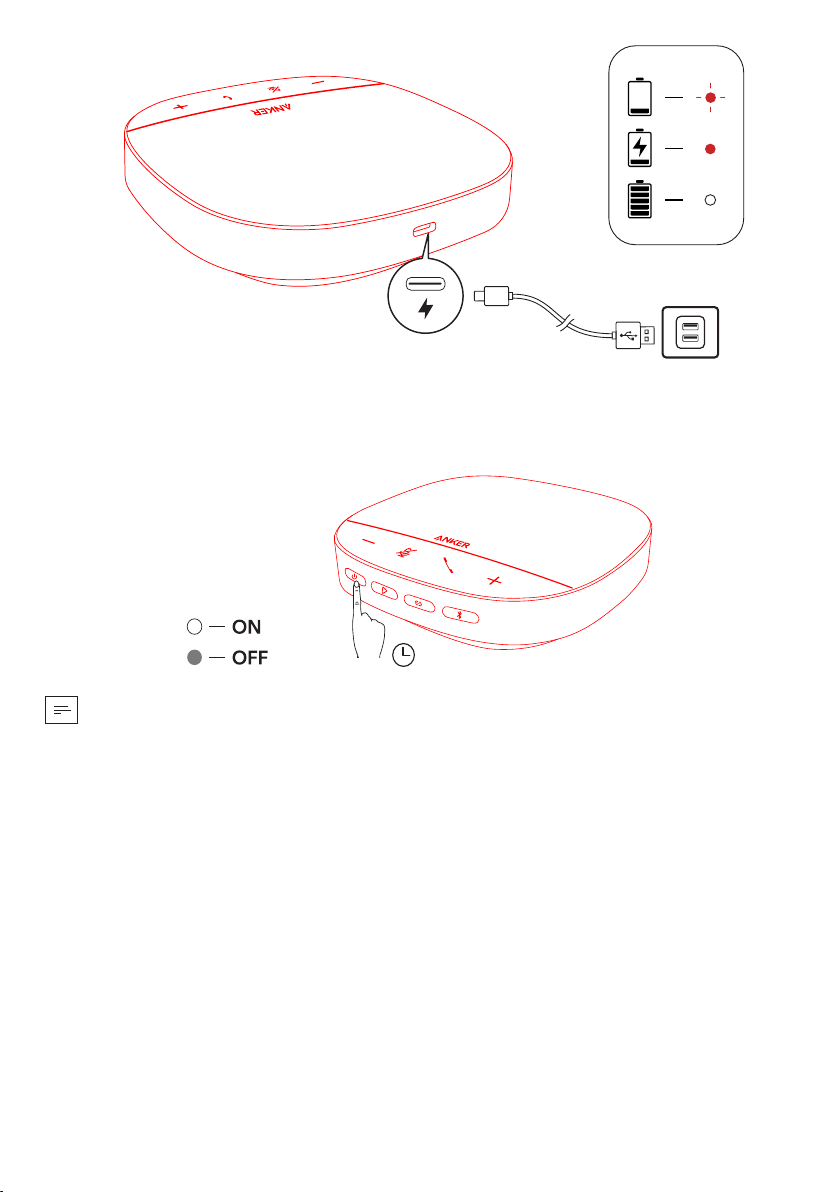

Nabíjení
• Před nabíjením nabíjecí port USB-C úplně vysušte.
• Před prvním použitím reproduktor s mikrofonem úplně nabijte, abyste prodloužili
jeho životnost.
• Použijte pouze certifikovaný nabíjecí kabel USB-C a nabíječku, abyste zabránili
poškození.

CS 08
Zapnutí/Vypnutí
Stisknutím a podržením tlačítka napájení po dobu 3 sekund zařízení zapnete nebo
vypnete.
3s
• Reproduktor s mikrofonem PowerConf se automaticky zapne po připojení k
počítači pomocí USB-C kabelu.
• Reproduktor s mikrofonem PowerConf se automaticky vypne po 30 minutách,
když není připojené žádné zařízení.
• Chcete-li zkontrolovat úroveň baterie, stiskněte znovu tlačítko napájení, když je
zařízení zapnuté.
Připojení
Existují tři způsoby, pomocí kterých můžete reproduktor s mikrofonem PowerConf
připojit ke svým zařízením.
Možnost A: Připojení k počítači (Bluetooth adaptér do USB)
1.Dodávaný Bluetooth adaptér do USB zasuňte do USB portu v počítači. PowerConf
S500 bude připraven k použití, jakmile ho zapnete.
