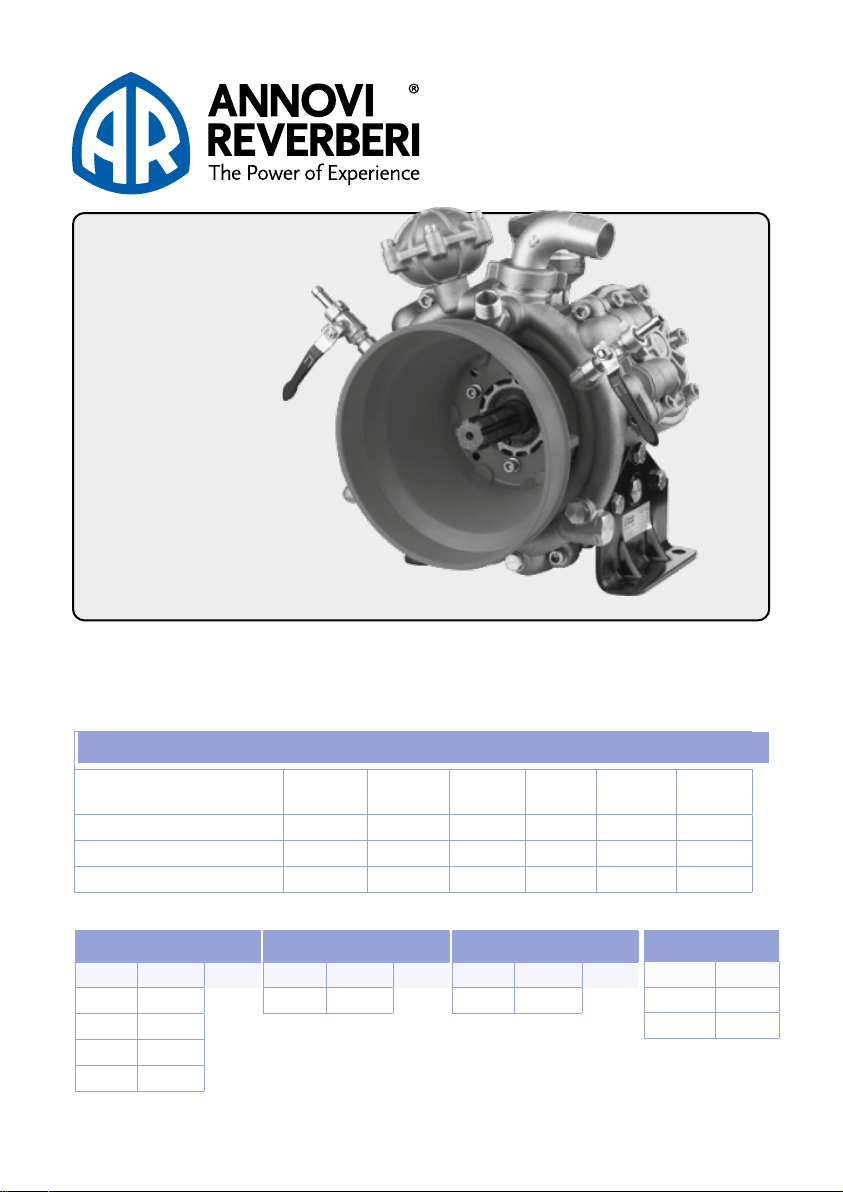

Annovi Reverberi BHS 90 User manual

BHS 90
BHS 105
BHS 120
INSTRUCTION MANUAL
BHS90 • BHS105 • BHS120 - 550 RPm - Semi-HydRAuLic FouR diAPHRAgm PumP
modeL mAx gPm mAx L/min mAx PSi mAx BAR HP PoweR
weigHT
LBS.
BHS90-C/C 23.9 90.6 725 50 10.5 94.4
BHS105-C/C 26.9 101.9 725 50 12.0 94.4
BHS120-C/C 29.8 113.0 725 50 13.3 94.4
d iAPHRAgm K iTS
modeL deScRiPTion
AR43317 BlueFlex
AR43315 Desmopan
AR43314 NBR
AR43316 Viton
V ALVe K iTS
modeL deScRiPTion
AR2445 Valves
o-R ing K iTS
modeL deScRiPTion
AR42205 O-Rings
o iL
modeL deScRiPTion
AR64532D Oil
AR64532D-C Case (6)Oil
140° F - Max Water Temp
1 1/2” - Suction
3/4” BSP - Outlet

IMPORTANT SAFETY INFORMATION
Intended uses
The pump is designed and constructed for incorporation in plants and machinery (spraying machines for the
protective treatment of agricultural crops and garden plants). All other uses constitute misuse unless ap-
proved by the manufacturer's technical service
The pump must be used in a manner appropriate to its technical data (see “Technical Data”), and must not be
modified or improperly used.
Misuses
Do not put the pump into service until the plant or machinery in which it is incorporated has been declared
compliant with the relevant national and local legal requirements.
Do not use the pump in a potentially explosive atmosphere.
Do not use the pump for flammable, toxic or corrosive liquids or liquids with unsuitable density, especially
seawater, adhesives, bitumens, asphalt sealers, two-step curing compounds, concrete sealers, liquefied
gases or solvents of any kind, paints of any kind or liquids containing solids in suspension, and in all cases do
not use with any liquid unless certain that it is compatible with the materials used in the pump circuit.
Do not draw in liquids at temperatures above 50°C or below 5°C.
Do not use the pump in drinking water supply systems.
Do not use the pump on products for human consumption.
Do not use the pump on pharmaceutical products.
Do not use the pump without first checking that the intake and delivery circuit pipelines are correctly secured
and free from leaks.
Do not use the pump without the safety devices provided: guards for shafts and drive couplings and suitably
rated relief valve on the delivery circuit.
Do not use the pump to wash or spray: people, animals or delicate items, live electrical equipment or chemicals
whose characteristics are not known.
Safety devices
Danger - Warning
Never tamper with or by-pass the safety devices. Maintain all safe-
ty devices regularly to ensure they all work efficiently.
The drawing shows the position of the safety devices mounted on the
machine.
Additional safety devices must be added as necessary during the de-
sign phase (see “Installation information”).
A) Fixed guard: provides protection against accidental contacts with
the drive shaft when in operation.
Residual risks
Even if the safety regulations and information provided in the manual
are complied with, the residual risks described in the declaration of
incorporation still apply when the pump is in operation.
A

Installation diagram (guideline)












English language
Use and Installation
5
General guidelines on water supply connection
To operate correctly, the diaphragm pump must draw in liquids from containers at atmospheric pressure.
Do not supply the pump with pressurised liquids.
Forcontinuous duty,thepumpshouldnot drawinwaterbygravityfromcontainerswithliquidlevelatheights
above 3m.
For continuous duty, the pump should not draw in liquids by vacuum from containers with the liquid level
more than 3 m belowthepump intake fittingandthe circuit must consist of hoses of lengthand diameter ap-
propriate tothe pump intakefitting (see “Technical Data”), freefrom restrictions andelbows, andwith afilter
ofsuitablecapacity (see “Installation”).
Foroccasionalduty,suchasfillingwatersupplytanks,thepumpcanbeoperatedatavacuumdrawinginliq-
uids from reservoirs havingthesurface oftheliquid up to5m belowthe pump intake fitting,for periods ofno
more than 15minutes.
Drawing in liquidsfrom lowerlevels or forlongertimes causes cavitation in thepump circuitand re-
duces the lifetimeofthediaphragms,valvesandmechanical parts.
INSTALLATION INSTRUCTIONS
POSITIVE HEAD
VACUOMETER
ZERO HEAD
ZERO HEAD
Pump is operating
at acceptable
inlet
vacuum
PUMP
WARNING!
MAXIMUM OPERATING
TIME 15 MINUTES
NEGATIVE HEAD
Pump is
operating at
high inlet
vacuum
UN003415-EW
NEGATIVE HEAD
3m (9.8 ft ) m a x
3m (9.8 ft ) m a x
5m (16.4 ft ) m a x














 


















•
•


•
 7  H 

•
 







 



 z  x 










      
 A 

 
  A/  A  6  5 

 
 



 



 
   
  

  

  -
 
  

  

  
   
   







   30  















       







 /R  P 
D  P  P/  64  3  D 
       


1) .
  �
C
A /R P ump O il
P/ N A
R64 5 32D





 
 



 /R  P  S  R64511 






A/R Pump Saver
P/N 64511
Protects Pumps from
Freezing Conditions

TROUBLESHOOTING
 




Problem









Cause





















Remedy





























Problem Cause Remedy
 

 
 Stop the pump at once. 
{1)






70 - 2
70 - 3
70 - 5
70 - 1
2021 AR North America
70
70 - 4
A.R. NORTH AMERICAA.R. NORTH AMERICA
47
48
49
50
51
52
53
54
55
53
56
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
8
11
16
17
10
8
18
8
15
29
43
40
27
30
24
31
78
29
32
36
37
37
33
34
44
36
38
26 27
28
24
39
81
35
42
39
46
45
BHS 90 - BHS 105 - BHS 120
( )
79
58
59
61
61
71
60
72
73
65
74
67
60
V
e
r
s
i
o
n
C/C

2021 AR North America 71
High pressure brass
BHS 90 - BHS 105 - BHS 120
Pos Code Description Qty Note
1
750051 Plug green 1BHS 90
1800060 Plug black 1 BHS 105
750050 Plug red 1BHS 120
2 1040060 O-ring Ø 72.69x2.62 1
3 680350 Bolt TCEI M8x35 2 TT180*
4 380241 Washer 2
5 750030 Oil sight glass 1
6 750040 Gasket 1
7 2660010 Pump body 1
8 2660050 Bolt TCEI M12x45 15 TT445*
9 2660031 Head marked SX 1
10 540210 Bolt TE M12x25 6 TT445*
11 2680100 Base 2
12 850250 Bolt TCEI M8x12 7 TT180*
13 390311 Washer 3
14 1500470 Shield 1
15 2660030 Head marked DX 2
16 820361 Plug 1/2”G brass 2 TT180*
17 180101 O-ring Ø 17.5x2 2
18 2660040 Bolt TCEI M12x60 3 TT445*
24 110131 Ring nut 1/2” 2
25 2660060 Fitting 1
26 130492 Ball valve
3/8”G - 1/2”G M-M SX
1
27 2240260 Fitting 3/8”G M-F 2
28 851650 Elbow manifold 1
29 880530 Plug 3/8”G 2 TT180*
30 130491 Ball valve
3/8”G - 1/2”G M-M DX
1
31 880581 Plug 1/4”G 1 TT180*
32 540300 Bolt TCEI M10x30 6 TT355*
33 390210 O-ring Ø 39.69x3.53 1
34 2240200 Ring nut 1”3/4 G 1
35 2240211 Elbow 1 1/2" 1
36 759051 Valve 6
37 680070 O-ring Ø 31.5x4.25 6
38 2660021 Manifold asp./manifold 1
39 720030 O-ring Ø 22.22x2.62 2
40 2660070 Semi air chamber lower 1
42 800190 Semi air chamber lower 1
43 2660080 Semi air chamber upper 1
44 540290 Bolt TCEI M8x25 8 TT180*
45 650542 Gasket 1
46 180020 Air valve 1
47 2240110 Nut M10 3 SS TT265*
48 580090 Retaining washer 3
49 2240100 Hub pin 3 TT265*
50
550080 Diaphragm 3 NBR
550084 Diaphragm 3 Viton
550085 Diaphragm 3 Desmopan
550086 Diaphragm 3 HPDS
Pos Code Description Qty Note
51
2680060 Sleeve 3 BHS 90
2680070 Sleeve 3 BHS 105
2680080 Sleeve 3 BHS 120
52 260230 Piston ring 3
53 160691 Ring circlip Øi 18 6
54 2240060 Piston Ø 72 3
55 260700 Pin 3
56 2680090 Connecting-rod 3
57 2680130 Ring seal 1
58 200390 Ring circlip Øi 62 1
59 2680110 Ring seal 1
60 230350 Bearing 1
61 2240540 Ring connecting rod 2
62
2680250 Shaft C/SP m-CI 1 BHS 90
2680260 Shaft C/SP m-CL 1 BHS 105
2680270 Shaft C/SP m-CM 1 BHS 120
63 2680290 Ring circlip Øe 65 1
64 2680280 Bearing 1
65 1400120 O-ring Ø 145.72x2.62 2
66 2680241 Flange 1
67 160670 Bolt TE M10x25 6TT355*
68 1400150 Ring seal 1
69 1400110 Ring 1
70 1400140 Flange 1
71
2680170 Shaft C/C m-CA 1BHS 90
2680180 Shaft C/C m-CB 1 BHS 105
2680190 Shaft C/C m-CC 1 BHS 120
72 2680120 Ring seal 1
73 161050 Ring circlip Øi 72 1
74 2680022 Flange 1
76 230310 Bearing 1
77 2680023 Flange 1
78 820510 O-ring Ø 10.82x1.78 1
79 230340 Ring circlip Øi 80 1
81 1140300 Plug 3/4”G 1 TT355*
82 1554 Air chamber 1
* Torque: in-lbs +/- 10%
AR 42205
O-Rings
Pos. Qty
2 1
17 3
21 1
33 1
37 6
39 1
65 2
78 1
Suggested oil
Type Oz
AR64532D 32
AR 2445
Valves
Pos. Qty
36 6
37 6
AR 43314
Buna diaphragms
AR 43317
BlueFlexTM diaphragms
AR 43315
Desmopan diaphragms
AR 43316
Viton diaphragms
Pos. Qty
37 6
42 1
50 3
Crankcase Oil
Capacity 52 oz
C/C
BHS90 31768
BHS105 31769
BHS120 31770
