Quick Start Guide

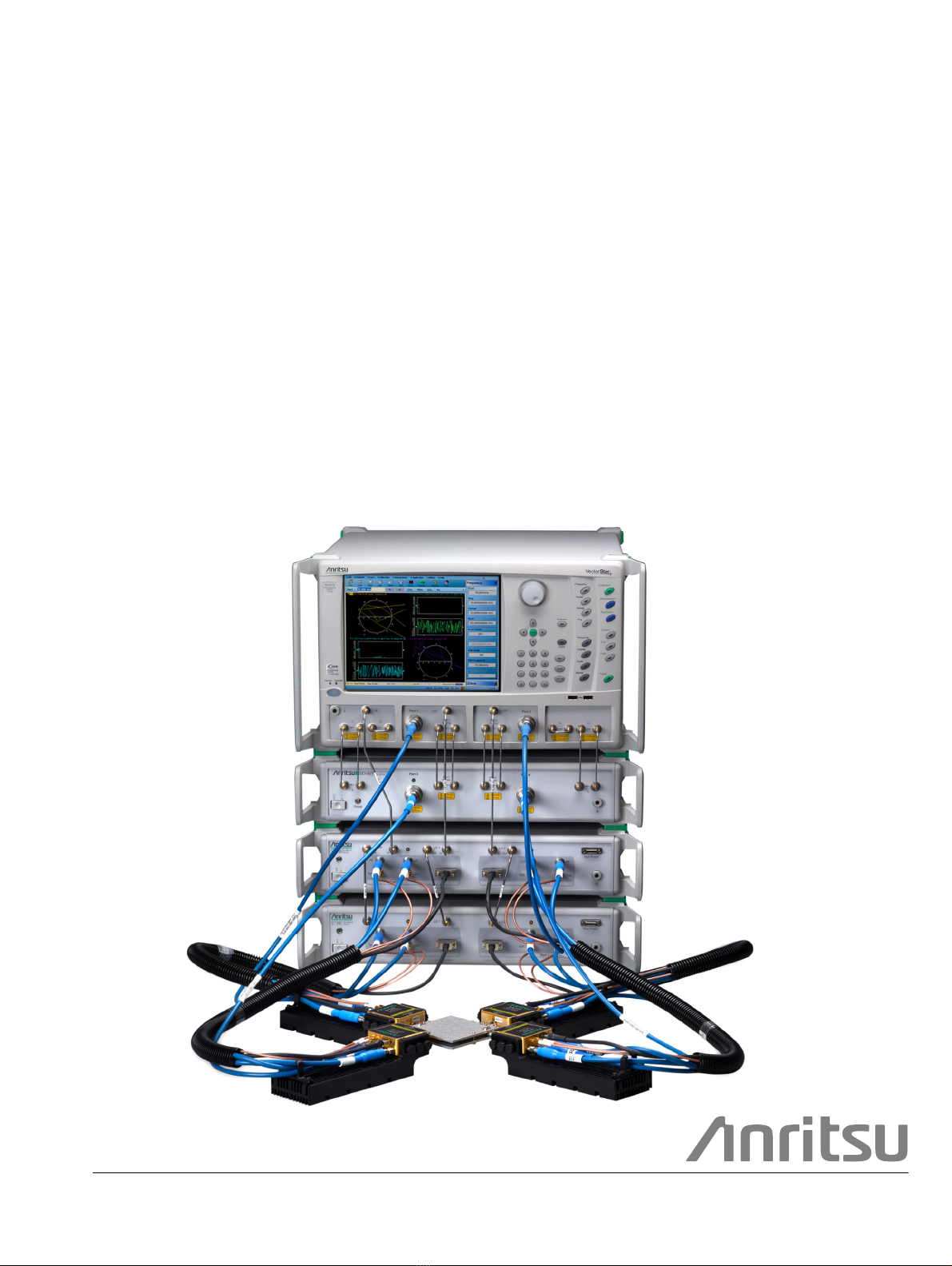

VectorStar™ ME7838A4/A4X
Multiport Broadband/Banded
mmWave System
High Performance Modular Broadband/Banded mmWave Vector Network
Analyzer (VNA) Multiport Measurement System
ME7838A4, 70 kHz to 110 (125) GHz
ME7838A4X, 70 kHz to 125 GHz
Anritsu Company
490 Jarvis Drive
Morgan Hill, CA 95037-2809
USA
http://www.anritsu.com
Part Number: 10410-00735
Revision: D
Published: August 2021
Copyright 2021 Anritsu Company. All rights reserved.

1. ME7838A4/A4X Main Components
QSG-2 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
High Performance Modular Broadband/Banded mmWave Vector Network
Analyzer (VNA) Measurement System, 70 kHz to 125 GHz
This guide provides quick setup instructions for the ME7838A4/A4X Multiport Broadband/Banded mmWave
VNA System assembly. For additional safety and compliance information, and for more details about the
assembly, configuration, setup, and initial testing of the equipment, refer to the VectorStar™ ME7838x4/x4X
Series Multiport Broadband Vector Network Analyzers Installation Guide – 10410-00734.
This and all other documentation that supports the ME7838A4/A4X is available on the ME7838x4 web page:
http://www.anritsu.com/test-measurement/products/me7838a4
On this web page, you can select various tabs for more information about your instrument. Included is a
“Library” tab which contains links to all the latest technical documentation related to this instrument.
1. ME7838A4/A4X Main Components
ME7838A4/A4X Broadband Systems
The ME7838A4/A4X Multiport Broadband system consists of the following components:
•MS4647A or MS4647B VNA with Option 007 (Receiver Offset) and Option 08x (Modular Broadband
Connection Capability). The ME7838A4X requires a MS4647B VNA.
•MN4697C Multiport Test Set
•3736B Broadband Test Set
•3739C Broadband Test Set

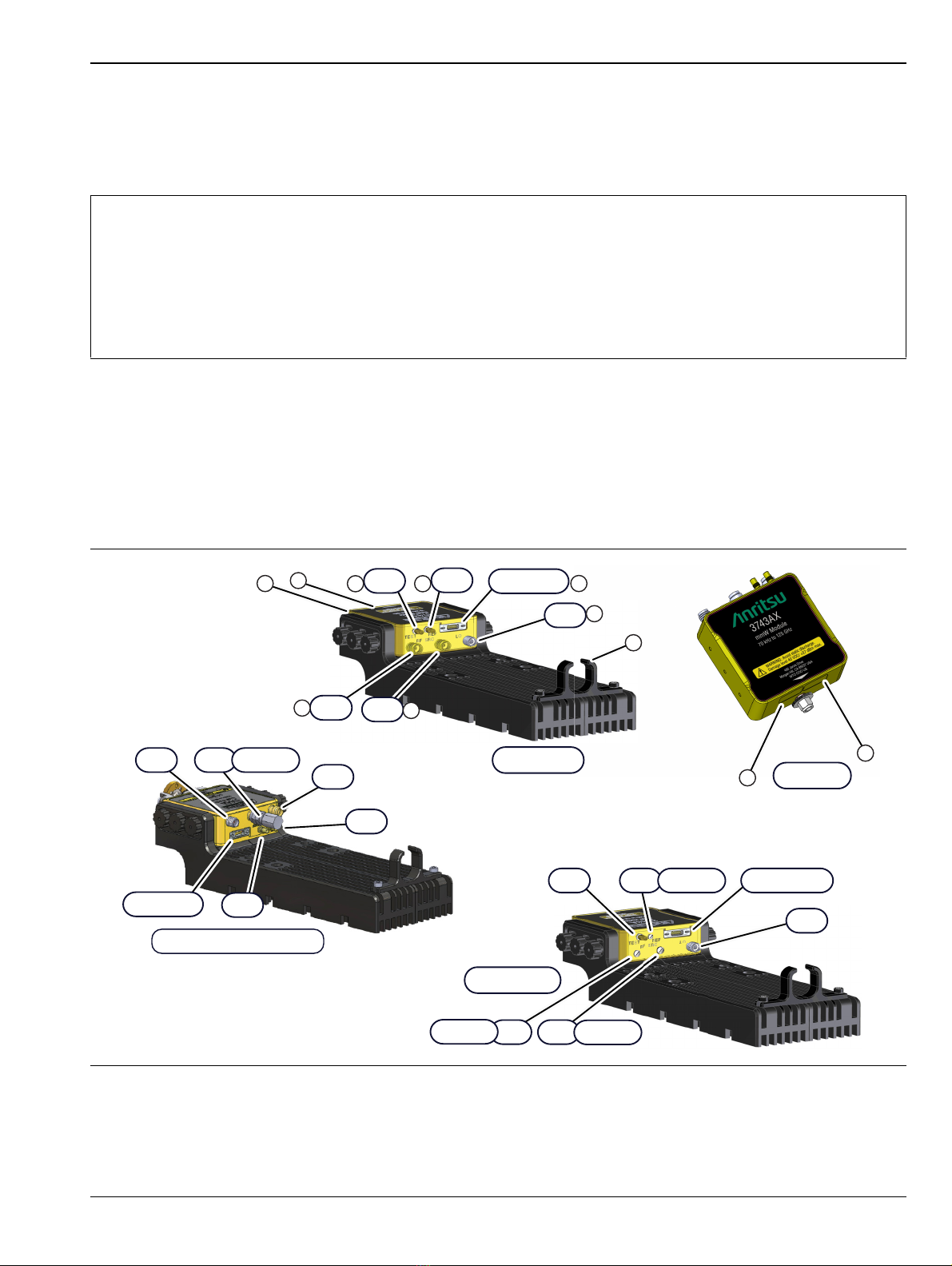

•Four 3743A/AX mmWave Modules
•Front and rear panel cables
ME7838A4/A4X Banded Systems
The ME7838A4/A4X Multiport Banded system consists of the following components:
•MS464xA/B VNA with Option 08x
•MN4694C Multiport Test Set
•3736B Broadband Test Set
•3739C Broadband Test Set
•Four 3744A-EE, 3744A-EW, or four OML/VDI mmWave Modules
•Front and rear panel cables
Caution
A MS464xA/B VNA unit is heavy. To avoid personal injury, it must be lifted and
maneuvered by at least two people during installation.
If mounting on a workbench surface, first position the 3739C Broadband Test Set
with access to its front and rear panels. Stack the remaining test sets on top of one
another, then finally the VNA.
If mounting into rack or console, make sure the Test Sets have been installed, and
that the rack/console is carefully positioned on a flat and level surface. If equipped,
make sure any casters are locked. Use two people to lift the VNA unit and two to
guide it into its shelf rails.
The test loops on the front and rear panels of the VNA are delicate. Be careful not to
bump or bend the test loops.

2. Rear Panel Connections Between System Components (MS464xA VNA)
VectorStar ME7838A4/A4X QSG PN: 10410-00735 Rev. D QSG-3
2. Rear Panel Connections Between System Components
(MS464xA VNA)
In this section, connect the cables between the VNA and the Test Sets as shown in Figure 1 and Table 1.

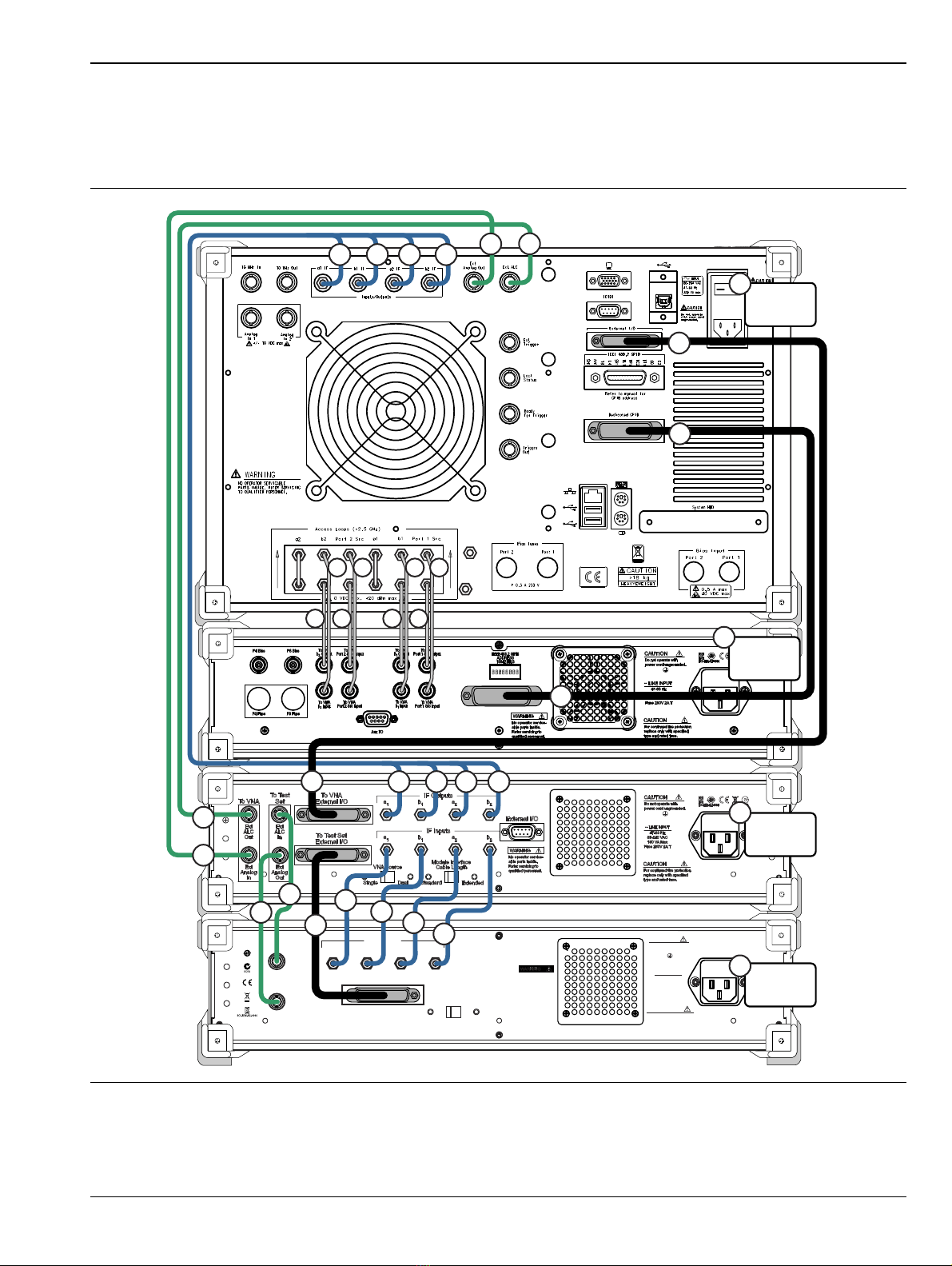

Figure 1 ME7838A4 – Rear Panel Cable Connections (MS464xA VNA)
WARNING
No operator service-
able parts inside.
Refer servicing to
qualified personnel.
Ext
Alc
Out
Ext
Analog
In
a1ba2b2
IF Outputs
External I/O
~ LINE INPUT
47-63 Hz
85-240 VAC
150 VA Max
Fuse 250V 2A T
CAUTION
Do not operate with
power cord ungrounded.
CAUTION
For continued fire protection
replace only with specified
type and rated fuse.
Cable Length
Standard Extended
Module Interface
MN469xC
Test Set
3736B
Test Set
3739C
Test Set
MS464xA
VNA
1
1
2
2
3
4
11 15
16
17
1812
13
14
19
20
21
22
5
6666
7 7 7 7
7 7 7 7
8
8
9
9

2. Rear Panel Connections Between System Components (MS464xA VNA)
QSG-4 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
Table 1. ME7838A4 Multiport Rear Panel Cable Connections (1 of 2)
Index Part Number Cable Description Connection From Connection To
1 3-806-225 BNC (male-male), 24 in MS464xA port labeled:
Ext Analog Out
3736B port labeled:
EXT ANALOG IN
2 3-806-225 BNC (male-male), 24 in MS464xA port labeled:
Ext ALC
3736B port labeled:
EXT ALC OUT
3 3-806-225 BNC (male-male), 24 in
3736B port labeled:
(To Test Set) EXT ANALOG
OUT
3739C port labeled:
EXT ANALOG IN
4 3-806-225 BNC (male-male), 24 in 3736B port labeled:
(To Test Set) EXT ALC IN
3739C port labeled:
EXT ALC OUT
5
3-73598-1a
(5 cable
bundle)
DB-25 3736B port labeled:
TO TEST SET EXTERNAL I/O
3739C port labeled:
EXTERNAL I/O
6
SMA male-male flexible:
3-72243-1
3-72243-2
3-72243-3
3-72243-4
3736B ports labeled:
(IF INPUTS)
a1
b1
a2
b2
3739C ports labeled:
(IF OUTPUTS)
a1
b1
a2
b2
73-80734a
(5 cable
bundle)
SMA male-male flexible:
3-72243-21
3-72243-22
3-72243-23
3-72243-24
MS464xA ports labeled:
(Inputs/Outputs)
a1 IF
b1 IF
a2 IF
b2 IF
3736B ports labeled:
(IF OUTPUTS)
a1 IF
b1 IF
a2 IF
b2 IF
8DB-25
MS464xA port labeled:
External I/O
3736B port labeled:
TO VNA EXTERNAL I/O
9 2100-1-R GPIB, 1 m MS464xA port labeled:
Dedicated GPIB
MN469xC port labeled:
IEEE 488.2 GPIB
11 3-62112-81aSMA male-male
semi-rigid
MS464xA port labeled:
b2 loop out
MN469xC port labeled:
TO VNA b2 OUTPUT
12 3-62112-80aSMA male-male
semi-rigid
MS464xA port labeled:
b2 loop in
MN469xC port labeled:
TO VNA b2 INPUT
13 3-62112-81aSMA male-male
semi-rigid
MS464xA port labeled:
P2 source loop out
MN469xC port labeled:
TO VNA Port 2 Src OUTPUT
14 3-62112-80aSMA male-male
semi-rigid
MS464xA port labeled:
P2 source loop in
MN469xC port labeled:
TO VNA Port 2 Src INPUT
15 3-62112-81aSMA male-male
semi-rigid
MS464xA port labeled:
b1 loop out
MN469xC port labeled:
TO VNA b1 OUTPUT
16 3-62112-80aSMA male-male
semi-rigid
MS464xA port labeled:
b1 loop in
MN469xC port labeled:
TO VNA b1 INPUT
17 3-62112-81aSMA male-male
semi-rigid
MS464xA port labeled:
P1 source loop out
MN469xC port labeled:
TO VNA Port 1 Src OUTPUT

2. Rear Panel Connections Between System Components (MS464xA VNA)
VectorStar ME7838A4/A4X QSG PN: 10410-00735 Rev. D QSG-5
18 3-62112-80aSMA male-male
semi-rigid
MS464xA port labeled:
P1 source loop in
MN469xC port labeled:
TO VNA Port 1 Src INPUT
19 MS464xA VNA
20 MN469xC Test Set
21 3736B Test Set
22 3739C Test Set
a. Tighten each cable in this group using an 8 mm (5/16 in) torque end wrench set to 0.9 Nꞏm (8 lbfꞏin).
Table 1. ME7838A4 Multiport Rear Panel Cable Connections (2 of 2)
Index Part Number Cable Description Connection From Connection To

3. Rear Panel Connections Between Components (MS464xB VNA)
QSG-6 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
3. Rear Panel Connections Between Components (MS464xB VNA)
In this section, connect the cables between the VNA and the Test Sets as shown in Figure 2 or Figure 3, and
Table 2.
Cable Connections (Systems with Option 031 Dual Source Architecture)

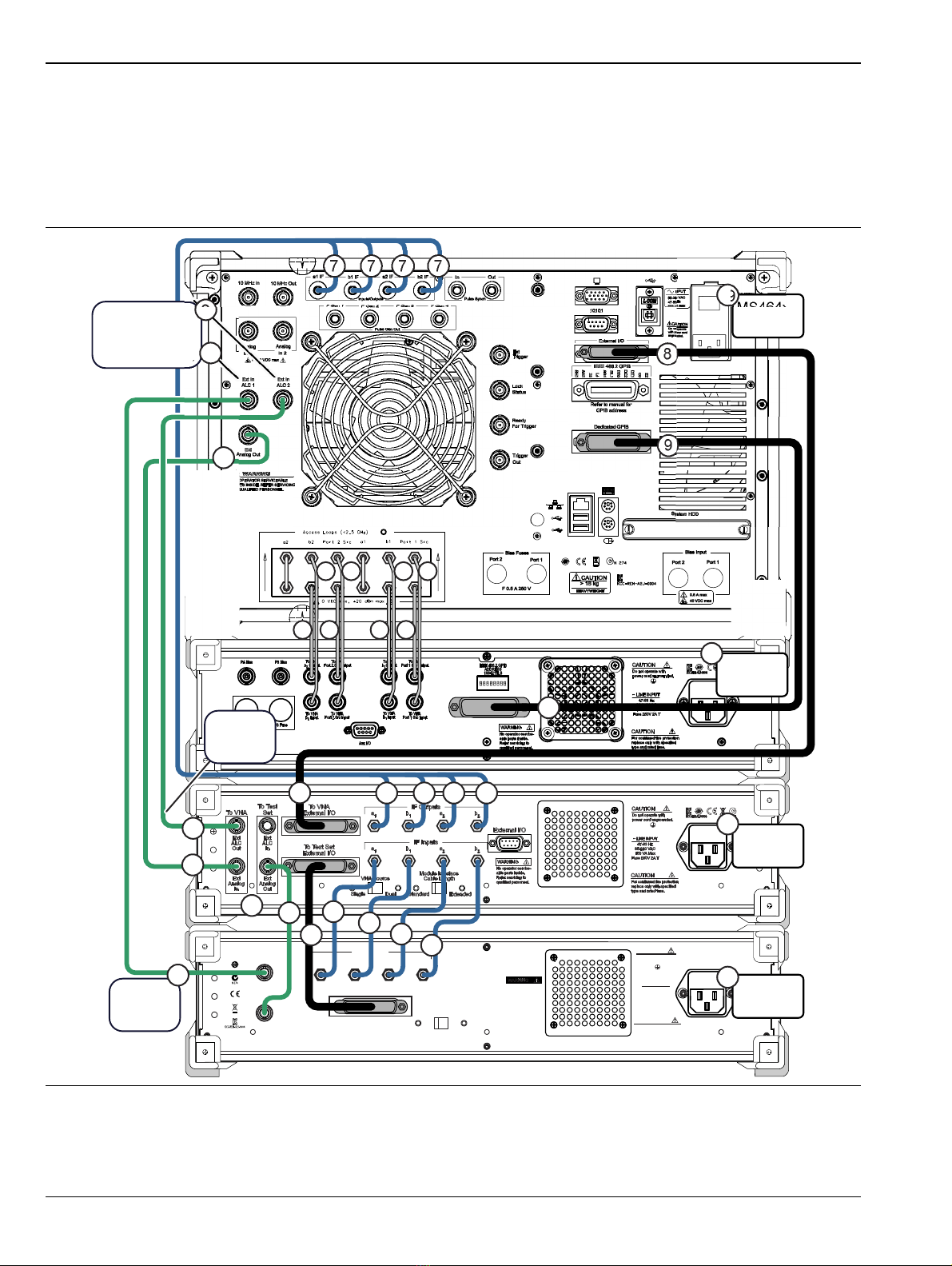

Figure 2 ME7838A4/A4X Multiport BB/mmW VNA System – Rear Panel Cables (With Option 031)
WARNING
No operator service-
able parts inside.
Refer servicing to
qualified personnel.
Ext
Alc
Out
Ext
Analog
In
a1ba2b2
IF Outputs
External I/O
~ LINE INPUT
47-63 Hz
85-240 VAC
150 VA Max
Fuse 250V 2A T
CAUTION
Do not operate with
power cord ungrounded.
CAUTION
For continued fire protection
replace only with specified
type and rated fuse.
Cable Length
Standard Extended
Module Interface
MN469xC
Test Set
3736B
Test Set
3739C
Test Set
MS464xB
VNA
3
11 15
16
17
18
12
13
14
19
20
21
22
5
6666
7 7 7 7
7 7 7 7
8
8
9
9
Ext In ALC 1
and
Ext In ALC 2
(With Option 031)
Ext ALC 1
(With
Option 031)
1
1
2
2
2
2
4
Ext ALC 2
(With
Option 031)

3. Rear Panel Connections Between Components (MS464xB VNA)
VectorStar ME7838A4/A4X QSG PN: 10410-00735 Rev. D QSG-7
Cable Connections (Systems without Option 031)

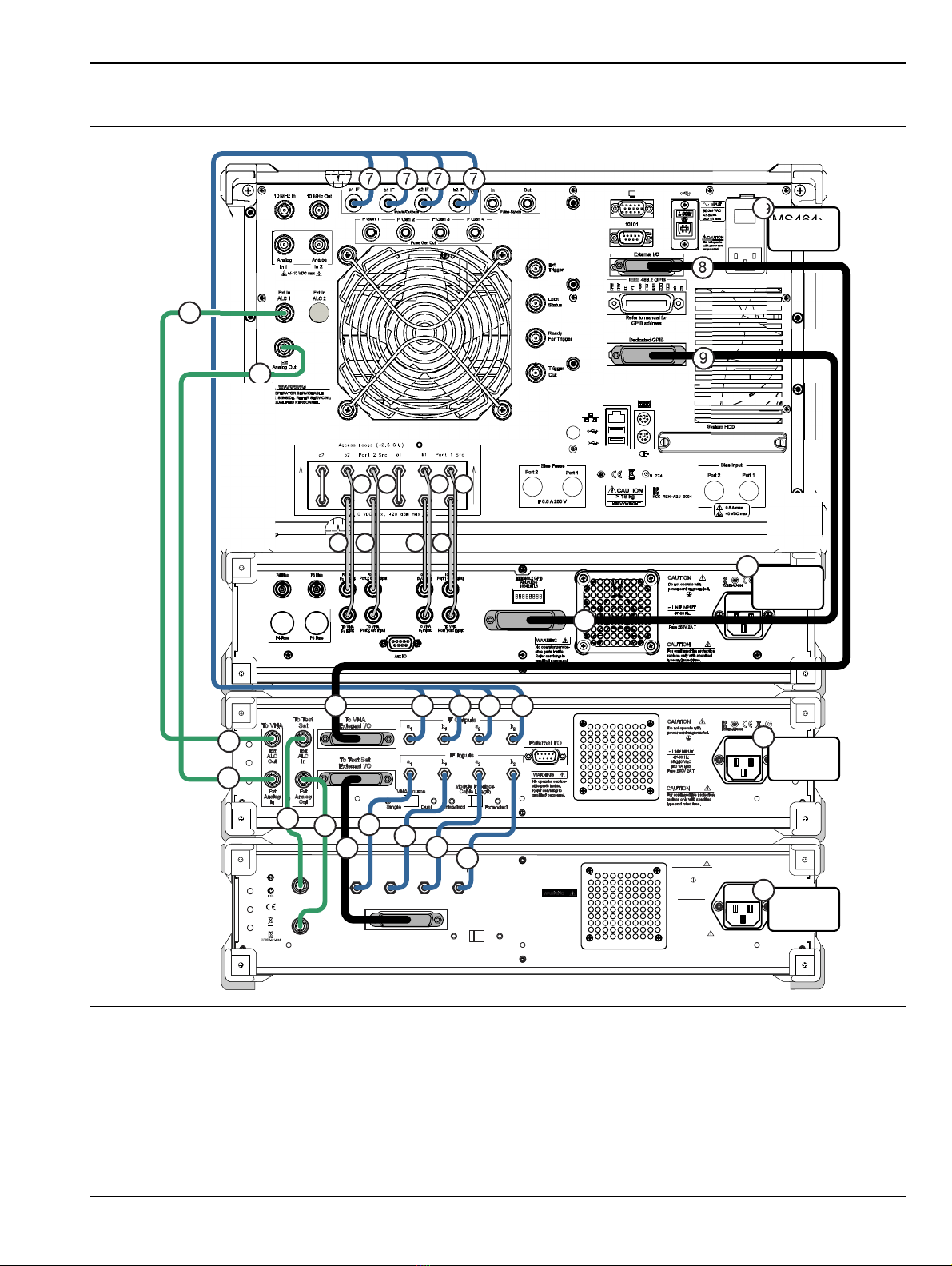

Figure 3 ME7838A4/A4X Multiport BB/mmW VNA System – Rear Panel Cables (No Option 031)
WARNING
No operator service-
able parts inside.
Refer servicing to
qualified personnel.
Ext
Alc
Out
Ext
Analog
In
a1ba2b2
IF Outputs
External I/O
~ LINE INPUT
47-63 Hz
85-240 VAC
150 VA Max
Fuse 250V 2A T
CAUTION
Do not operate with
power cord ungrounded.
CAUTION
For continued fire protection
replace only with specified
type and rated fuse.
Cable Length
Standard Extended
Module Interface
MN469xC
Test Set
3736B
Test Set
3739C
Test Set
MS464xB
VNA
3
11 15
16
17
18
12
13
14
19
20
21
22
5
6666
7 7 7 7
7 7 7 7
8
8
9
9
1
1
2
2
4

3. Rear Panel Connections Between Components (MS464xB VNA)
QSG-8 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
Table 2. ME7838A4/A4X Multiport Rear Panel Cable Connections (MS464xB) (1 of 2)
Index Part Number Cable Description Connection From Connection To
13-806-225 BNC (male-male), 24 in MS464xB port labeled:
Ext Analog Out
3736B port labeled:
EXT ANALOG IN
2
3-806-225 BNC (male-male), 24 in
VNA port labeled:
Ext In ALC 1
(No Option 031) (Figure 3)
3736B port labeled:
EXT ALC OUT
3-806-225 BNC (male-male), 24 in
VNA port labeled:
Ext In ALC 1
(With Option 031) (Figure 2)
3739C port labeled:
EXT ALC OUT
3-806-225 BNC (male-male), 24 in
VNA port labeled:
Ext In ALC 2
(With Option 031) (Figure 2)
3736B port labeled:
EXT ALC OUT
33-806-225 BNC (male-male), 24 in
3736B port labeled:
(To Test Set) EXT ANALOG
OUT
3739C port labeled:
EXT ANALOG IN
43-806-225 BNC (male-male), 24 in
3736B port labeled:
(To Test Set) EXT ALC IN
(Figure 3)
(Not used with Option 031)
3739C port labeled:
EXT ALC OUT
5
3-73598-1a
(5 cable
bundle)
DB-25 3736B port labeled:
TO TEST SET EXTERNAL I/O
3739C port labeled:
EXTERNAL I/O
6
SMA male-male flexible:
3-72243-1
3-72243-2
3-72243-3
3-72243-4
3736B ports labeled:
(IF INPUTS)
a1
b1
a2
b2
3739C ports labeled:
(IF OUTPUTS)
a1
b1
a2
b2
73-80734a
(5 cable
bundle)
SMA male-male flexible:
3-72243-21
3-72243-22
3-72243-23
3-72243-24
MS464xB ports labeled:
(Inputs/Outputs)
a1 IF
b1 IF
a2 IF
b2 IF
3736B ports labeled:
(IF OUTPUTS)
a1 IF
b1 IF
a2 IF
b2 IF
8DB-25 MS464xB port labeled:
External I/O
3736B port labeled:
TO VNA EXTERNAL I/O
92100-1-R GPIB, 1 m MS464xB port labeled:
Dedicated GPIB
MN469xC port labeled:
IEEE 488.2 GPIB
11 3-62112-81aSMA male-male
semi-rigid
MS464xB port labeled:
b2 loop out
MN469xC port labeled:
TO VNA b2 OUTPUT
12 3-62112-80aSMA male-male
semi-rigid
MS464xB port labeled:
b2 loop in
MN469xC port labeled:
TO VNA b2 INPUT
13 3-62112-81aSMA male-male
semi-rigid
MS464xB port labeled:
P2 source loop out
MN469xC port labeled:
TO VNA Port 2 Src OUTPUT

3. Rear Panel Connections Between Components (MS464xB VNA)
VectorStar ME7838A4/A4X QSG PN: 10410-00735 Rev. D QSG-9
14 3-62112-80aSMA male-male
semi-rigid
MS464xB port labeled:
P2 source loop in
MN469xC port labeled:
TO VNA Port 2 Src INPUT
15 3-62112-81aSMA male-male
semi-rigid
MS464xB port labeled:
b1 loop out
MN469xC port labeled:
TO VNA b1 OUTPUT
16 3-62112-80aSMA male-male
semi-rigid
MS464xB port labeled:
b1 loop in
MN469xC port labeled:
TO VNA b1 INPUT
17 3-62112-81aSMA male-male
semi-rigid
MS464xB port labeled:
P1 source loop out
MN469xC port labeled:
TO VNA Port 1 Src OUTPUT
18 3-62112-80aSMA male-male
semi-rigid
MS464xB port labeled:
P1 source loop in
MN469xC port labeled:
TO VNA Port 1 Src INPUT
19 MS464xB VNA
20 MN469xC Test Set
21 3736B Test Set
22 3739C Test Set
a. Tighten each cable in this group using an 8 mm (5/16 in) torque end wrench set to 0.9 Nꞏm (8 lbfꞏin).
Table 2. ME7838A4/A4X Multiport Rear Panel Cable Connections (MS464xB) (2 of 2)
Index Part Number Cable Description Connection From Connection To

4. Semi-rigid Cable Connections Between System Components
QSG-10 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
4. Semi-rigid Cable Connections Between System Components
Make the semi-rigid cable connections as shown in Figure 4 or Figure 5, and in Table 3.
If your system has Option 031 Dual Source Architecture (MS464xB only), use Figure 4. If your system does not
have Option 031, use Figure 5.

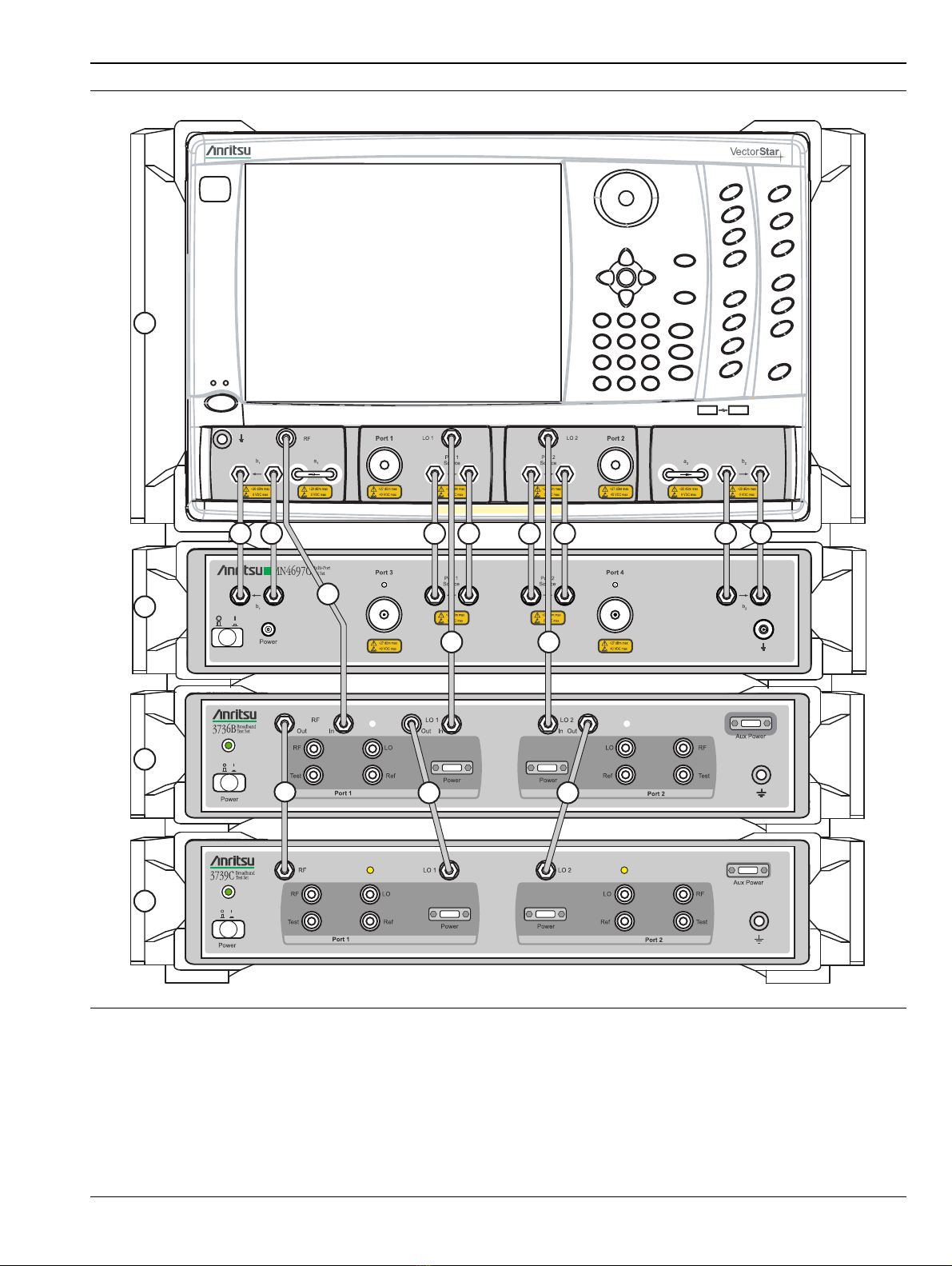

Figure 4 ME7838A4/A4X Multiport Semi-rigid Cable Connections (with Option 031 Dual Source Architecture)
+27 dBm MAX AVOID STATIC DISCHARGE
ALL PORTS: CAUTION
Standby Operate
Frequency
Power
Sweep
Avg
Response
Display
Scale
Marker
Channel
Trace
Measurement
Calibration
Application
File
System
Help
Preset
RF LO 2
Out Out In In
1 1 1 1 1 1 1
7
8
9
10
23
4
5 5
3
1
Install Termination
Removed from
VNA RF1 or RF2
6

4. Semi-rigid Cable Connections Between System Components
VectorStar ME7838A4/A4X QSG PN: 10410-00735 Rev. D QSG-11

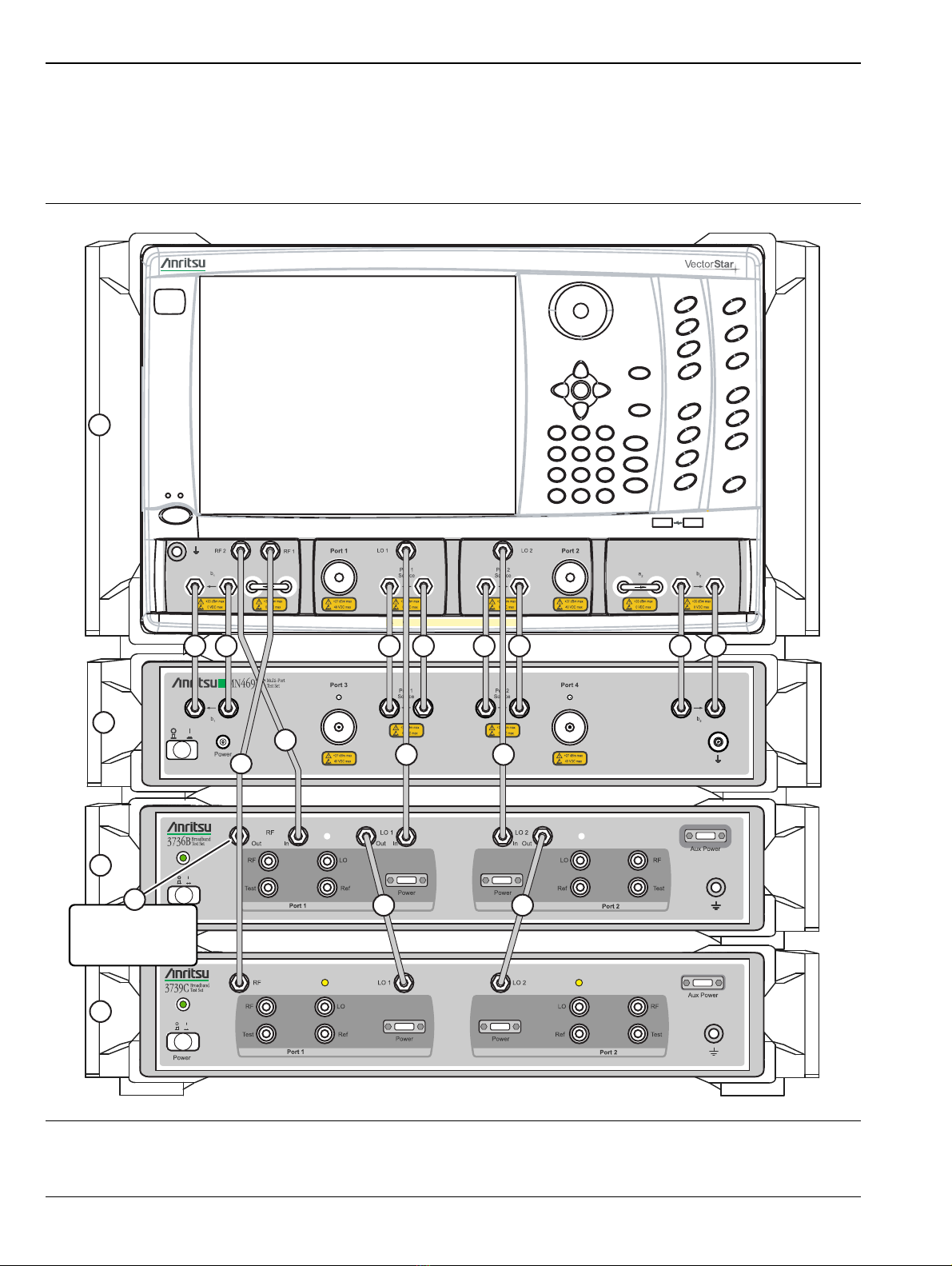

Figure 5 ME78383A4/A4X Multiport Semi-rigid Cable Connections (No Option 031)
+27 dBm MAX AVOID STATIC DISCHARGE
ALL PORTS: CAUTION
Standby Operate
Frequency
Power
Sweep
Avg
Response
Display
Scale
Marker
Channel
Trace
Measurement
Calibration
Application
File
System
Help
Preset
RF LO 2
Out Out In In
1 1 1 1 1 1 1
7
8
9
10
2
3
4
5 5
3
1

4. Semi-rigid Cable Connections Between System Components
QSG-12 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
Table 3. ME7838A4/A4X Multiport semi-rigid Cable Interconnect Part Numbers and Locations (1 of 2)
Index Part Numbers Description/Torque Connection From Connection To
1
3-62109-42
V (m-m)
(MN4697C)
3-67357-38
K (m-m)
(MN4694C)
Front Panel RF Cable (4 each)
V or K male-male semi-rigid
Tighten using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
VNA port labeled:
b1 (In)
MN469xC port labeled:
b1 (In)
VNA port labeled:
b1 (Out)
MN469xC port labeled:
b1 (Out)
VNA port labeled:
Port 1 Source (In)
MN469xC port labeled:
Port 1 Source (In)
VNA port labeled:
Port 1 Source (Out)
MN469xC port labeled:
Port 1 Source (Out)
VNA port labeled:
Port 2 Source (In)
MN469xC port labeled:
Port 2 Source (In)
VNA port labeled:
Port 2 Source (Out)
MN469xC port labeled:
Port 2 Source (Out)
VNA port labeled:
b2 (In)
MN469xC port labeled:
b2 (In)
VNA port labeled:
b2 (Out)
MN469xC port labeled:
b2 (Out)
2 3-67357-230
Front Panel RF Cable
K male-male semi-rigid
Tighten using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
VNA port labeled:
RF 2 (Figure 4)
(With Option 031)
3736B Test Set port
labeled:
RF In
VNA port labeled:
RF (Figure 5)
(No Option 031)
3736B Test Set port
labeled:
RF In
3 3-67357-231
Front Panel LO Cable (2 each)
K male-male semi-rigid
Tighten using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
VNA port labeled:
LO 1
3736B Test Set port
labeled:
LO 1 In
VNA port labeled:
LO 2
3736B Test Set port
labeled:
LO 2 In
4
3-67357-232
(With Option
031)
Front Panel RF Cable
K male-male semi-rigid
Tighten using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
VNA port labeled:
RF 1 (Figure 4)
(With Option 031)
3739C Test Set port
labeled:
RF
3-67357-18
(No Option
031)
3736B Test Set port
labeled:
RF Out (Figure 5)
(No Option 031)
3739C Test Set port
labeled:
RF
5 3-67357-19
Front Panel LO Cable (2 each)
K male-male semi-rigid
Tighten using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
3736B Test Set port
labeled:
LO 1 Out
3739C Test Set port
labeled:
LO 1
3736B Test Set port
labeled:
LO 2 Out
3739C Test Set port
labeled:
LO 2
6 V210
Termination (With Option 031)
Tighten using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
Remove from VNA port
labeled:
RF 1 or RF 2
(With Option 031)
Add to 3736B Test Set
port labeled:
RF Out

4. Semi-rigid Cable Connections Between System Components
VectorStar ME7838A4/A4X QSG PN: 10410-00735 Rev. D QSG-13
7
MS464xA VNA Option 051, 061, or 062, and 08x (Banded)
MS464xB VNA Option 051, 061, or 062, and 08x (Banded)
MS4647A VNA Option 051, 061, or 062, and 08x (Broadband)
MS4647B VNA Option 051, 061, or 062, and 08x (Broadband)
8
MN4694C
Test Set (Banded)
MN4697C
Test Se t (Broadband)
9 3736B Test Set
10 3739C Test Set
Table 3. ME7838A4/A4X Multiport semi-rigid Cable Interconnect Part Numbers and Locations (2 of 2)
Index Part Numbers Description/Torque Connection From Connection To

5. Front Panel Cable Connections
QSG-14 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
5. Front Panel Cable Connections
Make the cable connections as shown in Figure 6 and in Table 4.

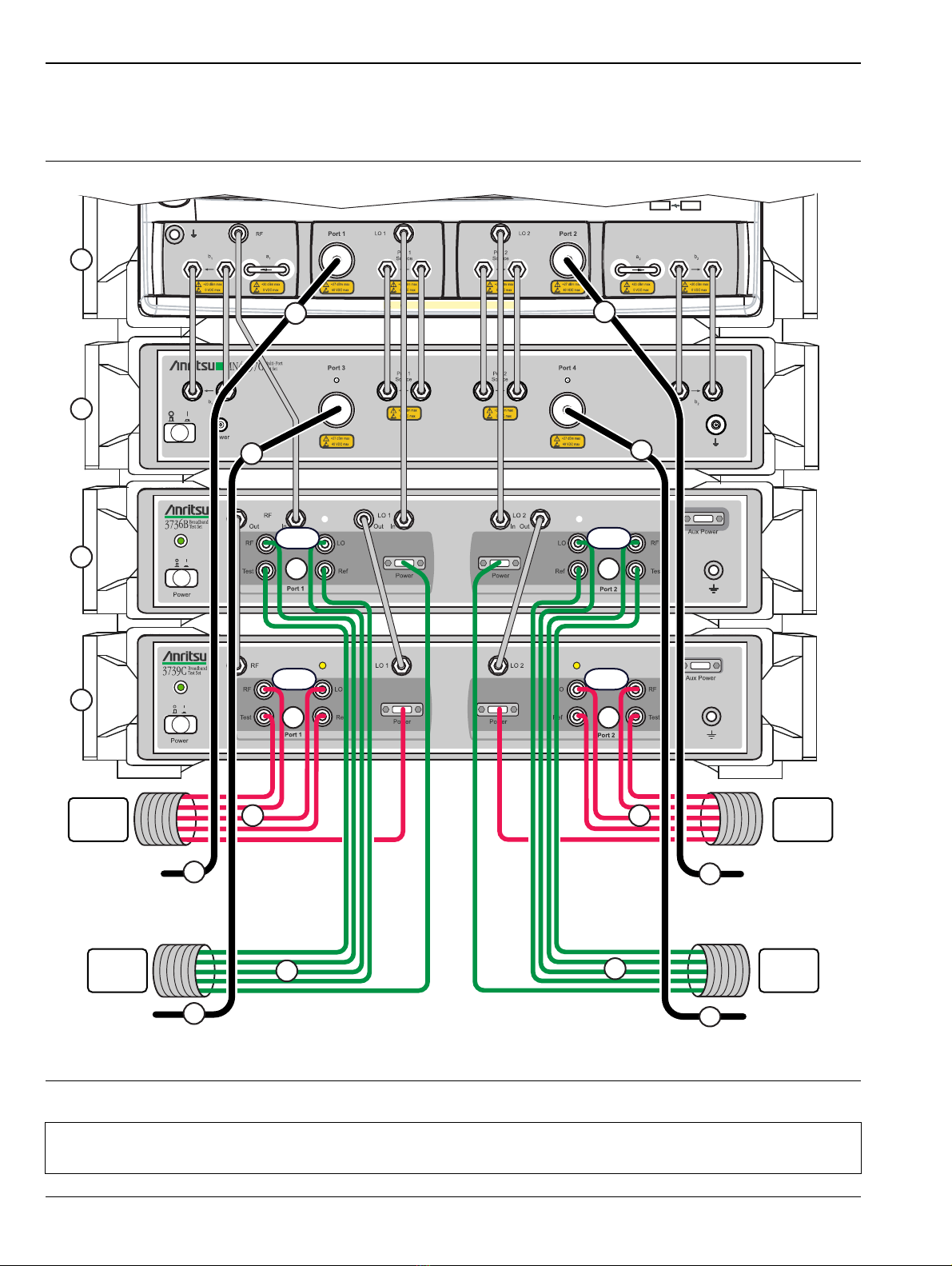

Figure 6 Front Panel to mmWave Module Connections
Note The cables for Test Port 1 through Test Port 4 to Module SRC are not used with mmWave modules
3744A-EE, 3744A-EW, or 3744A-Rx.
+27 dBm MAX AVOID STATIC DISCHARGE
ALL PORTS: CAUTION
RF LO 2
Out Out In In
Test Port 2
to Module SRC
(3743A/AX only)
Test Port 4
to Module SRC
(3743A/AX only)
Test Port 1
to Module SRC
(3743A/AX only)
Test Port 3
to Module SRC
(3743A/AX only)
Port 3
Module
Port 1
Module
Port 2
Module
Port 4
Module
Port 1
Port 4Port 3
Port 2
1
1
6
6
7
7
8
8
9
2
2
3
3
4
4
5
5
10
11
12

5. Front Panel Cable Connections
VectorStar ME7838A4/A4X QSG PN: 10410-00735 Rev. D QSG-15
Table 4. ME7838A4/A4X Cable Interconnect Part Numbers and Locations (1 of 2)
Index Part Number Description Connection From Connection To
1
2
3
4
806-209-Ra,b
Coaxial Cable (4 each)
V male-female flexible, 36 in
Used with 3743A/AX Broadband Modules
only
Tighten at Test Set using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
MN469xC port
labeled:
Port 1
Port 2
Port 3
Port 4
3743A/AX port
labeled:
(Port 1 Module) SRC
(Port 2 Module) SRC
(Port 3 Module) SRC
(Port 4 Module) SRC
5
6
7
8
3-75685-1a
mmWave Module Interface Cables
(for 3743A/AX, 3744A-EE, 3744A-EW
modules)
Group of 5 cables for each port
Tighten at Test Set using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
3739C Test Set:
Port 1, Port 2
RF, LO, Test, Ref,
Power/Signal
mmWave Modules:
Port 1, Port 2 Modules
RF, LO, Test, Ref,
Power/Signal
3736B Test Set
Port1, Port 2
(Port 3, Port 4)
RF, LO, Test, Ref,
Power/Signal
mmWave Modules
Port 3, Port 4 Modules
RF, LO, Test, Ref,
Power/Signal
5
6
7
8
3-75685-2a
OML Module Interface Cables
Group of 4 cables for each port
Tighten at Test Set using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
3739C Test Set
Port 1, Port 2
RF, LO, Test, Ref
OML Modules
Port 1, Port 2 Modules
RF, LO, Test IF, Ref IF
3736B Test Set
Port1, Port 2
(Port 3, Port 4)
RF, LO, Test, Ref
OML Modules
Port 3, Port 4 Modules
RF, LO, Test IF, Ref IF
VDI Module Interface Cables
Group of 4 cables for each port
Tighten at Test Set using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
3739C Test Set
Port 1, Port 2
RF, LO, Test, Ref
VDI Modules
Port 1, Port 2 Modules
RF Input, LO Input,
Meas. IF, Ref IF
3736B Test Set
Port1, Port 2
(Port 3, Port 4)
RF, LO, Test, Ref
VDI Modules
Port 3, Port 4 Modules
RF Input, LO Input,
Meas. IF, Ref IF
5
6
7
8
3-75685-3a
mmWave Module Interface Cables
(for 3744A-Rx modules) Group of 3
cables for each port
Tighten at Test Set using an 8 mm (5/16 in)
torque end wrench set to 0.9 Nꞏm
(8 lbfꞏin).
3739C Test Set
Port 1, Port 2
LO, Test,
Power/Signal
Rx Modules
Port 1, Port 2 Modules
LO, Test,
Power/Signal
3736B Test Set
Port1, Port 2
(Port 3, Port 4)
LO, Test,
Power/Signal
Rx Modules
Port 3, Port 4 Modules
LO, Test,
Power/Signal
9
MS464xA VNA – Option 051, 061, or 062, and 08x (Banded)
MS464xB VNA – Option 051, 061, or 062, and 08x (Banded)
MS4647A VNA – Option 051, 061, or 062, and 08x (Broadband)
MS4647B VNA – Option 051, 061, or 062, and 08x (Broadband)

5. Front Panel Cable Connections
QSG-16 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
10 MN4694C Test Set (Banded)
MN4697C Test Set (Broadband)
11 3736B Test Set
12 3739C Test Set
a. Do not yet connect the cable ends to the mmWave modules. Module connection instructions follow this section.
b. The 806-209-R Coaxial Cable is not included or required when using the 3744A-EE, 3744A-EW mmWave modules, or the
3744A-Rx Receiver Module.
Table 4. ME7838A4/A4X Cable Interconnect Part Numbers and Locations (2 of 2)
Index Part Number Description Connection From Connection To

6. Front Panel to mmWave Module Connections
VectorStar ME7838A4/A4X QSG PN: 10410-00735 Rev. D QSG-17
6. Front Panel to mmWave Module Connections
Connect the 3736B and 3739C Broadband Test Set test port cables to the 3743A/AX, 3744A-EE, 3744A-EW, or
3744A-Rx Modules as shown below, observing the correct torque limits for each connector. See Figure 7 and
Table 5. Route the cable assemblies through the module cable restraint.
Inverting a Module
If necessary, a module can be turned over in the bracket to change the elevation of the W1 connector. To turn
the module over:
1. Remove the six knurled head thumbscrews from the module.
2. Turn the module over.
3. Install the six thumbscrews.
Note
It is easier to first connect the cables to the module and then mount the module in its bracket.
Observe torque instructions where indicated. Each module (except the 3744A-Rx) is characterized
for a specific VNA Serial Number and VNA Test Port as designated on the module port assignment
label. Ensure the module matches the correct VNA and Test Set port.
For more detailed information on the modules including DUT Waveguide (WG) connection alignment
and custom bracket mounting, refer to 10410-00311-VectorStar™ Broadband/Banded mmWave
Modules Reference Manual.
Figure 7 mmWave Module Connections
TEST
LO
Power/Signal
RF
REF
SRC (Not used)
3744A-EE, 3744A-EW
TEST REF
SRC
LO
Power/Signal
RF
(Not used) (Not used)
(Not used)
3744A-Rx
TEST REF
SRC
RF
Power/Signal
LO 6
3743A/AX
10
123 5
9
7
8
4
11
3743AX

6. Front Panel to mmWave Module Connections
QSG-18 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
mmWave Module Operating Environment
The following notes should be observed when operating the 3743A/AX and 3744A-xx mmWave Modules:
•Thermal heat sinking similar to the supplied mounting brackets of the mmWave Module should be
considered in custom mounting applications.
•Each 3743A/AX Module consumes a maximum of 12 watts.
•Each 3744A-EE and 3744A-EW Module consumes a maximum of 12 watts.
•Each 3744A-Rx Module consumes a maximum of 7 watts.
•The primary heat sink paths for the module is the two side mounting surfaces of the mounting bracket.
•With the attached cable mounting brackets, the case temperature rise is approximately 15 °C to 20 °C
above ambient.
•A three (3) Year warranty is valid for all versions of 3744A and 3743A/AX modules, with or without
mounting brackets attached.
Table 5. mmWave Module Connections
Index Cable P/N Description
1 N/A mmWave Module in bracket
2N/A
W1 – 1 mm Connector (3743A/AX, 3744A-Rx modules)
• Tighten using a torque end wrench and a plain end wrench
• 6 mm Torque End Wrench set to 0.45 Nꞏm (4 lbfꞏin). Recommended is Anritsu 01-504.
• 6 mm / 7 mm Open End Wrench. Recommended is Anritsu 01-505.
WR-10 or WR-12 Adapter – 1 mm connector (3744A-EE, 3744A-EW modules)
• Use Waveguide Adapter Toolkits (3-74394-2, 3-3-74394-3, or 3-3-74394-4).
• Tighten using a torque end wrench and a plain end wrench.
• 6 mm Torque End Wrench set to 0.45 Nꞏm (4 lbfꞏin). Recommended is Anritsu 01-504.
• 6 mm / 7 mm Open End Wrench. Recommended is Anritsu 01-505.
3
3-75685-1a
or
3-75685-3b,c
TEST – SSMC Connector (3743A/AX, 3744A-EE, 3744A-EW, and 3744A-Rx modules)
• Tighten using a 4 mm (5/32 in) torque end wrench set to less than 0.17 Nꞏm (1.5 lbfꞏin).
• Recommended is Anritsu 01-529-R torque wrench.
4
REF – SSMC Connector (3743A/AX, 3744A-EE, and 3744A-EW modules)
• Tighten using a 4 mm (5/32 in) torque end wrench set to less than 0.17 Nꞏm (1.5 lbfꞏin).
• Recommended is Anritsu 01-529-R torque wrench.
5Power/Signal Bi-Lobe™ Connector (3743A/AX, 3744A-EE, 3744A-EW, 3744A-Rx)
6
LO – K Connector (3743A/AX, 3744A-EE, 3744A-EW, and 3744A-Rx modules)
• Tighten using an 8 mm (5/16 in) torque end wrench set to 0.9 Nꞏm (8 lbfꞏin).
• Recommended is Anritsu 01-201.
7 Module Power and I/O Cable Restraint
8 806-209-Rd
SRC – V Connector (3743A/AX module only)
• Tighten using an 8 mm (5/16 in) torque end wrench set to 0.9 Nꞏm (8 lbfꞏin).
• Recommended is Anritsu 01-201.
9 3-75685-1aRF – V Connector (3743A/AX, 3744A-EE, and 3744A-EW modules)
• Tighten using an 8 mm (5/16 in) torque end wrench set to 0.9 Nꞏm (8 lbfꞏin).
• Recommended is Anritsu 01-201.
10 N/A Factory Calibrated Port Assignment Label
11 N/A Module Serial Number Label
a. 3743A/AX, 3744A-EE, and 3744A-EW modules use cable assembly 3-75685-1.
b. The REF cable is not used in the 3-75685-3 cable assembly.
c. 3744A-Rx module uses cable assembly 3-75685-3.
d. The 806-209-R Coaxial Cable is used only with the 3743A/AX modules.

7. Front Panel to OML/VDI Module Connections
VectorStar ME7838A4/A4X QSG PN: 10410-00735 Rev. D QSG-19
7. Front Panel to OML/VDI Module Connections
Connect the front panel cables between the 3736B and 3739C Test Sets, and the OML or VDI frequency
extension modules as shown in Figure 8, Figure 9, and Figure 10, and as described in Table 6, Table 7, and
Table 8.
Caution To avoid connector damage, observe torque requirements where indicated.
Figure 8 Cable Connections between 3736B, 3739C Test Sets, and OML or VDI Frequency Extension Modules
+27 dBm MAX AVOID STATIC DISCHARGE
ALL PORTS: CAUTION
RF LO 2
Out Out In In
Port 3
Module
Port 1
Module
Port 2
Module
Port 4
Module
Port 1
Port 4Port 3
Port 2
Port 2 RF, LO, Test, Ref
to OML/VDI Module
Port 1 RF, LO, Test, Ref
to OML/VDI Module
Port 3 RF, LO, Test, Ref
to OML/VDI Module
Port 4 RF, LO, Test, Ref
to OML/VDI Module
12
3 4
5
6
7

7. Front Panel to OML/VDI Module Connections
QSG-20 PN: 10410-00735 Rev. D VectorStar ME7838A4/A4X QSG
Table 6. ME7838A4/A4X OML/VDI Cable Interconnect Part Numbers and Locations
Index Part Number Description Connection From Connection To
1
3-75685-2
(2 each)
OML Module Interface Cable Assembly
Group of 4 cables for each port
3739C Test Set
Port 1, Port 2
Ref
RF
LO
Test
OML Modules:
Port 1, Port 2 Modules
Ref IF
RF Input
LO Input
Test IF
2OML Module Interface Cable Assembly
Group of 4 cables for each port
3736B Test Set
Port 1, Port 2
(Port 3, Port 4)
Ref
RF
LO
Test
OML Modules:
Port 3, Port 4 Modules
Ref IF
RF Input
LO Input
Test IF
3
3-75685-2
(2 each)
VDI Module Interface Cables Assembly
Group of 4 cables for each port
3739C Test Set
Port 1, Port 2
RF
Ref
Test
LO
VDI Modules:
Port 1, Port 2 Modules
RF Input
Ref. IF
Meas. IF
LO Input
4VDI Module Interface Cables Assembly
Group of 4 cables for each port
3736B Test Set
Port 1, Port 2
(Port 3, Port 4)
RF
Ref
Test
LO
VDI Modules:
Port 3, Port 4 Modules
RF Input
Ref. IF
Meas. IF
LO Input
5 MN469xC Test Set
6 3736B Test Set
7 3739C Test Set
