ANTAIRA LNX-0500-M12-67 Series User manual

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
i
LNX-0500-M12-67 Series
5-Port M12 Industrial IP67 Waterproof Ethernet Switch,
with 5*10/100Tx with M12-connector
Version 1.0
(September 2018)
User Manual

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
ii
© Copyright 2018 Antaira Technologies, LLC.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are
the trademarks of Microsoft Corp. All other brand and product names are trademarks or registered trademarks of
their respective owners.
Disclaimer
Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC. may make improvements and/or changes to the product and/or specifications of the product described in
this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
iii
FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Switches
User Manual
This manual supports the following models:
•LNX-0500-M12-67
•LNX-0500-M12-67-T
Please check our website (www.antaira.com) for any updated manual or contact us by e-mail
([email protected]).

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
iv
Table of Contents
1. Overview...................................................................... 1
1.1Key Features...................................................... 1
1.2Package Contents.............................................. 1
1.3Safety Precaution............................................... 1
2. Hardware Description................................................. 3
2.1Physical Dimensions .......................................... 3
2.2 Front Panel ........................................................ 4
2.3 LED Indicators ................................................... 4
2.4 Grounding .......................................................... 5
2.5 Ethernet Ports.................................................... 5
2.6 Wiring the Power Inputs..................................... 6
3. Mounting Installation.................................................. 8
3.1 DIN-Rail Mounting.............................................. 8
3.2 Wall Mounting .................................................... 9
4. Hardware Installation................................................ 11
4.1 Installation Steps.............................................. 11
4.2 Maintenance and Service ................................ 12
5. Network Application ................................................. 13
6. Trouble Shooting ...................................................... 14
7. Technical Specifications.......................................... 15

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
1
1.Overview
Antaira Technologies’ LNX-0500-M12-67 series is a 5-port 10/100Tx M12 IP67 industrial switch that
meets the high-reliability requirements demanded by industrial applications. The LNX-0500-M12-67
series features a wide operating temperature of -10° to 70°C in the standard model and -40° to 75°C in
the extended temperature model which allows this device to be used in various industrial environments.
Its M12 connectors ensure a tight, robust connection and guarantees reliable operation in applications
that are subject to high vibration and shock in environments containing dust, liquid or, laden with gas.
1.1 Key Features
◼System Interface/Performance
•All Copper ports support auto MDI/MDI-X function
•Embedded 5*10/100Tx Fast Ethernet ports
•Store-and-forward switching architecture
•1K MAC address table
•448Kbits memory buffer
◼Power Input
•Redundant power DC 12-48V through M12 5-Pin A-Coded male connector
•Max. current 0.1A
◼Operating Temperature
•Standard operating temperature model: -10°C ~ 70°C
•Extended operating temperature model (–T): -40°C ~ 75°C
◼Case/Installation
•Plastic case
•IP67 protection
•Installation in a Pollution Degree 2 industrial environment
•DIN-Rail and wall mount design
1.2 Package Contents
•1 –Quick Installation Guide
•1 –LNX-0500-M12-67(-T)
•1 –DIN-Rail kit with screws
•1 –Set of 6*M12 protective caps
•1 –Set of 6*port labels
1.3 Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the power supply
input. Supply by UL listed industrial use power. The industrial media converter’s hardware specs, ports,
cabling information, and wiring installation will be described within this user manual.

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
2
Warning Labels
The caution label means that you should check the certain information in the user manual when working
with the device. (Shown in Figure 1)
Figure 1: Caution Label

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
3
2. Hardware Description
2.1 Physical Dimensions

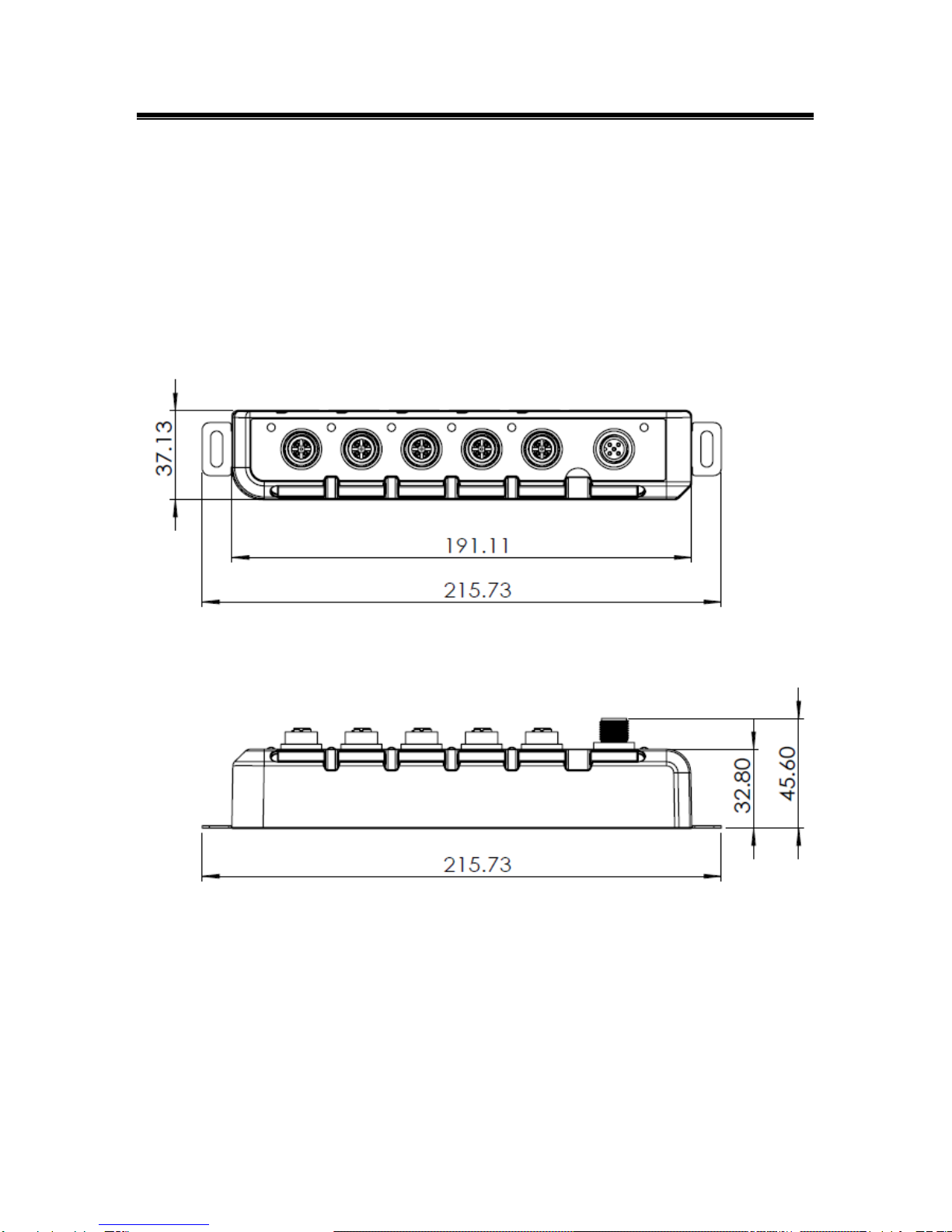

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-0500-M12-67
series:
(W x H x D) is 37.13mm x 215.73mm x 32.8mm
Figure 2.1

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
4
2.2 Front Panel
The front panel of the LNX-0500-M12-67 series can be seen below (Figure 2.2).
2.3 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
displays the power and network status. Each LED indicator has a different color and has its own
specific meaning, see below in Table 2.1.
LED
Color
Description
PWR
Green
On
Power input 1 is active
Off
Power input 1 is inactive
Ethernet Port
(1 to 5)
LINK/ACT
Green
On
Power input 2 is active
Flashing
Networking is active at 10/100 Mbps
Off
Power input 2 is inactive
NOTE: "PWR" is the abbreviation for "Power", "ACT" is for "Activity", and “L/A” is for
“Link/Activity”.
Figure 2.2
Table 2.1
M12 5-Pin A-Coded for Power Connection
Power LED
LED Link / Activity Status –10/100Tx
M12 4-Pin D-Coded for
Ethernet Connection
Ethernet Port Label

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
5
2.4 Grounding
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the ground screw to the grounding surface prior to
connecting devices. The industrial Ethernet switch provides two ground holes which are on the
top and bottom of the wall mounting metal plate which are the same as wall mounting holes. It is
recommended to use a M3 or M4 ground screw and grounding wire, and attach the wire to either
ground hole with the screw. The grounding holes are shown below in Figure 2.3.
Figure 2.3
Caution: Using a shielded cable achieves better electromagnetic compatibility.
2.5 Ethernet Ports
M12 Interface (Auto MDI/MDIX)
◼Connection Format: M12 4-Pin D-Coded Female Connector
◼Transmission Rate: 10 Mbit/s or 100 Mbit/s
Prepare the M12 4-Pin D-Coded Ethernet Port mating cable for Ethernet connection. The M12 D-
Coded Ethernet ports are auto-sensing for 10Base-T or 100Base-TX device connections. Auto
MDI/MDIX means that you can connect to another switch or workstation without changing straight-
through or crossover cabling. See pin assignment shown in Table 2.2.

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
6
Table 2.2
NOTE: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
Caution:
1. Please use with copper conductors only.
2. Use conductors with insulation rated for at least 60/75°C.
3. Base the conductor Ampacity on a maximum termination temperature of 60/75°C.
2.6 Wiring the Power Inputs
This industrial Ethernet switch provides dual DC power inputs for redundancy through a M12 5-
Pin A-Coded male connector. Prepare the M12 5-Pin A-Coded cable for power connection. Table
2.3 shows the pin assignment.
NOTE: Recommended use the wire gauge between 18~24AWG.
Please follow the below steps to insert the power wire.
Table 2.3

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
7
1. Insert the positive and negative power wires into the power connector on the industrial
Ethernet switch with pin4, pin1 (V1+, V1-) for power 1, and pin3, pin2 (V2+, V2-) for power 2.
2. Tighten the screw nut to prevent the connector from loosening.
Caution: The power input specification is complied with the requirements of
SELV (Safety Extra Low Voltage), and the power supply should be complied
with UL 61010-1 & UL 61010-2-201.

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
8
3. Mounting Installation
3.1 DIN-Rail Mounting

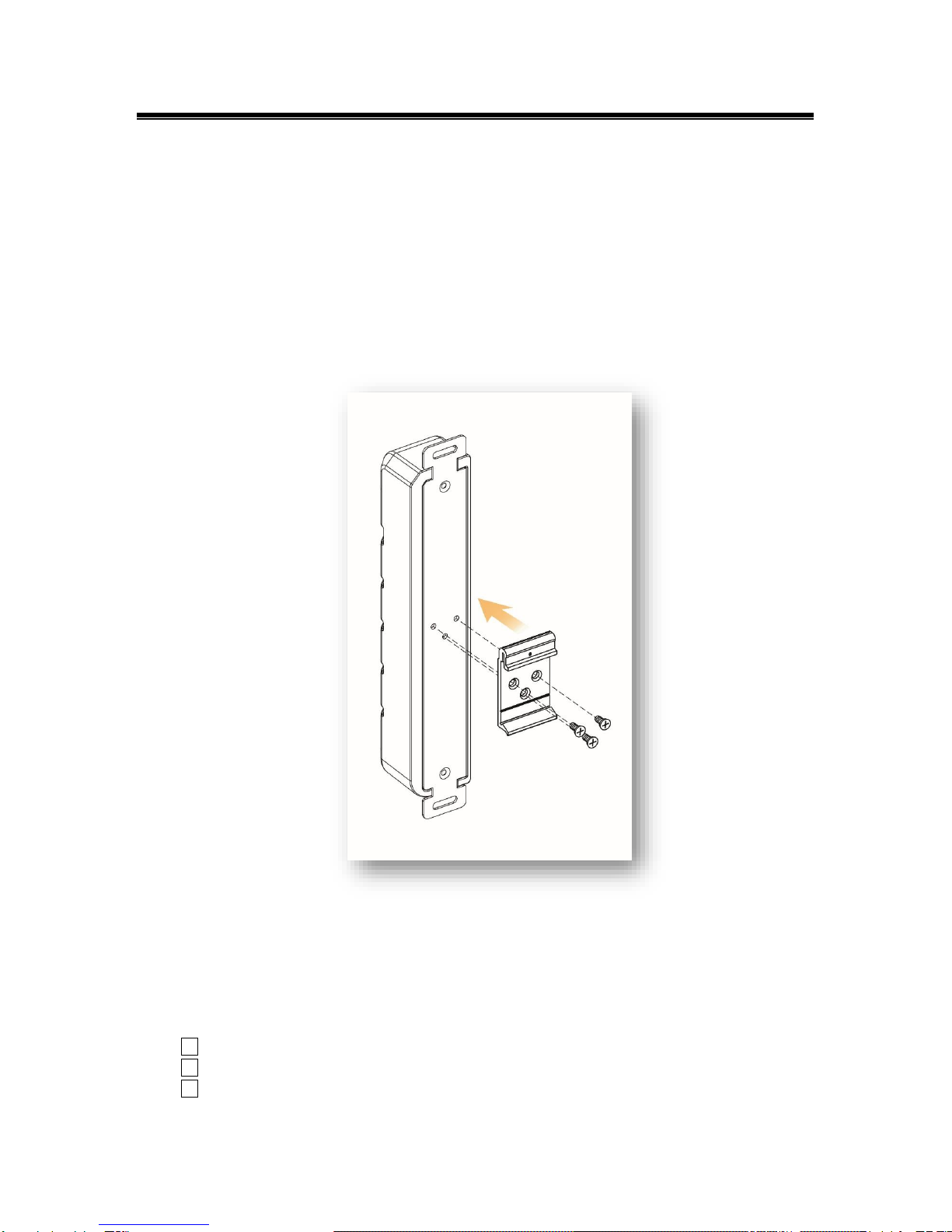

Follow the steps below to learn how to install the DIN-Rail on the industrial Ethernet switch and how
to hang the switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet
switch as shown in Figure 3.1.
NOTE: To remove the DIN-Rail bracket, do the opposite from step 1.

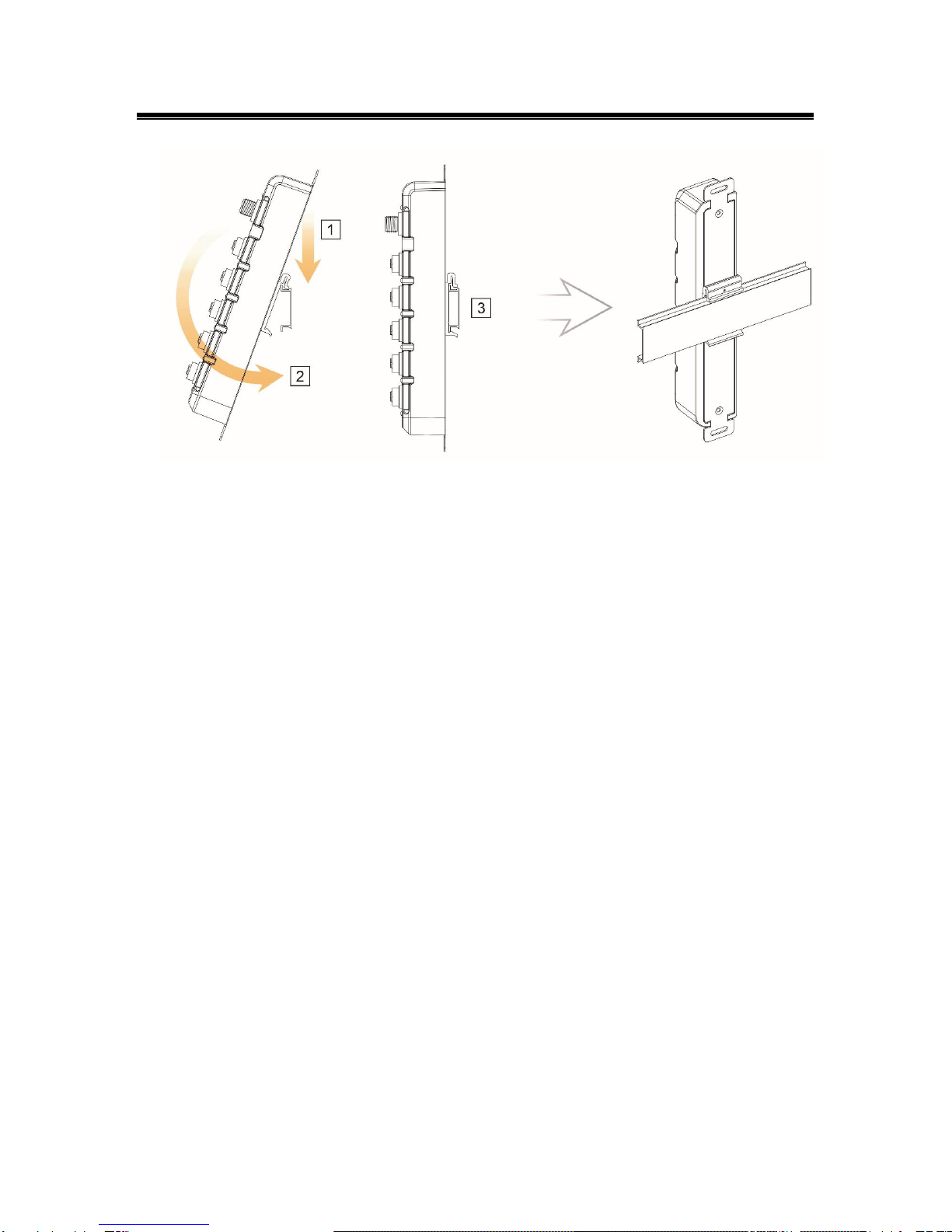

2. After the DIN-Rail bracket is installed on the rear side of the switch, see Figure 3.2 to mount
the switch.
.1:Insert the top of the DIN-Rail onto the track.
.2:Lightly pull down the bracket onto the rail.
.3:Check if the bracket is mounted tightly on the rail.
Figure 3.1

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
9
3.2 Wall Mounting
Follow the steps below to mount the industrial Ethernet switch to a wall using the screw holes as
shown below in Figure 3.3.
1. Prepare 2 screws for mounting the switch to a wall.
NOTE: Recommended to use the M3 or M4 screws.
2. Based on the positions of the 2 screw holes on the top and bottom side of the switch, make 2
screw holes on a wall accordingly.
3. Insert the screws through the screw holes on the switch and screw the switch into the wall.
4. To remove the switch from the wall, do the opposite from the steps above.
NOTE: Make sure to disconnect all cables from the switch before removing the
unit from the wall.
Figure 3.2
Install the Ethernet Switch on the DIN-Rail

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
10
Caution: “Wall” means industrial control panel wall.
Figure 3.3
Wall Mounting Bracket Dimensions

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
11
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install LNX-0500-M12-67 series.
Caution:
1. This device is intended for indoor use and at altitudes up to 2000 meters. In
addition, the environmental condition should be maximum relative humidity
80% for temperatures up to 31°C decreasing linearly to 50% relative humidity
at 40°C.
2. The device is intended to be installed in an industrial control enclosure and
panel.
3. For use in a controlled environment, please refer to manual for environmental
conditions.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. To hang the industrial Ethernet switch on a wall or DIN-Rail, please refer to the Mounting
Installation section.
3. Power on the industrial Ethernet switch, then the power LED light will turn on.
a. If you need help on how to wire power, please refer to the Wiring the Power Inputs
section.
b. Please refer to the LED Indicators section for LED light indication.
4. Prepare the M12 cable for Ethernet connection.
5. Insert one side of the M12 cable into the switch’s Ethernet port and on the other side into
the networking device’s Ethernet port. The Ethernet port’s LED on the industrial Ethernet
switch will turn on when the cable is connected to the networking device.
a. Please refer to the LED Indicators section for LED light indication.
6. When all connections are set and the LED lights all show normal, the installation is
complete.

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
12
4.2 Maintenance and Service
•If the device requires servicing of any kind, the user is required to disconnect and remove it from
its mounting. The initial installation should be done in a way that makes this as convenient as
possible.
•Voltage/power lines should be properly insulated as well as other cables. Be careful when
handling them so as to not trip over.
•Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes
located in the different faces of the device. This may not only harm the internal layout, but might
cause harm to user as well.
•Do not under any circumstance open the device for any reason. Please contact your dealer for
any repair needed or follow the instructions within the manual.
•Clean the device with dry soft cloth.

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
13
5. Network Application
This segment provides an example of an industrial M12 Ethernet switch application
(Figure 5.1).
Figure 5.1
Industrial M12 Ethernet Switch Application
Example

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
14
6. Trouble Shooting
•Verify you have the right power cord or adapter. Never use a power supply or adapter with a non-
compliant DC output voltage or it will burn the equipment.
•Select the proper cable to construct your network. Please check that you are using the right cable.
•Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily monitored
with the LED indicators which help to identity if any problems exist.
oPlease refer to the LED Indicators section for LED light indication.
•If the power indicator LED does not turn on when the power cord is plugged in, the user may
have a problem with the power cord. Check for loose power connections, power losses, or
surges at the power outlet.
oPlease contact Antaira for technical support service if the problem still cannot be
resolved.
•If the industrial switch LED indicators are normal and the connected cables are correct but the
packets still cannot transmit, please check the system’s Ethernet devices’ configuration or status.

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
15
7. Technical Specifications
Table 7.1 has the technical specifications for Antaira Technologies’LNX-0500-M12-67 series:
Standards
IEEE 802.3
10Base-T Ethernet
IEEE 802.3u
100Base-TX Fast Ethernet
Technology
Protocol
CSMA/CD
Processing Type
Store and Forward
Flow Control
IEEE 802.3x back pressure flow control
Switch
Properties
Switch Architecture
Back-Plane: Non-Blocking Switching Fabric
Transfer Rate
14,880pps for Ethernet Port
148,800pps for Fast Ethernet Port
Memory Buffer
448kbits
MAC Table Size
1k
Port Interface
Ethernet Port
5*10/100T(X) M12, 4-pin D-coded, Female, auto negotiation speed,
Full/Half duplex mode, and auto MDI/MDI-X connection
LED Indicator
Power,
Ethernet Ports: Link / Act
Mechanical
Characteristics
Housing
Plastic, IP67 protection
Dimension
37.13 x 215.73 x 32.8 mm (W x H x D)
Weight
Unit Weight: 0.749 lbs. Shipping Weight: 1.322 lbs.
Mounting
DIN-Rail Mounting, Wall Mounting
Power
Requirement
Input Voltage
12~48VDC, Redundant Inputs
Power Connection
1*M12, 5-pin A-coded, Male
Reverse Polarity
Protection
Present
Overload Current
Protection
Present
Power Consumption
500mWatts
Environmental
Limits
Operating Temperature
Standard: -10 to 70˚C
EOT: -40 to 75˚C
Operating Humidity
5% to 95% (Non-Condensing)
Storage Temperature
-40 to 85˚C
Regulatory
Approvals
EMI / EMS
FCC Part 15 Subpart B Class A, CE EN 55032 Class A,
EN 61000-6-4 Class A, CE EN 55024 Class A, EN 61000-6-2 Class A,
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT),
IEC61000-4-5 (Surge), IEC61000-4-6 (CS),
IEC61000-4-8 (Magnetic Field)
Stability Testing
IEC60068-2-32 (Free Fall), 27 (Shock), 6 (Vibration)
Green
RoHS Compliant
Safety
FCC, CE, UL 61010-1 (Pending), UL 61010-2-201 (Pending)
Warranty
5 Years
Table 7.1

Antaira Technologies - Industrial Ethernet Switches
LNX-0500-M12-67 Series User Manual V1.0
16
Antaira Customer Service and Support
(Antaira US Headquarter) + 844-268-2472
(Antaira Europe Office) + 48-22-862-88-81
(Antaira Asia Office) + 886-2-2218-9733
Please report any problems to Antaira:
www.antaira.com / [e-mail]
www.antaira.eu / inf[email protected]u
www.antaira.com.tw / [e-mail]
Any changes to this material will be announced on the Antaira website.
