LNX-500A
5-Port Industrial Unmanaged Ethernet Switches w/5*10/100Tx
User Manual
Version 2.0

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
ii
© Copyright 2014 Antaira Technologies, LLC
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2014 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC may make improvements and/or changes to the product and/or specifications of the product described in this
manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
iii
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Switches
Industrial Grade Gigabit Unmanaged Ethernet Switches
User Manual
Version 2.0 (Aug 2014)
This manual supports the following models:
LNX-500A
LNX-500A-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
iv
Table of Contents
1. Overview…………………............................................. 1
1.1 Key Features….. .............................................. 1
1.2 Package Contents............................................ 2
1.3 Safety Precaution……….................................. 2
2. Hardware Description................................................. 3
2.1 Physical Dimensions........................................ 3
2.2 Front Panel……. .............................................. 4
2.3 Top View .......................................................... 4
2.4 LED Indicators…. ............................................. 5
2.5 Ethernet Ports…............................................... 5
2.6 Cabling............................................................. 7
2.7 Wiring the Power Inputs................................... 7
2.8 Wiring the Fault Alarm Contact ........................ 8
3. Mounting Installation.................................................. 9
3.1 DIN-Rail Mounting............................................ 9
3.2 Wall Mounting….. ........................................... 11
4. Hardware Installation................................................ 12
4.1 Installation Steps............................................ 12
5. Network Application ................................................. 13
6. Trouble Shooting ...................................................... 14
7. Technical Specification............................................ 15

Antaira Industrial Ethernet Switches
LNX-0501G-SFP Series User Manual V1.0
1
1. Overview
Antaira’s LNX-500Aindustrial unmanaged Ethernet switch series are IP30 rated and DIN-Rail
mountable. Each unit is designed with five 10/100Tx Fast Ethernet ports, which the RJ-45 interface
provides auto detection of MDI or MDI-X, and each port builds with data memory buffers that support
the store-and-forward mechanism.
The LNX-500A series provides high EFT and ESD protection to prevent any unregulated voltage and
is suitable for harsh environments. It supports the power redundancy feature using a dual power input
design with reverse polarity protection.
In addition, the built-in relay warning function alerts maintainers when power failures or port breaks
occur.
The LNX-500A series includes two models: one with an operating temperature range of -10 to 70°C,
and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly
designed product to fulfill special needs for industrial automation, outdoor applications and harsh
weather environments.
1.1 Key Features
System Interface/Performance
RJ-45 ports support auto MDI/MDI-X function
Embedded 5-port 10/100Tx Fast Ethernet
Store-and-forward switching architecture
Port break alarm mask
Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
Power Input
DC 12 ~ 48Vredundant power
Operating Temperature
Standard operating temperature model: -10°C ~ 70°C
Extended operating temperature model (–T): -40°C ~ 75°C
Case/Installation
Metal / IP-30 protection
Installation in pollution degree to environment
DIN-Rail and wall mount design

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
2
1.2 Package Contents
LNX-500A(T): 5-port industrial unmanaged Ethernet switch, w/5*10/100Tx
User manual
1-Product CD
2-Wall mounting brackets and screws
1-DC cable –18 AWG &DC jack 5.5x2.1mm
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
3
2.Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira’s LNX-500A series:
5 -port industrial
unmanaged Ethernet switch with 5* 10/100Tx.
(W x D x H) is 30mm x 99mm x 142mm
Figure2.1
LNX-500A Series Physical Dimensions

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
4
2.2 Front Panel
The front panel of the LNX-500A series industrial unmanaged
Ethernet s
witch is shown below in
Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of theLNX-500A series switch that is equipped with
one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).
Figure2.2
The Front Panel of LNX-500A Series
Figure2.3
Top Panel View of LNX-500A Series

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Powerinput1is active
Off
Powerinput1isinactive
P2
Green
On
Powerinput2is active
Off
Powerinput2isinactive
Fault
Red
On
Powerinput1or2is inactive
Off
Power input1 and 2 are both functional or no power,
inputs
Link/Active
LAN Port 1~5
Green
On
Connected to network
Flashing
Networking is active
Off
Not connected to network
Duplex/Collision
LAN Port 1~ 5
Orange
On
Ethernet port full duplex
Flashing
Collision of packets occurs
Off
Ethernet port half duplex or not connect to network
2.5 Ethernet Ports
RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX
devices connections. Auto MDI/MDIX means that the switch can connect to another switch or
workstation without changing the straight-through or crossover cabling. See the figures as below
for straight-through and crossover cabling schematics.
Table 2.1
LED Indicators of LNX-500A Series

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
6
RJ-45 Pin Assignments(Table 2.2)
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can use
straight-through cables (see figure below) for all network connections to PCs, servers, other
switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T, 100BASE-TX MDI and MDI-X port pin outs.
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
The following figures show the cabling schematics for straight-through and crossover.
Figure 2.4 Figure 2.5
Straight-Through Cable Schematic Crossover Cable Schematic
Note
“+” and “-” signs represent the polarity of the wires that make up each wire pair.
Table 2.2
RJ45 Pin Assignments
Table 2.3
Ethernet Signal Pin Outs

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
7
2.6 Cabling
Use the four twisted-pair Category 5e or above cabling for RJ-45 port connection. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less
than100meters (328ft.) long.
2.7 Wiring the Power Inputs
Please follow below steps to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.6.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.7.
Note
Only use copper conductors,60/75°C,tighten to 5lbs.
The wire gauge for the terminal block should range between18~20 AWG.
Figure2.7
Power Terminal Block
Figure2.6
Power Terminal Block

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
8

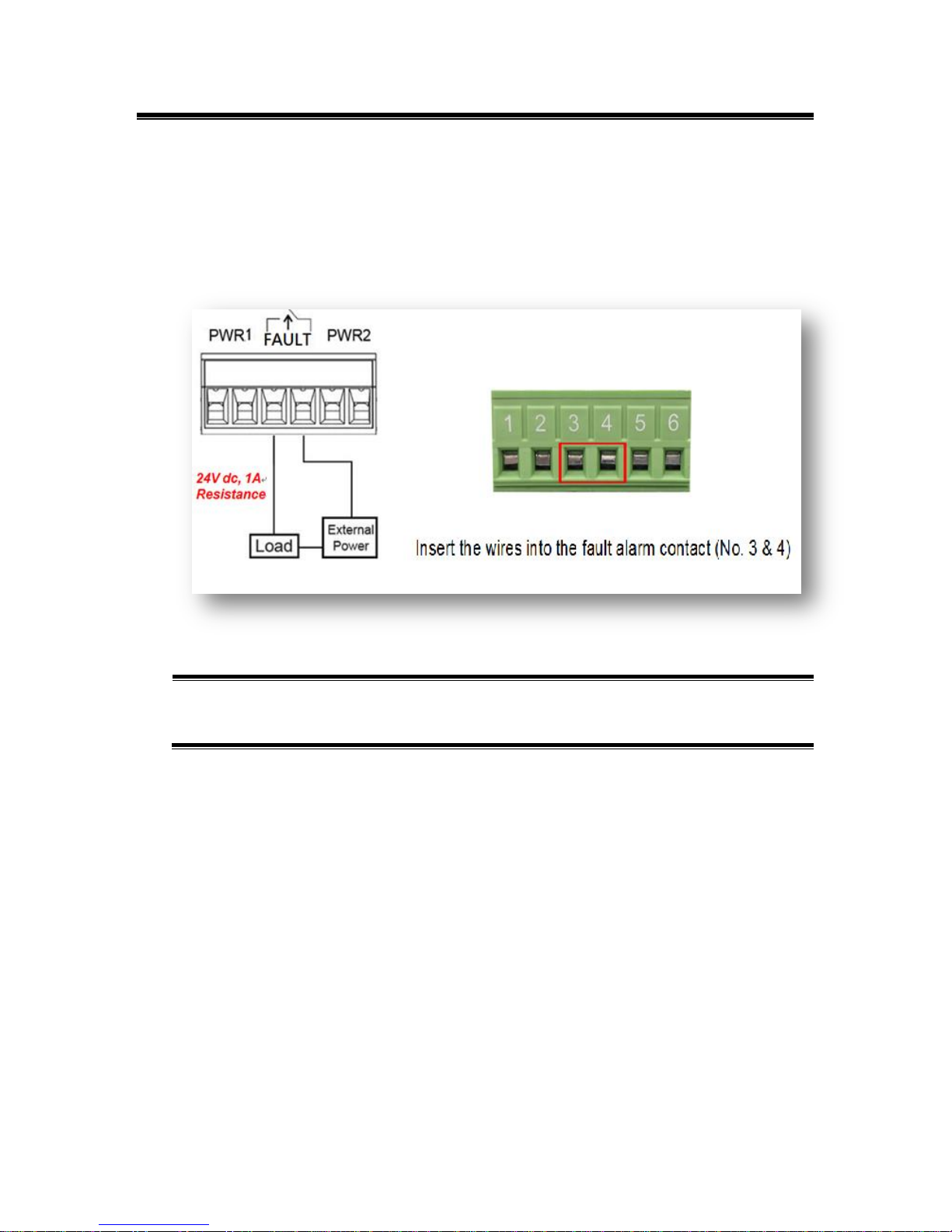

2.8 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below
in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link
failure (managed industrial switch only) and forma normally open circuit. An application example
for the fault alarm contact is shown below in Figure 2.8.
Note
The wire gauge for the terminal block should range between 12 ~ 24AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to
eliminate power fault alarm.
Figure2.8
Wiring the Fault Alarm Contact

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
9
3.Mounting Installation

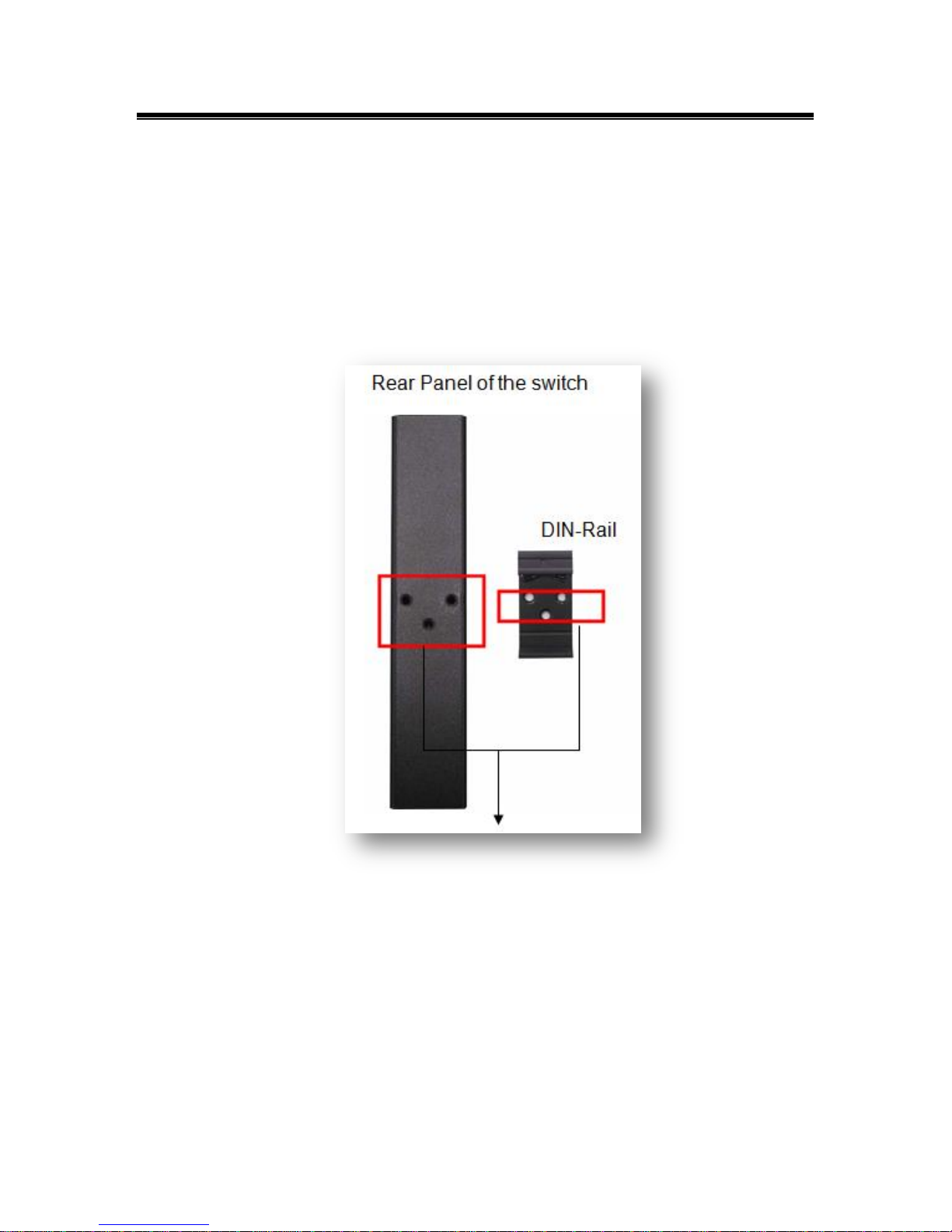

3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on
the switch.
Figure 3.1
The Rear Side of the Switch and DIN Rail Bracket

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
10
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.
Figure3.3
Stable the Switch on DIN-Rail
Figure3.2
Insert the Switch on the DIN-Rail

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
11
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
switch using the wall mounting bracket as
shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure3.5
Wall Mounting Bracket Dimensions
Figure3.4
Remove DIN-Rail Bracket from the Switch

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
12
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira’sLNX-500A series:
5-port industrial unmanaged Ethernet
switch with 5*10/100Tx.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the
DIN-Rail Mounting section for DIN-Rail installation.
If you want to wall mount the industrial Ethernet switch, please refer to the Wall
Mounting section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
If you need help on how to wire power, please refer to the Wiring the Power Inputs
section.
Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-45) LED
on the industrial Ethernet switch will turn on when the cable is connected to the networking
device.
Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
13

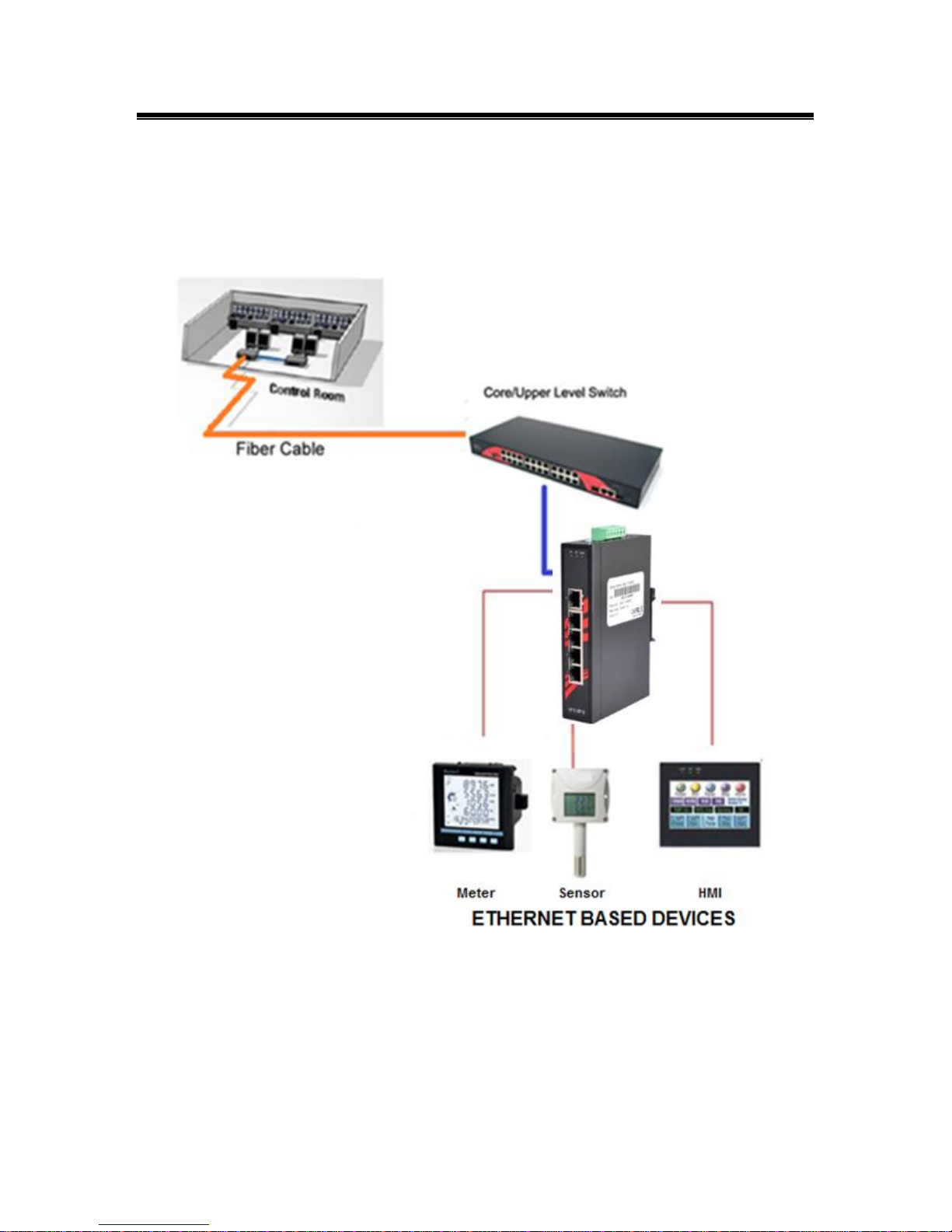

5. Network Application
This segment provides an example of an industrial
Ethernet
switch application (Figure 5.1).
Figure5.1
Industrial Ethernet Switch Application Reference

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
14
6. Trouble Shooting
Verify you have the right power cord or adapter. Never use a power supply or adapter with non-
compliant DC output voltage or it will burn the equipment.
Select the proper UTP or STP cable in order to construct the network. Use an unshielded
twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: 100Ω Category 5e
for 10M/100Mbps. Also be sure that the length of any twisted-pair connection does not exceed
100 meters (328 feet).
Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily
monitored with the LED indicators which help to identity if any problems exist.
Please refer to the LED Indicators section for LED light indication.
If the power indicator LED does not turn on when the power cord is plugged in, the user may
have a problem with the power cord. Check for loose power connections, power losses or
surges at the power outlet.
Please contact Antaira for technical support service, if the problem still cannot be resolved.
If the industrial switch LED indicators are normal and the connected cables are correct but the
packets still cannot transmit, please check the system’s Ethernet devices’ configuration or
status.

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
15
7. Technical Specification
Table 7.1has the technical specifications for Antaira’s LNX-500A series: 5-port industrial unmanaged
Ethernet switch with 5*10/100Tx.
Standard
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
Protocol
CSMA/CD
Transfer Rate
14,880pps for Ethernet port
148,800pps for fast Ethernet port
Transmission Distance
Up to 100M (Fast Ethernet)
Transmission Speed
Up to 100Mbps
RJ45 (Ethernet) Port
5*10/100Tx auto negotiation speed, full/half duplex
mode, and auto MDI/MDI-X connection
LED
Unit P1, P2, Fault Tx port:
Link/Active, Full Duplex/Collision
Over Current Protection
Slow-blown fuse
Power Input
Redundant power DC12~48Vwithconnective
1*6-Pin removable terminal block
Fault Output
1 relay output
Max Power Consumption
3 watts
Installation
DIN-Rail mounting, wall mounting (optional)
Operating Temperature
Standard: -10oC to 70oC (14°to140° F)
EOT: -40oC to 75oC (-40°to167° F)
Operating Humidity
5% to 95% (Non-Condensing)
Storage Temperature
-40oC to 85oC (-40°F ~ 185°F)
Case Dimension
IP-30, 30mm (W) x 95mm (D) x 140mm (H)
EMI
FCC Class A
CE EN61000-4-2/3/4/5/6/8/11/12
CE EN61000-6-2
CE EN61000-6-4
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Antaira Industrial Ethernet Switches
LNX-500A Series User Manual V2.0
16
Safety
UL EN-60950
Table 7.1
LNX-500A Series Technical Specification
Any changes to this material will be announced on the Antaira website.
