1 Overview
Antaira Technologies’ LNX-1600-E series is an industrial unmanaged Ethernet switch designed with
16*10/100 fast Ethernet ports. It is IP30 rated and DIN-Rail mountable making it ideal for applications
that demand large port counts in a confined area; such as, power/utility, water wastewater treatment
plants, oil/gas/mining, process control automation, security access control systems, intelligent
transportation systems, or anywhere an industrial Ethernet switch that need to be enclosed in a confined
area.

The LNX-1600-E series has a hardened design providing high EFT and ESD protection to prevent any
unregulated voltage. It also has a dual power input support of 12~48VDC. There are two wide operating
temperature models to support either a -10˚C to 65˚C or - 40˚C to 75˚C environment. There are also two
wide operating temperature models for either a standard temperature range (STD: -10°C to 65°C) or an
extended temperature range (EOT: -40°C to 75°C).
1.1 Product Hardware Features
System Interface and Performance
- All RJ45 ports support Auto MDI/MDI-X Function
- Embedded 16*10/100Tx RJ45 ports
- Store-and-forward switching architecture
- 16K MAC address table
- Support 1664 bytes jumbo frame
- 4Mbits memory buffer
Product Input
- DC 12~48V redundant, with a 6-pin removal terminal block
- The power input specification complies with the requirements of SELV (Safety Extra Low Voltage)
and the power supply should comply with UL 61010-1 & UL 61010-2-201
Operating Temperature
- Standard operating temperature model: -10°C to 65°C
- Extended operating temperature model: -40°C to 75°C
Case / Installation
- IP30 protection metal housing
- DIN-Rail and wall-mount design
1

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
1.2 Package Contents
- LNX-1600-E(-T)
- Quick Installation Guide
- Wall mounting bracket set with screws
- Dust cover set
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power
supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring
installation will be described within this hardware manual.

Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur
l'entrée d'alimentation. Les spécifications matérielles, les ports, les informations de câblage et
l'installation du câblage du commutateur Ethernet industriel seront décrits dans ce manuel d'utilisation.

Warning Labels
The caution label means that you should check certain information on the user manual when working
with the device. (Shown in Figure 1.1)

Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations sur le manuel
d'utilisation lorsque vous travaillez avec l'appareil. (Montré dans la figure 1.1)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude
2

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
2 Hardware Description
2.1 Physical Dimensions

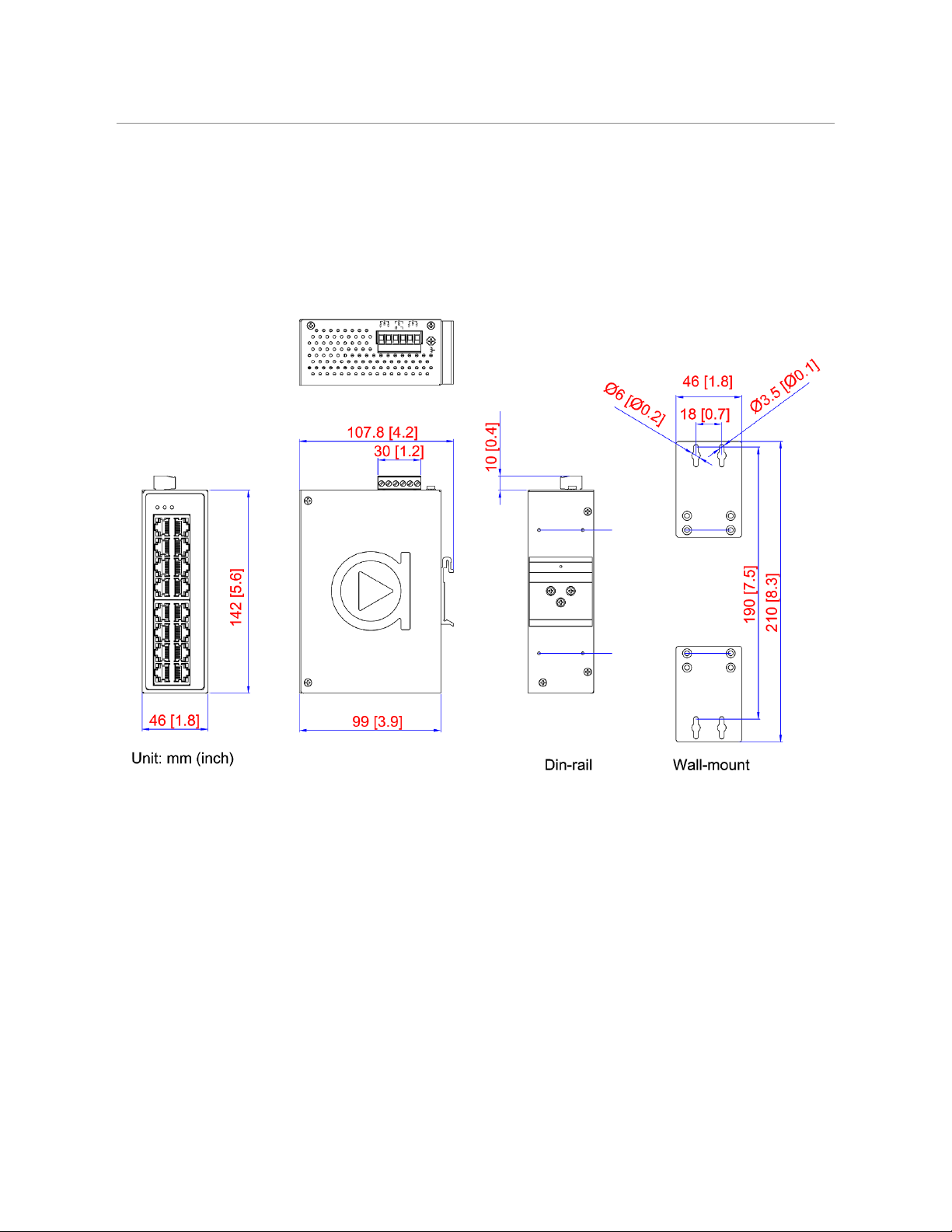

Figure 2.1, below, shows the physical dimensions of this product series:

(W x D x H) is 46mm x 99mm x 142mm
Figure 2.1 - Physical Dimensions
 
3

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
2.2 Front View Panel

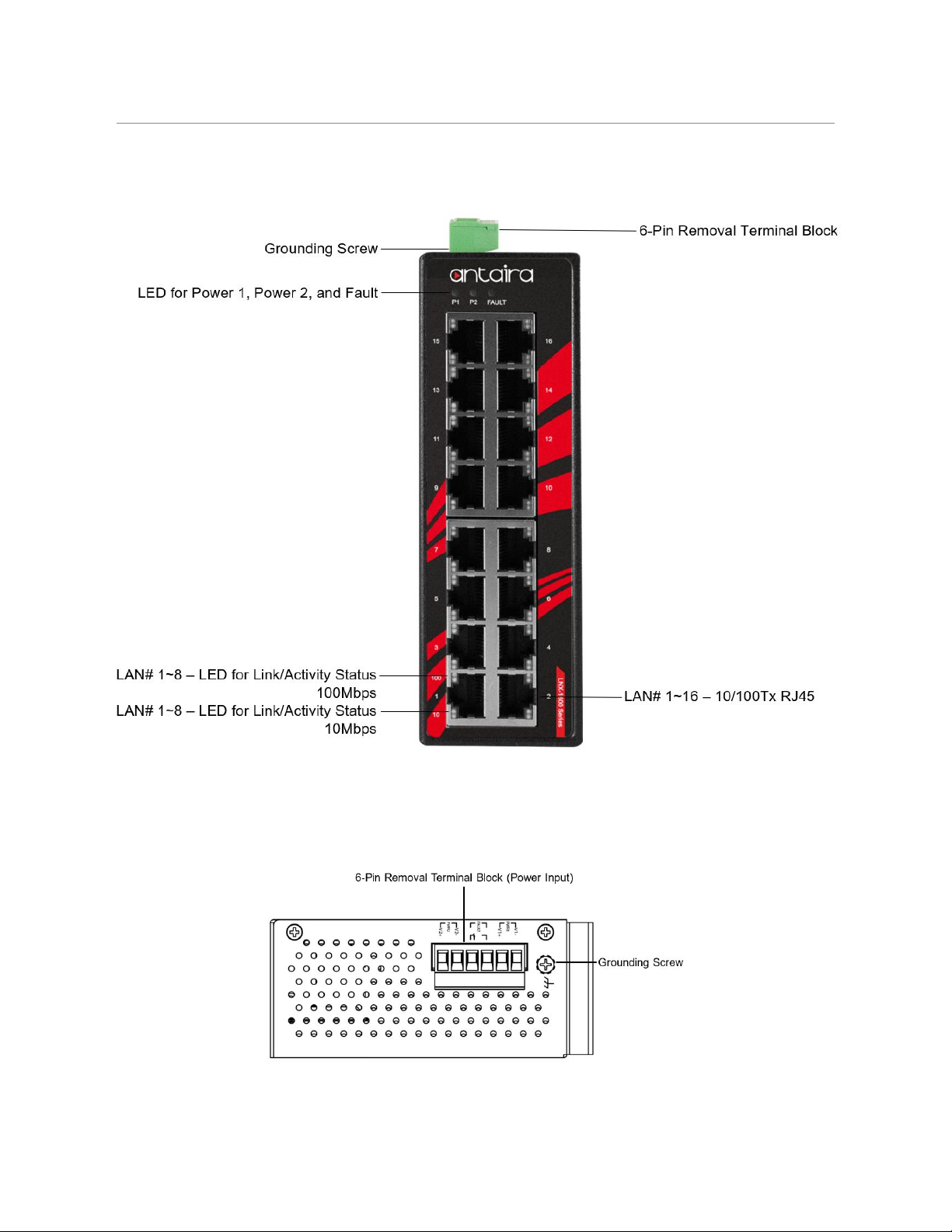

Figure 2.2, below, shows the front panel of the product series:
Figure 2.2 - Front View Panel
2.3 Top View Panel
Figure 2.3, below, shows the top panel of the product series:

Figure 2.3 - Top View Panel
4

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that display the
power status and network status. Each LED indicator has a different color and has its own specific
meaning, see below in Table 2.1.
Table 2.1 - LED Indicators

Note: “P1” is the abbreviation for “Power 1”, “P2” is for “Power 2”, “LNK” is for “Link”, and “ACT” is for “Activity”.
2.5 Ethernet Ports
●RJ45 Ports
RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10/100Base-T or 100Base-TX
connections. Auto MDI/MDI-X means that the switch can connect to another switch or workstation
without changing the straight-through or crossover cabling. See the figures below for straight-through and
crossover cabling schematics.




5
LED
Color
Description
P1
Green
On
Power Input 1 is active
Off
Power Input 1 is inactive
P2
Green
On
Power Input 2 is active
Off
Power Input 2 is inactive
Fault
Red
On
Power input 1 or 2 is inactive
Off
Power input 1 and 2 are both functional
LAN Port 1~16
(Upper LED)

Green
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 1~16
(Lower LED)

Green
On
Connected to network, 10Mbps
Flashing
Networking is active
Off
Not connected to network

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
●RJ45 Pin Assignments
Table 2.2 - 10/100Base-T(X) RJ45 Pin Assignments
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
2.6 Cabling
Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328
ft.) in length.
2.7 Wiring the Power Inputs
Caution: Please follow the steps below when inserting the power wire.
Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation.


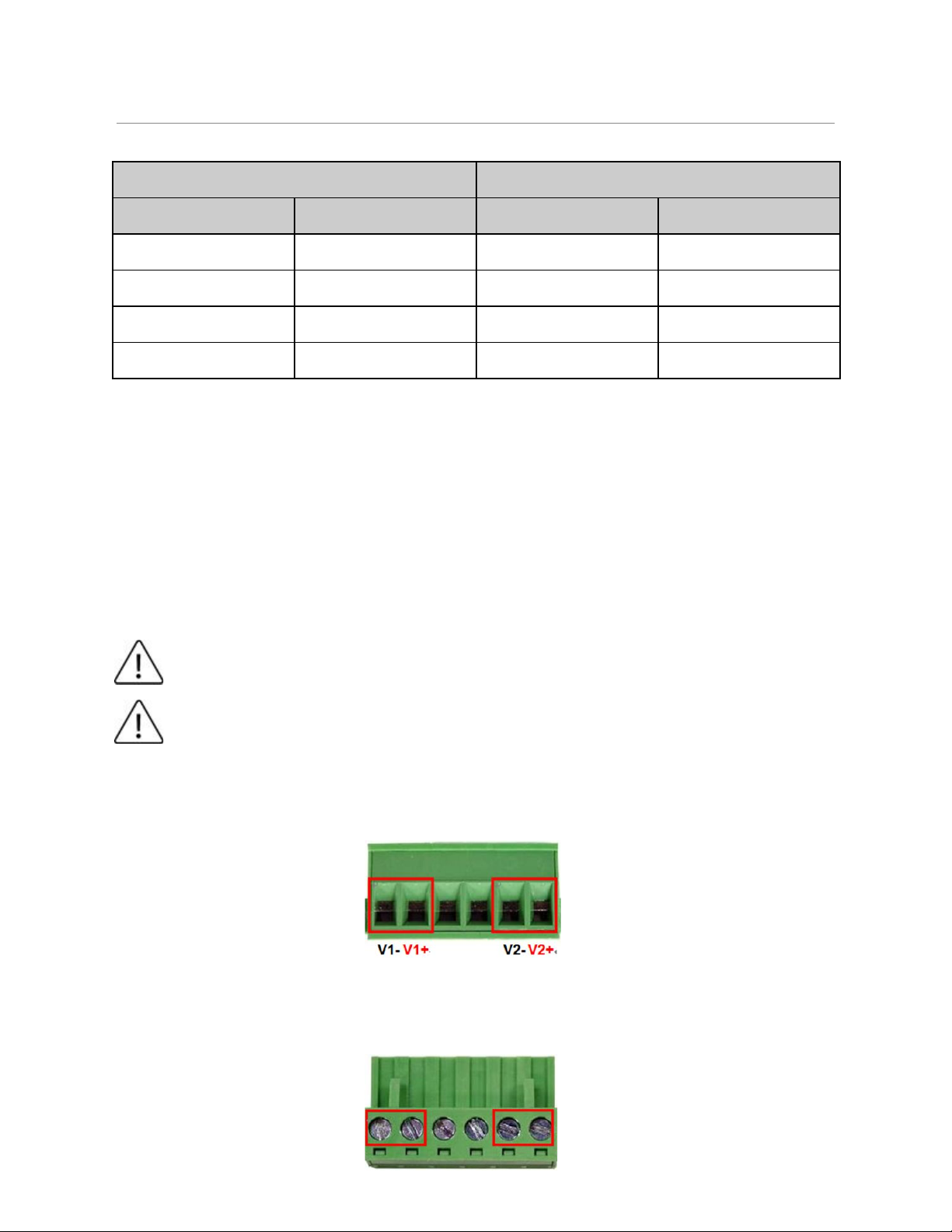

1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the
terminal block connector as shown below in Figure 2.6.
Figure 2.6 - Power Terminal Block

2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.7.
6
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
Figure 2.7 - Power Terminal Block
Caution:
Only use copper conductors, 125°C, tighten to 5 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.

Attention:
Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 lb.
Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.
2.8 Wiring the Fault Alarm Contact

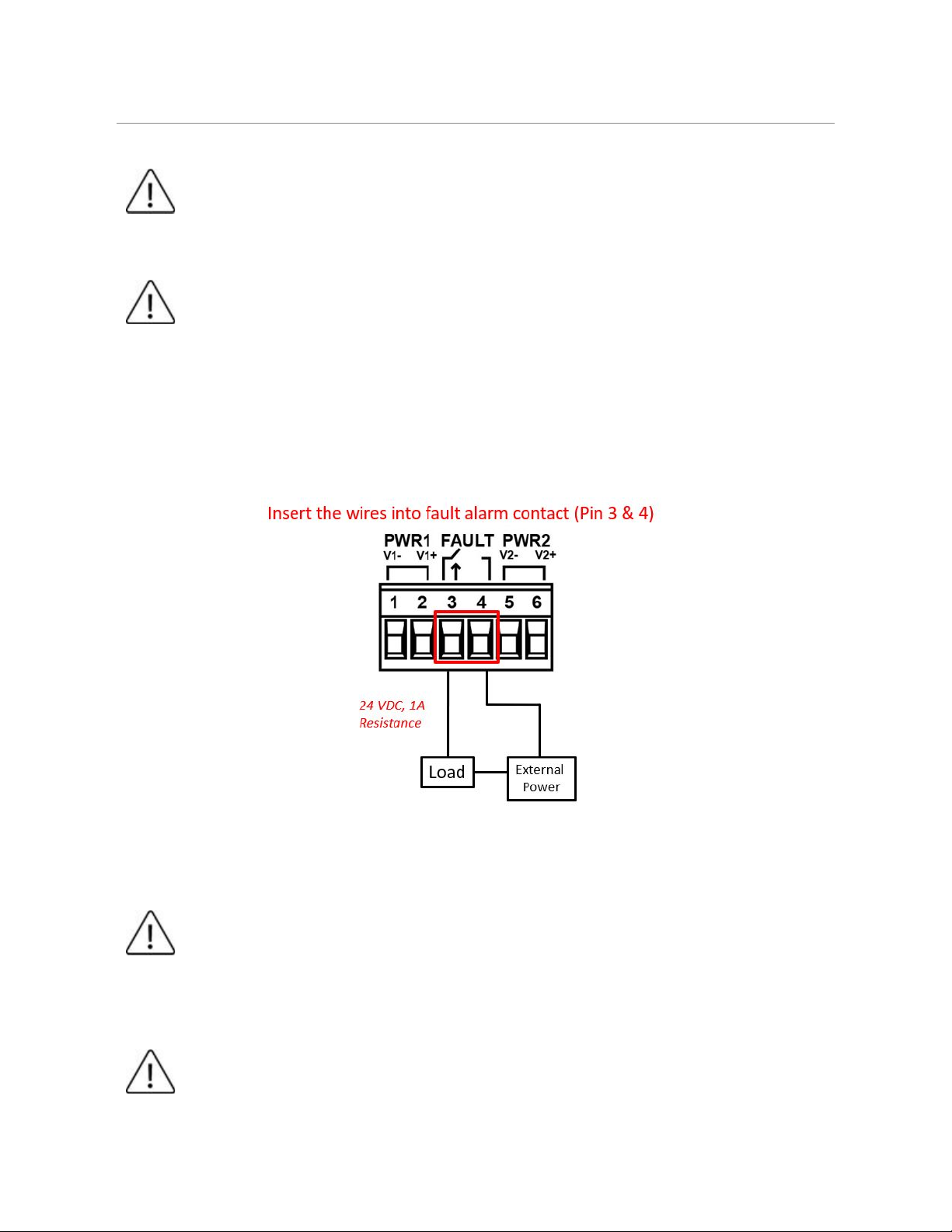

The fault alarm contact is in the middle of the terminal block connector as the picture shows below in
Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure
(managed industrial switch only), and form a normal open circuit. An example is shown below in Figure
2.8.











Figure 2.8 - Wiring the Fault Alarm Contact

Caution:
The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault
alarm.

Attention:
Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
Si vous n'utilisez qu'une seule source d'alimentation, connectez les broches 1 à 5 et les broches
2 à 6 pour éliminer l'alarme de panne de courant.
7

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
2.9 Grounding Note
Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run
the ground connection from the ground screw to the grounding surface prior to connecting devices. The
grounding screw symbol is shown below in Figure 2.9  .
Figure 2.9 - Grounding Screw Symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique
8

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
3 Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the
industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch:
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3.5 pouces-livres.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the
DIN- Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket onto the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.

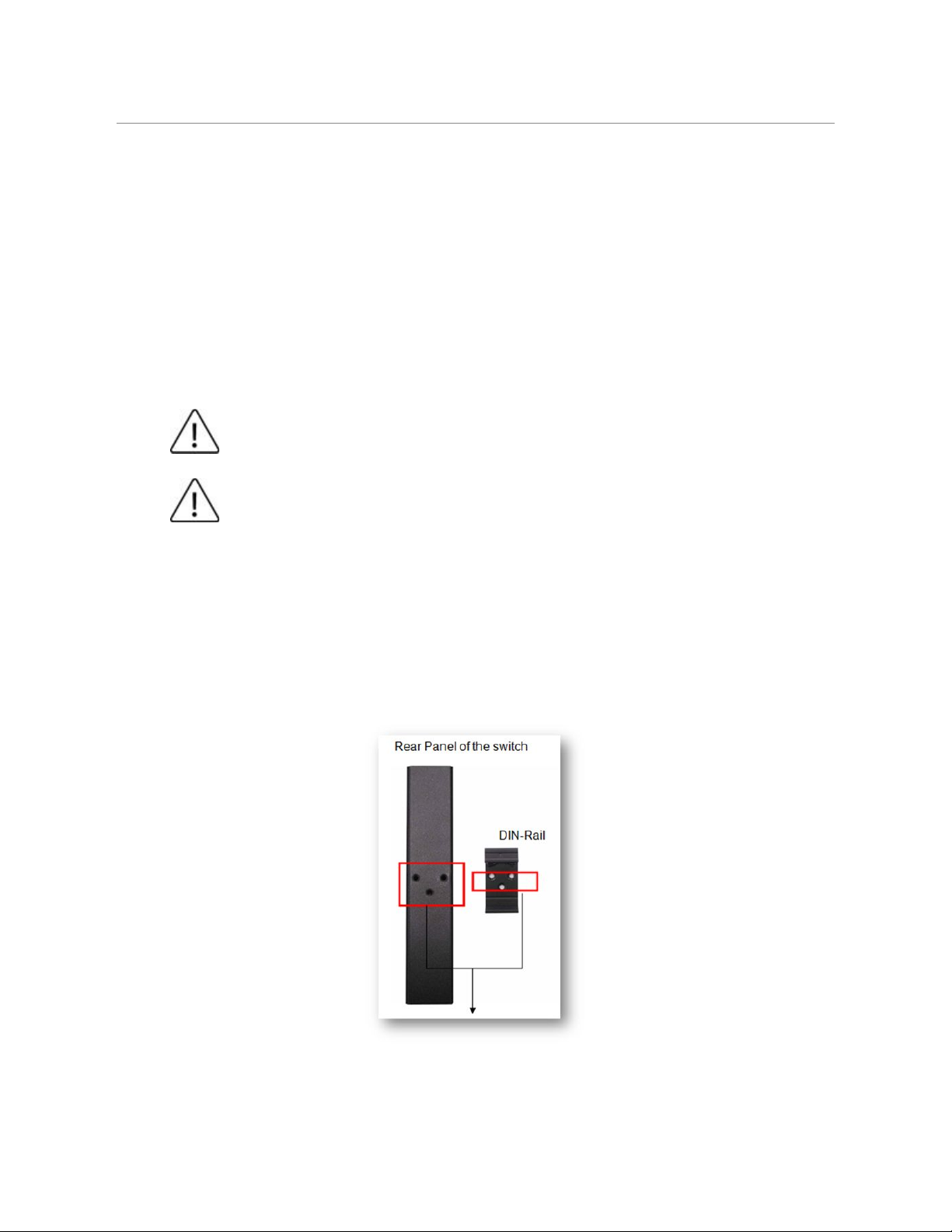

Figure 3.1 - Rear View of the Switch and DIN-Rail
9

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0

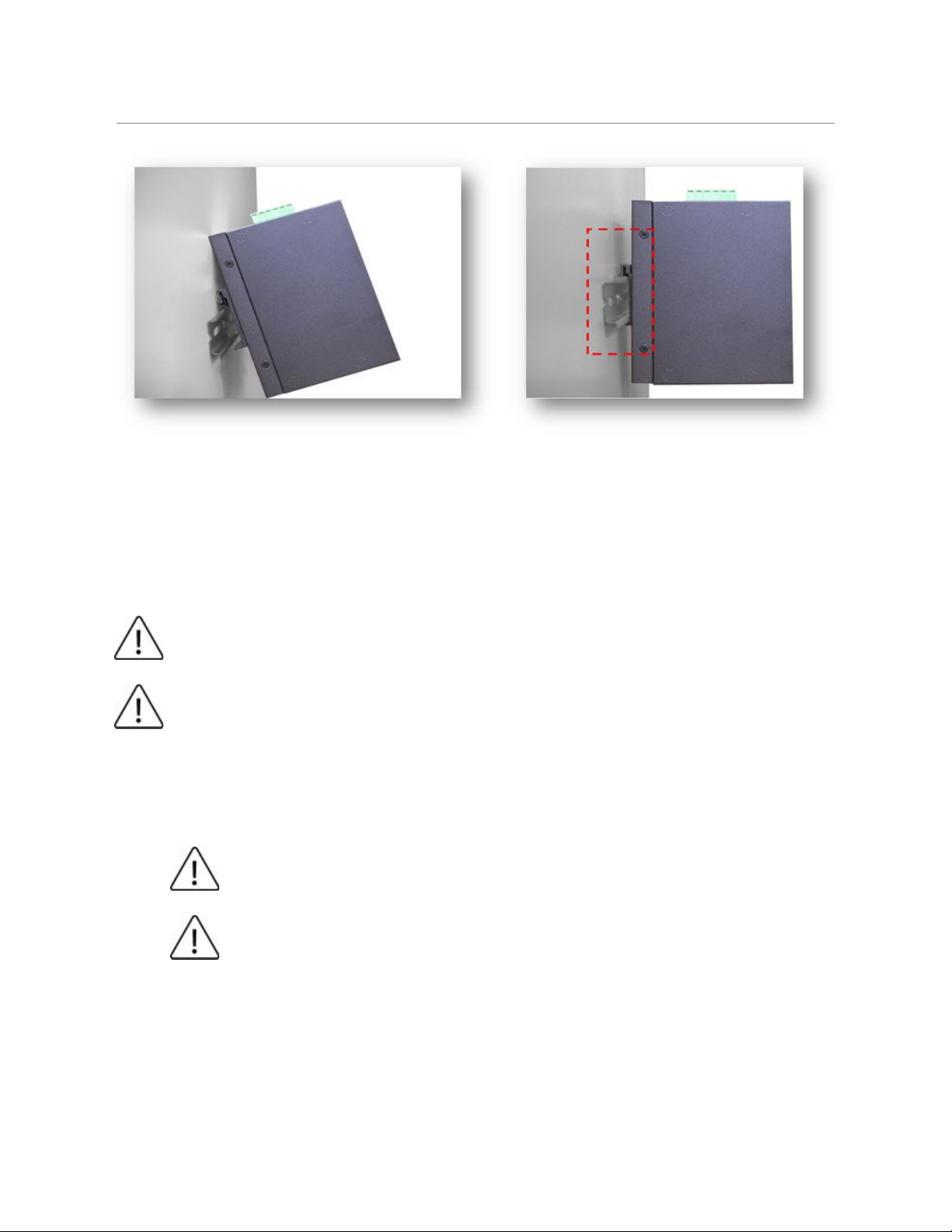

Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail
3.2 Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown
below in Figure 3.4.
Caution: “Wall” means industrial control panel wall
Attention: “Wall” signifie mur de panneau de commande industriel
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3.5 pouces-livres.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
10

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
Figure 3.4 - Remove DIN-Rail bracket from the Switch
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5 - Wall Mounting Bracket Dimensions
11

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
4 Hardware Installation
4.1 Installation Steps
This section will explain how to install the industrial Ethernet switch:
Caution: This device is intended for indoor use.
Attention: Cet appareil est destiné à une utilisation en intérieur.
Caution: The device is intended to be installed in an industrial control enclosure and panel.
Attention: L'appareil est destiné à être installé dans une armoire de commande et un panneau
industriels.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
●If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the DIN-Rail
Mounting section for DIN-Rail installation.
●If it is required to wall mount the industrial Ethernet switch, please refer to the Wall Mounting
section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
●For the help on how to wire power, please refer to the Wiring the Power Inputs section.
●Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ45 cable into the switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server.
●The Ethernet port’s (RJ45) LED on the industrial Ethernet switch will turn on when the cable is
connected to the networking device.
●Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.
12

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
4.2 Maintenance and Service
●If the device requires servicing of any kind, the user is required to disconnect and remove it from
its mounting. The initial installation should be done in a way that makes this as convenient as
possible.
●Voltage / Power lines should be properly insulated as well as other cables. Be careful when
handling them so as to not trip over.
●Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes
located in the different faces of the device. This may not only harm the internal layout, but might
cause harm to users as well.
●Do not under any circumstance open the device for any reason. Please contact your dealer for
any repair needed or follow the instructions within the manual.
●Clean the device with dry soft cloth.
4.3 Troubleshooting
●Always verify the right power cord or adapter is being used. Never use a power supply or adapter
with a non-compliant DC output voltage or it will burn the equipment.
●Select the proper UTP or STP cable in order to construct the network. Use an unshielded
twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ45 connections: 100Ω Category 5e for
10/100Mbps. Also be sure that the length of any twisted-pair connection does not exceed 100
meters (328 feet).
●Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily monitored
with the LED indicators which help to identify if any problems exist.
○Please refer to the LED Indicators section for LED light indication.
●If the power indicator LED does not turn on when the power cord is plugged in, the user may have
a problem with the power cord. Check for loose power connections, power losses or surges at the
power outlet.
○Please contact Antaira for technical support service if the problem still cannot be
resolved.
●If the industrial switch LED indicators are normal and the connected cables are correct but the
packets still cannot transmit, please check the system’s Ethernet devices’ configuration or status.
13

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
5 Technical Specifications
Table 5.1 has the technical specifications for this product series.
14
Technology
Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3 100Base-TX Fast Ethernet
Processing Type
Store and Forward
Protocol
CSMA/CD
Flow Control
IEEE 802.3x back pressure flow control
Switch Properties
Switch Architecture
Back-Plane (Switching Fabric): 3.2Gbps
Transfer Rate
14,880pps for Ethernet port
148,800pps for Fast Ethernet port
Packet Buffer
4Mbits
Jumbo Frame
1664 bytes
MAC Table Size
16K
Port Interface
Ethernet Port
16*10/100Base-T(x)
Auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X
connection
LED Indicators
System: Power 1, Power 2, Fault
Ethernet Ports: On-Link/Flash-data transmitting
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm
(100m)
100Base-TX: 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m)
Mechanical Characteristics
Housing
Metal, IP30 protection
Dimensions
46 x 142 x 99 mm (W x H x D)
Weight
Unit: 1.38 lbs.
Shipping: 1.79 lbs.
Mounting
DIN-Rail mounting; Wall mounting
Power Requirement
Input Voltage
12~48VDC Redundant Input

Antaira Technologies - Industrial Ethernet Switches
LNX-1600-E Series - Hardware Manual - v1.0
Table 5.1 - Technical Specifications

Antaira Customer Service and Support
(Antaira US Headquarter) + 844-268-2472
(Antaira Europe Office) [phone]
(Antaira Asia Office) [phone]
Please report any problems to Antaira:
www.antaira.com / [email protected]
www.antaira.eu / [email protected]
www.antaira.com.tw / [email protected]
Any changes to this material will be announced on the Antaira website.
15
Power Connection
1 removable 6-contact terminal block
Relay Contact
24VDC, 1A resistive
Overload Current Protection
Present
Reverse Polarity Protection
Present
System Power Consumption
3.4 Watts
Environmental Limits
Operating Temperature
STD: -10°C to 65°C
EOT: -40°C to 75°C
Storage Temperature
-40°C ~ 85°C
Ambient Relative Humidity
5 to 95%, (non-condensing)
Regulatory Approvals
EMI
FCC Part 15 Subpart B Class A
CE EN55032/EN61000-6-4 Class A
EMS
CE EN55035/EN61000-6-2 Class A
IEC61000-4-2,3,4,5,6,8
Free Fall
IEC60068-2-32
Shock
IEC60068-2-27
Vibration
IEC60068-2-6
Green
RoHS Compliant
Certifications
FCC, CE, E-mark
Warranty
5 Years
