ANTAIRA LNX-0501 Series User manual

LNX-0501 series
5-port Industrial Unmanaged Ethernet Switches
4*10/100Tx + 1*100Fx
User Manual

FCC Warning
This Equipment has been tested and found to comply with the limits for a
Class-A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio
communications if the equipment is not installed and used in accordance
with the instructions. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

Content
Introduction................................................................ 1
Features................................................................... 1
Package Contents.................................................... 2
Hardware Description ............................................... 3
Physical Dimension.................................................. 3
Front Panel .............................................................. 4
Top View.................................................................. 4
LED Indicators ......................................................... 5
Ports......................................................................... 6
Cabling..................................................................... 8
Wiring the Power Inputs........................................... 9
Wiring the Fault Alarm Contact.............................. 10
Mounting Installation .............................................. 11
DIN-Rail Mounting.................................................. 11
Wall Mounting ........................................................ 13
Hardware Installation .............................................. 14
Installation Steps.................................................... 14
Network Application................................................ 15
Troubleshooting ...................................................... 16
Technical Specification........................................... 17

1
Introduction
Antaira’s LNX-0501 series switches are smart 5-port Industrial Unmanaged Ethernet
Switches supporting 4-Port 10/100Tx Fast Ethernet and 1-Port 100Fx of SC or ST type
connector and support Multi-mode in 2Km, or Single-mode in 30Km.
The LNX-0501 series switches support 12~48VDC power inputs. This series switches
offer Extend Operating Temperature model (w/-T) supports -40°C ~ 75°C. It supports
IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing
to provide an economical solution for the Industrial Ethernet Network.
In addition, the Network Broadcast Storm Protection and built-in relay warning function
alerts network engineers when power failures or port breaks occur.
Features
System Interface/Performance
RJ-45 ports support Auto MDI/MDI-X Function
Embedded 4-port 10/100Tx and 1-port 100Fx SC/ST type connector (Multi /
Single mode)
Store-and-Forward Switching Architecture
Broadcast Storm Protection
2K MAC Address Table
Power Input
DC 12 ~ 48V Redundant Power
Operating Temperature
Standard Operating Temperature model: -10°C ~ 70°C
Extend Operating Temperature model with –T: -40°C ~ 75°C
Case/Installation
IP-30 Protection
Installation in Pollution Degree 2 Environment
DIN Rail and Wall Mount Design
Provides EFT protection 2,000 VDC for power line
Supports 6,000 VDC Ethernet ESD protection

2
Package Contents
Please refer to the package contents list below.
LNX-0501 series - 5-Port Industrial Unmanaged Switch with Fiber w/DIN Rail
Bracket
User Manual
Removable Terminal Block
Wall-mount Kit (2 Wall-mount Plates with Screws)
Compare the contents of the industrial switch with the checklist above. If any item is
damaged or missing, please contact Antaira or Antaira’s authorized channel partners for
service.

3
Hardware Description
The Industrial switch’s hardware spec, port, cabling information, and wiring installation
will be described.
Physical Dimension
The LNX-0501 series - 5-Port Industrial Unmanaged Ethernet Switch with Fiber
dimension: (W x D x H) is 30mm x 99mm x 142mm

4
Front Panel
The Front Panel of the Industrial Switch is shown below:
Front Panel of the Industrial Switch
Top View
The top view of the Industrial Switch has one terminal block connector of two DC power
inputs and relay circuit contact.
Top View of the Industrial Switch

5
LED Indicators
The diagnostic LEDs located on the front panel of the industrial switch provide real-time
information of the system and optional status. The following table provides the
description of the LED status.
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
Fault
Red
On
Power input 1 or 2 has failed, port link is inactive
Off
Power input 1 and 2 are both functional, or no power
inputs/port’s link is active/port alarm is disabled
LAN Port 1 ~ 4
(RJ-45)
Green
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network, 10Mbps
Flashing
Networking is active
Off
Not connected to network
Fiber Port
Green
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network

6
Ports
RJ-45 ports
The (RJ-45) Fast Ethernet ports will auto-sense for 10Base-T or 100Base-TX
connections. Auto MDI/MDIX means that the switch can connect to another switch or
workstation without changing straight through or crossover cabling. Please refer to the
table below for RJ-45 pin assignment.
RJ-45 Pin Assignments
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
Note
“+” and “-” signs represent the polarity of the wires that make up each wire
pair.
All ports on this industrial switch supports automatic MDI/MDI-X operation, users can
use straight-through cables (See figure below) for all network connections to PCs or
servers, or to other switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at
one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other
end of the cable. The table below shows the 10BASE-T/100BASE-TX MDI and MDI-X
port pin outs.
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)

7

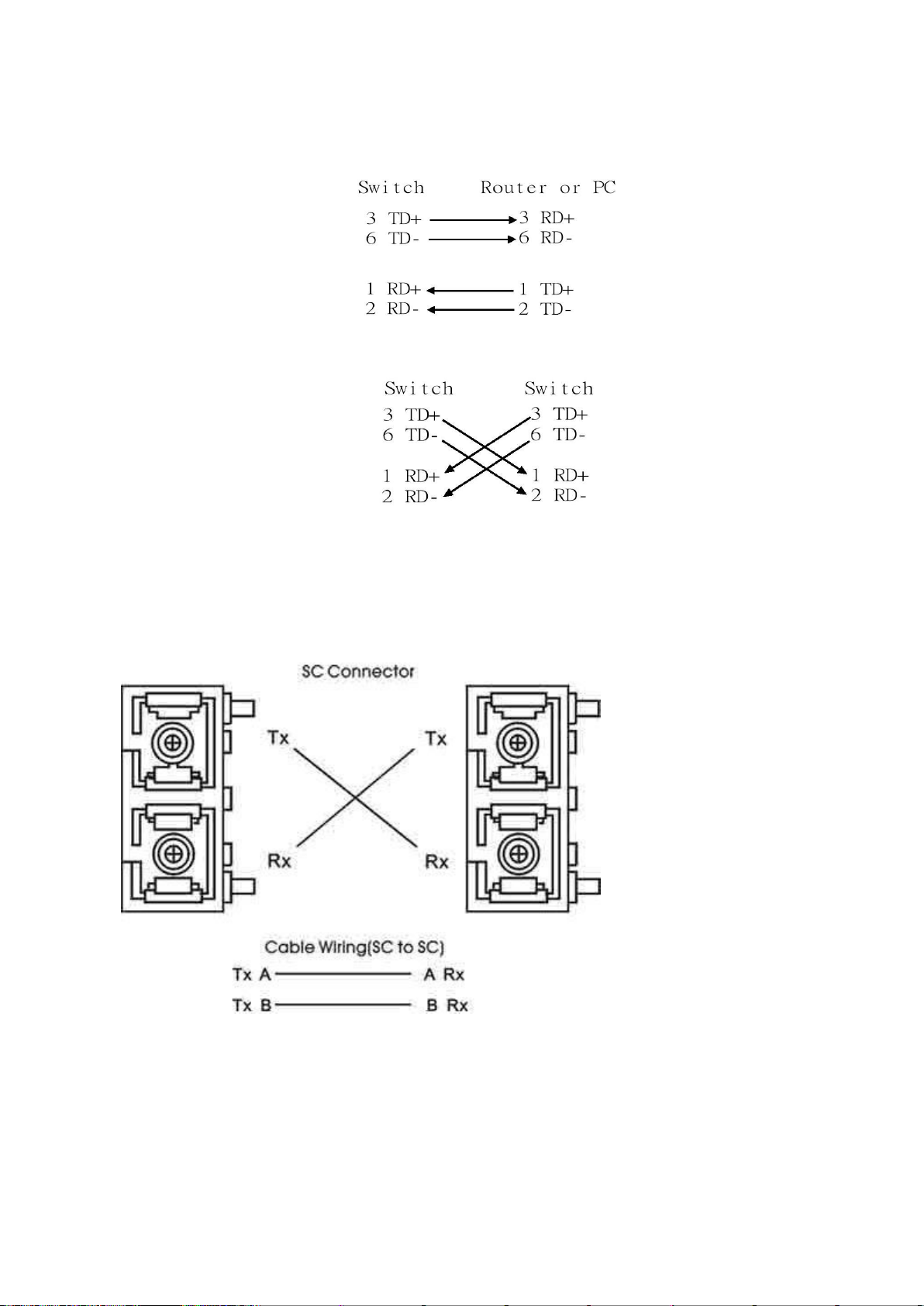

The following figures show the cable schematic for both straight-through type and
crossover type.
Straight Through Cable Schematic
Cross Over Cable Schematic
Fiber Port
The fiber port of SC type connector can work in multi mode or single mode. When you
connect the fiber port to another one, please follow the figure below to connect accordingly.
Wrong connection will cause the port cannot work normally.
ATTENTION
This is a Class 1 Laser/LED product. Don’t stare into the Laser/LED Beam.

8
Cabling
Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or
shielded twisted pair (STP) cable. The cable must comply with the IEEE 802.3u
100Base TX standard (e.g. Category 5, 5e, or 6). The cable between the equipment
and the link partner (switch, hub, workstation, etc.) must be less than 100 meters
(328 ft.) long.
Fiber segment using single-mode connector type must use 9/125μm single-mode fiber
cable.
Fiber segment using multi-mode connector type must use 50 or 62.5/125 μm multi-
mode fiber cable.

9
Wiring the Power Inputs
Please follow the steps below to insert the power wire.

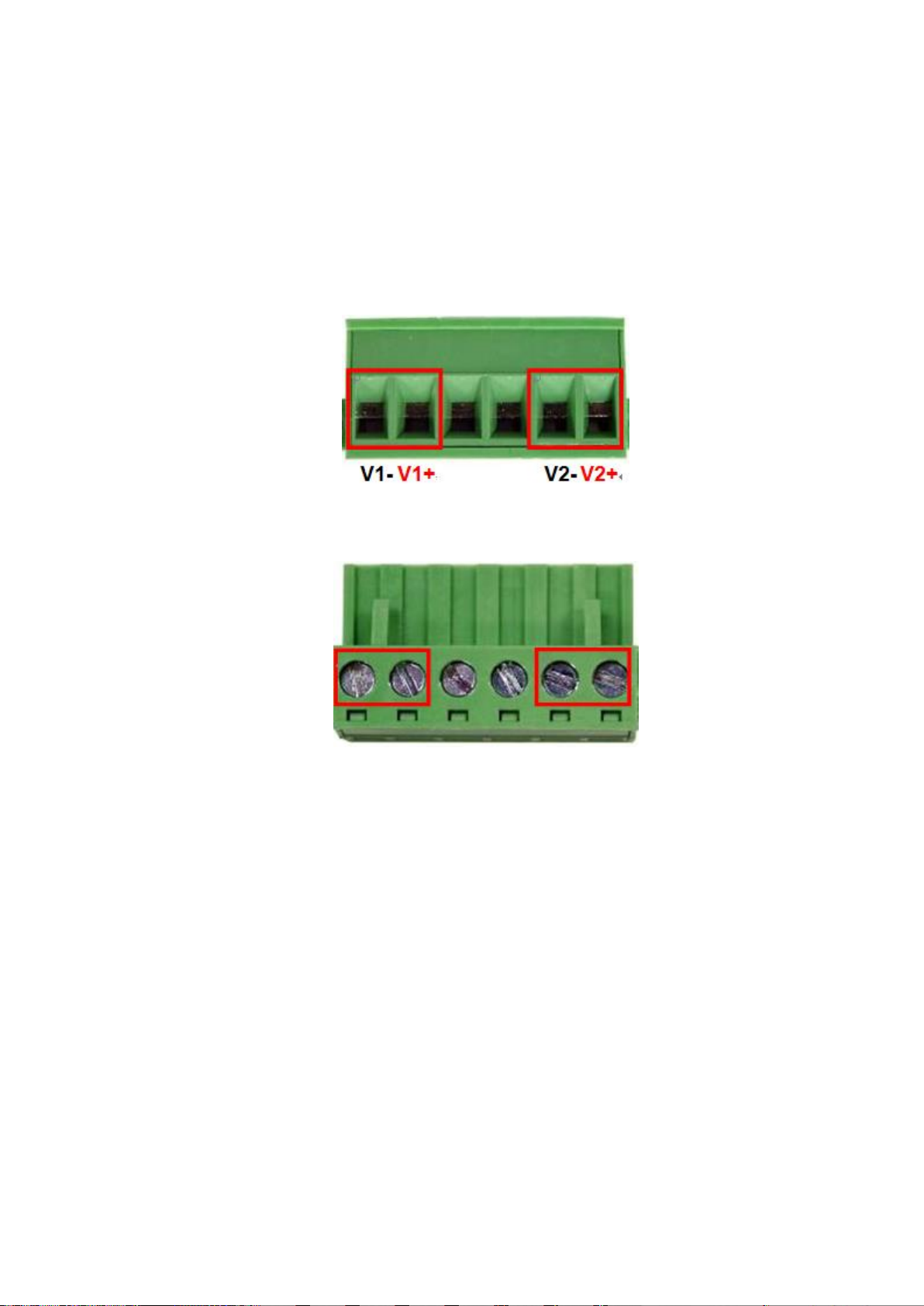

Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+,V2-)
contacts on the terminal block connector.
Tighten the wire-clamp screws to prevent the wires from loosening.
Note
Use Copper Conductors Only, 60/75°C, Tighten to 5 lb in
The wire gauge for the terminal block should range between 18~20
AWG.

10
Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture
shows below. By Inserting the wires, it will detect the fault status including power failure
or port link failure (managed industrial switch only) and form a normally open circuit. An
application example for the fault alarm contact is shown as below:
Note
Use Copper Conductors Only, 60/75°C, Tighten to 5 lb in
The wire gauge for the terminal block should range between 12 ~ 24
AWG.

11
Mounting Installation
DIN-Rail Mounting

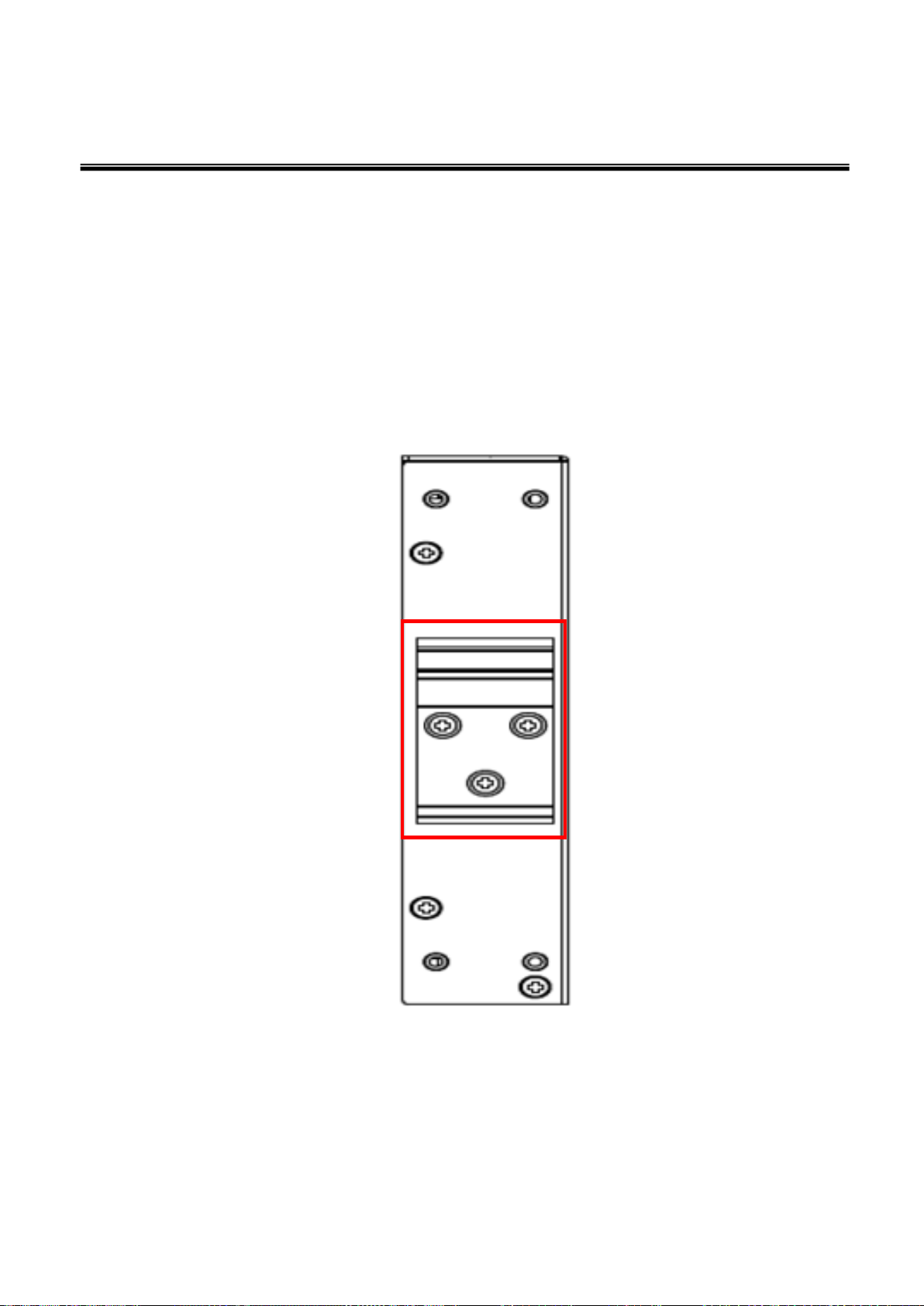

The DIN-Rail is screwed on the industrial switch from the factory. If the DIN-Rail is not
screwed on the industrial switch, please see the following pictures to screw the DIN-Rail
on the switch. Follow the steps below to hang the industrial switch.
1. Use the screws to screw the DIN-Rail bracket on the rear side of the industrial
switch.
2. To remove the DIN-Rail bracket, reverse the step 1.
3. After the DIN-Rail bracket is screwed on the rear side of the switch, insert the top of

12
DIN-Rail on to the track.
4. Then, lightly pull down the bracket on to the rail.
5. Check if the bracket is mounted tight on the rail.
6. To remove the industrial switch from the rail, reverse steps above.

13
Wall Mounting
Follow the steps below to mount the industrial switch using the wall mount bracket.
1. Remove the DIN-Rail bracket from the industrial switch; loosen the screws to remove
the DIN-Rail.
2. Place the wall mount bracket on the top and bottom of the industrial switch.
3. Use the screws to screw the wall mount bracket on the industrial switch.
4. Use the hook holes at the corners of the wall mount bracket to hang the industrial
switch on the wall.
5. To remove the wall mount bracket, reverse steps above.
Below is the dimension of the wall mount bracket.

14
Hardware Installation
This section is to explain how to install the LNX-0501 series –5-Port Industrial
Unmanaged Ethernet Switch with Fiber.
Installation Steps
1. Unpack the Industrial switch packing.
2. Check if the DIN-Rail bracket is screwed on the Industrial switch. If the DIN-Rail is
not screwed on the Industrial switch, please refer to the DIN-Rail Mounting section
for DIN-Rail installation. If users want to wall mount the Industrial switch, then
please refer to the Wall Mounting section for wall mount installation.
3. To hang the Industrial switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the Industrial switch. Please refer to the Wiring the Power Inputs section
for information about how to wire power. The power LED on the Industrial switch will
turn on. Please refer to the LED Indicators section for indication of LED lights.
5. Prepare the twisted-pair, straight through Category 5/above cable for Ethernet
connection.
6. Insert one side of the RJ-45 cable into the Industrial switch Ethernet port and on the
other side to the network device’s Ethernet port, e.g. Switch, PC or Server. The
Ethernet port (RJ-45) LED on the Industrial switch will turn on when the cable is
connected to the network device. Please refer to the LED Indicators section for LED
light indication.
7. When all connections are set and the LED lights all show normal, the installation is
complete.

15
Network Application
This segment provides an example of an industrial switch application.

16
Troubleshooting
Verify the right power cord/adapter, never use power supply/adapter with non-
compliant DC output voltage, or it will burn the equipment.
Select the proper UTP/STP cable to construct the network with using the right cable.
Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45
connections: 100ΩCategory 5e/above cable for 10M/100Mbps. Also be sure that
the length of any twisted-pair connection does not exceed 100 meters (328 feet).
Diagnosing LED Indicators: To assist in identifying problems, the Switch can be
easily monitored through LED indicators, which describe common problems a user
may encounter and where the user can find possible solutions.
If the power indicator LED does not turn on when the power cord is plugged in, the
user may have a problem with the power cord. Check for loose power connections,
power losses or surges at the power outlet. Please contact Antaira or Antaira’s
authorized channel partners for technical support service, if the problem still cannot
be resolved.
If the Industrial switch LED indicators are normal and the connected cables are
correct but the packets still cannot transmit. Please check the system’s Ethernet
devices’configuration or status.

17
Technical Specification
The LNX-0501 series - 5-Port Industrial Unmanaged Ethernet Switch with Fiber technical
specifications is shown below.
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE802.3x Flow Control and Back Pressure
Protocol
CSMA/CD
Transfer Rate
14,880 pps for 10Base-T Ethernet port
148,800 pps for 100Base-TX Fast Ethernet port
MAC Address
2K Table size
RJ45 Port
4*10/100BaseT(X) auto negotiation speed, Full/Half
duplex mode, and auto MDI/MDI-X connection
Fiber Port
1*100Fx SC/ST type connector:
Multi-mode (2Km) or Single-mode (30Km)
Optical cable
Multi mode: 50/125μm ~ 62.5/125μm
Single mode: 9/125μm
Wavelength: 1310nm (Multi-mode/Single-mode)
LED
Per unit: Power 1 (Green), Power 2 (Green), Fault (Red)
Per port: Link/Activity (Green)
PoE: Feeding Power (Green)
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 5e cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/5e, 6 cable
EIA/TIA-568 100-ohm (100m)
Over Current
Protection
Single-Blown Fuse
Power Input
Redundant Power DC 12 ~ 48 Vwith Connective
1*6-Pin Removable Terminal Block
