1. Overview
Antaira’s LNX-800A industrial unmanaged Ethernet switch series are IP30 rated and DIN-Rail
mountable. Each unit is designed with five 10/100Tx Fast Ethernet ports, which the RJ-45 interface
provides auto detection of MDI or MDI-X, and each port builds with data memory buffers that support
the store-and-forward mechanism.
The LNX-800A series provides high EFT and ESD protection to prevent any unregulated voltage and
is suitable for harsh environments. It supports the power redundancy feature using a dual power input
design with reverse polarity protection.
In addition, the built-in relay warning function alerts maintainers when power failures or port breaks
occur.
The LNX-800A series includes two models: one with an operating temperature range of -10 to 70°C,
and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly
designed product to fulfill special needs for industrial automation, outdoor applications and harsh
weather environments.
1.1 Key Features
 System Interface/Performance
 RJ-45 ports support auto MDI/MDI-X function
 Embedded 8-port 10/100Tx Fast Ethernet
 Store-and-forward switching architecture
 Port break alarm mask
 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
 Power Input
 DC 12 ~ 48V redundant power
 Operating Temperature
 Standard operating temperature model: -10°C ~ 70°C
 Extended operating temperature model (–T): -40°C ~ 75°C
 Case/Installation
 Metal / IP-30 protection
 Installation in pollution degree to environment
 DIN-Rail and wall mount design

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
2
1.2 Package Contents
 LNX-800A(T): 8-port industrial unmanaged Ethernet switch, w/8*10/100Tx
 User manual
 1-Product CD
 2-Wall mounting brackets and screws
 1-DC cable –18 AWG &DC jack 5.5x2.1mm
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
3
2. Hardware Description

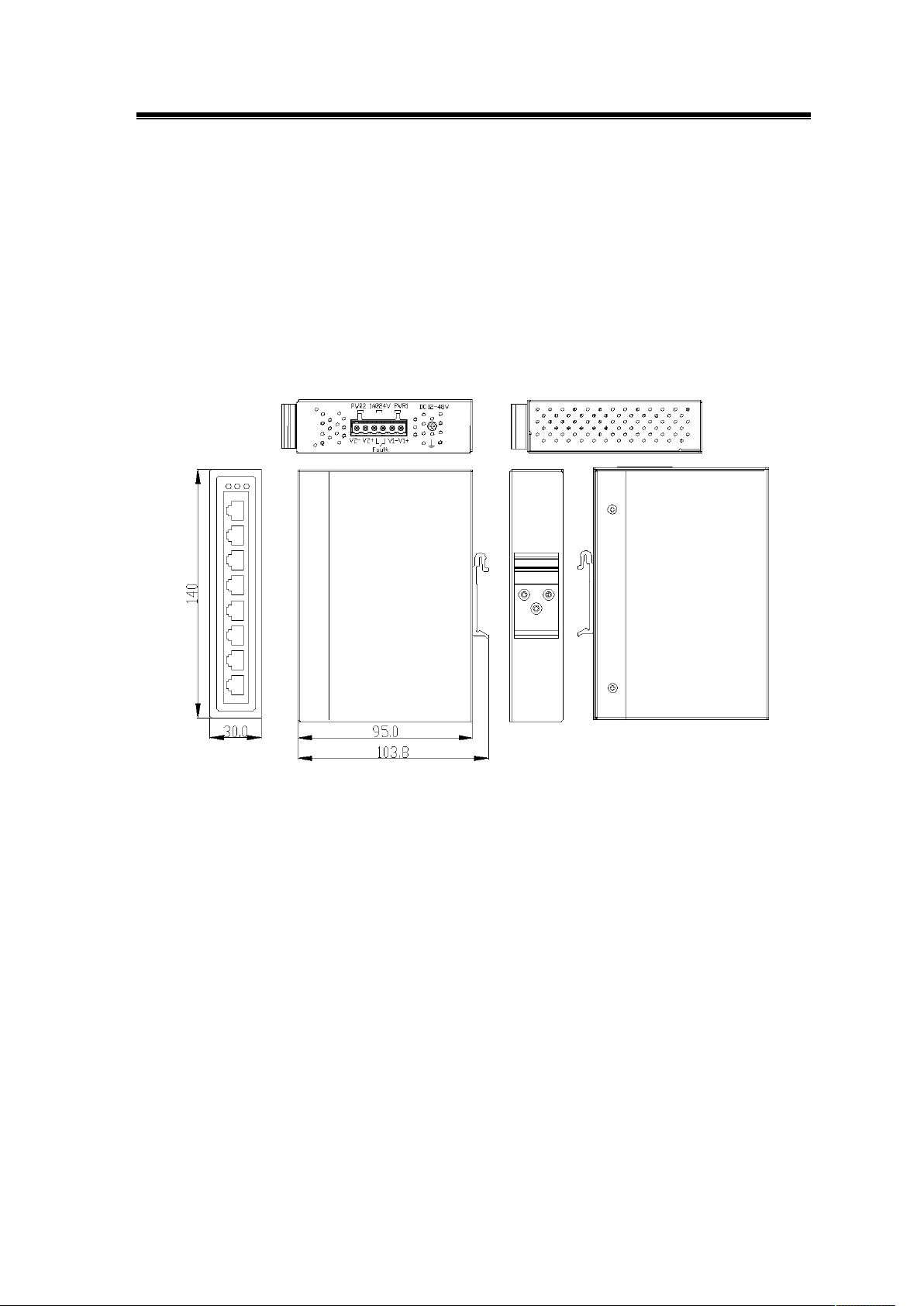

2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira’s LNX-800A series: 8-port industrial
unmanaged Ethernet switch with 8*10/100Tx.
(W x D x H) is 30mm x 99mm x 142mm
Figure 2.1
LNX-800A Series Physical Dimensions

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
4
2.2 Front Panel
The front panel of the LNX-800A series industrial unmanaged
Ethernet s
witch is shown below in
Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the LNX-800A series switch that is equipped with
one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).
Figure 2.2
The Front Panel of LNX-800A Series
Figure 2.3
Top Panel View of LNX-800A Series

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED Color Description
P1 Green On Power input 1 is active
Off Power input1 is inactive
P2 Green On Power input 2 is active
Off Power input 2 is inactive
Fault Red
On Power input 1 or 2 is inactive
Off Power input 1 and 2 are both functional or no power,
inputs
Link/Active
LAN Port 1~8
Green
On Connected to network
Flashing Networking is active
Off Not connected to network
Duplex/Collision
LAN Port 1~ 8
Orange
On Ethernet port full duplex
Flashing Collision of packets occurs
Off Ethernet port half duplex or not connect to network
2.5 Ethernet Ports
 RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX
devices connections. Auto MDI/MDIX means that the switch can connect to another switch or
workstation without changing the straight-through or crossover cabling. See the figures as below
for straight-through and crossover cabling schematics.
Table 2.1
LED Indicators of LNX-800A Series

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
6

RJ-45 Pin Assignments(Table 2.2)
Pin Number Assignment
1 Rx+
2 Rx-
3 Tx+
6 Tx-
All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can use
straight-through cables (see figure below) for all network connections to PCs, servers, other
switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T, 100BASE-TX MDI and MDI-X port pin outs.
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)
The following figures show the cabling schematics for straight-through and crossover.
Figure 2.4 Figure 2.5
Straight-Through Cable Schematic Crossover Cable Schematic
Note
“+” and “-” signs represent the polarity of the wires that make up each wire pair.
Table 2.2
RJ45 Pin Assignments
Table 2.3
Ethernet Signal Pin Outs

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
7
2.6 Cabling
Use the four twisted-pair Category 5e or above cabling for RJ-45 port connection. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100
meters (328ft.) long.

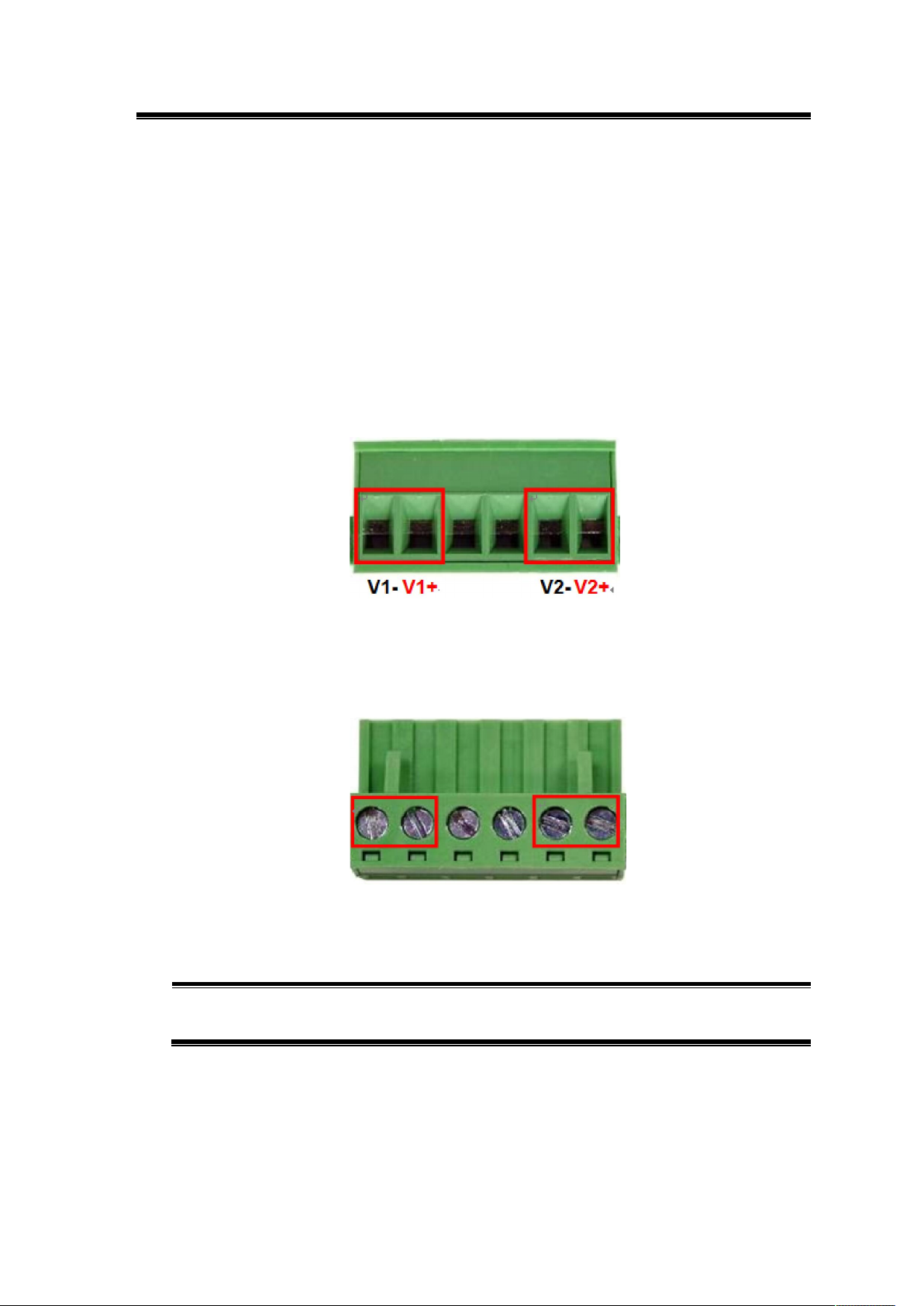

2.7 Wiring the Power Inputs
Please follow below steps to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.6.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.7.
Note  Only use copper conductors, 60/75°C, tighten to 5lbs.
 The wire gauge for the terminal block should range between 18~20 AWG.
Figure 2.7
Power Terminal Block
Figure 2.6
Power Terminal Block

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
8
2.8 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below
in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link
failure (managed industrial switch only) and forma normally open circuit. An application example
for the fault alarm contact is shown below in Figure 2.8.
Note  The wire gauge for the terminal block should range between 12 ~ 24AWG.
 If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to
eliminate power fault alarm.
Figure 2.8
Wiring the Fault Alarm Contact

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
9
3. Mounting Installation

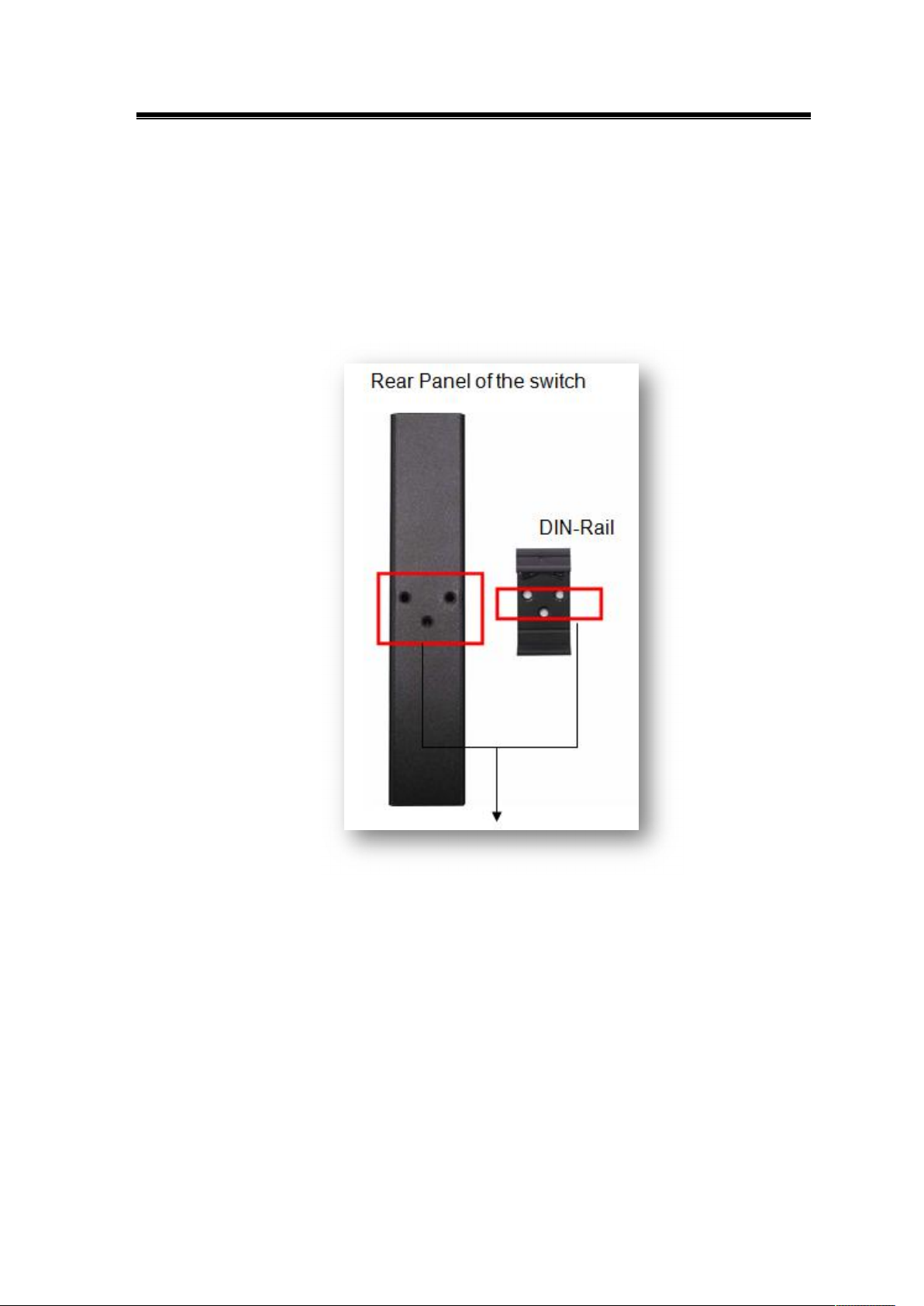

3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on
the switch.
Figure 3.1
The Rear Side of the Switch and DIN Rail Bracket

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
10

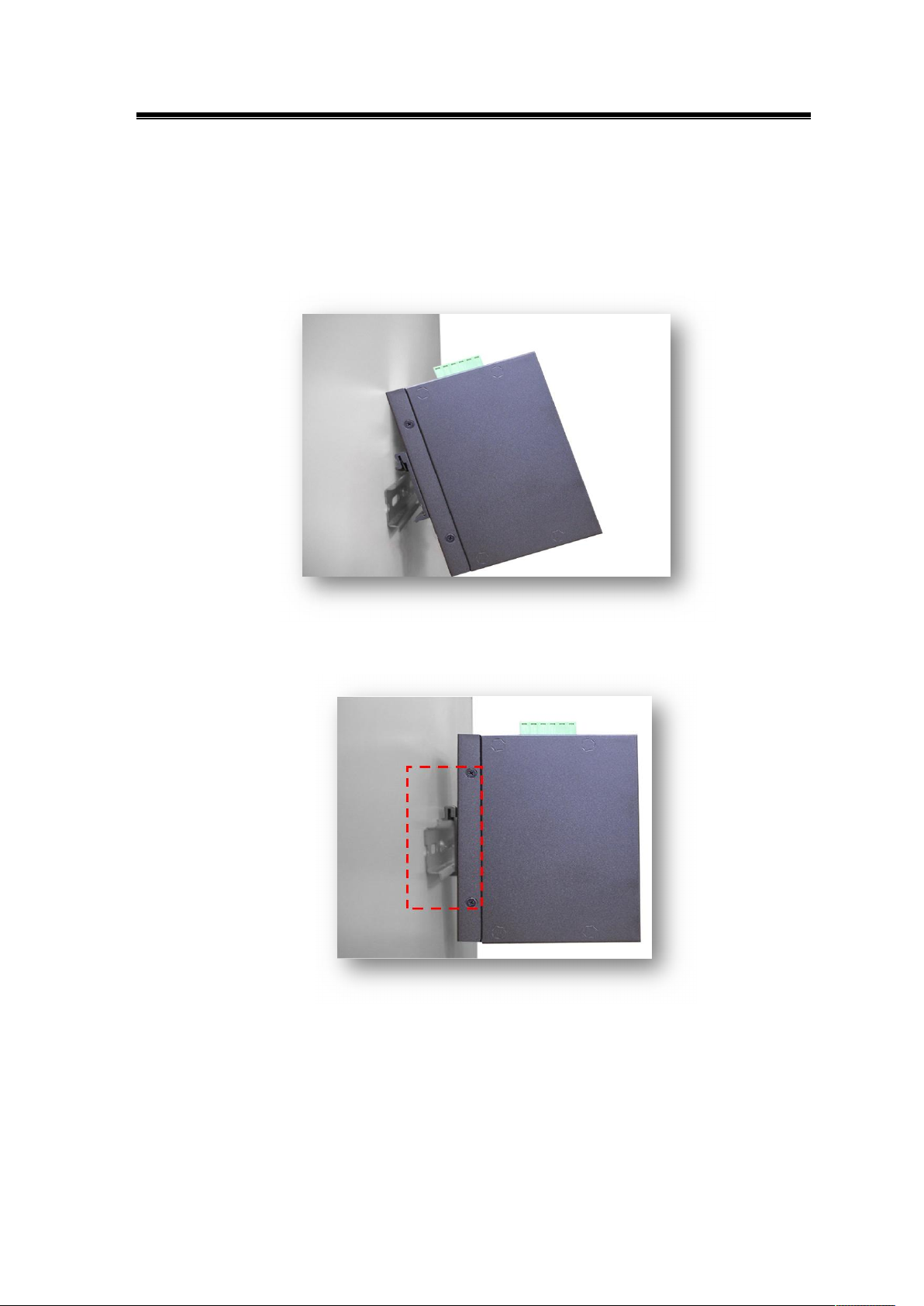

Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.2
Insert the Switch on the DIN-Rail

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
11

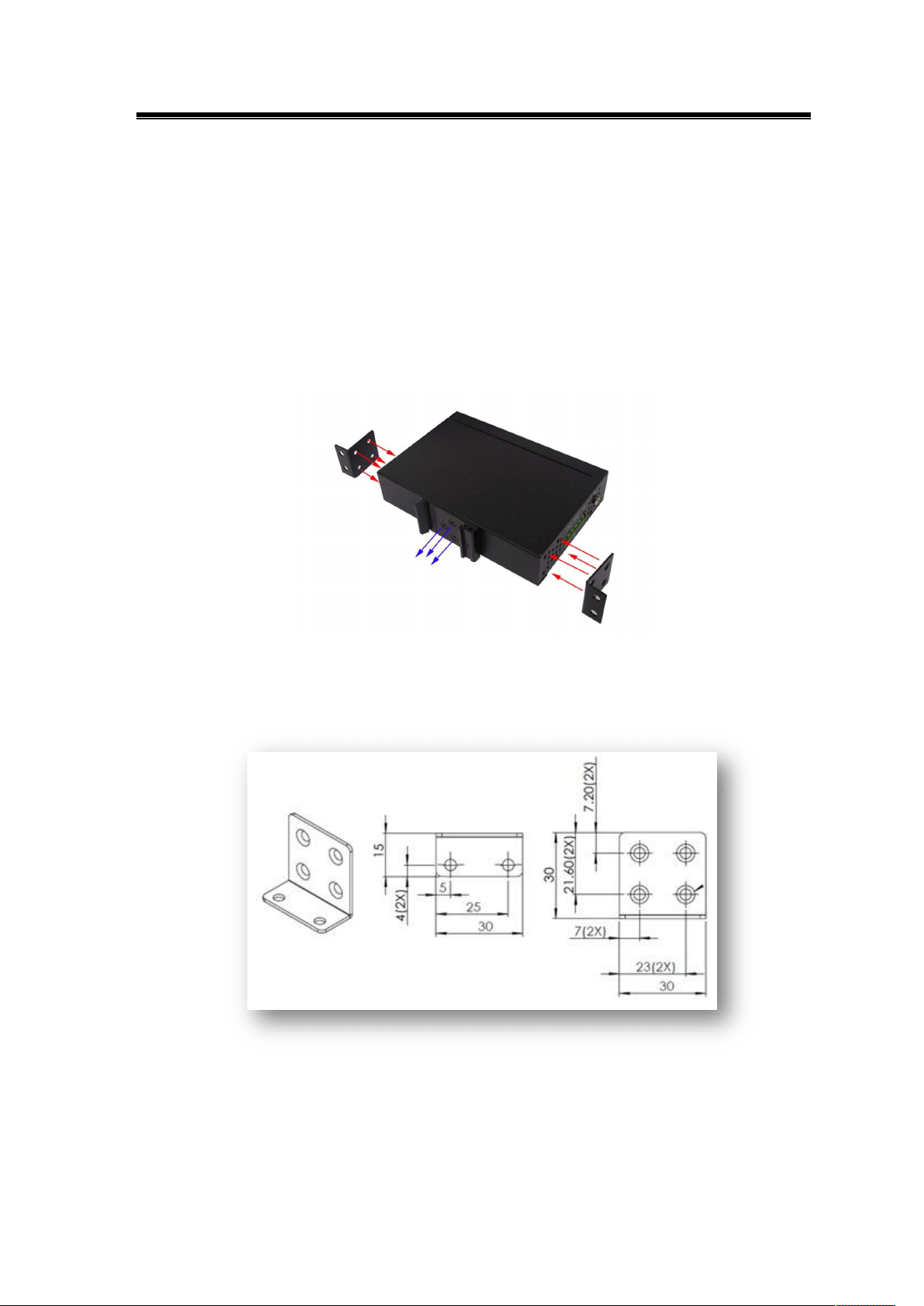

3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
switch using the wall mounting bracket as
shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions
Figure 3.4
Remove DIN-Rail Bracket from the Switch

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
12
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira’s LNX-800A series: 8-port industrial unmanaged
Ethernet switch with 8*10/100Tx.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
 If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the
DIN-Rail Mounting section for DIN-Rail installation.
 If you want to wall mount the industrial Ethernet switch, please refer to the Wall
Mounting section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
 If you need help on how to wire power, please refer to the Wiring the Power Inputs
section.
 Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-45) LED
on the industrial Ethernet switch will turn on when the cable is connected to the networking
device.
 Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
13

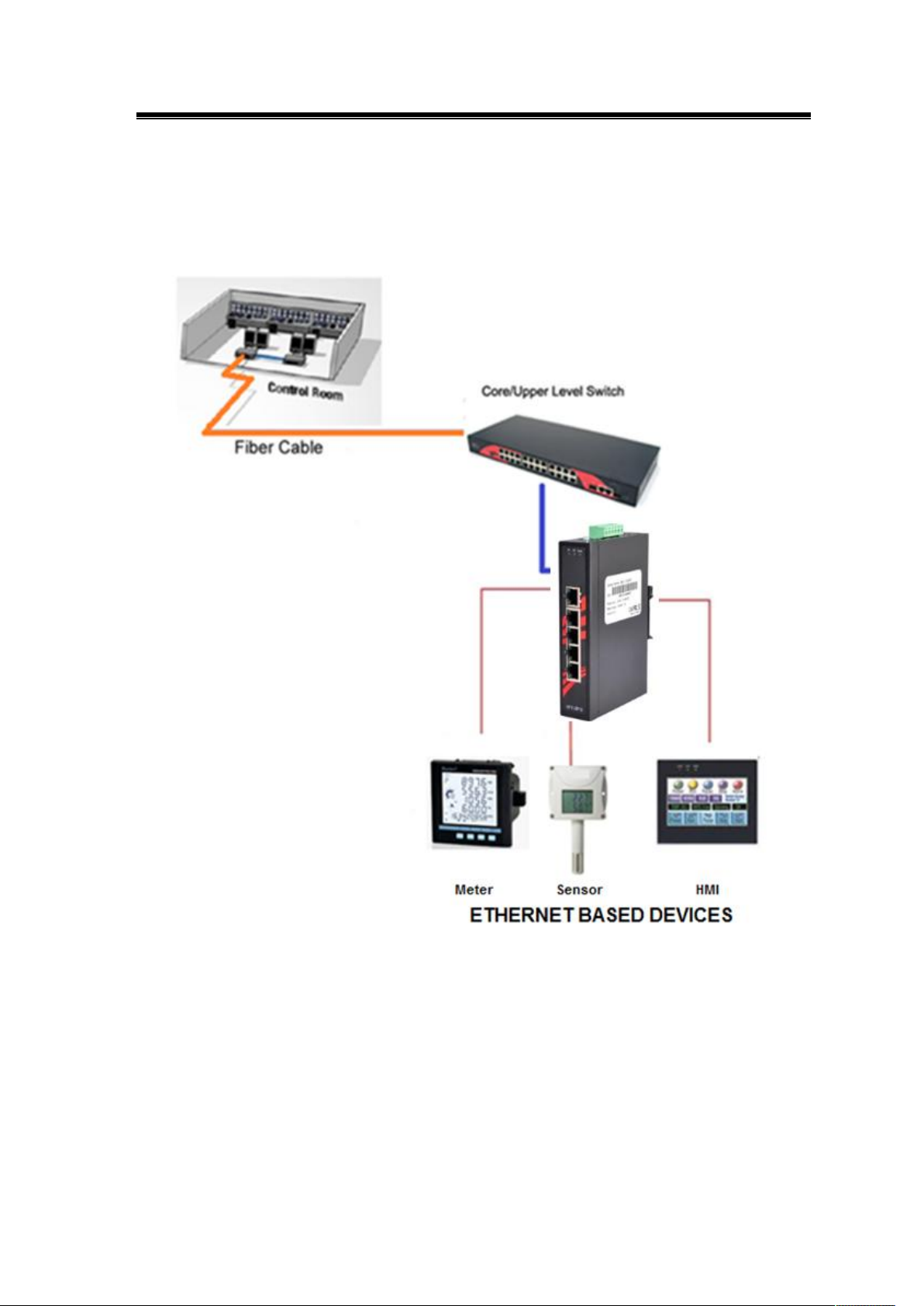

5. Network Application
This segment provides an example of an industrial
Ethernet
switch application (Figure 5.1).
Figure 5.1
Industrial Ethernet Switch Application Reference

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
14
6. Trouble Shooting
 Verify you have the right power cord or adapter. Never use a power supply or adapter with non-
compliant DC output voltage or it will burn the equipment.
 Select the proper UTP or STP cable in order to construct the network. Use an unshielded
twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: 100Ω Category 5e
for 10M/100Mbps. Also be sure that the length of any twisted-pair connection does not exceed
100 meters (328 feet).
 Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily
monitored with the LED indicators which help to identity if any problems exist.
Please refer to the LED Indicators section for LED light indication.
 If the power indicator LED does not turn on when the power cord is plugged in, the user may
have a problem with the power cord. Check for loose power connections, power losses or
surges at the power outlet.
Please contact Antaira for technical support service, if the problem still cannot be resolved.
 If the industrial switch LED indicators are normal and the connected cables are correct but the
packets still cannot transmit, please check the system’s Ethernet devices’ configuration or
status.

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
15
7. Technical Specification
Table 7.1 has the technical specifications for Antaira’s LNX-800A series: 8-port industrial unmanaged
Ethernet switch with 8*10/100Tx.
Standard IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
Protocol CSMA/CD
Transfer Rate 14,880pps for Ethernet port
148,800pps for fast Ethernet port
Transmission Distance Up to 100M (Fast Ethernet)
Transmission Speed Up to 100Mbps
RJ45 (Ethernet) Port 8*10/100Tx auto negotiation speed, full/half duplex
mode, and auto MDI/MDI-X connection
LED Unit P1, P2, Fault Tx port:
Link/Active, Full Duplex/Collision
Over Current Protection Slow-blown fuse
Power Input Redundant power DC12~48V with connective
1*6-Pin removable terminal block
Fault Output 1 relay output
Max Power Consumption 3.5 watts
Installation DIN-Rail mounting, wall mounting (optional)
Operating Temperature Standard: -10oC to 70oC (14° to 140°
F)
EOT: -40oC to 75oC (-40° to 167° F)
Operating Humidity 5% to 95% (Non-Condensing)
Storage Temperature -40oC to 85oC (-40°F ~ 185°F)
Case Dimension IP-30, 30mm (W) x 95mm (D) x 140mm (H)
EMI
FCC Class A
CE EN61000-4-2/3/4/5/6/8/11/12
CE EN61000-6-2
CE EN61000-6-4
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Antaira Industrial Ethernet Switches
LNX-800A Series User Manual V2.4
16
Safety
UL 60950-1, UL 61010-1,
UL 61010-2-201, UL Class 1 Division 2,
ISA 12.12.01
Table 7.1
LNX-800A Series Technical Specification
Antaira Customer Service and Support
(Antaira US Headquarter) + 844-268-2472
(Antaira Europe Office) + 48-22-862-88-81
(Antaira Asia Office) + 886-2-2218-9733
Please report any problems to Antaira:
www.antaira.com / su[email protected]
www.antaira.eu / inf[email protected]
www.antaira.com.tw / [e-mail]
