ANTAIRA LNP-1002C-SFP-T User manual

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP series User Manual V1.2
i
LNP-1002C-SFP Series
10-Port Industrial PoE+ Unmanaged Ethernet Switches, with
8*10/100Tx (30W/Port), 2* Gigabit Combo Ports (2*10/100/1000Tx
RJ45, and 2* 100/1000 SFP Slots)
User Manual
Version 1.2

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
ii
© Copyright 2018 Antaira Technologies, LLC
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2018 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC may make improvements and/or changes to the product and/or specifications of the product described in this
manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
iii
FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Switches
Industrial Grade Gigabit Unmanaged Ethernet Switches
User Manual
Version 1.2 (April 2018)
This manual supports the following models:
 LNP-1002C-SFP
 LNP-1002C-SFP-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
iv
Table of Contents
1. Overview ....................................................................... 1
1.1 Key Features ...................................................... 1
1.2 Package Contents .............................................. 2
1.3 Safety Precaution ........................................................ 2
2. Hardware Description ................................................. 3
2.1 Physical Dimensions .......................................... 3
2.2 Front Panel ........................................................ 4
2.3 Top View ............................................................ 4
2.4 LED Indicators .................................................... 5
2.5 Ethernet Ports..................................................... 6
2.6 Cabling . ............................................................. 8
2.6.1 Gigabit Combo Port - Copper/SFP (Mini-GBIC) ....... 8
2.7 Wiring the Power Inputs ................................... 11
2.8 Wiring the Fault Alarm Contact ........................ 12
3. Mounting Installation ................................................ 13
3.1 DIN-Rail Mounting ............................................ 13
3.2 Wall Mounting ................................................... 15
4. Hardware Installation ................................................ 16
4.1 Installation Steps .............................................. 16
5. Network Application ................................................. 17
6. Trouble Shooting ....................................................... 18
7. Technical Specifications .......................................... 19

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP series User Manual V1.2
1
1. Overview
Antaira Technologies’ LNP-1002C-SFP industrial PoE+ Gigabit unmanaged Ethernet switch series
is IP30 rated and DIN-Rail mountable. Each unit is designed with 8*10/100TX Ethernet ports that
are IEEE 802.3at compliant (power-over-Ethernet plus) on ports 1-8 (30W/Port), and 2*Gigabit
combo ports (2*10/100/1000Tx RJ45 and 2* 100/1000 SFP slots for fiber). This series is ideal for
applications that demand high bandwidth and long distance communication.
This product series provides a high EFT and ESD protection to prevent any unregulated voltage
and is suitable for harsh environments. It supports the power redundancy feature using a dual
power input design with reverse polarity protection. In addition, the built-in relay warning function
alerts maintainers when power failures occur.
The LNP-1002C-SFP series includes two models: one with an operating temperature range of -10
to 70°C and the other with an extended operating temperature range of -40 to 75°C. This product
series has been designed to fulfill special needs for industrial automation and harsh outdoor
environment applications.
1.1 Key Features
 System Interface/Performance
 All RJ-45 ports support Auto MDI/MDI-X Function
 Embedded 8*10/100Tx (PSE 30W/Port), 2*Gigabit Combo Ports (2*10/100/1000Tx
RJ45, and 2* 100/1000 SFP Slots)
 Store-and-forward switching architecture
 8K MAC address table
 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
 Power Input
 DC 48 ~ 55V redundant power
 Operating Temperature
 Standard operating temperature model: -10°C ~ 70°C
 Extended operating temperature model (–T): -40°C ~ 75°C
 Case/Installation
 IP-30 protection
 DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
2
1.2 Package Contents
 1 - LNP-1002C-SFP (T): 10-Port industrial PoE+ unmanaged Ethernet switch, with
8*10/100Tx (30W/Port), 2*Gigabit combo ports (2*10/100/1000Tx RJ45, and 2*
100/1000 SFP Slots)
 1 - User manual
 1 - Product CD
 2 - Wall mounting brackets and screws
 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s hardware
specs, ports, cabling information, and wiring installation will be described
within this user manual.

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
3
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-1002C-SFP series:
10-port industrial PoE+ Gigabit unmanaged Ethernet switch with 8*10/100Tx (30W/Port) and
2*Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots).
(W x D x H) is 46mm x 99mm x 142mm
Figure 2.1
LNP-1002C-SFP Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
4
2.2 Front Panel
The front panel of the LNP-1002C-SFP series: 10-port industrial PoE+ Gigabit unmanaged Ethernet
switch with 8*10/100Tx (30W/Port) and 2*Gigabit combo ports (2*10/100/1000Tx RJ45, and 2*
100/1000 SFP slots) is shown below in Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the LNP-1002C-SFP series switch that is equipped
with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC).
Figure 2.2 - Front Panel of LNP-1002C-SFP Series
Figure 2.3
Top Panel View of LNP-1002C-SFP Series
6-Pin Removal Terminal Block
(Power Input)
LED for PWR1, PWR2, and Fault
Gigabit Combo Port G2 – 100/1000 SFP
Gigabit Combo Port G1 – 100/1000 SFP
LED for G1 & G2 SFP Fiber Ports
LED for Ethernet Port Status
Gigabit Combo Port G1 – 10/100/1000Tx
LED for Ethernet Port Status
LED for Ethernet Port Status
LAN Port (1~8) 10/100Tx
LED for Ethernet Port Status
LED for Ethernet Port Status
Gigabit Combo Port G2 – 10/100/1000Tx
LED for Ethernet Port Status
LED for LAN 8 PoE Status
LED for LAN 7 PoE Status
LED for LAN 6 PoE Status
LED for LAN 5 PoE Status
LED for LAN 4 PoE Status
LED for LAN 3 PoE Status
LED for LAN 2 PoE Status
LED for LAN 1 PoE Status

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has its
own specific meaning, see below in Table 2.1.
LED Color Description
P1
Green On Power input 1 is active
Off Power input 1 is inactive
P2
Green On Power input 2 is active
Off Power input 2 is inactive
Fault
Red
On Power input 1 or 2 is inactive
Off Power input 1 and 2 are both functional, or no power,
inputs/ports link is active/port alarm is disabled
PoE Indicators
(Port 1~8) Green On The port is supplying PoE power
Off No powered-device attached or power supplying fails
LAN Port 1 ~ 8
(Upper LED)
Green
On Connected to network, 100Mbps
Flashing
Networking is active
Off Not connected to network
LAN Port 1 ~ 8
(Lower LED)
Green
On Connected to network, 10Mbps
Flashing Networking is active
Off Not connected to network
Gigabit Combo Port LED Indicators
LED Color Description
SFP Port
Combo G1~G2
LNK/ACT
Green
1000Mbps
On Connected to network
Flashing Networking is active
Amber
100Mbps
Off Not connected to network
LAN Port
Combo G1 ~G2
(Upper LED)
Green
On Connected to network, 1000Mbps
Flashing
Networking is active
Off Not connected to network
LAN Port
Combo G1 ~G2
(Lower LED)
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Table 2.1
LED Indicators for LNP-1002C-SFP Series

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
6
2.5 Ethernet Ports
 RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~8) are auto-sensing for 10Base-T, or
100Base-Tx devices connections, and Gigabit combo RJ-45 ports (LAN G1~G2) are auto-sensing
for 10Base-T, 100Base-Tx, and 1000Base-T devices connections. Auto MDI/MDIX means that the
switch can connect to another switch or workstation without changing the straight-through or
crossover cabling. See the figures as below for straight-through and crossover cabling schematics.
 RJ-45 Pin Assignments (Table 2.2)
Pin Number Assignment
1 Rx+
2 Rx-
3 Tx+
6 Tx-
All ports on this industrial Ethernet switch support automatic MDI/MDI-X operations. Users can use
straight-through cables (see figure below) for all network connections to PCs, servers, and other
switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI and MDI-X port pin outs.
Note
: The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)
Table 2.2
RJ45 Pin Assignments
Table 2.3
Ethernet Signal Pin Outs

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
7
The following figures show the cabling schematics for straight-through and crossover cables.
The following figures show the 10 and 100 Ethernet RJ-45 pin outs.
Figure 2.6 - RJ45 Ethernet Port Pin Outs
Figure 2.4 - Straight-Through Cables Schematic Figure 2.5 - Crossover Cables Schematic
Figure 2.7 - Straight-Through Cables Schematic Figure 2.8 - Crossover Cables Schematic

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
8
2.6 Cabling
Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100
meters (328 ft.) long.
2.6.1 Gigabit Combo Port - Copper/SFP (Mini-GBIC)
Antaira Technologies’ LNP-1002C-SFP series has two auto-detected Gigabit combo ports
(2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots for fiber connection).
 The Gigabit copper
(10/100/1000T) ports
should use category 5e or
the above UTP/STP cable
for the connection up to
1000Mbps. The small
form-factor pluggable (SFP)
is a compact optical
transceiver used in optical
communications for both
telecommunication and
data communications.
 The SFP slots supporting
dual rate mode, which can
switch the connection speed between 100 and 1000Mbps. They are used for connecting
to the network segment with a single or multi-mode fiber. Users can choose the
appropriate SFP transceiver to plug into the slots. Then use proper multi-mode or single-
mode fiber according to the transceiver. When fiber optic is used, it transmits at a speed
up to 1000 Mbps and it can prevent noise interference from the system.
**Note:
The Gigabit combo ports (SFP/Copper) cannot be working at the same time. The SFP port
has a higher priority than the copper port. When inserting a 100M or 1000M SFP transceiver
(which has connected to the remote device via fiber cable) into the SFP port, the connection of
the accompanying copper port link will be down.

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
9
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
To connect the transceiver and LC cable, please follow below steps:

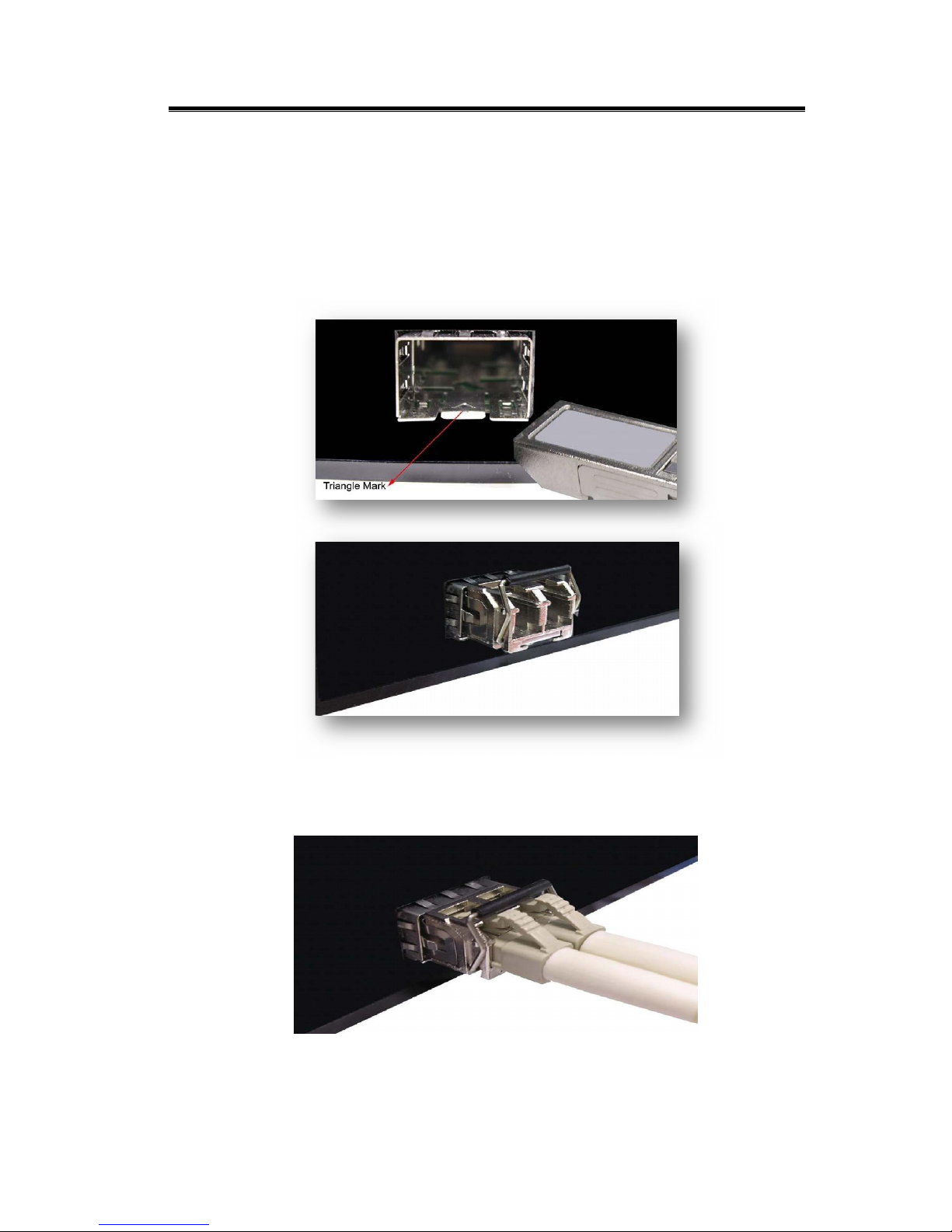

First, insert the SFP transceiver module into the SFP slot as shown below in Figure 2.9. Notice
that the triangle mark is at the bottom of the SFP slot. Figure 2.10 shows that the SFP
transceiver module has been inserted.
Second, insert the fiber cable of the LC connector into the transceiver as shown in Figure 2.11.
Figure 2.9 - Transceiver to the SFP Module
Figure 2.10 - Transceiver Inserted
Figure 2.11 - LC Connector to the Transceiver

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
10
To remove the LC connector from the transceiver, please follow the steps shown below:
1. Press the upper side of the LC connector from the transceiver and pull it out to release as
shown below in Figure 2.12.
2. Push down the metal clasp and pull the transceiver out by the plastic part as shown below in
Figure 2.13.
Figure 2.12
Remove LC Connector
Figure 2.13
Pull Out from the SFP Module

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
11
2.7 Wiring the Power Inputs
Please follow the below steps to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts
on the terminal block connector as shown below in Figure 2.14.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.15.
**Note:  Only use copper conductors, 60/75°C, tighten to 5 lbs.
 The wire gauge for the terminal block should range between 18~20 AWG.
Figure 2.15
Power Terminal Block
Figure 2.14
Power Terminal Block

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
12
2.8 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below
in Figure 2.16. By inserting the wires, it will detect the fault status including power failure or port link
failure (managed industrial switch only) and form a normally open circuit. An example is shown
below in Figure 2.16.
**Note:  The wire gauge for the terminal block should range between 12 ~ 24 AWG.
 If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to
eliminate power fault alarm.
Figure 2.16
Wiring the Fault Alarm Contact

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
13
3. Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not
on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN-Rail on
the switch.
Figure 3.1
The Rear Side of the Switch and DIN-Rail Bracket

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
14
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.2
Insert the Switch on the DIN-Rail

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
15
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
switch using the wall mounting bracket as
shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions
Figure 3.4
Remove DIN-Rail Bracket from the Switch

Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
16
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira Technologies’ LNP-1002C-SFP series: 10-port
industrial PoE+ Gigabit unmanaged Ethernet switch with 8*10/100Tx (30W/Port) and 2*Gigabit
combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots).
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
 If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the DIN-
Rail Mounting section for DIN-Rail installation.
 If you want to wall mount the industrial Ethernet switch, please refer to the Wall
Mounting section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
 If you need help on how to wire power, please refer to the Wiring the Power Inputs
section.
 Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-45) LED on
the industrial Ethernet switch will turn on when the cable is connected to the networking device.
 Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.
