1. Overview
Antaira Technologies’ new compact DIN-Rail industrial gigabit PoE+ unmanaged switch, LNP-
1002G-10G-SFP, features 8*10/100/1000Tx Ethernet ports that support IEEE 802.3at high power
PoE (30W/Port), and two 10G SFP+ slots for long distance fiber connections. The device is
designed with high EFT and ESD protection and supports extreme operating temperature
environments (-40° to 60°C).
The LNP-1002G-10G-SFP provides extensive connectivity solutions for the continuously growing
demand for bandwidth to support applications under a variety of outdoor or harsh environments,
such as security surveillance, traffic monitoring, and campus or sport venue-wide network
infrastructure.
1.1 Key Features
 System Interface/Performance
 All RJ45 ports support the auto MDI/MDI-X function
 Ethernet connectivity 8*10/100/1000Tx RJ45 ports (PSE: 30W/Port)
 Fiber connectivity with 2*10G SFP+ slots
 Store-and-forward switching architecture
 16K MAC address table
 Jumbo frame support up to 9,216 bytes
 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
 Power Input
 DC 24~55V redundant power, with a 6-pin removal terminal block
 Operating Temperature
 Standard operating temperature model: -40°C ~ 60°C
 Case/Installation
 IP30 protection
 DIN-Rail and wall mount design
1.2 Package Contents
 1 – Quick Installation Guide
 1 – LNP-1002G-10G-SFP-24
 1 – Set of wall-mounting brackets and screws
 1 – DC cable – 18 AWG & DC jack 5.5 x 2.1mm

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
2
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s hardware
specs, ports, cabling information, and wiring installation will be described
within this user manual.

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
3
2. Hardware Description
2.1 Physical Dimensions

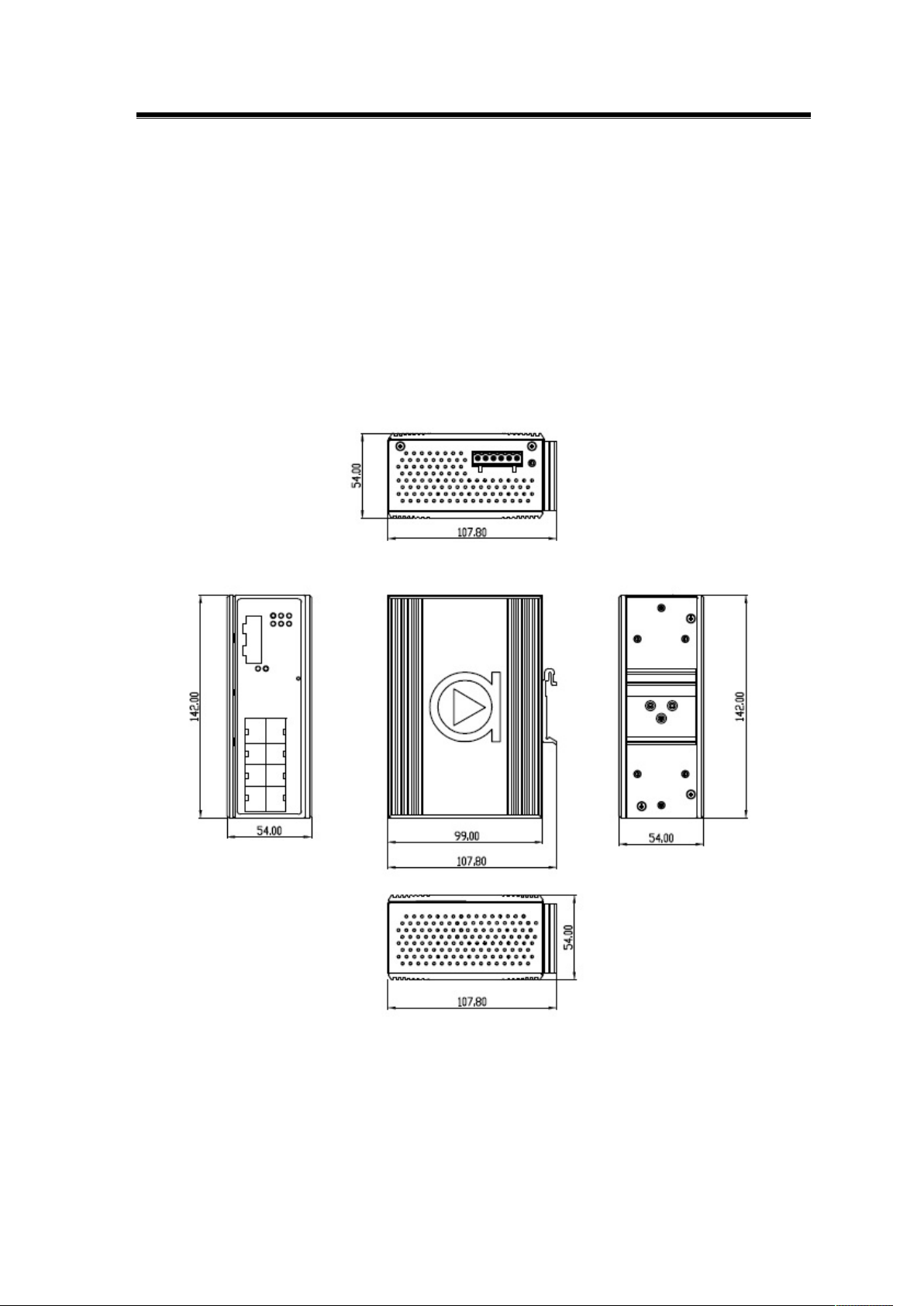

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-1002G-10G-SFP-
24: 10-port industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (PSE:
30W/Port) + 2*10G SFP+ slots; 24~55VDC.
(W x D x H) is 54mm x 99mm x 142mm
Figure 2.1

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
4

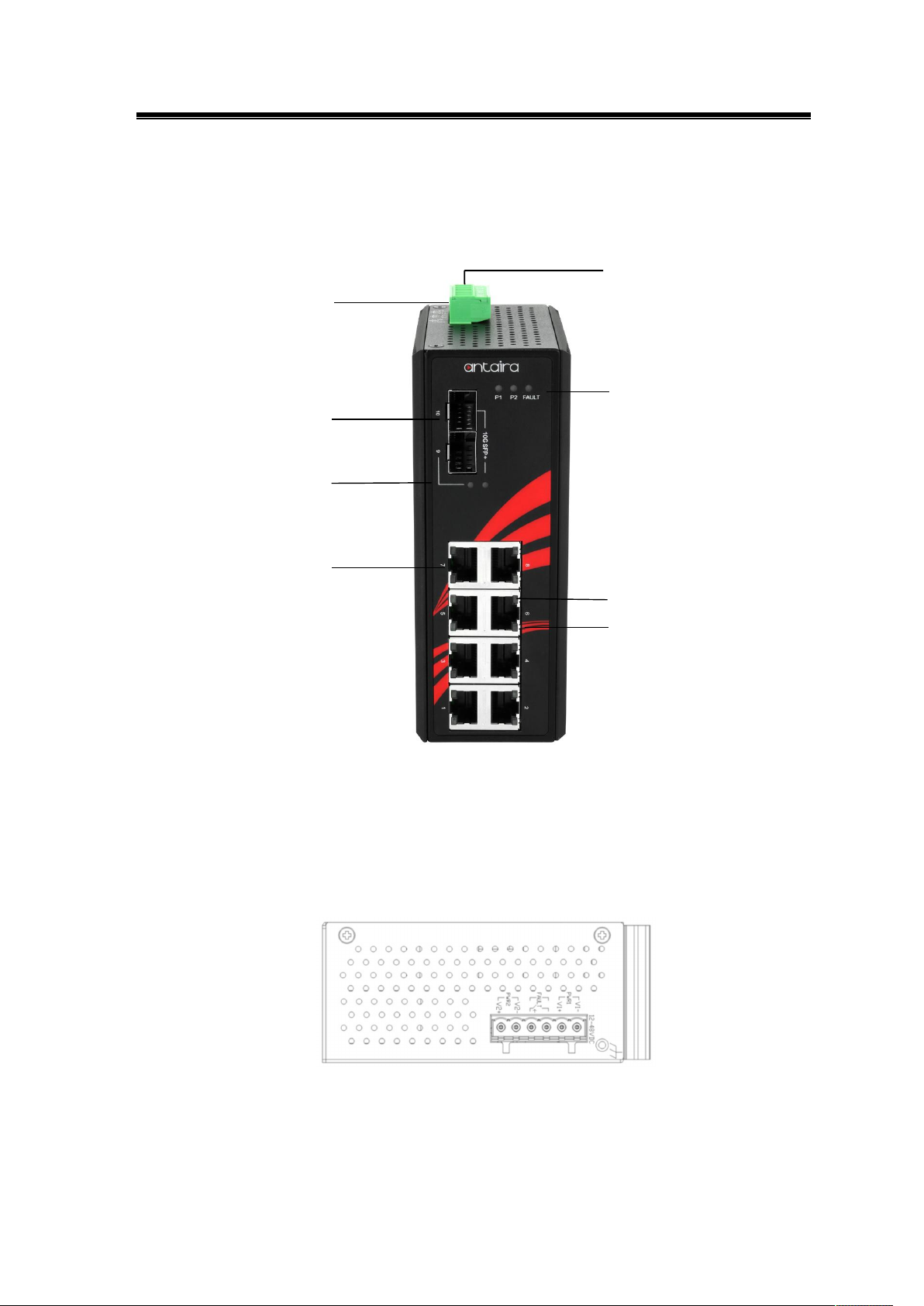

2.2 Front Panel
The front panel of the LNP-1002G-10G-SFP-24: 10-port Industrial PoE+ Gigabit unmanaged
Ethernet switch with 8*10/100/1000Tx (PSE: 30W/Port) and 2*10G SFP+ Slot; 24~55VDC. See
Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the LNP-1002G-10G-SFP-24 switch that is
equipped with one 6-pin removal terminal block connector for dual DC power inputs (24~55 VDC).
Figure 2.2
Grounding Screw
SFP# 9~10 – SFP+ Slots
SFP# 9~10 - LED Network Activity
LAN# 1~8 – 10/100/1000 RJ45
Figure 2.3
6-Pin Removal Terminal Block (Power Input)
LED for Power 1, Power 2, and Fault
LAN# 1~8 – LED Link/Activity Status
LAN# 1~8 – PoE Status

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has its
own specific meaning, see below in Table 2.1.
LED Color Description
Power 1 Green On Power input 1 is active
Off Power input is inactive
Power 2 Green On Power input 2 is active
Off Power input is inactive
Fault Red On Power input 1 or 2 is inactive
Off Both power input 1 and 2 are active
Link Activity
(SFP Port)
Green
On Connected to the network
Flashing Networking is active with 10G
Off Not connected to the network
LAN Port 1 ~ 8
(Upper LED)
Green
On Connected to network, 10/100/1000Mbps
Flashing Networking is active
Off Not connected to network
LAN Port 1 ~ 8
(Lower LED)
Green
On The port is supplying power to the powered-device
Off No powered-device connected or power supplying fails
2.5 Ethernet Ports
 RJ45 Ports (Auto MDI/MDIX):
The RJ45 ports are auto-sensing for 10/100/1000Base-Tx devices connections. Auto MDI/MDIX
means that the switch can connect to another switch or workstation without changing the straight-
through or crossover cabling. See the figures shown on the top of the next page for straight-through
and crossover cabling schematics.
Table 2.1

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
6
The following figures show the cabling schematics for straight-through and crossover cables.
The following figures show the 10,100, and 1000 Ethernet RJ‐45 pin outs.
2.6 Cabling
 Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded
twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX standard
(e.g. Category 5, 5e, or 6, 6e). The cable between the equipment and the link partner (switch,
hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
 Note: Cable size should be between 18~20 AWG and the torque should be tightened to 5lbs.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
Figure 2.4 Figure 2.5
Straight-Through Cables Schematic Crossover Cables Schematic
Figure 2.6
RJ45 Ethernet Port Pin Outs

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
7


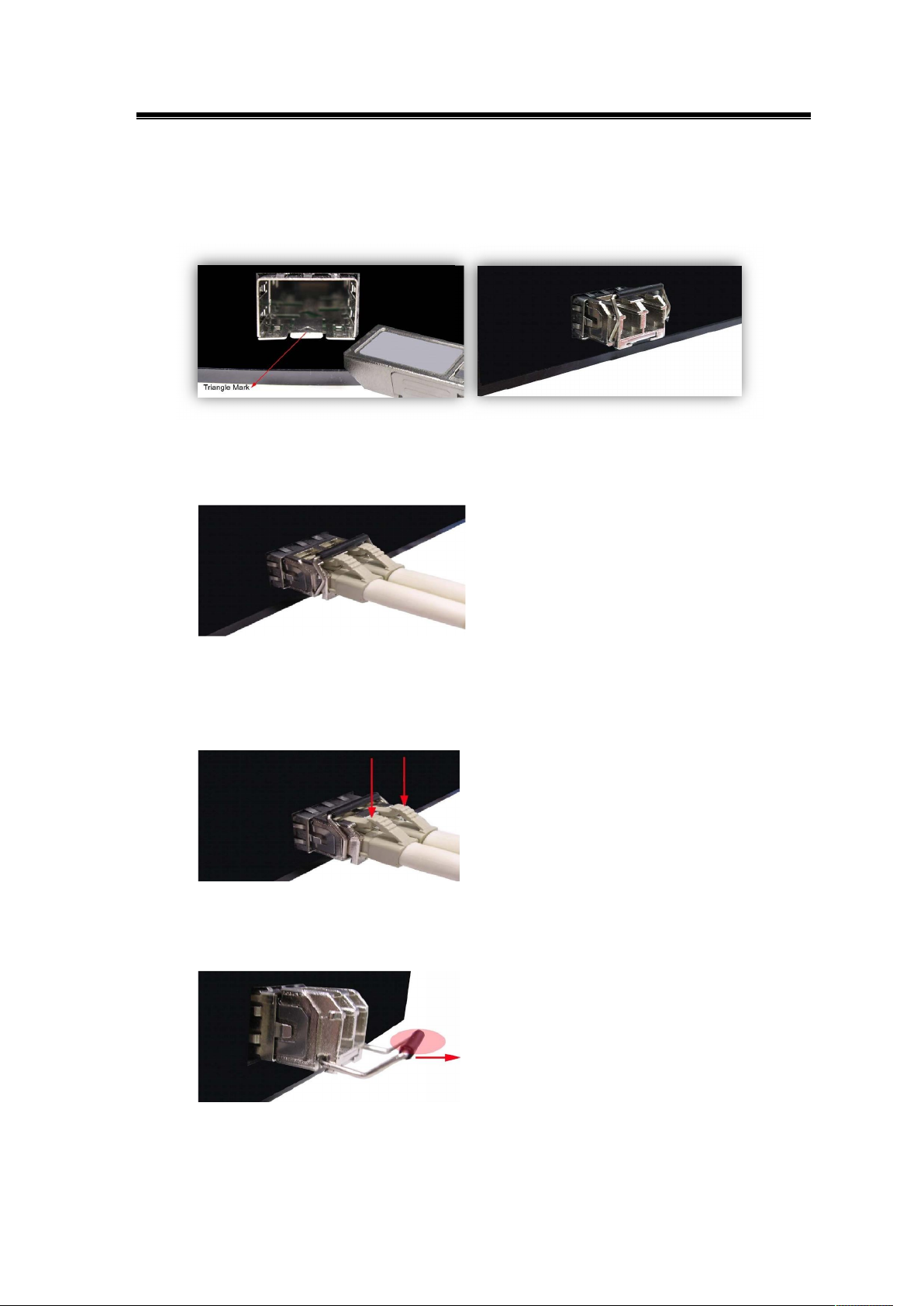

To connect the transceiver and LC cable, please follow the steps below:
First, insert the SFP transceiver module into the SFP slot as shown below in Figure 2.7. Notice
that the triangle mark is at the bottom of the SFP slot. Figure 2.8 shows SFP transceiver
module was inserted.
Second, insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.9.
To remove the LC connector from the transceiver, please follow the steps shown below:
1. Press the upper side of the LC connector from the transceiver and pull it out to release as
shown below in Figure 2.10.
2. Push down the metal clasp and pull the transceiver out by the plastic part as shown below in
Figure 2.11.
Figure 2.7 - Transceiver to the SFP Module Figure 2.8 - Transceiver Inserted
Figure 2.9 - LC Connector to the Transceiver
Figure 2.10 - Remove LC Connector
Figure 2.11 - Pull Out from the SFP Module

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
8
2.7 Wiring the Power Inputs
Please follow the below steps to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts
on the terminal block connector as shown below in Figure 2.12.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.13
Note  Only use copper conductors, 60/75°C, tighten to 5 lbs.
 The wire gauge for the terminal block should range between 18~20 AWG.
2.8 Wiring the Fault Alarm Contact
The fault alarm contact is in the
middle of the terminal block
connector as the picture shows
below in Figure 2.14. By inserting the
wires, it will detect the fault status
including power failure or port link
failure (managed industrial switch
only) and form a normally open
circuit.
Note  The wire gauge for the terminal block should range between 12 ~ 24 AWG.
 If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to
eliminate power fault alarm.
Figure 2.13 - Power Terminal Block
Figure 2.12 - Power Terminal Block
Figure 2.14
Wiring the Fault Alarm Contact

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
9
3. Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch
from the factory. If the DIN-Rail is not on the industrial
Ethernet switch, please refer to Figure 3.1 to learn how to
install the DIN-Rail on the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.
Figure 3.1
The Rear Side of the Switch and DIN-Rail Bracket
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.2
Insert the Switch on the DIN-Rail

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
10
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
switch using the wall mounting bracket as
shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the
industrial Ethernet switch by loosening the
screws.
2. Place the wall mounting brackets on the
top and bottom of the industrial Ethernet
switch.
3. Use the screws to screw the wall
mounting bracket on the industrial
Ethernet switch.
4. Use the hook holes at the corners of the
wall mounting bracket to hang the
industrial Ethernet switch on the wall.
5. To remove the wall mount bracket, do the
opposite from the steps above.
Figure 3.5 below has the dimensions for the wall mounting bracket.

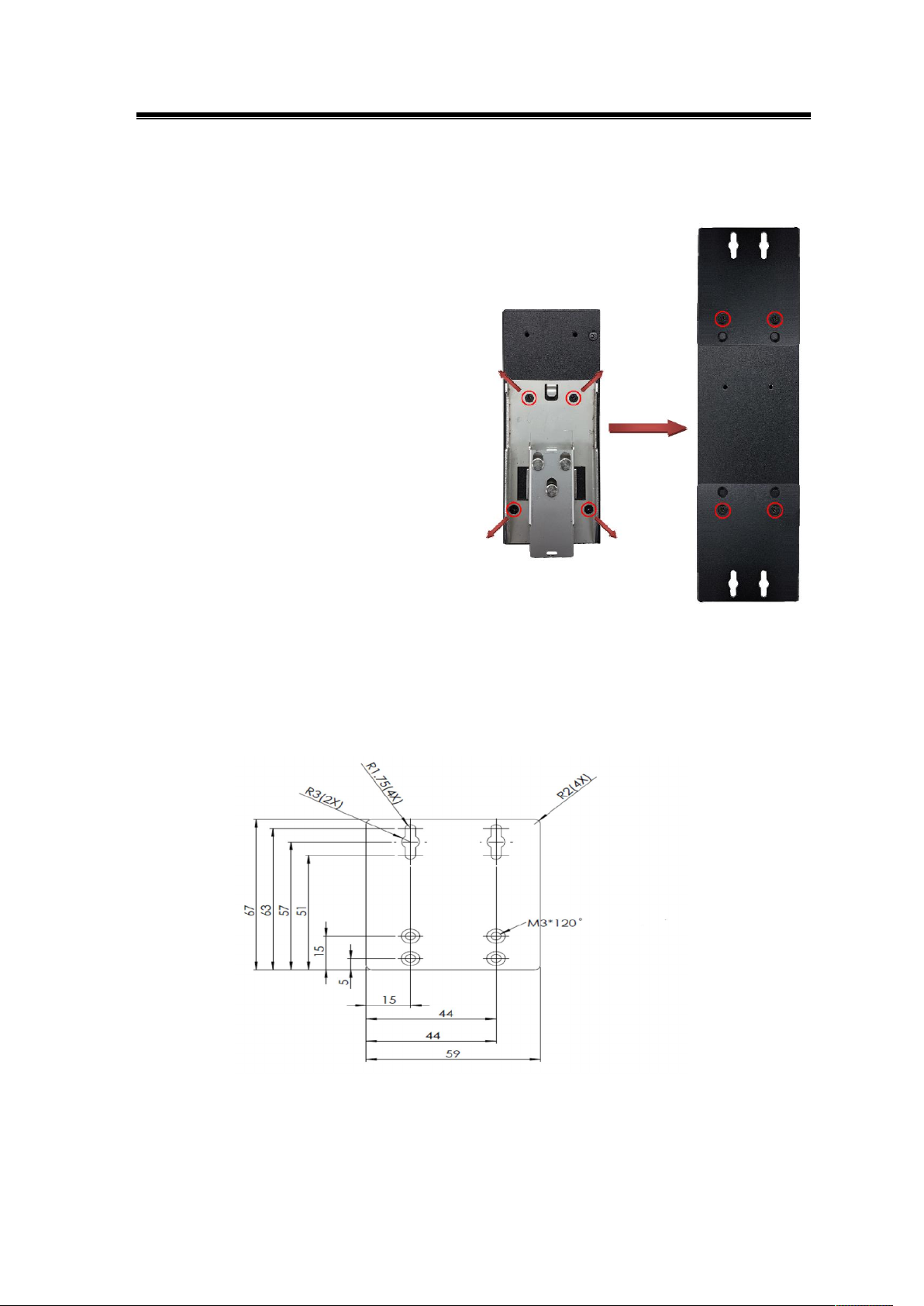

Figure 3.4
Remove DIN-Rail Bracket &
Install Wall Mounting Brackets
Figure 3.5 – Wall Mounting Bracket Dimensions

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
11
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira Technologies’ LNP-1002G-10G-SFP-24: 10-port
industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (PSE: 30W/Port) and
2*10G SFP+ slots; 24~55VDC.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
 If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the DIN-
Rail Mounting section for DIN-Rail installation.
 If it is required to wall mount the industrial Ethernet switch, please refer to the Wall
Mounting section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
 For help on how to wire power, please refer to the Wiring the Power Inputs section.
 Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ45 cable into the switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server.
 The Ethernet port’s (RJ45) LED on the industrial Ethernet switch will turn on when the
cable is connected to the networking device.
 Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
12
5. Network Applications
Figure 5.1
Industrial Ethernet Switch Application Reference

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
13
6. Trouble Shooting
 Always verify the right power cord or adapter is being used. Never use a power supply or
adapter with a non-compliant DC output voltage or it will burn the equipment.
 Select the proper UTP or STP cable in order to construct the network. Use an unshielded
twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ45 connections: 100Ω Category
5e for 10/100/1000Mbps. Also be sure that the length of any twisted-pair connection does
not exceed 100 meters (328 feet).
 Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily
monitored with the LED indicators which help to identity if any problems exist.
o Please refer to the LED Indicators section for LED light indication.
 If the power indicator LED does not turn on when the power cord is plugged in, the user may
have a problem with the power cord. Check for loose power connections, power losses or
surges at the power outlet.
o Please contact Antaira for technical support service, if the problem still cannot
be resolved.
 If the industrial switch LED indicators are normal and the connected cables are correct but
the packets still cannot transmit, please check the system’s Ethernet devices’ configuration
or status.

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
14
7. Technical Specifications
Table 7.1 has the technical specifications for Antaira Technologies’ LNP-1002G-10G-SFP: 10-port
industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx, and 2*10G SFP+ slots;
24~55VDC.
Standards
IEEE 802.3 10Base-Tx Ethernet
IEEE 802.3u 100Base-Tx Fast Ethernet
IEEE 802.3ab 1000BaseTx
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3af/at Power Over Ethernet
Switch
Property
Protocol CSMA/CD
Data Process Store and Forward
Flow Control IEEE 802.3x flow control, back pressure flow control
Switch Architecture Back
‐
Plane: Non
‐
Blocking Switching Fabric
Transfer Rate
14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port
14,880,000 for 10 Gigabit Ethernet port
Memory Buffer 12 Mbytes
Jumbo Frame 9,216 bytes
MAC Table Size 16K
Port Interface
Ethernet (RJ45) Port 8*10/100/1000Tx, auto negotiation speed, full/half duplex mode, and
auto MDI/MDI-X connection
Fiber Port 2*10G SFP+ Slots
Fiber Wavelength Refer to SFP Modules
LED Indicator
Power 1, Power 2, Fault
Ethernet Ports: On
‐
Link/Flash
‐
data transmitting
PoE Status
SFP: Link/Active
Network Cable
10Tx: 2-pair UTP/STP Cat.3,4,5 cable
100Tx: 2-pair UTP/STP Cat.5 cable
1000Tx: UTP/STP Cat.5/5E cable
Mechanical
Characteristics
Housing Metal IP30 protection
Dimension 54 x 142 x 99 mm (W x H x D)
Weight Unit Weight: 3.0 lbs. Shipping Weight: 3.5 lbs.
Mounting DIN-Rail Mounting, wall-mounting (optional)
Power
Requirement
Input Voltage 24~55VDC Redundant Input
Power Connection 1 removable 6-contact terminal block
Overload Current Protection Present – Slow Blown Fuse
Reverse Polarity Protection Present
Power Consumption 16 Watts for System
PoE Power Output 30 Watts max. per PoE port
Max PoE Power Budget 180 Watts / 24VDC, 240 Watts / 36~55VDC
Relay Contact 24VDC, 1A resistive

Antaira Technologies - Industrial Ethernet Switches
LNP-1002G-10G-SFP-24 User Manual V1.1
15
Environmental
Limits
Operating Temperature -40 to 60C (-40 to 140 F)
Operating Humidity 5% to 95% (Non-Condensing)
Storage Temperature -40 to 85C (-40 ~ 185F)
Regulatory
Approvals
EMI FCC Part 15 Subpart B Class A, CE EN 55022 Class A
EMS
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT),
IEC61000-4-5 (Surge), IEC61000-4-6 (CS),
IEC-61000-4-8 (Magnetic Field)
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Green RoHS Compliant
Warranty 5 Years
Table 7.1
Antaira Customer Service and Support
(Antaira US Headquarter) + 844-268-2472
(Antaira Europe Office) + 48-22-862-88-81
(Antaira Asia Office) + 886-2-2218-9733
Please report any problems to Antaira:
www.antaira.com / [e-mail]
www.antaira.eu / inf[email protected]
www.antaira.com.tw / [e-mail]
Any changes to this material will be announced on the Antaira website.
