Antari ICE-101 User manual

1
ICE-101
Low Fog Machine User Manual
BODENNEBLER B
English Français Deutsch • • • 中文
©2014 Antari Lighting and Effects Ltd.

2

3
User Manual
Antari ICE Low Fog Machine
Congratulations on the purchase of your new
ANTARI FOG MACHINE.
Introduction
Thank you for choosing an ANTARI Fog Machine. You now own a rugged and powerful
state-of-the-art machine. Prior to use, we suggest that you carefully read all of the
instructions. By following the suggestions found in this user manual, you can look forward to
the reliable and satisfactory performance of your ANTARI Fog Machine for years to come.
Please follow these operation, safety and maintenance instructions to
ensure a long and safe life for your fog machine.
Cautions
Risk of electric shock. Disconnect the appliance from the electric supply before
removing the cover. Note: there are no user serviceable parts inside.
Danger of electric shock
♦Keep this device dry.
♦For inside use only. Not designed for outside use.
♦For the 110V models, use 3-prong grounded electrical outlet only. Prior to use take care to
determine that the unit is installed at the rated voltage.
♦Always unplug your ANTARI Fog Machine before filling its tank.
♦Keep fog machine upright.
♦Turn off or unplug when not in use.
♦This machine is not water- or splash-proof. If moisture, water, or fog liquid gets inside the
housing, immediately unplug the unit and contact a service technician or yourANTARI
dealer before using it again.
♦No user serviceable parts inside. Refer to yourANTARI dealer or other qualified service
personnel.
Danger of burns
♦For adult use only. Fog machine must be installed out of the reach of children. Never leave
the unit running unattended.
♦Never aim the output nozzle directly at people.
♦Fog machine output is very hot. Avoid coming within 60 cm of the output nozzle during
operation.
♦Locate the fog machine in a well-ventilated area. Never cover the unit’s vents. In order to

4
guarantee adequate ventilation, allow a free air space of at least 20 cm around the sides
and top of the unit.
♦Never aim the output nozzle at open flames.
♦The output nozzle becomes very hot during operation (300°C). Keep flammable materials
at least 50 cm away from the nozzle.
♦Always allow your ANTARI Fog Machine to cool down before attempting to clean or service
it.
Danger of explosion
♦Never add flammable liquids of any kind (oil, gas, perfume) to the fog liquid.
Pay attention to all warning labels and instructions printed on the exterior of your ANTARI
Fog Machine
♦Use only the high-quality, water-based fog liquid that your dealer recommends. Other fog
liquids may cause clogging or “spitting”.
♦Always make sure there is sufficient liquid in the fog liquid tank. Operating this unit ithout
liquid will cause damage to the pump as well as over-heating of the heater.
♦If your ANTARI Fog Machine fails to work properly, discontinue use immediately. Drain all
fog liquid from the tank, pack the unit securely (preferably in the original packing material),
and return it to your ANTARI dealer for service.
♦Always drain tank before mailing or transporting this unit.
♦Never drink fog liquid. If it is ingested, call a doctor immediately. If fog liquid comes in
contact with skin or eyes, rinse thoroughly with water.
Unpacking & Inspection
Open the shipping carton and verify that all equipment necessary to operate the system has
arrived intact. Refer to the “Features” section for information on what items are included with
your model. If any equipment is missing contact your ANTARI dealer immediately.
Before beginning initial setup of your ANTARI Fog Machine, make sure that there is no
evident damage caused by transportation. In the event that the unit’s housing or cable is
damaged, do not plug it in and do not attempt to use it until after contacting your ANTARI
dealer for assistance.

5
Setup
♦Remove all packing materials from shipping box. Check that all oam and plastic padding is
removed, specially in the nozzle area.
♦Place fog machine on a flat surface and remove fog liquid tank cap.
♦Fill with ANTARI Fog Liquid or other high-quality water-based fog fluid. Any other types of
fluid can damage the unit. When filled, place cap back on liquid tank.
♦Fill the chamber with regular ice cubes or dry ice. The chamber can hold as much as 8 kg
ice cubes.
♦When the chamber is filled, gently put the cover back. Tighten the cover with appropriate
force only.
♦Firmly attach the included tube to the drainage outtake. Place the end of the tube to a
container.
♦Firmly attach the remote control cable to the proper input on the rear of the machine.
Operation
♦Plug power cord into a grounded electrical outlet. If necessary, turn power switch on rear of
unit to “ON” position. Warm-up is complete when green lamp lights up on remote unit.
♦To emit fog, press the appropriate button on the remote for the desired length of time.
♦The remote unit’s lamp will cycle on and off as the machine re-heats to the proper
operating temperature.
♦DANGER OF LEAKAGE! The water tank must regularly be drained.
♦For further information on operating your ANTARI Fog Machine, see the section titled,
“Remote Control Operation”.
If your model includes a mounting bracket designed for overhead installation, it may be
installed at floor level or suspended overhead. If the unit is to be mounted using the bracket,
it is important that the fog does not shoot directly at any one’s face. Whatever installation

6
method you choose, do not allow the unit to have more than a 15 degree angle of inclination.
Important: Always monitor tank fluid level as you are fogging. Running a fog machine with
no fluid can permanently damage the unit.
If you experience low output, pump noise or no output at all, unplug immediately. Check fluid
level, the external fuse, remote connection, and power from the wall. If all of the above
appears to be O.K., plug the unit in again. If fog does not come out after holding the remote
button down for 30 seconds, check the hose attached to the tank to make sure there is fluid
going through the hose. If you are unable to determine the cause of the problem, do not
simply continue pushing the remote button, as this may damage the unit. Return the
machine to your ANTARI dealer.
Remote Control Operation:
Z-8: 25 feet wired multi-function remote control with 4-PIN XLR connector for ANTARI
ICE-101.
․Interval knob: Rotate it to set the interval time between fog outputs in the Timer
mode. The range is from 10 to 250 seconds.
․Duration knob: Rotate it to set the duration time of fog output in the Timer mode.
The range is from 1 to15 seconds.
․Output knob: Rotate it to set the volume of fog output. The range is from 0% - 100%
of maximum output.
․To press the yellow Timer button can activate Timer mode.
․To press the red Continuous button can make the machine generate fog output
constantly. The fog output is set by Output knob. Please note that when the
temperature of heater is too low, the machine stops producing fog and starts to
reheat. Once the reheating process is completed, the machine can continue to
produce fog output.

7
․To keep pressing the green Manual button can make the machine generate fog at
maximum volume. Once Manual button is released, the fog output stops
immediately.
Cleaning your fog machine regularly will help reduce costly parts
replacement and repair charges.
Maintenance
Do not allow the fog liquid to become contaminated. Always replace the caps on the fog
liquid container and the fog machine liquid tank immediately after filling.
After every 40 hours of continuous operation, it is recommended to run distilled water
through the system to prevent the accumulation of particles in the heating element. The
recommended cleaning steps are as follows:
1. Empty fog fluid from fluid tank. Add distilled water to tank.
2. Plug in and allow machine to finish heating-up process.
3. Run the machine in a well-ventilated area for a few minutes.
4. The cleaning is now completed. Please refill with fog fluids.
5. Run the machine to make sure it can produce fog properly.
Note: All fog machines are prone to clogging due to the thick consistency of fog fluid and the
high temperature at which it vaporizes. However, a properly maintained fog machine should
provide years of reliable use.
Clean with a dry cloth only.
Store dry.
Performance Notes
. All fog machines develop condensation around the output nozzle. Because this may result
in some moisture accumulation on the surface below the output nozzle, consider this
condensation when installing your unit.
. All fog machines may sputter small amounts of fog occasionally during operation and for a
minute or so after being turned off.
. All fog machines have a recycling period after long bursts when the machine will shut itself

8
down for a short period in order to heat back up. During this time no fog can be produced.
The green “READY” L.E.D. on the remote will be off during this time and will light up again
when the machine is ready.
Save these instructions

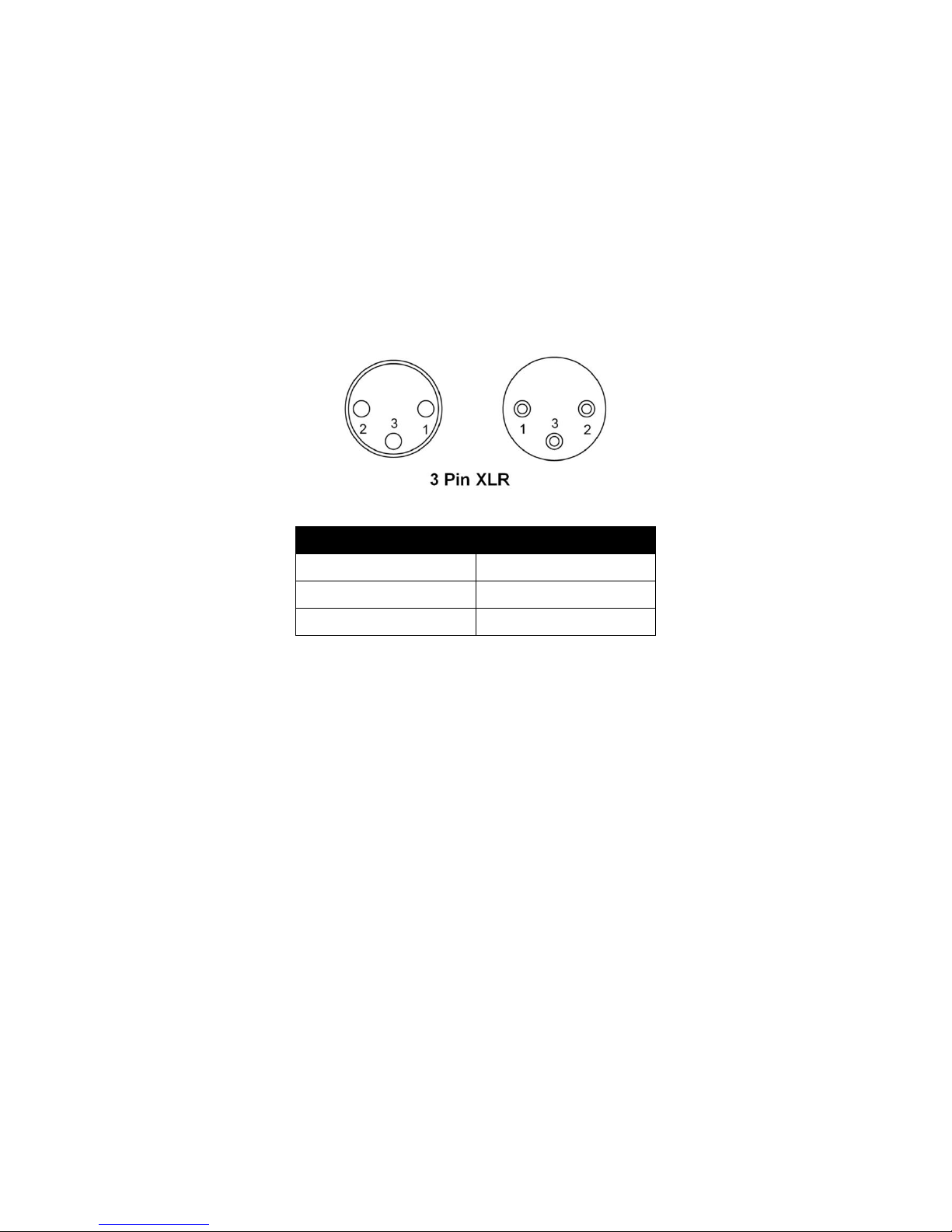

DMX Connector Pin Assignment
The machine provide 3 pin XLR connector for DMX connection. Diagram below indicate pin
assignment information
Pin
Function
1
Ground
2
Data-
3
Data+

9
DMX Settings for Antari ICE Low Fog Machines with onboard DMX
6 –249 = Volume Control ( 5% - 95%)
250 –255 = Maximum Volume Output ( 100%)
The ICE Low Fog Machine has onboard DMX control. Currently this model uses 1
channel to
control Volume output operation. Each channel has a value range of 0 to 255.
If Channel A has a value from 0 to 5, the unit is OFF.
Between the values 6 to 249 the volume of fog output is regulated. With 6 being the
inimum volume of fog produced and 249 approaching the maximum. The volume output
rises as the DMX value is increased.
If Channel A has a value from 250 to 255, the machine will operate at maximum
output.
Note: In the example above, if the machine were assigned the DMX address of 124,
Channel A would correspond to DMX address 124.
In general, Antari fog machines with onboard DMX conform to the following performance
specifications:
1. Average Operating temperature = 250oC
2. Fogger can maintain maximum output for 30 seconds or more
3. Fogger can maintain constant output at 30% volume setting
(roughly a value of 70 –75).
Antari Onboard DMX Fog Machine Settings
Off

10

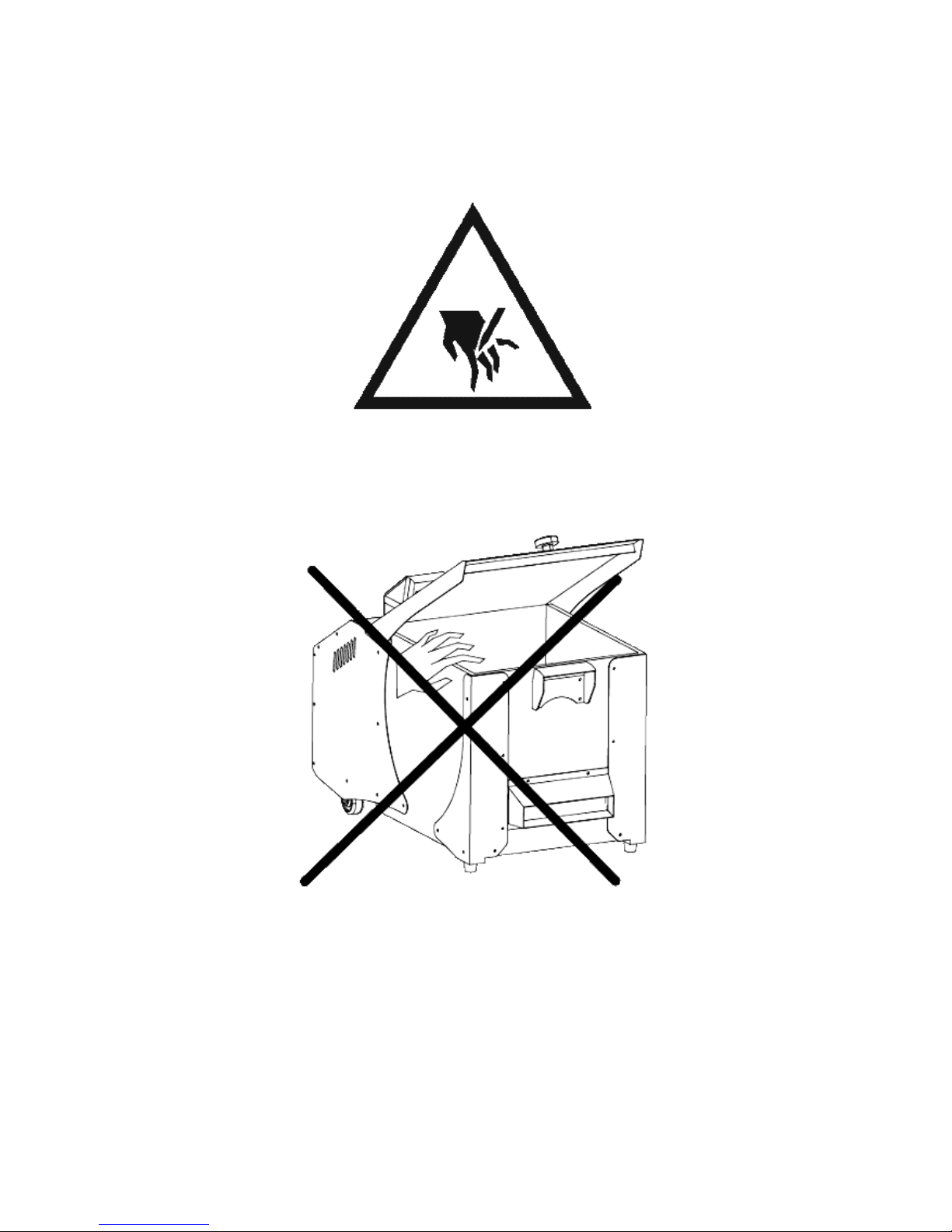

Be careful when open and close the cover!
