M-9 RGBAW
Stage Fog Machine
User Manual
- ENGLISH
©2019 Antari Lighting and Effects Ltd.

2
© 2019 Antari Lighting and Effects Ltd. www.antari.com

3
© 2019 Antari Lighting and Effects Ltd. www.antari.com
Safety Information
Please read the following safety information carefully before operating the machine.
Information includes important safety information about installation, usage, and
maintenance. Pay attention to all warning labels and instructions in this manual and
printed on the machine.
If you have questions about how to operate the machine safely, please contact your local Antari
dealer for help.
Keep this device dry.
Always connect to a grounded circuit to avoid risk of electrocution.
Before connecting the machine to power, always check the voltaged indicate on the
machine matches to your local AC voltage. Do not use the machine if AC power voltage
does not match.
Disconnect the machine from AC power before servicing and when not in use.
If the supply cord is damaged, contact your local Antari dealer for replacement.
This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,
disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts,
immediately unplug the machine and contact your local Antari dealer for advice.
No user serviceable and modifiable parts inside. Never try to repair this product, an
unauthorized technician may lead the machine to damage or malfunction.
For adult use only. Children being supervised not to play with the machine. Never leave
the machine running unattended.
The machine is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.
Installed in a well ventilated area. Provide at least 50 cm space around the machine.
Never add flammable liquid of any kind to the machine.
Make sure there are no flammable materials close to the machine while operating.
Only use Antari fluid. Other fluid may lead to heater clog and malfunction.
If the machine fails to work, unplug the machine and stop operation immediately. Contact
your local Antari dealer for .
Before transporting the machine, make sure the fluid tank is completely drained.

4
© 2019 Antari Lighting and Effects Ltd. www.antari.com
Smoke fluid may present health risks if swallowed. Do not drink smoke fluid. Store it
securely. In case of eye contact or if fluid is swallowed immediately look for medical
advice.
Unpacking and Inspection
Immediately upon receiving the machine, carefully unpack the carton, check all content to ensure
that all parts are present and have been received in good condition. If any parts appear damaged or
mishandled from shipping, notify the shipper immediately and retain the packing material for
inspection.
What is included: 1 x M-9 RGBAW Fogger
1 x W-2 Wireless Remote
1 x Power Cord
1 x User Manual
Product Dimension
W 320.8 mm
H 419.3 mm
L 393 mm

5
© 2019 Antari Lighting and Effects Ltd. www.antari.com

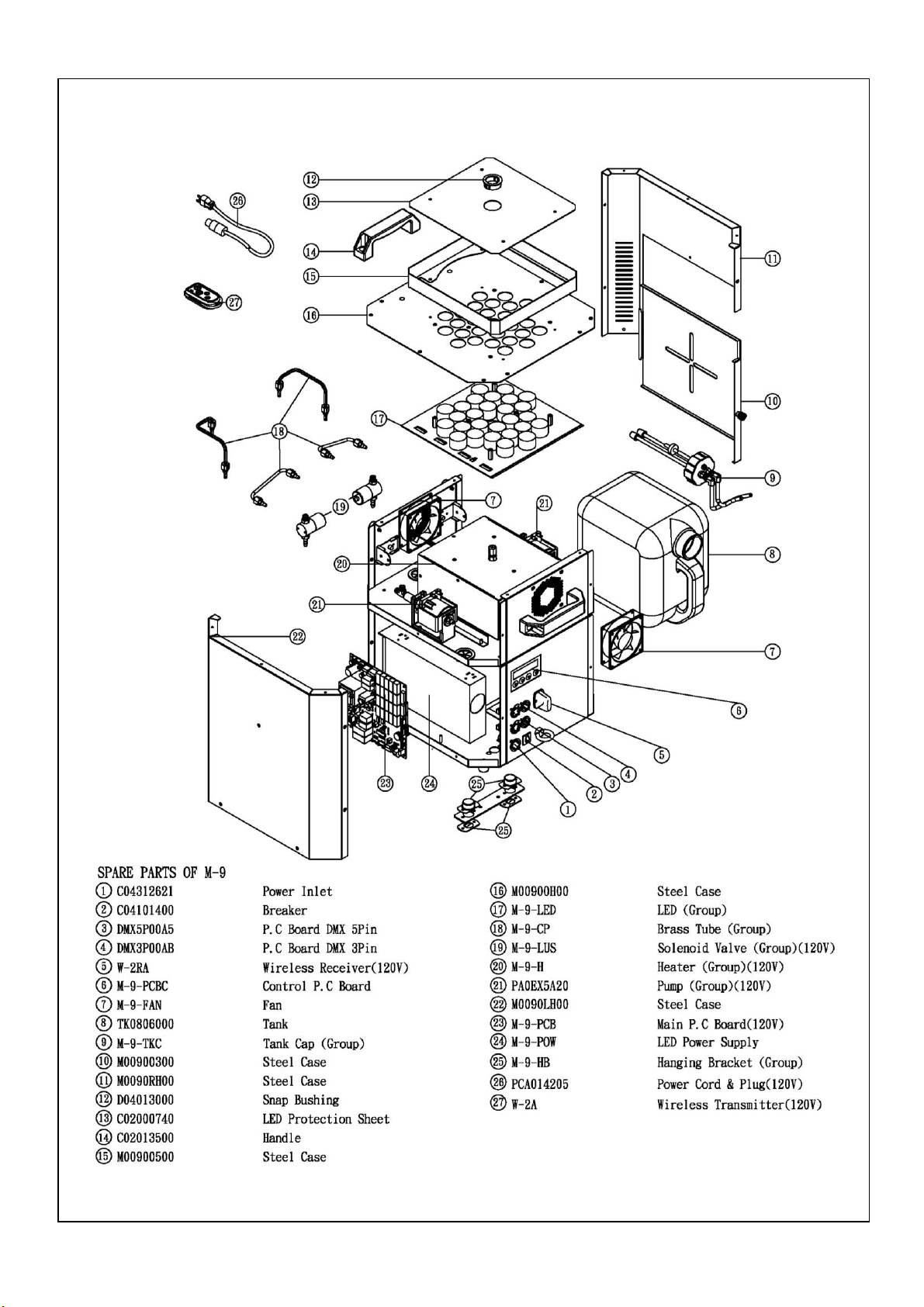

Product Overview
Setting Up
Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm open
space around the machine.
Step 2: Fill the fluid tank with Antari approved fluid.
Step 3: Connect the machine to suitably rated power supply. To determine the power requirement
for the machine refer to the label on the back of the machine.
Always connect the machine to a protected circuit and ensure it is properly grounded to
avoid risk of electrocution.
Step 4: Turn on the machine and allow it to heat up. Heat up takes approximatley 14 mintues. Once
the machine has reached operating temperature, the LCD display will show “Ready To Fog”. Now the
machine is ready for operation.
Step 5: To start making fog, locate the Volume button on the control panel, and press the button to
start making fog.
Step 6: To turn off the machine, press STOP button and turn Powercon to the OFF position.
Output Nozzle
OLED Control Panel
XLR 3 / 5-Pin DMX Connector
Neutrik TRUE 1 Power Connector
Wireless Receiver
LED

6
© 2019 Antari Lighting and Effects Ltd. www.antari.com
Operation

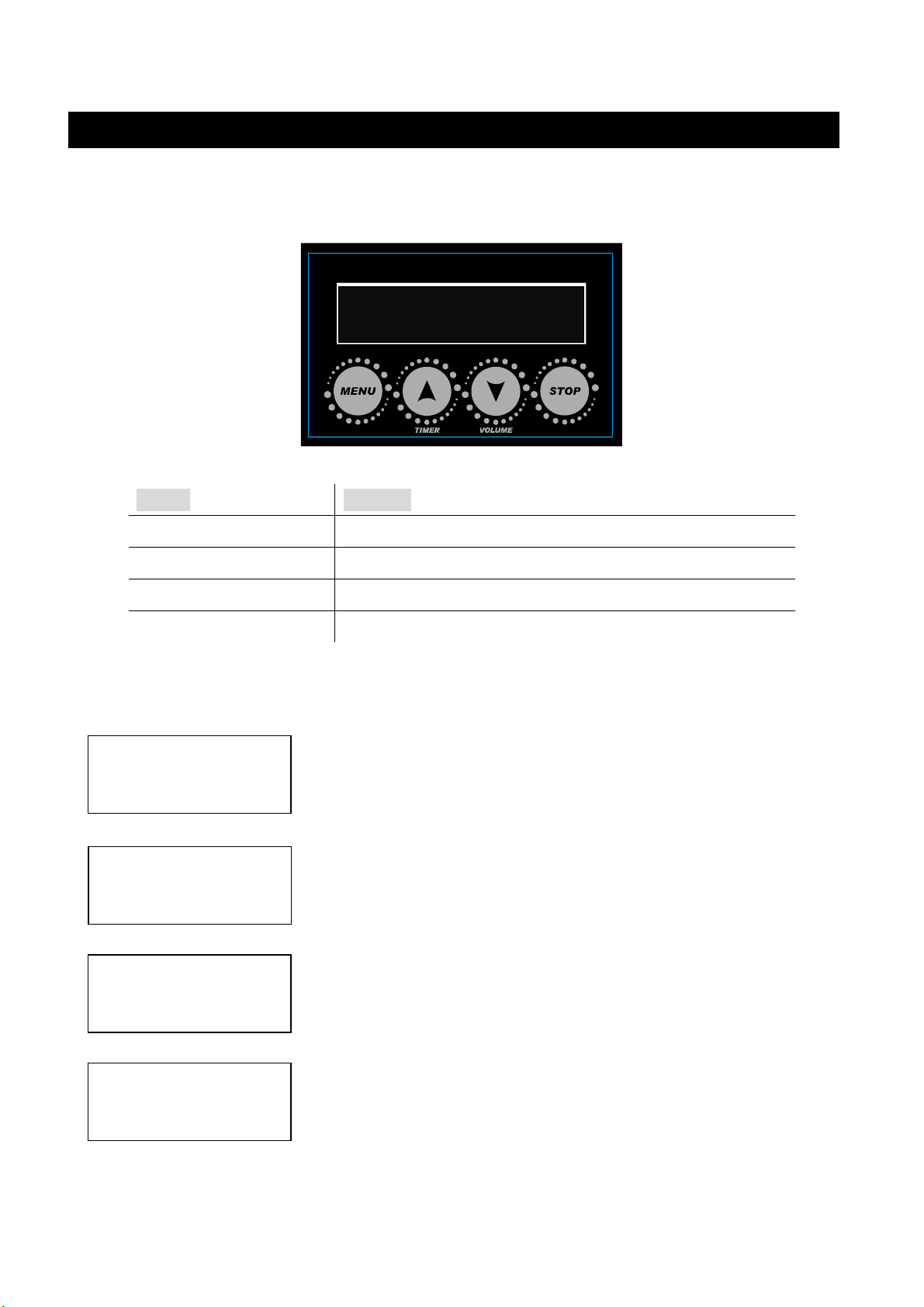

Control Panel Operation
The machine can be operated with an onboard digital control interface
Button
Function
[MENU]
Scroll through setting menu
▲[UP]/[TIMER]
Up/Activate Timer function
▼[DOWN]/[VOLUME]
Down/Activate Volume function
[STOP]
Deactivate Timer/Volume function
Control Menu
Set DMX address from 1 to 503, 10 channels
1 to 498, 15 channels
1 to 488, 25 channels
Set DMX channel mode 10, 15 or 25 channels
Set machine as Master of Slave unit
Turn LED On or Off
DMX512
Address: 1
Stand Alone
Set Master
Color Mode
On
DMX Channel Mode
10 Ch
Antari M-9
Ready to Fog

7
© 2019 Antari Lighting and Effects Ltd. www.antari.com
Set LED output color from macro 1 to 25
Set LED chase from 1 to 8
Set interval from 15 to 360 seconds
Set duration from 1 to 5 seconds

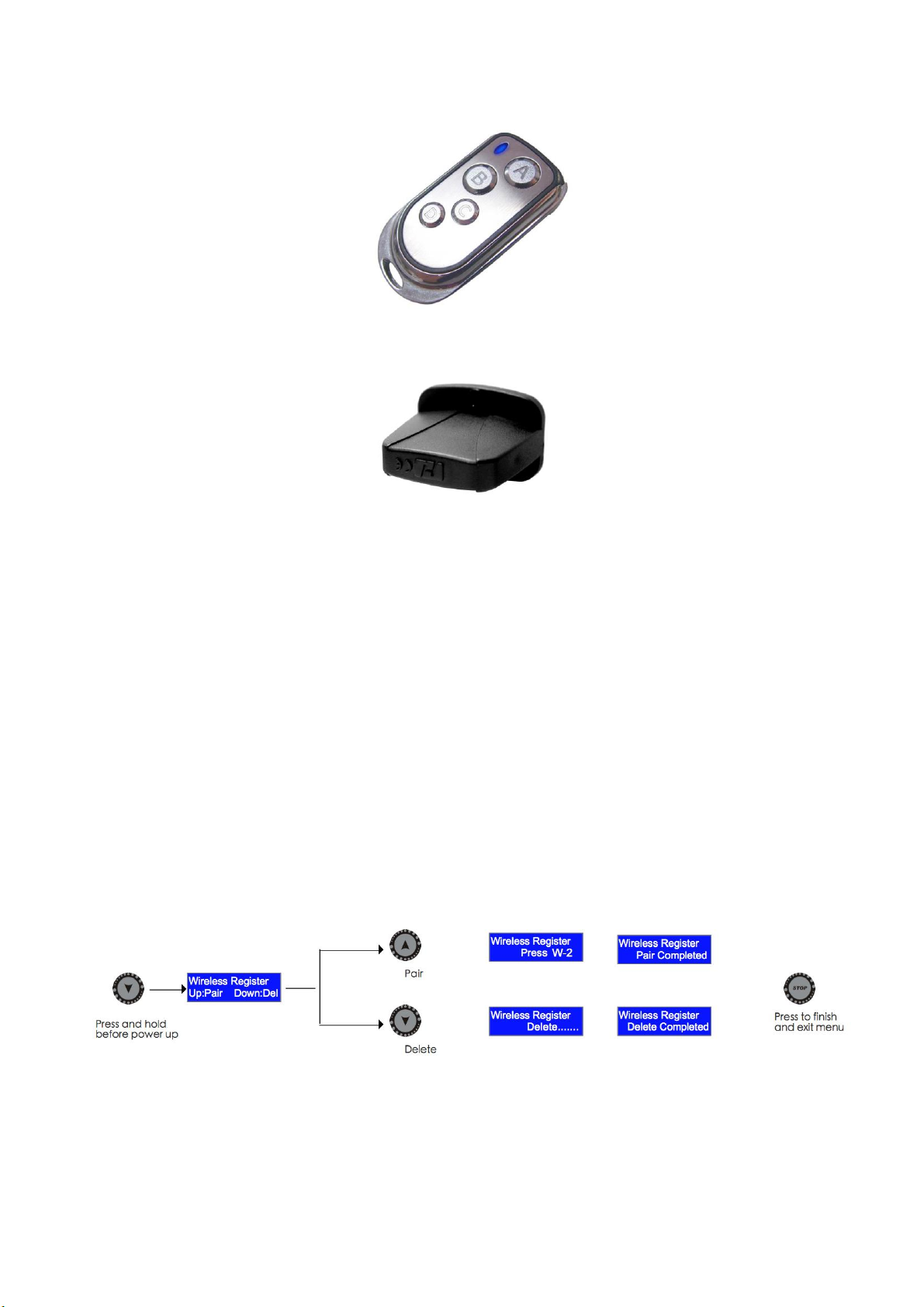

Turn On or Off wireless control
Set wireless remote button function macro color 1 to 25 or chase 1 to 8.
Set wireless remote button function macro color 1 to 25 or chase 1 to 8.
Set wireless remote button function macro color 1 to 25 or chase 1 to 8.
Set wireless remote button function macro color 1 to 25 or chase 1 to 8.
Setting for LED to turn on with fog only or always on.
Set LED delay time from 0 to 5 seconds.
Color Mode
Marco:01
Color Mode
Chase:01
Timer
Interval 15 Sec
Timer
Duration 5 Sec
Wireless Setting
On
Wireless Setting
Button A:M01
Wireless Setting
Button B:M01
Wireless Setting
Button C:M01
Wireless Setting
Button D:M01
LED Setting
Fog Only
LED Fade Out
Delay: 0 Sec

8
© 2019 Antari Lighting and Effects Ltd. www.antari.com
Turn On/Off run last setting function
Turn On/Off Jet Mode, set time from 2 to 7 seconds.
Turn On/Off W-DMX
Reset W-DMX connection
DMX Connector Pin Assignment
The machine provides 3 or 5 pin XLR connector for DMX connection. The diagram below indicates
pin assignment information.
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
DMX Operation
Making the DMX Connection –Connect the machine to a DMX controller or to one of the machines
in the DMX chain. The machine uses both 3-pin and 5-pin XLR connector for DMX connection, the
connector is located on the rear of the machine.
Run Last Setting
On
W-DMX 512
Off
W-DMX Reset
Yes
2-7 Sec Jet Mode
2 Sec

9
© 2019 Antari Lighting and Effects Ltd. www.antari.com
DMX Channel Function
10 Channel Mode
Channel
DMX Value Range
Function
1
0 –4
5 –255
Fog Off
Fog On
2
0-255
Red LED 0-100%
3
0-255
Green LED 0-100%
4
0-255
Blue LED 0-100%
5
0-255
Amber LED 0-100%
6
0-255
White LED 0-100%
7
1-30
31-60
61-90
91-120
121-150
151-180
181-210
211-255
Chase 1
Chase 2
Chase 3
Chase 4
Chase 5
Chase 6
Chase 7
Chase 8
8
0-255
Chase Speed 0-255
step per min
9
0-255
Master Dimmer 0-100%
10
0-255
Strobe 1-20 Hz

10
© 2019 Antari Lighting and Effects Ltd. www.antari.com

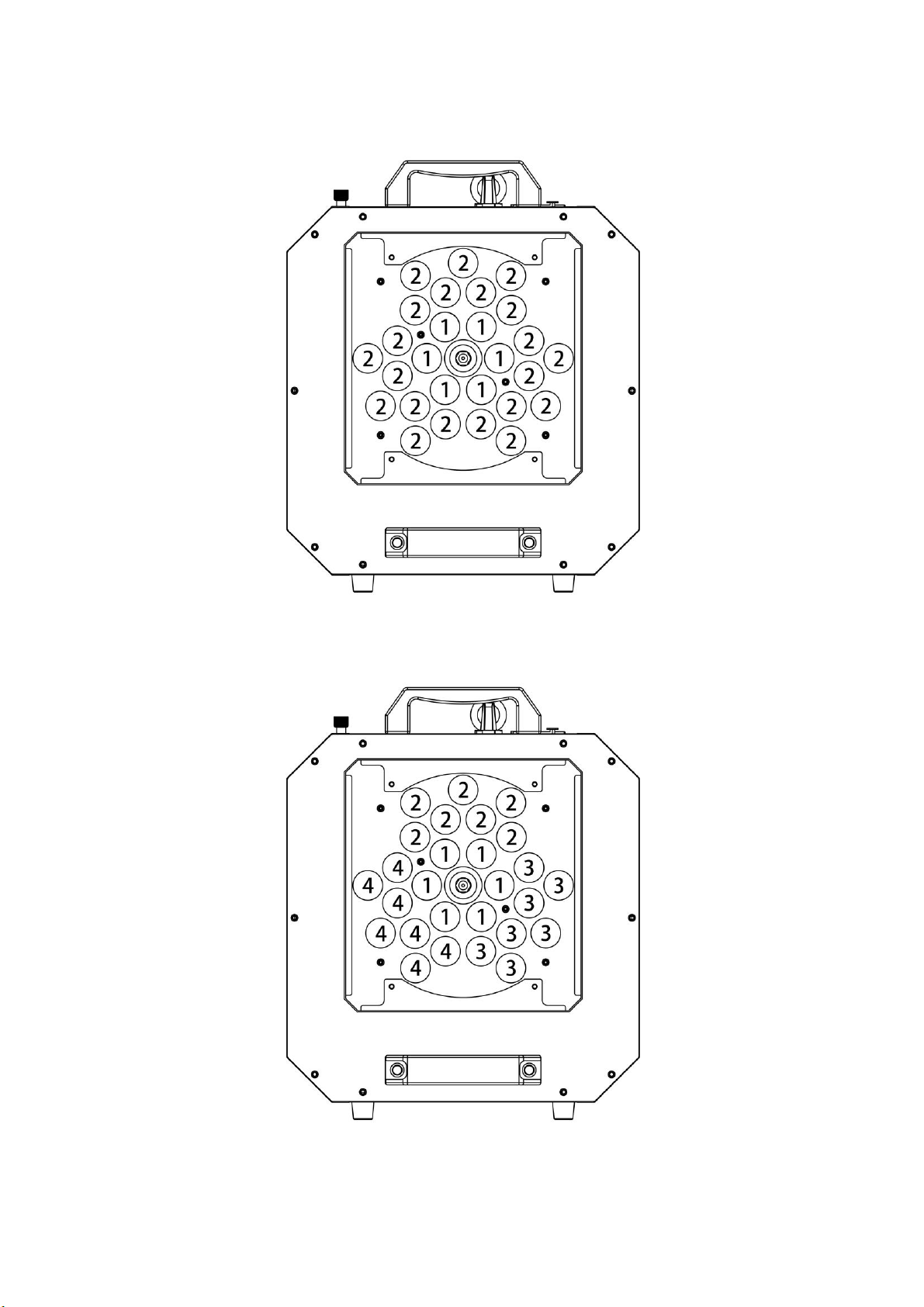

15 Channel Mode
Channel
DMX Value Range
Function
1
0 –4
5 –255
Fog Off
Fog On
2
0-255
Red Zone 1 0-100%
3
0-255
Green Zone 1 0-100%
4
0-255
Blue Zone 1 0-100%
5
0-255
Amber Zone 1 0-100%
6
0-255
White Zone 1 0-100%
7
0-255
Red Zone 2 0-100%
8
0-255
Green Zone 2 0-100%
9
0-255
Blue Zone 2 0-100%
10
0-255
Amber Zone 2 0-100%
11
0-255
White Zone 2 0-100%
12
1-30
31-60
61-90
91-120
121-150
151-180
181-210
211-255
Chase 1
Chase 2
Chase 3
Chase 4
Chase 5
Chase 6
Chase 7
Chase 8
13
0-255
Chase Speed 0-255
step per min
14
0-255
Master Dimmer 0-100%
15
0-255
Strobe 1-20 Hz
25 Channel Mode
Channel
DMX Value Range
Function
1
0 –4
5 –255
Fog Off
Fog On
2
0-255
Red Zone 1 0-100%
3
0-255
Green Zone 1 0-100%
4
0-255
Blue Zone 1 0-100%
