Antari F-6 User manual

F-6
Fazer Machine
User Manual
- English
-中文
© 2023 Antari Lighting and Effects Ltd.

1. Introduction ................................................................................................................................................. 1
2. Safety Information....................................................................................................................................... 1
3. Package Contents & Inspection................................................................................................................... 2
4. Machine Details........................................................................................................................................... 3
5. Technical Label Information........................................................................................................................ 3
6. Fog Fluid...................................................................................................................................................... 3
7. Setting and Manual Operation..................................................................................................................... 4
8. Control Settings ........................................................................................................................................... 4
9. Machine Status Description......................................................................................................................... 5
10. DMX Connection ........................................................................................................................................ 6
11. RDM Function............................................................................................................................................. 6

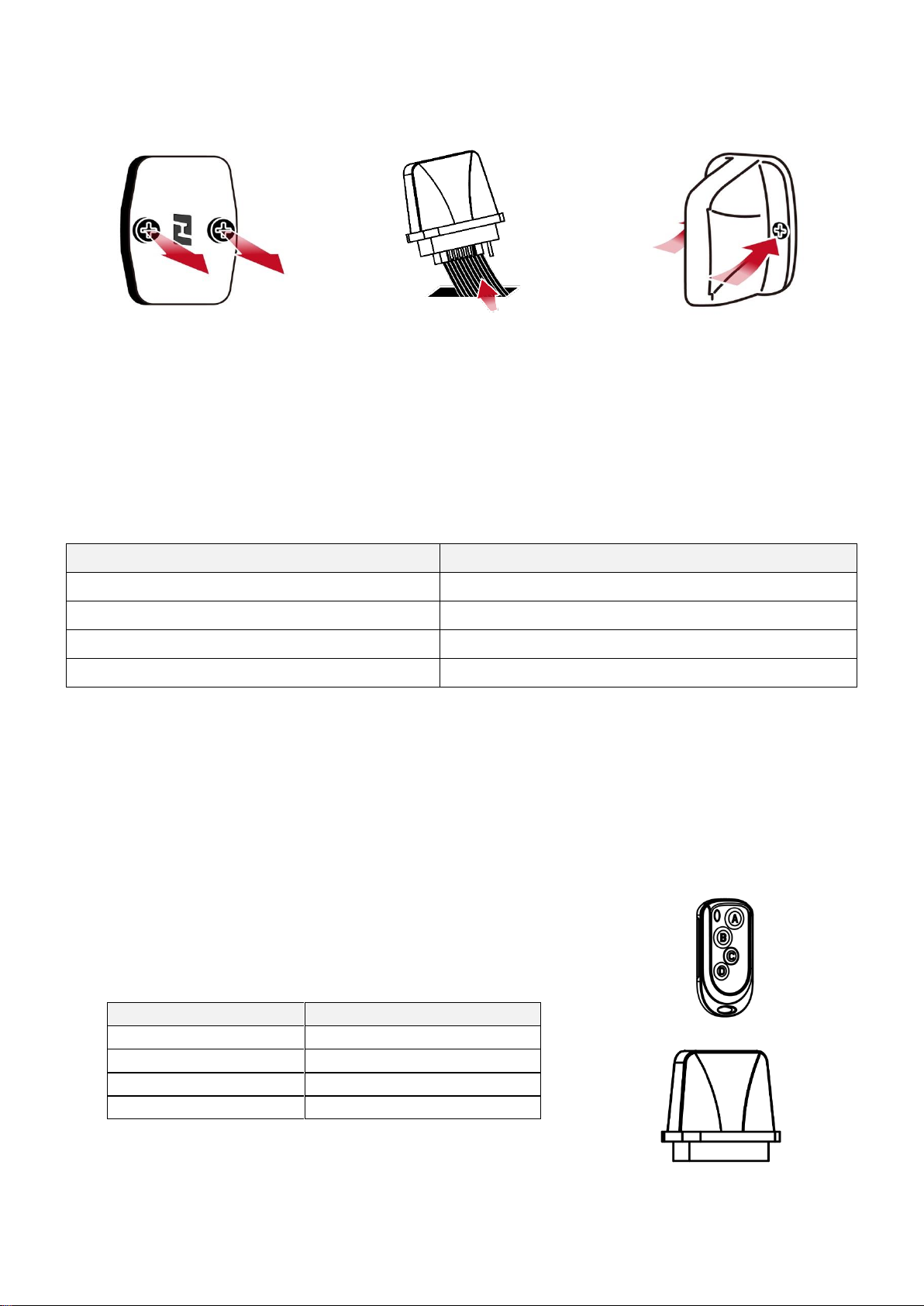

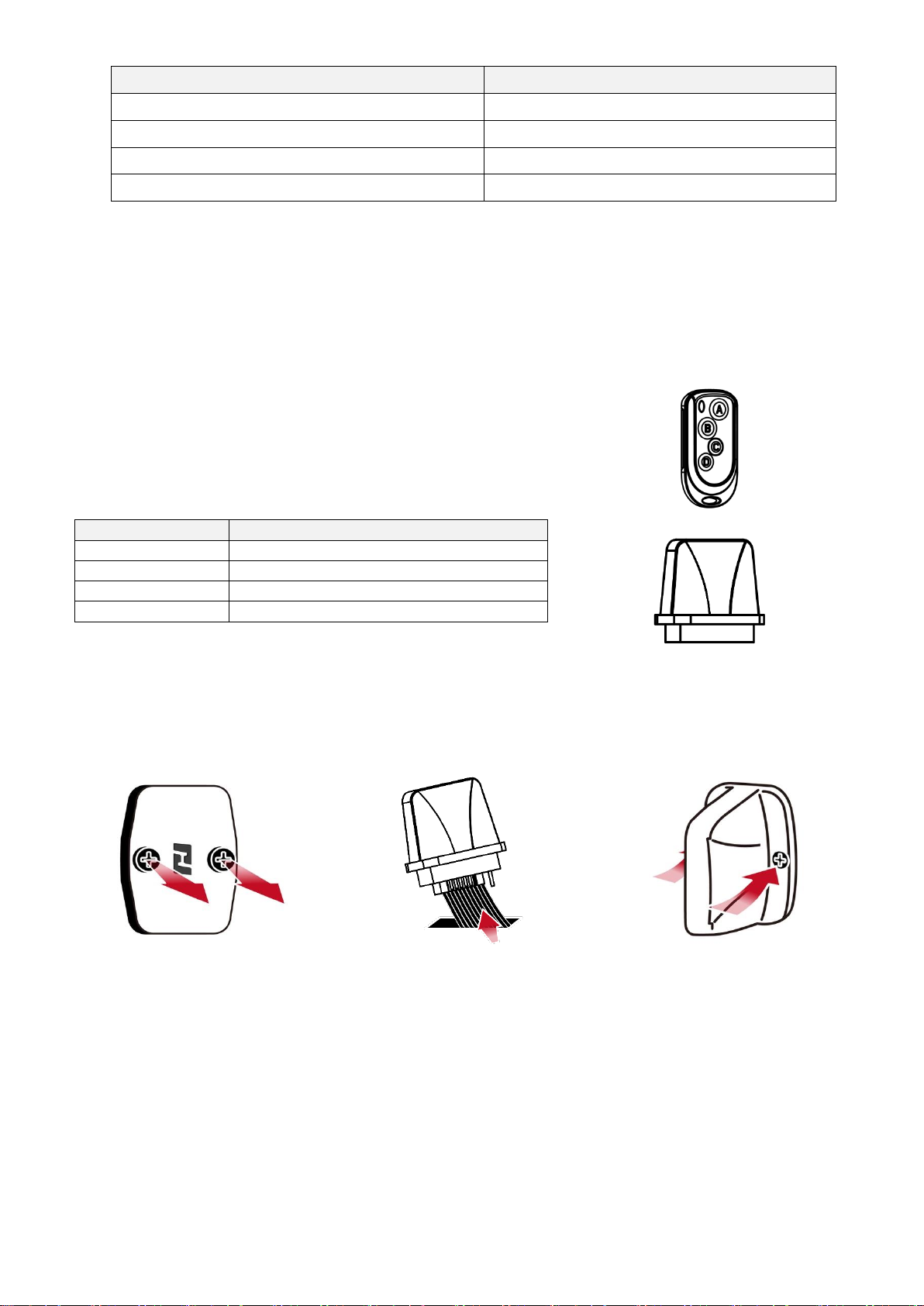

12. ES-W-DMX Wireless DMX Receiver (Optional) ....................................................................................... 7
13. WTR-110 Wireless Remote (Optional) ....................................................................................................... 8
14. Service and Maintenance............................................................................................................................. 9
15. Technical Specifications .............................................................................................................................. 9
16. Warranty Disclaimer.................................................................................................................................... 9
17. Machine Dimension................................................................................................................................... 10
1. 前言............................................................................................................................................................11
2. 安全注意事項............................................................................................................................................11
3. 包裝內容與檢查....................................................................................................................................... 12
4. 機器訊息................................................................................................................................................... 13
5. 技術標籤資訊........................................................................................................................................... 13
6. 煙霧水....................................................................................................................................................... 13
7. 設定與手動操作說明............................................................................................................................... 14
8. 控制設定................................................................................................................................................... 14
9. 機器狀態................................................................................................................................................... 15
10. DMX 說明................................................................................................................................................. 16
11. RDM 功能................................................................................................................................................. 17
12. ES-W-DMX 無線 DMX 接收器(選配).................................................................................................... 17
13. WTR-110 無線控制器(選配).................................................................................................................... 18
14. 維護和保養............................................................................................................................................... 19
15. 技術規格................................................................................................................................................... 20
16. 機器尺寸圖............................................................................................................................................... 20
17. 保固聲明................................................................................................................................................... 20
Appendix I – Grounding Instruction.................................................................................................................. 21

1
User Manual
1. Introduction
Please read all the user manual before operating the machine, and place the manual where the user can refer to it at
all time. The manual includes how to install and operate the machine under safe condition and explain all the labels
printed on the machine. If you encounter any problem, contact your local Antari dealer for assistant immediately.
2. Safety Information
DANGER
If the danger is not avoided, it will cause death or serious injury
WARNING
If the warning is not heeded, it can cause death or serious injury.
CAUTION
If the precaution is not taken, it may cause minor or moderate injury.
DANGER
Must connect the machine to the correct rated voltage or it might lead to an electrical shock or a burn and may
cause serious consequences.
Must connect the machine to a protected circuit and ensure it is properly grounded to avoid the risk of
electrocution. For grounding instruction, please refer to Appendix I on page 21.
Do not operate the machine with a bundled power cord, it could lead to a fire hazard.
When operating the machine, do not point at people, animals, or fire.
WARNING
Please operate the machine on a flat, level hard and well ventilated surface area, reserve at least 50cm space
around the machine and make sure there is no flammable gas or material nearby.
Do not disassemble, repair or modify the machine, it may cause damages, malfunction, risk of electrical shock
or result in fire.
The machine can only be operated by adults or professionals, is not intended for use by person with reduced
physical sensory, mental capabilities, or lack of experience and knowledge including children.
Do not leave the machine running unattended, make sure all powers are off when leaving.
Children should be supervised to ensure that they do not play with the machine.
Do not use the machine upside down or tilt it, it might cause damages or malfunction.
Please store the fluid inside in a well ventilated area without direct sunlight and keep out of reach of children.
In case of eye contact or accidentally swallow the fluid, please seek medical attention immediately.
CAUTION
Keep the machine dry at all time. The machine is not waterproof, do not expose the machine to water, rain, or
moisture environment.
Please make sure the power outlet is not damaged or loose before plug in the power cord.
If the power cord is damaged, it must be replaced by Antari or its local dealers, otherwise the warranty will be
void.
Before operating the machine, please make sure the fluid is filled in the fluid tank to avoid the pump in idling

2
state which could lead to overeat or malfunction.
Before transporting the machine, please make sure the fluid is drained and tank is empty. (Recommend using
original package)
The machine is for indoor use only.
Do not operate the machine in any area with unstable voltage.
If you experience strange sound or malfunction, turn off the power and unplug the power cord immediately
and contact your local Antari dealer for assistant.
Do not contact any moving part.
Only use accessories recommended or sold by Antari.
Please make sure the power is off when not using the machine and unplug the power cord if not intend to use
for a long period of time.
To disconnect, turn all controls to the off position, then remove plug from outlet.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Unplug from outlet before servicing or cleaning.
Do not operate the machine with a damaged cord or plug, or after the machine malfunctions or is dropped or
damaged in any manner. Return machine to the nearest authorized service facility for examination, repair, or
electrical or mechanical adjustment.
To ensure the lifespan of the machine, please only use the fluid manufactured by Antari, do not use other fluid
or additive, otherwise it may clog the heater and cause malfunction.
Before operating the machine, please read all warning labels on the machine, description as below;
CAUTION!
NEVER ADD FLAMMABLE SUBSTANCES.
WARNING!
DISCONNECT POWER BEFORE CHANGING FUSE.
USE ONLY WITH ADULT SUPERVISION.
DO NOT OPERATE WITHOUT LIQUID.
FOR INDOOR USE ONLY. KEEP DRY.
NO USER SERVICEABLE PARTS INSIDE.
3. Package Contents & Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure it is the correct
model and all parts are included. If any part appears to be damaged or missing during transportation, please contact
your local dealer and return in original package for inspection.
3.1 Package Contents
1 x F-6 Fazer Fog Machine
1 x 5 Liter Fluid Tank
1 x Neutrik powerCON Power Cable
1 x User Manual or Scan QR Code on the Machine
3.2 Optional Accessories
Item Code
Description
ES-W-DMX
W-DMX Receiver
WTR-110
Wireless Remote (W-2 Wireless Transmitter/ Wireless Receiver)

3

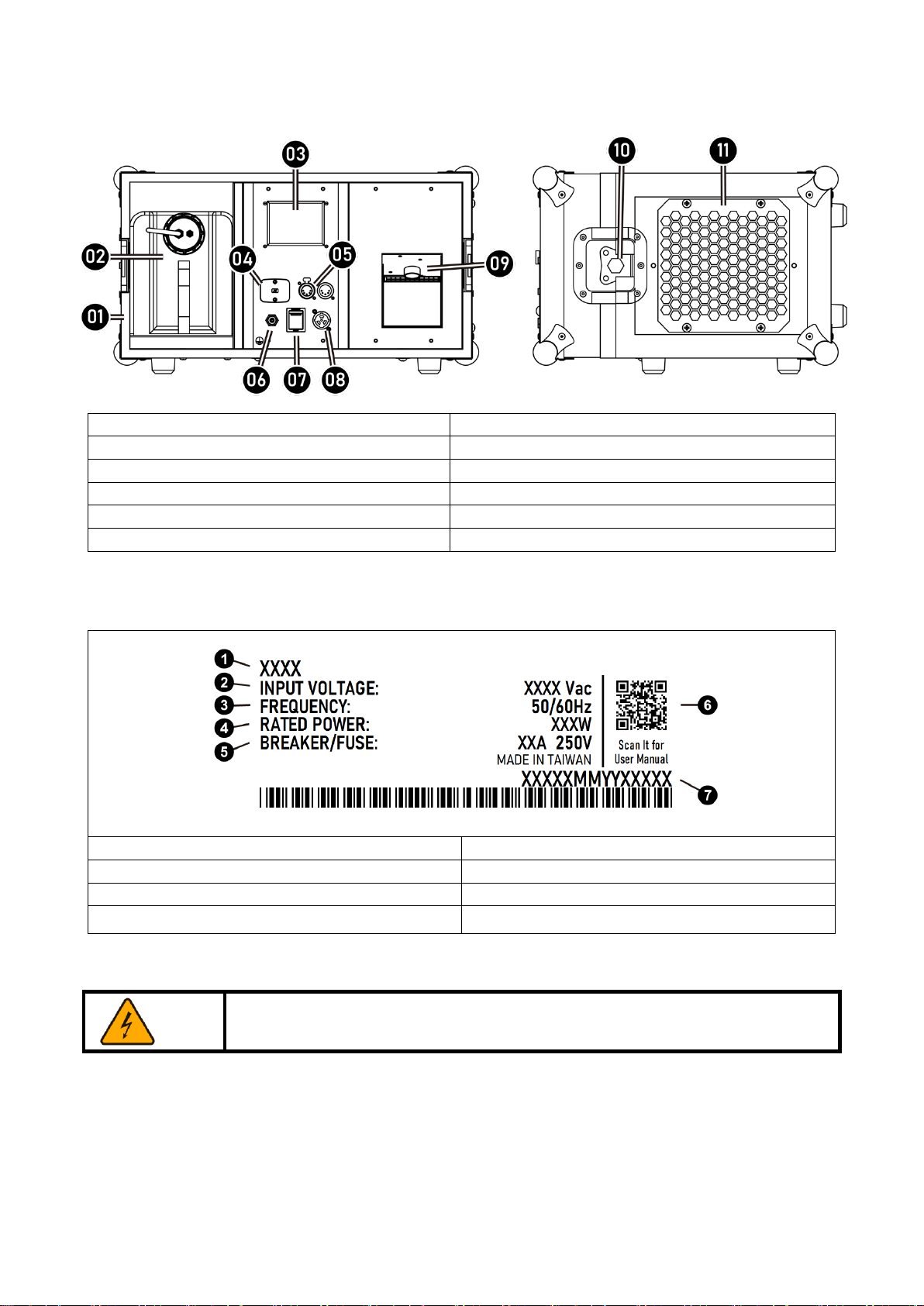

4. Machine Details
01. Flight Case
07. Two in One Power & Breaker Switch
02. 5 Liter Fluid Tank
08. Neutrik powerCON Connector (Power)
03. TFT-LCD Touch Screen Display
09. Fog Nozzle
04. Expansion Socket
10. Flight Case Lock
05. XLR 5-Pin Connector (DMX)
11. Fan Inlet
06. Fluid Tube Connector
5. Technical Label Information
Please read the technical label information on the back of the machine before operating it.
1. Model Name
5. Breaker/Fuse
2. Input Voltage
6. QR CODE for User Manual
3. Frequency
7. Serial No.
4. Rated Power
6. Fog Fluid
CAUTION
Always turn off the power before filling the fluid tank. Do not add flammable
liquid to the fluid tank. If fluid gets inside the machine, please contact your local
Antari dealer for assistant.
Only the fog fluid manufactured by Antari can be used, do not mix or dilute the fog fluid. Due to improper
storage or using other fluid might clog the heater and cause malfunction.
The machine is tested and calibrated with the specific fog fluid to get the best performance.
Please empty the fluid in the tank before switching to another fluid to avoid mixing.
Only the essence manufactured by Antari can be used, and add according to the ratio recommended by Antari
(Recommended ratio is 1:1000), if using other essence or different ratio might clog the heater and cause
malfunction.
The warranty on your fog machine will be void if you use fog fluid not manufacture by Antari.

4
7. Setting and Manual Operation
WARNING
Machine falling off might cause serious injury, please make sure it is secure
and firm on the overhead.
Step 1. Place the machine on a flat, level hard and well ventilated surface area and reserve at least 50cm open
space around the machine, and make sure there is no flammable gas or material nearby;
Step 2. Fill the fluid tank with Antari approved fog liquid, and make sure the tube is not twisted;
Step 3. Connect the machine to the power outlet. Please read the technical label on the back of the machine and
make sure the power outlet is the correspond to the rated voltage for the machine;
Step 4. Turn on the machine, heating process takes approximately 1 minutes. Once the machine has reached
operating temperature “100%” (Top Left Hand Corner), the machine is ready for operation;
Step 5. To activate fogging in manual mode, please press “Manual” and adjust output and fan speed according to
your need then press start and press again to stop fogging;
Step 6. Or to activate fogging in Timer mode, please press “Timer” and adjust “Interval”; “Duration”; “Output”
and “Fan Speed” according to your need, then press start and press again to stop fogging;
Step 7. Press “DMX” and adjust according to your need;
Step 8. Press “MENU” and adjust according to your need;
Step 9. To turn off the machine, please make sure the machine is not operating then turn of the power. If you will
not use the machine a long period of time, please remove the power cord.
8. Control Settings
F-6 Fazer Fog Machine can be operated in the following modes. The machine can only accept 1 type of signal at a
time.
Manual
Timer
DMX512
W-DMX
Wireless
8.1 Control Panel Description
F-6 Fazer Fog Machine can be operated with the onboard TFT-LCD Touch Screen.

5
Icon
Operating Method
Action
Press
Confirmed Selection
Press
Adjust Values
Press
Back to Last Page
Press
Active
Press
De-Active
Press
Enter Configuration
(Green Background Color)
N/A
Selected Mode in Action
8.2 Control Menu
Main Menu
Item
Description
Timer
Interval
1 – 999 sec
Duration
1 – 999 sec
Output Level
1 – 100%
Fan Level
20 – 100%
Manual
Output Level
1 – 100%
Fan Level
20 – 100%
W-DMX
Address
001-512
Channel Mode
3 Modes
W-DMX Power
On/Off
W-DMX Reset
Unpair
Menu
Information
Software Version
Setting
LCD BackLight
High/Mid/Low/AutoOff
Run Last
On/Off
Language
English/中文/日本語
WRC Pairing
Pair/Unpair
Self Clean Mode
Count 180 sec
9. Machine Status Description
9.1 Machine Status with TFT-LCD Touch Screen Display
Screen
Description
AC Frequency
Input Frequency
Antari F-6
Ready To Fog
Machine is ready to Operate (Top Left Corner show 100% On The Screen)
W-DMX Status (Top Right Hand Corner On the Display, please see
12.3 for more details)
Wireless Signal
Manual Output 100%
Fog Output level at Manual Mode
Interval 1 - 999 sec
Duration 1 - 999 sec
Running at Timer mode, Interval time
Running at Timer mode, Duration time
DMX-512 Add: XXX
Current DMX 512 channel
Self-Cleaning Mode
Count Down 180 sec and Machine in Sleep Mode
Warming Up 10 %
Heating up 0-100% (Upper Left Corner)
Heater Overheat!
Heater is Overheat
Heater Fault
Heater Malfunction
Thermal Line Off
Thermal Line Break Off
Line Reverse
Thermal Line Reverse Connection
Voltage Error
Incorrect Voltage

6
**If LCD control panel display “Warning”, please stop operating and turn off the machine immediately. Please
contact your local Antari dealer for assistance.
10. DMX Connection
10.1 DMX Connector Pin Assignment
The machine provides a XLR 5-Pin connector for DMX connection. The diagram below indicates pin assignment
information;
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
** There is a protection cap on DMX IN, please
remove it with your finger before operation.
10.2 DMX Channel Function
This machine provides 2 channel DMX and 3 modes to choose, please see chart below.
Channel Mode
DMX Value Range
Function
Channel 1
Fog Output Level
0 – 5
Off
6 – 255
1 – 100%
Channel 2
Fan Speed
0-50
20%
51-255
21-100%
Channel Mode
Function
Mode 1
Channel 1
Ch1 and Ch2 Sync Output
Mode 2
Channel 1
Ch1 and Fan Speed at 100%
Mode 3
Channel 2
Ch1 Fog Output and Ch2 Fan Speed
11. RDM Function
The F-6 Fazer Fog Machine is RDM enabled, allowing control system to configure, monitor and manage. See
below table for supported RDM parameters.
GET
Allowed
SET
Allowed
Category
RDM Parameter ID’s(Slot 21-22)
Value
Required
NetworkManagement
網路管理
DISC_UNIQUE_BRANCH
0x0001
O
0x0002
O
0x0003
O
O
RDM Information
RDM 資訊
QUEUED_MESSAGE
0x0020
O
STATUS_MESSAGES
0x0030
O
SUPPORTED_PARAMETERS
0x0050
O
O
PAPAMETER_DESCRIPTION
0x0051
O
O
Product Information
產品資訊
DEVICE_INFO
0x0060
O
O
PRODUCT_DETAIL_ID_LIST
0x0070
O
DEVICE_MODE_DESCRIPTION
0x0080
O
MANUFACTURER_LABEL
0x0081
O
O
DEVICE_LABEL
0x0082
O
SOFTWARE_VERSION_LABEL
0x00C0
O

7
GET
Allowed
SET
Allowed
Category
RDM Parameter ID’s(Slot 21-22)
Value
Required
O
O
DMX512 Setup
DMX512 設定
DMX_PERSONALITY
0x00E0
O
DMX_PERSONALITY_DESCRIPTION
0x00E1
O
O
DMX_START_ADDRESS
0x00F0
O
O
SLOT_INFO
(0x0120)
O
SLOT_DESCRIPTION
(0x0121)
O
DEFAULT_SLOT_VALUE
(0x0122)
O
Sensors
感應器
SENSOR_DEFINITION
0x020
O
O
SENSOR_VALUE
0x0201
O
Control
控制
DEVICE_HOURS
0x0400
O
O
IDENTIFY_DEVICE
0x1000
O
O
O
POWER_STATE
0x1010
12. ES-W-DMX Wireless DMX Receiver (Optional)
ES-W-DMX is an optional accessory for F-6 Fazer Fog Machines. If you already purchased the W-DMX model,
it’s ready to use. If you purchase it afterwards, please follow the instruction below. If you encounter any problem,
please contact your local Antari dealer for assistant. The W-DMX Control supports both CRMX and W-DMX
protocols
12.1 ES-W-DMX
It includes a Wireless DMX Receiver.
12.2 ES-W-DMX Receiver Installation Steps
If you purchased the W-DMX Receiver afterward, please follow the instruction below to install the receiver. If you
encounter any problem, please contact your local Antari dealer for assistant.
Graph 1
Graph 2
Graph 3
1. Please see graph 1, remove the cover from the pointed place;
2. You will see a white cable like graph 2, pull it out and connect to receiver;
3. Screw it back to the machine like graph 3, then it’s ready to use.
12.3 Status of W-DMX Signal
To Activate the function, please follow the instruction below,
1. Enter DMX Setting Menu
2. Find [W-DMX Power] and activate it, then you will see on the screen.

8
Signal on LCD display
W-DMX Status
○(Green Light)
W-DMX present
◎
No DMX present
☉
Link to TX lost
●(Red Light)
Not assigned
13. WTR-110 Wireless Remote (Optional)
WTR-110 Wireless Remote is an optional accessory for F-6 Fazer Fog Machines, it included a W-2 wireless
transmitter and a wireless receiver. If you already purchased the wireless model, it’s ready to use. If you purchase
the module afterward, please follow the instruction below. If you encounter any problem, please contact your local
Antari dealer for assistant.
13.1 Wireless Transmitter & Receiver
Battery：27A 12V
Effective Range：The effective range is approximately 50 meter,
depends on actual condition, it may vary.
W-2 wireless transmitter has 4 buttons, each function as follow:
W-2 Wireless Transmitter
Button
Function
[A]
Start Fogging
[B]
Stop Fogging
[C]
Increase fog output
[D]
Decrease fog output
Wireless Receiver
13.2 Wireless Receiver Installation
If you purchased the WTR-110 Wireless Remote afterward, please follow the instructions below to install the
receiver. If you encounter any problem, please contact your local Antari dealer for assistant.
Graph 1
Graph 2
Graph 3
1. Please see graph 1, remove the cover from the pointed place;
2. You will see a white cable like graph 2, pull it out and connect to the W-2 receiver;
3. Screw it back to the machine like graph 3 and follow the instruction on 13.3 for pairing.
13.3 Pair & Unpair
Each wireless receiver can pair up to 5 transmitters, please follow the steps below to pair or unpair the module;
Step 1. Machine need to be in READY status in order to pair with transmitter;
Step 2. Press [MENU] to enter options;
Step 3. Press arrow and find [WRC Pairing];
Step 4. Press [Pair] then press [A] button on the transmitter to pair;
Step 5. Press [Unpair] to unpair and the machine will restart when it’s successful.
