Antari F-2 Fazer User manual

1
© 2021 Antari Lighting and Effects Ltd. www.antari.com
F-2 Fazer
User Manual
- ENGLISH
- 中文
- 中文
© 2021 Antari Lighting and Effects Ltd.

2
© 2021 Antari Lighting and Effects Ltd. www.antari.com

3
© 2021 Antari Lighting and Effects Ltd. www.antari.com
- ENGLISH -
Safety Information
Please read the following safety information carefully before operating the
machine. This information includes important safeguards about
installation, usage, and maintenance. Pay attention to all warning labels
and instructions in this manual and printed on the machine.
If you have questions about how to operate the machine safely, please contact your local
Antari dealer for help.
l Keep this device dry.
l Always connect to a grounded circuit to avoid risk of electrocution.
l Before connecting the machine to power, always check the voltage indicate on the
machine matches to your local AC voltage. Do not use the machine if AC power voltage
does not match.
l Disconnect the machine from AC power before servicing and when not in use.
l If the supply cord is damaged, contact your local Antari dealer for replacement.
l This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,
disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts,
immediately unplug the machine and contact your local Antari dealer for advice.
l No user serviceable and modifiable parts inside. Never try to repair this product, an
unauthorized technician may lead the machine to damage or malfunction.
l For adult use only. Children being supervised not to play with the machine. Never leave
the machine running unattended.
l The machine is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.
l Installed in a well ventilated area. Provide at least 50 cm space around the machine.
l Never add flammable liquid of any kind to the machine.
l Make sure there are no flammable materials close to the machine while operating.
l Only use Antari fluid. Other fluid may lead to heater clog and malfunction.

4
© 2021 Antari Lighting and Effects Ltd. www.antari.com
l If the machine fails to work, unplug the machine and stop operation immediately. Contact
your local Antari dealer for advice.
l Before transporting the machine, make sure the fluid tank is completely drained.
l Smoke fluid may present health risks if swallowed. Do not drink smoke fluid. Store it
securely. In case of eye contact or if fluid is swallowed immediately look for medical
advice.
Unpacking and Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to
ensure that all parts are present and have been received in good condition. If any parts
appear damaged or mishandled from shipping, notify the shipper immediately and retain the
packing material for inspection.
What is included: 1 x F-2 Fazer
1 x Fluid Tank
1 x User Manual
Product Dimension
H 233.6 mm
W 380 mm
L 424.1 mm

5
© 2021 Antari Lighting and Effects Ltd. www.antari.com

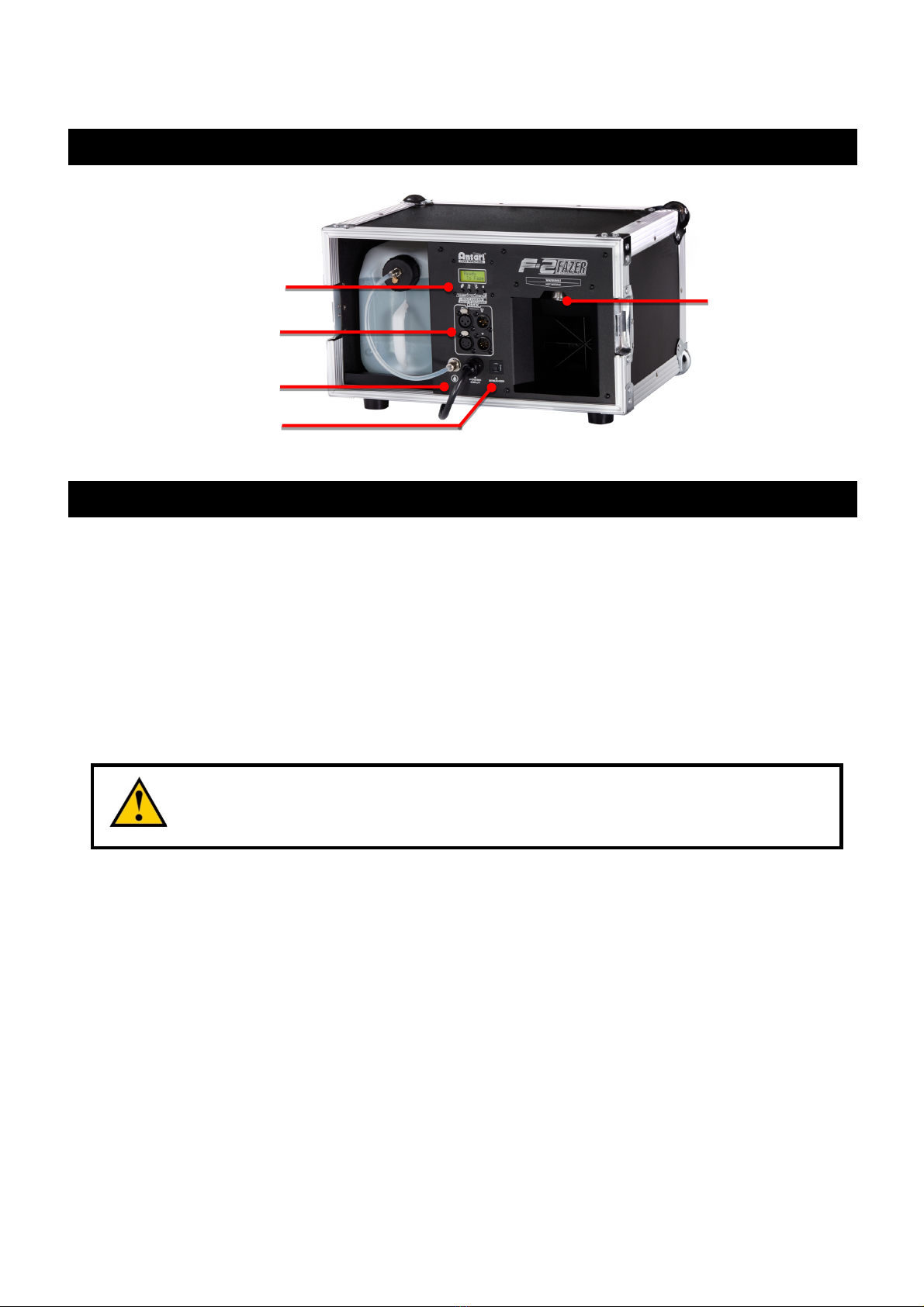

Product Overview
Setting UP
Step 1:Place the machine on a flat surface and in a suitably large area with at least 50 cm
of open space around the machine.
Step 2: Fill the fluid tank with Antari approved fluid.
Step 3: Connect the machine to a suitably rated power supply. To determine the power
requirement for the machine, refer to the label on the back of the machine.
Always connect the machine to a protected circuit and ensure it is properly
grounded to avoid risk of electrocution.
Step 4: Turn on the machine and allow it to heat up. Heat up takes approximately 1.5
minutes. Once the machine has reached operating temperature, the LCD display will show
“Ready to Faze”. Now the machine is ready for operation.
Step 5: To start making haze, locate the Volume button on the control panel, and press the
button to start making faze.
Step 6: To t u r n -off the unit, press and hold down the Stop button for at least three seconds.
This will immediately begin the self-cleaning and shut down process. After the purging
process is complete the unit will automatically shut down and put itself in state of hibernation.
Output Nozzle
XLR 3-Pin & XLR 5-Pin
DMX Connector
LCD Display Control Panel
Power Input
Breaker

6
© 2021 Antari Lighting and Effects Ltd. www.antari.com
Simple press the Volume button to “wake” the unit and return it operational status.
Operation

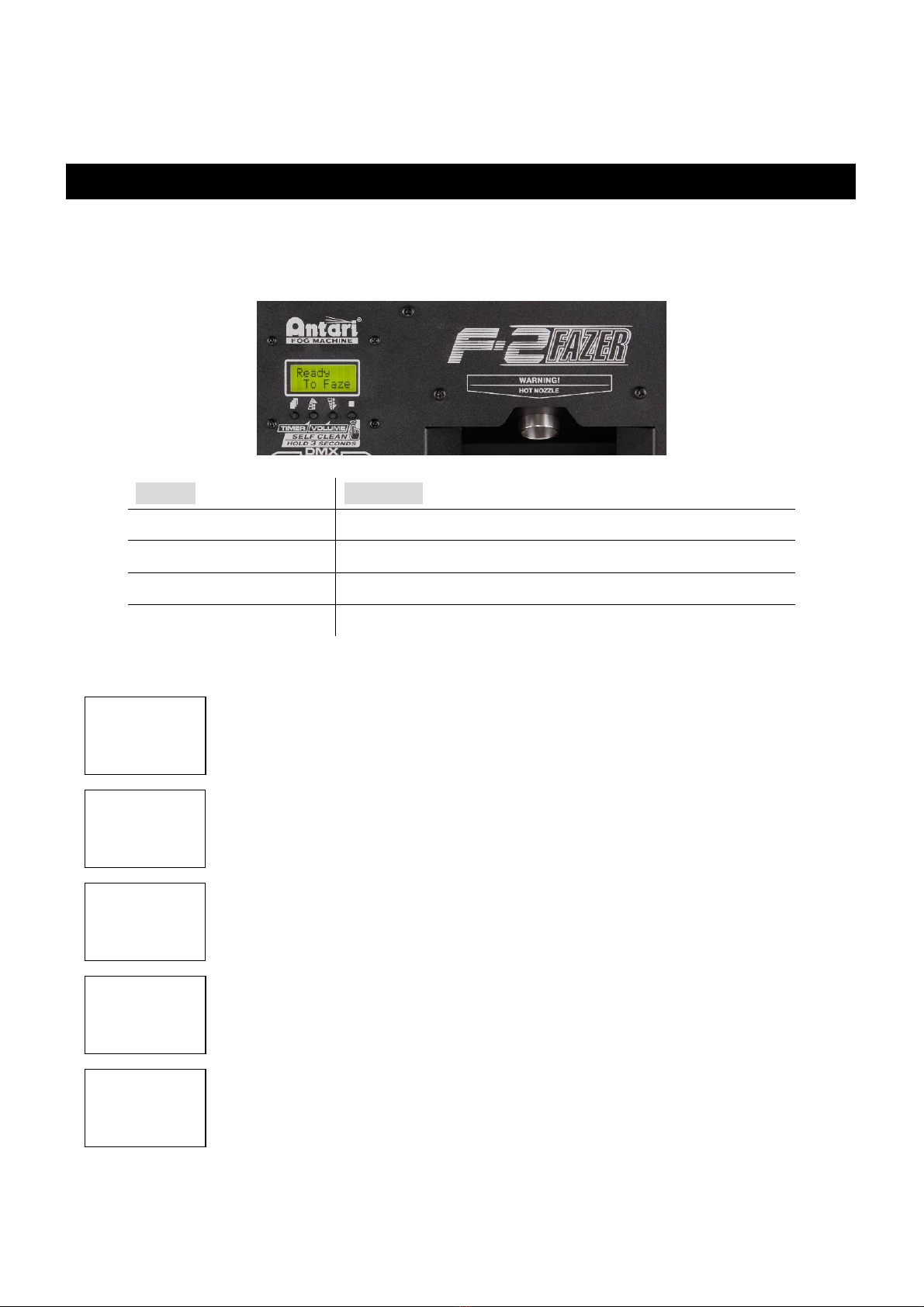

Control Panel Operation
The machine can be operated with the onboard digital control interface located on the rear.
Button
Function
[MENU]
Scroll through setting menu
▲[UP]/[TIMER]
Up/Activate Timer function
▼ [DOWN]/[VOLUME]
Down/Activate Volume function
[STOP]
Deactivate Timer/Volume function
CONTROL MENU
Set the interval from 1 to 999 seconds
Set the duration from 1 to 999 seconds
Set the timer output from 1 to 100%
Set the output volume from 1 to 100%
Set the output volume from 20 to 100%
Interval
Set 999s
Duration
Set 999s
Timer
Out 100%
Volume
Out 100%
Fan
Out 100%

7
© 2021 Antari Lighting and Effects Ltd. www.antari.com
Set the DMX address from 1 to 511
Set the DMX mode Sync, 1Ch or 2Ch
Turn On/Off run last setting function
This menu functions details the current machine firmware.
DMX Connector Pin Assignment
The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below
indicates pin assignment information.
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
DMX Operation
Making the DMX Connection – Connect the machine to a DMX controller or to one of the
machines in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX
connection, the connector are located on the front of the machine.
DMX512
Add. 511
DMX Mode
1Ch
Quick
Start OFF
Info
Ver: 1.0

8
© 2021 Antari Lighting and Effects Ltd. www.antari.com
DMX Channel Function
Channel Mode
Channel
Value
Function
2
1
0-5
6-255
Faze off
Faze 1-100%
2
6-255
Fan 20-100%
1
1
0-5
Faze off
Fan 100%
6-255
Faze 1-100%
Fan 100%
Sync
1
0-5
Faze Off
Fan 20%
6-255
Faze 1-100%
Fan 21 – 100%
Fluid
Only use Antari FLG water-based liquid for the F-2 Fazer. The machine is tested and
calibrated with this liquid to get the best output performance. Warranty will be voided if any
other type of liquid is used, improper use of liquid may lead to machine failure and
malfunction.
Service and Maintenance
․ Do not allow the machine to become contaminated.
․ Remove dust from the air vents with air compressor, vacuum or a soft brush.
․ Only use a damp cloth to clean the casing.
․ Before storing run distilled water through the system to help avoid condensing the pump
or heater.
․ It is recommended to run the machine on a monthly basis in order to achieve best
performance and output condition.
․ Excessive dust, liquid and dirt built up will degrade performance and cause overheating.

9
© 2021 Antari Lighting and Effects Ltd. www.antari.com
Error Messages
Indicates heater exceeds temperature range
Indicates heater is not working properly
If above message shows on the display, unplug the machine and stop
operation immediately. Contact your local Antari dealer for advice
Technical Specifications
Input Voltage
Power Consumption
Warm-up Time
Max. operating time
Fluid tank capacity
Fluid consumption
Compatible fluid
Control option
DMX Channels
Power connection
DMX data connection
Dimensions
Dry Weight:
US model: AC 100-120V, 50/60 Hz
EU model: AC 220-240V, 50/60 Hz
120V 1000W
240V 1500W
1.5 min. (approx.)
12 hrs max. output
5 L
6.5 ml/min (100% output)
Antari FLG water-based fluid
DMX 512, Manual
2 channels, Faze volume and fan speed
IEC
3-pin and 5-pin XLR
L 424.1 x W 380 x H 233.6 mm
14.7 kg
Heater
Overheat
Heater
Error

10
© 2021 Antari Lighting and Effects Ltd. www.antari.com
-
使用說明書
-
使用說明及安全注意事項
在使用機器以前，請仔細閱讀以下說明，此份說明書包含了如何在安全的情況下安
裝並使用機器，且會說明機器上所有標示的標籤所代表的意義。
如果您有任何使用上的問題，請聯繫當地的 Antari 經銷商尋求清楚的說明與協助。
l 保持機器乾燥。
l 請配合接地型插座，以避免觸電的危險。
l 使用機器前，請確定使用場所的 AC 電源規格，與機器電壓規格是否相符。
l 拔開機器和 AC 電源插座時，請確認機器已關機不在使用的狀態下。
l 如果電源線損壞，請連繫當地的 Antari 經銷商尋求說明與協助。
l 本產品僅限室內使用，請勿將機器暴露在雨中或潮濕的環境，如果有液體(煙霧水)翻倒或
溢出，請勿連接機器與 AC 電源，用乾布擦拭乾淨，如果任何液體進入機器電子零件，請
立即拔除插頭，並聯繫當地的 Antari 代理商。
l 本機器不含任何用戶拆解和自行維修或修改的零件在內，請勿嘗試自行維修或改裝機器，
未經授權的技術人員，可能導致機器故障或永久損壞。
l 機器限成人操作，請勿在無人值守時讓機器運作。
l 請勿讓身體、精神、感官存在缺陷或經驗不足者(包括兒童)使用本機器。
l 在通風良好的地方安裝使用機器，機器周邊至少應保留 50 公分的空間。
l 請勿添加任何易燃物品進入機器。
l 操作機器時請確認周邊沒有任何易燃的材料。
l 為確保機器的使用壽命，請使用 Antari 的煙霧水。使用其他品牌煙霧水可能會導致電熱管
阻塞和機器的故障，並使保固失效。
l 如果機器出現故障，請拔下機器插頭，立即停止工作。並請連繫您當地的 Antari 經銷商。
l 運送機器以前，請確認機器的油箱已經完全清空。
l 煙霧水不能食用，吞食煙霧水可能導致損壞健康的風險，請將煙霧水存放在室內安全的地
方。如果碰觸到眼睛或誤吞食，請立即尋求醫生的協助。

11
© 2021 Antari Lighting and Effects Ltd. www.antari.com
包裝內容
在收到機器後，請立即小心地打開包裝紙箱，檢查所有內容，以確保所有零配件都有齊全收到，
並處於良好的狀態。如果有任何部件因運輸過程出現損壞或缺少，請立即連絡經銷商，並以原
包裝退回檢查。
內容包括
: F-2 薄煙機 1 台
油桶 1 個
使用說明書 1 本
機器尺寸
機器外觀概述
高 233.6 mm
寬 380 mm
長 424.1 mm
出煙口
XLR 3-Pin
及
XLR 5-Pin
DMX
連接座
LCD
控制面板
主電源連接線
複歸式電源斷路器

12
© 2021 Antari Lighting and Effects Ltd. www.antari.com
設定安裝
步驟
1: 將機器平放於平坦的表面，機器周圍至少應保留 50 公分的空間。
步驟
2: 將FLG 煙霧水注入機器所附的油桶。
步驟
3: 將機器連接電源。連接之前，確認機器背後技術標籤上所標示要求功率，與電源相符。
請務必將機器連結到有保護的電路，並確保有正確地接地，以避免觸電的危險。
步驟
4: 啟動機器電源，使機器開始加熱。溫機到工作溫度約需時1.5 分鐘。一旦機器到達工
作溫度，LCD 控制面板會顯示”Ready to Faze”。表示機器已經準備好並進行操作。
步驟
5: 若欲開始輸出煙霧，請按下控制面板上的 Volume 按鍵。
步驟
6: 須關閉本機時，按住 Stop 按鍵約 3秒，機器會自動進入清潔模式，待清潔完畢機器
會自動關閉進入待機模式。欲喚醒機器，請按 Volume 按鍵，即可回到正常操作模式。
操作說明

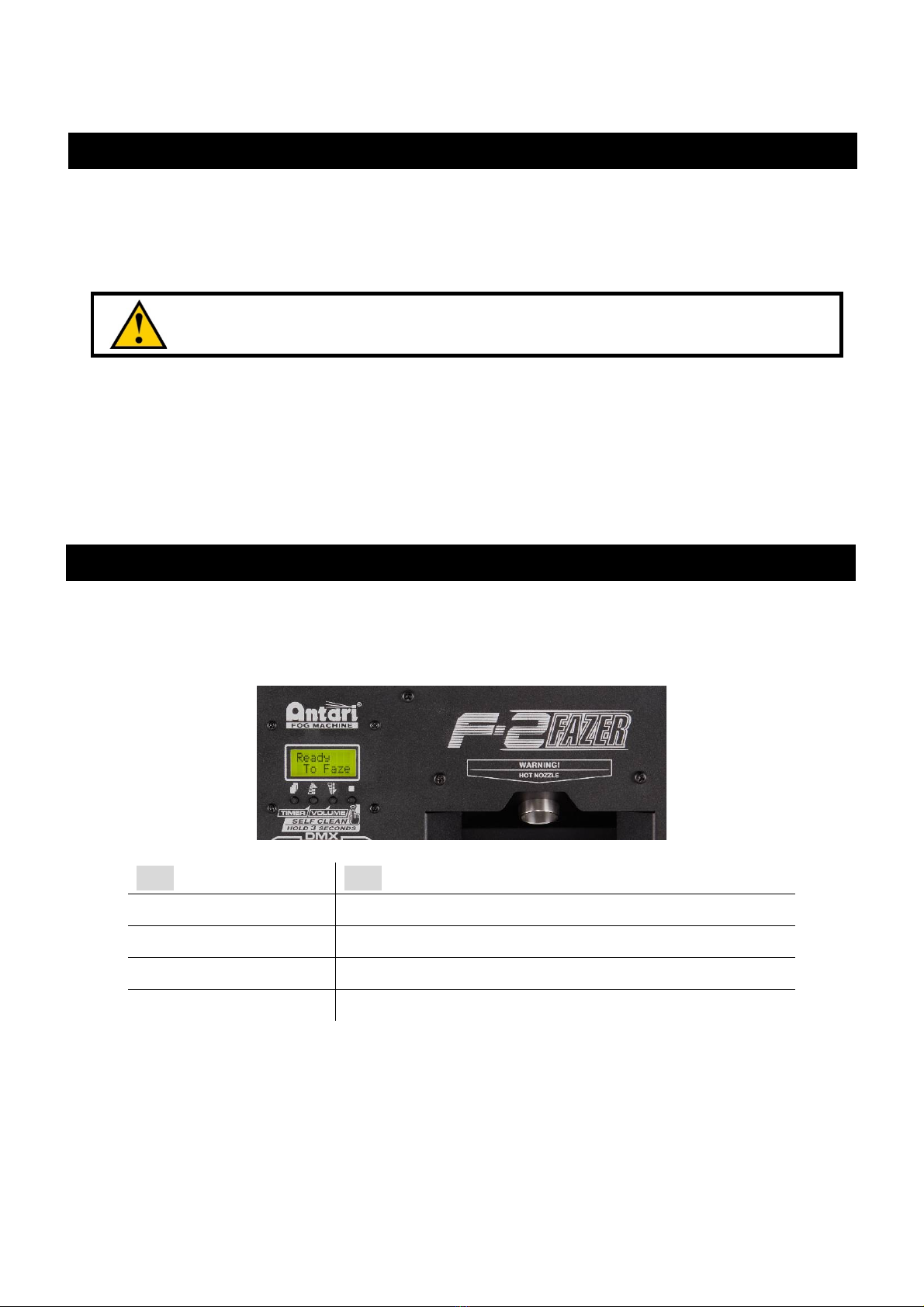

控制面板操作
F-2 可透過機器背板上搭載的數位控制面板操作。
按鍵
功能
[MENU]
瀏覽設定清單
▲ [UP]/[TIMER]
增加/啟動 定時功能
▼ [DOWN]/[VOLUME]
減少/啟動 輸出量功能
[STOP]
關閉 定時/輸出量功能

13
© 2021 Antari Lighting and Effects Ltd. www.antari.com
操作清單
設定每次煙霧輸出間隔，範圍是1至 999 秒
設定每次煙霧輸出時間，範圍是1 至 999 秒
設定定時模式下的煙霧輸出量，範圍是 1 至 100 %
設定輸出量模式下的煙霧輸出量，範圍是1 至 100 %
設定風扇轉速，範圍是 20 至 100%
設定 DMX 位址從 1 至 511
選擇 DMX 模式： 頻道 2, 頻道 1, 與同步模式(Sync)
開啟/關閉 使用上次設定數值的功能
此選單顯示當前機器軟體版本訊息
Interval
Set 999s
Duration
Set 999s
Timer
Out 100%
Volume
Out 100%
Fan
Out 100%
DMX512
Add. 511
DMX Mode
1Ch
Quick
Start OFF
Info
Ver: 1.0

14
© 2021 Antari Lighting and Effects Ltd. www.antari.com
DMX
連接
Pin
的接點說明
本機提供 3 pin 或5 pin XLR 的DMX 連接選擇，以下為 Pin 的接點說明：
Pin
功能
1
接地
2
數據-
3
數據+
4
N/A
5
N/A
DMX
操作
建立 DMX 連接 –將機器連接到 DMX 控制器或 DMX 鏈中的機器之一。本機採用的 DMX 連接座
是3-pin 或5-pin 連接座，該連接座位於機器的正面。
DMX
通道功能
通道模式
通道
數值範圍
功能
2
1
0-5
6-255
停止噴煙
煙霧輸出量 1-100%
2
6-255
風扇轉速 20-100%
1
1
0-5
停止噴煙
風扇轉速 100%
6-255
煙霧輸出量 1-100%
風扇轉速 100%
Sync
1
0-5
停止噴煙
風扇轉速 20%
6-255
煙霧輸出量 1-100%
風扇轉速 21 – 100%

15
© 2021 Antari Lighting and Effects Ltd. www.antari.com
適用煙霧水
F-2 薄煙機，僅能使用 Antari FLG 高品質濃煙霧水。機器使用 FLG 高品質濃煙霧水進行測試與
校正，使用 FLG 煙霧水將產生最佳的煙霧效果。使用其它的煙霧水，將導致機器故障並保固
失效。
維護與保養
․ 請保持機器清潔，不要讓機器髒汙。
․ 可以使用空氣壓縮機，吸塵器或軟毛刷除去機器上的灰塵。
․ 機殼可使用濕布擦拭。
․ 存放或收起機器前，請確認機器完全冷卻，以避免幫浦或加電熱管產生冷凝。
․ 建議每月至少讓機器溫機並運轉一次，以保持機器處於最佳的性能和輸出條件。
․ 機器上過多的灰塵，液體殘餘累積的髒污會降低機器工作性能，並導致散熱不良。
機器錯誤訊息
機器偵測電熱管過熱。
電熱管無法正常運作。
若控制面板顯示以上訊息，請立即將電源拔除並停止操作機器。請與當地 Antari 經銷商/零售
商連絡，尋求協助。
Heater
Overheat
Heater
Error

16
© 2021 Antari Lighting and Effects Ltd. www.antari.com
規格資料
電壓
額定功率
加熱時間
最長運作時間
油桶容量
耗油量
適用煙油
控制方式
DMX512 頻道
主電源連接座
DMX 數據連接座
尺寸
淨重
美規: AC 100-120V, 50/60 Hz
歐規: AC 220-240V, 50/60 Hz
120V 1000W
240V 1500W
(約) 1.5 分鐘
12 小時 (最大輸出量下)
5 L
6.5 ml/min (100% 輸出量)
Antari FLG 濃煙霧水
DMX 512, 手動控制
占用2頻道, 煙霧輸出量和風扇轉速
IEC
3-pin 及 5-pin XLR
長 424.1 x 寬 380 x 高 233.6 mm
14.7 kg

17
© 2021 Antari Lighting and Effects Ltd. www.antari.com

18
© 2021 Antari Lighting and Effects Ltd. www.antari.com

19
© 2021 Antari Lighting and Effects Ltd. www.antari.com

20
© 2021 Antari Lighting and Effects Ltd. www.antari.com
C08F20001
