AnthroDesk AD-DMP-1 User manual

WWW.ANTHRODESK.CA 1-800-267-1783
(Rev:181122)
ASSEMBLY INSTRUCTIONS
MODEL:AD-DMP-1
Programmable Dual Motor Standing Desk

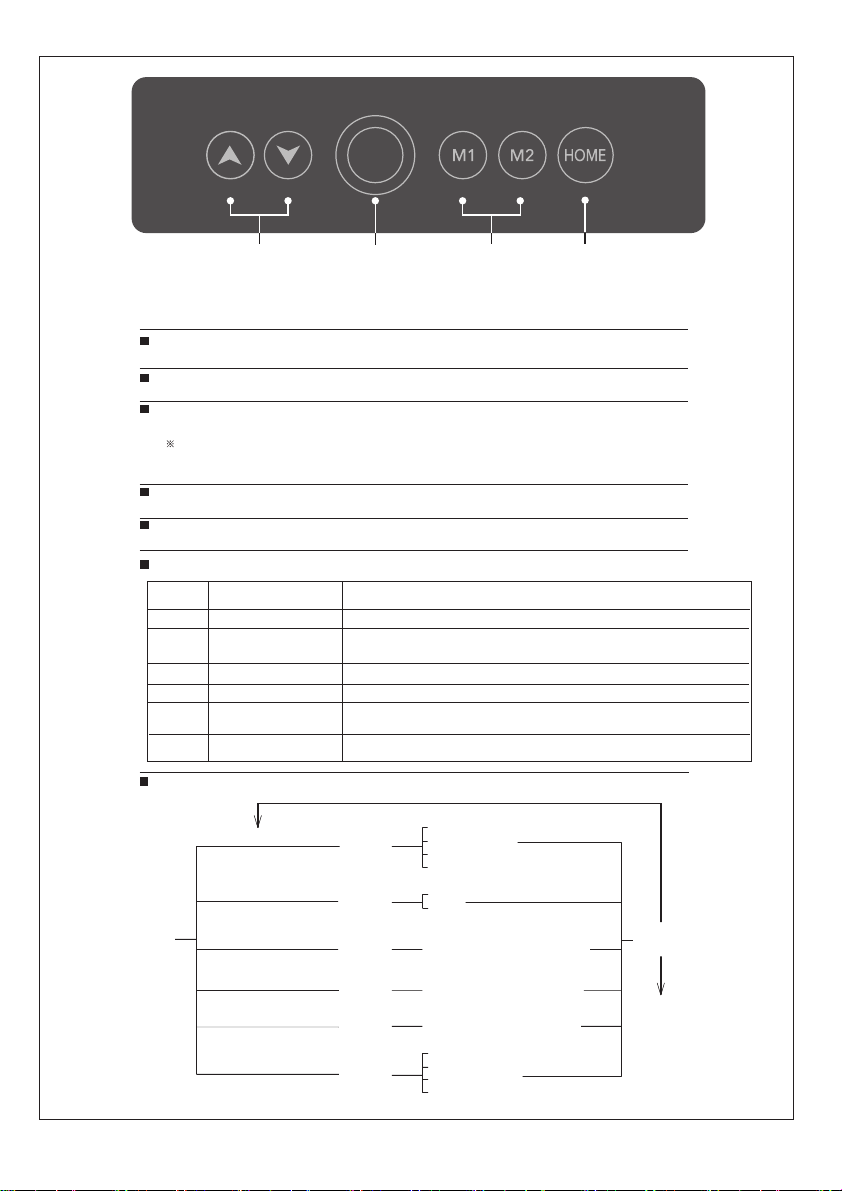

Up & Down key Display Screen
Memory Key HOME Key
UP & DOWN Keys
Please keep touching UP/DOWN key to adjust desk height until you get an optimum height.
Display Screen
Display the height value of the desk.
Handset shows error code and solution
Pess M2 BACK to the main
Sensitivity of downing
surface,all setting complete
A
anti collision
most sensitivity
1
general sensitivity
2
3less sensitivity
4anti collision OFF
most sensitivity
1
general sensitivity
2
3less sensitivity
4anti collision OFF
Pess M2 BACK to the setting
surface, the data reserved
b
Cm or inch setting
cm
1
2inch
Sensitivity of Upping
CUsing ︿ or ﹀ key to set basic height
Basic height setting
F
anti collision setting
dUsing ︿ or ﹀ to adjust the height
Minimum height setting
EUsing ︿ or ﹀ to adjust the height
Maximum height setting
Press Home key till hear
the second bee sound
（around 10s）.
use︿or﹀key to choose
A,b,C,d,E,F.
︿
﹀
︿
﹀
︿
﹀
︿
Press
﹀
Home key
Press
Home key
Press
Home key
Press
Home key
Press
Home key
Press
Home key
Setting solution for desk function
Safety Function
When the desktop is on the rise or down, encountered reverse resistance, the desk will rebound.
ER1
ER2
ER3
ER4
ER5
Error code Fault cause Solution
Motor stop
Synchro error beyond 15mm
Cable fault
Communication fault
Overload protection
Power o ffand restart. If fault still exists, it is motor problem.
Power o ffand restart. If handset display RST(DOWN key unlocked),
keep touching DOWN key to the lowest normal number.
Check motor cable o ffor broken, power o ffand restart.
Check cables for handset and controller, power o ffand restart.
2 legs Load>180kg or 3 legs load>160kg, display ER5.
Lighten loads, power o ffand restart.
Hot
Run continuously for
2.5 to 5 minutes. Overload, power protection, automatic recovery after five minutes
The whole handset surface is a touch panel. If there is no touch within 30 seconds, the screen is locked and
M1/M2/HOME keys are locked correspondingly. You can touch Up or Down keys to unlock screen. When screen
lightened, all keys unlocked and handset enter operation state.
Memory Key （M1/M2）
After seting memory keys, the desk can lift automatically to memory height.
How to set memory mode
Please keep touching M1/M2 key for 5 seconds, until "be" sound, the memory height is successfully saved.
Then light touch M1/M2, the desk moves to memory height automatically.
HOME Key
light touch HOME key. Desk height moves to 72cm automatically that is the optimum height for human body.
7
（180131)

Dual Motor Desk Assembly Manual
Electric Specifications:
Input Voltage: 100-240Vac 50/60Hz Input current ≤ 3A
Output Voltage:24V DC
Duty cycle:10%MAX 2min on 18min off
Switch power supply, low energy consumption
Desk frame part:
built-in limit switch
Dynamic load:120KG
Maximum static load:140KG
Adjustment speed:30mm/s
Lift range:640mm---1290mm
The length of the adjusting range:1070mm~1880mm
Other part:
Packing Size:1270*245*320mm 1Set
Gross weight:39.5KG
Safety and warnings
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
This marking indicates that this product
should not be disposed with
other household wastes throughout the EU.
To prevent possible harm to the environment or
human health from uncontrolled waste
disposal ,recycle it responsibly to promote the
sustainable reuse of material resources. To return
your used device,please use the return and
collection systems or contact the retailer where
the product was purchased. They can take this
product for environmental safe recycling.
Correct Disposal of this product
1
5

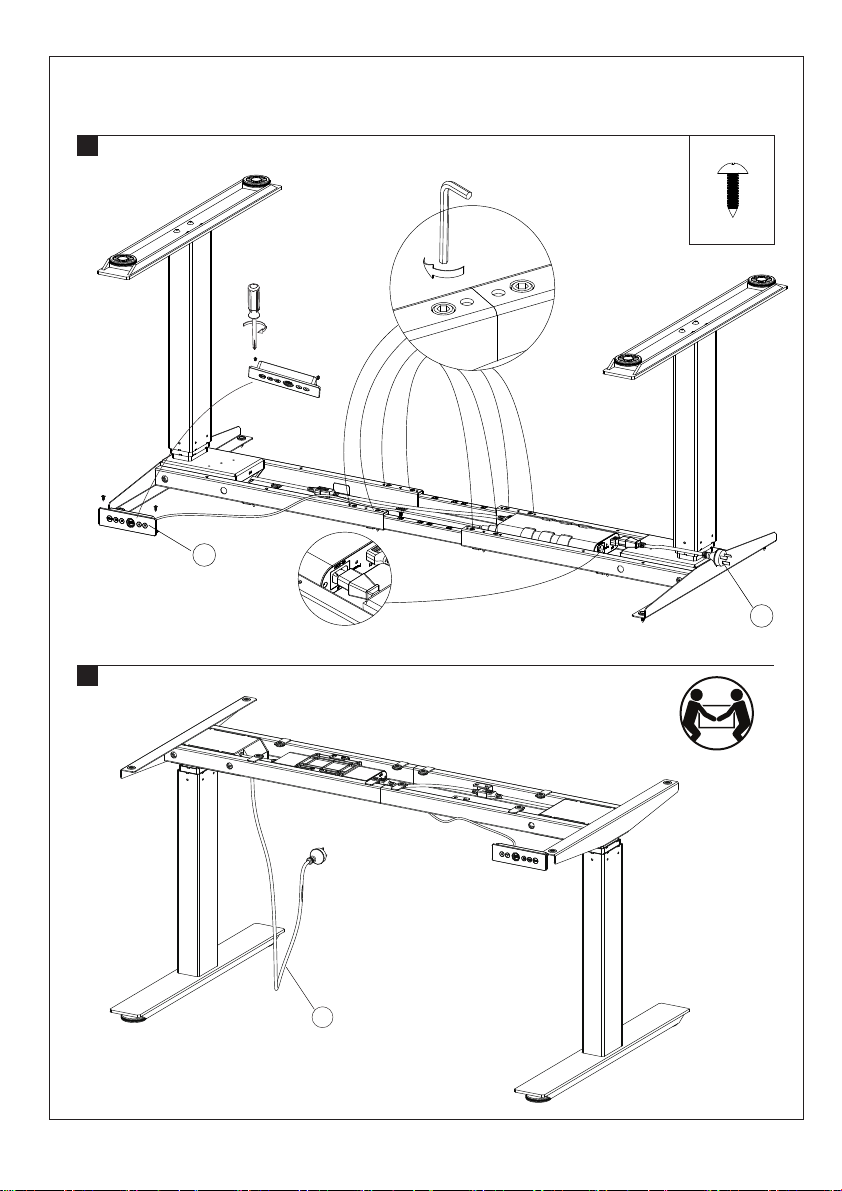

Installation instruction
7
8
6
D
D
TIGHTEN
PLUG IN
4
5
LEFT OR RIGHT
ST3.5*16(2pcs)
D

21
2
4
5
3
3

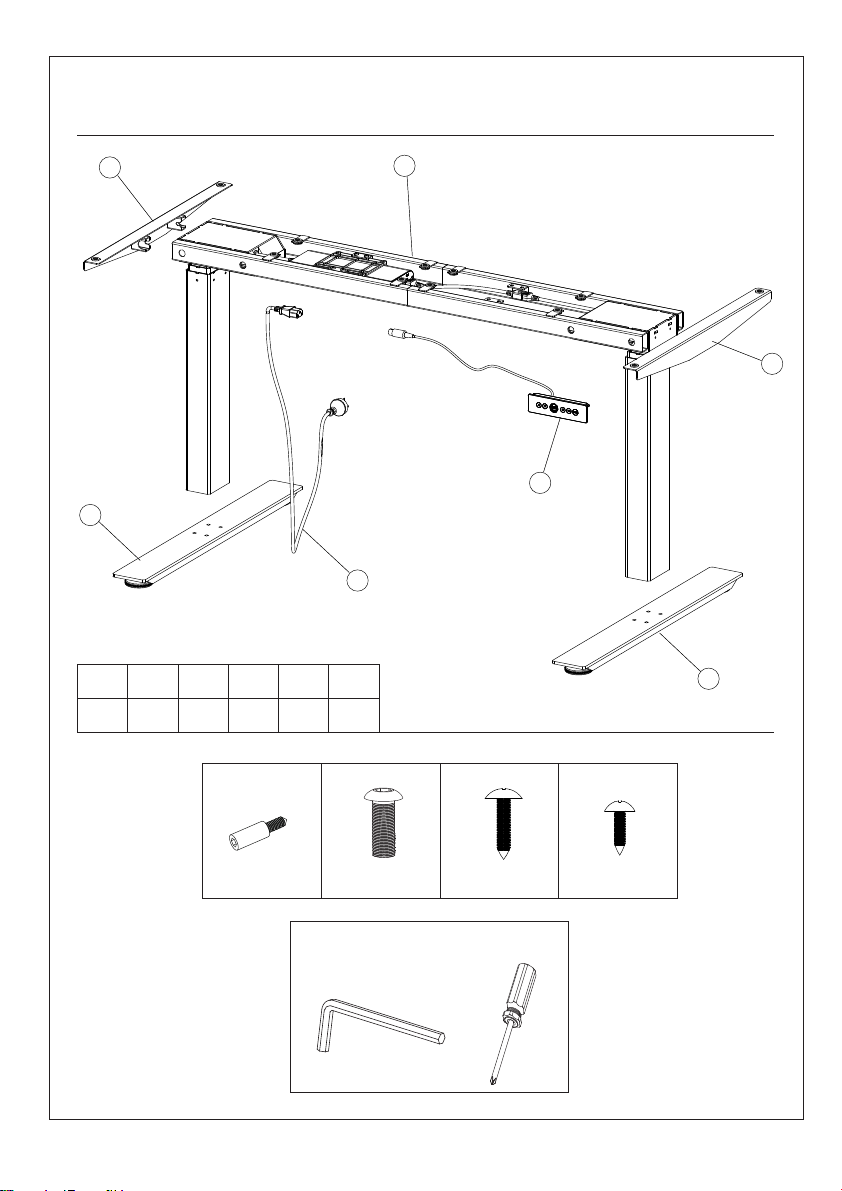

Assembly Tools
M5
Assembly Instructions
CHECK LIST
NO.
QTY.
1
1
2
2
3
2
4
1
5
1
M8*20(8pcs) ST5.0*23(12pcs) ST3.5*16(2pcs)
A B C D
M6*12(4pcs)
2

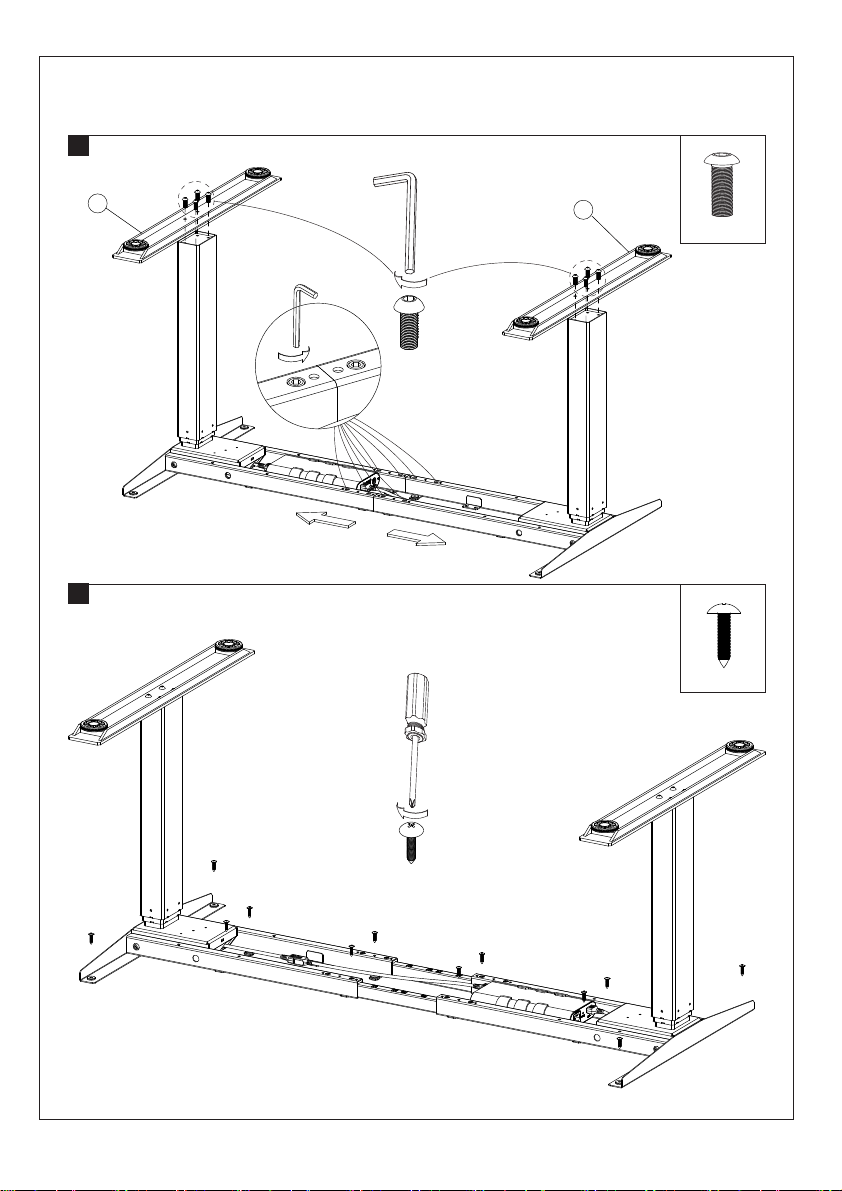

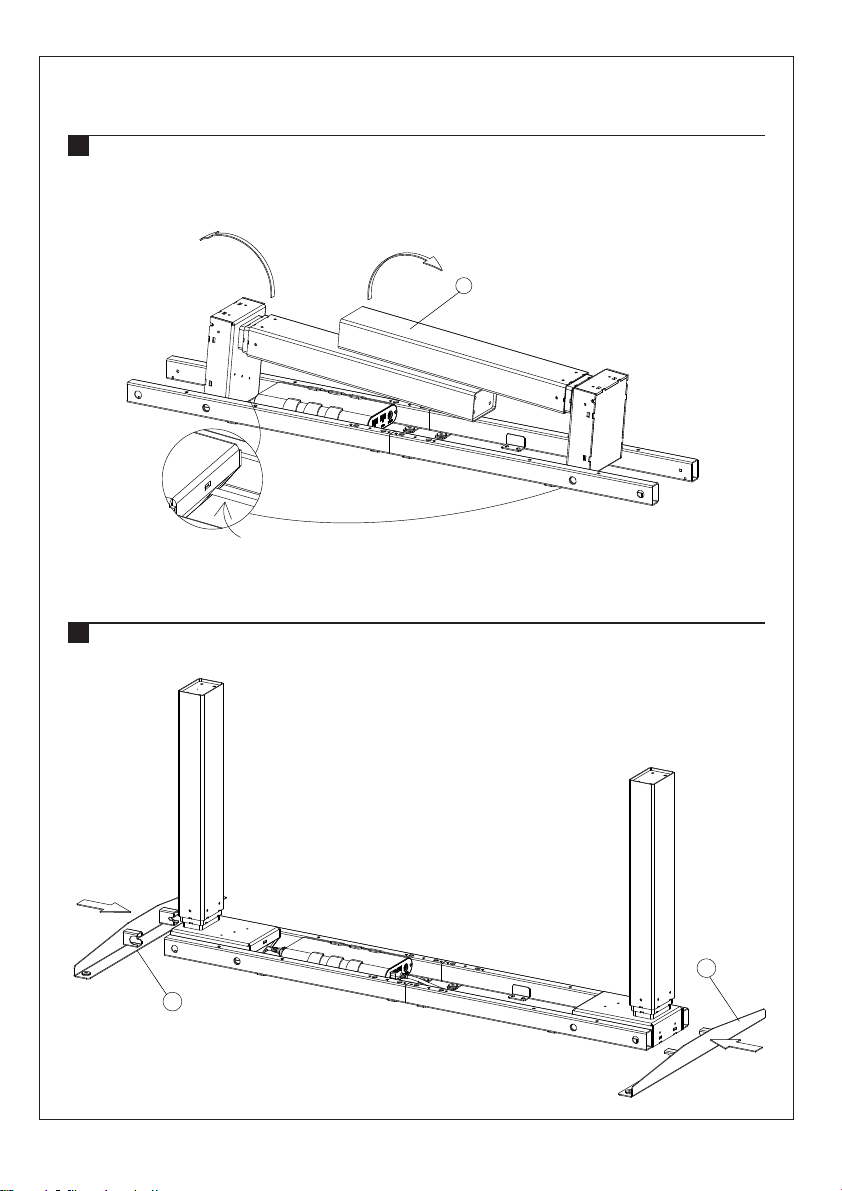

Installation instruction
5
6
5
M8*20(8pcs)
B
LOOSEN
33
ST5.0*23(12pcs)
C
(optional)
C
C
C
C
C
C C
C C
C C
C

2
2
1
USE CAUTION TO AVOID DAMAGING THE CABLES
Assembly Instructions
1
2
3
Installation instruction
M6*12(4pcs)
A
3
4
4
TIGHTEN THE SCREWS

2
2
1
BE CAREFUL THE CABLE!!!
Installation instruction
1
2
3
Assembly Instructions
M6*12(4pcs)
A
3
4
4
TIGHTEN THE SCREWS

21
2
4
5
3
3
Installation tool
M5
Installation instruction
CHECK LIST
NO.
QTY.
1
1
2
2
3
2
4
1
5
1
M8*20(8pcs) ST5.0*23(12pcs) ST3.5*16(2pcs)
A B C D
M6*12(4pcs) (optional)
2
Assembly Instructions
5
6
5
M8*20(8pcs)
B
LOOSEN
33
ST5.0*23(12pcs)
C
C
C
C
C
C
C C
C C
C C
C

A6P series parameter instruction
Electric Control Part:
Input Voltage:100-240Vac 50/60Hz Input current ≤ 3A
Output Voltage:24V DC
Duty cycle:10%MAX 2min on 18min off
Switch power supply,low energy consumption
Manual device can move and long press
Desk frame part:
built-in limit switch
Dynamic load:120KG
The maximum static load:140KG
Load speed:30mm/s
Lift range:640mm---1290mm
The length of the adjusting range:1070mm~1880mm
Other part:
Packing Size:1270*245*320mm 1Set
Gross weight:39.5KG
Safety and warnings
This appliance can be used by children aged from 8 years and above and persons
with reduced physical,sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.Children shall not play
with the appliance.Cleaning and user maintenance shall not be made by children
without supervision.
This marking indicates that this product
should not be disposed with
other household wastes throughout the EU.
To prevent possible harm to the environment or
human health from uncontrolled waste
disposal ,recycle it responsibly to promote the
sustainable reuse of material resources.To return
your used device,please use the return and
collection systems or contact the retailer where
the procuct was purchased.They can take this
product for environmental safe recycling.
Correct Disposal of this product
1
5
Assembly Instructions
7
8
6
D
D
TIGHTEN
PLUG IN
4
5
LEFT OR RIGHT
ST3.5*16(2pcs)
D

WWW.ANTHRODESK.
CA
1-800-267-1783
(Rev:181122)
ASSEMBLY INSTRUCTIONS
MODEL:D2
Programmable Dual Motor Standing Desk
Up & Down key Display Screen
Memory Key HOME Key
UP & DOWN Keys
Please hold the UP/DOWN keys to adjust desk height until your optimal height.
Display Screen
Indicates the height value of the desk.
Troubleshooting handset error codes
Sensitivity of anti-collision
A
detection system (lowering)
1 high sensitivity
medium sensitivity
2
3low sensitivity
4 anti collision OFF
1 high sensitivity
medium sensitivity
2
3low sensitivity
4 anti collision OFF
Press M2 to save the
current setting and go
back to letter selection.
Press M2 again to save all
settings and resume
regular operation
b
Cm or inch setting
1 cm
2 inch
Sensitivity of anti-collision
CUse ︿ or ﹀ to set basic height
Basic height setting
F
detection system (raising)
dUse ︿ or ﹀ to adjust the height
Minimum height setting
EUse ︿ or ﹀ to adjust the height
Maximum height setting
Press the Home key until
you hear a second "beep"
use︿or﹀key to choose
A,b,C,d,E,F.
︿
﹀
︿
﹀
︿
﹀
︿
Press
﹀
Home key
Press
Home key
Press
Home key
Press
Home key
Press
Home key
Press
Home key
Additional Desk Settings
Safety Function
The desk has a built-in collision detection feature and will stop raising/lowering if unexpected resistance is detected.
ER1
ER2
ER3
ER4
ER5
Error code Error cause Solution
Motor stopped
Sync error beyond 15mm
Cable fault
Communication error
Overload protection
Power off and restart. If error still exists, it is a motor problem.
Power off and restart. If handset displays RST(DOWN key unlocked), press the
DOWN key until the lowest height is reached.
Check motor cable for damage. If none, reconnect, power off and restart.
Ensure that handset and controller are properly connected. Power off and restart.
Error message will appear when load>180kg. Reduce load, then power off and
restart.
Hot
Desk operated continuously
for 2.5 to 5 minutes.
Overload protection will automatically stop desk. Desk will operate again after 5
minutes.
The handset is touch sensitive and will enter "sleep" mode after 30 seconds of inactivity.
Touching any of the keys will activate the handset.
Memory Key （M1/M2）
After setting memory keys, the desk can lift automatically to the saved height.
How to set memory mode
Press the M1/M2 key for 5 seconds. The desk will "beep" to indicate that the current height has been
saved. Press the M1/M2 keys and the desk will move to the set height automatically.
HOME Key
Press the Home key to move the desk to the most common sitting height of 72cm.
7
（180131)
