Antunes, AJ Roundup VS-350 User manual

P/N 1010745 Rev. H 03/07
VARIETY STEAMER
Models VS-350
Owner’s Manual
MANUFACTURING
NUMBERS:
9100700
9100710
9100712
9100714
9100720
A
S
D
L
I
S
T
E
CM
O
I
N
N
I
T
A
T
C
T
I
S
L
US
E
D

VARIETY STEAMER
2P/N 1010745 Rev. G 03/06
General
The Variety Steamer produces steam using plain tap
water for quick heating and reconstituting of food items.
Simple push-button action delivers a fully adjustable
impulse of steam. Because the amount of steam is
consistent, it removes the guesswork and produces a
uniform finished product from one operator to the next.
This manual provides the safety, installation and oper-
ating procedures for the Variety Steamer. We recom-
mend that all information contained in this manual be
read prior to installing and operating the unit.
Your Variety Steamer is manufactured from the finest
materials available and is assembled to Roundup’s
strict quality standards. This unit has been tested at
the factory to ensure dependable trouble-free opera-
tion.
OWNER INFORMATION
TABLE OF CONTENTS
IMPORTANT! Keep these instructions for future reference. If the unit changes ownership,
be sure this manual accompanies the equipment.
Warranty Information
Please read the full text of the Limited Warranty in this
manual.
If the unit arrives damaged, contact the carrier imme-
diately and file a damage claim with them. Save all
packing materials when filing a claim. Freight damage
claims are the responsibility of the purchaser and are
not covered under warranty.
The warranty does not extend to:
• Damages caused in shipment or damage as
result of improper use.
• Installation of electrical service.
• Normal maintenance as outlined in this manual.
• Malfunction resulting from improper maintenance.
• Damage caused by abuse or careless handling.
• Damage from moisture into electrical
components
• Damage from tampering with, removal of, or
changing any preset control or safety device.
Owner Information .....................................................2
General......................................................................2
Warranty Information .................................................2
Service/Technical Assistance ....................................3
Important Safety Information ....................................4
Electrical Cord & Plug Configurations .......................6
Shipping Weight ........................................................6
Electrical Ratings.......................................................6
Specifications .............................................................6
Dimensions................................................................6
Model Designation.....................................................6
Installation...................................................................7
Unpacking..................................................................7
Equipment Setup.......................................................7
Water Pressure Regulator Installation Instructions ...7
Drain ..........................................................................8
Electrical ....................................................................8
Steaming Guide ..........................................................9
Operation...................................................................10
Operator Controls....................................................10
Operating Instructions .............................................11
Programming ............................................................12
General Programming .............................................12
Factory Settings.......................................................12
Programming the Unit .............................................12
Maintenance..............................................................14
Daily Cleaning .........................................................14
Monthly: Cleaning the Steam Generator.................14
Checking and Cleaning the Water Strainer Monthly16
Technical Theory of Operation ................................18
Troubleshooting .......................................................19
Wiring Diagram.........................................................21
Replacement Parts ...................................................22
LIMITED WARRANTY ...............................Back Cover

3
VARIETY STEAMER
P/N 1010745 Rev. G 03/06
Service/Technical Assistance
If you experience any problems with the installation
or operation of your unit, contact your local Roundup
Authorized Service Agency. They can be found in the
service agency directory packaged with the equipment.
Fill in the information below and have it handy when
calling your authorized service agency for assistance.
The serial number is on the specification plate located
on the rear of the unit.
Purchased From:
Date of Purchase:
Model No.:
Serial No.:
Mfg. No.:
Refer to the service agency directory and fill in the
information below:
Authorized Service Agency
Name:
Phone No.:
Address:
Use only genuine Roundup replacement parts in this
unit. Use of replacement parts other than those sup-
plied by the manufacturer will void the warranty. Your
Authorized Service Agency has been factory trained
and has a complete supply of parts for this unit.
You may also contact the factory at 1-877-392-7854
or 630-784-1000 if you have trouble locating your local
authorized service agency.
OWNER INFORMATION (continued)
IMPORTANT
A.J. Antunes & Co. reserves the right to change specifications and product design
without notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased equipment.

VARIETY STEAMER
4P/N 1010745 Rev. G 03/06
Throughout this manual, you will find the following safety words and symbols that signify important safety issues with
regards to operating or maintaining your Variety Steamer.
WARNING
GENERAL WARNING. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment and/or
severe bodily injury or death.
WARNING
ELECTRICAL WARNING. Indicates infor-
mation relating to possible shock hazard.
Failure to observe may result in damage
to the equipment and/or severe bodily
injury or death.
CAUTION
GENERAL CAUTION. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment.
WARNING
HOT SURFACE WARNING. Indicates
information important to the handling of
equipment and parts. Failure to observe
caution could result in personal injury.
IMPORTANT SAFETY INFORMATION
In addition to the warnings and cautions in this manual,
use the following guidelines for safe operation of the
unit.
• Read all instructions before using equipment.
• For your safety, the equipment is furnished with
a properly grounded cord connector. Do not
attempt to defeat the grounded connector.
• Install or locate the equipment only for its intend-
ed use as described in this manual. Do not use
corrosive chemicals in this equipment.
• Do not operate this equipment if it has a dam-
aged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
• This equipment should be serviced by qualified
personnel only. Contact the nearest Authorized
Service Agency for adjustment or repair.
• Do not block or cover any openings on the unit.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or
counter.
The following warnings and cautions appear
throughout this manual and should be carefully
observed.
• Turn the unit off, disconnect the power
source, and allow unit to cool down before
performing any service or maintenance on the
unit.
• The procedures in this chapter may include
the use of chemical products. These chemi-
cal products will be highlighted with bold
face letters followed by the abbreviated HCS
(Hazard Communication Standard). See
Hazard Communication Standard manual for
the appropriate Material Safety Data Sheets
(MSDS).
• The equipment should be grounded accord-
ing to local electrical codes to prevent the
possibility of electrical shock. It requires a
grounded receptacle with separate electrical
lines, protected by fuses or circuit breaker of
the proper rating.
• All electrical connections must be in accor-
dance with local electrical codes and any
other applicable codes.

5
VARIETY STEAMER
P/N 1010745 Rev. G 03/06
• WARNING ELECTRICAL SHOCK HAZARD.
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR
DEATH.
- Electrical ground is required on this appli-
ance.
- Do not modify the power supply cord plug.
If it does not fit the outlet, have a proper
outlet installed by a qualified electrician.
- Do not use an extension cord with this
appliance.
- Check with a qualified electrician if you
are in doubt as to whether the appliance is
properly grounded.
• If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person.
• This equipment is to be installed to com-
ply with the basic plumbing code of the
Building Officials and Code Administrators,
Inc. (BOCA) and the Food Service Sanitation
Manual of the Food and Drug Administration
(FDA).
• Water pressure must not exceed 30 psi (2.1
kg/cm2or 207 kPa). Higher water pressures
may cause poor performance, flooding. To
reduce water pressure, install a water pres-
sure regulator and set water pressure to
20 -25 psi (1.4 - 1.7 kg/cm2or 138 - 172 kPa).
• Do not clean this appliance with a water jet.
• Do not use a sanitizing solution or abrasive
materials. The use of these may cause dam-
age to the stainless steel finish.
• To ensure proper steaming characteristics,
some calcium/mineral deposits must be pres-
ent on the generator surface. If, during clean-
ing, the surface does become free of deposits,
add plain tap water to the surface and allow
it to boil off. This will ensure proper steam-
ing characteristics by creating a thin layer of
calcium/mineral deposits on the surface.
• Chlorides or phosphates in cleansing agents
(e.g. bleach, sanitizers, degreasers, or deter-
gents) could cause permanent damage to
stainless steel equipment. The damage is
usually in the form of discoloration, dulling
of metal surface finish, pits, voids, holes or
cracks. This damage is permanent and not
covered by warranty:
The following tips are recommended for main-
tenance of your stainless steel equipment,
- Always use soft, damp cloth for cleaning,
rinse with clear water and wipe dry. When
required, always rub in direction of metal
polish lines.
- Routine cleaning should be done daily
using soap, ammonia detergent and water.
- Stains and spots should be sponged using
a vinegar solution as required.
- Finger marks and smears should be
rubbed off using soap and water.
- Hard water spots should be sponged using
a vinegar solution.
IMPORTANT SAFETY INFORMATION (continued)

VARIETY STEAMER
6P/N 1010745 Rev. G 03/06
SPECIFICATIONS
Electrical Ratings
Shipping Weight
63 lbs. (28 kg)
Electrical Cord & Plug Configurations
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.
WARNING
ELECTRICAL SHOCK HAZARD.
FAILURE TO FOLLOW THE INSTRUCTIONS IN
THIS MANUAL COULD RESULT IN SERIOUS INJU-
RY OR DEATH.
• Electrical ground is required on this appliance.
• Do not modify the power supply cord plug. If
it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not use an extension cord with this appli-
ance.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
* Indicates that the Plug comes with a Commercial Cord
** Indicates that the Plug comes with a Harmonized Cord
Dimensions
Letter
Code
Description Configuration
C
H
Commercial Cord
Harmonized Cord
**(H)C CEE 7/7, 16
Amp., 250 VAC
(Assembly Only).
*(C)S L6-30P, 30
Amp., 250 VAC.,
Straight Twist
Lock.
**(H)J IEC-309, 32
Amp., 250 VAC.,
Pin & Sleeve
R
R
3
0
A
.
2
5
0
V
.
Model and
Mfg #
Voltage Watts Amps Hertz
VS-350CS
9100700 &
9100712
208 -240 5000-6693 24-27.9 50/60
VS-350HJ
9100710 &
9100714
230 5000 21.7 50/60
VS-350HC
9100720 230 3500 15.2 50/60
UP SINGLE SHOT PROGRAMDOWN
14"
11 9/64"
(283 mm)
(356 mm) (597 mm)
23 1/2"

7
VARIETY STEAMER
P/N 1010745 Rev. G 03/06
Unpacking
1. Remove unit and all packing materials from ship-
ping carton.
2. The unit should contain the following:
• Owner’s Manual
• Authorized Service Agency Directory
• Petro Gel Tube
• Inlet Hose and Strainer Assembly
• Black Drain Tubing
NOTE: If any parts are missing or damaged, con-
tact Antunes Technical Service IMMEDIATELY at
1-877-392-7854 or 630-784-1000.
3. Remove all packing materials and protective cov-
erings from the unit.
4. Remove and wash all removable parts in soap
and water. Rinse with clean hot water and allow
to air dry.
NOTE: The steam generator surface (Figure 8) will
have a thin white coating of artificial lime deposits.
This coating is necessary for steaming character-
istics and should not be removed. Refer to the
Maintenance section of this manual for more infor-
mation.
5. Wipe all surfaces of the unit with a hot damp
cloth.
NOTE: Do not use a dripping wet cloth. Wring out
before use.
6. Re-install all removed parts.
Equipment Setup
GENERAL
When placing the unit into service, pay attention to
the safety guidelines listed in the Important Safety
Information section of this manual.
PLUMBING
NOTE: Variety Steamer models are designed to
use cold tap water at 20-25 psi (1.4-1.7 kg/cm2or
138-172 kPa).
Your VS-350 requires direct water hookup. An Inlet
Hose and Strainer assembly (Figure 2 and 2A) is
supplied with the unit. A water pressure regulator
(P/N 7000235 (Figure 2A) to feed 2 steamers or P/N
7000314 (Figure 2) to feed 1 steamer), must first be
installed.
INSTALLATION

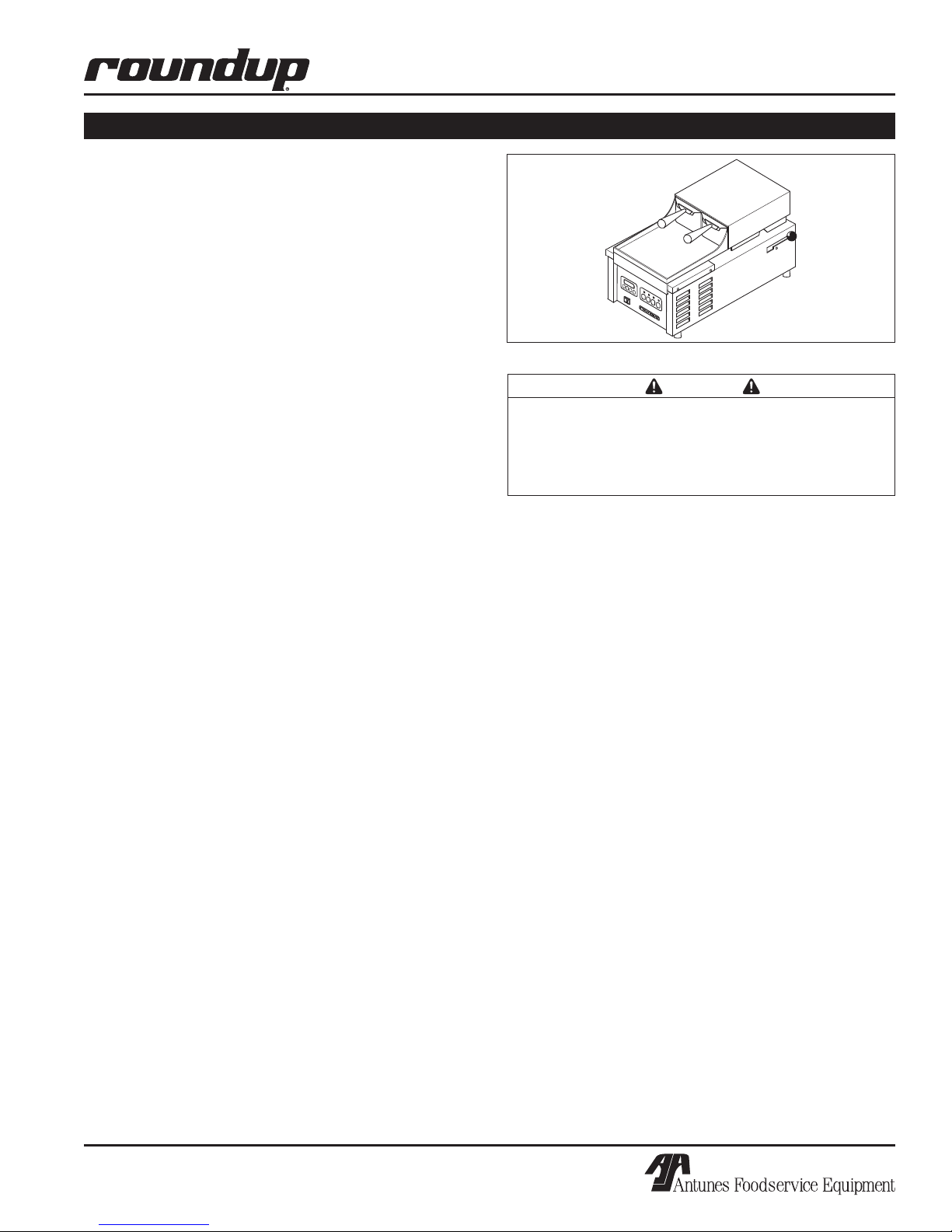

Figure 1. Variety Steamer
Water Pressure Regulator Installation
Instructions
1. Install the regulator assembly to the steamer as
shown in Figure 2 and 2A.
2. Open the shut off valve to allow water flow to the
Regulator. Ensure that the steamer pressure
regulator is set at 20-25 psi. If not, confirm that
incoming water pressure is above 25 psi and, if
so, adjust the regulator by pulling softly on the
knob and turning until the gauge reads desired
pressure. Push in the knob to lock.
NOTE: If the pressure was adjusted, the existing
pressure must be relieved in order to register the
new set pressure
3. Push the “white” plastic tip on each 1/4” elbow
Quick Disconnect (Figure 2 and 2A) and hold for
a few seconds to purge out air in the line and
allow water to flow freely into a bucket with a
steady stream.
4. Push each 1/4” elbow Quick Disconnect into the
rear of the steamer(s) until a “click” is heard.
Turn on the steamers and allow 20 minutes to
warm up. Cycle the units 3 times and check the
pressure regulator setting. If there is a change,
adjust it again to read 20-25 psi and then push
the knob in to lock. The unit is ready for use.
CAUTION
This equipment is to be installed to comply with
the basic plumbing code of the Building Officials
and Code Administrators, Inc. (BOCA) and the
Food Service Sanitation Manual of the Food and
Drug Administration (FDA).

VARIETY STEAMER
8P/N 1010745 Rev. G 03/06
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.
WARNING
ELECTRICAL SHOCK HAZARD.
FAILURE TO FOLLOW THE INSTRUCTIONS IN
THIS MANUAL COULD RESULT IN SERIOUS
INJURY OR DEATH.
• Electrical ground is required on this appliance.
• Do not modify the power supply cord plug. If
it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not use an extension cord with this appli-
ance.
• The unit should be grounded according to
local electrical codes to prevent the possibil-
ity of electrical shock. It requires a grounded
receptacle with separate electrical lines, pro-
tected by fuses or circuit breaker of the proper
rating.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
Tubing - 1/4" ID PVC (2)
Manifold/Regulator
Assembly
#8 Bracket Screws (3) Elbow, Quick Disconnect - 1/4" (3)
Cold
Water
Flow
Shut off valve (not supplied) Inlet Hose & Strainer Assy. (supplied)

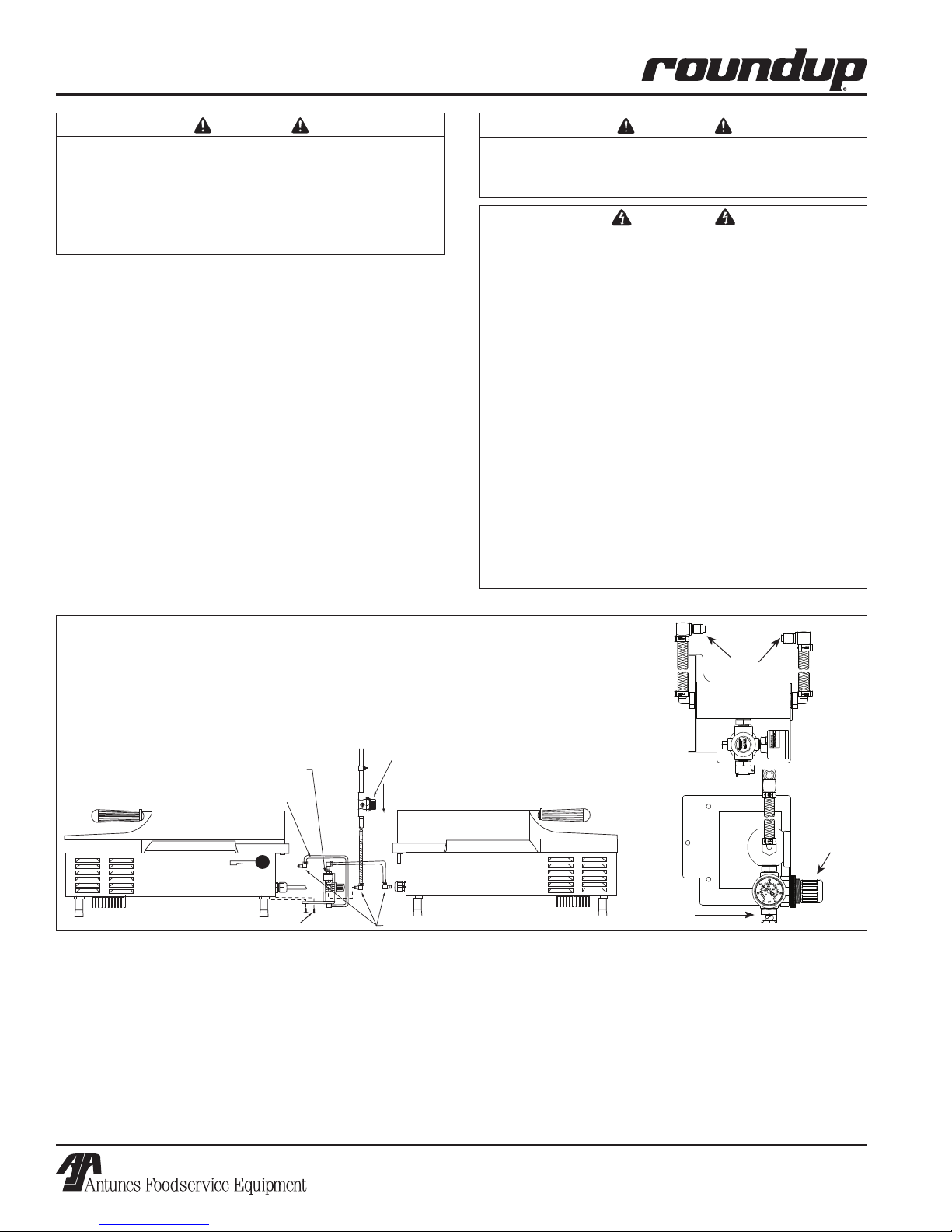

Figure 2A. Connecting Dual Manifold Water Pressure Regulator (P/N 7000235)
Drain
Connect the black drain tube (Figure 8) to the drip tray
by pressing the tub onto the drain pipe at the bottom of
the drip tray. Place the other end of the tube in a drain
or collection pan.
Electrical
1. Place the unit on a sturdy, level table or other
work surface. Be sure the Rocker Switch (Power
On/Off) is in the OFF position before proceeding.
2. Connect the unit to the power supply.
CAUTION
Water pressure must not exceed 30 psi (2.1 kg/
cm2or 207 kPa). Higher water pressures may
cause poor performance or flooding. To reduce
water pressure, install a water pressure regulator,
and set water pressure to 20-25 psi (1.4-1.7 kg/
cm2or 138-172 kPa).
!WARNING18
MISUSEOFPRODUCTMAYCAUSE
PERSONALINJURY.READASME
INSTALATION/OPERATINGINTRUCT
MADEIN USA IMI
R91G-24K-NLN
INLET 150 PSIG MAX OUTLET 125 PSIGMAX
To
Steamers
Pressure
Adjustment
knob
Inlet Water
Supply

9
VARIETY STEAMER
P/N 1010745 Rev. G 03/06
STEAMING GUIDE
The Variety Steamer makes it possible to expand a menu with just one piece of equipment. The Variety Steamer
produces a super-heated dry steam. This steam penetrates the product until the product’s temperature matches the
steam temperature. The guide below is an approximation of the number of steam shots and the time required to cook
the food item. Steam times may vary based on the state and quanitity of the food product.
PRODUCT
DESCRIPTION
DIAL SETTING TIME PRODUCT
DESCRIPTION
DIAL SETTING TIME
PreCooked
Items
VS-200 VS-350 Frozen Items VS-200 VS-350
Spaghetti 3 25 seconds Mixed
Vegetables
6 55 seconds
Rice 3 25 seconds Spaghetti 6 55 seconds
Egg Noodles 3 25 seconds Ravioli 12 1 minute, 55
seconds
Macaroni 3 25 seconds Tortellini 12 1 minute, 55
seconds
Ravioli 6 55 seconds Other
Tortellini 6 55 seconds Poached Eggs 18 2 minutes, 45
seconds
Roast Beef,
Sliced
2 15 seconds Bread Products 1-2 5-15 seconds
Shrimp 4 35 seconds
Tortilla Shell 1 5 seconds
Fresh Items
Shrimp 8 1 minute, 15
seconds
Broccoli 10 1 minute, 35
seconds
Products starting temperature is from a refrigerated state unless otherwise stated.
This is also based on a full 20 ounce basket or two individual 10 ounce baskets.
Connect Quick
Disconnect
Insert Here
Inlet Hose & Strainer
Assy. (Supplied)
Water Pressure Regulator
& Strainer Assy. (P/N 7000314) Shown
Shut Off Valve
(Not Supplied)
Cold
Water
Flow
Flexible Nylon Braided
1/4 " I.D. Tubing (Not Supplied) Elbow Quick
Disconnect
Worm
Clamp
Figure 2. Connecting Single Water Pressure Regulator

VARIETY STEAMER
10 P/N 1010745 Rev. G 03/06
OPERATION
Operator Controls
ROCKER SWITCH (POWER ON/OFF)
When the Rocker Switch (Power On/OFF) is in the ON
position, the Control Board is activated. If the genera-
tor temperature is below the factory preset setpoint,
power is applied to the generator until the setpoint
temperature is reached. The generator is constantly
monitored and power is regulated to maintain the tem-
perature setpoint.
MENU BUTTONS
When any menu button is pressed and released,
power is supplied to the solenoid, the solenoid oper-
ates, and water sprays onto the heated steam genera-
tor surface. The water flashes immediately into live
steam to heat the product.
One of two operational modes can be used: Single
Shot or Timed Cycle
SINGLE SHOT
The Single Shot button (Figure 3) is pressed and
released to initiate a single shot. The Control Board
applies power to the solenoid and a single “shot” of
steam occurs.
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
Figure 3. Operator Controls
TIMED CYCLE
The desired timed steaming cycle (up to 99 minutes
and 59 seconds) is selected by pressing and releas-
ing any of the four menu buttons (Figure 3). The main
Control Board applies power to the solenoid at regular
intervals for the duration of the displayed cycle time.
The display counts down to zero when the cycle is
complete, then reverts back to the original programmed
cycle time and the unit is ready for the next cycle.
IMPORTANT: Your steamer is factory programmed
for the following (on each of the 4 menu channels):
• Total Cycle Time = 10 seconds [00:10]
(Range: 1 second to 99 minutes and 59 seconds)
• Shot Interval Rate (RATE) = 5 seconds [00:05]
(Range: 1 second to 5 minutes and 59 seconds)
• Steam Shot Time (SHOT) = 0.70 second [00:70]
(Range: 0.10 second to 2.50 seconds)
This converts approximately 3/4 oz. (25 milliliters)
of water to steam every 5 seconds for a 10 second
steaming cycle. To change any of these settings refer
to the Programming section of this manual.
Display Window
Program Button Single Shot Button
UP and DOWN
Arrow Buttons
Rocker (Power On/Off) Switch Menu Channel Buttons
Lock Lever
Menu Channel Indicator Lights

11
VARIETY STEAMER
P/N 1010745 Rev. G 03/06
UP & DOWN ARROW BUTTONS
The actual generator temperature can be viewed by
depressing the UP arrow button (Figure 3) at any time.
The arrow buttons are used with the other buttons to
program the unit (see the Programming section of this
manual for more information).
LOCK LEVER
When in the full forward (towards operator) position,
the lock lever (Figure 8) secures the generator manifold
in position on top of the unit. Moving the lock lever to
the full rearward position unlocks the generator mani-
fold, allowing it to be removed for cleaning or servicing.
NOTE: Do NOT force the lever into position.
HI-LIMIT RESET THERMOSTAT
If the generator overheats for any reason, the Hi-Limit
Thermostat opens (trips) and cuts off power to the
generator. This can be reset by turning the unit off,
unplug the power cord, and allow the unit to cool for 45
minutes. Remove the Main Housing Cover and press
the Hi-Limit’s red reset button (Figure 8). If the Hi-Limit
Thermostat requires continuous resetting, contact your
Authorized Service Agency
NOTE: Units manufactured on or before October
2002 have an externally resettable Hi-Limit. To
reset it, remove the black protective cap located
underneath the front of the unit and press the but-
ton fully. Reinstall the cap after resetting the unit.
Operating Instructions
1. Turn the unit on and allow it to preheat for approx-
imately 30 minutes.
IMPORTANT: Do not push any of the menu but-
tons during warm-up. The word “LOW” flashes on
the display to indicate the unit is not up to operat-
ing temperature. When the cycle time is displayed,
the unit may be operated.
2. Remove baskets and place desired product into
baskets. Insert baskets into the steamer.
3. Single Shot: Press and release the Single Shot
button and wait 10 seconds for the steam to pen-
etrate the product.
Timed Cycle: Momentarily pressing any one of
the four channel buttons will begin a steaming
cycle. During the cycle, the display will count
down to zero ending with an audible tone to sig-
nal the completion of the cycle.
NOTE: Experiment by steaming product at differ-
WARNING
To avoid injury, be careful when pulling basket
assembly out from unit. Be sure to allow steam
to escape before putting hands or face over the
steamer.
ent settings until correct cycle for that product is
found.
4. When the cycle is complete, remove and empty
the basket(s). At the end of the serving day or
shift, turn off the unit and allow it to cool before
performing the daily Cleaning procedures in the
Maintenance section of this manual.
Steaming Tips
Listed below are some samples of products that have
been tested in the Variety Steamer. Recommended
settings are listed following each product. Refer to
the Programming section of this manual to setup the
steamer for any of these items (results may vary).
Experiment with your products and different steam-
ing times–a little more or less steam could change the
appearance and/or flavor.
Pre-cooked pasta is easily reconstituted, and gives you
a hot product without the wetness of the normal “dip”
method. CYC = 00.20, RATE = 00.05, SHOT = 00.55
If you serve melted cheese on sandwiches, steam is
the perfect way to melt cheese. CYC = 00.10, RATE =
00.05, SHOT = 00.40
A steamed bun (which takes about 10-15 seconds)
says “Hot Sandwich” to your customer. CYC = 00.10,
RATE = 00.05, SHOT = 00.70
Vegetables, rice, and bread products can be reconsti-
tuted by steaming before serving which reduces waste.
CYC = 00.20, RATE = 00.05, SHOT = 00.55
Dinner rolls, muffins, even tortillas can be heated com-
pletely and held without drying out the product.
Use a low plate or pan when steaming to allow
full steam penetration and shorter cooking times.
Condensation inside the steamer is normal, but excess
moisture indicates too much water is being used. See
the Programming and Equipment Setup areas of this
manual.
Heat meat and bread products apart from each other,
then combine in a sandwich. This will keep the meat
juices from soaking the bread. Finish off a special
meal with a steamed hand towel–hot without excessive
moisture.

VARIETY STEAMER
12 P/N 1010745 Rev. G 03/06
General Programming
CYC (Total Cycle Time) refers to the total amount of
cooking time set for the product (Figure 4).
RATE (Shot Interval Time) is the time set between
each shot of steam during a complete cycle (Figure 5).
PROGRAMMING
UP DOWN PROGRAM START/STOP
4 0 0 F

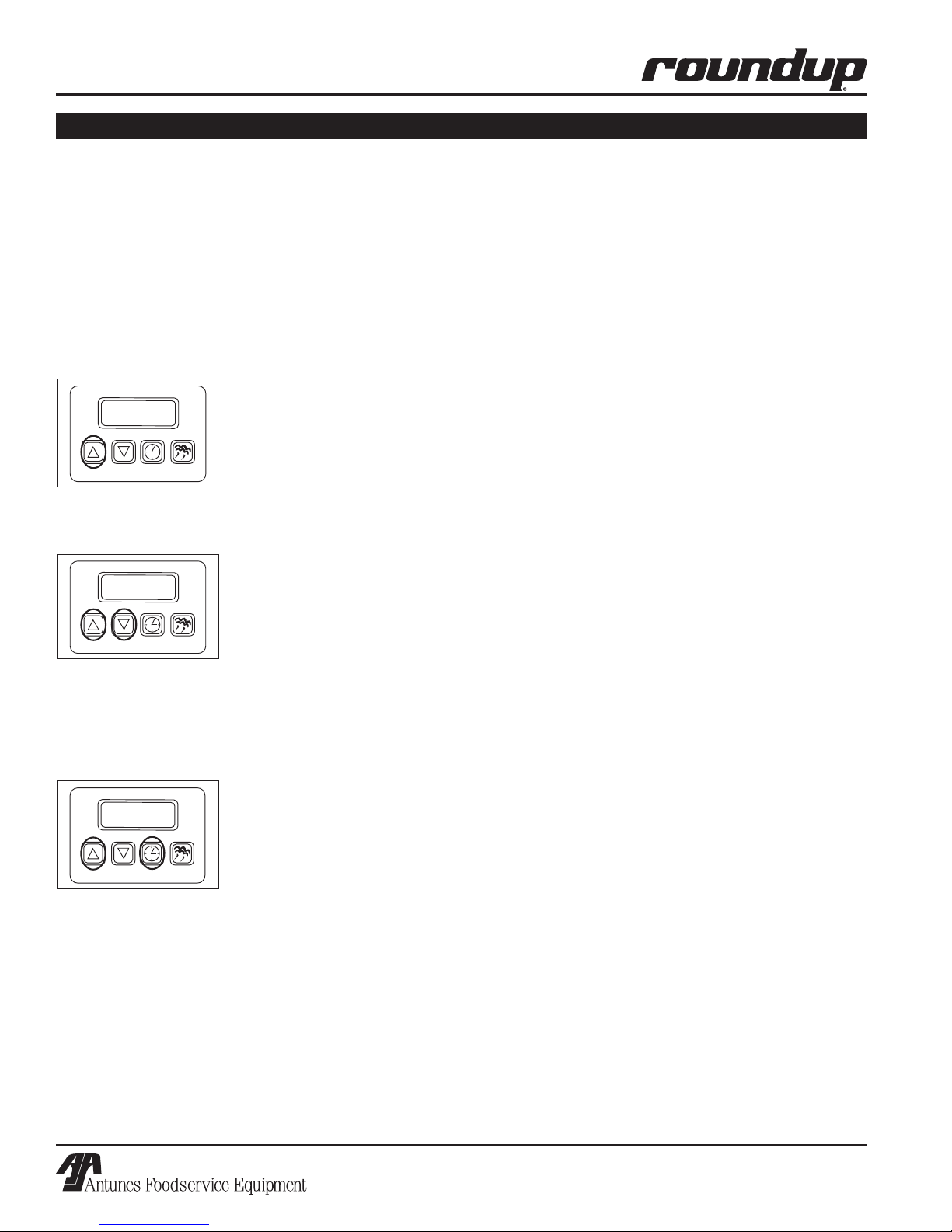

To verify or change the generator setpoint tempera-
ture, press and hold the UP and DOWN arrow buttons
simultaneously for three seconds. Then, raise or lower
the temperature by depressing the UP or DOWN arrow
buttons. Release the buttons when the desired tem-
perature is reached.
UP DOWN PROGRAM START/STOP
1 5 : 0 0
To Change the display from Fahrenheit (F) to Celsius
(C), press and hold the UP arrow and the PROGRAM
buttons simultaneously for three seconds. Repeat the
process to reverse.
UP DOWN PROGRAM START/STOP
1 5 : 0 0
To verify the actual generator temperature, press and
hold the UP arrow button. The unit will display the
actual generator temperature.
Before starting initial programming, there are three
items that should be verified.
* Check/change the setpoint temperature of the gen-
erator (it is recommended that the generator be set
at 375°F (191°C).
* Change the display from Fahrenheit (F) to Celsius
(C) or vice versa.
* Verify the generator temperature after a 30 minute
pre-heat time.
Listed below are the steps to follow for the recommen-
dations listed above.
SHOT (Steam Shot Time) is used to adjust the water
volume used during each solenoid operation (shot of
steam) (Figure 6).
The amount of steam produced by your unit depends
on the amount of water sprayed onto the steam genera-
tor surface. Flooding of the generator may occur if the
SHOT setting is too high or if the RATE setting is too
low.
To prevent this from occurring, the RATE (Shot Interval
Time) should be increased to allow more time for gen-
erator heat recovery, and the SHOT (Steam Shot Time)
can be decreased to reduce the water volume.
Adjustments should be made to both values to deter-
mine the optimum settings for your cooking needs.
Factory Settings
The VS-350 is factory programmed for the following val-
ues for each of the 4 menu channels:
CYC = [00:10] 10 seconds
(Range: 1 second to 99 minutes 59 seconds)
RATE = [00:05] 5 seconds (recommended)
(Range: 1 second to 5 minutes 59 seconds)
SHOT = [00:70] 0.70 seconds (recommended)
(Range: 0.10 second to 2.50 seconds)
These settings deliver approximately 3/4 oz. (25 millili-
ters) of water every 5 seconds for a 10 second cooking
time. Changes may be made to any of these settings.
However, for optimum performance, settings should
remain as shown above.
To restore the factory settings:
1. Turn the unit off. Press and hold the Program
and Single Shot buttons.
2. Turn the unit on while still holding these buttons.
3. Release the buttons as soon as the unit stops
beeping.
Programming the Unit
NOTE: CYC, RATE, and SHOT are sequential opera-
tions per channel for all programming (you must
perform all steps for CYC and RATE to change
SHOT).
NOTE: CYC, RATE, and SHOT are only displayed
momentarily during the programming sequence
when the PROGRAM button is pressed.

13
VARIETY STEAMER
P/N 1010745 Rev. G 03/06
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
S H O T

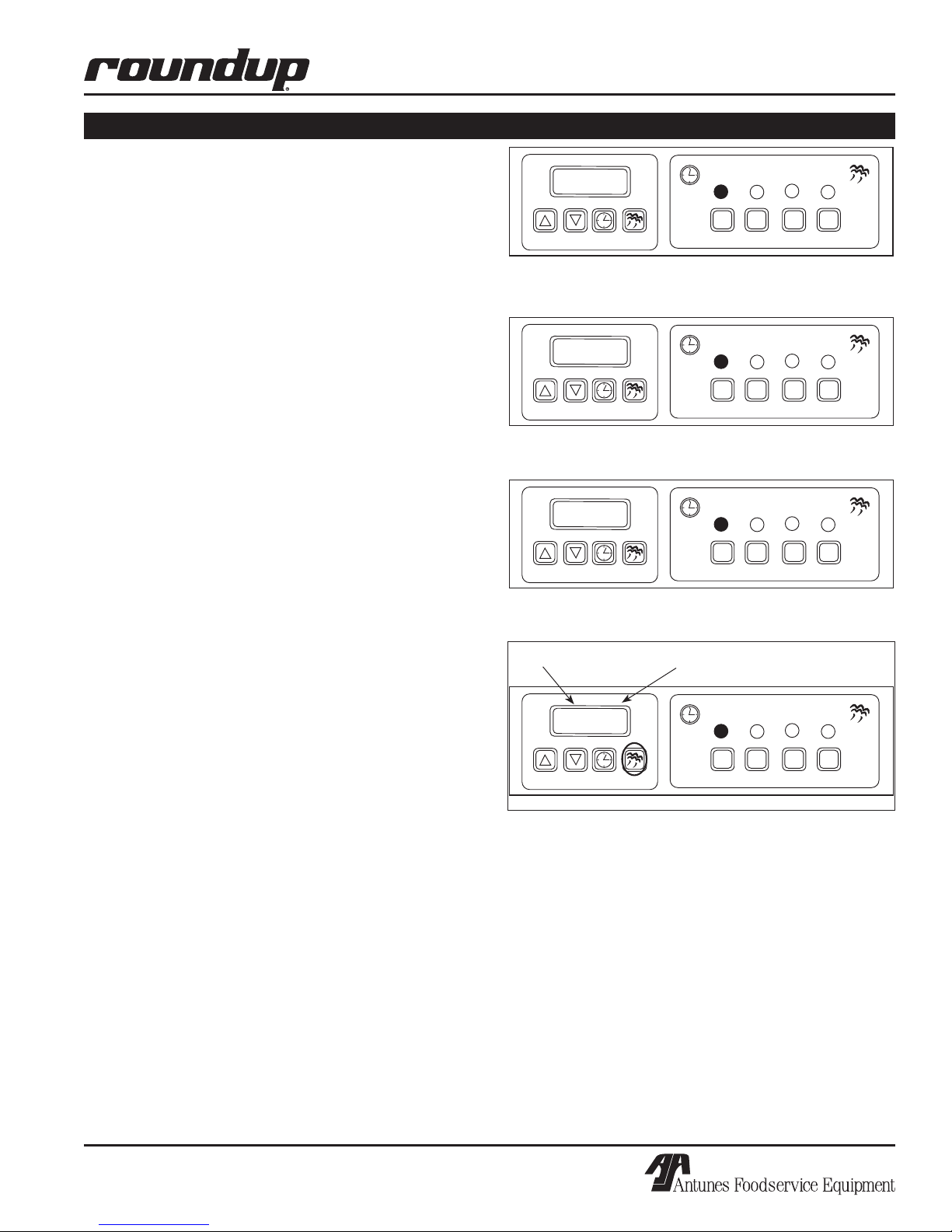

Figure 6. SHOT Mode on Menu 1
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
0 0 : 1 0
Figure 7. Programming Mode SINGLE SHOT Button
Used for Saving All Changed Settings.
CYC (Total Cycle Time)
1. Turn the Rocker Switch (power On/Off) to ON
(Figure 3). Allow 30 minutes to preheat the unit.
NOTE: During preheating, the display will flash
“LOW”. When unit reaches operating temperature,
the display shows the factory preprogrammed
(default) time in minutes/seconds (Figure 7) and the
active channel indicator light will be on.
2. Press the Program button to change the control
from OPERATION to PROGRAM mode. CYC
will appear in the display for a moment. Select
a Menu Channel (1 thru 4), making the selected
channel the active channel.
NOTE: If no change is made withing 10 seconds
at any time during the programming process, all
changes made up to that point are stored in memo-
ry and the control reverts to OPERATION mode.
3. Press the UP or DOWN arrow buttons to change
the total cycle time in minutes (Figure 7).
4. Press the PROGRAM button again, then use the
UP or DOWN arrow buttons to change the total
cycle time in seconds.
5. When finished, either:
a.) Press the selected menu channel button to
store the changes; pressing this again will start
the steam cycle.
OR
b.) Select another menu channel for change and
repeat steps 3 & 4. Changes made to previous
channels will automatically be stored.
RATE (Shot Interval Time)
6. While in Program mode (press the PROGRAM
button if not in this mode), press both the UP and
DOWN arrow buttons simultaneously. RATE will
appear in the display for a moment (Figure 5).
7. Use the UP or DOWN arrow buttons to change
the RATE setting in seconds.
8. Press the PROGRAM button again, then use the
UP or DOWN arrow buttons to change the rate
time in minutes.
SHOT (Steam Shot Time)
9. Press the PROGRAM button again and SHOT
will appear in the display for a moment (Figure 6).
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
R A T E
Figure 5. RATE Mode on Menu 1
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
C Y C
Figure 4. CYC Mode on Menu 1
10. Use the UP or DOWN arrow buttons to increase
or decrease the time.
11. Press the selected channel button to store the
changes (Figure 6) or press another channel but-
ton to store the changes and select a new chan-
nel.
12. Repeat steps 1 - 11 for any of the other Menu
Channels.
NOTE: The SINGLE SHOT button may be pressed
at anytime during programming to store any chang-
es made and execute a fixed single shot of 0.70
second.
Minutes Seconds
PROGRAMMING (continued)

VARIETY STEAMER
14 P/N 1010745 Rev. G 03/06
the steam generator hole. Take a suitable 1/16”
punching tool (such as a paperclip) and fully
insert it through all 18 orifices in the black
manifold as well as through the 10 orifices in
the spray tube. This assures the orifices are
not obstructed with debris. Wash all items in hot,
soapy water. Rinse these items and allow them
to air dry.
5. Reinstall the spray tube into the steam generator
hole and reinstall diffuser plate.
6. Lightly apply some Petrol Gel (included) onto the
large black O-ring and reinstall the O-ring onto
the manifold plate (this allows the manifold plate
to seat easily onto the steam generator). Hold
the manifold plate up to a light source and verify
that light is visible through all the orifices. If so,
seat the manifold fully onto the generator and pull
the locking lever forward to lock the plate.
7. Check that the water pressure regulator is cor-
rectly set to 20 PSI (1.4 Kg/cm2 or 138 kPa).
8. Reinstall all parts and accessories.
Monthly: Cleaning the Steam Generator
Your steamer utilizes an open steam generator. Water
sprayed onto the generator surface flashes into steam
immediately, but the minerals in the water do not
steam, they stay on the generator surface. A small
amount of calcium/mineral deposits are needed for
proper operation, but a build-up of excessive calcium/
mineral deposits causes poor steaming efficiency,
excessive moisture (wet steam) and will eventually
affect the steaming action completely.
1. Turn the Rocker Switch (power On/Off) to OFF.
Unplug the power cord and allow the unit to cool
down before proceeding.
2. Perform the Daily Cleaning procedures, but DO
NOT reassemble the unit.
3. With the unit cool, use a NON ABRASIVE brass
brush and/or scraper to loosen and remove the
excessive calcium/mineral deposits from the gen-
erator surface (Figure 8). Wipe the generator
with a clean damp cloth. Reassemble the unit.
NOTE: If deposits are still excessive and/or diffi-
cult to remove, see Step 4.
MAINTENANCE
WARNING
Turn the unit off, disconnect the power source,
and allow the unit to cool down before performing
any service or maintenance on the unit.
Daily Cleaning
NOTE: Frequency of cleaning is determined by
water conditions, usage and water filter systems.
1. Turn the unit off and unplug the power cord.
Allow the unit to cool for approximately 30 min-
utes.
2. Check the rear water quick disconnect fitting and
all hose clamp connections for leakage. If leak-
age is apparent, tighten all clamps or replace
part(s) if required.
3. Remove baskets, top cover housing assembly,
drip tray, and wash in hot, soapy water. Then,
rinse these parts and allow them to air dry.
4. Remove the Black Manifold plate by slightly lifting
and sliding the Locking lever (on the right side
of the unit) towards the rear, carefully remove
the plate and remove the large black O-ring from
the plate. Remove the diffuser plate and then
remove the spray tube by carefully lifting the
loose end and gently twisting and pulling it out of
CAUTION
Do not use a sanitizing solution or abrasive mate-
rials. The use of these may cause damage to the
stainless steel finish.
CAUTION
If a chemical cleaner is used, be sure it is safe to
use on cast aluminum. Observe all precautions
and warnings on product label.
CAUTION
Unplug power cord before moving and servicing
this appliance.
CAUTION
Failure to regularly and/or properly clean this
equipment may damage it or cause the user bodi-
ly injury.
WARNING
Refer to the instructions for cleaning and handling
the unit within the Important Safety Information
section of this manual.

15
VARIETY STEAMER
P/N 1010745 Rev. G 03/06
4. Wearing protective eyewear and gloves, pour
delimer solution (not supplied) onto the generator
surface (Figure 8). Be sure to follow the delimer
manufacturer’s directions for proper mixture and
use.

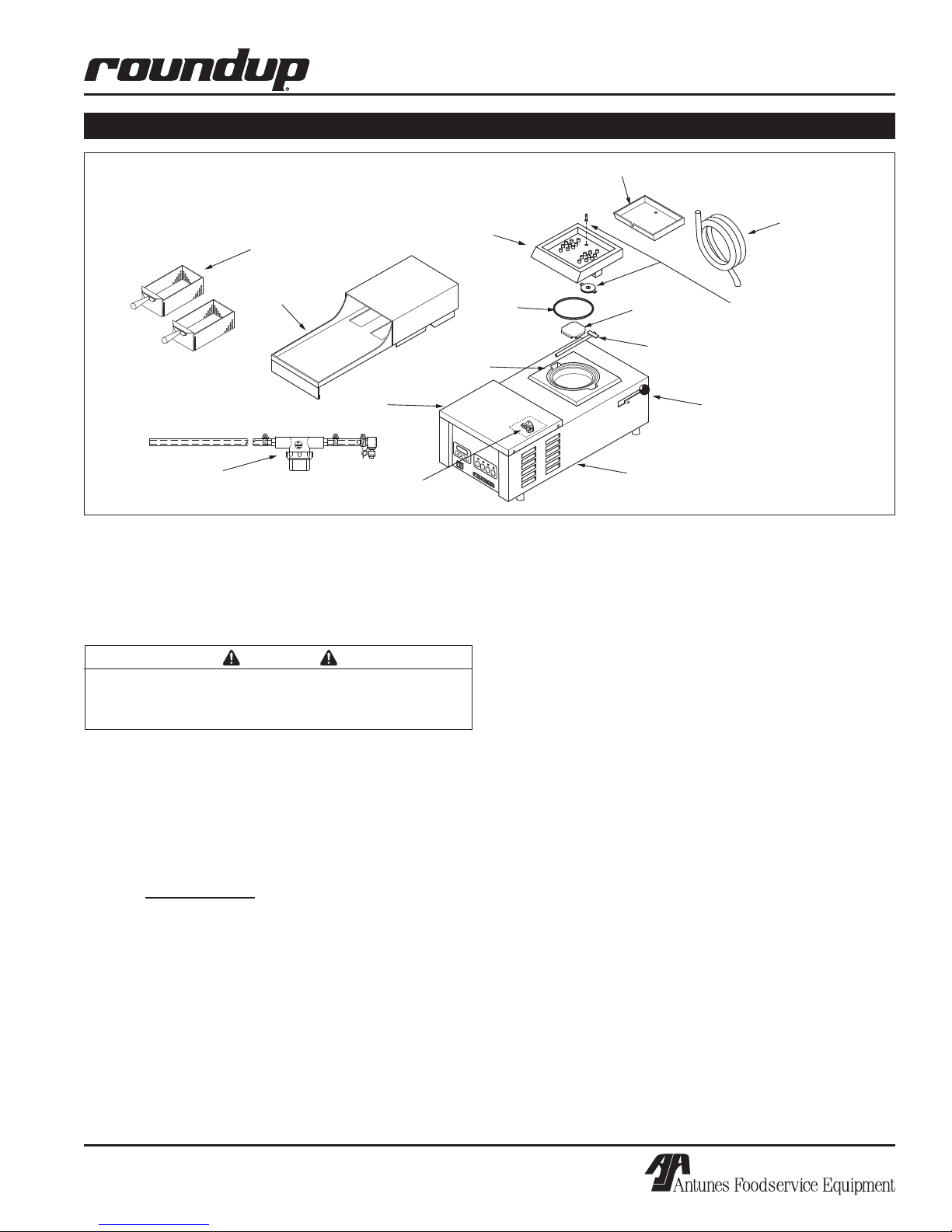

Figure 8. Variety Steamer Components & Accessories
O-ring
(must be
lubricated
daily)
Diffuser
Spray Tube
(w/ orifices)
Black Manifold
Plate (w/ orifices)
Drip Tray
Lock
Lever
Top Cover assy.
Double
Baskets
Steam
Generator
Black
Drain
Tubing
Inlet Hose Assy.
(w/ Strainer) Hi-Limit Thermostat
(inside unit)
Electrical
Housing
Cover
Older units came
equipped with an external
resettable Hi-Limit Thermostat
Pressure Relief
Plunger (assembly)
5. Using a sponge or dry towel, remove the delimer
solution from the generator. Then, rinse the gen-
erator with clear water.
NOTE: To ensure proper steaming characteristics,
some calcium/mineral deposits must be present on
the generator surface. If, during cleaning, the sur-
face does become free of calcium/mineral depos-
its, add plain tap water to the surface and allow it
to boil off. This may have to be repeated several
times in order to formulate a thin coating of depos-
its. If unsuccessful, see below.
NOTE: In soft water areas, it may be necessary to
add a small amount of lime to the generator sur-
face to “season” it. This will ensure proper steam-
ing characteristics by producing a thin coating of
calcium/mineral deposits on the generator surface.
Seasoning mixture consists of 3/4 ounces (25ml/
25cc) of baking soda, 3/4 ounces (25ml/25cc) of
lime and 1 quart (950ml/950cc) of water. Stir mix-
CAUTION
If a chemical cleaner/delimer is used, be sure it is
safe to use on cast aluminum. Observe all pre-
cautions and warnings on the product label.
ture and pour 1/4” deep into hot generator. After
mixture is converted to steam, the remaining loose
powder can be wiped off.
6. Plug power cord into electrical outlet
7. Turn Rocker Switch (power On/Off) to ON. Allow
unit 30 minutes to warm up.
8. Use the Single Shot button to cycle unit three
separate times to purge remaining delimer from
generator.
PRESSURE RELIEF PLUNGER
The Pressure Relief Plunger (Figure 8) protects the
equipment and user from any harm that can result
if the orifices of the Black Manifold Plate (Figure 8)
has not been cleaned according to the Daily Cleaning
Procedures in this manual. When the orifices become
restricted or clogged, steam pressure buiilds up within
the black manifold plate. This pressure build-up even-
tually forces the Pressure Relief Plunger to elevate
and relieve the pressure, generating a loud “whistling”
sound. If at any time this condition should occur, the
unit must be cleaned according to the Daily Cleaning
Proceduers in this manual. Maintenance procedures
are not covered by warranty.
NOTE: Be sure that the Plunger Relief Valve is
securely mounted to the Plunger Weldment.
MAINTENANCE (continued)

VARIETY STEAMER
16 P/N 1010745 Rev. G 03/06
Diagnostics
The four-channel controller is also equipped with diag-
nostic features. Listed under each drawing is a brief
description of the particular feature. Also contained in
the control housing mounted on the control board are
diagnostic LED’s. They are in three colors and repre-
sent the following:
*Green (Program): When lit, indicates factory set-
tings are being set.
* Yellow (Audio): When lit, indicates 10-15 VDC
is being supplied to the audio signal. The Audio
Signal will sound for 3 seconds.
* Red (Heat): When lit, indicates the unit is calling
for heat by supplying 3-5 VDC to the solid state
relay. When off, it indicates the heating circuit is
satisfied.
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
SHOT
HIGH will be displayed when the generator tempera-
ture exceeds the setpoint temperature by 50°F (10°C).
HIGH
Checking and Cleaning the Water Strainer
Monthly
GENERAL
The Water Strainer protects the unit from any foreign
debris in the water line that could get into the food,
damage the unit’s solenoid (causing the unit to leak or
flood), or interfere with the equipment’s proper and con-
sistent operation (Figure 10).
To ensure proper and consistent steaming results,
visually check the water pressure regulator gauge and
strainer cup regularly. If the pressure on the gauge has
dropped, visually check the clear plastic strainer “cup”
and clean out the accumulated deris as follows.
1. Shut off the water supply valve to the unit,
unscrew the clear plastic strainer “cup” and care-
fully remove the mesh strainer screen.
1/4
NPT
Item Part Description Qty.
No.
1 7000333 Water Line Strainer Kit 1
2 2040130 Male Adapter, barbed - 1/4” 2
3 7000334 Replacement Screen and O-ring Kit 1
4 2110104 Clamp, Worm (Not shown) 2
2. Take the strainer cup and mesh strainer to the
sink and gently flush all the accumulated debris
out of them, be especially careful not to damage
the mesh strainer screen.
3. Carefully place the mesh strainer screen into its
seat at the bottom of the clear plastic cup and
confirm that the orange O-ring is properly seated
in its place before screwing the Strainer cup and
top back together.
4. Purge the air out of the strainer and tubing by
disconnecting the male quick disconnect fitting
from the equipment and, over a bucket, pushing
its “white” plastic tip in until there is a good water
flow.
5. Replace damaged or worn parts as needed.
22
3
NOTE: Item 1 is made up of
shown items 2-4.
Figure 10. Water Line Strainer Kit
MAINTENANCE (continued)
* Green (Water): When lit, indicates that 24 VAC is
is being supplied to open the solenoid.
NOTE: This LED is only lit for approximately one
second.

17
VARIETY STEAMER
P/N 1010745 Rev. G 03/06
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
SHOT
PWR (Power) will be displayed when the supply volt-
age is lower than 160 Volts AC or above 265 Volts AC.
PWR
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
SHOT
OPEN will be displayed when the thermocouple is “open” or not
installed correctly. The unit will not call for heat.
OPEN
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
SHOT
TEMP indicates the control cabinet temperature has exceed-
ed 155°F (68°C) causing the unit to shut down.
The TEMP Display indicates that the control cabinet tem-
perature has exeeded 155°F (68°C). If this occurs, the unit
must be turned off for at least 20 minutes so that it can cool
off and reset. If this condition occurs again, contact your
maintenance person or Authorized Service Agency.
The Control Board monitors the control cabinet ambient
temperature and records the highest temperature. Your ser-
vice technician could find such information very useful when
troubleshooting the unit.
To determine the control cabinet’s highest temerature since
the last reset:
1. Turn the unit OFF.
2. Turn the unit back ON while pressing both the UP and
DOWN arrow buttons at the same time.
3. Read the highest control cabinet temperature recorded
on the display and release the arrow buttons.
4. Turn the unit OFF again to preserve this record.
To clear/reset this record, press both the UP and DOWN
arrow buttons simultaneously (before turning the unit OFF)
and the display will show 33°F - indicating that record has
been cleared - and then turn the unit OFF.
TEMP
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
SHOT
LOW will be displayed until the generator temperature exceeds
250°F (121°C).
LOW
UP DOWN PROGRAM SINGLE SHOT
1 2 3 4
ERR
ERR (Error) will be displayed if there is a programming
parameters error. If this message appears you will have to
clear the current parameters.
To clear the unit’s current programming and reset the unit to
its factory settings:
1. Turn the unit off.
2. Push the Single Shot and Program buttons simultane-
ously and, while turning the unit back on, continue to
hold them until you hear the Beep Stop.
3. Check the display:
• If the Display shows “ERR” again, repeat steps 1
through 2. If “ERR” still appears on the display,
contact your maintenance person or Authorized
Service Agency.
• If the Display appears normal, try a single shot
before attempting to reprogram the unit.
Review the Programming section of this manual and then
program the Menu Channel Buttons according to your cook-
ing requirements.

VARIETY STEAMER
18 P/N 1010745 Rev. G 03/06
Technical Theory of Operation
When the Rocker Switch (power On/Off) is ON, line
voltage flows to the primary side of the step down
transformer. The transformer’s secondary side supplies
12 and 24 VAC to the Control Board.
Once powered, and provided that the generator’s tem-
perature is below the setpoint temperature, the Control
Board calls for heat by supplying 3 to 5 VDC to the
Solid State Relay terminals 3 (+) 4 (-). Once powered,
the Solid State Relay then closes terminals 1 and 2,
which allows line voltage to flow to the generator.
As the generator begins to heat up, a type “K” thermo-
couple monitors the internal generator temperature. As
the heat continues to increase, so does the thermocou-
ple’s DC millivolts.
Once the generator’s temperature approaches the set-
point temperature, the Control Board begins to pulse
the VDC to the Solid State Relay. The generator’s VAC
and AMPS will also pulse during this point. When the
generator’s temperature is between the recommended
setpoints of 375 - 400° F (190 - 204° C), the thermo-
couple generates approximately 7.5 - 8.5 DC millivolts.
The Control Board receives these millivolts and pro-
ceeds to remove the 3-5 VDC to the Solid State Relay
since the heating circuit has now become satisfied.
Then, the Solid State Relay terminals 1 and 2 open up,
and the generator stops heating. The heating circuit
cycles on and off as needed, even at idle.
When the Single Shot button is pushed, it signals the
Control Board to initiate a single shot of steam. The
Control Board then supplies 24 VAC to the Solenoid
Valve for a split second. The Solenoid Valve opens and
allows approximately 3/4 - 1 ounce (4 to 5 tablespoons)
of water to be disbursed onto the generator surface
for steaming. The water is immediately converted into
steam, which is forced up through the black Manifold
Orifices to steam the product within the baskets.
Each of the four channel buttons can be custom pro-
grammed for cycle time, time between when each
steam shot occurs, and water volume used per each
shot (See the Programming section of this manual). An
audio signal will sound for three seconds at the end of
the cycle.
Two safety devices are incorporated into the VS-350:
• Hi-Limit Thermostat
• Pressure Relief Plunger
If the heating circuit continues to call for heat and the
generator overheats, a manual resettable Hi-Limit
Thermostat will trip and open the generator circuit.
If water and or steam pressure builds up beneath the
black Manifold Plate (due to restricted Manifold Plate
orifices), a Pressure Relief Plunger will elevate and vent
the steam pressure above the manifold plate.
NOTE: If any of these conditions should arise, the
root cause must be determined and corrected. See
the Maintenance section of this manual for further
details.
NOTE: All direct water fed units require a Water
Pressure Regulator. It should be set to 20-25 psi
(1.4-1.7 kg/cm2or 138-172 kPa). Failure to install a
Water Pressure Regulator will result in poor steam-
ing and flooding of the steam generator.
MAINTENANCE (continued)

19
VARIETY STEAMER
P/N 1010745 Rev. G 03/06
TROUBLESHOOTING
WARNING
To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip-
ment should be performed by qualified service personnel. The unit should be unplugged when servicing,
except when electrical tests are required.
Problem Possible Cause Corrective Action
Rocker Switch (power
On/Off) is turned on but
the Switch Indicator Light
is still off and the Control
Panel is blank
Power Cord not correctly plugged in. Plug in the power cord correctly.
The power cord and/or electrical plug
is damaged.
Inspect electrical wire, plug, and receptacle.
The main electrical panel circuit break-
er is off or has been tripped.
Reset circuit breaker. Contact your mainte-
nance person or Authorized Service Agency if
it trips again.
Rocker Switch is inoperable. Contact your maintenance person or
Authorized Service Agency for service.
The unit’s main electri-
cal panel circuit breaker
trips.
Damaged receptacle, plug, or cord; a
loose connection or an internal compo-
nent failure.
Turn the unit off, allow it to cool to room tem-
perature, and then restart the unit.
Power On/Off switch and
indicator are on but the
display is blank.
Control Board is inoperable. Contact your maintenance person or
Authorized Service Agency for service.
Transformer is inoperable.
Loose or burnt wiring in heating circuit.
Power On/Off switch is
turned on, the switch
indicator light is on, the
control panel display is
on, but the unit is not
heating up.
Heat Relay is inoperable. Reset the Hi-Limit Thermostat according to
the Operations section of this manual. If the
Hi-Limit Thermostat requries continuous reset-
ting, contact your maintenance person or
Authorized Service Agency for service.
Hi-Limit Thermostat is tripped.
Thermocouple is inoperable.
Control Board is inoperable.
Steam Generator is inoperable.
Loose or burnt wiring in heating circuit.
Unit heats but there is lit-
tle or no steam produced
and/or
The product requires
more steaming than
usual.
Water Line Valve is closed. Check that the Water Line Valve is open.
Filter Strainer is restricted. Check and clean the Filter Strainer as
described in the Maintenance section of this
manual.
Quick Disconnect is not fully engaged
at rear of the unit or is damaged.
Remove and reengage the Quick Disconnect
firmly until a “click” is heard. Replace if dam-
aged.
Low or no water pressure in water line. Remove the Quick Disconnect Insert from the
rear of the unit. While holding into an empty
cup, press the white plastic tip. Strong steady
water flow should be noted. If so, re-engage
firmly into unit. If not present, or pressure
is low, contact your maintenance person or
plumber.
Spray Tube is restricted. Remove and clean Spray Tube as described
in the Maintenance section of this manual.
Black Manifold orifices are restricted. Remove and clean the Black Manifold as
described in the Maintenance section of this
manual.
Unit is not being cleaned daily or prop-
erly.
Clean unit daily as described in the
Maintenance section of this manual.

VARIETY STEAMER
20 P/N 1010745 Rev. G 03/06
TROUBLESHOOTING (continued)
Problem Prossible Cause Corrective Action
Unit heats but there is little or no
steam produced
and/or
The product requires more
steaming than usual (continued).
Improper water pressure to unit. Verify that a water pressure regulator is
installed and set to 20 - 25 psi.
Insufficient or excessive calcium/
mineral buildup on Generator sur-
face.
Verify that a thin layer of deposits is
present on the Generator surface.
Refer to the Maintenance section of this
manual.
Channels, or Rate and Shot values
were programmed improperly.
Restore programming to original values
as described in the Programming sec-
tion of this manual and then reprogram
as needed.
Black Manifold O-ring is damaged or
missing.
Install Manifold O-ring if missing.
Replace if it is damaged.
Low Generator setpoint temperature. Verify the setpoint temperature is 375° F
(190° C) to 400° F (204° C).
Steam leaks out of the sides of
the black Manifold Plate.
Black Manifold O-ring is damaged or
missing.
Install Manifold O-ring if missing.
Replace if it is damaged.
Black Manifold is difficult to lock
and unlock onto the generator
with the sliding lever.
Black Manifold not being removed
and cleaned daily as required.
Remove and clean the Black Manifold
daily as described in the Maintenance
section of this manual.
Black Manifold O-Ring is damaged
or worn.
Replace Black Manifold O-Ring if dam-
aged or worn.
Black Manifold O-ring is not being
lubricated daily with Petro gel.
Lubricate the Black Manifold O-ring daily
as described in the Maintenance section
of this manual.
Generator is dirty. Clean or delime the Generator. See the
Maintenance section of this manual for
more information.
Unit floods overnight and/or con-
tinues to steam even when in idle
mode.
Solenoid valve is being held open by
debris from the building’s water line
piping due to no pre-strainer/filter on
the water line just before the unit.
Attempt to flush the debris out of the
valve by rapidly operating the unit on a
number of “Single Shot” cycles and then
letting the unit rest. If the unit still leaks,
contact your maintenance person or
Authorized Service Agency.
Unit is whistling during use. Unit is not being cleaned Daily and/
or properly.
See the Maintenance section of this
manual.
