9 SLICE GAS TOASTER
INSTALLATION OPERATION AND CARE OF
9 SLICE GAS TOASTER
MODEL: TSA9209
REGISTER ON-LINE TODAY
Register your warranty on-line now at www.anvilworld.com
NO WEB ACCESS
If you do not have access to the Web. Kindly register by completing
the warranty registration form and fax it to the ANVIL oce in the
country of purchase.
Failure to do so will invalidate your warranty.
4-INS-TSA9209
5
A
6
C
B
3
1
1
A
DEPT.
3
2
Last Revised
Approved By
C
B
SHEET 1 OF 2
D
NOTE : DRAWING NOT TO SCALE - IF IN DOUBT ASK
4
SCIENTIFIC ENGINEERING (PTY)LTD
C
COPY RIGHT RESERVED BY
SCIENTIFIC ENGINEERING (PTY)LTD NOT TO BE USED FOR MANUFACTURING
UNLESS APPROVED AND SIGNED BY DIRECTOR
DWG. MANAGER
2
4
NOTES : GENERAL TOLERANCE +/- O.20 UNLESS OTHERWISE STATED.
REMOVE ALL BURRS AND SHARP EDGES
Rev.
A-05
PRODUCT:

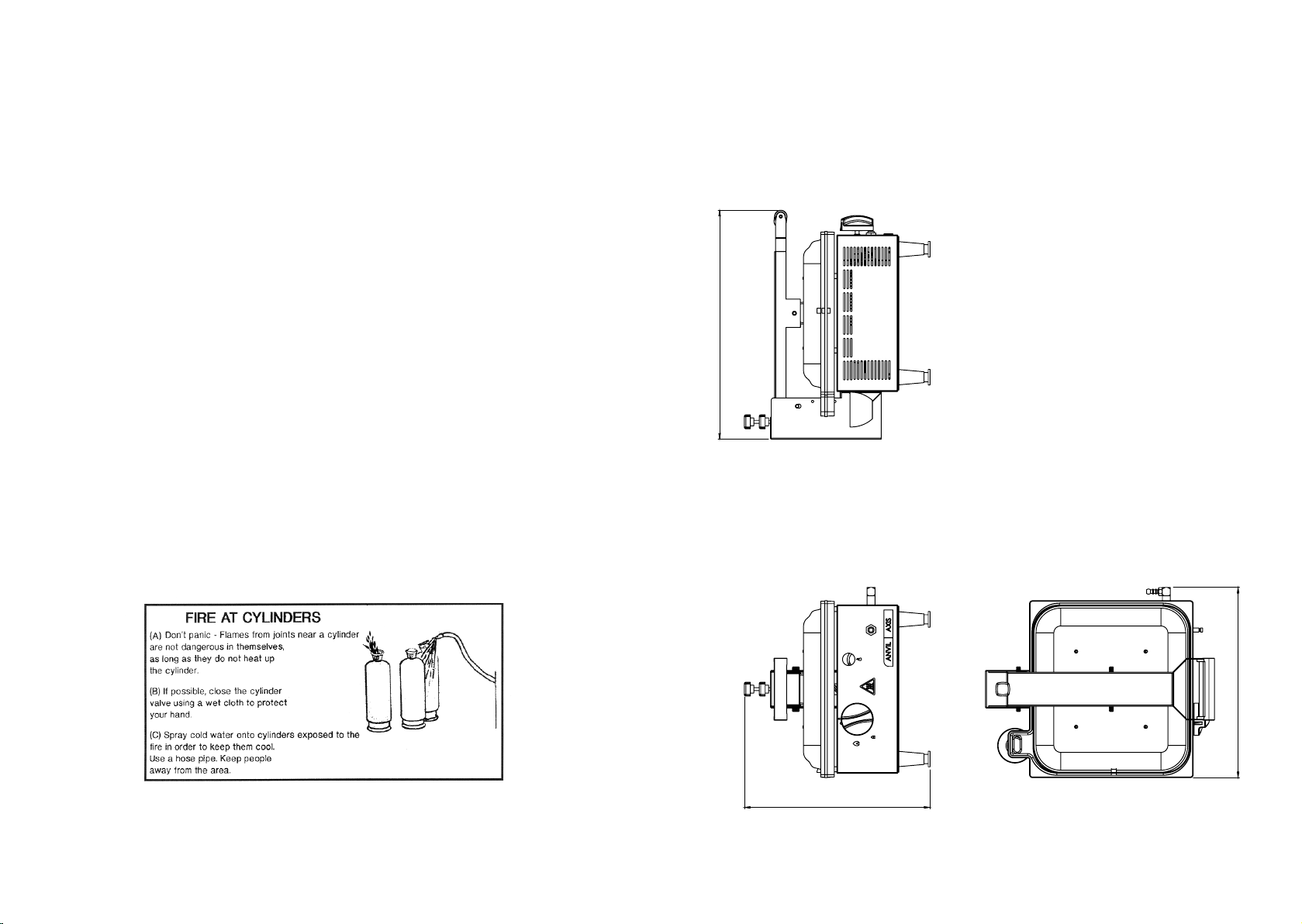

TSA9209 9 SLICE PANINI NON-STICK GAS TOASTER

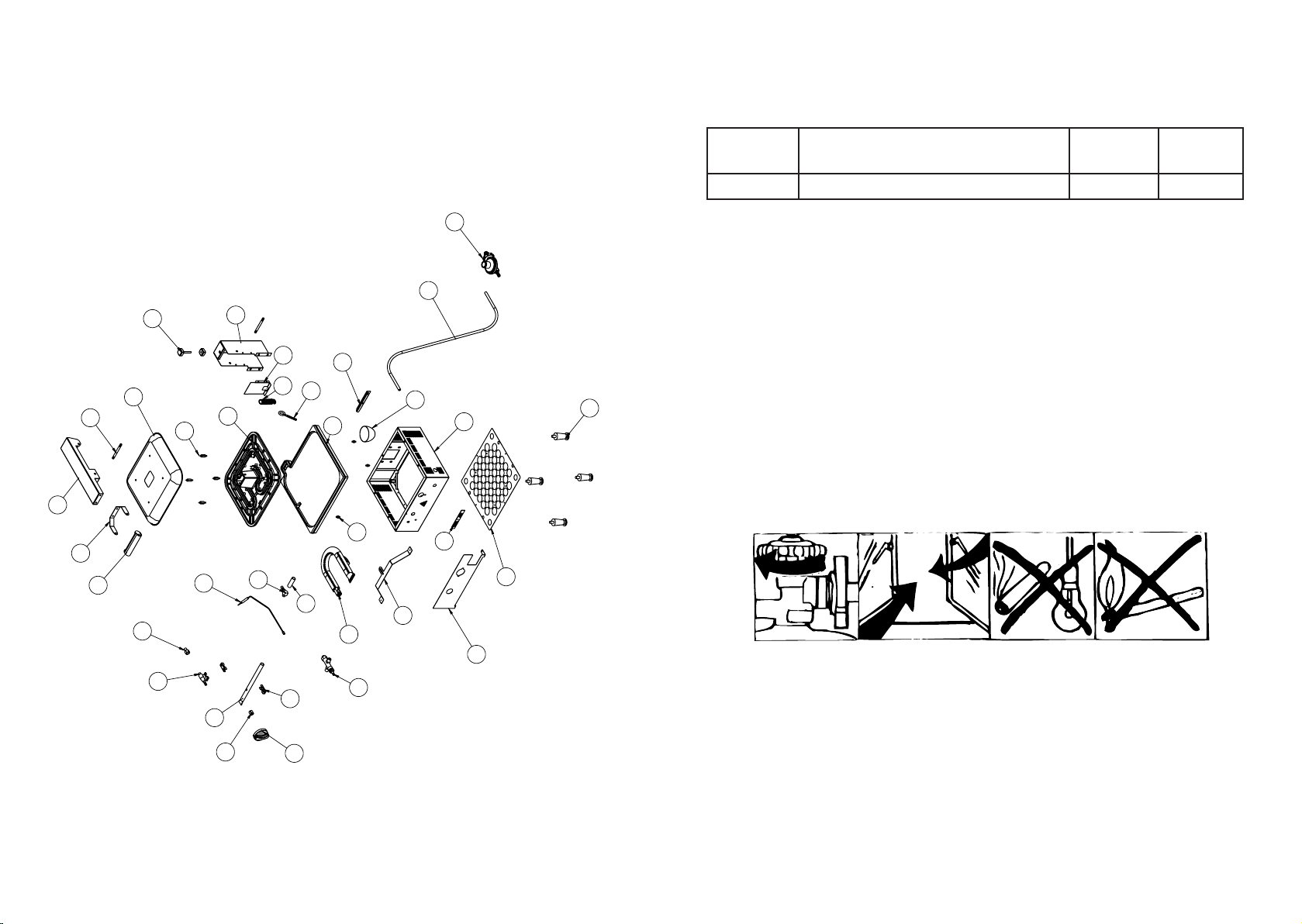

TITLE: TSA9209 MAIN ASSEMBLY
QTY: AS REQ
DRAWING NO: BC244-00-01
STOCK CODE: TSA9209
REFER TO ECR: 0814
THK:
MATERIAL:
FINISH:
DATE: 11 Oct 2017
DRAWN BY: Wade Harper
System Administrator
04 Jun 2018
WEIGHT:
LIMITED WARRANTY
All equipment which is sold under ANVIL trademark and used for
commercial purposes is warranted against defects in materials and
workmanship. The warranty runs for two years from the date of
original installation and is for the benet of the original purchaser
only. All other Warranties, expressed or implied, statutory or
otherwise, including without limitations any implied Warranty of
Merchantability or tness for purpose are excluded. The Seller shall
in no event be liable for direct, indirect or consequential damages in
connection with ANVIL commercial products.
The Sellers obligation under this Warranty is limited to the
repair of defects without charge. Defective units must be taken or
shipped,transportation charges prepaid,to ANVIL.
This Warranty is not eective if damage occurs because of accident,
carelessness, improper installation, lack of proper set-up,
supervision when required or if the equipment is installed or
operated in any manner contrary to the installation and
operating instructions. In these cases, repairs will be made at a
reasonable cost. Work performed by unauthorized personnel or
unauthorized service agencies using non Anvil spares voids this
Warranty.
THESE INSTRUCTIONS MUST BE FOLLOWED FOR US TO
GUARANTEE OUR FULL SUPPORT OF YOUR CLAIM FOR
PROTECTING AGAINST LOSS FROM CONCEALED DAMAGE.
THE FORM FOR FILING SUCH A CLAIM WILL BE PROVIDED
BY THE CARRIER.
UNPACKING
Unpack the product and check for any damage incurred during
transit. This should be reported to the responsible carrier, railway or
postal authority, and a request for a damage report should be made.
These appliances are intended for use with LPG at a pressure of
2.8kPa.
Regulators used with this appliance must comply to SANS 1237 and
be approved by the LPGASA. Only regulators certied for operation
at 2.8kPa must be used on these appliances.
GENERAL INSTALLATION AND OPERATION INSTRUCTIONS
1. This appliance should only be used in a WELL – VENTILATED
ROOM. Adequate ventilation allows for the removal of the
products of combustion and allows the entry of replacement air.
2. This appliance has a factory set xed primary air intake and
no adjustment is necessary. No adjustments to jets or air intakes
should be undertaken unless carried out by a factory approved
agent.
3. The Installation of appliances may only be carried out by a
registered installer and such installations shall comply with the
requirements of SANS 10087-1
4. Make sure that all connections are gas tight by brushing with
a soapy water or liquid detergent (a gas leak will form bubbles).
If bubbles form, close cylinder valve and hand tighten all ttings
again. IF BUBBLES STILL FORM, DO NOT USE THE APPLIANCE.
Have a dealer check the unit.
5. This toaster is for general purpose kitchen use and is
ideal for browning, melting cheese and various toasting functions.
6. The 9 Slice gas toaster is designed for optimum heat on the
bottom plate, turning of product may be necessary to achieve
even cooking on both sides.
1
NOTES:
______________________________________________________
THIS APPLIANCE MUST NOT BE USED IN BASEMENTS
OR IN ROOMS LESS THAN 15 CUBIC METRES IN
VOLUME. (TYPICALLY 2.6M SQUARE)
7. To ignite the burner a long shaft lighter must be used, the hole
on the body indicates where the burner is situated for ignition.
8. When igniting the burner, turn the burner control knob to the
‘HI’ position. Press in the shaft on the ame falure and
ignite the burner. Thereafter set theburner control to the
desired heat between ‘LO’ and ‘HI’ on the scale.
Should the ame for any reason be extinguished
unintentionally the ame failure valve will automatically cut o
the gas supply to the burner after approx 30 secs.
9. In the event of burn back, where the ame burns back and
ignites at the jet, immediately turn o the gas supply by rst
closing the control valve on the gas cylinder and then the
appliance valve. After the ame is extinguished, remove the gas
regulator and check the condition of its seal, and if necessary
replace the seal.
Should the ame light back persistently, return the product to
your authorized ANVIL repair agent.
10. To re-light the burner, follow the procedure as in paragraph 7
and 8 above.
11. Before cooking with the appliance for the rst time, turn the
controls to the maximum heat and allow the unit to BURN IN
for approximately 20 minutes.
You will notice smoke appearing due to the protective coating
burning o. THIS IS NORMAL.
12. After the burn-in time has elapsed, turn the control valve knobs
down to the required operating setting.
13. To switch o this appliance, turn the control knobs to the ‘OFF’
position and close the valve on the gas cylinder by turning the
hand wheel in a CLOCK WISE direction.
2
NOTES:
______________________________________________________
