Anvil TSK0004 R02 Owner's manual

4-INS-TSK0004
ELECTRIC TOASTER
INSTALLATION OPERATION AND CARE OF
4&6 SLICE TOASTER ELECTRIC
MODELS: TSK0004 R02/TSK0006 R02
NB:
REGISTER ON-LINE TODAY
Register your warranty on-line now at www.anvilworld.com
NO WEB ACCESS
If you do not have access to the Web. Kindly register by completing
the warranty registration form and fax it to the ANVIL oce in the
country of purchase.
Failure to do so will invalidate your warranty.
LIMITED WARRANTY
All equipment which is sold under ANVIL trademark and used for
commercial purposes is warranted against defects in materials and
workmanship. The warranty runs for two years from the date of
original installation and is for the benet of the original purchaser
only. All other Warranties ,expressed or implied , statutory or
otherwise, including without limitations any implied Warranty of
Merchantability or tness for purpose are excluded .The Seller shall
in no event be liable for direct,indirect or consequential damages in
connection with ANVIL commercial products.
The Sellers obligation under this Warranty is limited to the
repair of defects without charge. Defective units must be taken or
shipped,transportation charges prepaid,to ANVIL.
This Warranty is not eective if damage occurs because of
accident,carelessness,improper installation,lack of proper
set-up,supervision when required or if the equipment is installed or
operated in any manner contrary to the installation and
operating instructions. In these cases,repairs will be made at a
reasonable cost. Work performed by unauthorized personnel or
unauthorized service agencies using non Anvil spares voids this
Warranty.

GENERAL INSTALLATION AND OPERATION INSTRUCTIONS:
1. Install the toaster in the most convenient location for ease of
cleaning, maintenance and general operation. If this appliance is
to be positioned in close proximity to a wall, partitions, kitchen
furniture, decorative nishes, etc. it is recommended that they
be made of non-combustible heat insulating material, and the
closest attention be paid to re prevention regulations.
2. Place the bread into the respective slots in the toaster carriage
and lift the bakelite knob.
3. For optimized usage, the Anvil 4 and 6 slice toasters have the
option of variable slice settings. This enables the units to be set
for two, four or on the TSK 0006 six slices, depending on
requirements (See diagram A) .The number of slices to be
toasted for each appliance respectively can be selected by
positioning the rocker switch to the required setting (See
diagram B).
4. Set the timer to the desired toasting time required. The
respective elements will immediately switch on as well as the
“TIMER” pilot light. An audible “TING” will also sound at the end
of the time cycle.
5. When the time has elapsed, the respective toaster elements, as
well as the “TIMER” pilot light will switch o.
THESE INSTRUCTIONS MUST BE FOLLOWED FOR US TO
GUARANTEE OUR FULL SUPPORT OF YOUR CLAIM FOR
PROTECTING AGAINST LOSS FROM CONCEALED DAMAGE.
THE FORM FOR FILING SUCH A CLAIM WILL BE PROVIDED
BY THE CARRIER.
UNPACKING
Unpack the product and check for any damage incurred during
transit. This should be reported to the responsible carrier, railway or
postal authority, and a request for a damage report should be made.
page 1 page 14

Diagram A
6
slice
4
slice
2
slice
Part
No.
1WIRE GRID
2OUTER ENCLOSURE
3FACIA PANEL
4SWITCH
5CONTROL KNOB
6MECHANICAL TIMER
76 FINGER LEVER
8LEVER KNOB
9LEVER HANDLE
10 FINGER PLATE LEVER SPRING
11 CRUMB TRAY
12 FOOT
13 BOTTOM PANEL
14 INNER ENCLOSURE
15 BUZZ BARS
16 SIDE ELEMENT 370W
17 CENTRE ELEMENT 500W
18 CABLE GLAND
19 POWER CORD
Description
SIX SLICE TOASTER
MODEL CODE : TSK0006 R02
Diagram B
TSK 0006 MODEL
TSK 0004 MODEL
2 slice
4 sclice
6 slice
2 slice
4 slice
TOP TOP
TOP TOP TOP
2 SLICE POSITION
2 SLICE POSITION 4 SLICE POSITION
4 SLICE POSITION
6 SLICE POSITION
4 slice
4 slice 4 slice
2 slice
6 slice
2 slice
6 slice
2 slice
page 2page 13

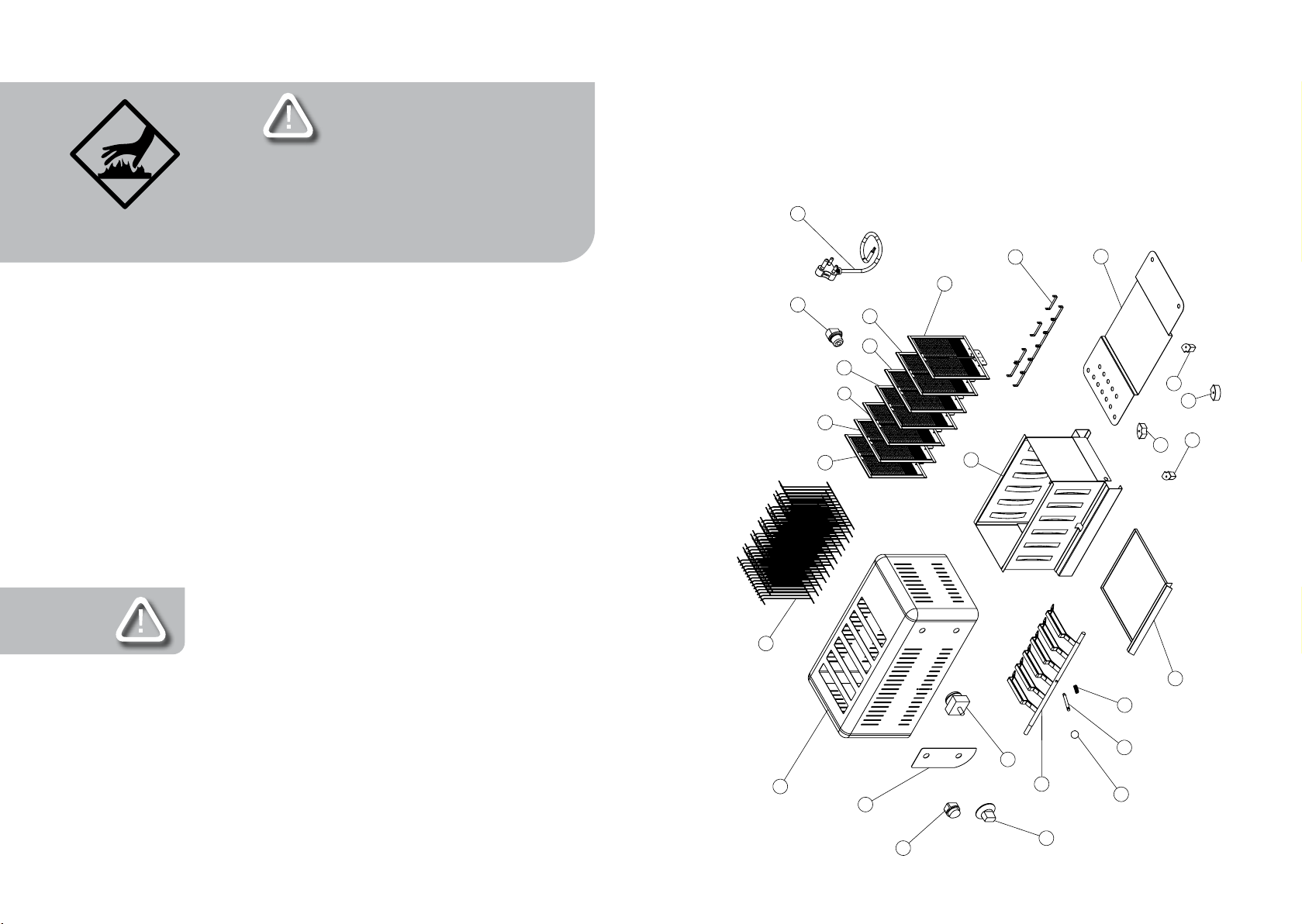

EXPLODED DIAGRAM
6 SLICE TOASTER
TSK0006 R02
14
16
1717
17
17
1716
1
6
3
4
12
57
8
11 12
13
6 SLICE TOASTER MODEL CODE: TSK0006 R01
12
12
15
2
1918
910
?
CLEANING
1. Always ensure that the unit is disconnected from the mains
power supply before cleaning
2. This toaster should not be cleaned with a water jet or immersed
in water. Use only a damp cloth or sponge dipped in soapy
water.
3. Wipe o the unit with a dry cloth and wait at least half an hour
before re-connecting to the mains outlet.
4. Remove the crumb tray from the unit by pulling forward.
5. Do not use a sharp knife or object to dislodge toasted slices
from the carriage as this may damage the elements and invali-
date the warranty
THIS APPLIANCE SHOULD NOT BE CLEANED
WITH A WATER JET OR IMMERSED IN WATER.
USE ONLY A DAMP CLOTH OR SPONGE DIPPED
IN SOAPY WATER. DO NOT USE STEEL-WOOL
WHICH WILL MARK THE BRIGHT STAINLESS
STEEL FINISH
WARNING
Burn Hazard.
Do not touch hot food,liquid or heating surfaces
while equipment is heating or operating
Hot surfaces and food can burn skin. Allow the hot surfaces to cool
before handling
page 3 page 12

Part
No.
1WIRE GRID
2OUTER ENCLOSURE
3MECHANICAL TIMER
4FACIA PANEL
5SWITCH
6CONTROL KNOB
74 FINGER LEVER
8LEVER KNOB
9LEVER HANDLE
10 FINGER PLATE LEVER SPRING
11 CRUMB TRAY
12 FOOT
13 BOTTOM PANEL
14 BUZZ BARS
15 INNER ENCLOSURE
16 SIDE ELEMENT 370W
17 CENTRE ELEMENT 500W
18 CABLE GLAND
19 POWER CORD
Description
FOUR SLICE TOASTER
MODEL CODE : TSK0004 R02
SAFETY
1. The toaster is designed to operate on alternating
current only (A.C.)
DO NOT CONNECT TO DIRECT CURRENT (D.C.).
2. Care should be taken when operating this appliance
as HOT SURFACES are present which may cause burns.
3. Models TSK0004 and TSK0006 can be connected to an individual
15A mains outlet. DO NOT OVERLOAD CIRCUIT
4. If the power supply cord is damaged it must be replaced with a
new cord assembly available from the suppliers agent.
5. Ensure that the equipment and the power supply cord does not
come into contact with hot surfaces.
6. Supervision is necessary when the appliance is used in close
proximity to children.
7. Use only earthed outlets matching the serial plate voltage.
8. Have equipment installed by a qualied personnel in accordance
with local codes and ordinances.
9. Use equipment in a at level position.
10. Do not operate unattended
11. The equipment may be hot, even though the pilot light is not on.
12. Do not operate if equipment has been damaged or is malfunc-
tioning in any way.
WARNING
Electric Shock Hazard.
Keep water and other liquids from entering the inside
of the equipment. Liquid inside the equipment could
cause an electrical shock
Do not spray water or cleaning products. Liquid could contact the
electrical components and cause a short circuit or an electrical shock.
Do not use equipment if power cord is damaged or has been modied
READ ALL INSTRUCTIONS BEFORE USE. FAILURE TO
FOLLOW THESE PRECAUTIONS COULD RESULT IN INJURY TO
YOURSELF AND OTHERS
page 4page 11

EXPLODED DIAGRAM
4 SLICE TOASTER
TSK0004 R02
16
17171716
19
1
15
3
4 5
2
6
7
8
9
12
13
14
4 SLICE TOASTER MODEL CODE: TSK0004 R01
18
12
12
12
10
11
POSITIONING DIAGRAM
4 SLICE TOASTER
TSK0004 R02
338
243
213
page 5 page 10

LEGEND DESCRIPTION PART NUMBER
H1 PILOT LIGHT 1-PL-GP
S1 SLICE SELECTOR SWITCH 1-SEL-TSK0004
E1 AND E7 TOASTER ELEMENT 370W 5-370W-TSK0004
E2/E6 TOASTER ELEMENT 500W 5-500W-TSK0004
H2 CONTROL PILOT LIGHT 1-PL-GP
T TIMER 1-TIMER-TSK0004

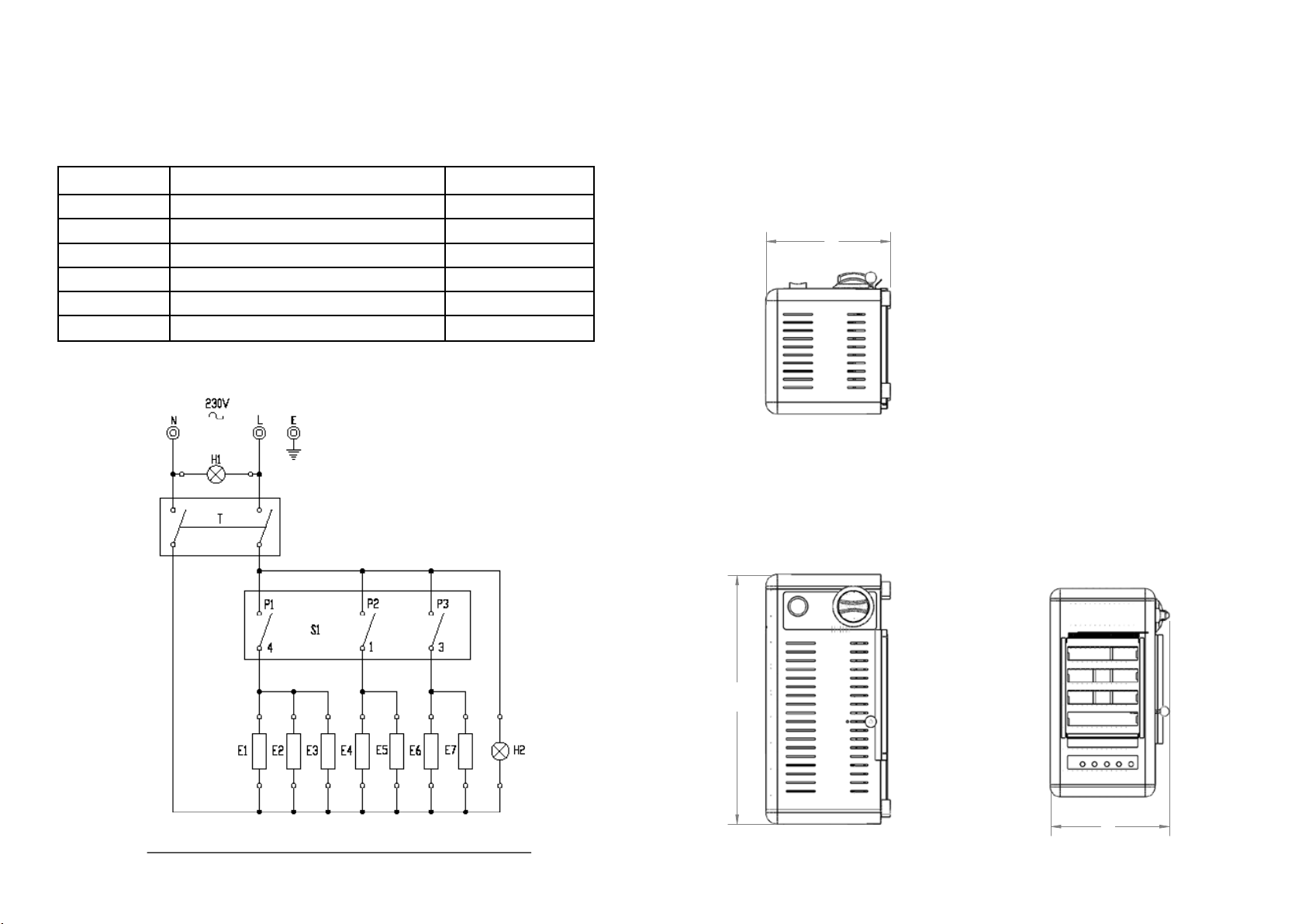

WIRING DIAGRAM
MODEL:6 SLICE TOASTER
MODEL CODE: TSK0006 R02
POSITIONING DIAGRAM
6 SLICE TOASTER
TSK0006 R02
428
243
213
LEGEND DESCRIPTION PART NUMBER
H1 PILOT LIGHT 1-PL-GP
S1 SLICE SELECTOR SWITCH 1-SEL-TSK0004
E1 AND E7 TOASTER ELEMENT 370W 5-370W-TSK0004
E2/E6 TOASTER ELEMENT 500W 5-500W-TSK0004
H2 CONTROL PILOT LIGHT 1-PL-GP
T TIMER 1-TIMER-TSK0004
WIRING DIAGRAM
MODEL:6 SLICE TOASTER
MODEL CODE: TSK0006 R02
page 6page 9

LEGEND DESCRIPTION PART NUMBER
H1 PILOT LIGHT 1-PL-GP
S1 SLICE SELECTOR SWITCH 1-SEL-TSK0004
E1 AND E5 TOASTER ELEMENT 370W 5-370W-TSK0004
E2/E4 TOASTER ELEMENT 500W 5-500W-TSK0004
H2 CONTROL PILOT LIGHT 1-PL-GP
T TIMER 1-TIMER-TSK0004

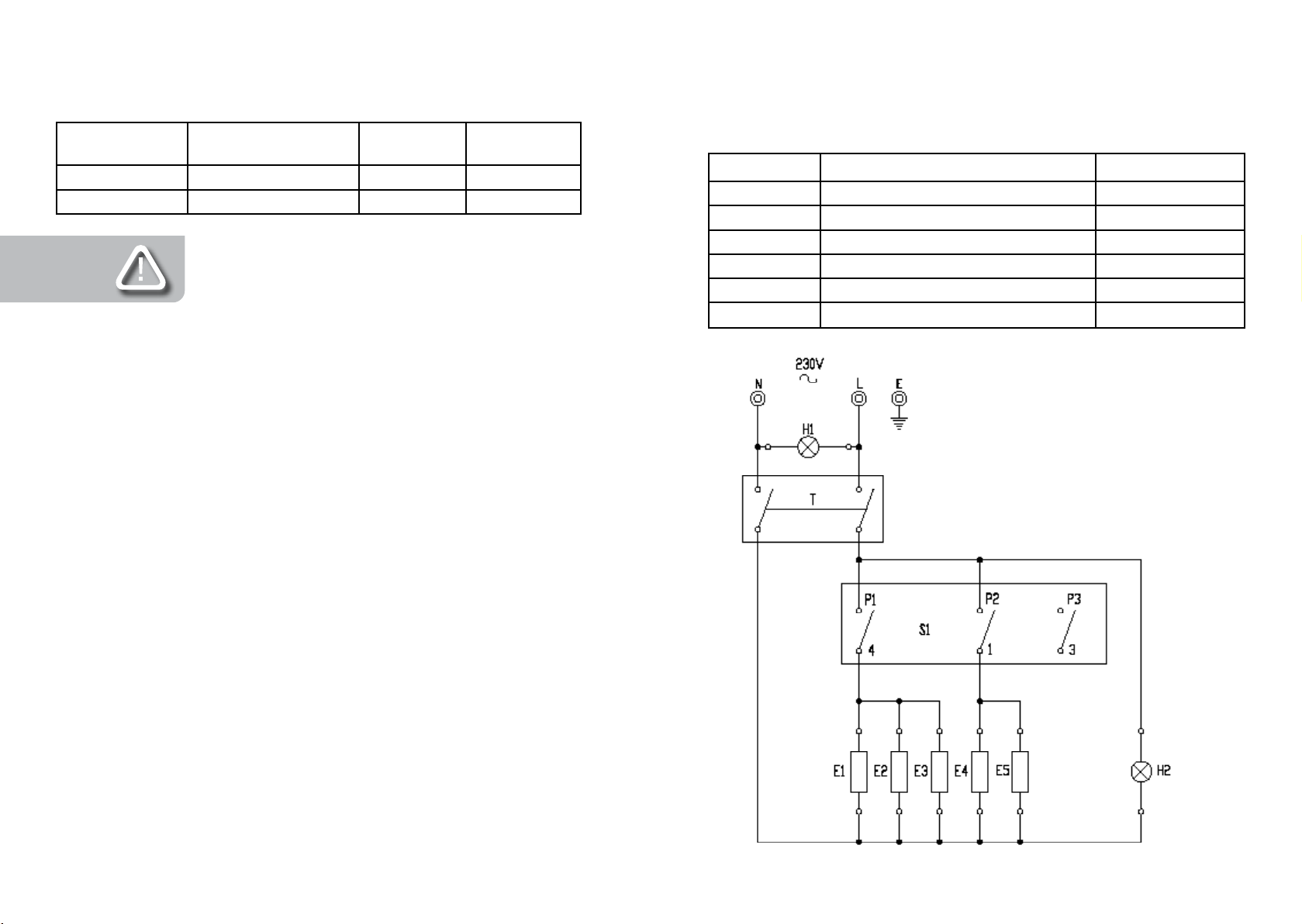

WIRING DIAGRAM
MODEL:4 SLICE TOASTER
MODEL CODE: TSK0004 R02
ELECTRICAL CONNECTION INFORMATION
MODEL DESCRIPTION VOLTS
(V/Hz)
POWER
(W)
TSK0004 R02 4 SLICE TOASTER 230/50 2240
TSK0006 R02 6 SLICE TOASTER 230/50 3240
IT IS ESSENTIAL TO MAKE SURE THAT THE INCOMING
VOLTAGE IS THE SAME AS THE RATED VOLTAGE OF THE
OF THE UNIT AS FOUND ON THE SERIAL PLATE. THE
SERIAL PLATE IS LOCATED AT THE REAR OF THE UNIT
ADJACENT TO THE INCOMING CABLE ENTRY.
LEGEND DESCRIPTION PART NUMBER
H1 PILOT LIGHT 1-PL-GP
S1 SLICE SELECTOR SWITCH 1-SEL-TSK0004
E1 AND E5 TOASTER ELEMENT 370W 5-370W-TSK0004
E2/E4 TOASTER ELEMENT 500W 5-500W-TSK0004
H2 CONTROL PILOT LIGHT 1-PL-GP
T TIMER 1-TIMER-TSK0004
WIRING DIAGRAM
MODEL:4 SLICE TOASTER
MODEL CODE: TSK0004 R02
