1. SAFETY INSTRUCTIONS
1. SAFETY INSTRUCTIONS
1. Please, carefully read these instructions.
. The turntable must be installed on a flat
horizontal surface, otherwise it won’t work
properly.
3. Use AC power source indicated in the
specification ONLY.
4. Turn on the equipment only via proper
ly earthed sockets.
5. Never use a damaged power cable.
6. When using an extension piece, make sure
that the total current value doesn’t exceed
the permissible one.
Figure 1.1
Figure 1.2
All manuals and user guides at all-guides.com

5
1. SAFETY INSTRUCTIONS
7. The total current consumed by all devices
through the common outlet should not ex
ceed its rated current.
8. Always turn off the turntable if the power
cable or socket is damaged, if liquid has
got inside the turntable or if the turntable
works improperly.
9. After switching the turntable off DO NOT
switch it on again before seconds have
elapsed.
10. Always switch off your turntable by using
the button on the power panel.
11. Never take the plug out of the socket
before the indicators on the control panel
go off.
1 . Before cleaning the table disconnect it
from the power source.
13. Never use volatile flammable liquids
to clean the turntable.
Figure 1.3
All manuals and user guides at all-guides.com

6
1. SAFETY INSTRUCTIONS
14. DO NOT perform maintenance and repair
of the turntable yourself. In case of any
trouble contact ANYTHING3D.
15. Make sure that during rotation the turnta
ble spinning surface doesn’t contact with
the external objects.
16. See to it that the load on the turntable is
as close to the center as possible or else it
might cause damage to the turntable.
(Fig. 1.4)
17. Never place the photographed objects on
the turntable while it is spinning.
CorrectIncorrect
Figure 1.4
to contents
All manuals and user guides at all-guides.com
all-guides.com

7
1. SAFETY INSTRUCTIONS
All manuals and user guides at all-guides.com

8
2. INTRODUCTION
2. INTRODUCTION
ANYTHING3D XT100 AND XT350 MOTOR
IZED TURNTABLES are intended for automa
tion of 3D photography process. With 3D
photography the objects you are taking pic
tures of can be seen on the computer screen
and you can get the complete visual informa
tion about all their features! Our turntable lets
you get the 3D images series of any object
you choose. This widely adaptable kind of 3D
images is in great demand. They could be
used in Internetshops, on the model agen
cies sites, at the advertising shows, presen
tations, etc.
XT350 model 39" in diameter is intended
for making the photos of people and large
objects. XT350 turntable is capable of
bearing the heavy objects with a weight of
up to 350 lb.
XT100 model is 0" in diameter and bears
the objects with a weight of up to 100 lb.
XT350 and XT100 turntables have the
same indication, controls and functional abil
ities. In addition to the common function
abilities ХТ350 turntable is equipped with a
frame number sound indication, as well as
with a pullout handle and wheels to move the
turntable around your photo studio.
The turntable enables a series consisting of
different quantities of images (3 , 16 or 8
frames). You may take any number of frames
depending on your quality and technical re
quirements. A series of 3 frames produces a
All manuals and user guides at all-guides.com

9
2. INTRODUCTION
All manuals and user guides at all-guides.com

10
2. INTRODUCTION
highquality 3D photo with a bigger file size. A
series of 8 frames gives the smallest file size
and requires the least time to be loaded
through the Internet. A series of 16 frames is
a compromise between quality and file size.
ANYTHING3D XT100 AND XT350 MOTOR
IZED TURNTABLES render 3D photography
as simple as 1, ,3! You may take pictures in
manual, semiautomatic or automatic
modes. The enhanced indicating system
gives you complete control over the process
of photography. Due to its adjustment sys
tem the turntable is well adaptable to the var
ious photo studio equipment and cameras.
The best results will be attained by means of
using a modern digital camera and a set of
the studio lighting equipment as in this case
you make the best of all the turntable appli
ances for automatic photography in order to
compile a 3D series.
The original Anything3D software included in
the complete set offers a wide variety of 3D
series processing options and their further
usage.
All manuals and user guides at all-guides.com

11
2. INTRODUCTION
to contents
All manuals and user guides at all-guides.com
all-guides.com

12
3. COMPLETE SET OF EQUIPMENT
3. COMPLETE SET OF EQUIPMENT
1. Turntable (XT350 or XT100)
XT350
Figure 3.1
Figure 3.2
Figure 3.3
. Power cable
XT100
3. Remote control
All manuals and user guides at all-guides.com

13
3. COMPLETE SET OF EQUIPMENT
Figure 3.4
Figure 3.5
Figure 3.6
4. Turntable sync cable (intended for con
nection to the studio flash sync terminal
through the splitter)
5. Splitter (for connection to the studio flash
sync terminal)
6. colored covers for the turntable rotating
surface
7. Manuals
8. Software CD
to contents
All manuals and user guides at all-guides.com

14

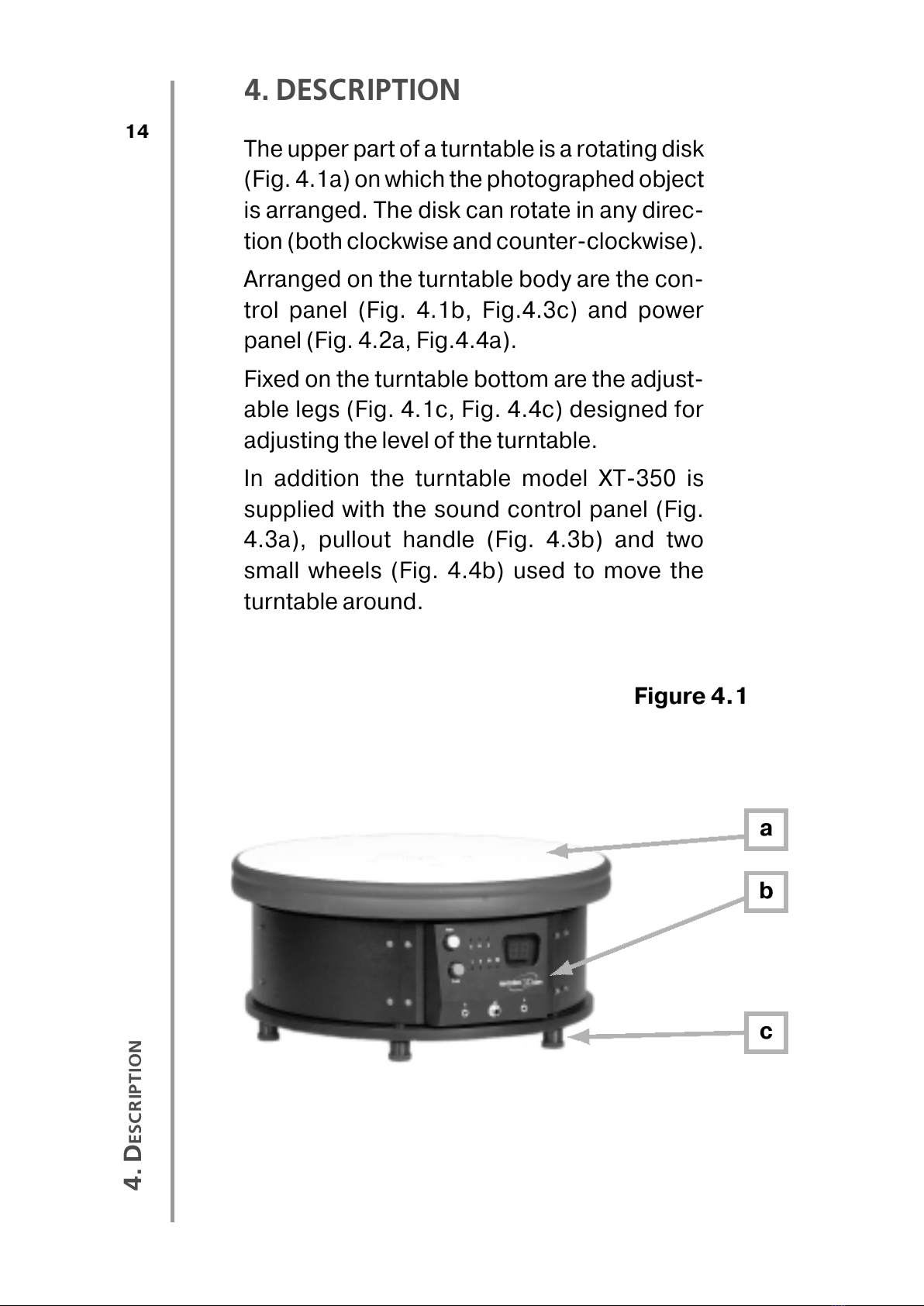

4. DESCRIPTION
4. DESCRIPTION
The upper part of a turntable is a rotating disk
(Fig. 4.1a) on which the photographed object
is arranged. The disk can rotate in any direc
tion (both clockwise and counterclockwise).
Arranged on the turntable body are the con
trol panel (Fig. 4.1b, Fig.4.3c) and power
panel (Fig. 4. a, Fig.4.4a).
Fixed on the turntable bottom are the adjust
able legs (Fig. 4.1c, Fig. 4.4c) designed for
adjusting the level of the turntable.
In addition the turntable model ХТ350 is
supplied with the sound control panel (Fig.
4.3a), pullout handle (Fig. 4.3b) and two
small wheels (Fig. 4.4b) used to move the
turntable around.
Figure 4.1
a
b
c
All manuals and user guides at all-guides.com

15
4. DESCRIPTION
Figure 4.4
ba с
cba
Figure 4.3
Figure 4.2
a
