Aobosi WC138B User manual

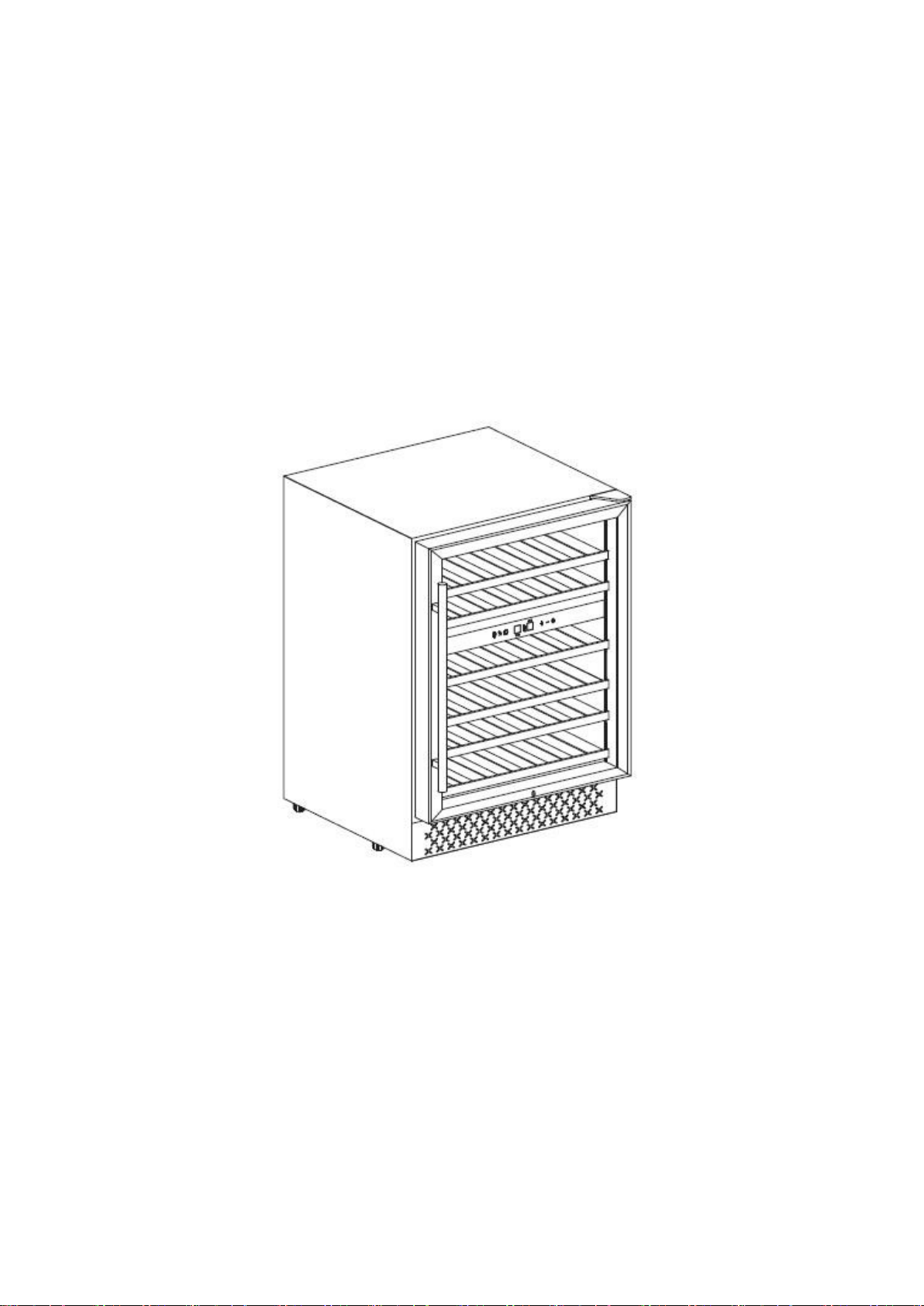

WINE COOLER WC138B
USER MANUAL
MODEL: YC-150B
Read this manual and follow all safety rules and operating instructions before first use
of this wine cooler.

CONTENT
IMPORTANT SAFETY INSTRUCTIONS......................................................................................................1
SPECIFICATIONS.............................................................................................................................................3
PRODUCT DIAGRAM.....................................................................................................................................4
INSTALLATION INSTRUCTIONS.................................................................................................................5
OPERATION INSTRUCTIONS...................................................................................................................... 8
CARE & MAINTENANCE............................................................................................................................11
TROUBLESHOOTING GUIDE.....................................................................................................................14
WARRANTY................................................................................................................................................... 16
GET SALES SERVICE.....................................................................................................................................16
AFTER-SALES INFORMATION..................................................................................................................17

1
IMPORTANT SAFETY INSTRUCTIONS
This wine cooler complies with the applicable safety requirements and is safe for daily use.
However, basic safety precautions should always be followed when using an electrical appliance, to
reduce the risk of fire, electric shock, and personal injury.
Plug into its own individual electrical outlet with a voltage rating that matches the rating label on
the cooler (115/120V AC only, 60Hz, 10A). Use receptacles that cannot be turned off by a switch or
pull chain. Be sure that the plug is fully inserted into the receptacle.
Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the third
ground prong from the power cord supplied.
To protect against electric shock, do not immerse the Wine cooler, plug or cord in water or other
liquids.
Never unplug the cooler by pulling the power cord. To disconnect the Wine cooler, always grip
the plug firmly and pull straight out from the wall outlet.
Repair or replace immediately all power cords that have become frayed or otherwise damaged.
Do not use a cord that shows cracks or abrasion damage along its length or at either end.
Do not connect or disconnect the electric plug when your hands are wet. Do not operate the
cooler with wet hands, while standing on a wet surface or while standing in water.
Unplug the Wine cooler or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
When moving the Wine cooler, be careful not to roll over or damage the power cord.
Never clean Wine cooler parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapor and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
Do not attempt to repair or replace any part of your Wine cooler unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
An empty Wine cooler can be dangerous to children. Remove any latches, lids, locks, and/or
doors from unused or discarded Wine coolers to prevent child entrapment and suffocation. Never
allow children to operate, play with or crawl inside this Wine cooler.

2
Do not use this wine cooler for other than its intended purpose. For indoor, household use only.
Move this wine cooler by 2 people. Failure to do so can result in injury.
Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and below
32°C (90°F).
To ensure proper ventilation for your wine cooler, the front of the cooler must be completely
unobstructed.
This wine cooler must be installed in an area away from wind, rain, water spray or drips.
The wine cooler should not be located next to ovens, grills or other sources of high heat.
Do not kink or pinch the power supply cord of wine cooler.
It is important for the wine cooler to be leveled in order to work properly. You may need to make
several adjustments to level it.
This wine cooler is designed for storing and cooling wines. Do not store perishable food or
medical products inside the cooler.
When disposing of refrigeration wine coolers, special handling is often required. It is the
consumer's responsibility to comply with federal and local regulations when disposing of this
product.
WARNING: Risk of child entrapment and suffocation. Before you throw away this or an old cooler,
remove the door. Leave the shelves in place, so that children may not easily climb inside.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner's
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.

3
SPECIFICATIONS
Model YC-150B
Rated Voltage 115V/60HZ
Input Power 75W
Rated Current 0.9A
Refrigerant R600a
Volume 138L
Climate Type SN/N/ST
Net Weight 43Kg
Gross Weight 46Kg
Product Dimensions 595*575*870 mm
Package Dimensions 655*675*915 mm

4

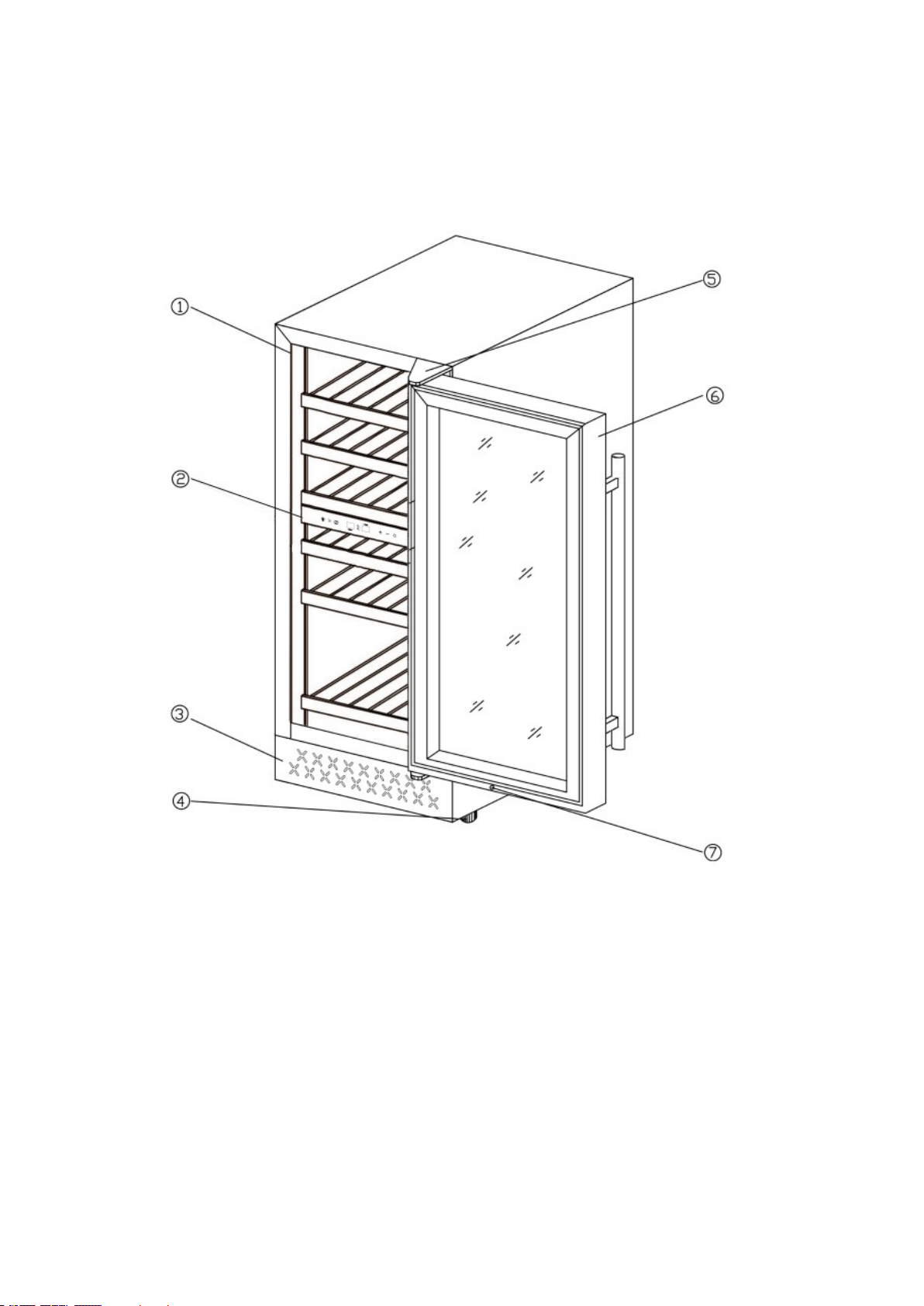

PRODUCT DIAGRAM
1Control Panel
2Wood Shelves
3Exhaust Window
4Leveling Legs
5Top Hinge
6Glass Door with Handle
7Safety Child Lock

5
INSTALLATION INSTRUCTIONS
Before Using Your Wine Cooler
Remove the exterior and interior packaging.
Check to ensure you have all of the following parts:
16 Wood Shelves
22 Keys
3Stainless Steel Handle
4Instruction Manual
52 Extra Screws for Installing Handle
IMPORTANT: Before connecting this Wine cooler to a power source, let it stand upright for
approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system
from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.
To Install Stainless Steel Handle
1) Pull away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the preinstalled screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustration #2. (Do NOT
over tighten as this will cause damage to the handle assembly).
3) Replace the door gasket to its original position.
Note: This Wine cooler includes stainless steel handles that are not required to operate this
Wine cooler. If you choose not to use the handle supplied, simply follow step 1 to access the
pre-installed screws and remove them and then place 2 decorative plugs (NOT included) into
the two holes separately. Continue on to step 3 to replace the door gasket to its original position.

6
1Gasket
2Screws
3Screw Driver
4Handle
To Install Your Wine Cooler
This Wine cooler is designed for free standing or built-in (fully recessed) installation.
Place your Wine cooler on a solid and level floor that is strong enough to support it when it is
fully loaded. This will ensure a vibration-free and noise-free operation. Adjust the leveling
legs in and out to stabilize the cooler horizontally. If the legs are not properly adjusted, the
cooler may be unstable and result in excess noise or vibration.
Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extremely cold ambient temperatures may also cause the cooler not to perform
properly.
It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
It is recommended you install the Wine cooler in a place with temperatures above 60°F (15°C)
and below 90°F (32°C), and humidity is under 60%. If the ambient temperature is above or
below recommended temperatures, the performance of the cooler may be affected. Placing
your cooler in extremely cold or hot conditions may cause interior temperatures to fluctuate,
and the temperature range of 5°C-18°C (40°F-65°F) may not be reached.
Connect the Wine cooler to an exclusive, properly grounded, standard electrical supply (115
V AC only, 60 Hz), in accordance with the National Electrical Code and local codes and
ordinances. Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized products service center.
Illustration #2Illustration #1

7
WARNING：Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged,replaced it by an authorized service center.
The Wine cooler should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating label on the Wine cooler. This provides the best
performance and also prevents overloading house wiring circuits that could cause a fire
hazard from overheated.
Do not under any circumstances cut or remove the third ground prong from the power cord
supplied.
Do not use an extension cord or adapter plug. However, if you must use an extension cord, it
is absolutely necessary that it be a UL-listed, 3-wire grounding type Wine cooler extension
cord having a grounding type plug and outlet and that the electrical rating of the cord is 10
amperes (minimum) and 120 volts.
Do not use a cord that shows cracks or abrasion damage along its length or at either end.
If the Wine cooler is going to be used in an area that is prone to power surges/outages, it is
suggested that you use a power surge protector. The surge protector that you select must
have a surge block high enough to protect the Wine cooler it is connected to. Damages due to
power surges are not considered a manufacturer covered defect and will void your product
warranty.

8
OPERATION INSTRUCTIONS
Controls
After plugging the Wine cooler into a wall outlet, the cooler would turn on automatically and the
LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours
before placing wine bottles in the Wine cooler.
Press once to turn the interior light ON or OFF.
Press to increase or press to decrease the temperature in 1 degree
increments between Upper zone: 5- 13°C(40-55℉); Lower zone: 13- 18°C(55-65℉).
Press to begin adjusting the temperature for upper or lower zone.
Press once to turn ON the cooler. Press and hold about 3 seconds to turn OFF the cooler.
Toggles the temperature display between Celsius and Fahrenheit.

9
Recommended Temperature Settings
Storing wines at the proper temperature is important. To preserve them as long as possible,
wine needs to be stored at approximately 55° Fahrenheit. However, the chart below suggests
the optimal drinking temperature for the different varietal of wine.
Wine Variety °F °C
Rose and Sparkling Wines 41°F-46ºF 5°C-8ºC
Dry/ White Wines 48°F-53ºF 9°C- 12ºC
Red Wines 59°F-65ºF 14°C- 18ºC
Storage
This wine cooler is designed to store standard Bordeaux 750 ml wine bottles. Many bottles differ
in size and dimensions. Therefore, the actual number of bottles you may be able to store may
vary. Storing large and/or oddly shaped bottles (including champagne and sparkling wine bottles)
will decrease the capacity of your wine cooler.
Door Lock
This cooler can be secured with a lock and keys. The keys are located inside the plastic bag that
contains the Instruction Manual. Insert the key into the lock and turn it clockwise to lock the door,
making sure the metal pin is engaged completely. To unlock the door, do the reverse. Remove
the key after use and put it in a secure location.
Beech Shelves
This wine cooler is equipped with a sliding rail assembly and you can move the wooden shelves
out and in smoothly.
The slide-out shelves allow bottles of wine to be viewed and removed more easily. Any of the

10
shelves can be removed to store larger bottles.
To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling shelves out of the rail compartment. For easy access to the bottles, you may need to pull
the shelves approximately 1/3 out of the rail compartment.
To Remove a Sliding Shelf
1. Remove all bottles from the shelf.
2. Pull the shelf out as far as it will go.

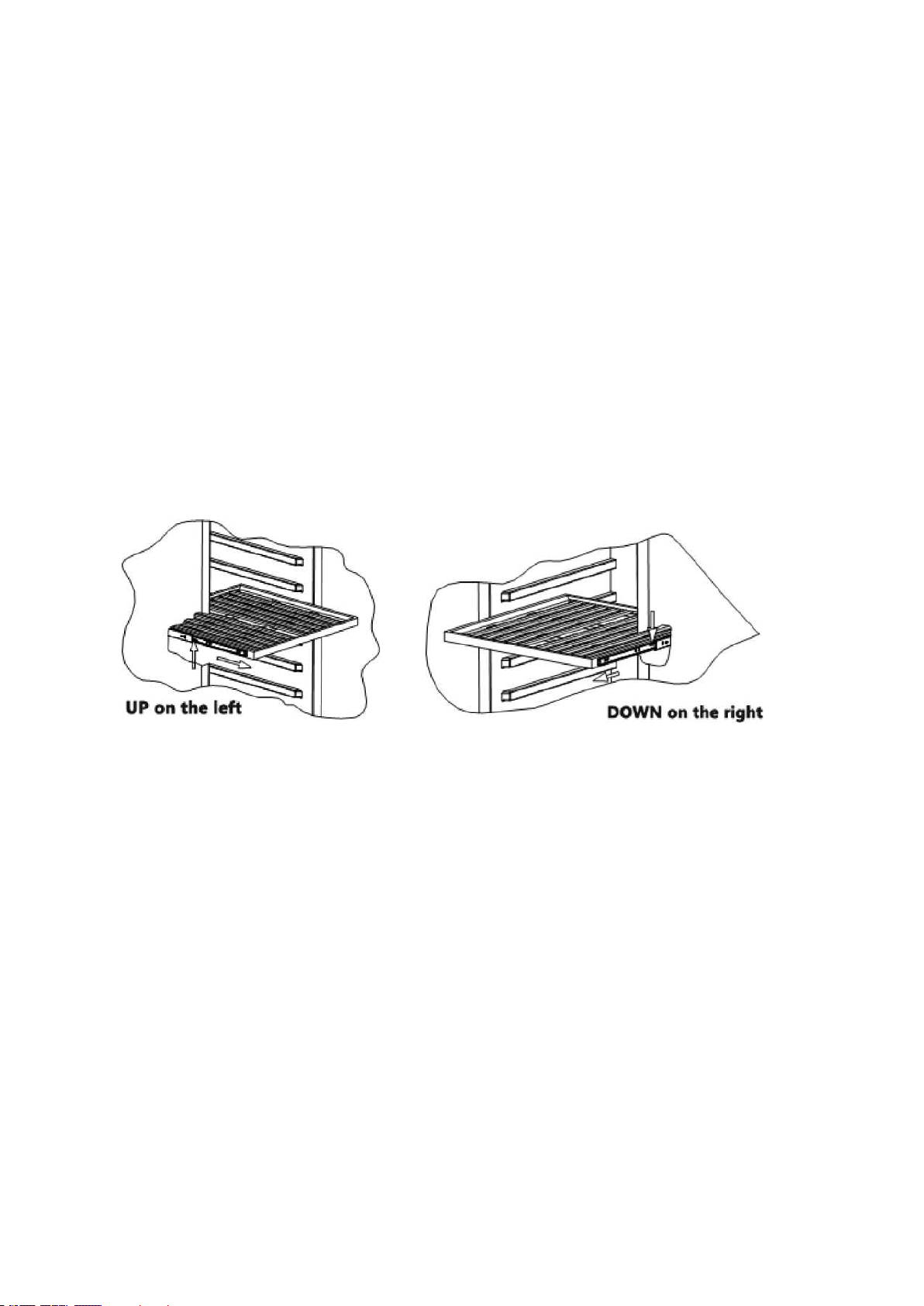

3. Adjust the lever on each side of the shelf, as shown below (UP on the left, DOWN on the
right) and at the same time, pull the shelf out completely.

11
CARE & MAINTENANCE
Cleaning Your Wine Cooler
IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use
harsh cleansers or scouring pads to clean any part of the cooler.
Turn off the power, unplug the Wine cooler, and remove all items including shelves.
Wash the inside surfaces with warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area near the controls, or
any electrical parts.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and wipe
dry with a clean soft cloth. Do not use steel wool or steel brush to rub the stainless steel, which
will contaminate the stainless steel with steel particles and rusting may occur.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of
your Wine cooler. If the power is off for an extended period of time, proper steps should be taken
to protect your contents.
Vacation Time
Leave the Wine cooler operating during vacations of less than three weeks. For periods longer
than this, turn the Wine cooler off and leave the door slightly ajar to prevent odor from building
inside the Wine cooler.

12
Moving Your Wine Cooler
Remove all items (bottles) from the cooler.
Securely tape down any loose items, such as shelves, inside the cooler.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Ensure that the Wine cooler stays securely in the upright position during transportation.
Protect the outside of the Wine cooler with a blanket or a similar item.
Energy Saving Tips
The cooler should be located in the coolest area of the room away from heat sources or direct
sunlight.
Ensure that the cooler is adequately ventilated. Never cover air vents.
Only open the cooler door for necessary. Frequent opening of the door will affect internal
temperature.
Carbon filtration system
Your wine is a living object that breathes through the cork of its bottle. In order to preserve the
quality and taste of your fine wines, they must be stored at the ideal temperature and ambient
conditions. Your wine cooler is equipped with an active carbon filtration system to ensure air
purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines.

13
To replace the filter
1Remove the bottles of wine stored on the shelves
in front of the filter.
Turn Left to remove filter.
2Remove the shelves and set aside to be
replaced once you have changed the filter.
3Hold the filter and turn it at 45 degrees in the
counter- clockwise direction and then pull it
out.
4Remove the existing filter and replace with a
new one.
5Put the new filter into the hole and then turn the
filter at 45 degrees in clockwise direction .

14
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
The Wine cooler
does not run.
The Wine cooler may not be plugged
in, or plug may be loose.
Ensure the Wine cooler has been
plugged in properly.
The Wine cooler is turned off. Press to turn on the cooler.
House fuse blown or tripped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The Wine cooler
is not cold
enough.
External environment may require a
higher setting.
Set a colder setting. Allow several hours
for the temperature to stabilize.
The Wine cooler has recently been
disconnected for a period of time. It takes 3-4 hours for the Wine cooler to
cool down completely.
Prolonged or frequent door
openings. Open the door less often.
The door is not closed completely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or
change gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is hotter than
normal.
It's normal for the Wine cooler to work
harder under these conditions.
A large amount of contents has been
added to the cooler.
A large amount of contents cause the
Wine cooler to run more until the
desired temperature is reached.
Prolonged or frequent door
openings. Open the door less often.
The temperature has not been set
correctly.
Press either or to check
the set temperature, and set the
temperature properly.
The door is not closed completely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or
change gasket if necessary.

15
PROBLEM POSSIBLE CAUSE SOLUTION
The light does not
work.
Not plugged in. Plug the cooler in.
The circuit breaker tripped or
a blown fuse. Check the breaker and/or fuses.
The light button is "OFF". Press to turn the light ON.
Vibrations.
The cooler is not leveled. Check to assure that the cooler is level.
The bottles are vibrating. Make sure the bottles don't touch each
others.
There is an object under the
cooler. Remove the object under the cooler.
The cooler seems to
make too much noise.
The cooler is not level. Level the cooler.
Normal noise from the flow of
the refrigerant
The rattling noise may come from the flow
of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your
cooler. Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not close
properly.
The cooler is not level. Level the cooler.
The door was reversed and
not properly installed. Re-install the door properly.
The gasket is dirty. Clean the door gasket.
The shelves are out of
position. Place the shelves properly.
Moisture build up on
interior or exterior of
the Wine cooler.
This is normal during high
humidity periods. Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and
avoid heat and sunlight
Prolonged or frequent door
openings. Open the door less often.
The door does not seal
completely. Check door gaskets for proper seal.
Error Code:
E1-E2-E3-E4-E7-E8 A sensor has failed. Contact the customer service

16
WARRANTY
This device is covered by a limited manufacturer's warranty. The manufacturer will repair or
replace any part of this equipment that is defective in material or workmanship within three years
from the date of original purchase, provided that the equipment is used under normal operating
conditions as intended by the manufacturer.
WARRANTY TERMS
During the first three years, any part of this equipment that is defective due to material or
workmanship will be repaired or replaced at the manufacturer's discretion, free of charge, to the
original purchaser. The purchaser will be responsible for any removal or shipping costs.
WARRANTY EXCLUSIONS
Warranty will not apply if damage is caused by any of the following:
Damaged when transporting or moving the device
Improper power supply, such as low voltage, defective household wiring, or improper fuses
Accidents, alterations, misuse or abuse of electrical appliances, such as the use of
unapproved accessories, insufficient indoor air circulation, or abnormal operating conditions
(extreme temperatures)
Fire, flood, war, riot, hostilities or acts of God such as hurricanes, floods, etc.
Damage caused by the use of force or external influence
Partially or completely disassembled equipment that is excessively worn by the user
GET SALES SERVICE
When making a warranty claim, please have the original purchase checklist with the purchase
date ready. Once your device is confirmed to be eligible for warranty service, all repairs will be
performed by an authorized repair facility. For technical support and warranty services, please
email to [e-mail]

17
AFTER-SALES INFORMATION
Model: YC-150B
Email: [e-mail]
Phone: [phone] (US)
Monday-Friday from 7 a.m.- 3 p.m. EST
