Caple WI152 Manual

WI152
Caple 15cm wine cabinet
Technical information

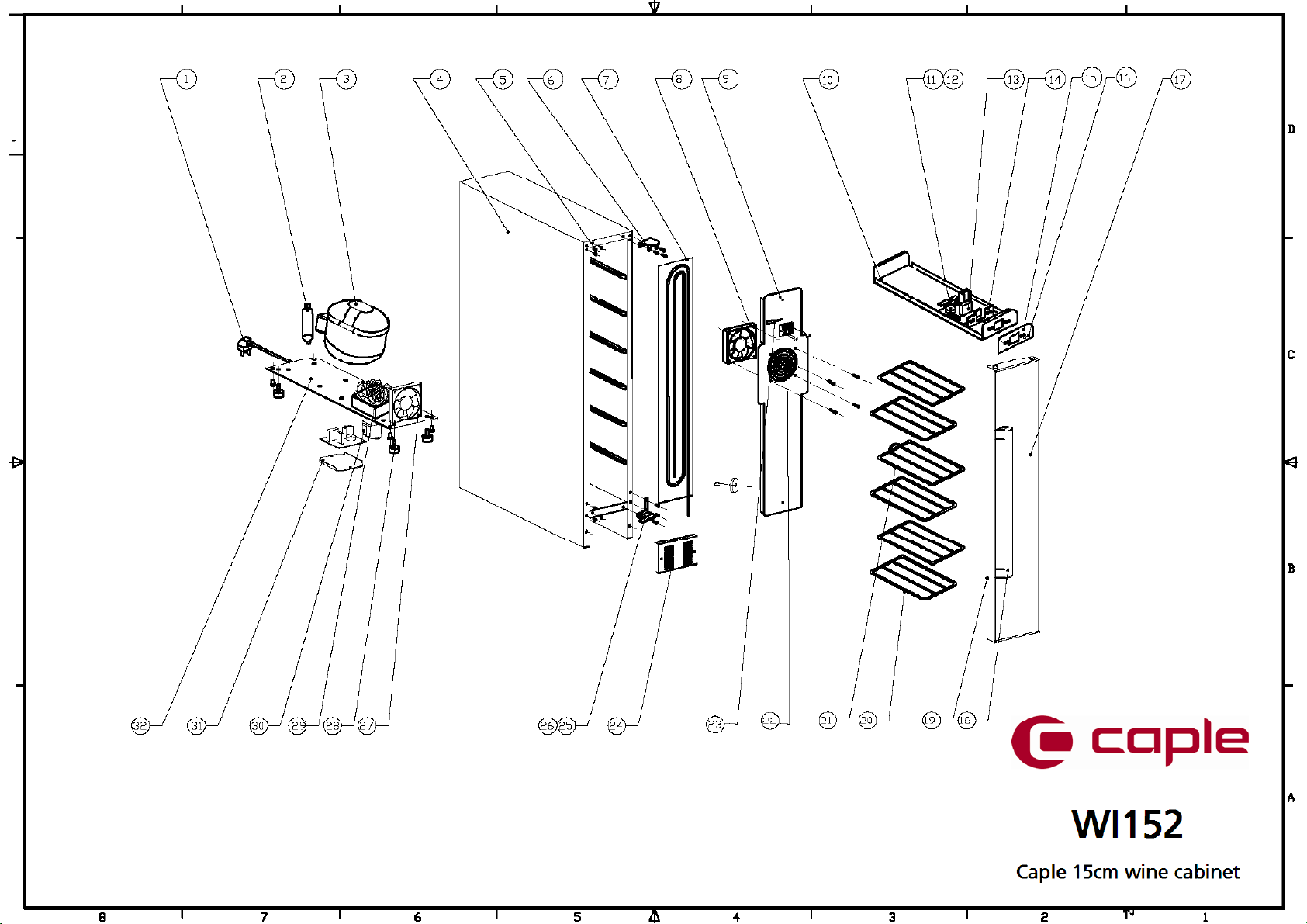

Item Part Code Description Qty
1DG2-14 Power cord 1
2DG11-4 Dry filter 1
3DG1-58 Compressor 1
4DG26-84 Cabinet 1
5DG13-8 Decorative nail 3
6DG14-154-BR Top hinge module right 1
DG14-154-BL Top hinge module left 1
7DG12-77 Evaporator 1
8DG7-41-BH Evaporator fan(Upper) 1
DG17-144-1 1
9 DG22-397 Air duct board
1
10 DG22-396 Electrical
box 1
WI152 - Caple 15cm wine cabinet
11 DG3-41-W LED li
g
ht 1
12 DG13-127 LED Li
g
ht Cover 1
13 DG3-42 PCB board 1
14 DG13-348 Button
g
asket 1
15 DG20-258 Displa
y
panel 1
16 DG13-130-S Button 4
17 DG23-157 Cabinet door
1
18 DG22-3027 c
y
linder knop 1
19 M184-027 Gasket 1
20 DG15-139 Shelf
5
21 DG15-146 Shelf
1
22 DG8-7-W Senser 1
DG8-7-R Senser 1
23 DG13-511 Senser cover 1
24 DG22-386-B Decorative frame 1
25 DG14-167-BR Lower hin
g
e module ri
g
ht 1
DG14-167-BL Lower hin
g
e module left 1
26 DG14-116 Lower hin
g
e1
27 DG7-22-BH Condenser fan 1
DG17-145-2 1
28 DG13-6-15 Cabinet le
g
, t
y
pe BC50 4
29 DG12-78 Condenser 1
30 DG6-2 Transformer 1
31 DG22-410 Electrical board box 1
32 DG22-409 Compressor bracket 1

1
/
23
Computer Controlled Wine Cellar
Wi152 Wi153
Service Manual
Here below we listed various faults while using the wine cellar, and the method of check-up and solve these default,
and find the information of the correspondent page.
Statement: (Fig.4 ) shows the reference figure Fig4
( →6.1.6 ) shows the reference item 6.1.6.
Warning: before attempting any cleaning or maintenance this unit MUST be disconnected from the electrical
supply, to prevent electrical shock
▲Preparation before maintenance
○Tools
1．Pliers 2．Phillips head screwdrivers
3．Process pipe 4．Electrical Multi meter
5．Amp meter (5A) (caliper cable type) 6．Electrical soldering iron
7．Wire strippers 8．Seal pliers
○Equipment
1．Vacuum pump 2．Soldering iron for copper pipes 3.Refrigerant meter
1. Safety rules on operation of repairing.(Rules must be obeyed).— 2
2. Electrical circuit diagram.—————————————————— 4
3. Cooling system diagram.———————————————————— 5

2
/
23
4. Name and function on control panel.—————————————— 5
5. How to diagnose the fault. —————————————————— 5
6. Gist on disassembly. ————————————————————— 7
7. How to maintain the default. ————————————————— 14
1. Safety rules on operation of repairing (Rules must be obeyed).
To avoid the accident during maintain the wine cooler, and make sure the product is safety, rules must be
obeyed list below.
○ Below we list the symbols and explain the danger if ignore it.
Danger This symbol means that the instance may have the chance to suffer
death or a serious wound.
Warning This symbol means that the instance may have the chance to suffer
death or a serious wound.’
Notice This symbol means that the instance may have the chance to suffer
a wound.’
○Below symbols’ distinguish and rules should be obeyed.
This symbol means the
instance hope to be noticed
This symbol means the
instance must be done forcibly

3
/
23
This symbol means the
instance forbidden
Danger
·Please make sure to discharge the rest refrigerant in the parts.
·When discharging refrigerant, make sure that it never go to the fire place and drain
to outdoors.
Tell the customers that they never close to the discharge place and the fire is
forbidden.
·Take apart the pipe by cutter.
Never take apart the part by soldering, otherwise it will fire the rest refrigerant in the
systems and cause blast.
·Exhaust the rest refrigerant in the systems before welding.
·After filling the refrigerant the sealing should be done by using smithing welding
nozzle.
Using the welding machine will fire the refrigerant and blast.
·Since the R600a is heavier than the air, please let the R600a on the ground go
especially for the hypogeum.
·The operation on the servicing refrigerant bottle should be done in place without fire
and outdoors.
·Use the refrigerant warner please， as the rest refrigerant will cause the fire.
·Don’t use fire in the place with rest refrigerant.
·Don’t place the default compressor in indoor.

4
/
23
Danger
·During repairing, the power plug should be disconnected.
Before remove, install, replace parts disconnect the power plug.
·Attention don’t get electric shock.
When checking current, voltage or charging never touch the connectors.
When changing the parts, don’t touch the charged parts within three minutes after
disconnect the plug.
The capacitor will discharge for some time.
·Don’t damage the cooling pipe, sine the refrigerant is flammable, the damage will
cause the fire or blast.
·Don’t smoking in the service car.
·Discharge the refrigerant entirely in the place without fire before disusing the
refrigerant bottle.
·Don’t touch the wine cooler when the cooling pipe damaged, don’t fie inside the wine
cooler, keep the windows open to exchange the air.
·Disusing the default compressor should be done outdoor without fire.
·The maximum weight of the refrigerant bottle loaded in the vehicle should be comply
to stated, the bottle should be place upright, the maximum leaning angle is 40°.
·Do use the appointed part, otherwise it have chance to smoke fire or default.
·Please put the default compressor into plastic bag and seal the peristome, then pack
it with strip, as the rest compressor oil may leak in the vehicle and cause fire or blast.
·Check if all the snails, parts, wiring are install in it’s place, if the area around the

5
/
23
service part worsen.
When measuring the grounding resistance make sure that the test range is more than
1MΩ.
Make sure the power cord and plug never be pinched on rear of the wine cooler.
Exchange the power cord when it damaged.
Clean the flake of the plug when it dirty.
Notice
·Attention the hot.
The running or just stop compressor and the pipe sometimes are very hot. And the
heating or just stop heater is very hot. The hot will cause scald.
·Attention the hot parts of the pipe after the welding.
·Attention the refrigerant during charge and discharge it, as it will frostbite the skin
when touch it.
·Attention the burr.
The burr on the metal or plastic part may hurt the hand.
·Attention the fins of the evaporator.
The fins of the evaporator may hurt the hand.
·Drive up the wine cooler when moving it. Pushing it may damage the floor. Cover a
protector board on the easy damage floor.

6
/
23
2. Electrical circuit diagram.
3. Cooling system diagram.

7
/
23
4. Name and function on control panel.
zLIGHT
Press one time, the light on, press again, the light off.
zPOWER
Press it and hold on for three seconds, the power on or off.
z“UP” BUTTON
Press ‘UP’，the setting temp will raise up in 1.
z“DOWN” BUTTON
Press ‘DOWN’, the setting temp will lower down in 1.
5. How to diagnose the fault.
5.1 Fault finding by the self-check mode.
The wine cooler is controlled by computer, in order to maintain the wine cooler easily, there is a self-check function
in the control PCB.
If you suspect that the control system fault, you can star the self-check mode by following below:
1 >．Press the ‘UP’ and ‘DOWN’ at the same time and holding, power on, two beeps will sound, the systems

8
/
23
enter self-check mode.
2 >．The function as below:
a. Not any react when press any button.
b. The readout show “━━”.
c. The compressor keep running.
d. The inner fan and outer fan running.
e. The light switch control the light at normal.
3 >．If all items a~e tally with above description, the parts are normal. If any part fail, check the failed part and the
corresponding wiring and connection, if the wiring and connection is in good condition, replace the part and check
again, if it still failed, the default should be the control PCB, replace it with same model. ( Fig.4 & Fig.5 & Fig.8 &
Fig.9)
4 >．The self-check can be quit only disconnect the power plug.
5.2 Err code
Symbol Representation Checking point Solution
E1 Inner sensor open circuit. Check the wiring and connection between PCB and
sensor, if it open circuit.
If the connection and wiring is normal,
replace the sensor please.
E2 Inner sensor short circuit. Check the wiring and connection between PCB and
sensor, if it short circuit.
If the connection and wiring is normal,
replace the sensor
E3 Anti-frost sensor open
circuit.
Check the wiring and connection between PCB and
sensor, if it open circuit.
If the connection and wiring is normal,
replace the sensor
E4 Anti-frost sensor open
circuit.
Check the wiring and connection between PCB and
sensor, if it short circuit.
If the connection and wiring is normal,
replace the sensor
5.3 Diagnose the default
● There isn’t any display on the display PCB.
Yes
Yes
If the inner light can be turn on Check the power source (power cord,
plug, socket)
If the display have power input
Check the PCB circuit
Display PCB failed
No
No

9
/
23
●Not cooling (the compressor stop)
●Not cooling (the compressor running)
No
Yes
No
No
Yes
Yes
Yes
No
If the inner light can be turn on Check the power source (power cord,
plug, socket)
Display error code? Refer to 5.2.
The starter have power input?
The protector have power input?
Check the compressor
The starter failed
The protector failed
Compressor fault

10
/
23
6. Gist on disassembly.
Warning: Disconnect the power plug before maintain the wine cooler.
6.1 Gist on disassembling the inner cabinet.
6.1.1. How to remove the shelves.
Revolve the shelf on either side, then pull the shelf out. (Fig.1)
6.1.2. How to remove the air-duct board
The process of removing the air-duct board: Remove all shelves → Remove the air-duct board
Remove two air-duct board fixing screws, and remove the air-duct board, disconnect the fan connector
carefully when pulling out the air-duct board. (Fig.2)
No
Yes
No
是
Yes
No
No
Yes
The
compressor run for more than 30 minutes
？
If the door opened frequently? Don’t open the door frequently
If the hot goods was put into the
cabinet?
If the door gasket airproof?
Cooling system default ?
（
Check if any gas leakage or block
）
It can be loaded with normal temperature
wine bottle
Repair or replace the gasket
Fig.1

11
/
23
6.1.3. How to remove the inner fan.
The process: remove the shelves → remove the air-duct board → remove the fan
After remove the air-duct board, remove four fan fixing screws, and the fan can be removed. （Fig.3）
6.1.4. How to remove the sensor
The process: remove the shelves → remove the air-duct board → remove the sensor
After remove the air-duct board, loose the sensor fixing screw, and remove the sensor.（Fig.3）
6.1.5. How to remove the control box.
The process: Remove the shelves → remove the control box.
Fig.2
Screws
Fig.3
Sensor and
fixing
screw
Four
screws

12
/
23
Remove the screw on the back of the control box, pull out the control panel, disconnect the
connectors, remove the control box. ( Fig.4)
6.1.6．How to remove the main PCB.
The process: Remove the shelves → remove the control box → remove the main PCB.
After removing the control box, press the nail one by one and pull the PCB upward, remove the main
PCB. (Fig.5)

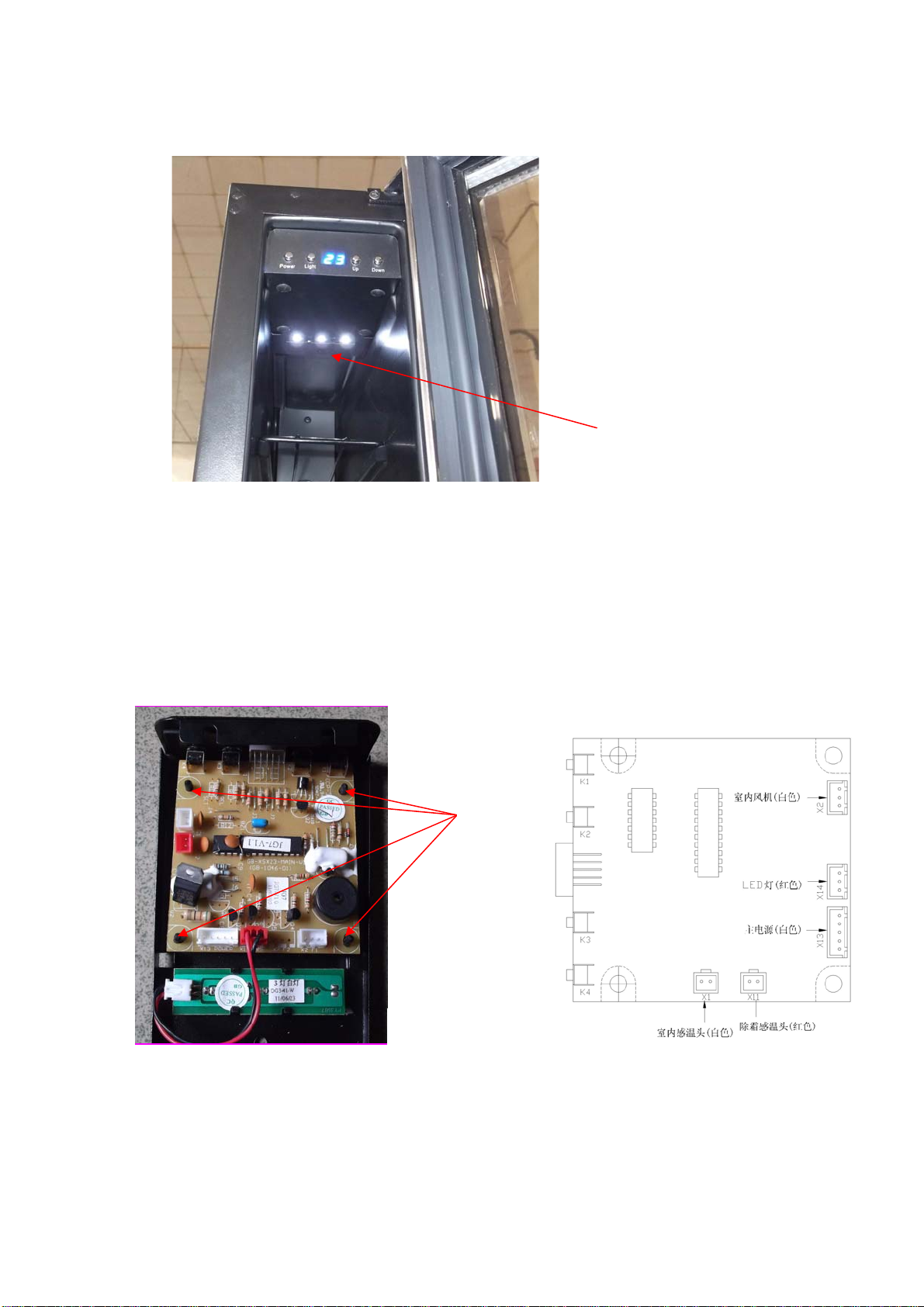

Diagram and explanation of the main PCB (Fig.6)
X1: Inner sensor(white) X11: Defrost sensor(red) X13: Power PCB (white)
X14: LED light (red) X2: Inner fan (white)
Screw
Fig.5
Fig.4
Nails
Fig.6

13
/
23
6.1.7． How to remove the LED light
The process: Remove the shelves → remove the control box → remove the LED light.
After removing the control box, disconnect the LED connector, pull the hooks fixing the LED light and
remove the LED light. (Fig.7)
6.2 Gist on disassembly outside the cabinet.
6.2.1．How to remove the power PCB and transformer.
The process of removing the power PCB: remove the power PCB cover → disconnect the connectors →
remove the power PCB.
The process of removing the transformer: remove the power PCB cover → disconnect the connectors →
remove the transformer.
Lean the cabinet, remove two power PCB cover fixing screws （Fig.8）.disconnect the connectors, and
press the nail one by one and pull the power PCB upward at the same time, remove the power PCB,
remove the two transformer fixing screws, and the transformer can be removed.(Fig.9)
Hooks
Fig.7
LED light

14
/
23
Diagram and explanation of power PCB and connection ( Fig.10)
Fig.8
L: Power - L
N: Power - N
X6: Transformer primary
X16: Transformer secondary
X3: Compressor
X15: Outer fan
X12: Main PCB
Fig.10
Power PCB
cover
Transformer
Power PCB
Nails
Fig.9

15
/
23
6.2.2．How to remove the condenser fan.
The process: remove the decorative cover → remove the condenser fan
Remove the two decorative cover fixing screws, take away the decorative cover, and remove two fan fixing
screws, the condenser fan can be removed. (Fig.11 & Fig.12)
6.2.3．How to remove the compressor.

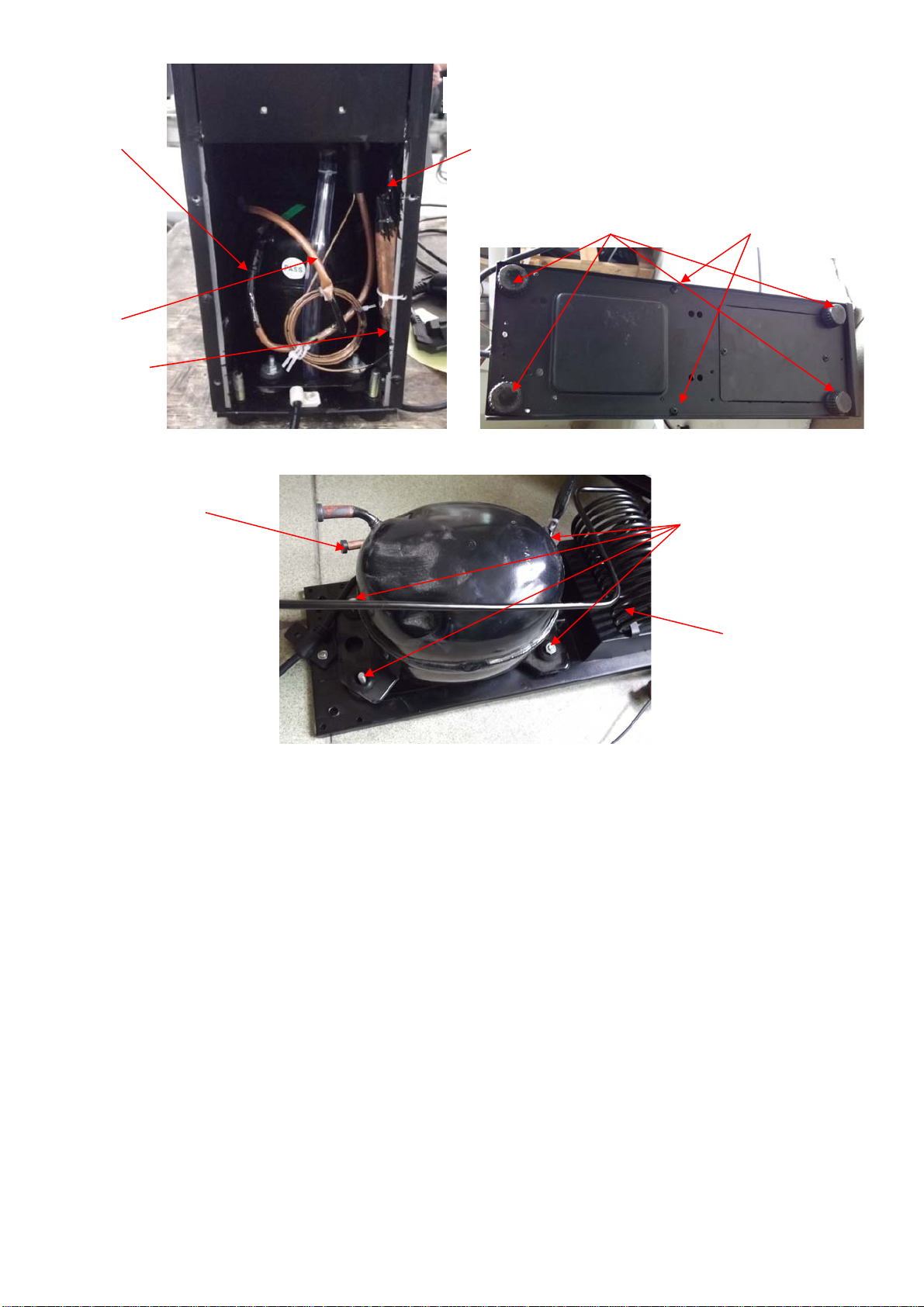

The process: separate the solder joints → remove the cabinet legs → remove the compressor fixing
screws.
Release the refrigerant by cutting the process pipe C, then heat the suction pipe and separate it by using
the plier, heat the filter and condenser joint and separate it by use plier. (Fig.13 ). Remove four cabinet
legs, then remove six compressor supporter fixing screws, take away the whole part. Heat the condenser
and compressor solder joint, separate it by using the plier. Remove four compressor fixing screws by
using the spanner, remove the compressor. (Fig.14 & Fig.15 所示)。
Fig.12
Decorative
cover

16
/
23
6.2.4．How to remove the evaporator
The process: remove the shelves → remove the air-duct board → remove the evaporator
After remove the air-duct board, we can see the evaporator （Fig.16）, Heat the solder joint A, D,
separate them by using the plier （Fig.13）. Remove the evaporator fixing screws, remove the
evaporator.（Fig.16）
Fig.13
Fig.15
A
A: Suction pipe solder joint
B: Filter and condenser pipe solder joint
C: Process pipe
D: Filter and capillary solder joint
E: Condenser and compressor solder joint
Four legs
Fig.14
Four screws
Condenser
B
C
D
E
Six screws
