AOpen WARM TOUCH WT22M-RH User manual

1
WARM TOUCH
WT22M-RH
Technology Manual

2
Disposal Instruction (US)
For better protection of our earth, please don’t throw this electronic device into municipal trash bin
when discarding. To minimize pollution and ensure utmost protection of the global environment, please
recycle the product. For more information about the collection and recycling of Waste Electrical and
Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green
Products”
廃棄上の指示
より良い地球保護のために、電子機器を廃棄処分にする時は、ゴミ箱に捨てないで下さい。汚
染を最小限に抑え、地球環境の最大限の保護のために、製品をリサイクルして下さい。廃電気
電子機器 (WEEE) の回収とリサイクルについての情報は、弊社ホームページwww.aopen.com の
“Green Products”（環境に優しい製品）をご覧下さい。
廢棄及回收處理
為了保護h境，請勿將本產品®”作一般廢棄物處理。為減少h境污染，維護地球資源，本產品報廢
時，請回收本產品。
Instruktion til bortskaffelse (Danish)
Af hensyn til vores miljø bedes De ikke bortskaffe denne elektroniske enhed i en almindelig
affaldsspand. For at mindske forurening og sikre beskyttelse af miljøet bedes De genbruge
produktet. For yderligere information vedrørende indsamling og genbrug af elektronik-affald
(Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores
website www.aopen.com og læse nærmere under “Green Products”.

3
Verwijderingsinstructie (Dutch)
Om mogelijke schade aan het milieu of de menselijke gezondheid door ongecontroleerde
afvalverwijdering te voorkomen, moet u dit elektronisch product scheiden van andere soorten
afval en op een verantwoorde manier recyclen. Verwijder dit product dan ook alstublieft niet
samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling
van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage
te bezoeken www.aopen.com onder “Green Products”.
Instruction de Disposition (French)
Pour une meilleure protection de la terre, ne jetez pas ce dispositif électronique dans la
poubelle municipale lors de la disposition. Pour éliminer la pollution et assurer la plus grande
protection de l’environnement global, réutilisez s’il vous plaît le produit. Pour plus
d’informations sur la gestion des déchets d’Equipements Electriques et Electroniques (DEEE
ou WEEE), vous êtes invité à visiter notre site à www.aopen.com sous “ Green Products”.
Entsorgungsanleitung (German)
Zum besseren Schutze unseres Planeten, schmeissen Sie elektrische Geräte bitte nicht in
öffentliche Mülleimer. Zur Verringerung der Verschmutzung und zur Sicherstellung
grösstmöglichen Schutzes der Umwelt recyceln Sie bitte das Produkt. Für mehr Informationen
zum Sammeln und Recyceln von elektrischen und elektronischen Müll (WEEE) besuchen Sie
bitte unsere Homepage unter www.aopen.com unter dem Punkt “Green Products”.
Istruzioni per lo smaltimento (Italian)
Per una migliore salvaguardia del nostro pianeta, si prega di non gettare questo dispositivo
elettronico nei normali rifiuti al momento dell’eliminazione. Per ridurre al minimo l’inquinamento
ed assicurare la massima protezione dell’ambiente, si prega di riciclare il prodotto. Per
maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed
elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla
voce “Green Products”.

4
Instruksjoner for Resirkulering og Oppsamling (Norweigian)
For ĺbeskytte vĺr planet, kast ikke dette elektroniske utstyret sammen med vanlig avfall. For ĺ
beskytte vĺr natur og miljř, vennligst resirkuler dette produktet. For mer informasjon om
oppsamling og resirkulering i henhold til Waste Electrical and Electronic Equipment (WEEE),
se vĺr hjemmeside pĺwww.aopen.com under “Green Products”.
Programa de Tratamento de Resíduos de Equipamentos Eléctricos e
Electrónicos (Portugese)
Para melhor protecção ambiental do nosso planeta terra, não coloque o dispositivo electrónico
no receptáculo de lixo municipal. Para minimizar a poluição e garantir protecção máxima do
ambiente global, recicle o produto. Para mais informações sobre acerca da recolha e
reciclagem de Equipamento Eléctrico e Electrónico (WEEE), convidamos-lhe a visitar nossa
página na Internet em www.aopen.com sobre “Green Products”.
Instrucciones para depositar los productos electrónicos (Spanish)
Para proteger mejor el medio ambiente, por favor, no deposite los productos electrónicos en
los contenedores de basura tradicionales. Para reducir la contaminación y proteger el medio
ambiente se recomienda que los recicle. Para más información acerca de dónde depositar y
cómo reciclar Equipos Electrónicos y Desperdicios Electrónicos (WEEE), por favor, visite la
página web www.aopen.com y entre en la sección Productos Ecológicos (“Green Products”).
Kassering (Swedish)
För att bättre värna om vår jord bör denna elektroniska utrustning ej kasseras tillsammans med
vanligt avfall. För att minimera mängden föroreningar och så långt som möjligt skydda den
globala miljön bör produkten återvinnas.
För vidare information om insamling och återvinning av uttjänta elektriska och elektroniska
produkter (Waste Electrical and Electronic Equipment, WEEE), besök avsnittet “Green
Products” på vår hemsida, www.aopen.com.

5
Copyright
Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to
change the content of this publication without obligation to notify any party of
such changes or revisions. No part of this publication may be reproduced,
transcribed, transmitted, translated into any language, stored in a retrieval system
in any form or by any means electronically, mechanically, optically without the
prior written permission of this company.
Disclaimer
AOpen makes no warranties or representations, either expressed or implied, with
respect to the content herein and specifically disclaims any warranties,
merchantability of fitness for any particular purpose.
AOpen and AOpen logos used herein are registered trademarks of AOpen Inc.
All other brand names and trademarks are owned by their respective owners.
Copyright © 2011 by AOpen Inc.
All rights reserved.
AOpen Inc.
http://xc.aopen.com.tw

6
Safety Instructions
1. Please read these safety instructions carefully.
2. Please keep this User’s Manual for later reference.
3. Please disconnect this equipment from connecter before cleaning. Don’t use
liquid or prayed detergent for cleaning. Use moisture sheet or cloth for
cleaning.
4. Make sure the equipment is connected to the power source with the correct
voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only
be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a
service personnel :
a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according
to user’s manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.
9. Ambient operation temperature: less than 40 degrees C.
10. Caution on use of battery: Use the battery recommended by the manufacturer
or the same type of battery installed by the manufacturer. If incorrect battery
is used, it may cause explosion or fire hazard. Recycle or discard used
batteries according the manufacturer’s instruction or your local authority.
11. Wall Mounting Holder need to use UL 1678 approved product.

7
FCC notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This device generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device
does cause harmful interference to radio or television reception, which can be determined by turning the
device off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced rad io/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance
with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits
may be attached to this equipment. Operation with non-certified peripherals is likely to result in
interference to radio and TV reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user’s authority,
which is granted by the Federal Communications Commission, to operate this computer.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003

8
Table of Contents
1. Packing List .............................. 1
1-1. Standard Accessories ..............................................
1-2. Optional Accessories ...............................................
2. System View ............................. 2
2-1. Front View ...............................................................
2-2. Rear View ................................................................
2-3. I/O Ports View ..........................................................

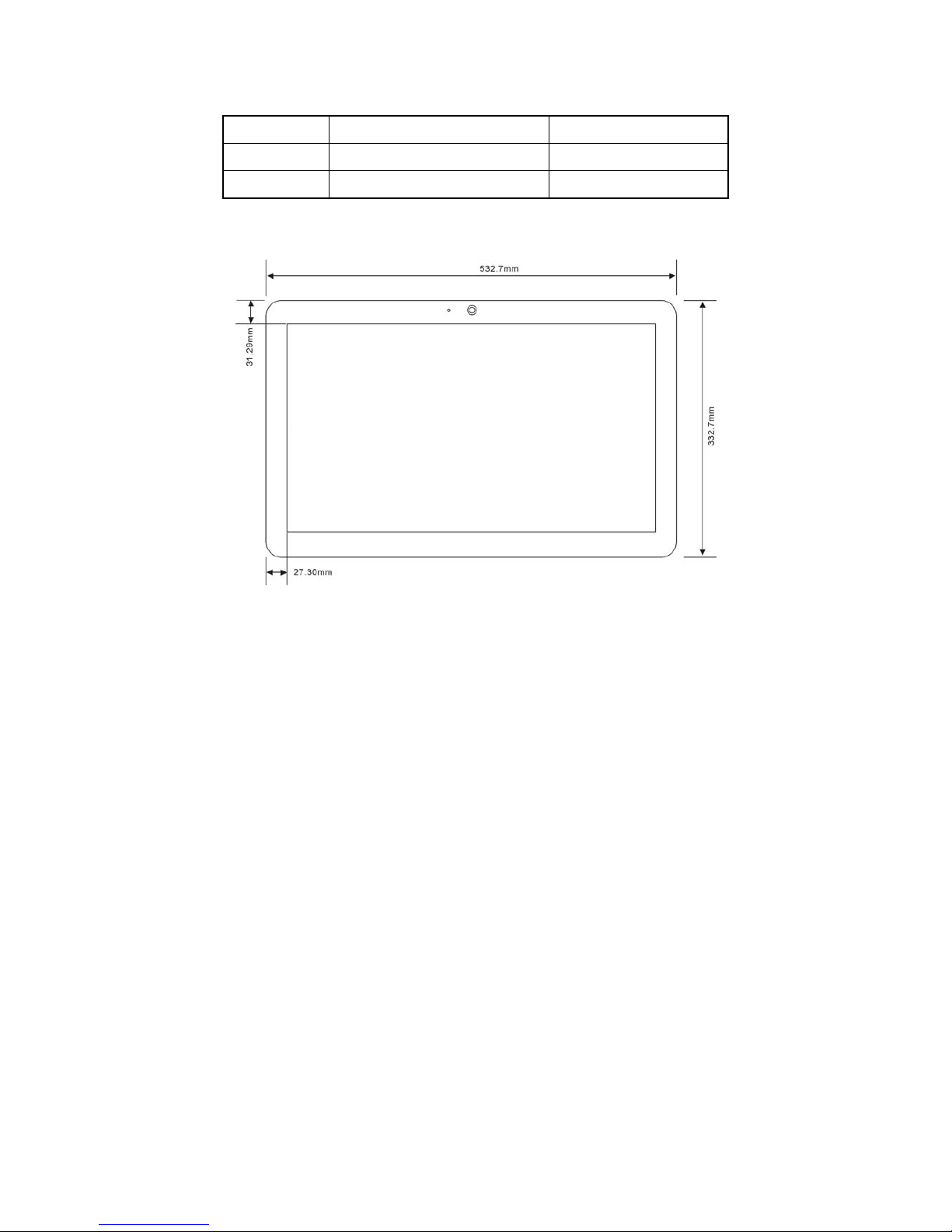

2-4. Dimensions ..............................................................
3. System Assembly .................... 6
3-1. HDD Replacement ...................................................

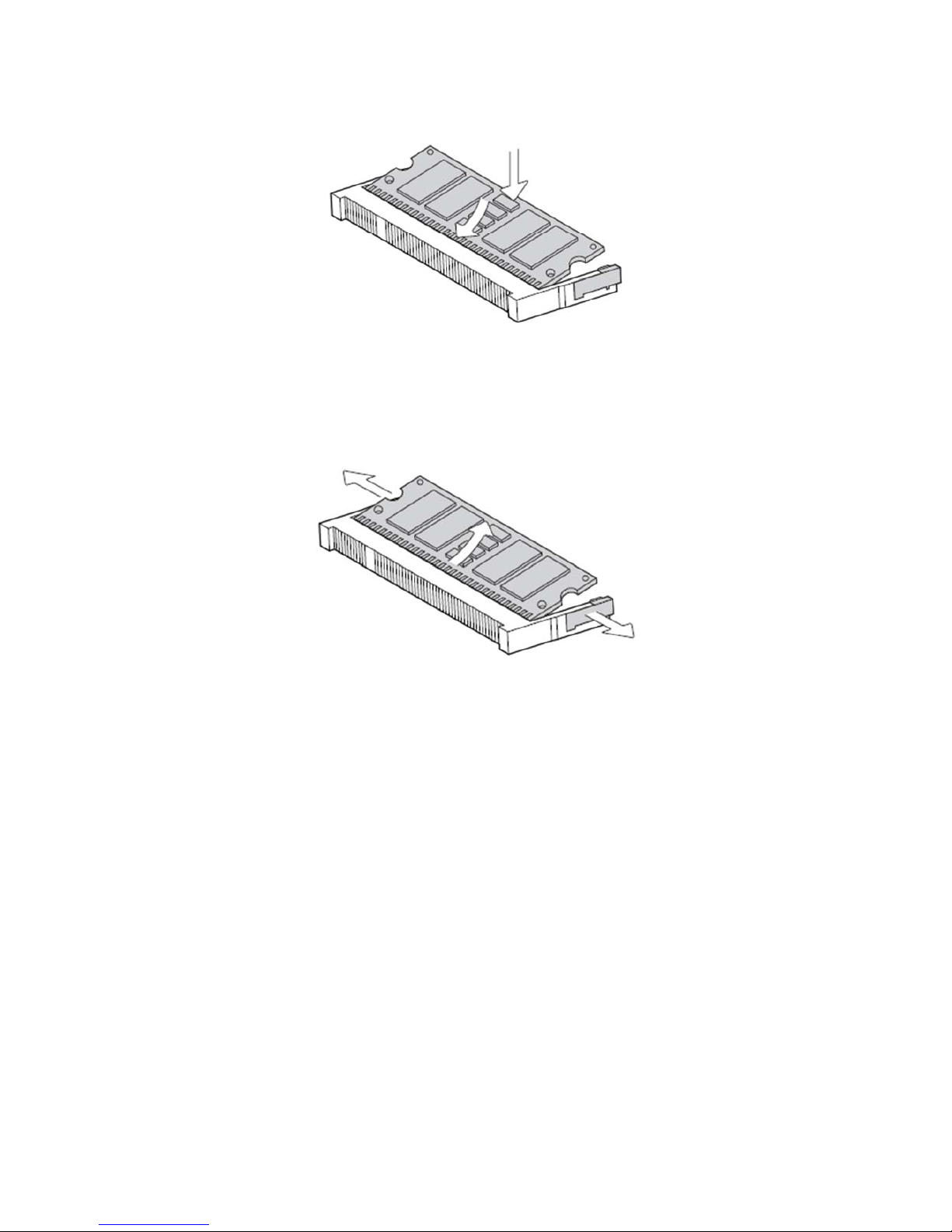

3-2. RAM Replacement ..................................................
3-3. Power Adapter Replacement ..................................
4. Peripheral Installation ............. 9
4-1. External Module Installation ......................................................
4-2. Wall Mount Kit Assembly ........................................
4-3. KIOSK Bracket Assembly ........................................
4-4. Wireless LAN Installation ........................................
4-5. CF Card Module Installation ...................................
4-6. Cash Drawer (RJ-11) Software Configuration .........................
4-7. Gravity Vector Seneor's GPIO Pins Software Configuration .............
5. Specification ........................... 28
6. Jumper Setting ........................ 30
6-1. For Huronriver Motherboard ..............................
Appendix A: Drivers Installation . ................... 34

9
The logos of Adobe andAcrobat are the registered trademarks of Adobe Systems Incorporated.
The logos of AMD, Athlon, and Duron are the registered trademarks ofAdvanced Micro Devices, Inc.
The logos of Intel, Intel Celeron and Pentium II&III are the registered trademarks of Intel Corporation.
The logos of nVidia are the registered trademarks of nVidia Corporation.
The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation inAmerica
and other countries.
All the titles of the products and the trademarks mentioned in this manual are for the purpose of
illustrative conveniences and are possessed by their respective firms.
We regret not informing about any changes in usage standards and other related information.AOpen
Company reserves the right of altering or modifying the content of this manual. In case of any mistakes
or incorrect descriptions, which include those on the products,AOpen makes no guarantee or
commitments.
This document is based on the copyright laws in order to protect our company and reserve all rights.
Under no circumstances are any types of duplicating and loading this brochure in any databases and
media permitted except the permission signed on formal document byAOpen Company.
1996-2008 Copyrights,AOpen Ltd.All rights reserved.
http://www.aopen.com

10
1. Packing List
1-1. Standard Accessories
a.
d.
b.
e.
c.
a. System
b. Utility and Driver bank
c. Power adapter (90W)
d. Power cord
e. RJ50-to DB9 cable (x1) (P/N: 50.WT201.0110)
Note:
The pictures may look slightly different from the product you purchased, due to our constant

11
product improvement effort.
1-2. Optional Accessories
RJ-50 to DB9 cable
P/N: 50.WT201.0110
Desktop Stand
P/N:90.WT134.0010
Floor Stand
P/N:90.WT134.0010
Desktop LCD Display / Stand
Configuration
Available for option
* This model is fitted with wheels and allows easy movement.
* LCD monitor can be adjustable the height from 1100mm jto 1700mm high.
* Main holder dimension: 1700(H) x 600(W) x 600(D) mm.
* With 75mm x 75mm & 100mm x 100mm VESA standard interface.
* Max loading: 10kgs.
* Material: Aluminum.
* Option second mounting KIT.

12
Note:
Please set up monitor as landscape, for safety reason
no allow turn it to portrait.
2. System View
2-1. Front View
1 Touch screen

13
2 IR Receiver and LED indicate
2-2. Rear View
3 Speaker holes
4 Hard drive disk door
5 VESA mounting screw holes
6 Ventilation holes

14
2-3. I/O Ports View
1. RJ-50 RS232 x 4
2. RJ-11 Cash Drawer Connector
3. RJ-50 Monitor RS232 support Daisy Chain
4. Printer Port
5. PC VGA out
6. Dual Giga LAN
7. USB x 6
8. Monitor VGA in
1
2
3
45
67
8

15
2-4. Dimensions
Panel Size System Size
WT22M-RH 495.6 (W) x 292.2 (H) x 16.35(D) (typ) 532x332x60mm(WxHxD)
WT19M-RH 428.0(W) x 278.0(H) x 16.5(D) (Typ) 474x322x65mm(WxHxD)

16
3. System Assembly
3-1. HDD Replacement
1. Turn to the rear side of the system.
2. Unscrew the screw (x1) securing the HDD door and the rear cover of the system.
Õ
{
{

17
3. Disconnect the SATA cable from the drive.
3-2. RAM Replacement
Opening the Rear Cover
Please open the rear cover first then remove and replace the RAM module.
You can refer to the motherboard layout to find the memory compartment.
1. Remove the HDD (see Chapter 3-1) and unscrew the screws (x19) on the rear cover to
access the motherboard.
Õ

18
Removing a RAM Module
2. Use both fingers to pull the ejector clips out of the sides of the module.
3. Slide the memory module out of the memory slot.
Installing a RAM Module
4. Slide the memory module into the memory slot and press down until the ejector clips click in
place.
3-3. Power Adapter Replacement
1. Disconnect the power cable from the I/O panel.

19
4. Peripheral Installation
4-1. External Module Installation
1. Turn the system to the rear side.
2. Attach the external module into the right position of the system and fasten the screws (x2).
3. Connect the external module cable to the USB and COM-RJ45 convertible connector on the
I/O panel.
Note:
Please set up the power setting for COM3 or COM4 with 5V, see Chapter 6 - Jumper Setting

20
4-2. Wall Mount Kit Assembly
1. Fix the wall-mount bracket onto the wall.
2. Place the VESA bracket onto the VESA mounting holes on the system and fasten the
screws (x4).
3. Align the VESA bracket with the system into the wall-mount brakcet and make sure they
are well
