AOVX AL300 User manual

www.aovx.com
1
AOVX AL300 Quick Start
V2.2
Assets Tracker

www.aovx.com
2
Contents
Contents.......................................................................................................................... 2
1 Introduction................................................................................................................3
1.1 Device overview........................................................................................... 3
1.2 main functions..............................................................................................4
2 Set up your device...................................................................................................5
2.1 How to insert SIM card............................................................................. 5
2.3 Installation......................................................................................................7
3 LED light indications............................................................................................... 7
Safety Information.......................................................................................................9
History
Revision
Date
Author
Description
V1.0
2021/11/119
YUKI
Initial
V1.1
2022/01/10
YUKI
Upgrade Platform
V1.2
2022/01/25
YUKI
Upgrade LED indications
V2.0
2022/04/01
YUKI
Upgrade Layout
V2.1
2022/04/06
YUKI
Upgrade config tool
V2.2
2022/09/01
YUKI
Upgrade safe
information

www.aovx.com
3
1 Introduction
1.1 Device overview
Figure_1 Overview of AX300

www.aovx.com
4
1.2 main functions
Light Monitoring Technology
24H real-time monitoring and recording the change of light. When an
asset is abnormally unboxed, it will trigger an alarm to the platform.
Comprehensive Monitoring Technology
The device monitors the assets in an all aspects. In case of severe
vibration, Abnormal temperature and humidity,abnormal light, alarms
will be generated automatically.
Support buffer data
When the device enters an area with no network signal, the device
stores the location information temporally, and uploads the historical
location information to the platform when the device is back online.
Multiple Positioning Technology
Integrate GNSS positioning , LBS base station positioning,and other
positioning technologies to fix the location of assets in real-time.
Support electronic fences*, transportation route planning* and location
deviation alarms*.
Data Visibility Technology
We provide web-based visualized management platform. This kind of
insight enables you to be smarter in your planning and make more
proactive, data-based decisions.
OTA Technology and Configuration Flexibility
Parameter configuration and firmware maintenance can be done
locally and remotely(Servers and SMS).

www.aovx.com
5
Dual Server
The device supports dual IP simultaneous reporting.
Data encryption *
808 protocol data encryption supports RSA/AES/TEA*.
Network and Band Configuration
Support network and band configuration.
2 Set up your device
2.1 How to insert SIM card
1 Unscrew the screws and remove the cover;
2 Then insert the Nano SIM card;
3 Turn the internal switch to ON. Wait 2 minutes then check the LED
lights are in normal state.See LED indicators.
Figure_2 Remove the cover and insert SIM card

www.aovx.com
6
3 After installation,go to Device Manager and check for the “Prolific
USB-to-Serial Com Port” device and the COM port number assigned
by Windows.
4 You are now ready to use the device on your computer.
2.2 SMS configuration
Quickly set up your device by sending SMS commands to it:
Table 1 SMS commands
Figure_5 Check COM port

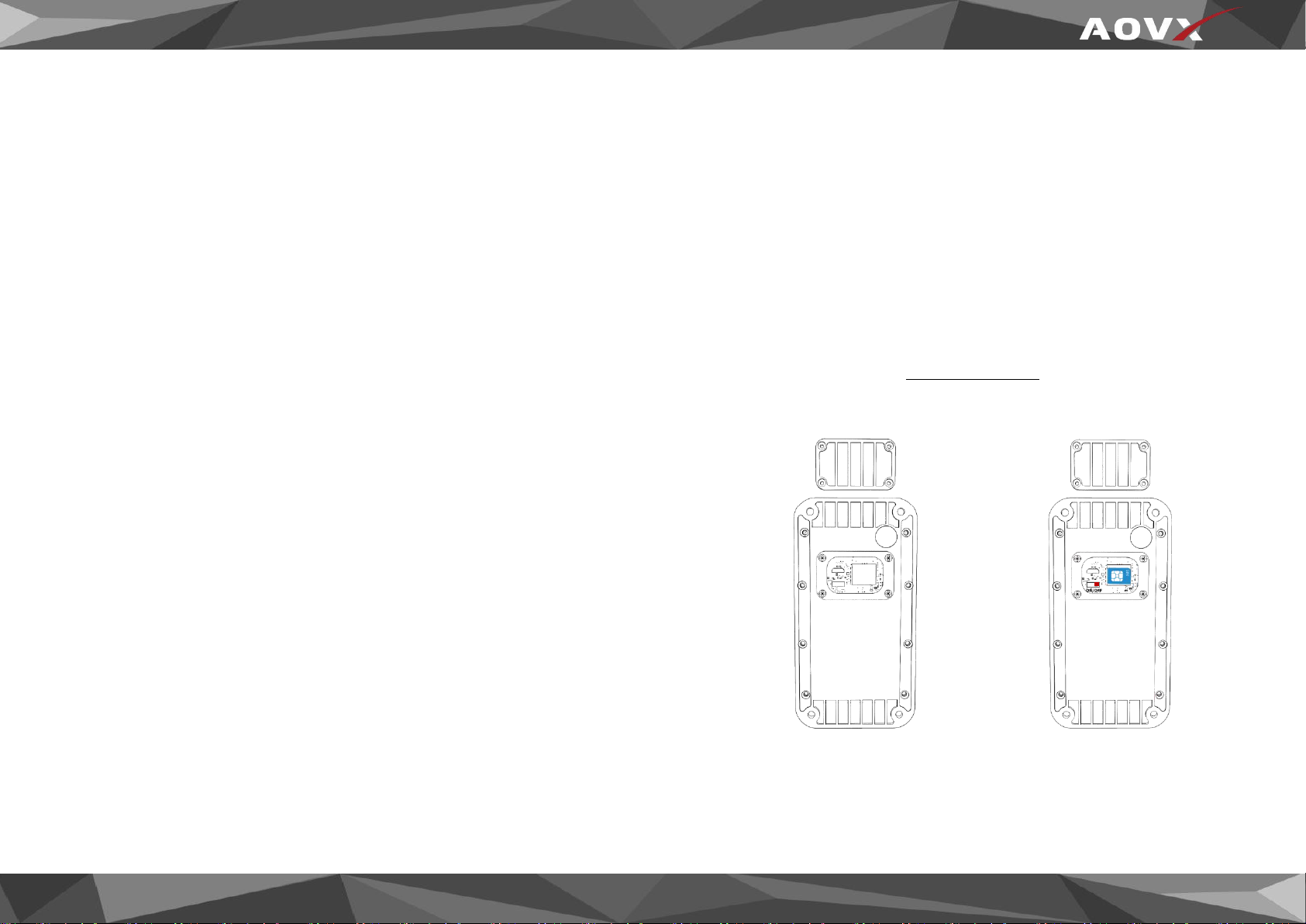

Figure_3 Turn the switch and check the LED indicators

www.aovx.com
7
commands
Examples
IP=<index>,<ip>,<port>
configure IP
APN=<apn>,<name>,<password>
configure APN
TIMEZONE=<zone>
configure timezone
TIMEGAP=<index>+<time>
configure report interval
More details about the commands in the list can be find in AOVX AT
commands.
Default configuration settings
Report Interval
Report:Report every 3600s by default.
Sample:Sampling every 3600s by default.
Device configuration
Work mode:Optional
G sensor:Range:±4G;Threshold:100; Time:3; Interval time:10 by
default.
Light: Threshold:500; Interval:10s by default.
Timezone: UTC+0 by default.
GNSS Galaxy: GPS+BD by default.
Protocol
Protocol:Type:JT808 by default; Ver:2013; Encry:NULL; Link:TCP
by default. Reportmask, Bule toothmask and sensormask are optional.
2.3 Installation
placed directly with the goods
Install via 3M tape
Install via screws
Install via magnet
3 LED light indications
The three indicators are always on under the normal working state of
the device, and all three indicators are off under the sleep state.
System LED indication

www.aovx.com
8
Table 2 System LED
COLOR
STATE
MEANING
Red
Flash slowly
The device works normally
Flash quickly
The device works abnormally.
Off
No power or in sleep mode
Network LED indication
Table 3 Network LED
COLOR
STATE
MEANING
Green
On
Linking server succeeded
Flash
Searching for network or
linking server
Off
No power or in sleep mode
GNSS LED indication
Table 4 GNSS LED
COLOR
STATE
MEANING
Blue
On
Fix normally
Flash
Searching GNSS
Off
No power or in sleep mode

www.aovx.com
9
Safety Information
This message contains information on how to operate AX300 safely. By
following these requirements and recommendations, you will avoid
dangerous situations. You must read these instructions carefully and
follow them strictly before operating the device!
To avoid mechanical damage, it is advised to transport the device in
an impact-proof package. Before usage, the device should be placed
so that its LED indicators are visible. They show the status of device
Do not disassemble the device. If the device is damaged,
the power supply cables are not isolated or the isolation
is damaged, DO NOT touch the device before unplugging
the power supply.
All wireless data transferring devices produce interference
that may affect other devices which are placed nearby.
The programming must be performed using a PC with
autonomic power supply.
Installation and/or handling during a lightning storm is
prohibited.
AOVX is not responsible for any harm caused by wrong
cables used for connection between PC and AX300
WARNING! Do not use AX300 device if it distracts driver
or causes inconvenience due to AX300 placement. Device
must not interfere with driver.
Battery should not be disposed of with general household
waste. Bring damaged or worn-out batteries to your local
recycling center or dispose them to battery recycle bin
found in stores.

www.aovx.com
10
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator and
your body.
