Apec Water GREEN CARBON Series Service manual

GREEN CARBON WATER CONDITIONER
CHLORINE & CHLORAMINES REMOVAL SYSTEM
INSTALLATION INSTRUCTION
& OWNER’S MANUAL Ver 2.0
All Rights Reserved © APEC Water Systems
www.FreeDrinkingWater
.com

1

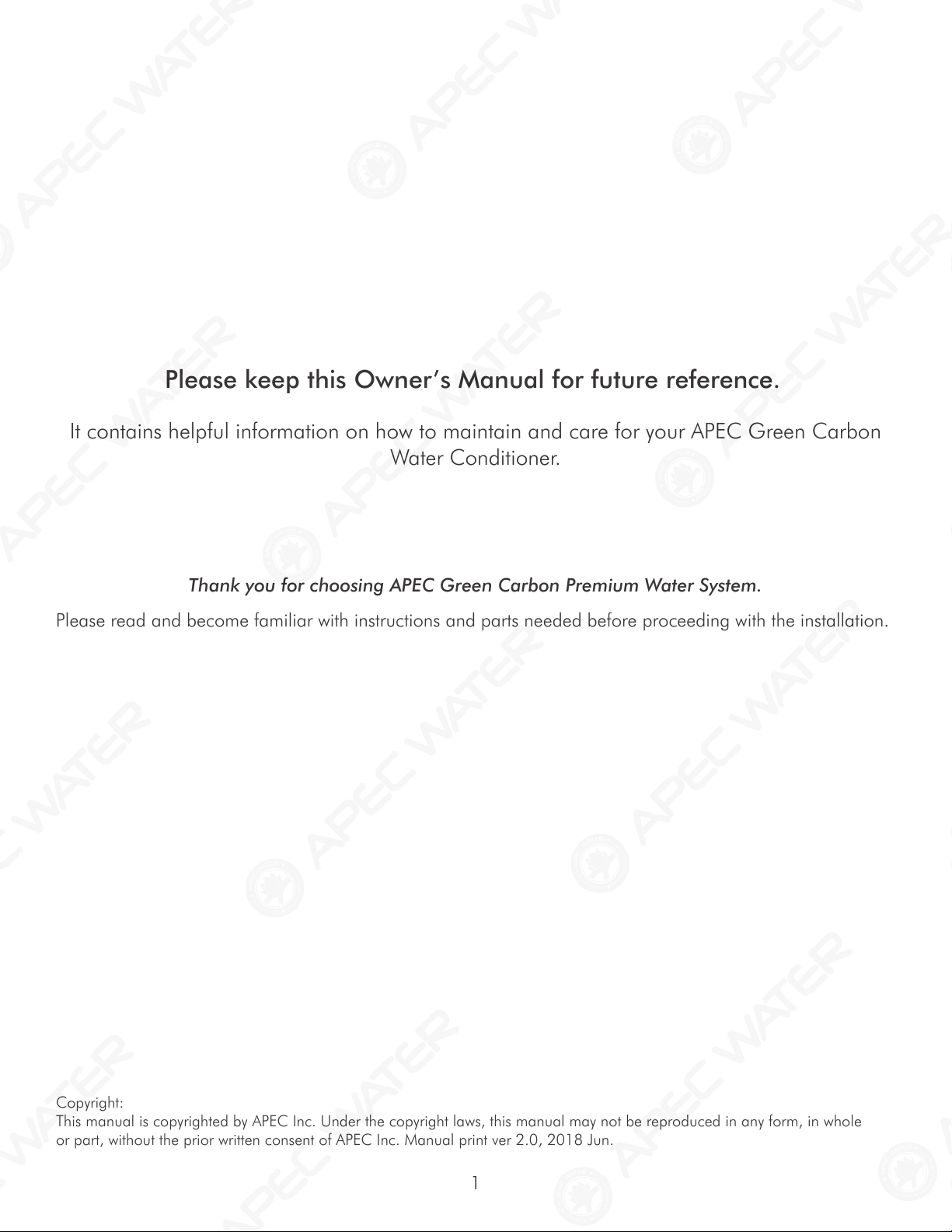

Please keep this Owner’s Manual for future reference.
It contains helpful information on how to maintain and care for your APEC Green Carbon
Water Conditioner.
Thank you for choosing APEC Green Carbon Premium Water System.
Please read and become familiar with instructions and parts needed before proceeding with the installation.
Copyright:
This manual is copyrighted by APEC Inc. Under the copyright laws, this manual may not be reproduced in any form, in whole
or part, without the prior written consent of APEC Inc. Manual print ver 2.0, 2018 Jun.

2
1” Quick Connect
Elbow Solvent Kit
Rubber O-rings
Brass Sweat Adapter Kit
Plastic Split Rings
X 2
X 2
Bypass Valve
X 1
X 2
X 2
X 2
Parts List for Green Carbon Conditioning System Installation Kit
(2 packages):
Package #1: Media tank and filter system installation kit.
V3007-02LF kit includes:
Plastic Split Rings
X 2
V3007 kit includes:
Rubber O-rings
X 2
1” Quick Connect
X 2

3
Package #2: Water treatment system media.
Water Treatment Media
The media weight varies from 27.5 lbs. to 55 lbs., depending on the system model.
Tank with In/Out Valve
X 1
Green Carbon Sytem Media Flush kit:
1 each 1” Dura Coupling
FPT PVC Adapter (D2466)
1 each 1” MPT x 3/4” FPT
PVC Dura Bushing (D2464)
1 each 3/4” FHT x 3/4” MPT x 1/2” FPTB
Garden Hose Brass Adapter (A-679)
Media tank:
Funnel
X 1

4

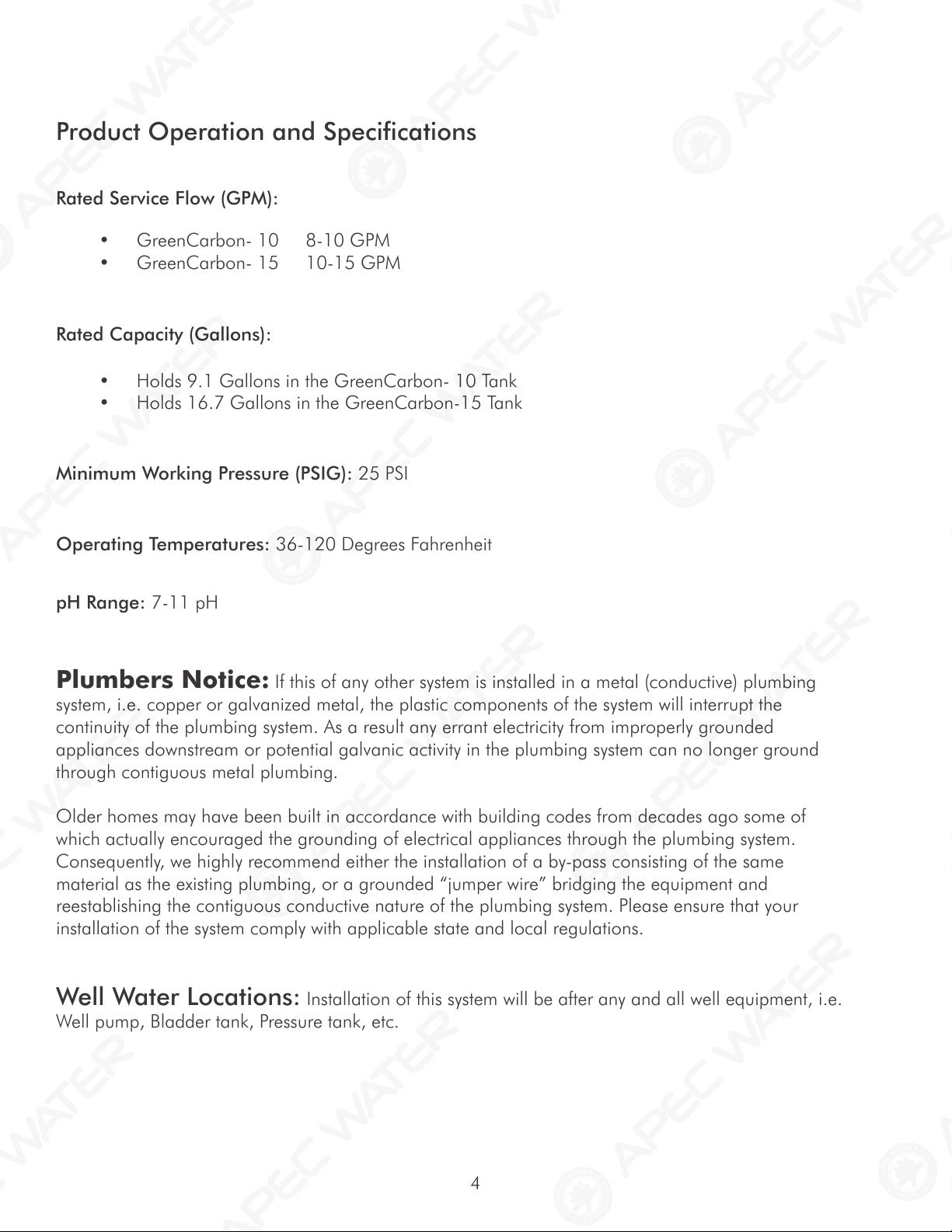

Product Operation and Specifications
Rated Service Flow (GPM):
• GreenCarbon- 10 8-10 GPM
• GreenCarbon- 15 10-15 GPM
Rated Capacity (Gallons):
• Holds 9.1 Gallons in the GreenCarbon- 10 Tank
• Holds 16.7 Gallons in the GreenCarbon-15 Tank
Minimum Working Pressure (PSIG): 25 PSI
Operating Temperatures: 36-120 Degrees Fahrenheit
pH Range: 7-11 pH
Plumbers Notice: If this of any other system is installed in a metal (conductive) plumbing
system, i.e. copper or galvanized metal, the plastic components of the system will interrupt the
continuity of the plumbing system. As a result any errant electricity from improperly grounded
appliances downstream or potential galvanic activity in the plumbing system can no longer ground
through contiguous metal plumbing.
Older homes may have been built in accordance with building codes from decades ago some of
which actually encouraged the grounding of electrical appliances through the plumbing system.
Consequently, we highly recommend either the installation of a by-pass consisting of the same
material as the existing plumbing, or a grounded “jumper wire” bridging the equipment and
reestablishing the contiguous conductive nature of the plumbing system. Please ensure that your
installation of the system comply with applicable state and local regulations.
Well Water Locations: Installation of this system will be after any and all well equipment, i.e.
Well pump, Bladder tank, Pressure tank, etc.

5

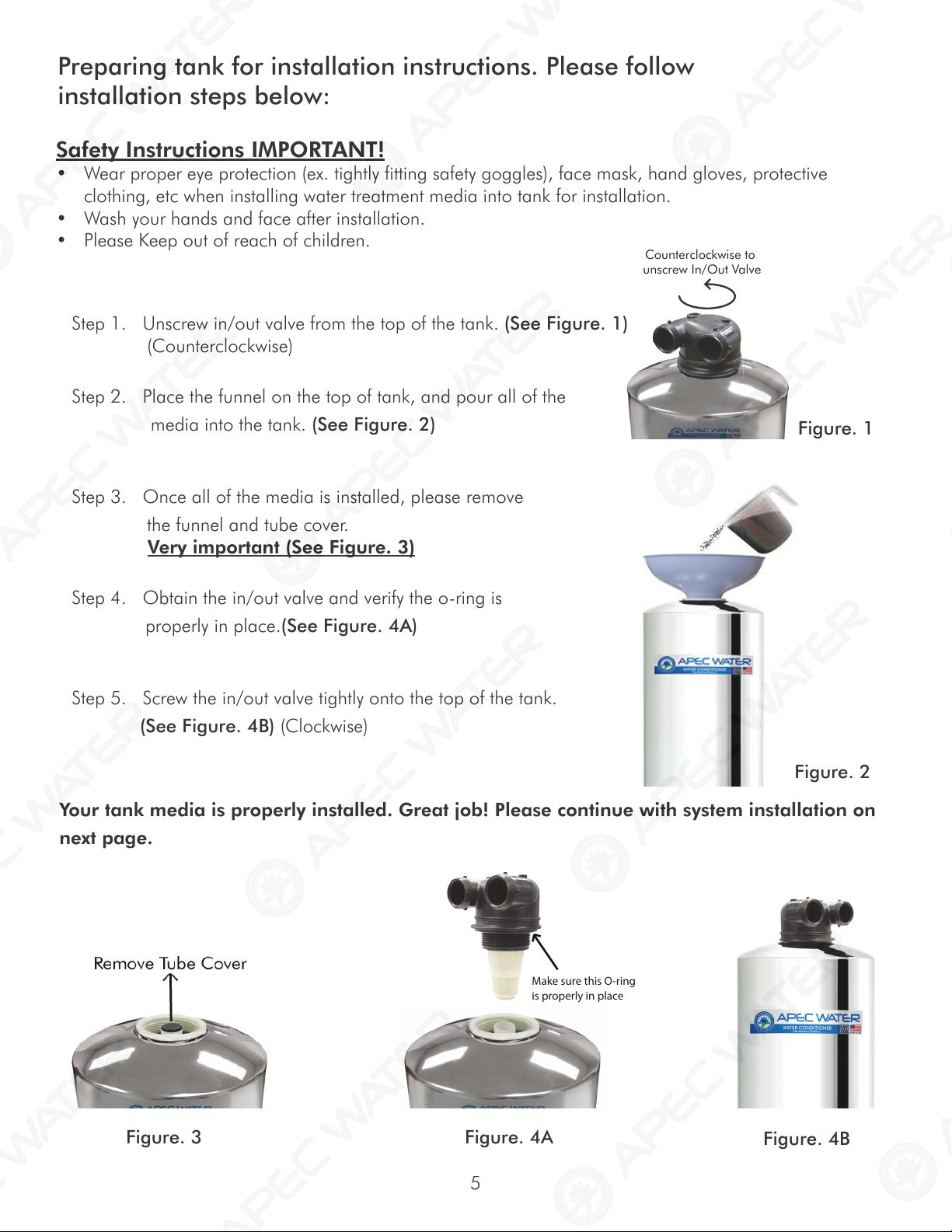

Step 1. Unscrew in/out valve from the top of the tank. (See Figure. 1)
(Counterclockwise)
Step 2. Place the funnel on the top of tank, and pour all of the
media into the tank. (See Figure. 2)
Step 3. Once all of the media is installed, please remove
the funnel and tube cover.
Very important (See Figure. 3)
Step 4. Obtain the in/out valve and verify the o-ring is
properly in place.(See Figure. 4A)
Step 5. Screw the in/out valve tightly onto the top of the tank.
(See Figure. 4B) (Clockwise)
Your tank media is properly installed. Great job! Please continue with system installation on
next page.
Preparing tank for installation instructions. Please follow
installation steps below:
Figure. 1
Figure. 3 Figure. 4B
Figure. 2
Figure. 4A
Counterclockwise to
unscrew In/Out Valve
Make sure this O-ring
is properly in place
Safety Instructions IMPORTANT!
• Wear proper eye protection (ex. tightly fitting safety goggles), face mask, hand gloves, protective
clothing, etc when installing water treatment media into tank for installation.
• Wash your hands and face after installation.
• Please Keep out of reach of children.

6
System Installation:
This is an overview for the system installation.
Figure. 1
1. Turn off water supply where it enters the building.
2. Install a shut off valve (if needed) then install the Whole House Sediment Filter in the vertical
position. Make sure the flow direction is correct. Plumbing pipes are not designed to support
the weight of the filter. Use a mounting bracket to secure the Whole House Sediment Filter to
the wall. Be sure to remove the plastic wrap on the filter before installing the filter.
(See installation guide for Whole House Water Filter for more detailed information).
INCOMING WATER SUPPLY
IN OUT
Figure. 2
INC
OMING
WA
TER SUPPLY
OUT GOING
WATER TO HOUSE
Whole House Filters
UPFLOW
DOWNFLOW
INLET
INLET
INPUT
OUTPUT
Wall
Shut O Valve
IN OUT

7
!
Flushing the Carbon in the Carbon Tank:
Use provided parts V3007, D2466, D2464, A-679.
Once the media tank is installed on the main water pipe, you must Flush Out the Carbon media for
10-15 minutes or until the water runs clear. To flush the media turn the Bypass Valve to Normal
Operation Mode. (See figure. 3). Once the bypass valve is open, find the outside garden hose faucets
that are located nearest the Green Carbon Tank and open the faucets all the way to flush the system.
Note: Some homes may have a separate line for the home and garden. If this is the case, attach a
garden hose to the UP-Flow Side of the control head. (See Figure. 3). Turn the Bypass Valve to Normal
Operation Mode, and let the water run out of the garden hose for 10-15 minutes or until the water
runs clear. Once the carbon flush is complete, attach the UP-Flow Inlet to the main water line going
into the home.
Caution: Failure to completely flush the media prior to use may result in carbon blocking
the top basket and reducing water flow in the home. It may also fill up your kitchen sink, bathtub with
black carbon fines.
Figure. 3
UPFLOW
DOWNFLOW
INLET
INLET
INPUT
OUTPUT
Garden Hose
INC
OMING
WA
TER SUPPLY
Valve In Normal Operation

8

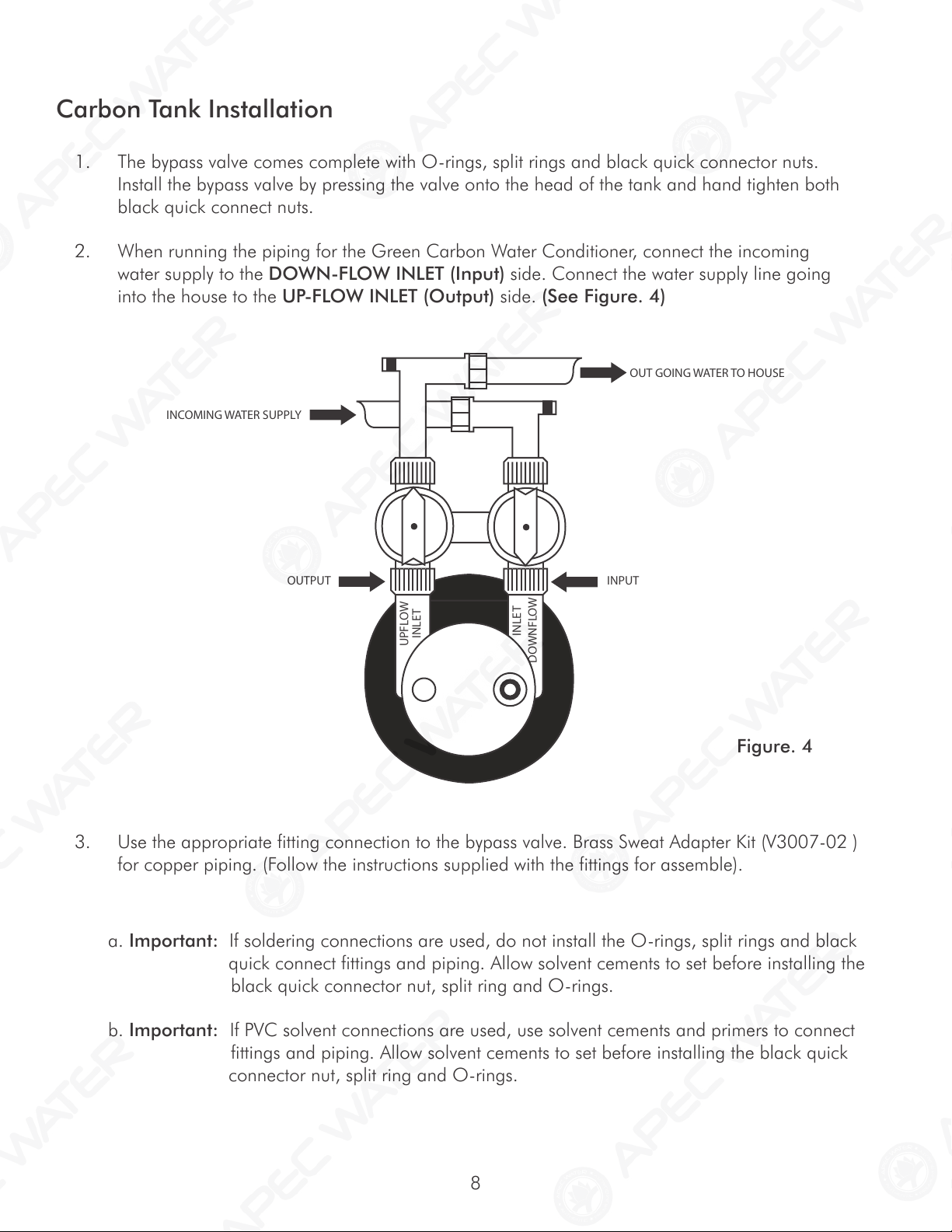

Carbon Tank Installation
1. The bypass valve comes complete with O-rings, split rings and black quick connector nuts.
Install the bypass valve by pressing the valve onto the head of the tank and hand tighten both
black quick connect nuts.
2. When running the piping for the Green Carbon Water Conditioner, connect the incoming
water supply to the DOWN-FLOW INLET (Input) side. Connect the water supply line going
into the house to the UP-FLOW INLET (Output) side. (See Figure. 4)
UPFLOW
DOWNFLOW
INLET
INLET
INPUT
OUTPUT
INC
OMING WATER SUPPLY
OUT GOING WATER TO
HOUSE
3. Use the appropriate fitting connection to the bypass valve. Brass Sweat Adapter Kit (V3007-02 )
for copper piping. (Follow the instructions supplied with the fittings for assemble).
a. Important: If soldering connections are used, do not install the O-rings, split rings and black
quick connect fittings and piping. Allow solvent cements to set before installing the
black quick connector nut, split ring and O-rings.
b. Important: If PVC solvent connections are used, use solvent cements and primers to connect
fittings and piping. Allow solvent cements to set before installing the black quick
connector nut, split ring and O-rings.
Figure. 4

9
Bypass Valve Operation Mode
Normal Operation Mode: Water flows through the Bypass Valve and into the Green Carbon
Conditioner supplying treated water into the house. (See Figure 5)
UPFLOW
DOWNFLOW
INLET
INLET
INPUT
OUTPUT
INCOMING WATER SUPPLY
OUT GOING WATER TO HOUSE
Figure. 5
Bypass Operation Mode: Water flows through the Bypass Valve without entering the Green Carbon
Conditioner and the water entering the house is untreated. (See Figure 6)
UPFLOW
DOWNFLOW
INLET
INLET
INPUT
OUTPUT
INCOMING WATER SUPPLY
OUT GOING WATER TO HOUSE
Figure. 6

10
Carbon Conditioner Overview
1. During the carbon flush, the pressure can start to drop off. If this happen, turn off the water
and let the tank sit about 30 minutes to allow the carbon to settle down off of the basket inside
the tank. Pressure drop can occur as there is air trapped in the carbon bed that needs to be
released from the tank. If the pressure continues to drop after 30 minutes, let the system stand
for 72 hours. After 72 hours, slowly turn the water supply back on and continue the carbon
wash.
2. Even after the carbon flush, you may notice that the water to your home may be gray. This is
normal with all carbon filters and this will slowly fade away. The carbon inside the tank may still
have air pockets, and can turn the water gray with carbon dust. The carbon dust is completely
harmless.
3. The pleated sediment pre filter provided can be rinsed out and reused. Depending on the
amount of sediment present in your water supply, it is recommend to check the pre filter every
6-12 months. If you notice a pressure loss, the sediment filter can be clogged and needs to be
rinsed out. After 1-2 rinses of the sediment filter it is recommend to replace the entire sediment
pre filter.
4. After the installation of the Green Carbon Conditioner, CHECK FOR LEAKS. If you notice water
leaking at the control head, turn the head to tighten it up. The tank head is hand tighten, do
not over tighten the head. Do not over tighten any of the fitting during installation. All fittings
should be hand tightened with the exception of the pre-filter housing.
5. The bottom of the tank is round, and uses the tank stand to stand the tank upright. If the tank
leans to one side simply raise the tank in the air and set it on the ground until the tank stands
vertical. You should do this before filling the tank with water, as the tank will be heavy when
filled with water.
6. After installation the arrows on the bypass valve may be pointing in different directions than
shown in our diagrams. If this is the case simply pull up on the Red Arrows and turn them
around.
7. Once the installation is complete, remove the protective film around the Stainless Steel tank
jacket.
**** END OF INSTALLATION MANUAL****

11
WARRANTY POLICY
For a period of ten years from the date of original purchase, APEC will replace any part of the filter
housing, tank heads, and the bypass valves that APEC finds to be defective in operation due to faulty
materials or workmanship with the exception of the replaceable media, which shall be prorated. The
customer pays only for shipping. Service schedule depends on local input water quality.
Damage to any part of this Green Carbon Water Conditioner because of misuse, misapplication,
negligence, alteration, accident, installation or operation contrary to our instructions, incompatibility
with accessories not installed by APEC, or damage caused by freezing, flood, fire, or Act of God, is not
covered by this warranty. In all such cases, regular charges will apply. This warranty is void if the unit is
not operated under normal operating conditions as the unit is intended for.
We assume no warranty liability in connection with this carbon conditioner other than specified herein.
This warranty is in lieu of all other warranties, expressed or implied, including warranties of fitness for a
particular purpose. We do not authorize any person or representative to assume for us any other obli-
gations on the sale of this water softener.
This warranty becomes effective when the system is installed correctly and used properly. This carbon
conditioner unit has been inspected and approved at our factory. Through this warranty we are demon-
strating our confidence in APEC products.

Advanced Purification Engineering Corp.
1320 S Johnson Drive
City of Industry, CA 91745
For questions or comments please visit our website at:
www.FreeDrinkingWater.com
For technical support contact us at:
[e-mail]
1-800-880-4808
