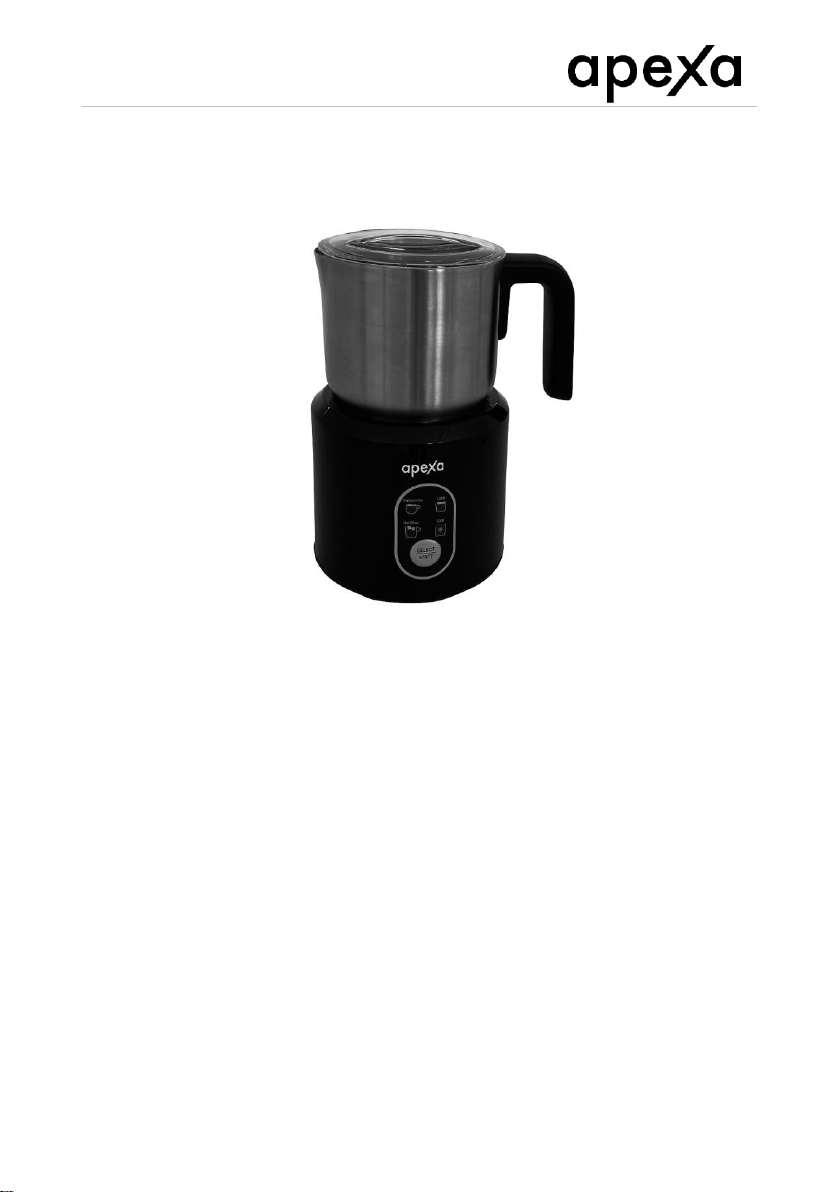

apexa X1008 User manual

0,75L
X1008

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Service hotline: [phone]
www.apexa.de
Version: 1.0
Date of preparation: 2021-07-08
EN

X1008 1 / 18
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and Warranty ..............................................................................7
2.2 Copyright Protection ................................................................................7
2.3 Declaration of Conformity ........................................................................7
3Transport, Packaging and Storage................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical Data...............................................................................................9
4.1 Technical Specifications ..........................................................................9
4.2 List of Components of the Appliance .....................................................10
4.3 Functions of the Appliance.....................................................................10
5Installation and operation ............................................................................11
5.1 Installation..............................................................................................11
5.2 Operation...............................................................................................12
6Cleaning ......................................................................................................15
6.1 Safety Instructions for Cleaning.............................................................15
6.2 Cleaning.................................................................................................15
7Disposal....................................................................................................... 16

Safety
2 / 18 X1008
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle und Nachschl agewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung für das sich ere und sac hgerechte Arbeite n mitd emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingeh alten werden. Diese Bedi enungsanleitung ist Bestandteil des Produkts und m ussi n unmittelbarer Näh e des Geräts für das In¬stall ations-, Bedienu ngs-, Wartungs- und R einigungspersonal jed erzeit zugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
X1008 3 / 18
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 18 X1008
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot Surfaces
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Health hazard due to germs!
•The mixing beaker must be periodically emptied, cleaned, and disinfected to
eliminate the possibility of growth of harmful germs.
Supervised Usage only
•Only supervised appliance may be used.

Safety
X1008 5 / 18
EN
•Always remain in an immediate vicinity of the appliance.
Halten Sie Verpacku ngsmaterialien und St yroporteile von Kindern f ern.Si e können sich darin verfangen und erstic ken.
Operating personnel
•The appliance can be used by children of 8 years old and older, as well as by
people with reduced physical, sensory or mental abilities and those with limited
experience/knowledge as long as they are under supervision or have been
instructed on safe use of the appliance and possible risks. Children should not
play with the appliance.
•Do not leave the appliance unattended in the presence of children.
Improper use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used in a technically flawless condition, providing for
safe use.
•The appliance may only be used with connections in a technically flawless
condition, providing for safe use.
•The appliance may only be used clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not attempt to modify nor alter the appliance.

Safety
6 / 18 X1008
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–preparing frothed milk or heating up milk.
The appliance is not designed for continuous operation in industrial
applications.
This appliance is intended for use in households and similar places, e.g.:
–in employee canteens in shops, offices, and similar areas;
–on farms;
–by customers in hotels, motels, and other typical accommodation
establishments;
–in lodging-houses.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–boiling of liquids containing sugar, sweeteners, acids, lyes, or alcohols;
–storing and heating up flammable, harmful, and quickly evaporating
liquids or materials, etc.

General information
X1008 7 / 18
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 18 X1008
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
X1008 9 / 18
EN
4 Technical Data
4.1 Technical Specifications
Name:
Milk frother 0,75L
Art. No.:
X1008
Material:
Stainless steel
Volume, in l:
0,75
Temperature range, min.–max., in °C:
0 - 70
Max. filling level when frothing milk, in ml:
250
Max. filling level when heating up milk, in
ml:
500
Power supply:
0,5 kW | 220-240V | 50/60 Hz
Dimensions (W x D x H), in mm:
135 x 160 x 210
Weight, in kg:
0,93
We reserve the right to implement technical modifications.
Version / Characteristics
•Version: table-top appliance
•Mixing beaker:
–detachable
•Automatic switch-off
•Control:
–key
•ON/OFF switch
•Indicator light: operating mode
–lid with holder for mixing disk
•The set includes:
–1 mixing disk for heating up milk
–1 mixing disk for frothing milk

Technical Data
10 / 18 X1008
EN
4.2 List of Components of the Appliance
1. Heating plate
2. Mixing beaker
3. Mixing beaker handle
4. Lid with holder
5. Mixing disk for frothing milk
6. Mixing disk for heating up milk
7. Control unit
8. Base with motor
4.3 Functions of the Appliance
With the milk frother you may prepare warm, frothed milk for cappuccino and latte
macchiato or cold, frothed milk for ice coffee. Moreover, with the milk frother, you
may heat up milk or milk with powdered chocolate.

Installation and operation
X1008 11 / 18
EN
5 Installation and operation
5.1 Installation
Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•Halten Sie zu Wänden seitlic h und hinten oder zu andere n Gegenständen ein en ausreichenden Abs tand ein, um die Einwir kung von Hitze zu ver meiden. Falls dies nicht mögl ichis t, bringen Sie Schutz vorrichtungen an, z.B. Foli en aus hitzebestän digemM aterial.
•Leave at least 10 cm clearance from flammable walls and items.

Installation and operation
12 / 18 X1008
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
5.2 Operation
WARNING!
Risk of scalding!
The housing and lid heat up considerably during operation.
Do not touch the hot appliance.
Open the lid carefully.
Overfilling of the mixing beaker may cause hot milk to leak and to
scalding!
Observe the maximum filling volume!
1. Before use, clean the appliance observing instructions in section 6.2 'Cleaning'.
Functions
The appliance features four functions.
1. Preparation of hot, frothed milk for cappuccino.
2. Preparation of hot, frothed milk for latte macchiato.
3. Preparation of hot milk or milk with powdered chocolate.
4. Preparation of cold, frothed milk for ice coffee.

Installation and operation
X1008 13 / 18
EN
Control Elements
1. Key for hot, frothed milk for latte macchiato
2. Key for cold, frothed milk for ice coffee
3. ON/OFF switch
4. Key for frothed milk for hot milk
5. Key for frothed milk for cappuccino
Preparation of Frothed Milk for Hot Milk
1. Choose one of the two mixing disks and insert the
disk onto the adapter at the bottom of the mixing
beaker.
Note!
Maximum filling level for milk frothing and for
preparation of hot chocolate is 250 ml (bottom
marking).
Maximum filling level for preparation of hot milk is
500 ml (top marking).
Fig. 1

Installation and operation
14 / 18 X1008
EN
2. Fill the mixing beaker with fresh milk up to the
suitable marking.
Fig. 2
3. Place the lid on the mixing beaker.
4. Place the mixing beaker on the base.
5. Switch the appliance on with the ON/OFF
switch.
6. Select the key with the suitable function.
The indicator light lights up red during operation.
When the process finishes, the appliance switches
off automatically.
7. Pour the frothed milk or hot milk into a suitable
container.
Fig. 3

Cleaning
X1008 15 / 18
EN
6 Cleaning
6.1 Safety Instructions for Cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Clean the appliance daily.
2. If needed, wash the mixing beaker in a dishwasher.
3. Wipe the base, lid and mixing disks with a soft, damp cloth.
NOTE!
Do not hold the motor block under running water.
4. After cleaning, dry the base, lid and mixing disks with a soft, damp cloth.
5. After use, leave the heating plate to cool down.
6. Wipe the heating plate with a soft, damp cloth.

Disposal
16 / 18 X1008
EN
7 Disposal
Electrical Appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
