APEXEL APL-FL07 User manual

Apexel RGB Vlog Light with
Tripod & Wireless Lavillar Mic
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
English
3 –12
Čeština
13 –22
Slovenčina
23 –32
Magyar
33 –42
Deutsch
43 –52

3
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention to
the safety instructions. If you have any questions or comments about the device, please
contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

4
Packaging
RGB LED Light
Type-C Charging Cable
Extendable Pole
Ballhead
Tripod

5
Product Introduction
Power / Mode
Brightness
Adjustment
Type-C Charging Port
Translucent Cover
Display
1/4” Nut
Cold Shoe Port
1/4” Nut

6
Operating Instructions
Power and Mode Selection:
Activate or deactivate the device by performing a long press on the power button.
For mode selection (color temperature mode, RGB mode, HSI mode, special effect
mode), simply perform a short press on the function key.
Color Temperature and Effect Control:
While in CCT/RGB/HSI mode, utilize the wheel by turning it left or right to fine-tune
the color temperature, color, or saturation settings.
In the scene mode, turning the wheel left or right allows you to adjust various
special effects.

7
Brightness Adjustment:
Regardless of the mode you're in, you can adjust the light's brightness by turning
the wheel left or right.
Display Interface Description
In Color Temperature (CCT) Mode:
Adjustable color temperature range: 2500K to 9000K
In RGB Mode:
Hue adjustment range: 0° to 360°
Current Mode
Battery
Color Temperature
Effect Category
Current Selection
Status
Current Brightness Level

8

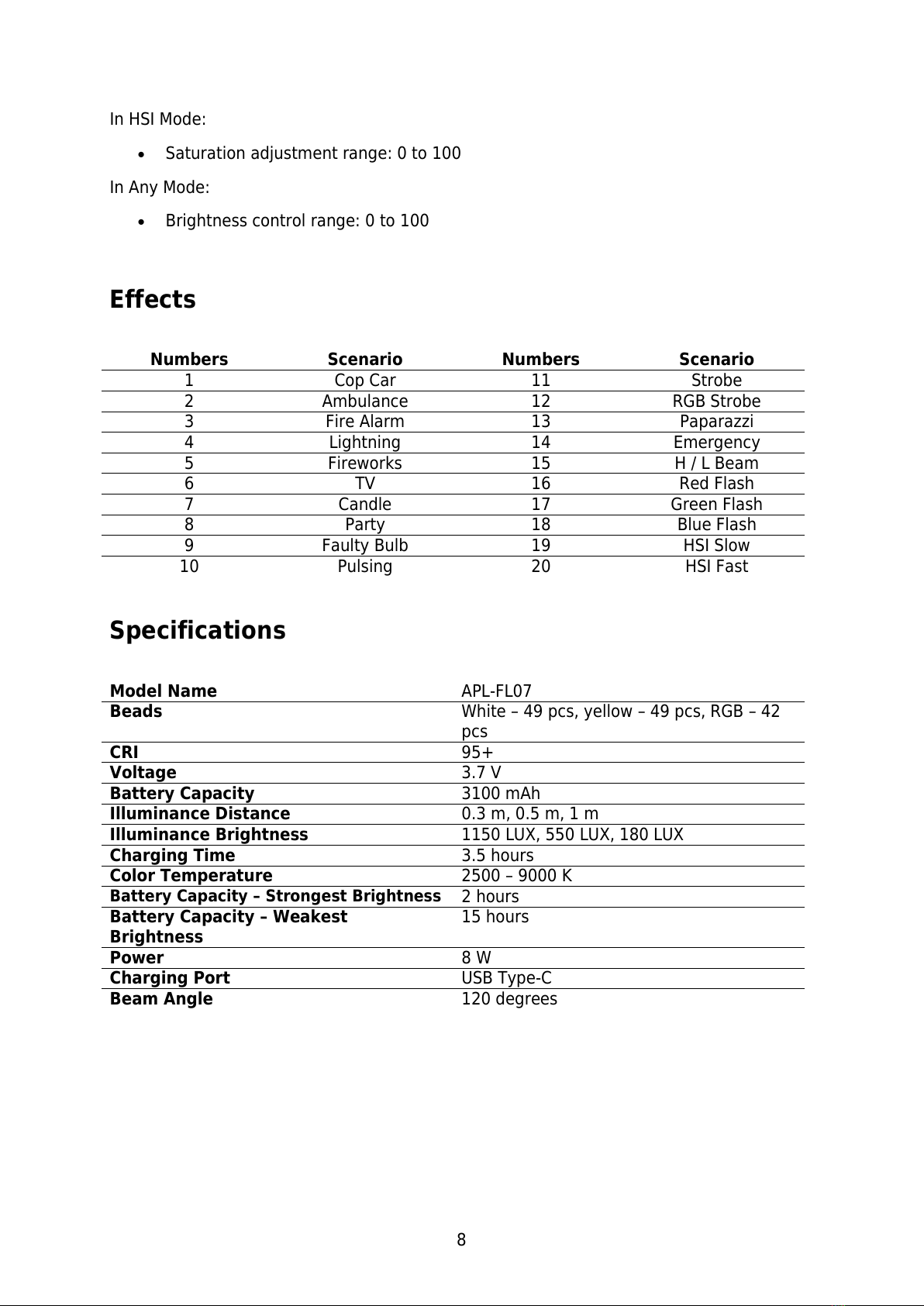

In HSI Mode:
Saturation adjustment range: 0 to 100
In Any Mode:
Brightness control range: 0 to 100
Effects
Numbers
Scenario
Numbers
Scenario
1
Cop Car
11
Strobe
2
Ambulance
12
RGB Strobe
3
Fire Alarm
13
Paparazzi
4
Lightning
14
Emergency
5
Fireworks
15
H / L Beam
6
TV
16
Red Flash
7
Candle
17
Green Flash
8
Party
18
Blue Flash
9
Faulty Bulb
19
HSI Slow
10
Pulsing
20
HSI Fast
Specifications
Model Name
APL-FL07
Beads
White –49 pcs, yellow –49 pcs, RGB –42
pcs
CRI
95+
Voltage
3.7 V
Battery Capacity
3100 mAh
Illuminance Distance
0.3 m, 0.5 m, 1 m
Illuminance Brightness
1150 LUX, 550 LUX, 180 LUX
Charging Time
3.5 hours
Color Temperature
2500 –9000 K
Battery Capacity –Strongest Brightness
2 hours
Battery Capacity –Weakest
Brightness
15 hours
Power
8 W
Charging Port
USB Type-C
Beam Angle
120 degrees

9

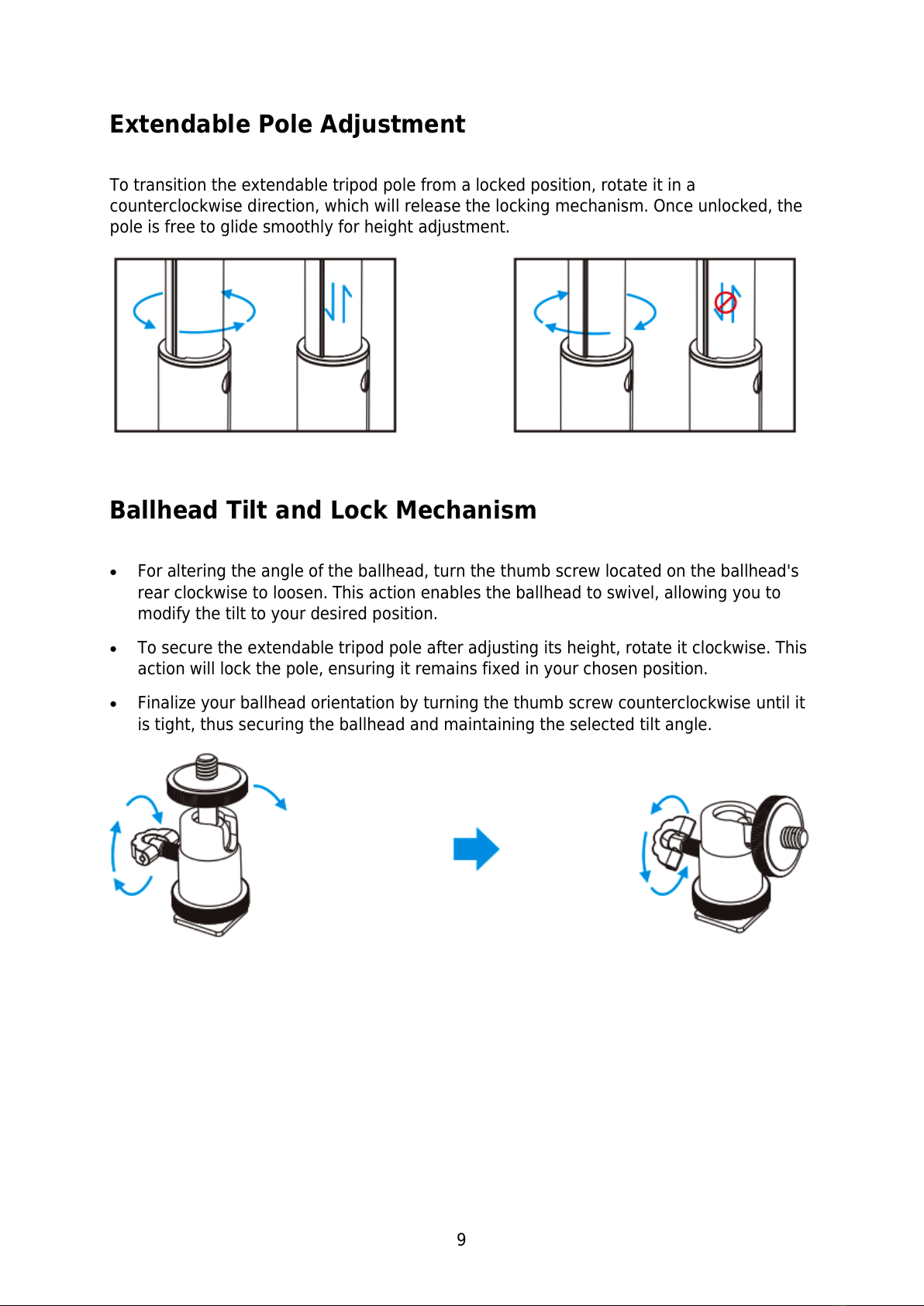

Extendable Pole Adjustment
To transition the extendable tripod pole from a locked position, rotate it in a
counterclockwise direction, which will release the locking mechanism. Once unlocked, the
pole is free to glide smoothly for height adjustment.
Ballhead Tilt and Lock Mechanism
For altering the angle of the ballhead, turn the thumb screw located on the ballhead's
rear clockwise to loosen. This action enables the ballhead to swivel, allowing you to
modify the tilt to your desired position.
To secure the extendable tripod pole after adjusting its height, rotate it clockwise. This
action will lock the pole, ensuring it remains fixed in your chosen position.
Finalize your ballhead orientation by turning the thumb screw counterclockwise until it
is tight, thus securing the ballhead and maintaining the selected tilt angle.

10
Versatile Assembly Options
The LED light kit is engineered for versatile setup and connectivity, accommodating a
diverse range of lighting requirements.
Cautionary Advice
Avoid storing the product in environments where corrosive chemicals are present to
prevent any form of corrosive damage.
Important Notes
To ensure the product's integrity, clean it exclusively with a microfiber cloth and
ensure it remains dry.
Handle the product with care to prevent damage from drops or physical impacts.
Protect the product from extreme heat as high temperatures may impair its
functionality. In the event of operational issues, seek assistance from authorized
service centers. Unauthorized disassembling of the product voids the warranty,
although paid repair services are available.
For optimal performance, the use of genuine cable accessories is advised. The
warranty does not cover malfunctions caused by non-original accessories, but repair
services are offered for a fee.
